Sayfa 1-41 - Isuzu EPC

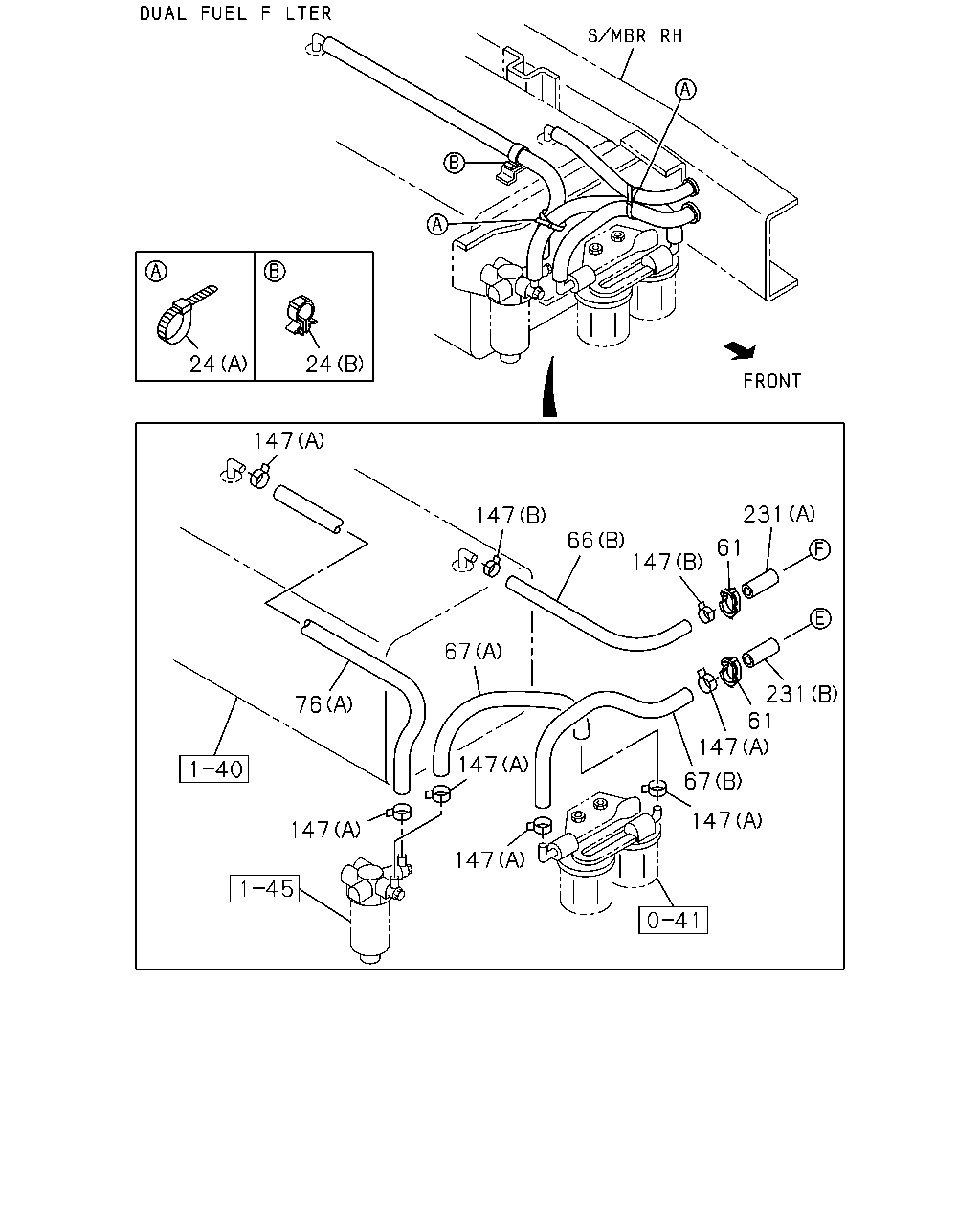

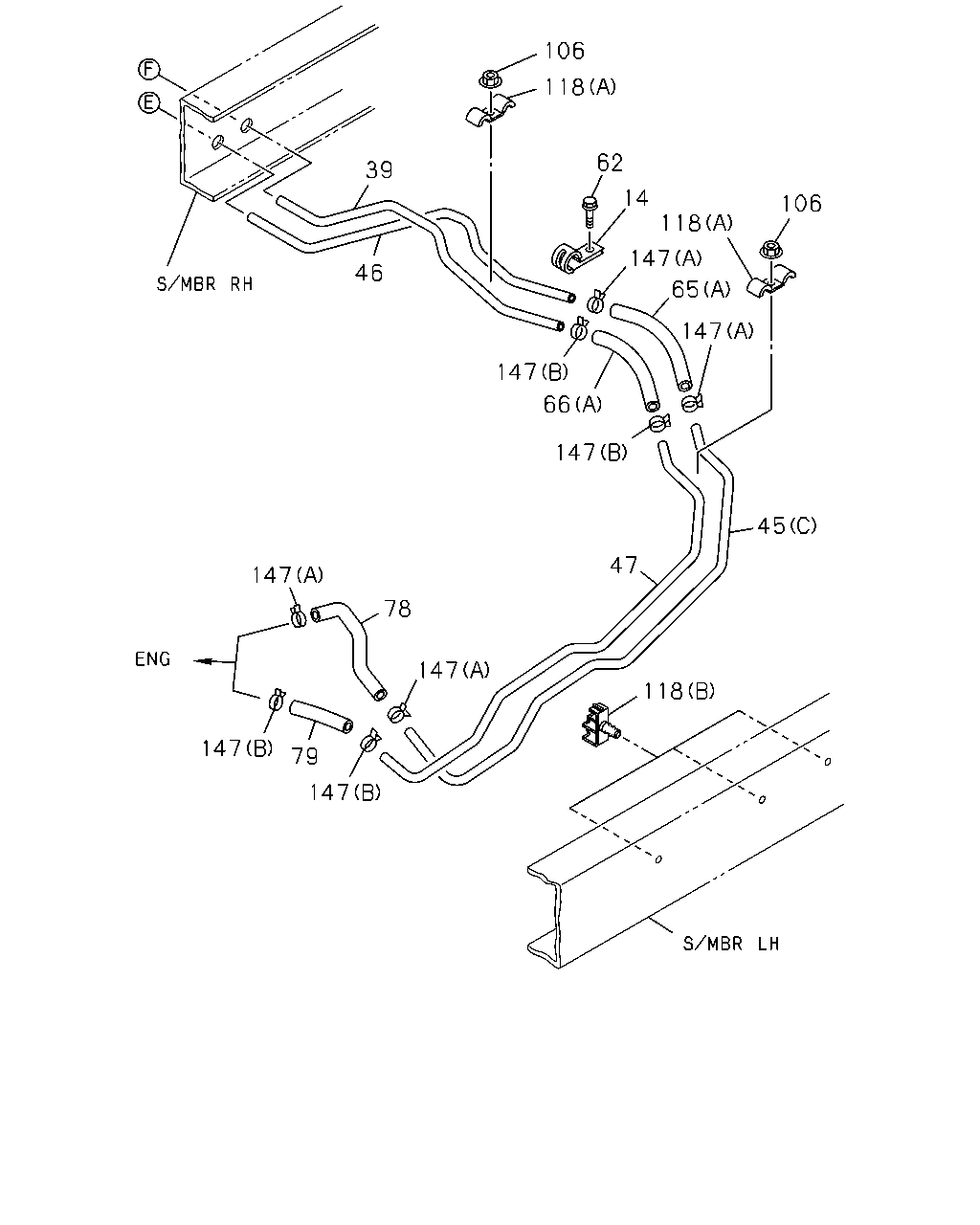

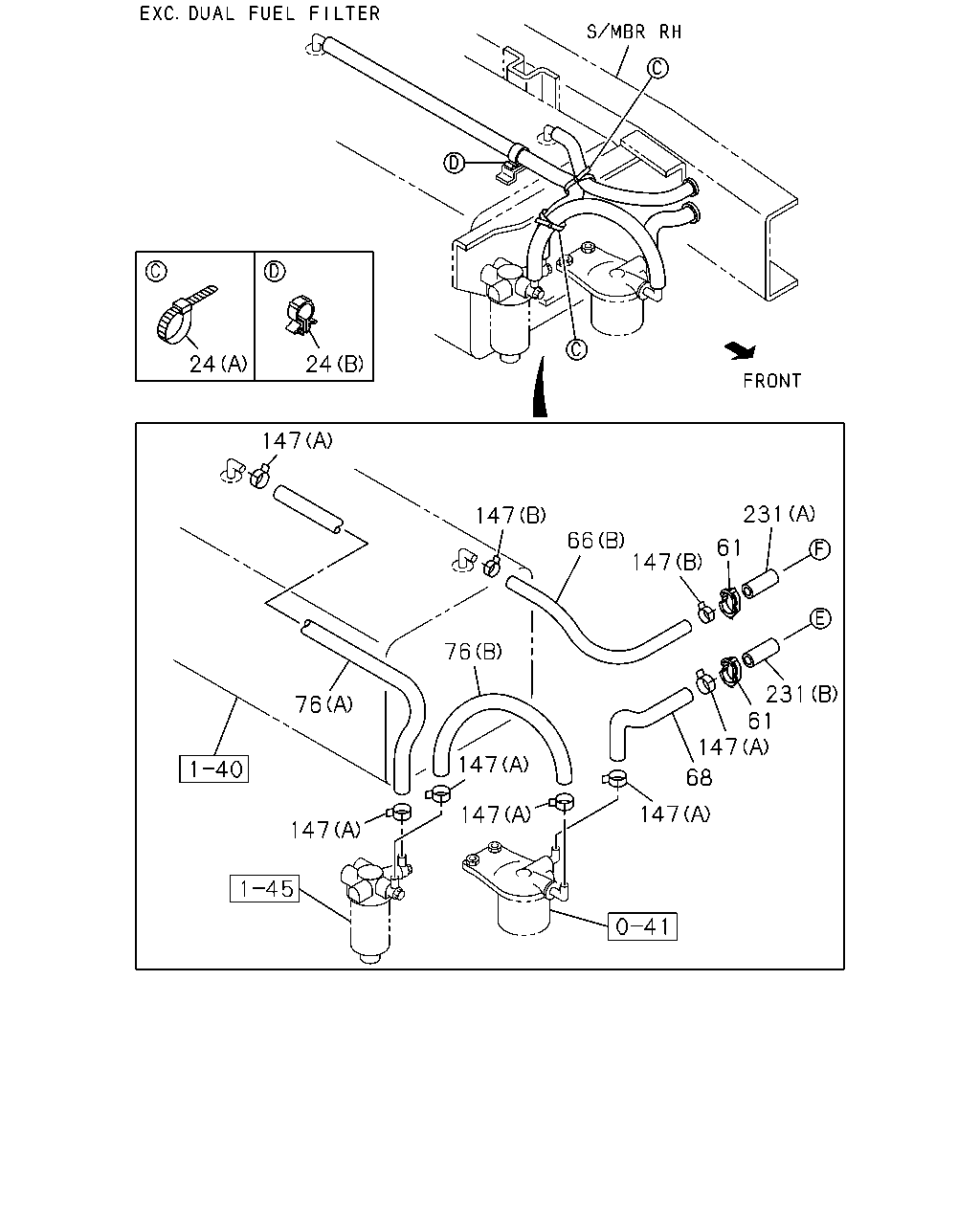

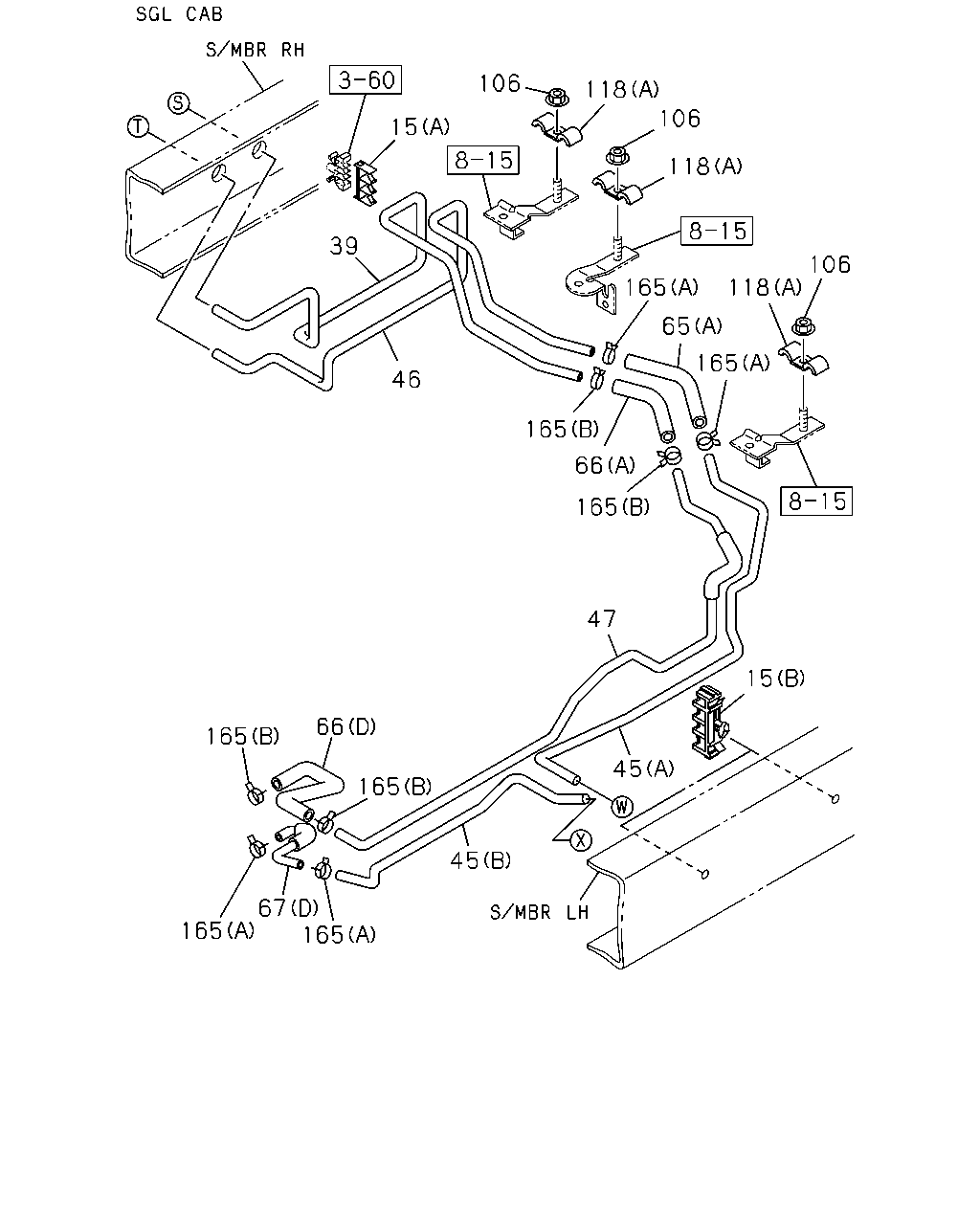

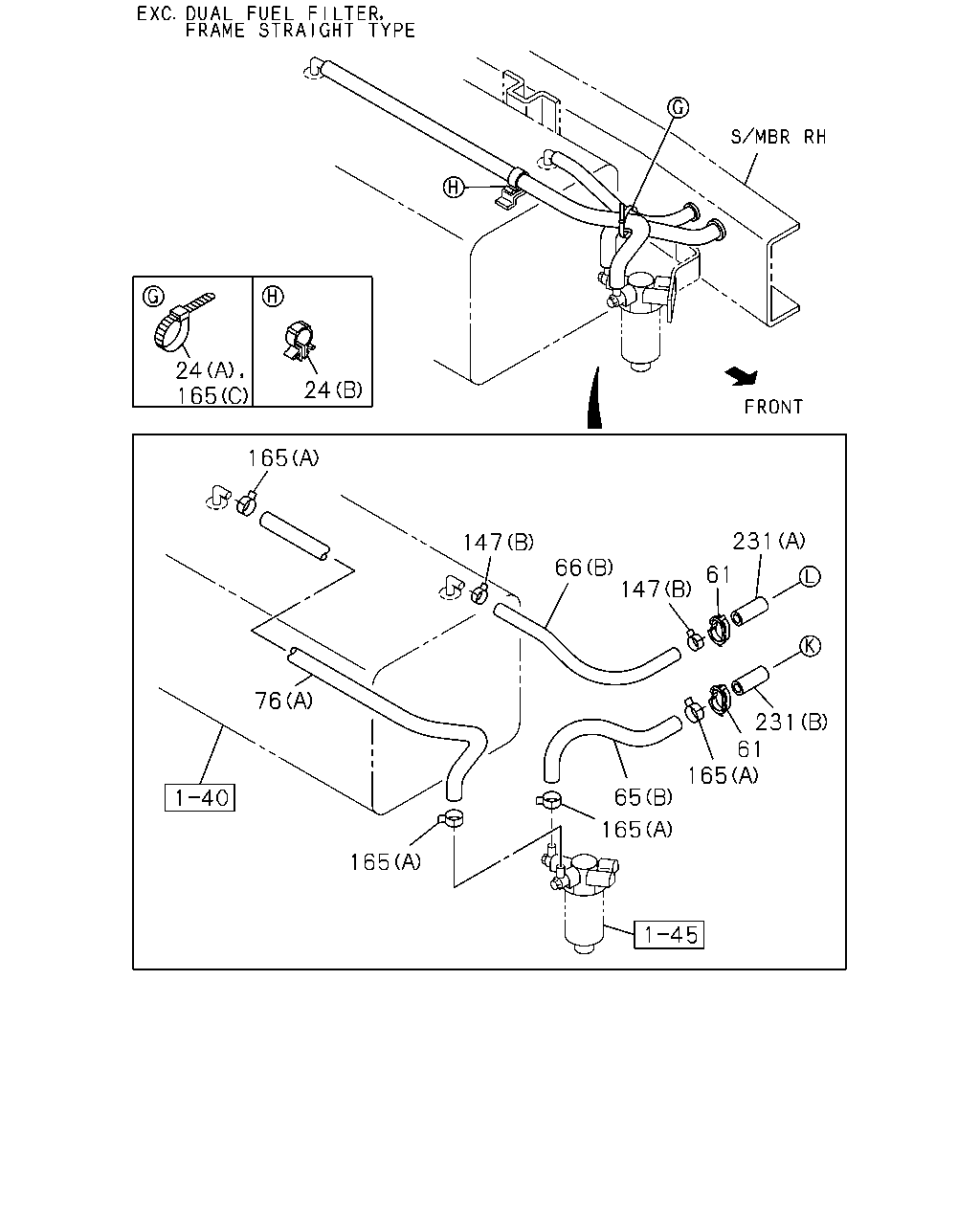

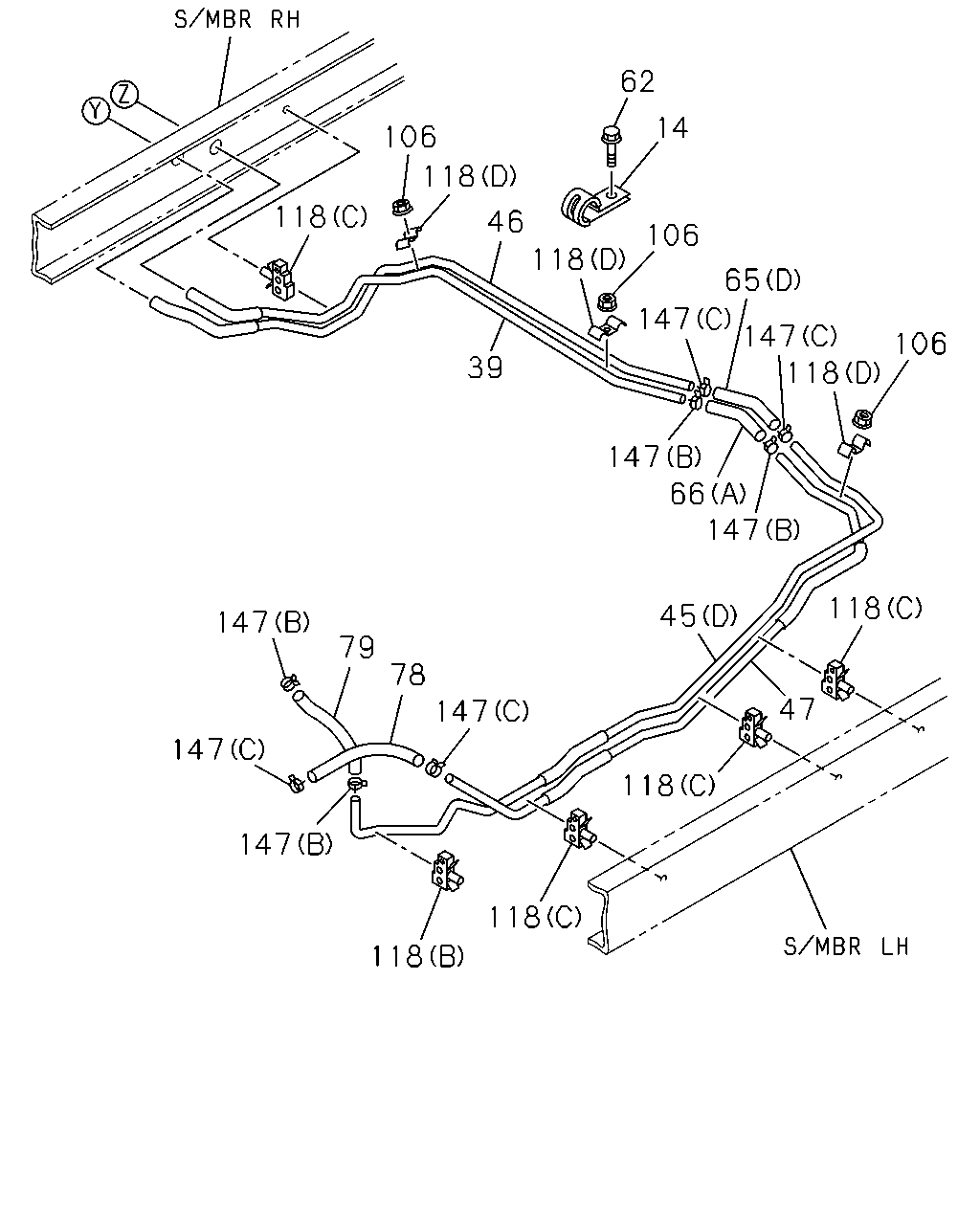

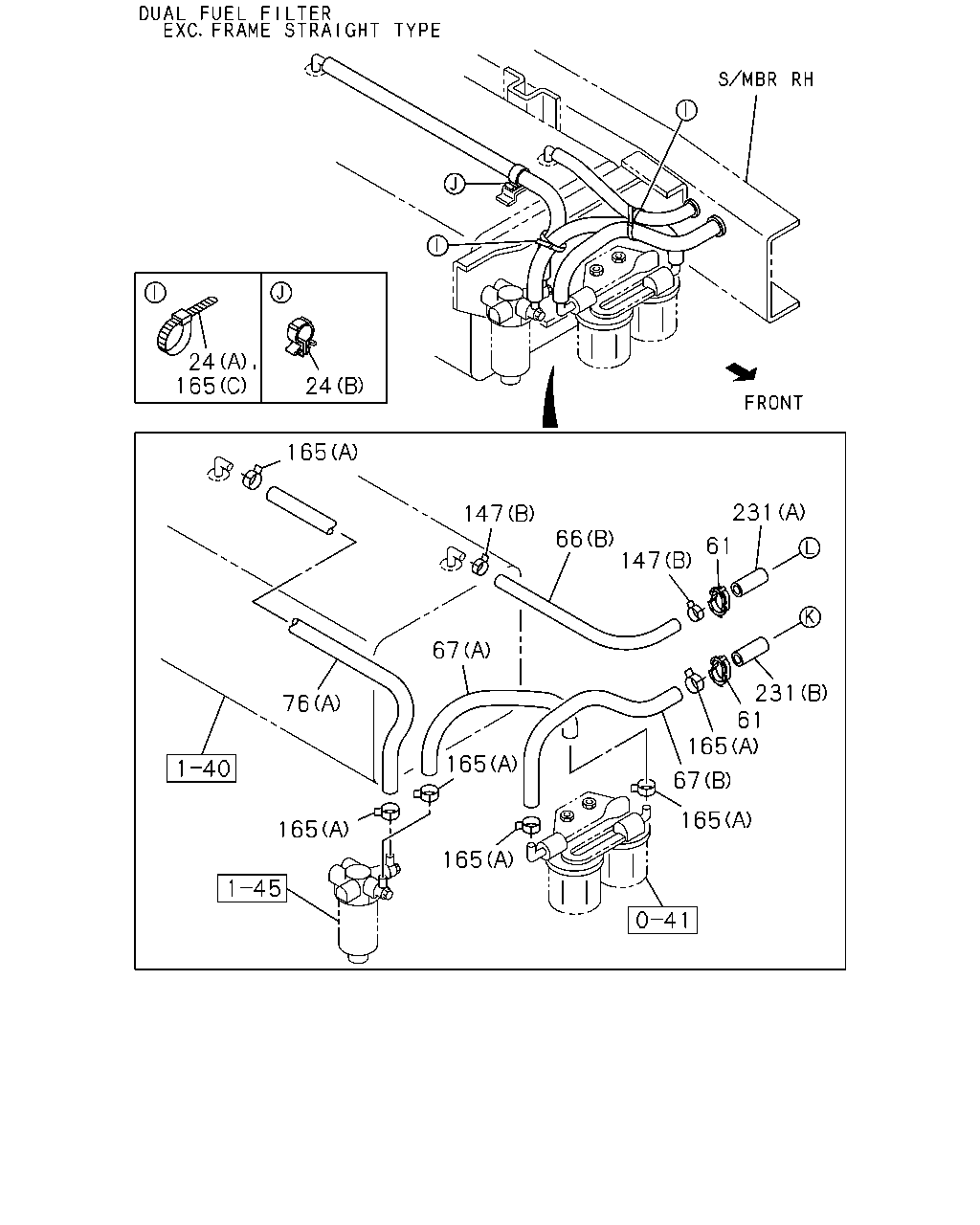

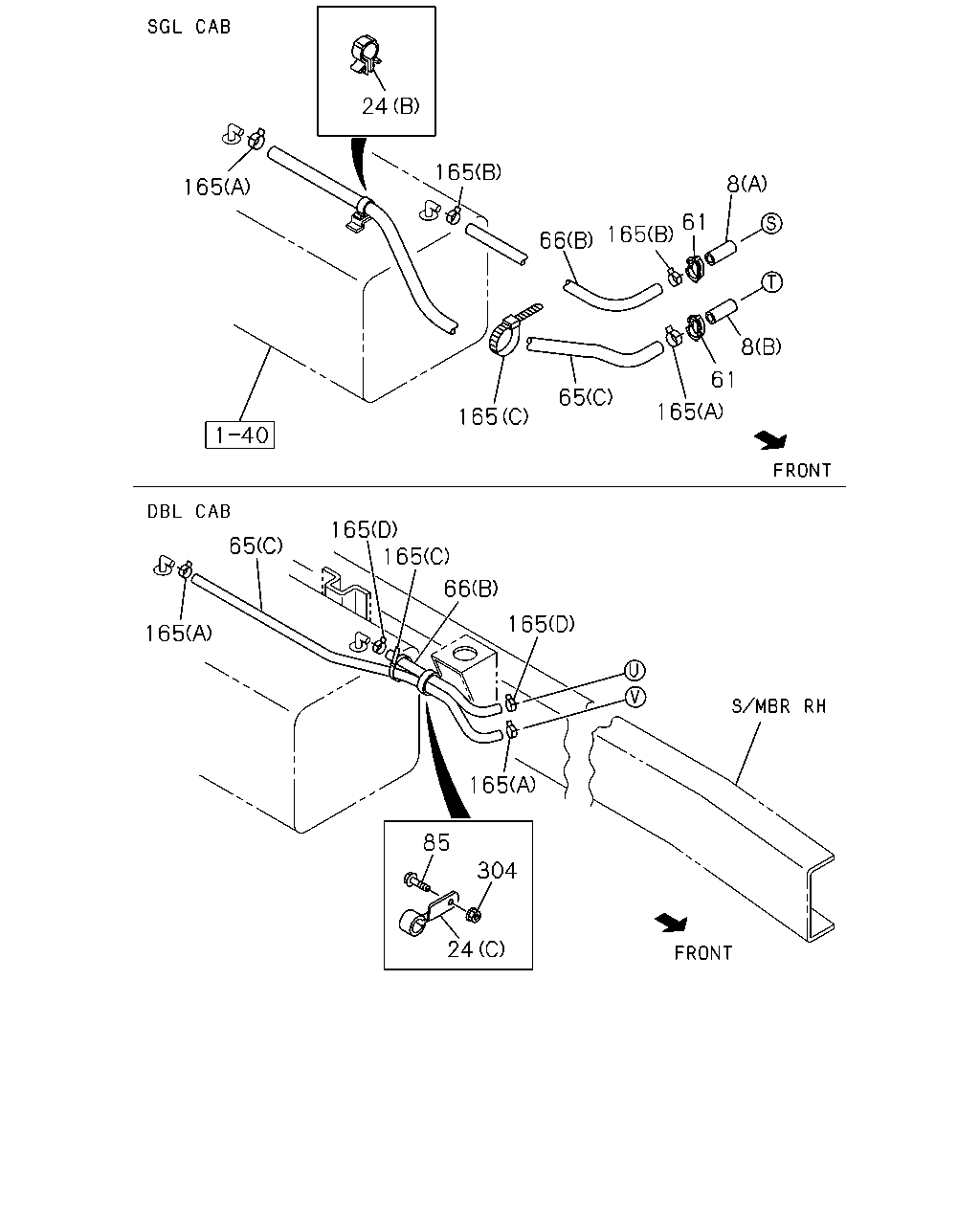

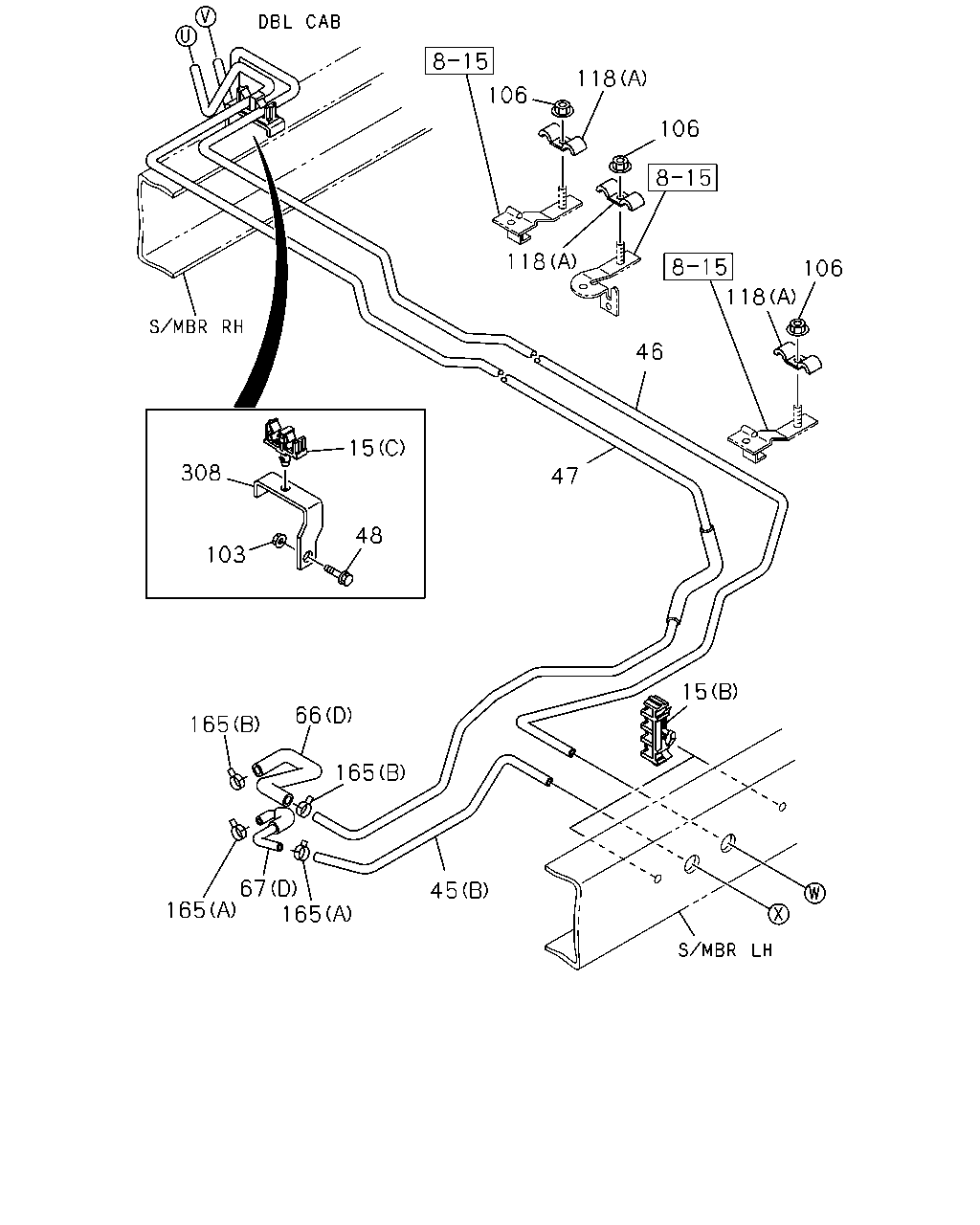

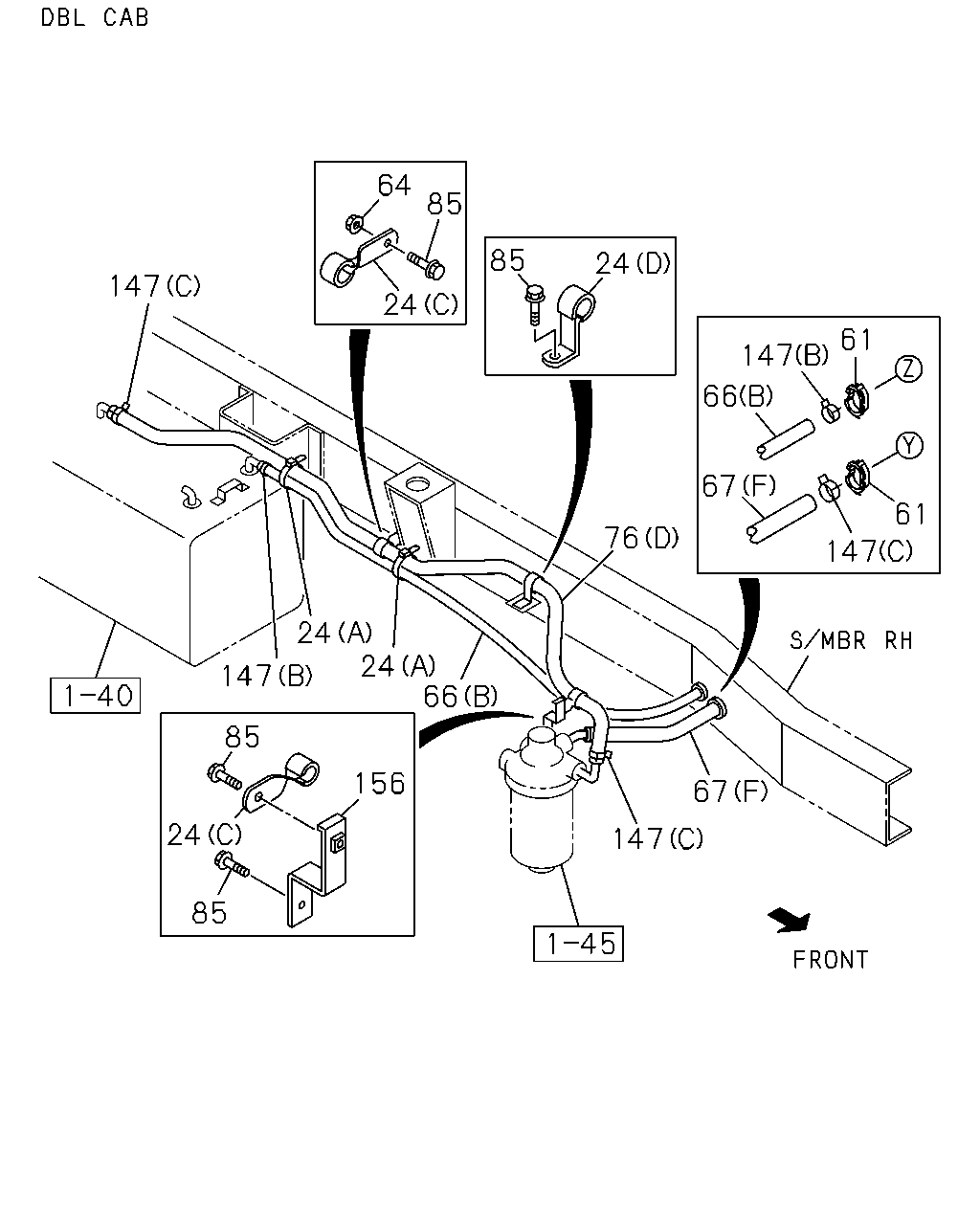

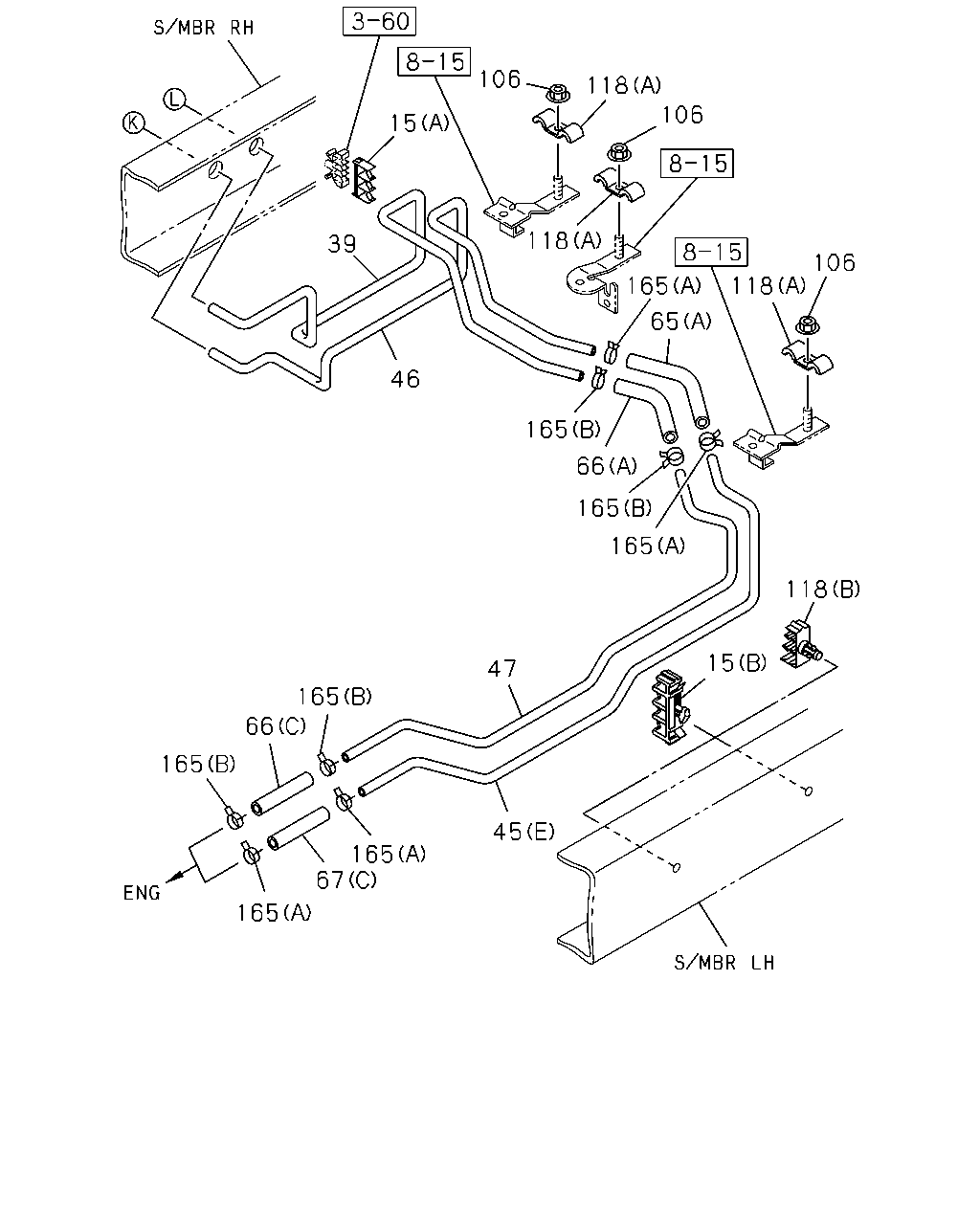

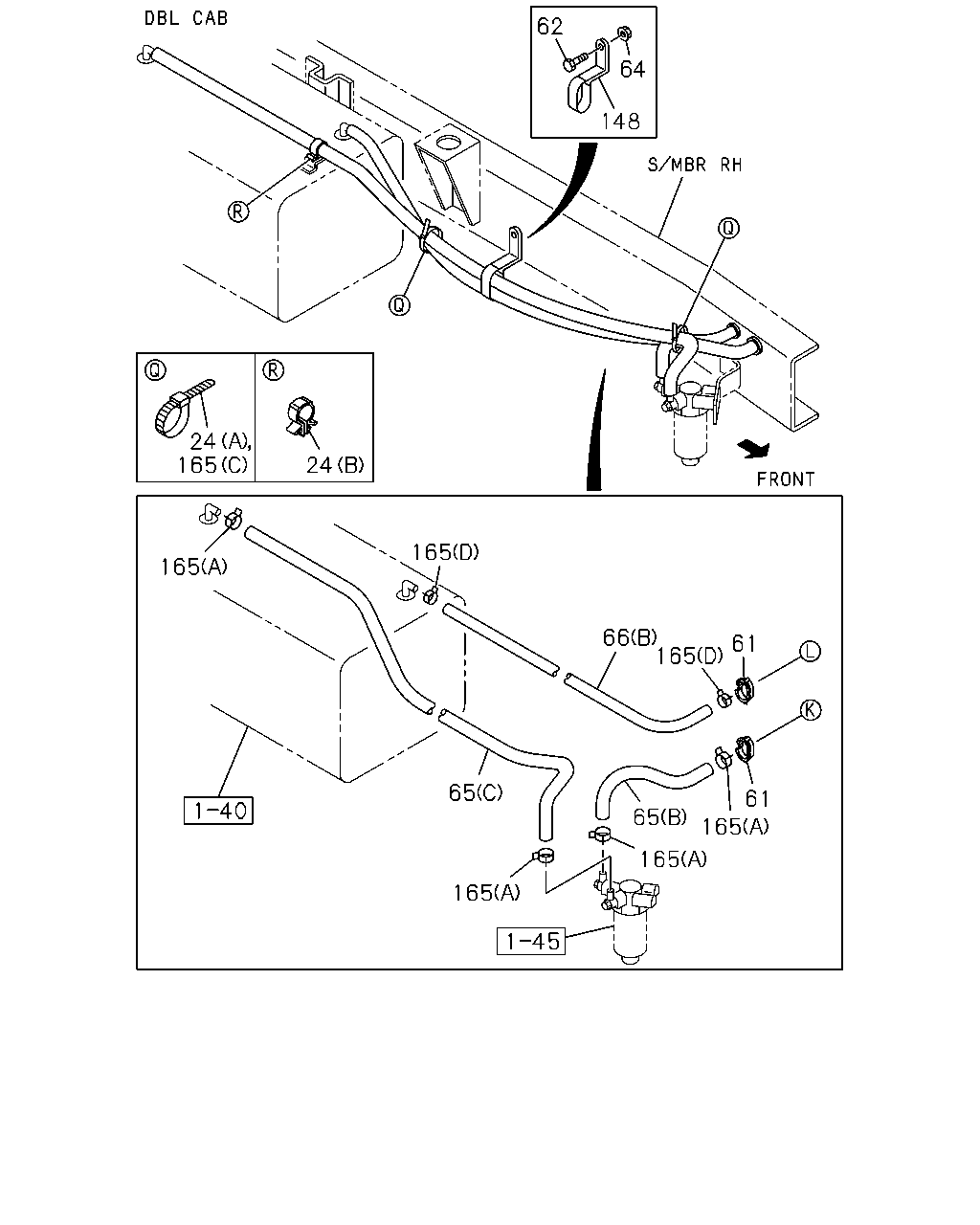

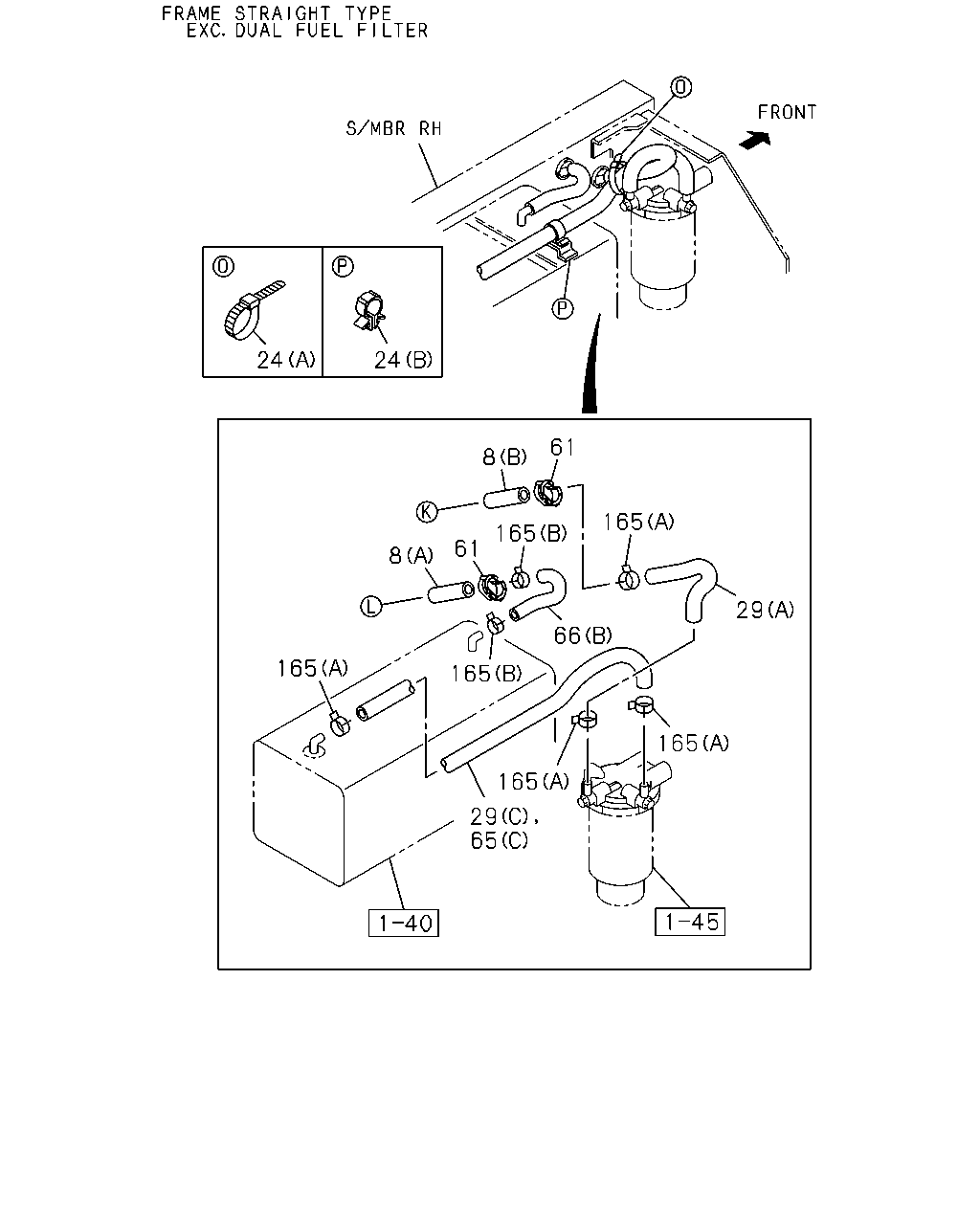

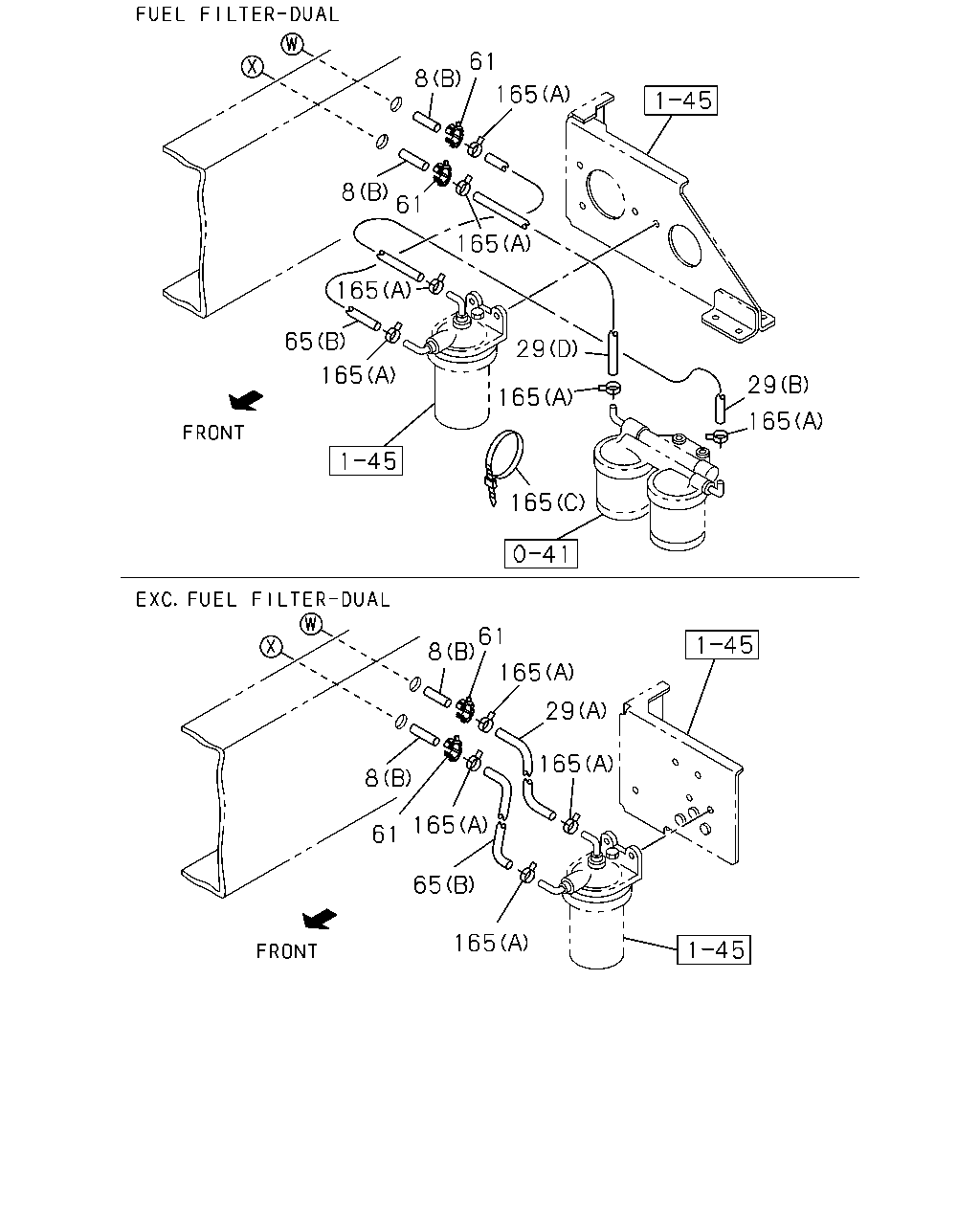

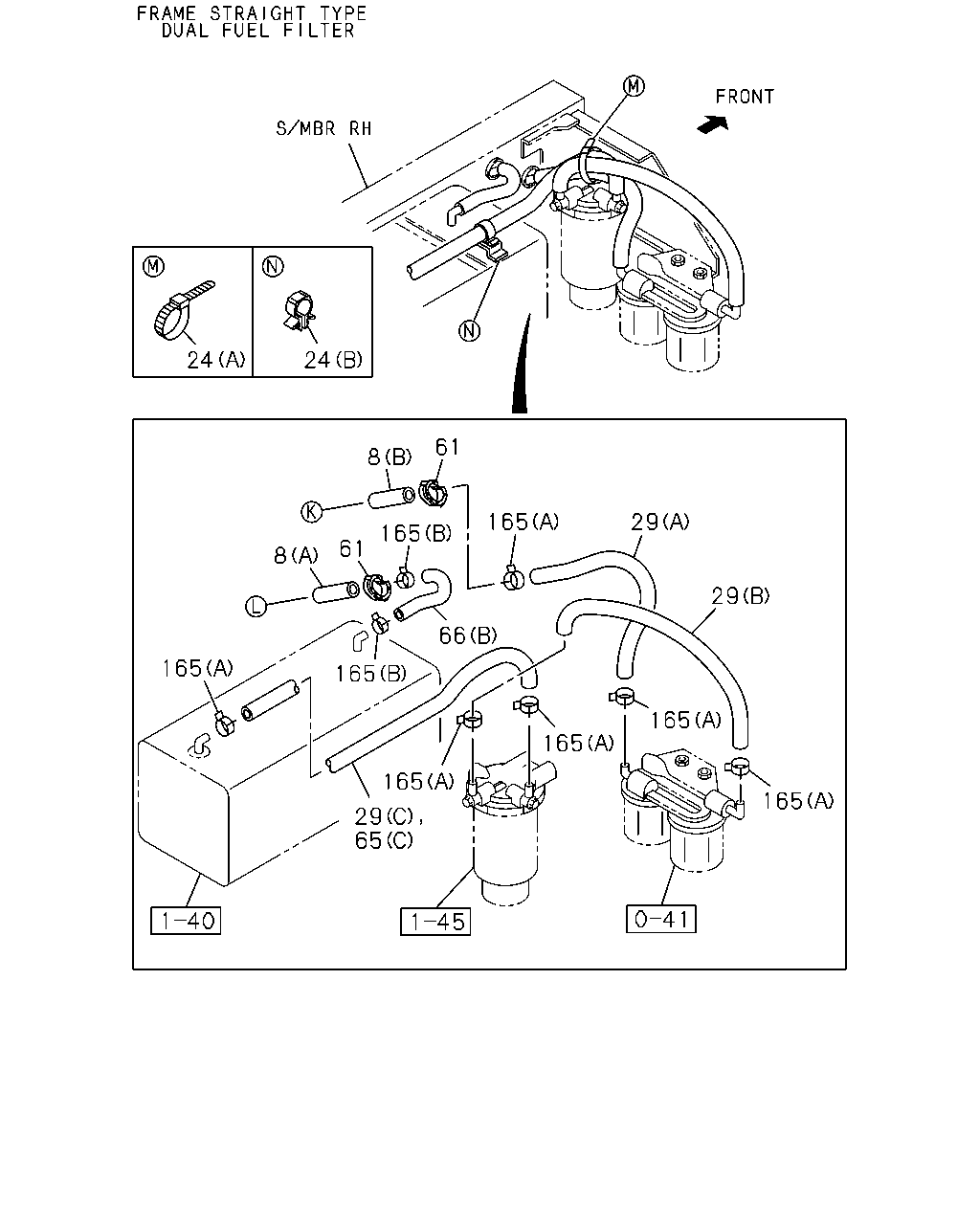

1-41 — FUEL PIPING; CHASSIS (#44991) — 1850 parça

24 24 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	9812-0105	●	●

24 165 24 165 231 147 66 147 61 67 231 61 165 76 165 67 165 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	9812-0105	●	●

24 165 24 165 231 147 66 147 61 76 231 61 165 65 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	9812-0105	●	●

106 118 106 15 118 39 106 165 118 65 46 165 66 165 165 118 15 47 165 66 165 45 165 67 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	9812-	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	9812-	●	●	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4	8-97103-601-0	01	1	9812-	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=10 & 6.4	8-97074-832-0	01	1	9904-						●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-309-2	01	1	9812-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-842-0	01	1	9812-	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9812-9905	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9906-0105	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-585-3	01	1	0106-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	9812-0105	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	0106-	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105		●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105				●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0106-0207	●	●	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0208-	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-855-5	01	1	9812-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97258-158-0	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	9906-0004	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97125-989-0	01	1	9812-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97259-584-3	01	1	0106-	●	●				●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	9812-0105	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	0106-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-811-0	01	1	9812-	●	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0106-0207	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-306-2	01	1	9812-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-841-0	01	1	9812-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9812-9905	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9906-0105	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-583-3	01	1	0106-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	9812-0105	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	0106-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0106-0207	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	9904-0105						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	0106-						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0106-0207						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY)	8-97229-732-0	01	1	0106-0207							●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97103-856-5	01	1	9812-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97258-157-1	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0106-0207						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY)	8-97229-735-0	01	1	0106-0207							●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9812-9905	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9906-0004	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-586-3	01	1	0106-	●	●				●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	9812-0105	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	0106-	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105		●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105				●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0106-0207	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0208-	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	9904-0105						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (D) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-0105	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0106-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97254-201-0	04	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●

24 24 61 8 165 29 165 61 8 29 66 165 165 165 165 165 165 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	9812-	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●	●	●	●
8	03.162 RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	9812-		●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	02	1	9904-						●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=540 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9908	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9908			●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9909-	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9903	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●

24 24 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	9812-0105	●	●

8 61 147 67 8 61 147 66 67 76 66 147 147 147 147 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	9812-	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●	●	●	●
8	03.162 RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	9812-		●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	02	1	9904-						●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●

118 106 106 118 106 118 46 15 308 47 48 103 15 66 165 165 67 165 45 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	9812-	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	9812-	●	●	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4	8-97103-601-0	01	1	9812-	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=10 & 6.4	8-97074-832-0	01	1	9904-						●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-855-5	01	1	9812-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97258-158-0	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	9906-0004	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97125-989-0	01	1	9812-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97259-584-3	01	1	0106-	●	●				●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	9812-0105	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	0106-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-811-0	01	1	9812-	●	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0106-0207	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-306-2	01	1	9812-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-841-0	01	1	9812-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9812-9905	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9906-0105	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-583-3	01	1	0106-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	9812-0105	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	0106-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0106-0207	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	9904-0105						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	0106-						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0106-0207						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY)	8-97229-732-0	01	1	0106-0207							●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97103-856-5	01	1	9812-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97258-157-1	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0106-0207						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY)	8-97229-735-0	01	1	0106-0207							●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9812-9905	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9906-0004	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-586-3	01	1	0106-	●	●				●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	9812-0105	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	0106-	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105		●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105				●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0106-0207	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0208-	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	9904-0105						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	0106-						●
48	03.162 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9904-0101						●
48	03.162 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0102-						●	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
103	03.130 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	9904-0105						●
103	03.130 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-						●
103	03.130 NUT; BRKT 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-							●
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (D) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-0105	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0106-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97254-201-0	04	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●
308	03.162 BRACKET; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-068-1	01	1	9904-0105						●
308	03.162 BRACKET; FUEL PIPE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-068-1	01	1	0106-						●
308	03.162 BRACKET; FUEL PIPE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-736-0	01	1	0106-0207						●
308	03.162 BRACKET; FUEL PIPE 4HE1 ENG(RLY)	8-97229-736-0	01	1	0106-0207							●
308	03.162 BRACKET; FUEL PIPE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-736-0	01	1	0208-						●	●

106 118 106 15 118 39 106 165 118 65 165 46 165 66 165 47 15 66 165 45 165 45 67 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	9812-	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	9812-	●	●	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4	8-97103-601-0	01	1	9812-	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=10 & 6.4	8-97074-832-0	01	1	9904-						●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-309-2	01	1	9812-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-842-0	01	1	9812-	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9812-9905	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9906-0105	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-585-3	01	1	0106-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	9812-0105	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	0106-	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105		●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105				●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0106-0207	●	●	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0208-	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-855-5	01	1	9812-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97258-158-0	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	9906-0004	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97125-989-0	01	1	9812-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97259-584-3	01	1	0106-	●	●				●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	9812-0105	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	0106-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-811-0	01	1	9812-	●	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0106-0207	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-306-2	01	1	9812-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-841-0	01	1	9812-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9812-9905	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9906-0105	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-583-3	01	1	0106-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	9812-0105	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	0106-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0106-0207	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	9904-0105						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	0106-						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0106-0207						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY)	8-97229-732-0	01	1	0106-0207							●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97103-856-5	01	1	9812-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97258-157-1	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0106-0207						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY)	8-97229-735-0	01	1	0106-0207							●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9812-9905	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9906-0004	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-586-3	01	1	0106-	●	●				●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	9812-0105	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	0106-	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105		●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105				●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0106-0207	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0208-	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	9904-0105						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (D) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-0105	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0106-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97254-201-0	04	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●

106 118 62 39 14 106 118 147 46 65 147 147 66 147 45 47 147 78 147 118 147 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.242 ID=22 L=22	5-83574-045-0	01	1	9906-0105	●	●
14	03.162 CLIP; HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 09.242 ID=22 L=22	5-83574-045-0	01	1	0106-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-309-2	01	1	9812-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-842-0	01	1	9812-	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9812-9905	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9906-0105	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-585-3	01	1	0106-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	9812-0105	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	0106-	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105		●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105				●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0106-0207	●	●	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0208-	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-855-5	01	1	9812-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97258-158-0	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	9906-0004	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97125-989-0	01	1	9812-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97259-584-3	01	1	0106-	●	●				●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	9812-0105	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	0106-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-811-0	01	1	9812-	●	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0106-0207	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-306-2	01	1	9812-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-841-0	01	1	9812-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9812-9905	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9906-0105	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-583-3	01	1	0106-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	9812-0105	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	0106-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0106-0207	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	9904-0105						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	0106-						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0106-0207						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY)	8-97229-732-0	01	1	0106-0207							●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97103-856-5	01	1	9812-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97258-157-1	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0106-0207						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY)	8-97229-735-0	01	1	0106-0207							●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9812-9905	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9906-0004	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-586-3	01	1	0106-	●	●				●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	9812-0105	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	0106-	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105		●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105				●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0106-0207	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0208-	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	9904-0105						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	0106-						●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
62	03.162 BOLT; CLIP FIX 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●				●
62	03.162 BOLT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97222-767-0	01	1	9906-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-219-0	01	1	9812-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> L=330 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●				●
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (D) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-0105	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0106-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97254-201-0	04	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●

61 8 165 8 61 165 165 65 29 165 29 165 165 165 61 8 165 29 165 8 165 61 65 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	9812-	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●	●	●	●
8	03.162 RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	9812-		●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	02	1	9904-						●	●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=540 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9908	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9908			●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9909-	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9903	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●

62 14 106 118 118 46 106 118 65 147 147 118 106 39 147 66 147 118 45 147 79 78 147 47 147 118 147 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.242 ID=22 L=22	5-83574-045-0	01	1	9906-0105	●	●
14	03.162 CLIP; HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 09.242 ID=22 L=22	5-83574-045-0	01	1	0106-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-309-2	01	1	9812-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-842-0	01	1	9812-	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9812-9905	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-218-0	01	1	9906-0105	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-585-3	01	1	0106-	●	●				●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	9812-0105	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-014-1	01	1	0106-	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105		●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	9812-0105				●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0106-0207	●	●	●	●	●
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-015-1	01	1	0208-	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E)	8-97103-855-5	01	1	9812-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97258-158-0	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	9906-0004	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (C)	8-97222-722-1	01	1	0005-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97125-989-0	01	1	9812-0105	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97259-584-3	01	1	0106-	●	●				●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	9812-0105	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-008-1	01	1	0106-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-811-0	01	1	9812-	●	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	9812-0105				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0106-0207	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-009-3	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-306-2	01	1	9812-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97149-841-0	01	1	9812-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9812-9905	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-217-0	01	1	9906-0105	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-583-3	01	1	0106-	●	●				●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	9812-0105	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-010-1	01	1	0106-	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	9812-0105				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0106-0207	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-011-1	01	1	0208-	●	●	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	9904-0105						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-064-2	01	1	0106-						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0106-0207						●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY)	8-97229-732-0	01	1	0106-0207							●
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-732-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97103-856-5	01	1	9812-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97258-157-1	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0106-0207						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY)	8-97229-735-0	01	1	0106-0207							●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97229-735-0	01	1	0208-						●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9812-9905	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	9906-0004	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ>	8-97125-990-0	01	1	0005-0105	●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97259-586-3	01	1	0106-	●	●				●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	9812-0105	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-012-1	01	1	0106-	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105		●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	9812-0105				●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0106-0207	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-013-1	01	1	0208-	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	9904-0105						●
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97211-066-1	01	1	0106-						●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
62	03.162 BOLT; CLIP FIX 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●				●
62	03.162 BOLT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97222-767-0	01	1	9906-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-219-0	01	1	9812-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> L=330 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●				●
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (D) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9812-9905	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9906-0105	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●	●				●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-0105	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HE1 ENG(RLY) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0106-	●	●	●	●	●	●	●
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97254-201-0	04	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●

64 85 85 24 147 24 61 147 66 67 61 76 147 24 24 147 66 85 156 67 24 147 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
64	03.162 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9905	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=290 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●				●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9901-9901	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-760-2	01	1	9812-	●	●	●	●	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9812	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●
85	03.162 BOLT; CLIP,FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-						●	●
85	03.162 BOLT; CLIP,FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-						●
85	03.162 BOLT; CLIP,FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0106-						●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.762 (C) ID=19	8-94238-569-0	08	1	0106-	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●				●
156	03.162 BRACKET; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97288-604-0	01	1	0106-						●

24 165 8 165 61 165 66 8 61 65 165 165 165 165 65 66 165 165 165 85 304 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	9812-	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●	●	●	●
8	03.162 RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	9812-		●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	02	1	9904-						●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
85	03.162 BOLT; CLIP,FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-						●	●
85	03.162 BOLT; CLIP,FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-						●
85	03.162 BOLT; CLIP,FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●
304	03.130 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-						●	●

24 24 61 8 165 165 61 8 29 66 165 165 165 165 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	9812-	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	9812-0105	●	●	●	●	●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●	●	●	●
8	03.162 RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50	8-94157-054-1	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●				●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	9812-		●
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	02	1	9904-						●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (C) L=540 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9908	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9908			●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9909-	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9903	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●	●	●
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●

62 64 148 24 165 24 165 165 66 61 165 65 61 165 65 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	9812-0105			●	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B)	8-97089-536-0	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0106-			●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9812-9903	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	01	1	9904-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9904-9905						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9906-9908	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9906-9908						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140	5-09707-031-1	01	1	9909-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	9906-0008	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0009-0105	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●	●				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97254-204-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0106-	●	●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	9904-0105						●
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	0106-						●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 L=56	1-09700-984-0	02	1	0106-						●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0106-						●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9812-9903	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	9904-0105						●
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●				●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17	8-94128-319-2	02	1	0106-	●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	0106-						●	●
61	03.162 GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	04	1	9812-	●	●	●	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
62	03.162 BOLT; CLIP FIX 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●				●
62	03.162 BOLT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0106-						●
64	03.162 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9903-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9812-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9902		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	9903-0105		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	9904-0105						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (C) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0106-							●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●				●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9812-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9905	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0105	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D)	8-97174-761-1	01	1	9812-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9902		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9903-9903		●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9904-0105		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0106-			●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0106-						●
148	03.162 CLIP; HOSE,FUEL EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-94366-843-0	01	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9812-9903	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-	●	●				●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	08	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-0	01	1	9812-9902	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9903-9903	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	9812-0105	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16	8-94238-568-0	10	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	9812-0105	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	12	1	9812-	●	●	●	●	●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	9904-0105						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (D) ID=13	8-94238-571-0	04	1	0106-						●
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (D) ID=13	8-94238-571-0	04	1	0106-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
