8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#4499) — 129 parça

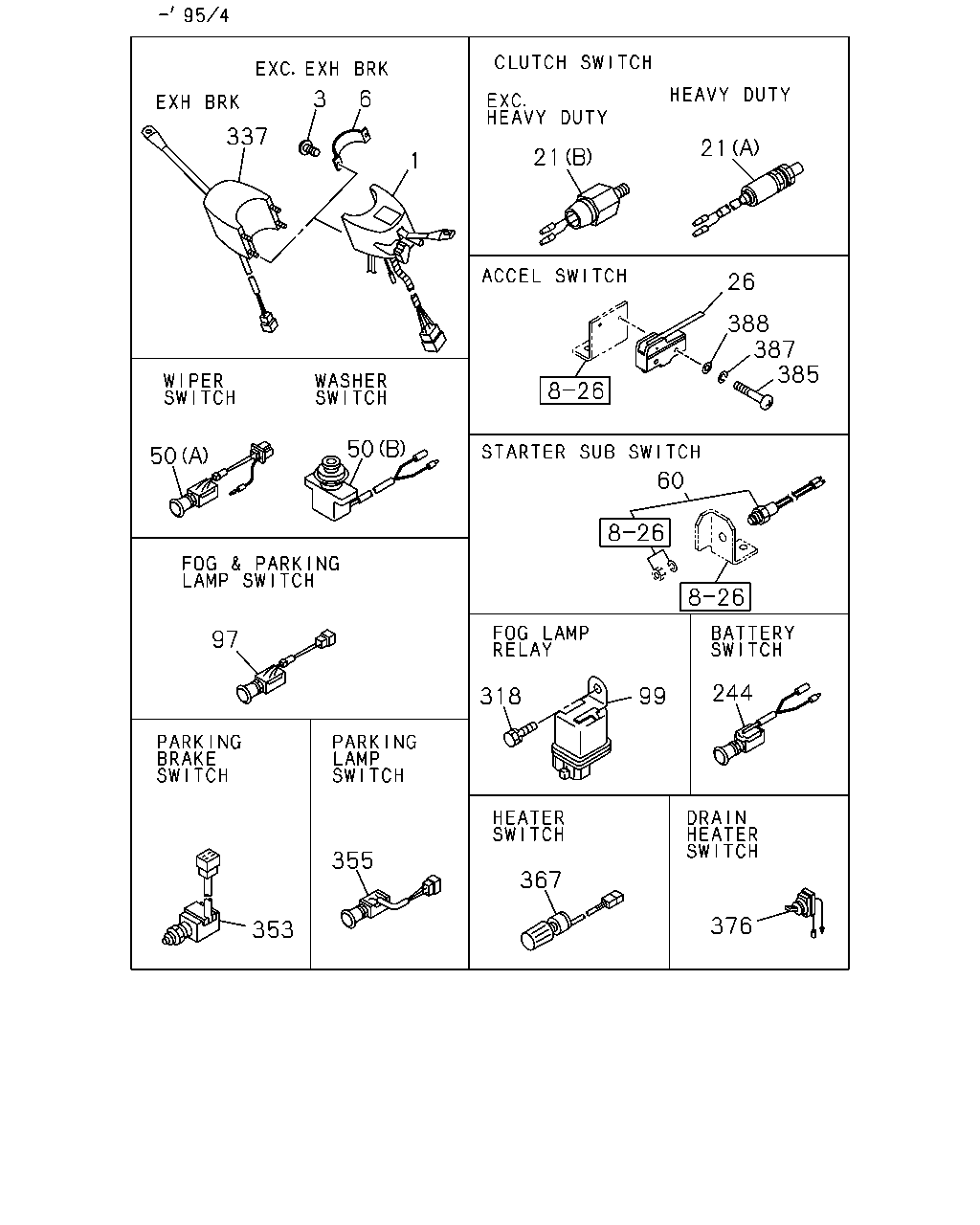

3 6 337 21 21 1 26 388 387 385 50 50 60 97 244 99 318 355 367 376 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-357-4	01	1	9505-0103	●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-604-0	01	1	0104-0312	●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-711-0	01	1	0401-	●
1	SWITCH; COMB	1-82360-154-1	01	1	9101-9504	●	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-359-3	01	1	9505-0103	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-606-0	01	1	0104-0312	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-712-0	01	1	0401-	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-407-3	01	1	9505-0103		●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-645-0	01	1	0104-0312		●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-733-0	01	1	0401-		●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-406-3	01	1	9505-0103		●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-644-0	01	1	0104-0312		●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-732-0	01	1	0401-		●
3	SCREW; COMB SW EXC. EXH BRK<NF8> M5X14 W/LK WASHER	9-03910-514-0	02	1	9101-9504	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9505-0604	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-	●	●
6	BAND; COMB SW EXC. EXH BRK<NF8>	1-82365-002-0	01	1	9101-9504	●	●
21	SWITCH; CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (A)	1-82380-009-3	01	1	9101-9504	●	●
21	SWITCH; CLU ISUZU M/T<X9A> (C)	1-82380-077-1	01	1	9505-9806	●	●
21	SWITCH; CLU (C)	1-82380-077-1	01	1	9807-0203	●
21	SWITCH; CLU ISUZU M/T<X9A>,FULLER M/T<X9B> (C)	1-82380-077-1	01	1	9807-0203		●
21	SWITCH; CLU (C)	1-82380-077-2	01	1	0204-	●	●
21	SWITCH; CLU EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-82410-024-0	01	1	9101-9504	●	●
26	SWITCH; ACCEL EXH BRK<NF8>	9-82770-013-0	01	1	9101-9504	●	●
26	SWITCH; ACCEL	1-82440-098-1	01	1	9505-	●	●
50	SWITCH; FRT WIPER WINDSHIELD WASHER<C11> (B)	1-82380-003-1	01	1	9101-9504	●	●
50	SWITCH; FRT WIPER WIPER BLADE LONG<YD4> (A)	1-82340-167-0	01	1	9101-9504	●	●
50	SWITCH; FRT WIPER WIPER MOTOR KIT<ST7> (A)	1-82340-081-1	01	1	9101-9504	●	●
60	SWITCH; STARTER SUB	1-82380-065-0	01	1	9101-9504	●	●
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	9505-	●	●
97	SWITCH; FOG & PARKING LAMP EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-82340-164-0	01	1	9101-9504	●
97	SWITCH; FOG & PARKING LAMP	1-82340-164-0	01	1	9101-9504		●
99	RELAY; FOG LAMP NEW ZEALAND EQUIPMENT<PK5> 24V 12.5A MITUBA	1-82550-197-0	01	1	9101-9504	●
99	RELAY; FOG LAMP EXC. FOG LAMPS DELETE<SJE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
99	RELAY; FOG LAMP EXC. FOG LAMPS DELETE<SJE> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
244	SWITCH; BATTERY	1-82340-350-0	01	1	9101-9504	●	●
318	SCREW; RELAY NEW ZEALAND EQUIPMENT<PK5> M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●
318	SCREW; RELAY NEW ZEALAND EQUIPMENT<PK5> M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●
337	SWITCH; EXH EXH BRK<NF8>	1-82360-161-3	01	1	9101-9504	●	●
337	SWITCH; EXH RETARDER BRK<RE2>,FOOT BRK W/EXH BRK<SJB>	1-82350-220-2	01	1	9505-	●	●
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82440-038-0	01	1	9101-9105	●	●
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONNECTOR 6PIN	1-82440-028-0	01	1	9106-9504	●	●
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82340-185-1	01	1	9505-0203	●	●
355	SWITCH; PARKING LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-82340-258-0	01	1	9101-9504	●
367	SWITCH; HTR AUXILIARY HEATER<C36>	1-82380-023-0	01	1	9101-9504	●	●
367	SWITCH; HTR HEATER & DEFROSTER<C41>	1-82380-023-0	02	1	9101-9504	●	●
376	SWITCH; DRAIN HTR AUTO DRAIN W/HEATER<JR4>	1-82350-019-1	01	1	9101-9504	●	●
385	SCREW; ACCEL SW EXH BRK<NF8>	9-93470-325-0	02	1	9101-9504	●	●
387	WASHER; LK,ACCEL SW EXH BRK<NF8> ID=3.1	9-09150-503-0	02	1	9101-9504	●	●
387	WASHER; LK,ACCEL SW M10	9-09150-510-0	01	1	9505-0603	●	●
387	WASHER; LK,ACCEL SW M10 ID=10.2	0-91510-510-0	01	1	0604-	●	●
388	WASHER; PL,ACCEL SW EXH BRK<NF8> ID=3.2 OD=12	9-09160-703-0	02	1	9101-9504	●	●
388	WASHER; PL,ACCEL SW M10	9-09160-510-0	02	1	9505-0605	●	●
388	WASHER; PL,ACCEL SW M10 ID=10.5	0-91610-510-0	02	1	0606-	●	●

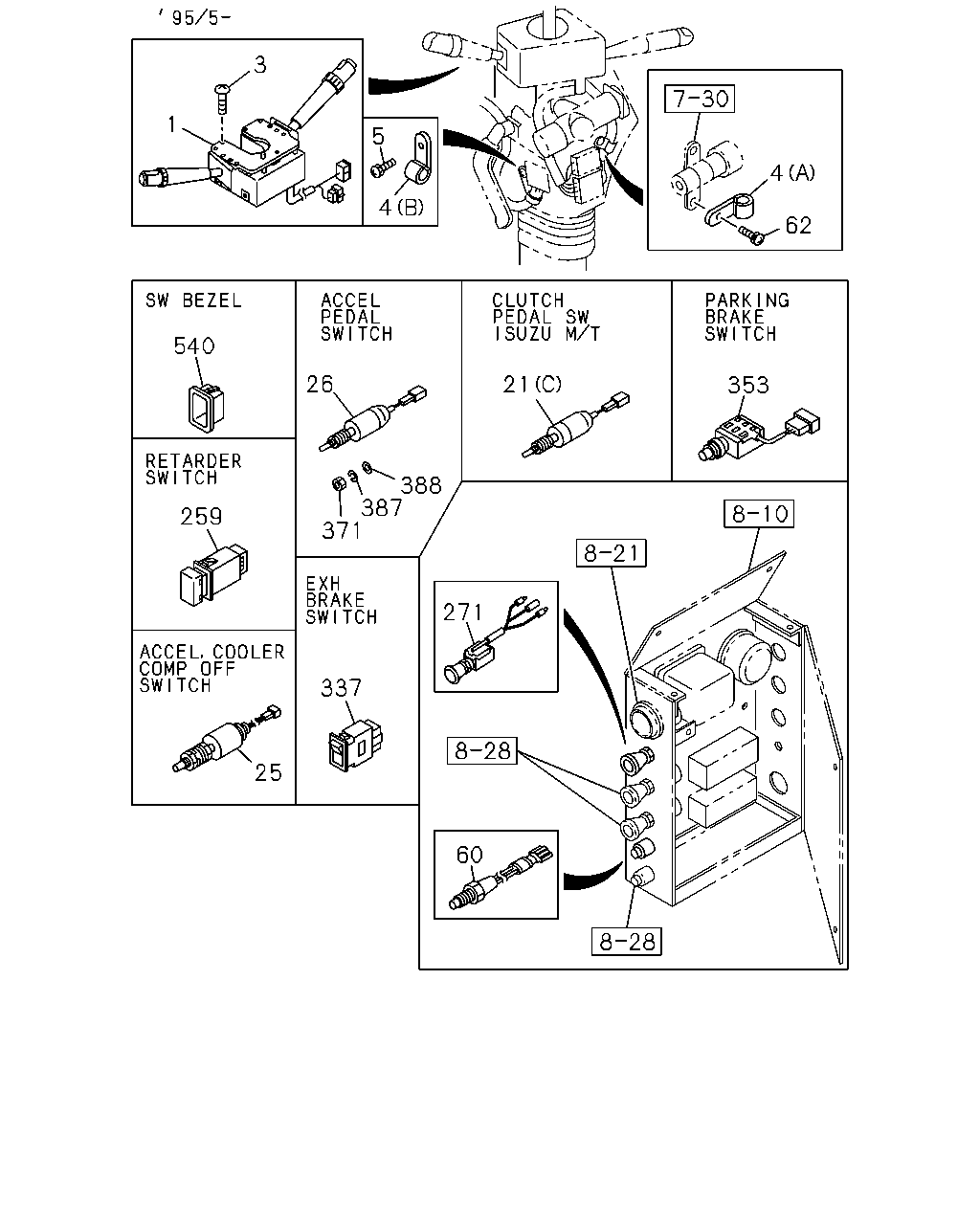

3 1 5 4 4 62 540 26 21 353 388 387 371 259 271 337 25 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-357-4	01	1	9505-0103	●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-604-0	01	1	0104-0312	●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-711-0	01	1	0401-	●
1	SWITCH; COMB	1-82360-154-1	01	1	9101-9504	●	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-359-3	01	1	9505-0103	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-606-0	01	1	0104-0312	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-712-0	01	1	0401-	●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-407-3	01	1	9505-0103		●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-645-0	01	1	0104-0312		●
1	SWITCH; COMB RETARDER BRK<RE2>	1-82360-733-0	01	1	0401-		●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-406-3	01	1	9505-0103		●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-644-0	01	1	0104-0312		●
1	SWITCH; COMB EXC. RETARDER BRK<RE2>	1-82360-732-0	01	1	0401-		●
3	SCREW; COMB SW EXC. EXH BRK<NF8> M5X14 W/LK WASHER	9-03910-514-0	02	1	9101-9504	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9505-0604	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-	●	●
4	CLIP; COMB SW (A) ID=16 L=20	9-09525-535-0	01	1	9505-0606	●	●
4	CLIP; COMB SW (A) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●
4	CLIP; COMB SW (B) ID=19 L=32	9-09525-862-0	01	1	9505-0011	●	●
4	CLIP; COMB SW (B) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●
5	SCREW; COMB SW CABLE M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9505-0110	●	●
5	SCREW; COMB SW CABLE M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●
21	SWITCH; CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (A)	1-82380-009-3	01	1	9101-9504	●	●
21	SWITCH; CLU ISUZU M/T<X9A> (C)	1-82380-077-1	01	1	9505-9806	●	●
21	SWITCH; CLU (C)	1-82380-077-1	01	1	9807-0203	●
21	SWITCH; CLU ISUZU M/T<X9A>,FULLER M/T<X9B> (C)	1-82380-077-1	01	1	9807-0203		●
21	SWITCH; CLU (C)	1-82380-077-2	01	1	0204-	●	●
21	SWITCH; CLU EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-82410-024-0	01	1	9101-9504	●	●
25	SWITCH; ACCEL,COOLER CMPR OVERHEAD COOLING SYSTEM<YS9>	1-82380-077-2	01	1	9505-	●	●
26	SWITCH; ACCEL EXH BRK<NF8>	9-82770-013-0	01	1	9101-9504	●	●
26	SWITCH; ACCEL	1-82440-098-1	01	1	9505-	●	●
60	SWITCH; STARTER SUB	1-82380-065-0	01	1	9101-9504	●	●
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	9505-	●	●
62	BOLT; STARTER SW M8X30 W/PL WASHER	1-09981-482-2	02	1	9505-0111	●	●
62	BOLT; STARTER SW M8X30 TORQUE SHEAR BOLT	1-09980-621-1	02	1	0112-	●	●
259	SWITCH; RETARDER ISUZU M/T<X9A>	1-82340-407-1	01	1	9505-9505	●	●
271	SWITCH; OIL PRESS METER ENG ROOM SW BOX<TEK>	1-82340-526-1	01	1	9505-0706	●	●
271	SWITCH; OIL PRESS METER ENG ROOM SW BOX<TEK>	8-97621-401-0	01	1	0707-	●	●
337	SWITCH; EXH EXH BRK<NF8>	1-82360-161-3	01	1	9101-9504	●	●
337	SWITCH; EXH RETARDER BRK<RE2>,FOOT BRK W/EXH BRK<SJB>	1-82350-220-2	01	1	9505-	●	●
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82440-038-0	01	1	9101-9105	●	●
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONNECTOR 6PIN	1-82440-028-0	01	1	9106-9504	●	●
353	SWITCH ASM; PARKING BRAKE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82340-185-1	01	1	9505-0203	●	●
371	NUT; SW M10	9-09111-410-0	01	1	9505-0512	●	●
371	NUT; SW M10	0-91111-510-0	01	1	0601-	●	●
387	WASHER; LK,ACCEL SW EXH BRK<NF8> ID=3.1	9-09150-503-0	02	1	9101-9504	●	●
387	WASHER; LK,ACCEL SW M10	9-09150-510-0	01	1	9505-0603	●	●
387	WASHER; LK,ACCEL SW M10 ID=10.2	0-91510-510-0	01	1	0604-	●	●
388	WASHER; PL,ACCEL SW EXH BRK<NF8> ID=3.2 OD=12	9-09160-703-0	02	1	9101-9504	●	●
388	WASHER; PL,ACCEL SW M10	9-09160-510-0	02	1	9505-0605	●	●
388	WASHER; PL,ACCEL SW M10 ID=10.5	0-91610-510-0	02	1	0606-	●	●
540	BEZEL; SW RETARDER BRK<RE2>,FOOT BRK W/EXH BRK<SJB>	1-82490-017-0	01	1	9505-	●	●

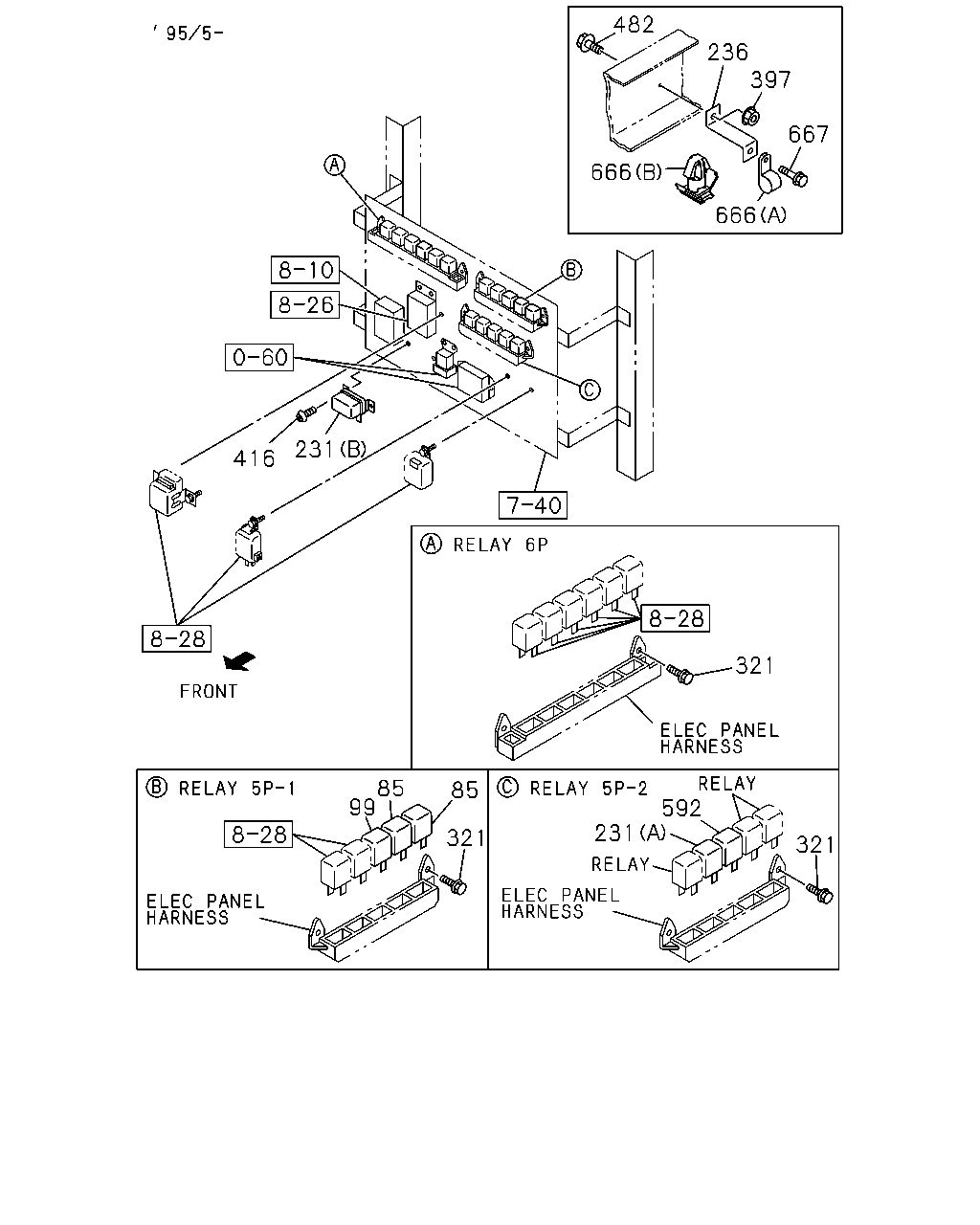

482 236 397 667 666 666 231 416 321 592 85 99 85 231 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	RELAY; HEADLAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	9505-0111	●	●
85	RELAY; HEADLAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
99	RELAY; FOG LAMP NEW ZEALAND EQUIPMENT<PK5> 24V 12.5A MITUBA	1-82550-197-0	01	1	9101-9504	●
99	RELAY; FOG LAMP EXC. FOG LAMPS DELETE<SJE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
99	RELAY; FOG LAMP EXC. FOG LAMPS DELETE<SJE> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
231	RELAY; NEUTRAL ISUZU M/T<X9A> (A) 24V 12.5A MITUBA	8-97062-815-0	01	1	9505-9708	●	●
231	RELAY; NEUTRAL (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9709-0111	●	●
231	RELAY; NEUTRAL (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
231	RELAY; NEUTRAL OVERHEAD COOLING SYSTEM<YS9> (B) 24V-12A NIKKO	9-83420-043-1	01	1	9505-	●	●
231	RELAY; NEUTRAL OVERHEAD COOLING SYSTEM<YS9> (B) 24V 12.5A MITUBA	1-82550-318-0	01	1	9905-9907	●	●
231	RELAY; NEUTRAL OVERHEAD COOLING SYSTEM<YS9> EXC. NIKKO<Y70> (B) 24V 12.5A MITUBA	1-82550-318-0	01	1	9908-0203	●	●
236	BRACKET; AXLE HARNESS,RR BRK PAD & LINING ELEC WEAR INDICATOR<BAD> L=110	1-82699-589-0	01	1	9803-0203	●	●
321	BOLT; RELAY M6X16 FLANGE	0-28080-616-0	06	1	9505-9606	●	●
321	BOLT; RELAY M6X16 FLANGE	0-28680-616-0	06	1	9607-0512	●	●
321	BOLT; RELAY M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
397	NUT; BRKT FIX BRK PAD & LINING ELEC WEAR INDICATOR<BAD> M8 FLANGE	0-91150-108-0	01	1	9803-0203	●	●
416	SCREW; RELAY OVERHEAD COOLING SYSTEM<YS9> M5X12	9-93490-512-0	02	1	9505-	●	●
482	BOLT; BRKT BRK PAD & LINING ELEC WEAR INDICATOR<BAD> M8X30 FLANGE	0-28680-830-0	01	1	9803-0203	●	●
592	RELAY; WEAR INDICATOR BRK PAD & LINING ELEC WEAR INDICATOR<BAD> 24V 12.5A MITUBA	8-97062-815-1	01	1	9803-0111	●	●
592	RELAY; WEAR INDICATOR BRK PAD & LINING ELEC WEAR INDICATOR<BAD> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0203	●	●
666	CLIP; AXLE HARNESS BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (A) ID=11 L=24	9-09525-045-0	01	1	9803-0203	●	●
666	CLIP; AXLE HARNESS BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (B) OD=9 H=13.5	1-09709-180-0	01	1	9806-9806	●	●
667	BOLT; CLIP BRK PAD & LINING ELEC WEAR INDICATOR<BAD> M8X20 FLANGE	0-28680-820-0	02	1	9803-0203	●	●
