Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#44988) — 915 parça

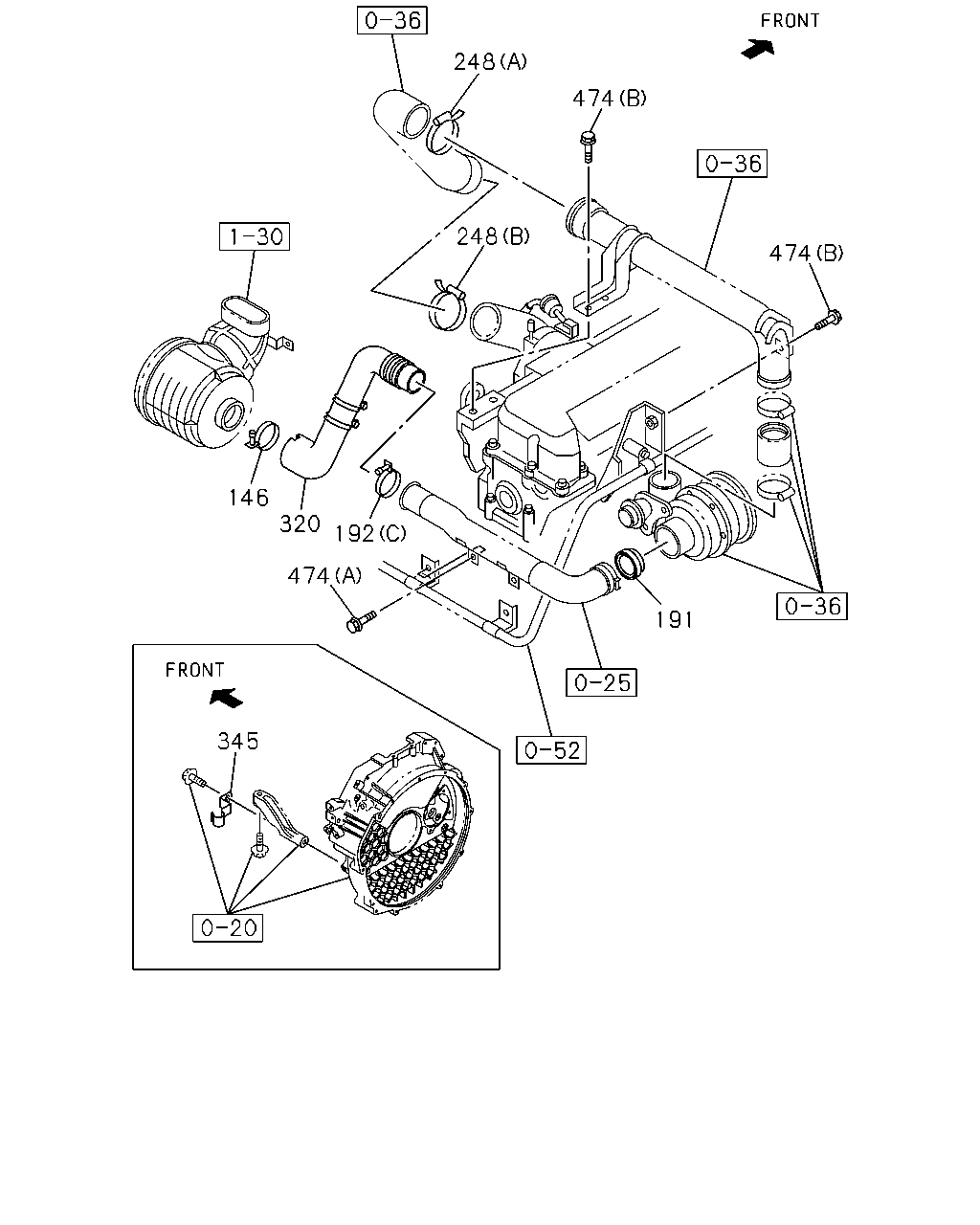

248 474 248 474 146 320 192 474 191 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	9812-0105	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0106-	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	9812-0105	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0106-	●	●	●	●	●	●	●
191	03.407 RUBBER; SEAL,CONN HOSE,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-94454-802-0	01	1	9812-0105	●	●
191	03.407 RUBBER; SEAL,CONN HOSE,AIR INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-94454-802-0	01	1	0106-	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	9812-0105	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	0106-	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●				●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●				●
248	03.417 CLIP; RUBBER HOSE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69	8-94316-991-0	01	1	9812-	●	●
248	03.417 CLIP; RUBBER HOSE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85	8-94320-428-0	01	1	9812-	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0106-	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	9812-0105	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0106-	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51)	8-97211-578-0	01	1	9904-						●	●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	9812-	●	●	●	●	●	●	●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE	0-28781-030-0	02	1	9812-0105	●	●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE	0-28781-030-0	02	1	0106-	●	●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE	0-28681-025-0	03	1	9812-	●	●
474	03.417 BOLT; PIPE 4JH1 ENG(RJX) 02.664 (C) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●				●

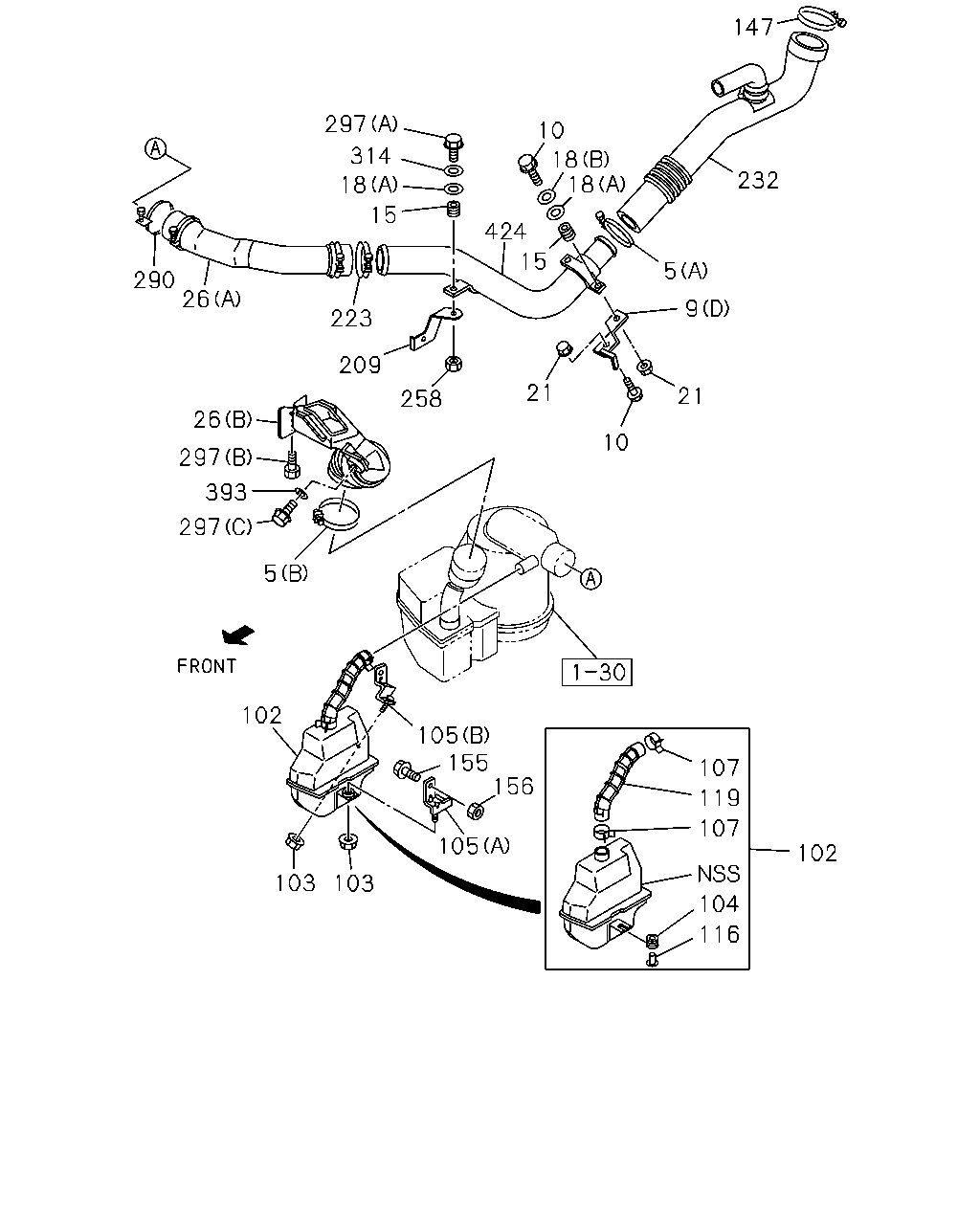

147 297 10 314 18 18 232 18 15 424 15 5 290 26 9 223 209 21 21 258 26 10 297 393 297 5 102 105 155 156 107 119 107 105 102 103 103 104 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C)	8-97226-133-0	01	1	9906-0105	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (A)	8-97312-473-1	01	1	0106-	●	●				●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (D)	8-97072-966-0	01	1	9812-0105	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97300-773-1	01	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9904-						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9904-						●	●
15	03.417 INSULATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9812-0105	●	●
15	03.417 INSULATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9812-0105	●	●
18	03.417 WASHER; PL,PIPE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=19	9-09160-518-0	02	1	9812-0105	●	●
18	03.417 WASHER; PL,PIPE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) ID=8.4 OD=26	9-09164-808-0	01	1	9812-0105	●	●
21	03.417 NUT; PIPE TO BRKT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C)	8-97205-772-0	01	1	9906-0105	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97072-964-1	01	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97069-877-1	01	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JH1 ENG(RJX) (D)	8-97213-912-2	01	1	0106-						●
102	03.402 RESONATOR; AIR INT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97091-928-1	01	1	9812-0105	●	●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●
104	03.417 RUBBER; MOUNTING,RESONATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	9812-0105	●	●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97091-931-1	01	1	9812-0105	●	●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-824-1	01	1	9812-0105	●	●
107	03.417 CLIP; PROTECTOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	9812-0105	●	●
116	01.745 RETAINER; RESONATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	9812-0105	●	●
119	03.403 HOSE; RESONATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-844-0	01	1	9812-0105	●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9903-0105	●	●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
156	03.417 NUT; BRKT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
156	03.417 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-						●
209	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97120-080-1	01	1	9904-0105	●	●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97122-496-0	01	1	9812-0105	●	●
223	03.417 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94456-844-0	01	1	9906-0105	●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9812-0105	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	9906-0105	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9812-0105	●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9906-0105	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9812-0105	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9812-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9812-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0106-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9812-0105	●	●
393	03.417 WASHER; LK,AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9812-0105	●	●
424	03.417 PIPE; AIR,INL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97072-965-2	01	1	9812-0105	●	●

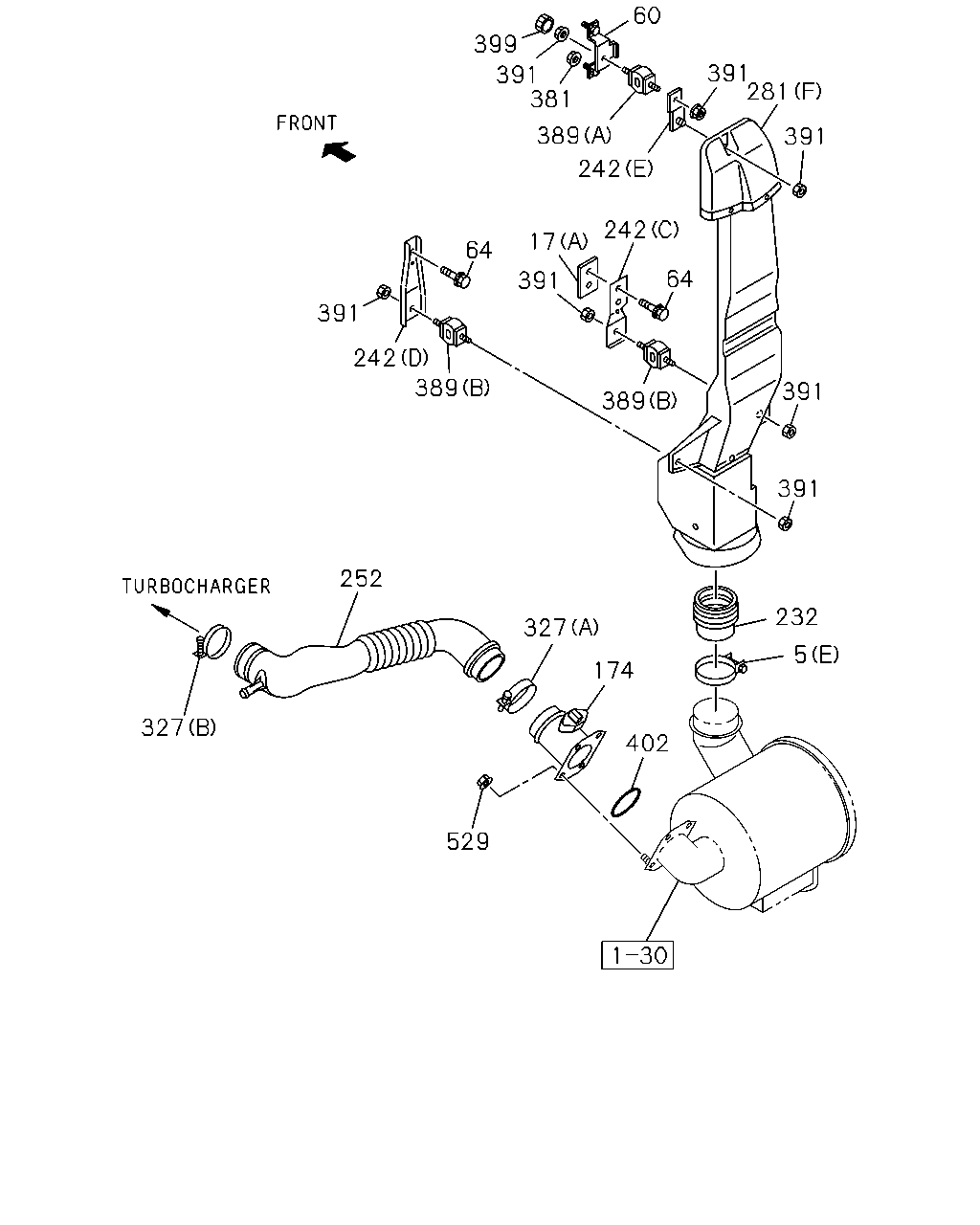

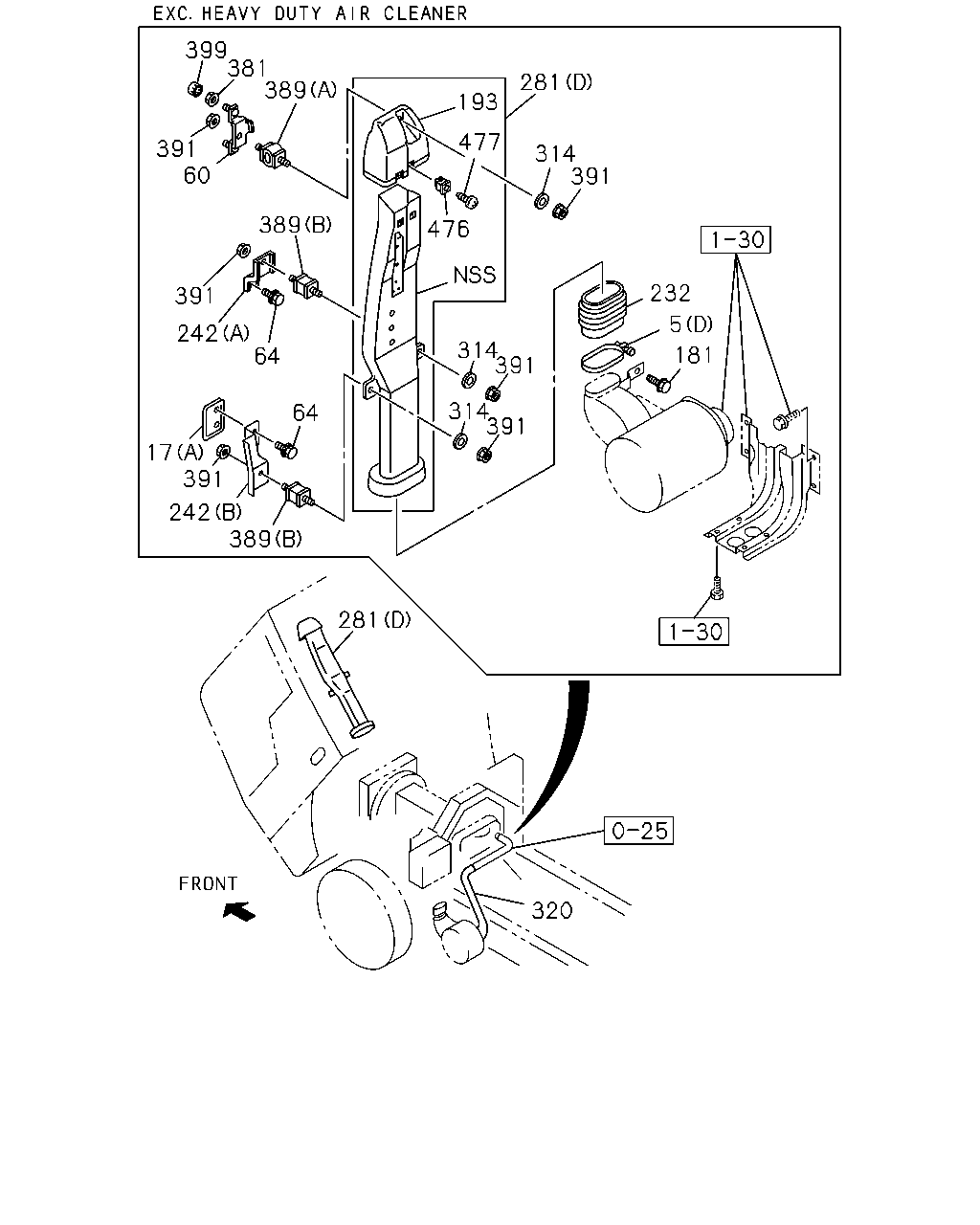

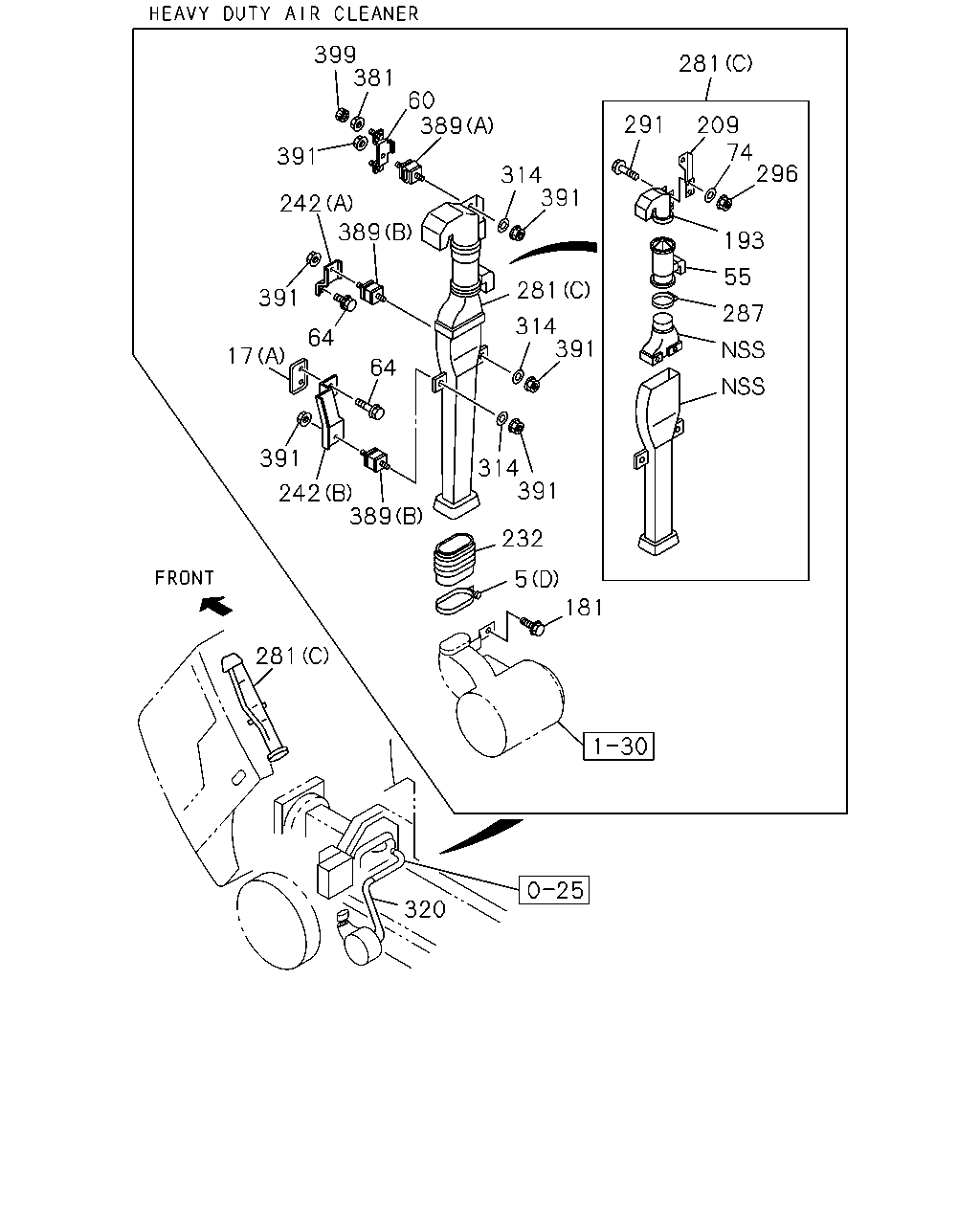

399 381 281 60 389 291 209 74 296 391 314 391 242 389 193 55 281 391 287 314 391 64 17 64 391 314 391 242 389 232 5 181 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9812-9903	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9904-9905	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9904-9905						●
17	03.403 GASKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9906-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0106-	●	●				●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0106-	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	9904-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0106-						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0106-						●
55	03.402 CLEANER ASM; AIR,PRE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97126-267-0	01	1	9904-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	9812-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-3	01	1	9904-0105						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0106-						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0106-						●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9812-9905	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
74	03.417 WASHER; PL,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9904-0105	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●				●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97120-078-1	01	1	9904-0105	●	●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	9812-9903	●	●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	9904-0105	●	●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	0106-	●	●
209	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97120-080-1	01	1	9904-0105	●	●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97122-496-0	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94456-844-0	01	1	9906-0105	●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-932-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-932-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-933-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-958-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-958-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
287	03.417 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.407 ID=87	9-09915-071-1	01	1	9904-0105	●	●
291	03.405 BOLT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9904-0105	●	●
296	03.405 NUT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9812-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0106-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0106-	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	9812-0105	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0106-	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51)	8-97211-578-0	01	1	9904-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9812-9905	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	9904-0105						●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.417 (C)	8-97080-149-0	03	1	9904-0202						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	06	1	0106-0202						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (C)	8-97080-149-0	03	1	0203-						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	03	1	0203-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	9812-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0106-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) M8 FLANGE	8-94279-517-0	03	1	9904-						●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9812-9905	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0106-	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0106-	●	●

399 381 389 281 193 477 391 60 314 391 389 476 232 391 5 242 64 314 391 181 314 391 64 17 391 242 389 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9812-9903	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9904-9905	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9904-9905						●
17	03.403 GASKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9906-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0106-	●	●				●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0106-	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	9904-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0106-						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0106-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	9812-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-3	01	1	9904-0105						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0106-						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0106-						●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9812-9905	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●				●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97120-078-1	01	1	9904-0105	●	●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	9812-9903	●	●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	9904-0105	●	●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94456-844-0	01	1	9906-0105	●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-932-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-932-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-933-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-958-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-958-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9812-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0106-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0106-	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	9812-0105	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0106-	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51)	8-97211-578-0	01	1	9904-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9812-9905	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	9904-0105						●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.417 (C)	8-97080-149-0	03	1	9904-0202						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	06	1	0106-0202						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (C)	8-97080-149-0	03	1	0203-						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	03	1	0203-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	9812-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0106-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) M8 FLANGE	8-94279-517-0	03	1	9904-						●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9812-9905	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0106-	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0106-	●	●
476	03.417 GROMMET; SCREW,COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.445	1-09983-081-0	04	1	9812-9903	●	●
476	03.417 GROMMET; SCREW,COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445	1-09983-081-0	04	1	9904-0105	●	●
476	03.417 GROMMET; SCREW,COVER 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.445	1-09983-081-0	04	1	0106-	●	●
477	03.417 SCREW; COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9812-9903	●	●
477	03.417 SCREW; COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9904-0105	●	●
477	03.417 SCREW; COVER 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0106-	●	●

281 13 409 320 288 146 10 10 5 345

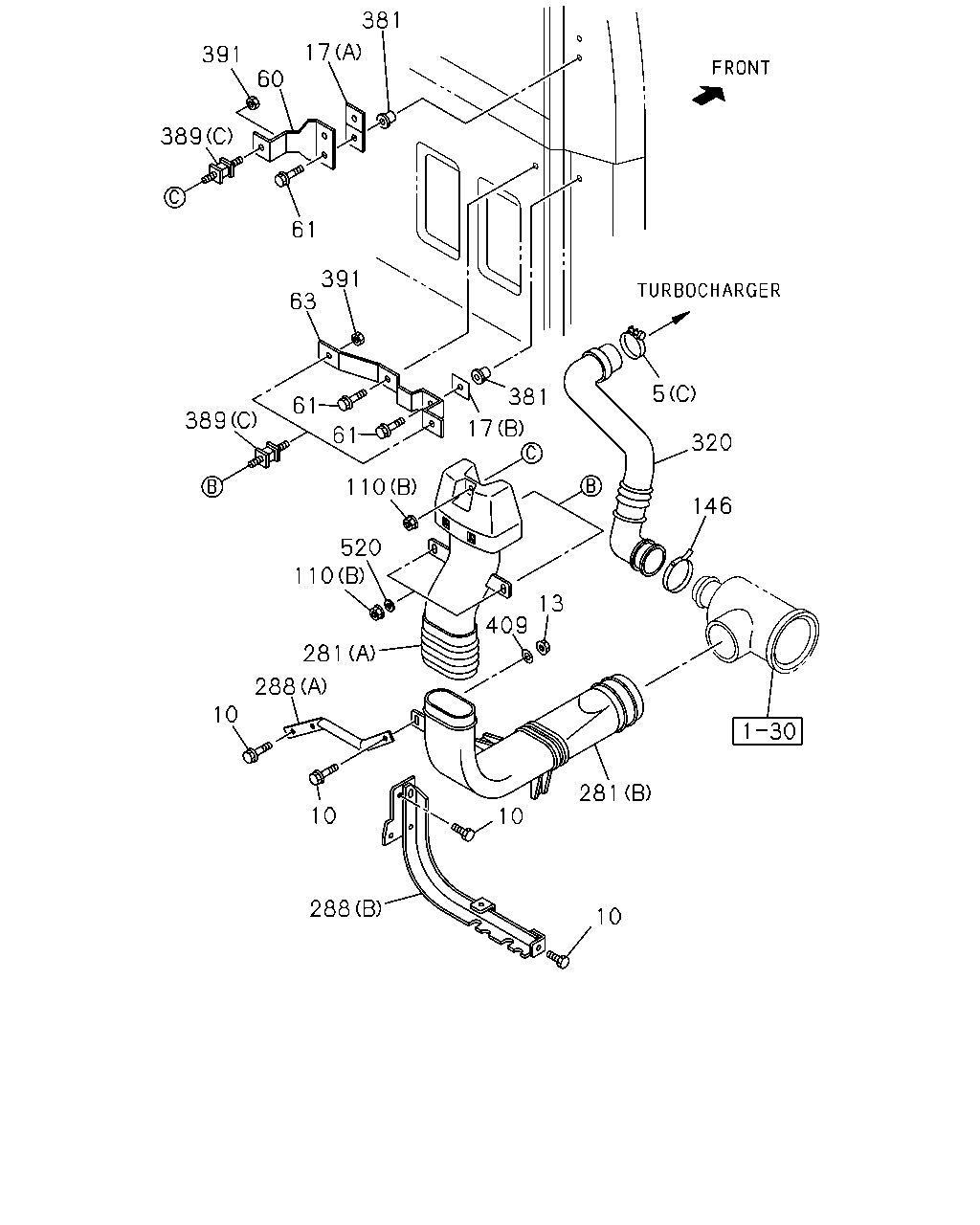

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9904-						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9904-						●	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	9812-0105	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0106-	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	9812-0105	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0106-	●	●	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D)	8-97183-041-1	01	1	9812-0105	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D)	8-97183-041-2	01	1	0106-	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97214-827-1	01	1	9904-0105						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) (A)	8-97214-827-1	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B)	8-97214-828-0	01	1	9904-0105						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 (B)	8-97214-828-0	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4JH1 ENG(RJX) (C)	8-97287-785-0	01	1	0106-						●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0106-	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	9812-0105	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0106-	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51)	8-97211-578-0	01	1	9904-						●	●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	9812-	●	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●	●	●	●	●	●

381 17 391 60 61 389 327 391 17 63 252 61 381 61 327 389 281 174 402 529 260 188 188 26 61 473 156 394 10 288

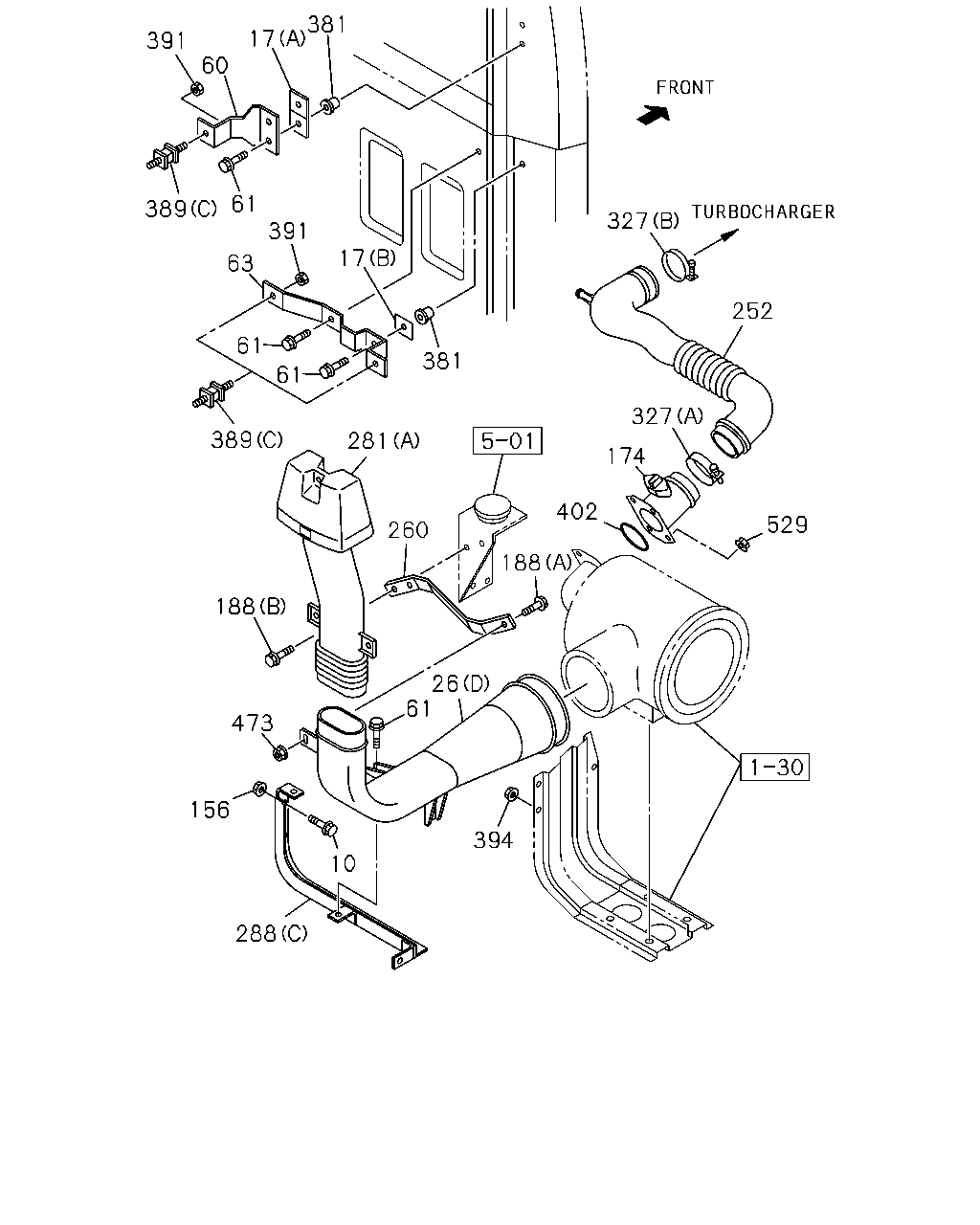

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9904-						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9904-						●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9812-9903	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9904-9905	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9904-9905						●
17	03.403 GASKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9906-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0106-	●	●				●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0106-	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	9904-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0106-						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0106-						●
26	03.417 DUCT; AIR INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C)	8-97205-772-0	01	1	9906-0105	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97072-964-1	01	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97069-877-1	01	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JH1 ENG(RJX) (D)	8-97213-912-2	01	1	0106-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	9812-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-3	01	1	9904-0105						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0106-						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0106-						●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9904-0105						●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0106-						●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0106-						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-						●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-2	01	1	9904-0105						●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0106-						●	●
63	03.417 BRACKET; AIR DUCT,LWR 4JH1 ENG(RJX)	8-97892-526-3	01	1	0106-						●
156	03.417 NUT; BRKT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
156	03.417 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-						●
174	03.682 SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0106-	●	●				●
188	03.403 BOLT; STAY 4JH1 ENG(RJX) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-						●
188	03.403 BOLT; STAY 4JH1 ENG(RJX) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-						●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-541-1	01	1	0106-	●	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-542-1	01	1	0106-						●
260	03.417 STAY; AIR DUCT 4JH1 ENG(RJX)	8-97214-827-1	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D)	8-97183-041-1	01	1	9812-0105	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D)	8-97183-041-2	01	1	0106-	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97214-827-1	01	1	9904-0105						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) (A)	8-97214-827-1	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B)	8-97214-828-0	01	1	9904-0105						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 (B)	8-97214-828-0	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4JH1 ENG(RJX) (C)	8-97287-785-0	01	1	0106-						●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-114-0	01	1	0106-	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0106-	●	●				●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9812-9905	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	9904-0105						●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.417 (C)	8-97080-149-0	03	1	9904-0202						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	06	1	0106-0202						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (C)	8-97080-149-0	03	1	0203-						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	03	1	0203-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	9812-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0106-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) M8 FLANGE	8-94279-517-0	03	1	9904-						●	●
394	03.417 WASHER; PL,AIR DUCT 4JH1 ENG(RJX) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0106-						●
402	03.417 GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0106-	●	●				●
473	03.417 NUT; DUCT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-						●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 01.062 M6 FLANGE	0-91150-206-0	04	1	0106-0110	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0111-	●	●				●

192 508 192 511 474 192 509 487 192 192 192 510 9 13 13 507 32 192 9 509 192 10

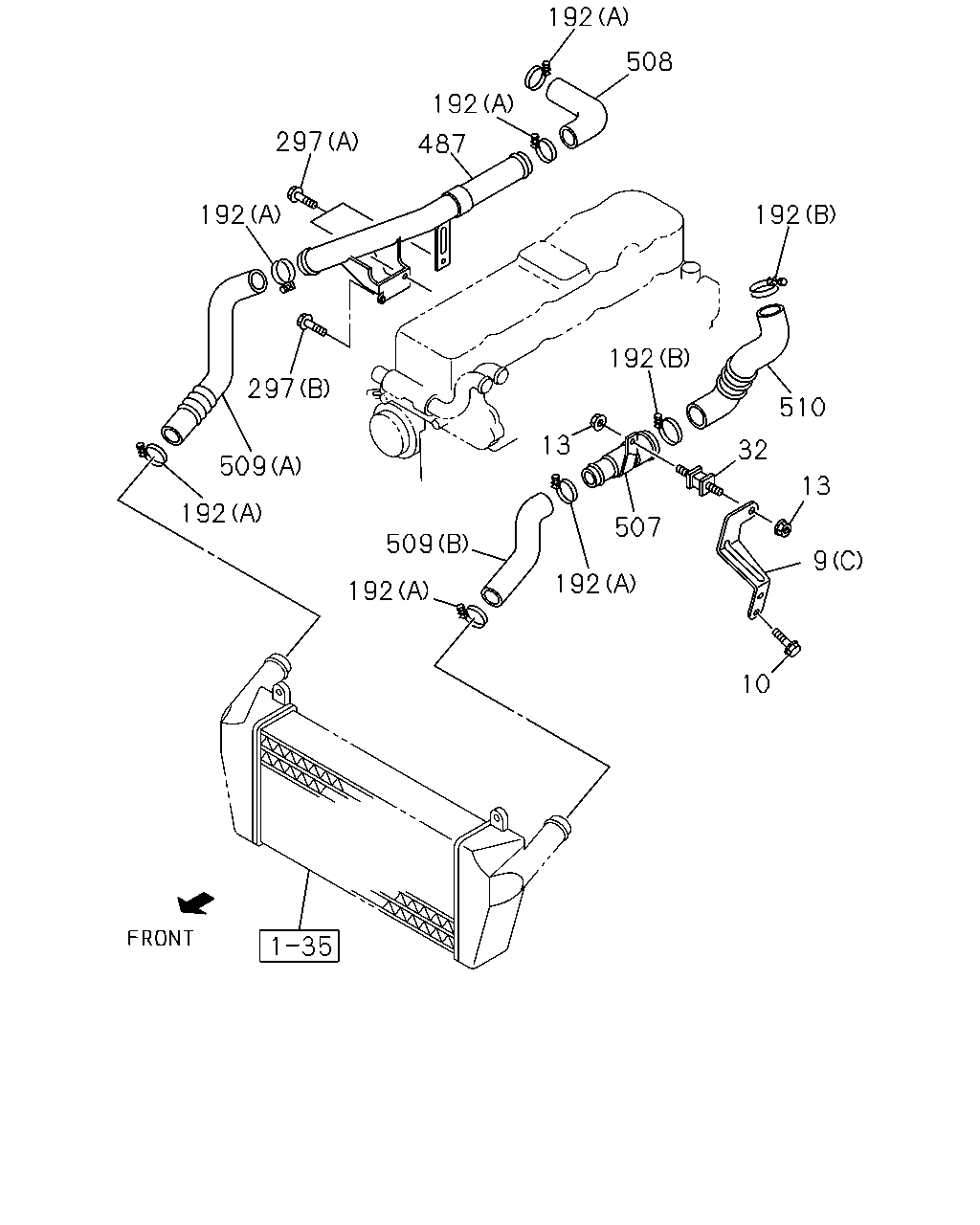

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C)	8-97226-133-0	01	1	9906-0105	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (A)	8-97312-473-1	01	1	0106-	●	●				●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (D)	8-97072-966-0	01	1	9812-0105	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97300-773-1	01	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9904-						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9904-						●	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9906-0105	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0106-	●	●				●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	9812-0105	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	0106-	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●				●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●				●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE	0-28781-030-0	02	1	9812-0105	●	●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE	0-28781-030-0	02	1	0106-	●	●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE	0-28681-025-0	03	1	9812-	●	●
474	03.417 BOLT; PIPE 4JH1 ENG(RJX) 02.664 (C) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●				●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	9906-0105	●	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-537-0	01	1	0106-	●	●				●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	9906-0105	●	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0106-	●	●				●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	9906-0105	●	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0106-	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	9906-0105	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (C)	8-97240-044-3	01	1	0106-	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	9906-0105	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (D)	8-97300-859-2	01	1	0106-	●	●				●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	9906-0105	●	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-2	01	1	0106-	●	●				●
511	03.417 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-	●	●				●

60 399 391 281 391 381 389 391 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

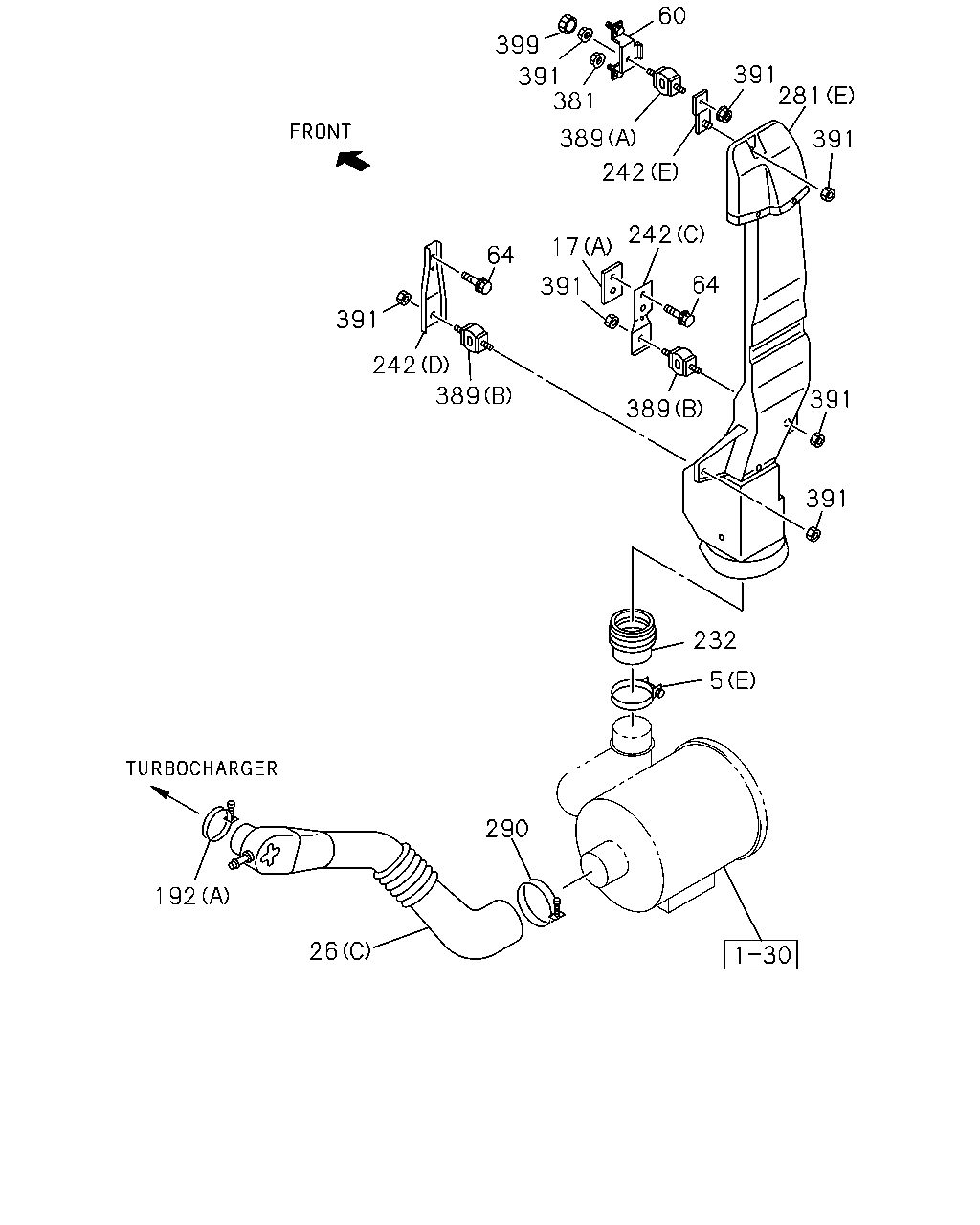

5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9812-9903	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9904-9905	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9904-9905						●
17	03.403 GASKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9906-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0106-	●	●				●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0106-	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	9904-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0106-						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0106-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	9812-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-3	01	1	9904-0105						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0106-						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0106-						●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9812-9905	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
174	03.682 SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0106-	●	●				●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94456-844-0	01	1	9906-0105	●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-932-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-932-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-933-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-958-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-958-0	01	1	0106-	●	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-541-1	01	1	0106-	●	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-542-1	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-114-0	01	1	0106-	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0106-	●	●				●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9812-9905	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	9904-0105						●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.417 (C)	8-97080-149-0	03	1	9904-0202						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	06	1	0106-0202						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (C)	8-97080-149-0	03	1	0203-						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	03	1	0203-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	9812-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0106-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) M8 FLANGE	8-94279-517-0	03	1	9904-						●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9812-9905	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0106-	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0106-	●	●
402	03.417 GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0106-	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 01.062 M6 FLANGE	0-91150-206-0	04	1	0106-0110	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0111-	●	●				●

110 505 110 199 110 110 505 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9812-	●	●	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	9904-0202						●	●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0203-						●	●
110	03.403 NUT; RUBBER MTG 4JH1 ENG(RJX) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0203-						●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-604-0	01	1	9812-	●	●	●	●	●	●	●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-603-1	01	1	9812-	●	●	●	●	●	●	●
505	03.406 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	02	1	9812-	●	●	●	●	●	●	●

60 399 391 281 391 381 389 391 242 242 17 64 64 391 391 242 389 391 389 391 232 5 290 192 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9812-9903	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9904-9905	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9904-9905						●
17	03.403 GASKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9906-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0106-	●	●				●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0106-	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	9904-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0106-						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0106-						●
26	03.417 DUCT; AIR INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C)	8-97205-772-0	01	1	9906-0105	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97072-964-1	01	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97069-877-1	01	1	9812-0105	●	●
26	03.417 DUCT; AIR INT 4JH1 ENG(RJX) (D)	8-97213-912-2	01	1	0106-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	9812-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-3	01	1	9904-0105						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0106-						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0106-						●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9812-9905	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	9812-0105	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	0106-	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●				●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●				●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	9812-0105	●	●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94456-844-0	01	1	9906-0105	●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	9812-0105	●	●
242	03.417 BRACKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-932-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-932-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-933-0	01	1	0106-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-958-0	01	1	9906-0105	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-958-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	9906-0105	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9812-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9812-9905	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	9904-0105						●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.417 (C)	8-97080-149-0	03	1	9904-0202						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	06	1	0106-0202						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (C)	8-97080-149-0	03	1	0203-						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	03	1	0203-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	9812-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0106-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) M8 FLANGE	8-94279-517-0	03	1	9904-						●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9812-9905	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	9906-0103	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL>	8-94273-605-0	02	1	0104-0104	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0105-0105	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0106-	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0106-	●	●

192 508 192 297 487 192 192 192 297 510 13 32 509 13 192 507 509 9 192 192 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C)	8-97226-133-0	01	1	9906-0105	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (A)	8-97312-473-1	01	1	0106-	●	●				●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (D)	8-97072-966-0	01	1	9812-0105	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97300-773-1	01	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9904-						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9904-						●	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9906-0105	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0106-	●	●				●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	9812-0105	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87	8-97087-432-0	01	1	0106-	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●				●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●				●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9906-0105	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9812-0105	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9812-0105	●	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	9906-0105	●	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-537-0	01	1	0106-	●	●				●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	9906-0105	●	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0106-	●	●				●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	9906-0105	●	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0106-	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	9906-0105	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (C)	8-97240-044-3	01	1	0106-	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	9906-0105	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (D)	8-97300-859-2	01	1	0106-	●	●				●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	9906-0105	●	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-2	01	1	0106-	●	●				●

381 17 391 60 389 61 391 63 381 61 389 17 61 320 110 146 520 110 13 409 281 288 10 281 10 10 288 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	9812-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112	9-09915-074-1	01	1	9906-0105	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (E) ID=112	9-09915-074-1	01	1	0106-	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87	8-97087-432-0	01	1	9812-9903	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82	9-09915-511-1	01	1	9904-0105	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67	9-09915-069-1	01	1	9903-0105	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9812-9903	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	9904-0105	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●				●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9904-						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9904-						●	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9812-9903	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9904-9905	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9904-9905						●
17	03.403 GASKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	9906-0105	●	●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	9906-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0106-	●	●				●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0106-	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	9904-0105						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0106-						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0106-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	9812-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-3	01	1	9904-0105						●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0106-						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0106-						●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9904-0105						●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0106-						●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0106-						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-						●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-2	01	1	9904-0105						●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0106-						●	●
63	03.417 BRACKET; AIR DUCT,LWR 4JH1 ENG(RJX)	8-97892-526-3	01	1	0106-						●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9812-	●	●	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	9904-0202						●	●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0203-						●	●
110	03.403 NUT; RUBBER MTG 4JH1 ENG(RJX) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0203-						●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	9812-0105	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0106-	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	9812-0105	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0106-	●	●	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-084-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9812-9903	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (D)	8-97125-174-0	01	1	9904-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D)	8-97125-174-1	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94313-520-2	01	1	9906-0105	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (F)	8-97300-255-0	01	1	0106-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	9812-0105	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G)	8-97180-995-0	01	1	0106-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0106-						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97213-911-2	01	1	0106-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	9904-0105						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D)	8-97183-041-1	01	1	9812-0105	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D)	8-97183-041-2	01	1	0106-	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97214-827-1	01	1	9904-0105						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) (A)	8-97214-827-1	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B)	8-97214-828-0	01	1	9904-0105						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.405 (B)	8-97214-828-0	01	1	0106-						●	●
288	03.417 BRACKET; DUCT 4JH1 ENG(RJX) (C)	8-97287-785-0	01	1	0106-						●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	9812-0105	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0106-	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	9812-0105	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0106-	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51)	8-97211-578-0	01	1	9904-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9812-9905	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	9904-0105						●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0106-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9812-9905	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0106-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) 03.417 (C)	8-97080-149-0	03	1	9904-0202						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	06	1	0106-0202						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (C)	8-97080-149-0	03	1	0203-						●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (C)	8-97080-149-0	03	1	0203-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	9812-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0106-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TURBOCHARGER(K51) M8 FLANGE	8-94279-517-0	03	1	9904-						●	●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●	●	●	●	●	●
520	03.403 WASHER; RUBBER MTG 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9904-0202						●	●
520	03.403 WASHER; RUBBER MTG 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0203-						●	●
520	03.403 WASHER; RUBBER MTG 4JH1 ENG(RJX) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0203-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
