Sayfa 1-11 - Isuzu EPC

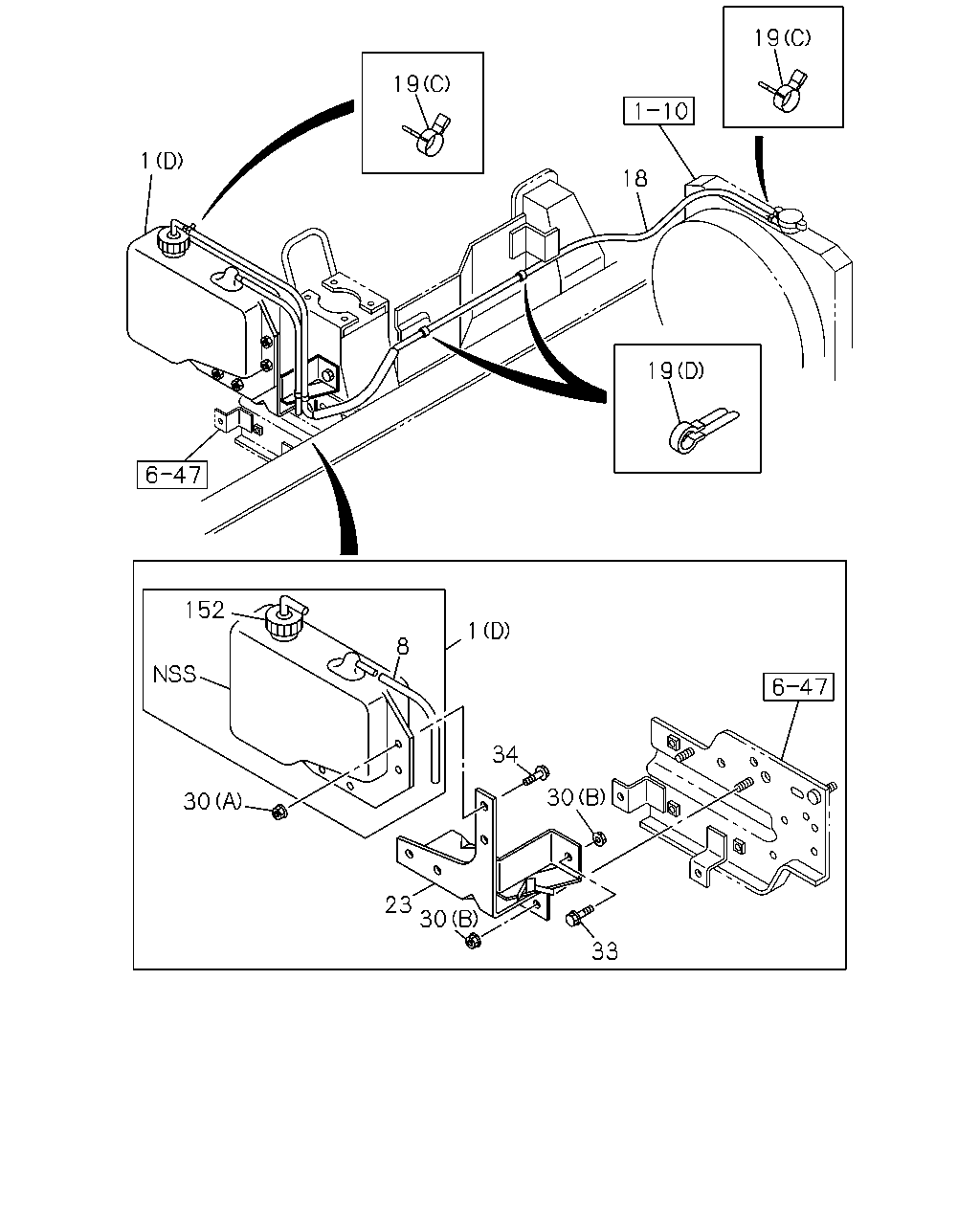

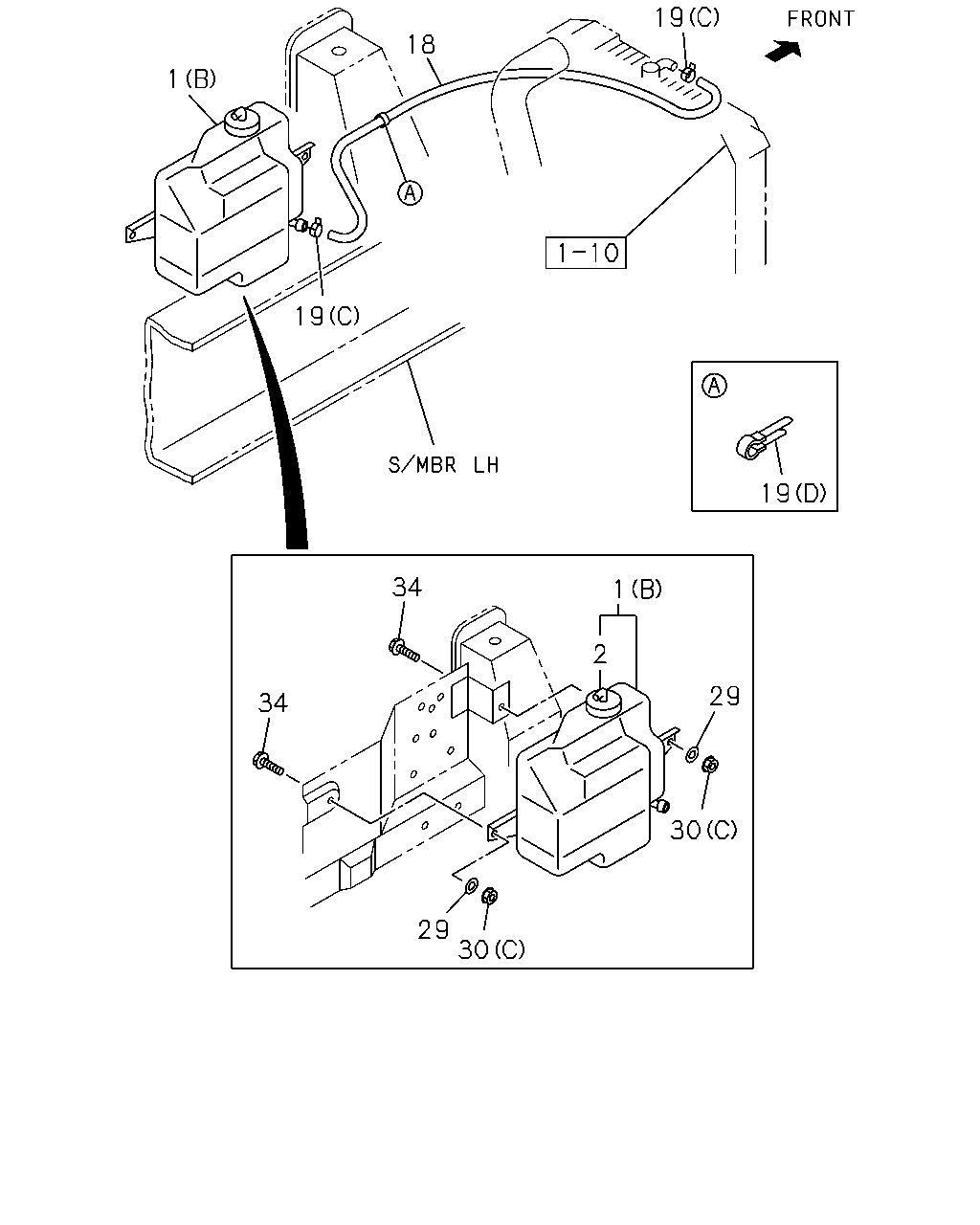

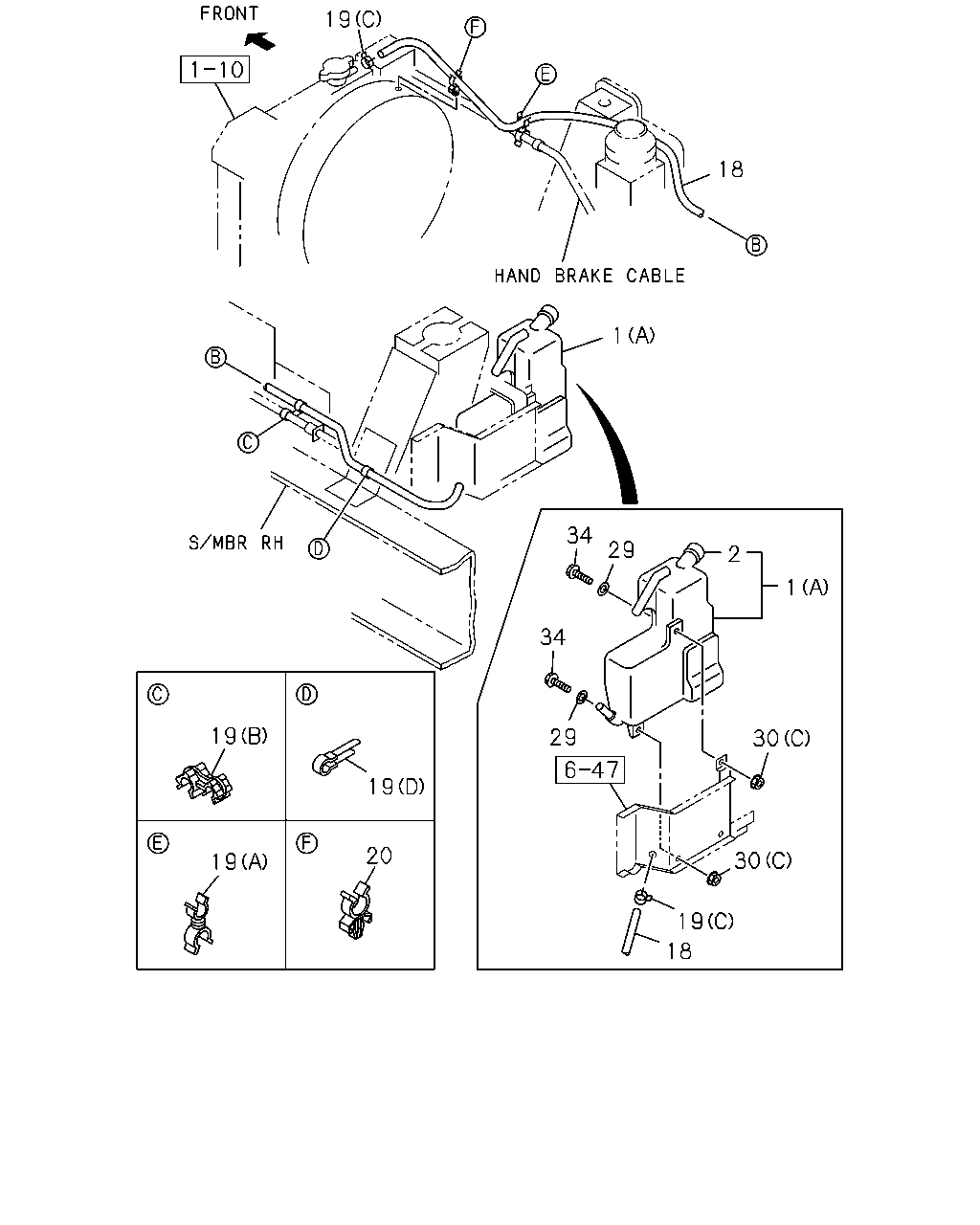

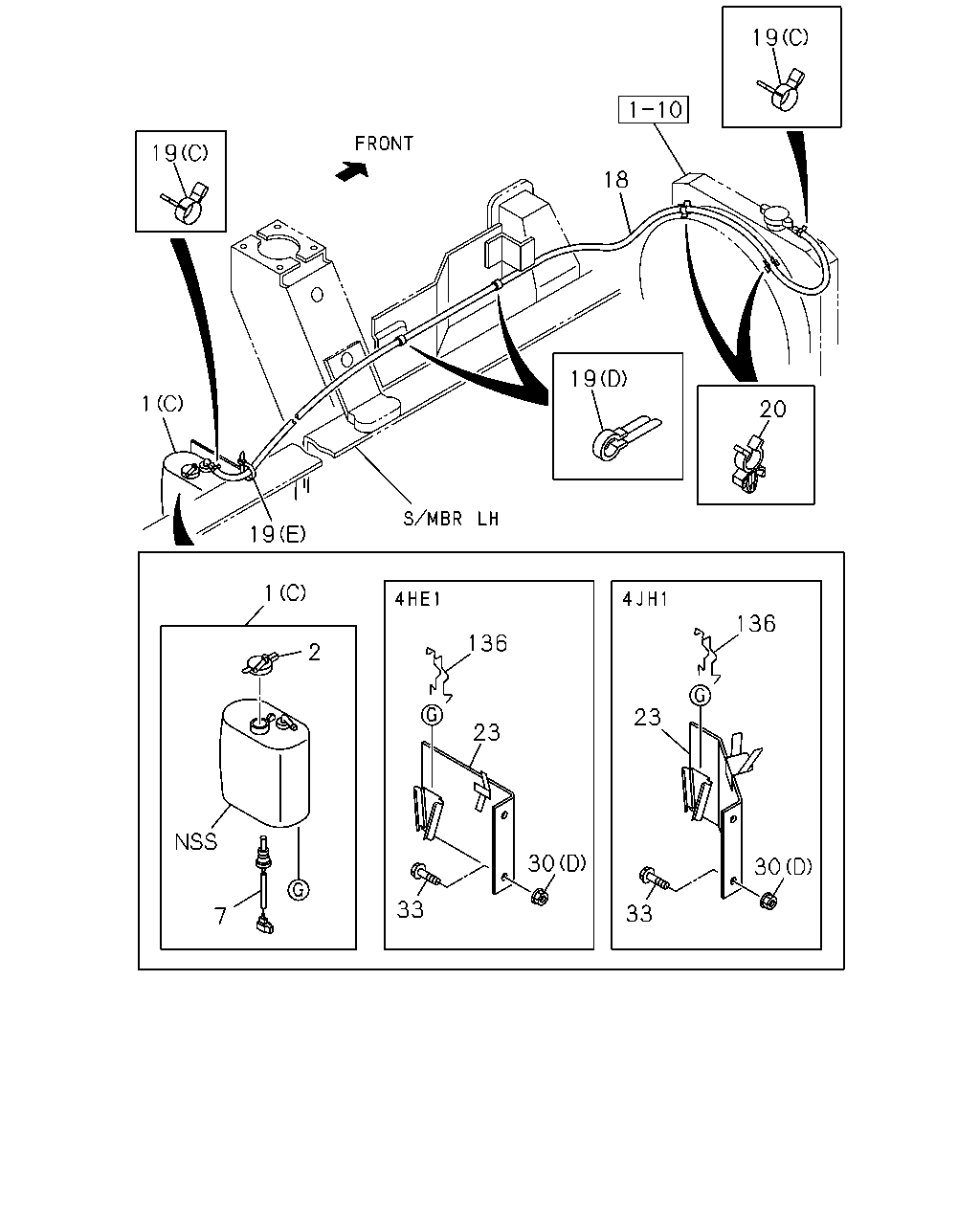

1-11 — RADIATOR HOSE AND SUB TANK (#44986) — 348 parça

19 18 1 34 29 2 1 34 19 29 30 19 20 30 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	9906-0105	●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9812-0105	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812			●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901			●	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9902-0105	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9902-0105	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	0106-	●	●		●	●
1	01.219 TANK; SURGE,RAD (A)	8-97210-844-0	01	1	0106-			●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	9904-0105						●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-						●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-							●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9812-9903	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9904-0105	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-94449-363-0	01	1	9904-0105						●
2	01.203 CAP; SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-94449-363-0	01	1	0106-						●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-94449-363-0	01	1	0106-							●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY)	8-97126-876-0	01	1	9812-9812	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97126-876-0	01	1	9812-9812			●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY)	8-97217-796-0	01	1	9812-9901	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	9812-9901			●	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	9902-0105	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9902-0105	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	0106-	●	●		●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0106-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550	8-97129-560-1	01	1	9812-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-442-1	01	1	9906-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1650	8-97260-748-2	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9812-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1870	8-97260-747-2	01	1	0106-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450	8-97218-446-0	01	1	9812-	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	9904-0105						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=2170	8-97214-383-5	01	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-	●	●		●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	9812-	●	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12	8-94416-613-0	01	1	9812-9912	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	9904-0105						●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	02	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 03.162 (E) L=140	5-09707-031-1	02	1	0106-							●
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8	8-97354-231-0	01	1	0210-	●	●	●	●	●
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8	8-97354-231-0	02	1	0210-						●
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) ID=10.8	8-97354-231-0	02	1	0210-							●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9812-0105	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9812-0105			●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-	●	●		●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-			●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE	0-91150-208-0	07	1	9906-9907	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105			●	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-	●	●		●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-			●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9904-0105						●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-						●
30	01.203 NUT 4HE1 ENG(RLY) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-							●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	01	1	0106-						●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9906-0105	●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9812-0105	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9812-0105	●	●
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9812-0105			●	●	●
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-	●	●		●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-			●

19 19 1 18 19 152 1 8 34 30 30 23 30 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	9906-0105	●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9812-0105	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812			●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901			●	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9902-0105	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9902-0105	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	0106-	●	●		●	●
1	01.219 TANK; SURGE,RAD (A)	8-97210-844-0	01	1	0106-			●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	9904-0105						●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-						●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-							●
8	01.166 HOSE; VINYL 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500	1-09366-179-0	01	1	9906-0105	●	●
8	01.166 HOSE; VINYL 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.240 L=500	1-09366-179-0	01	1	0106-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550	8-97129-560-1	01	1	9812-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-442-1	01	1	9906-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1650	8-97260-748-2	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9812-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1870	8-97260-747-2	01	1	0106-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450	8-97218-446-0	01	1	9812-	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	9904-0105						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=2170	8-97214-383-5	01	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-	●	●		●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	9812-	●	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12	8-94416-613-0	01	1	9812-9912	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	9904-0105						●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	02	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 03.162 (E) L=140	5-09707-031-1	02	1	0106-							●
23	01.219 BRACKET; RESERVE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	9906-0105	●	●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	0106-	●	●
23	01.219 BRACKET; RESERVE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97214-324-1	01	1	9904-0105						●
23	01.219 BRACKET; RESERVE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97214-324-1	01	1	0106-						●
23	01.219 BRACKET; RESERVE TANK 4HE1 ENG(RLY)	8-97214-324-1	01	1	0106-							●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97259-337-0	01	1	0106-						●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE	0-91150-208-0	07	1	9906-9907	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105			●	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-	●	●		●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-			●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9904-0105						●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-						●
30	01.203 NUT 4HE1 ENG(RLY) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-							●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	01	1	0106-						●
33	01.277 BOLT; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●
33	01.277 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9904-0105						●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-						●
33	01.277 BOLT; BRKT 4HE1 ENG(RLY) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-							●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9906-0105	●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9812-0105	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9812-0105	●	●
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9812-0105			●	●	●
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-	●	●		●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-			●
152	01.203 CAP ASM; SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97217-799-0	01	1	9906-0105	●	●
152	01.203 CAP ASM; SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97217-799-0	01	1	0106-	●	●

19 18 1 19 19 34 1 2 29 34 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	9906-0105	●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9812-0105	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812			●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901			●	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9902-0105	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9902-0105	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	0106-	●	●		●	●
1	01.219 TANK; SURGE,RAD (A)	8-97210-844-0	01	1	0106-			●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	9904-0105						●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-						●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-							●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9812-9903	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9904-0105	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-94449-363-0	01	1	9904-0105						●
2	01.203 CAP; SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-94449-363-0	01	1	0106-						●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-94449-363-0	01	1	0106-							●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY)	8-97126-876-0	01	1	9812-9812	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97126-876-0	01	1	9812-9812			●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY)	8-97217-796-0	01	1	9812-9901	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	9812-9901			●	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	9902-0105	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9902-0105	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	0106-	●	●		●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0106-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550	8-97129-560-1	01	1	9812-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-442-1	01	1	9906-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1650	8-97260-748-2	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9812-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1870	8-97260-747-2	01	1	0106-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450	8-97218-446-0	01	1	9812-	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	9904-0105						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=2170	8-97214-383-5	01	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-	●	●		●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	9812-	●	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12	8-94416-613-0	01	1	9812-9912	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	9904-0105						●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	02	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 03.162 (E) L=140	5-09707-031-1	02	1	0106-							●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9812-0105	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9812-0105			●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-	●	●		●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-			●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE	0-91150-208-0	07	1	9906-9907	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105			●	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-	●	●		●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-			●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9904-0105						●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-						●
30	01.203 NUT 4HE1 ENG(RLY) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-							●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	01	1	0106-						●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9906-0105	●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9812-0105	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9812-0105	●	●
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9812-0105			●	●	●
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-	●	●		●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-			●

19 19 18 19 1 20 19 1 136 136 2 23 23 30 30 33 33 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	9906-0105	●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9812-0105	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97131-202-0	01	1	9812-9812			●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9812-9901			●	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	9902-0105	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9902-0105	●	●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (A)	8-97210-844-0	01	1	0106-	●	●		●	●
1	01.219 TANK; SURGE,RAD (A)	8-97210-844-0	01	1	0106-			●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	9904-0105						●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-						●
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (C)	8-94378-388-1	01	1	0106-							●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9812-9903	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9904-0105	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-94449-363-0	01	1	9904-0105						●
2	01.203 CAP; SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-94449-363-0	01	1	0106-						●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-94449-363-0	01	1	0106-							●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY)	8-97126-876-0	01	1	9812-9812	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97126-876-0	01	1	9812-9812			●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY)	8-97217-796-0	01	1	9812-9901	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	9812-9901			●	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	9902-0105	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9902-0105	●	●
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	0106-	●	●		●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0106-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550	8-97129-560-1	01	1	9812-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-442-1	01	1	9906-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1650	8-97260-748-2	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9812-0105	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1870	8-97260-747-2	01	1	0106-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450	8-97218-446-0	01	1	9812-	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	9904-0105						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170	8-97214-383-5	01	1	0106-						●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=2170	8-97214-383-5	01	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9812-9905			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	01	1	9906-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	9812-0105			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-	●	●		●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0106-			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	9812-	●	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12	8-94416-613-0	01	1	9812-9912	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	9904-0105						●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47	5-09700-319-0	02	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (D) ID=14 L=47	5-09700-319-0	02	1	0106-							●
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 03.162 (E) L=140	5-09707-031-1	02	1	0106-							●
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8	8-97354-231-0	01	1	0210-	●	●	●	●	●
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8	8-97354-231-0	02	1	0210-						●
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) ID=10.8	8-97354-231-0	02	1	0210-							●
23	01.219 BRACKET; RESERVE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	9906-0105	●	●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	0106-	●	●
23	01.219 BRACKET; RESERVE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97214-324-1	01	1	9904-0105						●
23	01.219 BRACKET; RESERVE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97214-324-1	01	1	0106-						●
23	01.219 BRACKET; RESERVE TANK 4HE1 ENG(RLY)	8-97214-324-1	01	1	0106-							●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97259-337-0	01	1	0106-						●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE	0-91150-208-0	07	1	9906-9907	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●
30	01.203 NUT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9908-0105	●	●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9812-0105			●	●	●
30	01.203 NUT 4HE1 ENG(RLY) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-	●	●		●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0106-			●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9904-0105						●
30	01.203 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-						●
30	01.203 NUT 4HE1 ENG(RLY) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	0106-							●
30	01.203 NUT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 04.785 (D) M10 FLANGE	0-91150-110-0	01	1	0106-						●
33	01.277 BOLT; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●
33	01.277 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9904-0105						●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-						●
33	01.277 BOLT; BRKT 4HE1 ENG(RLY) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-							●
136	01.219 STOPPER; SURGE TANK 4HE1 ENG(RLY)	8-97087-220-0	01	1	9904-0105						●
136	01.219 STOPPER; SURGE TANK 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97087-220-0	01	1	0106-						●
136	01.219 STOPPER; SURGE TANK 4HE1 ENG(RLY)	8-97087-220-0	01	1	0106-							●

128 56 56 55 56 128 56 55 56 128 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-143-0	01	1	9812-0105	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-143-0	01	1	0106-	●	●				●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC)	8-97089-916-1	01	1	9812-9905	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97089-916-1	01	1	9906-0105	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX)	8-97260-187-1	01	1	0106-	●	●				●
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97216-029-0	01	1	9812-	●	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9812-9903	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9812-9903			●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9904-9905	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9904-9905			●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9906-9908	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9906-9908			●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9909-0001	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HE1 ENG(RLY) ID=48	5-09704-049-0	02	1	9909-0001			●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=48	5-09704-049-0	02	1	0002-0105	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JH1 ENG(RJX) ID=48	5-09704-049-0	02	1	0106-	●	●				●
56	01.166 CLIP; WATER HOSE,RAD 4HE1 ENG(RLY) ID=40	8-97245-216-0	02	1	0002-	●	●	●	●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-142-0	01	1	9812-0105	●	●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-142-0	01	1	0106-	●	●				●
128	01.159 HOSE; WATER,RAD INL 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-853-0	01	1	9906-0105	●	●
128	01.159 HOSE; WATER,RAD INL 4JH1 ENG(RJX)	8-97289-369-0	01	1	0106-	●	●				●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97147-473-0	01	1	9812-9905	●	●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97147-473-0	01	1	9906-0105	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97147-473-0	01	1	9906-0105	●	●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97160-257-1	01	1	9812-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
