Sayfa 1-10 - Isuzu EPC

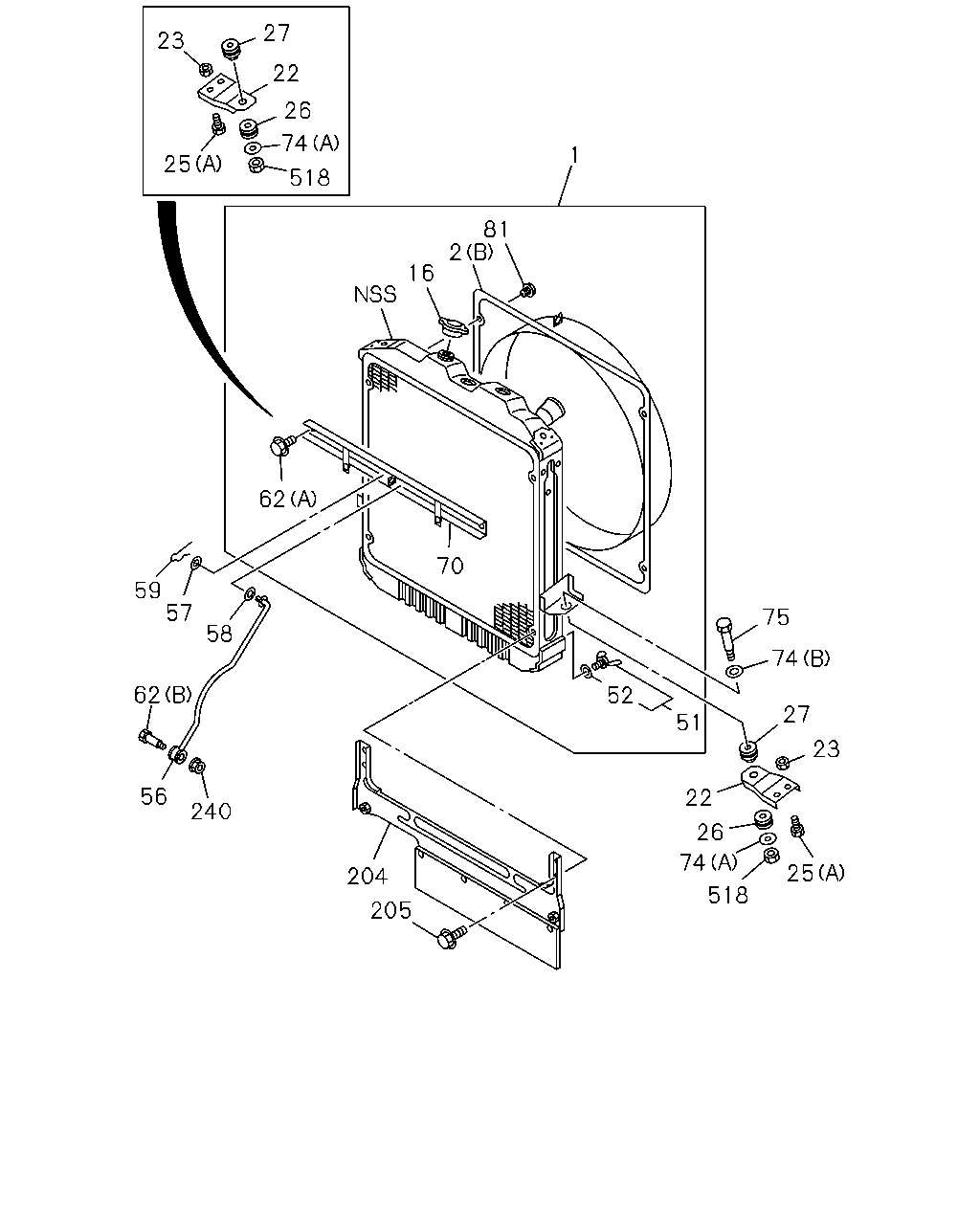

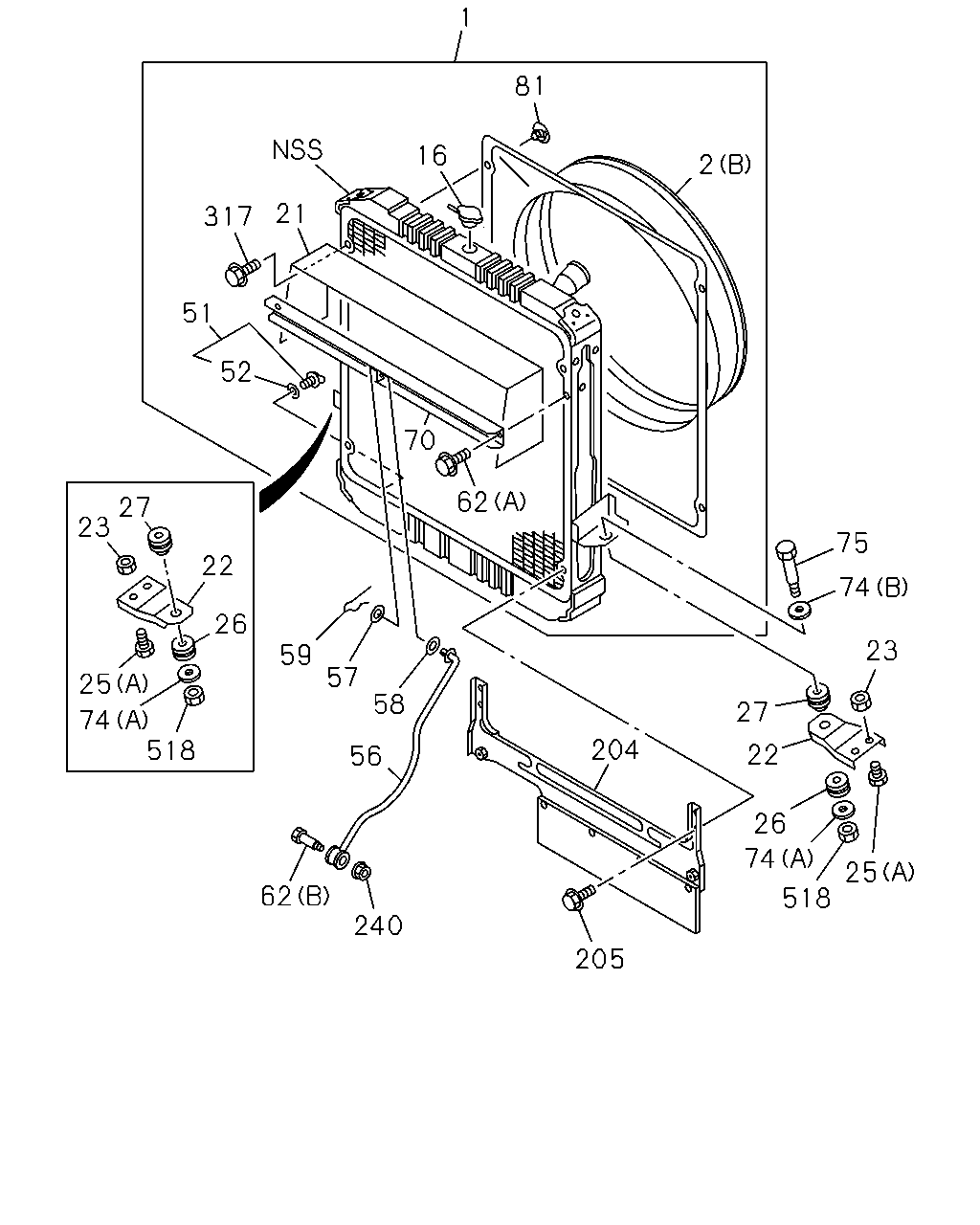

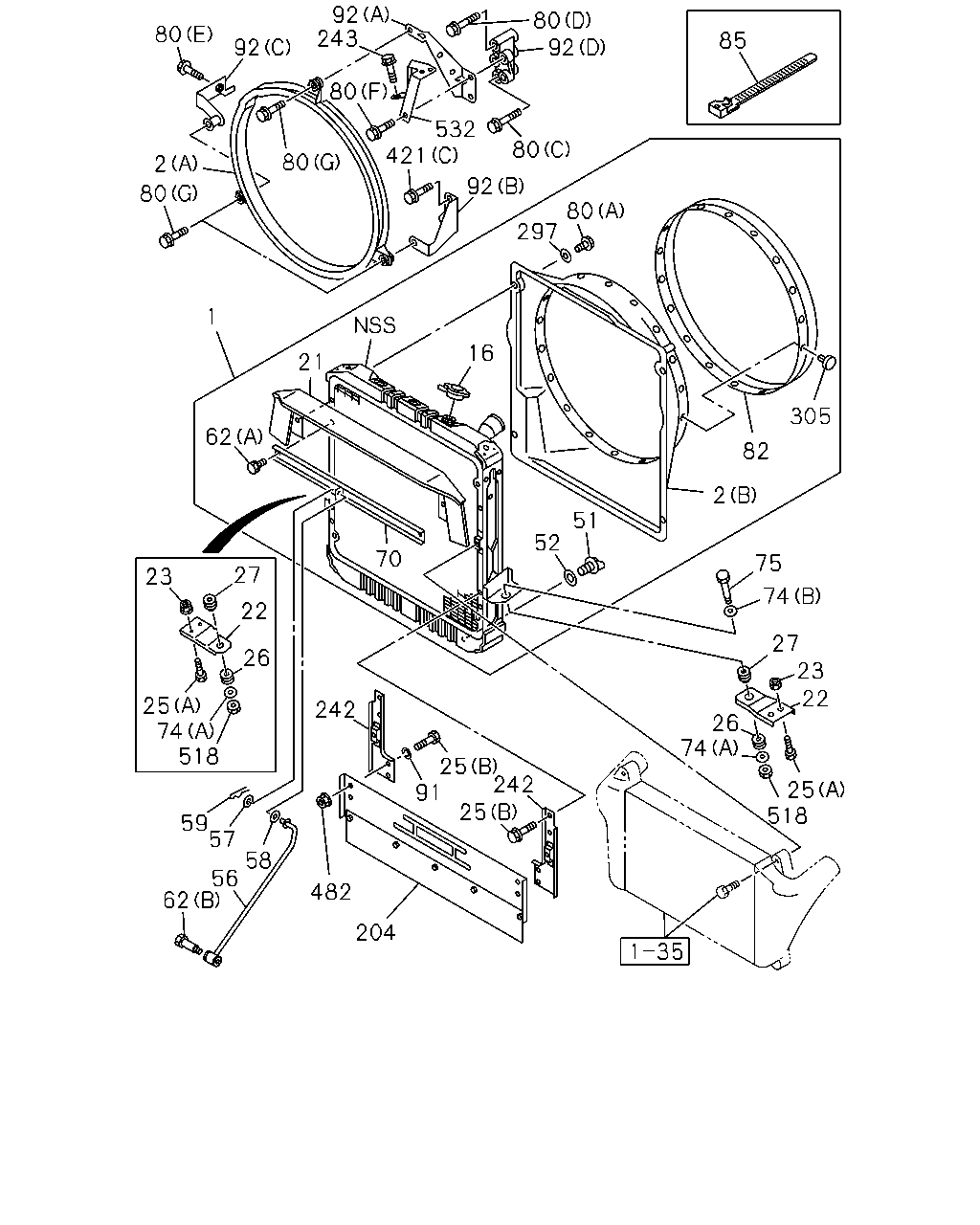

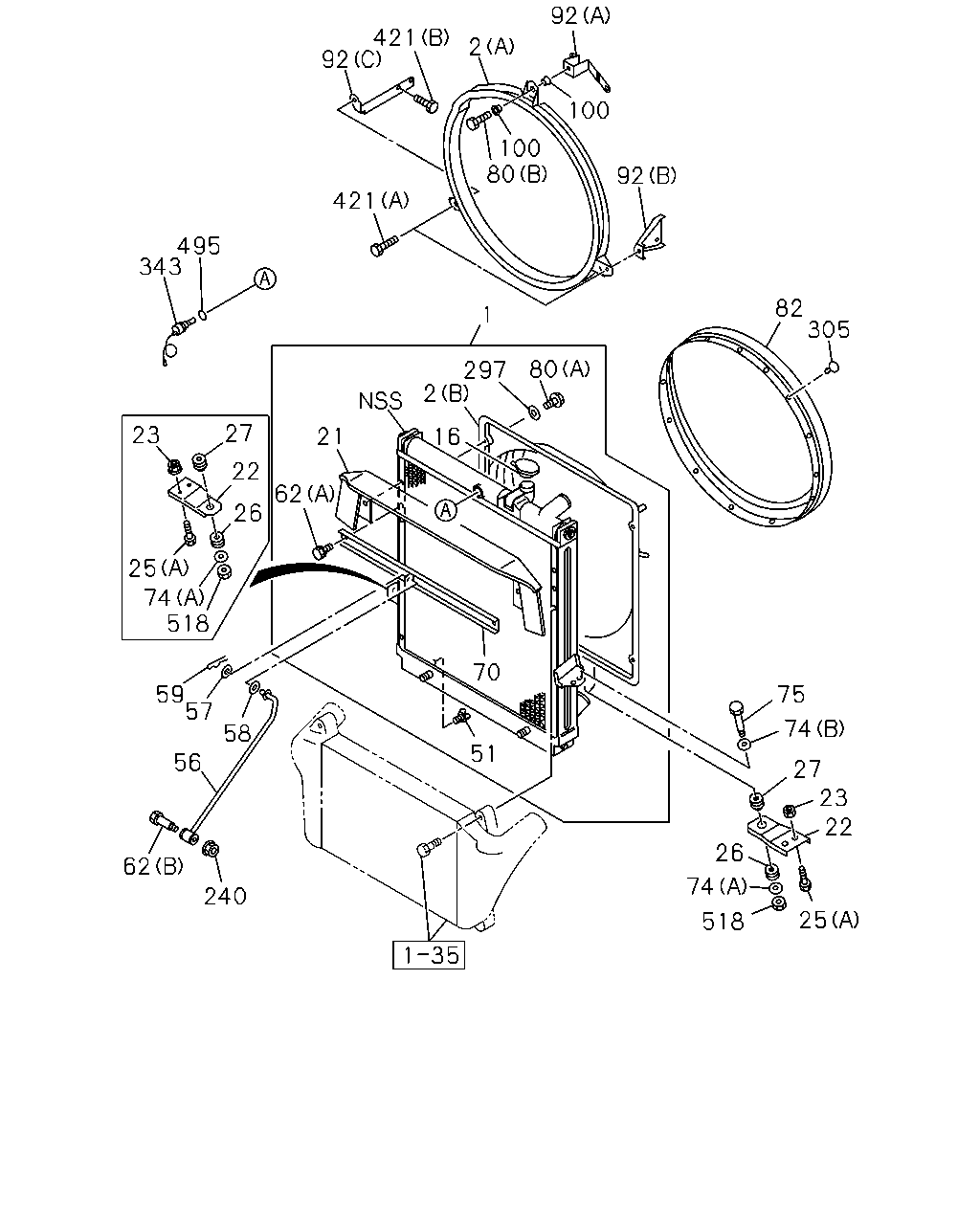

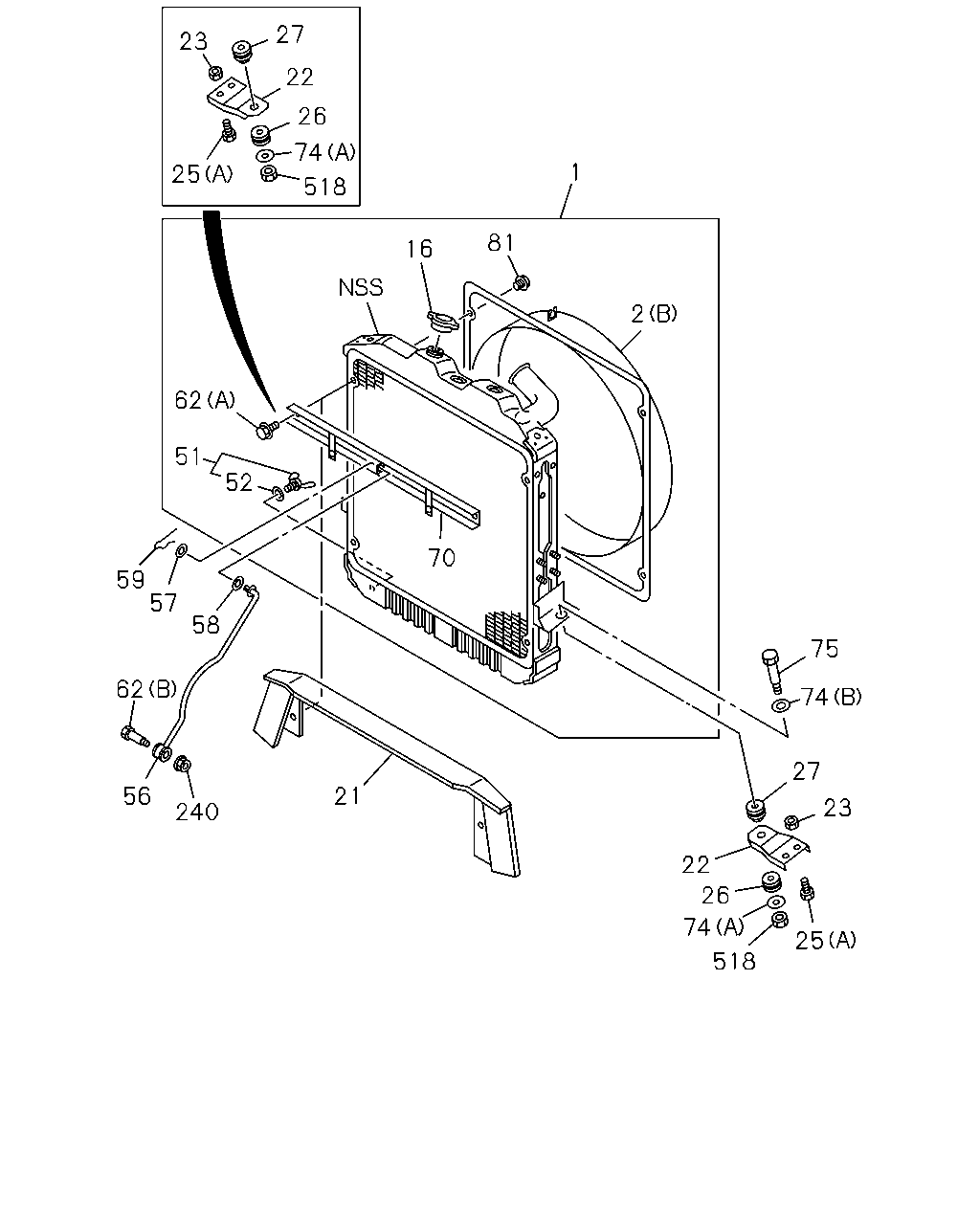

1-10 — RADIATOR (#44985) — 708 parça

92 421 92 2 100 100 80 92 421 495 343 82 305 1 80 297 2 27 23 21 16 22 62 26 25 74 518 70 59 57 75 74 58 51 56 27 23 22 26 62 74 240 25 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97178-667-2	01	1	9906-0105	●	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-776-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97148-288-1	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0106-0207	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0208-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-362-0	01	1	0210-	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-663-1	01	1	9812-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-365-0	01	1	0210-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	9812-0105	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9812-9905	●	●
2	01.277 GUIDE; FAN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9812-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9812-9903	●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9904-0105	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0106-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9812-9903	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9812-9903				●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9904-9905	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9904-9905			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC)	8-97167-854-0	01	1	9812-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0106-	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9812-0105	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	9906-0105	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-801-0	01	1	9812-0105	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0106-	●	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9812-9905	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	9812-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9812-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9812-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9812-9903	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9904-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0106-	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9812-0105	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC)	8-97083-079-2	01	1	9812-9905	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97083-079-2	01	1	9906-0105	●	●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97260-124-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9812-	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901	●	●
57	01.271 WASHER; PL,STAY 4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901				●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9902-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901	●	●
58	01.271 WASHER; CURVED,STAY 4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901				●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9902-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901	●	●
59	01.271 PIN; SNAP,STAY 4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901				●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9902-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903				●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905			●	●	●	●
62	01.271 BOLT; STAY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●	●	●	●
62	01.271 BOLT; STAY CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9812-9903	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9812-9903				●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9904-0105	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9904-0105			●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9812-9905	●	●
70	01.271 STAY; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0106-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9812-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9812-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9812-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	9812-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9812-9903	●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9904-0105	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0106-	●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	9812-9903	●	●		●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	9904-0105	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	0106-	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-451-0	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	9812-	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	9812-	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97189-394-0	01	1	9812-	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0106-	●	●	●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09337-027-0	06	1	9812-	●	●	●	●	●	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●		●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0106-	●	●	●	●	●	●	●
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	9812-0105	●	●	●	●	●	●
297	01.277 WASHER; PL,FAN GUIDE CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0106-	●	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET	1-73318-230-0	12	1	9812-0105	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET	1-73318-230-0	12	1	0106-0209	●	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0106-0209	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0210-	●	●	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> M18X12	1-09604-081-0	01	1	9812-0105	●	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12	1-09604-081-0	01	1	0106-	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	9812-	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	9812-	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0106-	●	●	●
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.097	1-09623-185-0	01	1	9812-0105	●	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097	1-09623-185-0	01	1	9812-	●	●	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-	●	●	●	●	●	●	●

92 243 80 92 80 85 92 80 532 421 80 80 2 92 80 80 27 1 16 21 305 62 82 2 51 52 70 75 27 23 74 22 27 23 22 26 25 74 518 242 26 74 25 242 91 25 25 518 59 57 58 56 62 482 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97178-667-2	01	1	9906-0105	●	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-776-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97148-288-1	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0106-0207	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0208-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-362-0	01	1	0210-	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-663-1	01	1	9812-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-365-0	01	1	0210-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	9812-0105	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9812-9905	●	●
2	01.277 GUIDE; FAN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9812-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9812-9903	●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9904-0105	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0106-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9812-9903	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9812-9903				●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9904-9905	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9904-9905			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC)	8-97167-854-0	01	1	9812-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0106-	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9812-0105	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	9906-0105	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-801-0	01	1	9812-0105	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0106-	●	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9812-9905	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	9812-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9812-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9812-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9812-9903	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9904-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0106-	●	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9812-0105	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC)	8-97083-079-2	01	1	9812-9905	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97083-079-2	01	1	9906-0105	●	●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97260-124-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9812-	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901	●	●
57	01.271 WASHER; PL,STAY 4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901				●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9902-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901	●	●
58	01.271 WASHER; CURVED,STAY 4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901				●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9902-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901	●	●
59	01.271 PIN; SNAP,STAY 4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901				●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9902-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903				●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905			●	●	●	●
62	01.271 BOLT; STAY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●	●	●	●
62	01.271 BOLT; STAY CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9812-9903	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9812-9903				●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9904-0105	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9904-0105			●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9812-9905	●	●
70	01.271 STAY; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0106-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9812-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9812-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9812-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	9812-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9812-9903	●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9904-0105	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0106-	●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	9812-9903	●	●		●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	9904-0105	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	0106-	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-451-0	01	1	0106-	●	●	●
85	01.277 CLIP 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0106-	●	●	●
91	01.277 WASHER; PL 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	9812-	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	9812-	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97189-394-0	01	1	9812-	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9812-0105	●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	9812-0105	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-121-0	01	1	0106-	●	●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-453-0	01	1	0106-	●	●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-452-0	01	1	0106-	●	●	●
243	01.219 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET	1-73318-230-0	12	1	9812-0105	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET	1-73318-230-0	12	1	0106-0209	●	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0106-0209	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0210-	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	9812-	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	9812-	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0106-	●	●	●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	04	1	0106-	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-	●	●	●	●	●	●	●
532	01.219 BRACKET; HEATER PIPE 4JH1 ENG(RJX)	8-97302-265-1	01	1	0106-	●	●	●

131 132 131 132 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
131	01.166 CLIP; ENG SIDE TOP 4JG2 ENG(RJC) ID=42	5-09704-047-1	01	1	9812-9905	●	●
131	01.166 CLIP; ENG SIDE TOP 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=42	5-09704-047-1	01	1	9906-0105	●	●
131	01.166 CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0106-	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) 00.413 ID=52	1-09704-057-0	01	1	9812-0001	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0002-	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JG2 ENG(RJC) ID=48	5-09704-049-0	01	1	9812-9905	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=48	5-09704-049-0	01	1	9906-0105	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JH1 ENG(RJX) ID=48	5-09704-049-0	01	1	0106-	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=62	9-09915-068-1	01	1	9812-0001	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0002-	●	●	●	●	●	●	●

1 81 16 2 21 317 51 52 70 62 27 23 75 22 74 26 23 59 57 25 58 27 74 518 204 22 56 26 74 25 62 518 240 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97178-667-2	01	1	9906-0105	●	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-776-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97148-288-1	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0106-0207	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0208-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-362-0	01	1	0210-	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-663-1	01	1	9812-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-365-0	01	1	0210-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	9812-0105	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9812-9905	●	●
2	01.277 GUIDE; FAN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9812-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9812-9903	●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9904-0105	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0106-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9812-9903	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9812-9903				●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9904-9905	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9904-9905			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC)	8-97167-854-0	01	1	9812-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0106-	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9812-0105	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	9906-0105	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-801-0	01	1	9812-0105	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0106-	●	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9812-9905	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	9812-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9812-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9812-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9812-9903	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9904-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0106-	●	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9812-0105	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC)	8-97083-079-2	01	1	9812-9905	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97083-079-2	01	1	9906-0105	●	●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97260-124-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9812-	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901	●	●
57	01.271 WASHER; PL,STAY 4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901				●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9902-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901	●	●
58	01.271 WASHER; CURVED,STAY 4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901				●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9902-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901	●	●
59	01.271 PIN; SNAP,STAY 4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901				●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9902-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903				●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905			●	●	●	●
62	01.271 BOLT; STAY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●	●	●	●
62	01.271 BOLT; STAY CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9812-9903	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9812-9903				●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9904-0105	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9904-0105			●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9812-9905	●	●
70	01.271 STAY; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0106-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9812-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9812-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9812-	●	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC)	8-97088-810-0	04	1	9812-9905	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9812-9905	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC)	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9812-0105	●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	9812-0105	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-121-0	01	1	0106-	●	●	●
205	01.267 BOLT; AIR GUIDE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9812-0105	●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9812-0105	●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●		●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0106-	●	●	●	●	●	●	●
317	01.271 BOLT; SEAL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-0105	●	●
317	01.271 BOLT; SEAL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0106-	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-	●	●	●	●	●	●	●

27 23 22 26 74 1 25 518 81 16 2 62 51 52 70 59 57 58 75 62 74 27 21 56 23 240 22 26 74 25 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97178-667-2	01	1	9906-0105	●	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-776-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97148-288-1	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0106-0207	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0208-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-362-0	01	1	0210-	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-663-1	01	1	9812-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-365-0	01	1	0210-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	9812-0105	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9812-9905	●	●
2	01.277 GUIDE; FAN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9812-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9812-9903	●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9904-0105	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0106-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9812-9903	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9812-9903				●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9904-9905	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9904-9905			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC)	8-97167-854-0	01	1	9812-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0106-	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9812-0105	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	9906-0105	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97219-807-1	01	1	0106-	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-801-0	01	1	9812-0105	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0106-	●	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9812-9905	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	9812-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9812-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9812-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9812-9903	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9904-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0106-	●	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9812-0105	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC)	8-97083-079-2	01	1	9812-9905	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97083-079-2	01	1	9906-0105	●	●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97260-124-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9812-	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901	●	●
57	01.271 WASHER; PL,STAY 4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901				●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9902-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901	●	●
58	01.271 WASHER; CURVED,STAY 4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901				●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9902-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901	●	●
59	01.271 PIN; SNAP,STAY 4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901				●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9902-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903				●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905			●	●	●	●
62	01.271 BOLT; STAY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●	●	●	●
62	01.271 BOLT; STAY CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9812-9903	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9812-9903				●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9904-0105	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9904-0105			●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9812-9905	●	●
70	01.271 STAY; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0106-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9812-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9812-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9812-	●	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC)	8-97088-810-0	04	1	9812-9905	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9812-9905	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC)	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0106-	●	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●		●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0106-	●	●	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-	●	●	●	●	●	●	●

27 23 22 26 74 1 25 518 81 2 16 62 70 59 57 75 58 74 62 52 27 51 23 56 22 240 26 74 25 204 518 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97178-667-2	01	1	9906-0105	●	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-776-0	01	1	0106-	●	●	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97148-288-1	01	1	9812-0105	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0106-0207	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-664-1	01	1	0208-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-362-0	01	1	0210-	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-663-1	01	1	9812-0209	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-365-0	01	1	0210-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	9812-0105	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97066-018-0	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9812-9905	●	●
2	01.277 GUIDE; FAN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) (B)	8-97066-011-0	01	1	9906-0105	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9812-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9812-9903	●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-0	01	1	9904-0105	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0106-	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9812-9903	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9812-9903				●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9904-9905	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9904-9905			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97177-872-0	01	1	9906-0008	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	9906-0008			●	●	●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0105	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC)	8-97167-854-0	01	1	9812-0105	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0106-	●	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	9812-0105	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9812-9905	●	●
22	01.270 BRACKET; RAD MTG 4JG2 ENG(RJC) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	9906-0105	●	●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-94101-621-1	02	1	0106-	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	9812-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	9812-	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9812-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9812-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●	●
51	08.951 PLUG; DRAIN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9812-9903	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9904-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0106-	●	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●	●
52	08.951 GASKET; DRAIN PLUG 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9812-0105	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC)	8-97083-079-2	01	1	9812-9905	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97083-079-2	01	1	9906-0105	●	●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97260-124-0	01	1	0106-	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9812-	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901	●	●
57	01.271 WASHER; PL,STAY 4HE1 ENG(RLY) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9901				●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9902-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901	●	●
58	01.271 WASHER; CURVED,STAY 4HE1 ENG(RLY) ID=12	8-97011-676-0	01	1	9812-9901				●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9902-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC),4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901	●	●
59	01.271 PIN; SNAP,STAY 4HE1 ENG(RLY) 03.452 L=32.6	8-94202-777-0	01	1	9812-9901				●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9902-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9903				●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9904-9905			●	●	●	●
62	01.271 BOLT; STAY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●	●	●	●
62	01.271 BOLT; STAY CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9812-9903	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9812-9903				●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	9904-0105	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	9904-0105			●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9812-9905	●	●
70	01.271 STAY; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC)	8-97047-899-0	01	1	9906-0105	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0106-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9812-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9812-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9812-	●	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC)	8-97088-810-0	04	1	9812-9905	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9812-9905	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC)	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9906-0105	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9812-0105	●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	9812-0105	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-121-0	01	1	0106-	●	●	●
205	01.267 BOLT; AIR GUIDE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9812-0105	●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9812-0105	●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●		●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9812-9903	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9904-9905	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●	●	●	●	●
240	01.271 NUT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	9906-0105	●	●
240	01.271 NUT; STAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0106-	●	●	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
