◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#44983) — 13 parça

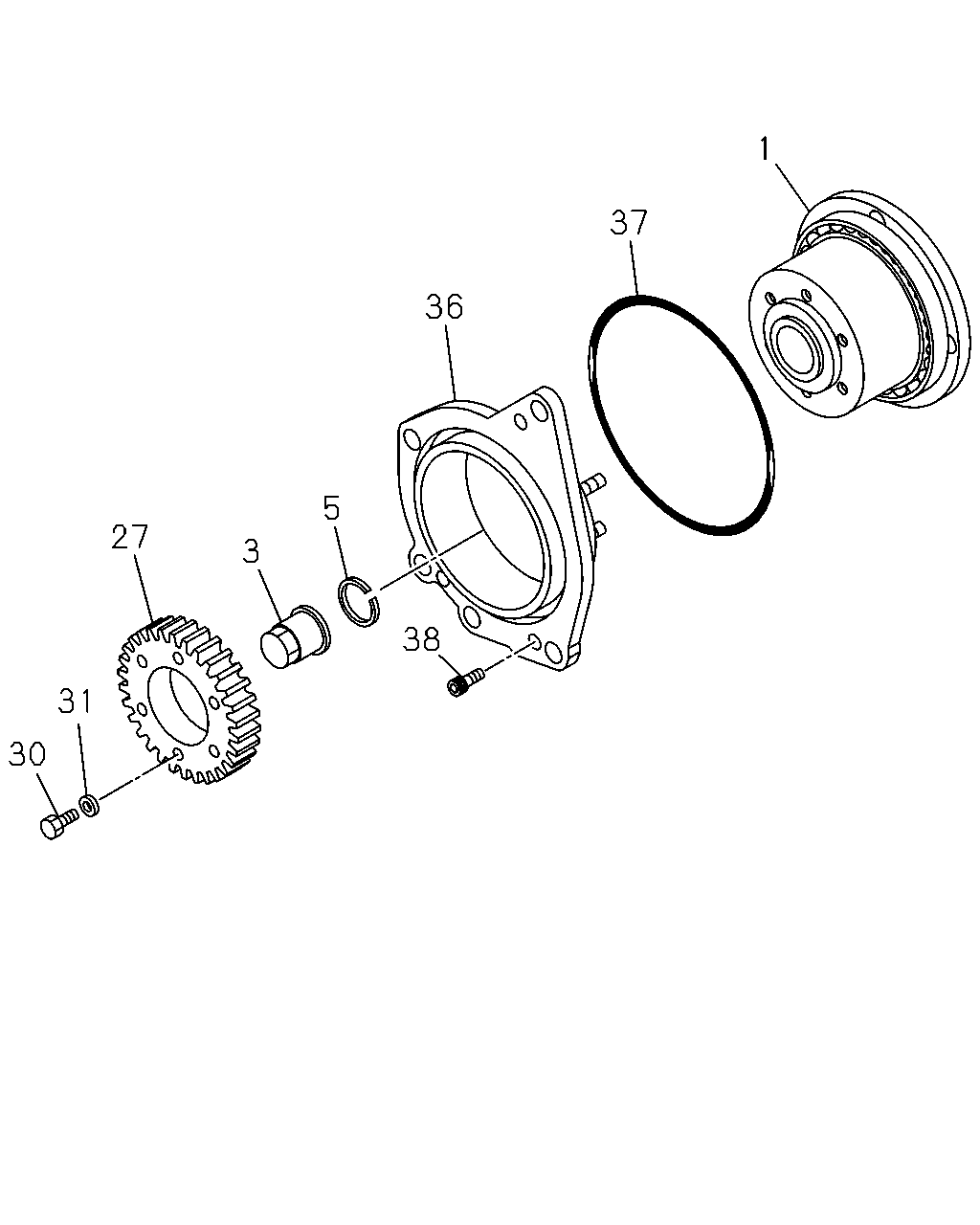

çizim 9360
1 37 36 5 27 3 38 31 30
BalonParca AdiParca NoAdetTipApplied Date
1 03.340 COUPLING; INJ PUMP DRIVE
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97202-359-4 01 1 9812-0105
1 03.340 COUPLING; INJ PUMP DRIVE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97202-358-4 01 1 9812-0105
1 03.340 COUPLING; INJ PUMP DRIVE
CHARGE AIR COOLER<6PL> 		8-97202-358-4 01 1 0106-
3 03.340 NUT; COUPLING FIX,INJ PUMP
CHARGE AIR COOLER<6PL> 		1-15749-144-0 01 1 9812-
5 03.340 WASHER; COUPLING FIX,INJ PUMP
CHARGE AIR COOLER<6PL> 		1-15749-145-0 01 1 9812-
27 03.340 GEAR; COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97212-190-0 01 1 9812-0105
27 03.340 GEAR; COUPLING
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-191-0 01 1 9812-0105
27 03.340 GEAR; COUPLING
CHARGE AIR COOLER<6PL> 		8-97212-191-0 01 1 0106-
30 03.340 BOLT; GEAR TO COUPLING
CHARGE AIR COOLER<6PL> 		8-97211-798-0 06 1 9812-
31 03.340 WASHER; PL,GEAR TO COUPLING
CHARGE AIR COOLER<6PL> 		8-97211-797-0 06 1 9812-
36 03.340 COVER; COUPLING
CHARGE AIR COOLER<6PL> 		8-97202-360-2 01 1 9812-
37 03.340 GASKET; COUPLING
CHARGE AIR COOLER<6PL> 		8-97201-279-0 01 1 9812-
38 03.340 BOLT; COVER,COUPLING
CHARGE AIR COOLER<6PL> 		1-09054-035-0 03 1 9812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
