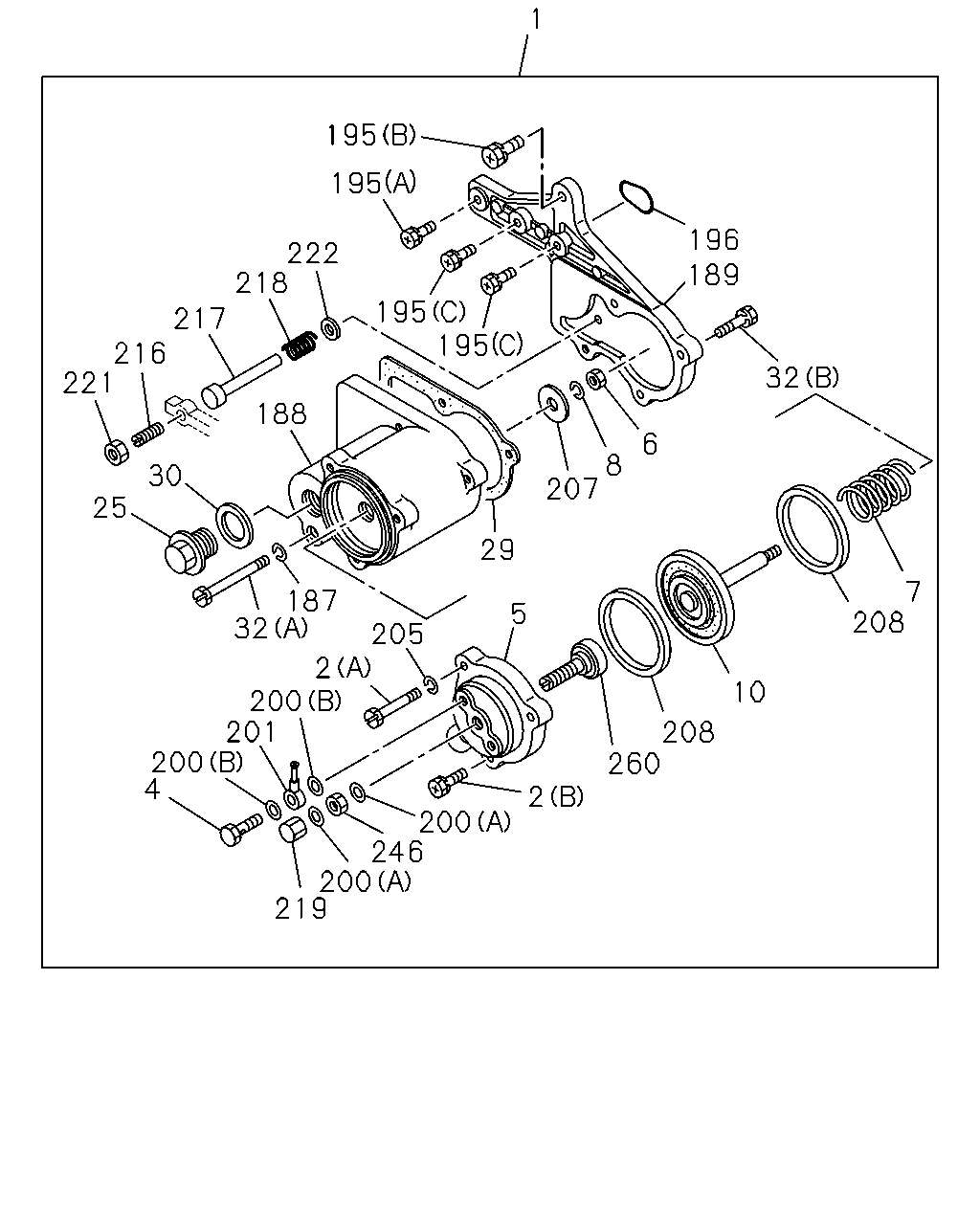

0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#44976) — 96 parça

1 195 195 196 189 222 218 217 216 221 195 195 32 188 6 8 207 30 25 29 7 208 187 32 5 205 2 200 201 200 4 10 208 260 2 200 246 200 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-97185-014-0	01	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO (A) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15779-202-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.485, (B) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-81325-187-0	01	1	-
4	03.485 BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-325-0	01	1	-
5	03.306 COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15619-283-0	01	1	-
6	03.320 NUT; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-249-0	01	1	-
7	03.320 SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-97094-100-0	01	1	-
8	03.318 WASHER; LK,DIAPH,BOOST COMPENSAT 00.206, ID=6.1 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-09150-506-0	01	1	-
10	03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15712-004-0	01	1	-
25	03.306 PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-254-0	01	1	-
29	03.306 GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-97085-018-0	01	1	-
30	03.306 GASKET; HSG PLUG,BOOST COMPENSAT ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-850-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ (A) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-251-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ 03.306, (B) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-88410-094-0	03	1	-
187	03.485 WASHER; LK,BOOST COMPENSATOR FIX 03.302 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94128-928-0	01	1	-
188	03.485 HOUSING; BOOST COMPENSATOR,INJ P ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15721-163-0	01	1	-
189	03.485 SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-851-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT 03.485, (C) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-242-0	02	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (B), M8X30 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-243-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (A) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-88410-094-0	01	1	-
196	03.306 GASKET; SPACER,BOOST COMPENSATOR 03.485 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94424-220-0	01	1	-
200	03.306 GASKET; EYE BOLT,BOOST COMPENSAT (B) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-849-0	02	1	-
200	03.306 GASKET; EYE BOLT,BOOST COMPENSAT (A) ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-868-0	02	1	-
201	03.306 JOINT; HOSE 03.326 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94171-178-0	01	1	-
205	03.308 WASHER; LK,COVER FIX,BOOST COMPE 00.206, ID=6.1 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-09150-506-0	02	1	-
207	03.320 DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-248-0	01	1	-
208	03.320 GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15779-129-0	02	1	-
216	03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94171-179-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=125.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-245-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR 03.308, L=127.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-282-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=128.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-283-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=127.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-284-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=126.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-285-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=129.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-286-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=128.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-287-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=125.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-288-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=126.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-289-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-290-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=120.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-291-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=120.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-292-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=121.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-293-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=121.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-294-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=122.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-295-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=122.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-296-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=123.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-297-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=123.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94172-298-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=129.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-435-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=130.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-436-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=130.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-437-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=131.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-438-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=131.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-439-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=132.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-440-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=132.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-441-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=133.0 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-442-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=133.5 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94443-443-0	01	1	-
218	03.320 SPRING; PUSH ROD,BOOST COMPENSAT ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-94171-176-0	01	1	-
219	03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS 03.330, CAP NUT ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-093-0	01	1	-
221	03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN 08.845 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-88410-525-0	01	1	-
222	03.330 WASHER; PUSH ROD,BOOST COMPENSAT 09.190 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-83539-045-0	01	1	-
246	03.306 NUT; SET BOLT 08.845 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-88410-525-0	01	1	-
260	03.320 SCREW; DIAPHRAGM ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15729-386-0	01	1	-

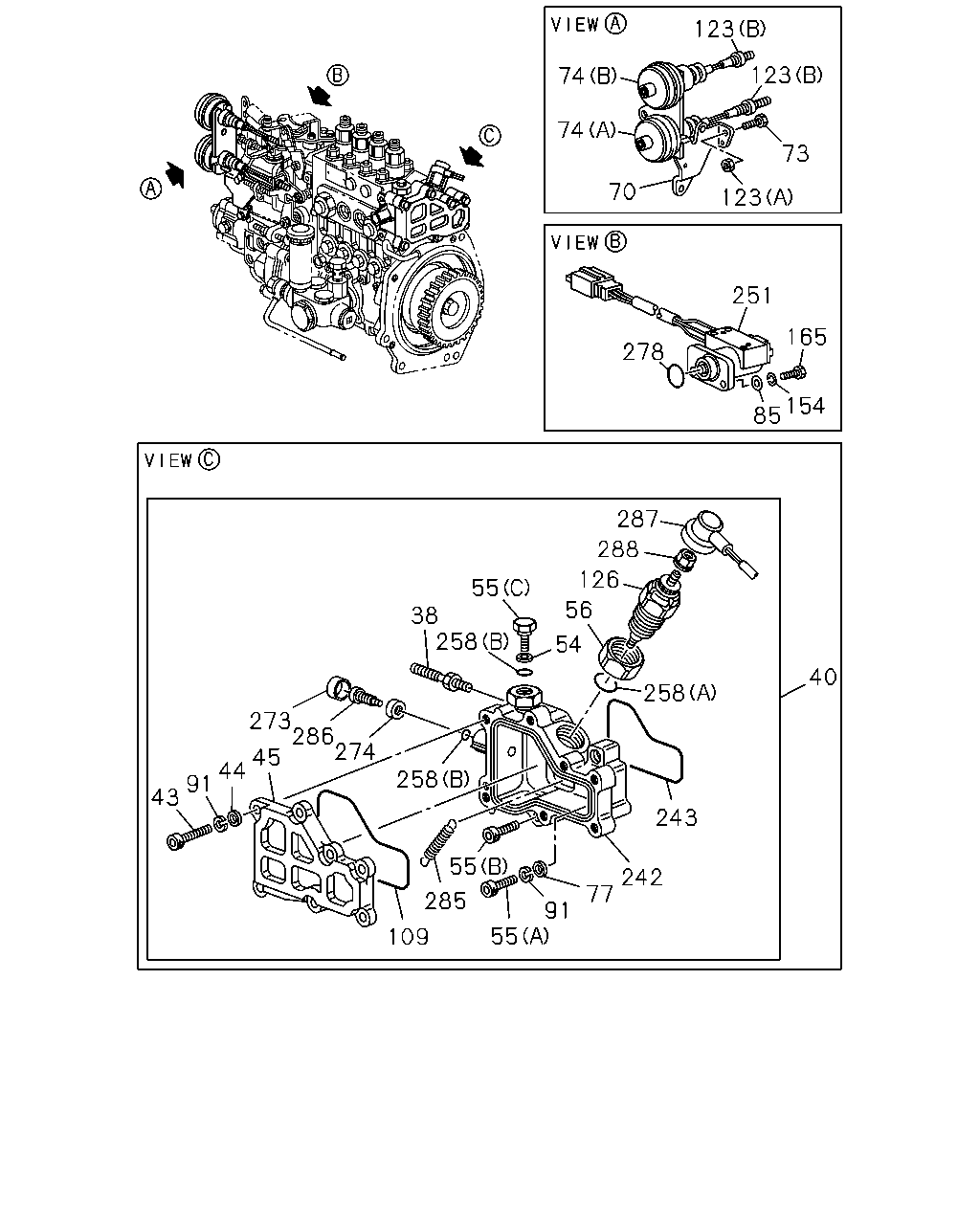

123 123 74 74 73 70 123 251 165 278 154 85 287 288 126 55 56 38 258 54 40 258 273 286 274 45 44 91 43 258 243 55 242 77 285 91 55 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	03.335 STUD; START ADVANCE TO HSG ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-809-0	01	1	-
40	03.308 ADVANCER ASM; STARTING,GOV ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-753-0	01	1	-
43	03.320 BOLT; COVER FIX,INJ PUMP ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-804-0	07	1	-
44	03.320 WASHER; COVER FIX,INJ PUMP 03.330 ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	1-15619-351-0	07	1	-
45	03.320 COVER; START ADVANCE,INJ PUMP ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-802-0	01	1	-
54	03.320 GASKET; HSG BOLT,START ADVANCE 03.306 ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-94227-602-0	01	1	-
55	03.320 BOLT; HSG,START ADVANCE (A) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	1-09054-030-0	02	1	-
55	03.320 BOLT; HSG,START ADVANCE (B) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-804-0	02	1	-
55	03.320 BOLT; HSG,START ADVANCE (C) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-805-1	01	1	-
56	03.330 NUT; START ADVANCE FIX ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-797-0	01	1	-
70	03.314 BRACKET; ACTUATOR,FAST IDLE,INJ ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97201-139-0	01	1	-
73	03.330 BOLT; ACTUATOR ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	1-15729-122-0	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (A) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97201-148-0	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (B) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97201-149-0	01	1	-
77	03.330 WASHER; LK,START ADVANCE FIX ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	1-15619-351-0	04	1	-
85	03.330 WASHER; SENSOR 02.183, ID=6.4 OD=14 ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	9-09160-606-0	02	1	-
91	03.306 WASHER; LK 03.302 ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-94128-928-0	11	1	-
109	03.320 GASKET; COVER,START ADVANCE ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-783-0	01	1	-
123	03.330 NUT; ACTUATOR 03.308, (A) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	9-81325-081-0	01	1	-
123	03.330 NUT; ACTUATOR 08.845, (B) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	9-88410-525-0	04	1	-
126	03.314 SWITCH; SOLENOID,FUEL AID,GOV ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-787-1	01	1	-
154	03.320 WASHER; LK 03.302 ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-94128-928-0	02	1	-
165	03.320 BOLT; SENSOR ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	1-09054-022-0	02	1	-
242	03.320 HOUSING; START ADVANCE,INJ PUMP ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-781-1	01	1	-
243	03.306 GASKET; HSG ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-782-0	01	1	-
251	03.320 SENSOR; RACK,GOV ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97188-487-1	01	1	-
258	03.306 GASKET; HSG (A) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-788-0	01	1	-
258	03.306 GASKET; HSG (B) ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-789-0	02	1	-
273	03.306 PLUG; HSG ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-808-1	01	1	-
274	03.306 NUT; HSG ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-798-0	01	1	-
278	03.320 GASKET; SENSOR ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	1-15779-185-0	01	1	-
285	03.308 SPRING; START ADVANCE ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-786-0	01	1	-
286	03.308 SCREW; START ADVANCE ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-806-0	01	1	-
287	03.308 WIRE; START ADVANCE ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-97212-807-0	01	1	-
288	03.308 NUT; SOLENOID ASM PART: C = 8-97212-185-0, 97212185, D = 8-97212-189-0, 97212189, E = 8-97225-432-2, 97225432	8-94473-135-0	01	1	-
