7-45 — CONSOLE BOX (#44974) — 157 parça

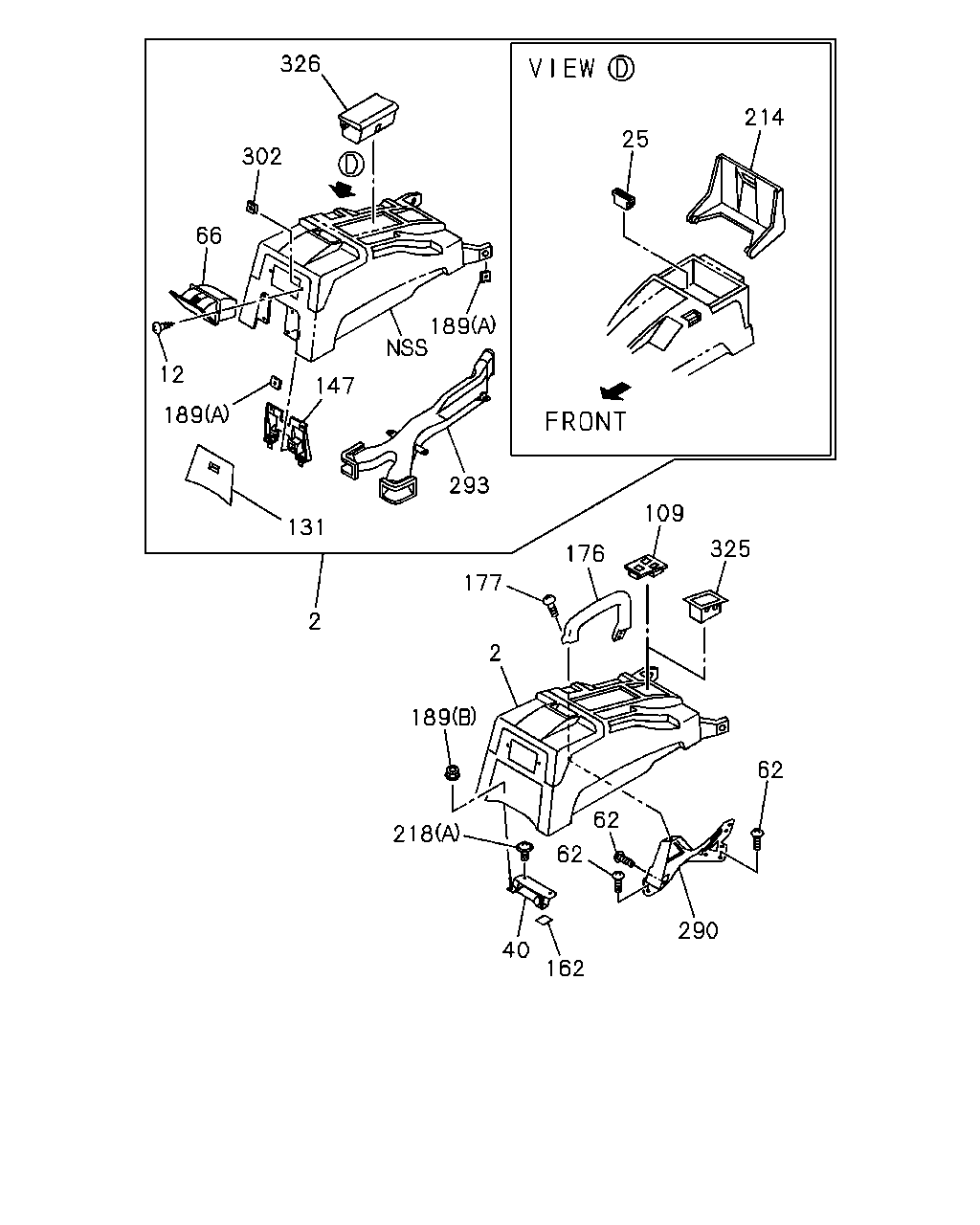

çizim 65456
326 302 66 12 189 147 189 293 131 2 177 176 109 25 214 325 62 290 62 62 162 40 218 189 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-373-7 01 1 9112-9202 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-143-1 01 1 9203-9306 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-007-0 01 1 9307-9504 ● ● ● ●
2 16.081 CONSOLE; CENTER
DARK GRAY 		8-97151-837-1 01 1 9505- ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-375-7 01 1 9112-9202 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-144-1 01 1 9203-9306 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-008-0 01 1 9307-9504 ● ● ● ●
12 16.650 SCREW; DOOR HINGE
16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9112- ● ● ● ●
25 16.650 MAGNET; CENTER CONSOLE 8-97103-831-0 01 1 9505- ● ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9203- ● ● ● ●
62 16.650 SCREW; BRKT
16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 06 1 9112-9301 ● ● ● ●
62 16.650 SCREW; BRKT
16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9302- ● ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-067-1 01 1 9112-9504 ● ● ● ●
66 16.120 TRAY ASM; ASH
DARK GRAY 		8-97151-531-1 01 1 9505- ● ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-069-1 01 1 9112-9504 ● ● ● ●
109 16.650 BEZEL; POWER WINDOW SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97083-239-1 01 1 9505- ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-071-3 01 1 9112-9504 ● ● ● ●
131 16.650 COVER; CONSOLE SIDE
DARK GRAY 		8-97151-532-1 01 1 9505- ● ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-073-3 01 1 9112-9504 ● ● ● ●
147 16.650 BASE ASM; CENTER CONSOLE 8-97088-818-2 01 1 9505- ● ● ● ●
162 16.650 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9203- ● ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-948-3 01 1 9112-9504 ● ● ● ●
176 16.650 GRIP; CTR,CONSOLE
DARK GRAY 		8-97151-273-1 01 1 9505- ● ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-950-3 01 1 9112-9504 ● ● ● ●
177 16.650 SCREW; CTR GRIP 8-97807-919-0 03 1 9112-9607 ● ● ● ●
177 16.650 SCREW; CTR GRIP
02.334 M6X25 FLANGE 		0-28680-625-0 03 1 9608- ● ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 10 1 9112-9504 ● ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 04 1 9505- ● ● ● ●
189 16.650 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9203- ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-063-5 01 1 9112-9306 ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-009-0 01 1 9307-9504 ● ● ● ●
214 16.650 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9505- ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-065-5 01 1 9112-9306 ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-010-0 01 1 9307-9504 ● ● ● ●
218 16.650 BOLT; BRKT
00.669 (B) M6X12 		0-20800-612-0 03 1 9505-9603 ● ● ● ●
218 16.650 BOLT; BRKT
05.815 (B) M6X10 		0-20800-610-0 03 1 9604-9607 ● ● ● ●
218 16.650 BOLT; BRKT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.686 (A) M6X14 FLANGE 		0-28080-614-0 02 1 9203- ● ● ● ●
290 16.650 BRACKET; GRIP 8-97804-058-4 01 1 9112-9504 ● ● ● ●
290 16.650 BRACKET; GRIP 8-97113-890-0 01 1 9505- ● ● ● ●
293 16.650 DUCT 8-97034-119-2 01 1 9112-9504 ● ● ● ●
293 16.650 DUCT 8-97116-662-1 01 1 9505- ● ● ● ●
302 16.650 RETAINER; ASH TRAY 8-94123-300-5 02 1 9112-9512 ● ● ● ●
302 16.650 RETAINER; ASH TRAY 8-97142-901-0 02 1 9601- ● ● ● ●
325 04.015 POCKET
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97083-252-1 01 1 9505- ● ● ●
326 16.650 HOLDER; CUP
DARK GRAY 		8-97152-060-0 01 1 9505- ● ● ● ●

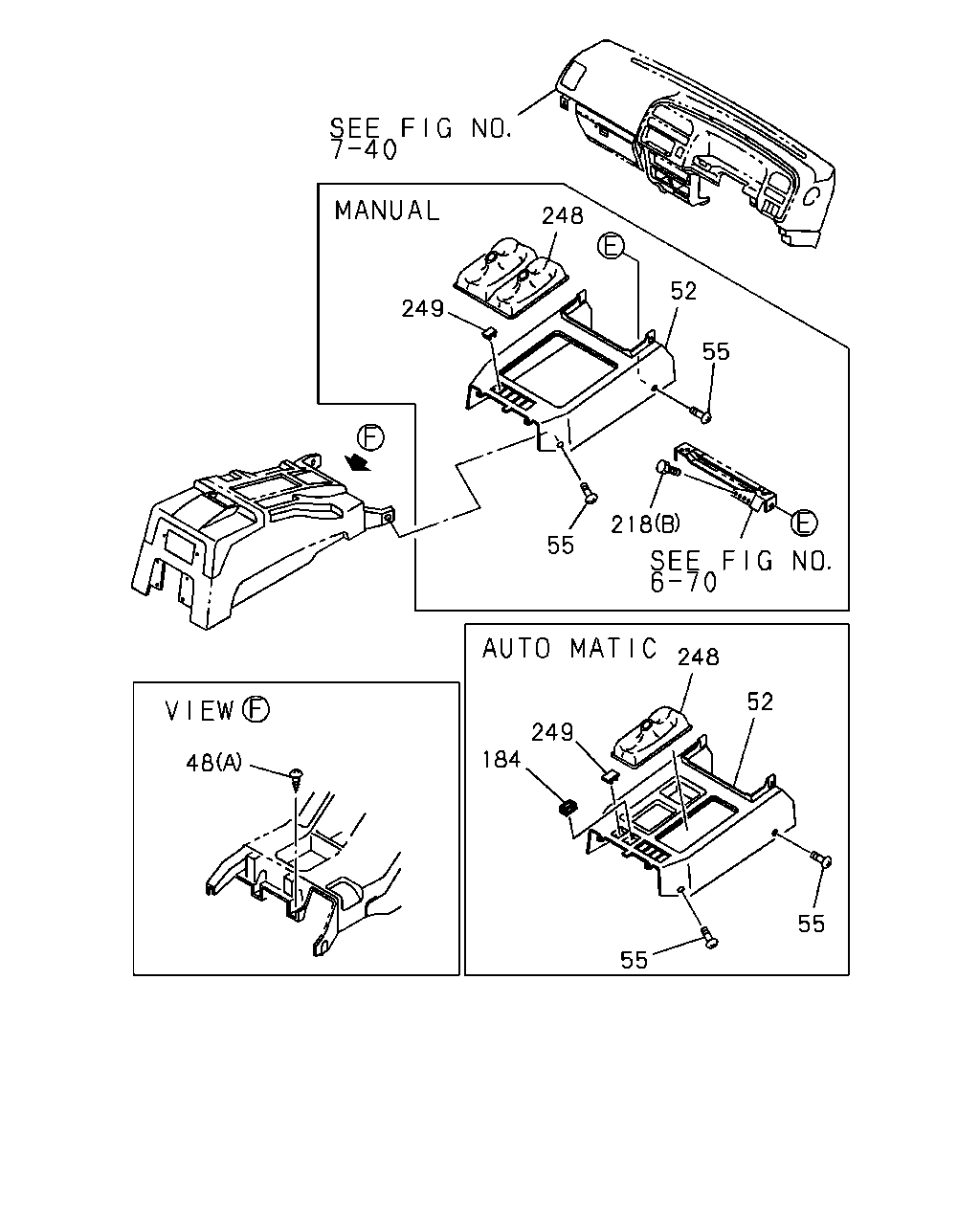

çizim 65553
48 184 249 248 52 55 55 55 218 55 52 248 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 16.650 SCREW; BRKT,CENTER CONSOLE
(B) M5X35 		0-71080-535-0 02 1 9112-9202 ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 (A) M5X16 		8-94295-854-0 04 1 9112-9504 ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 (A) M5X16 		8-94295-854-0 02 1 9505- ● ● ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-087-4 01 1 9112-9504 ● ● ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) DARK GRAY 		8-97098-647-3 01 1 9505- ● ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-089-4 01 1 9112-9504 ● ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-079-5 01 1 9112-9504 ● ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97098-646-3 01 1 9505- ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-081-5 01 1 9112-9504 ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
16.870 M5X19 		1-09981-152-0 02 1 9112-9202 ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
02.483 M5X20 TAPPING W/PL WASHER 		0-74315-520-0 02 1 9203-9504 ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
M5X14 TAPPING 		1-72548-072-0 04 1 9505- ● ● ● ●
184 16.650 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 04.015 		8-94482-280-2 01 1 9112-9607 ● ● ● ●
184 16.650 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 04.015 		8-94482-280-2 01 1 9608- ● ● ●
218 16.650 BOLT; BRKT
00.669 (B) M6X12 		0-20800-612-0 03 1 9505-9603 ● ● ● ●
218 16.650 BOLT; BRKT
05.815 (B) M6X10 		0-20800-610-0 03 1 9604-9607 ● ● ● ●
218 16.650 BOLT; BRKT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.686 (A) M6X14 FLANGE 		0-28080-614-0 02 1 9203- ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-091-0 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-000-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-093-0 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97810-001-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97154-520-0 01 1 9505-9707 ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97159-879-0 01 1 9708- ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-083-1 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-998-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-085-1 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-999-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97154-521-0 01 1 9505-9707 ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97159-878-0 01 1 9708- ● ● ●
249 16.674 COVER 8-97043-732-1 AR 1 9112- ● ● ● ●

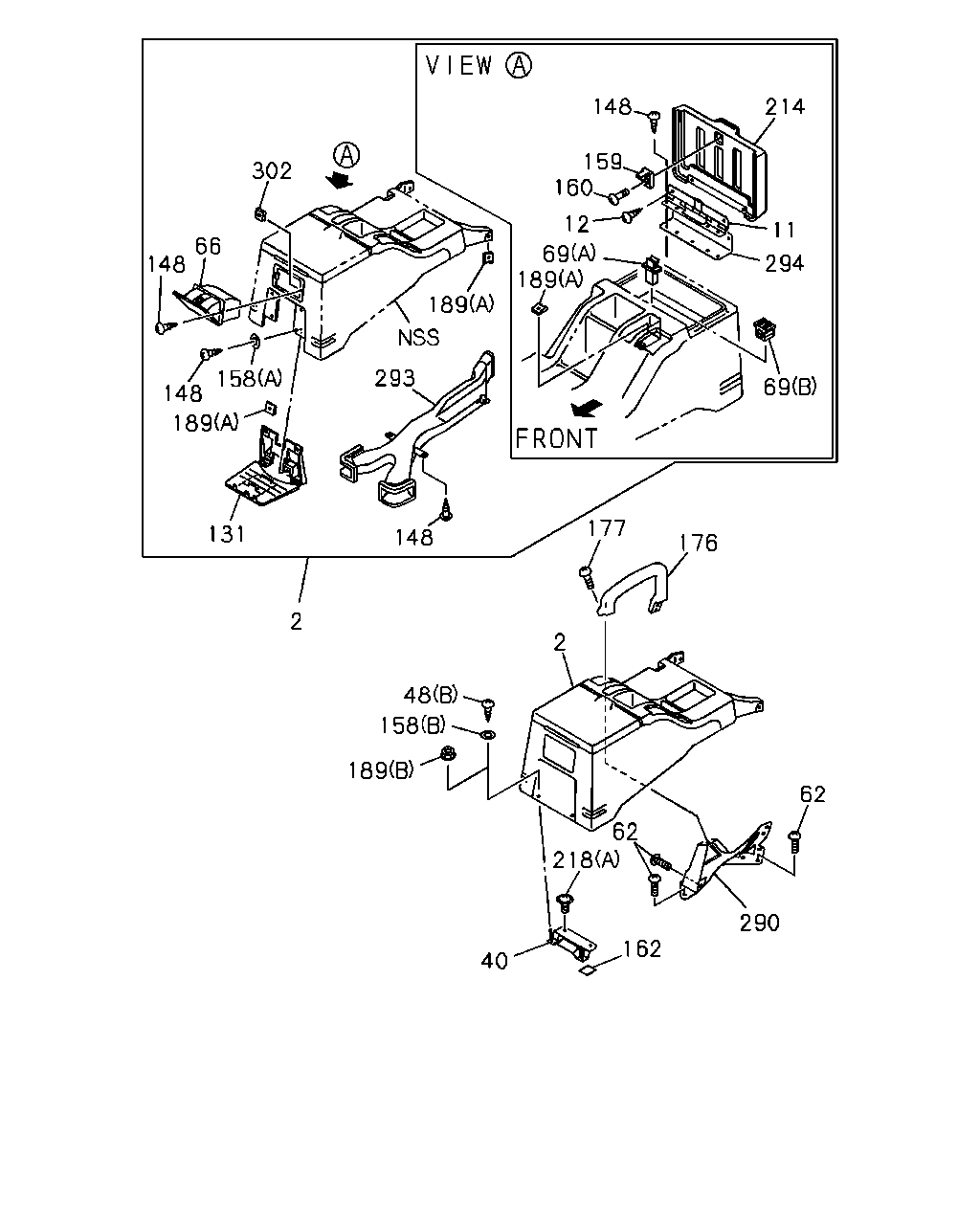

çizim 66226
302 66 148 148 158 293 189 131 189 148 2 189 69 12 160 159 148 214 11 294 69 176 177 2 48 158 189 218 40 162 290 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-373-7 01 1 9112-9202 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-143-1 01 1 9203-9306 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-007-0 01 1 9307-9504 ● ● ● ●
2 16.081 CONSOLE; CENTER
DARK GRAY 		8-97151-837-1 01 1 9505- ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-375-7 01 1 9112-9202 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-144-1 01 1 9203-9306 ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-008-0 01 1 9307-9504 ● ● ● ●
11 16.650 HINGE; CONSOLE LID 8-97806-815-5 01 1 9112-9504 ● ● ● ●
12 16.650 SCREW; DOOR HINGE
16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9112- ● ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9203- ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
(B) M5X35 		0-71080-535-0 02 1 9112-9202 ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 (A) M5X16 		8-94295-854-0 04 1 9112-9504 ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 (A) M5X16 		8-94295-854-0 02 1 9505- ● ● ● ●
62 16.650 SCREW; BRKT
16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 06 1 9112-9301 ● ● ● ●
62 16.650 SCREW; BRKT
16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9302- ● ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-067-1 01 1 9112-9504 ● ● ● ●
66 16.120 TRAY ASM; ASH
DARK GRAY 		8-97151-531-1 01 1 9505- ● ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-069-1 01 1 9112-9504 ● ● ● ●
69 16.650 LOCK ASM; CONSOLE
(A) 		8-97803-002-0 01 1 9112-9306 ● ● ● ●
69 16.650 LOCK ASM; CONSOLE
(B) 		8-97810-400-0 01 1 9307-9504 ● ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-071-3 01 1 9112-9504 ● ● ● ●
131 16.650 COVER; CONSOLE SIDE
DARK GRAY 		8-97151-532-1 01 1 9505- ● ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-073-3 01 1 9112-9504 ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
M4.5X10 		8-94489-930-0 21 1 9112-9504 ● ● ● ●
158 16.650 WASHER; PL
03.613 (A) ID=8 OD=18 T=3 		8-94174-537-0 04 1 9112-9202 ● ● ● ●
158 16.650 WASHER; PL
16.125 (B) ID=5.3 OD=12 		9-09160-605-0 04 1 9112-9202 ● ● ● ●
159 16.650 STRIKER; CONSOLE 8-97803-304-1 01 1 9112-9306 ● ● ● ●
160 16.650 SCREW; STRIKER,PARCEL BOX LID
11.927 		8-94377-349-0 01 1 9112-9306 ● ● ● ●
162 16.650 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9203- ● ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-948-3 01 1 9112-9504 ● ● ● ●
176 16.650 GRIP; CTR,CONSOLE
DARK GRAY 		8-97151-273-1 01 1 9505- ● ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-950-3 01 1 9112-9504 ● ● ● ●
177 16.650 SCREW; CTR GRIP 8-97807-919-0 03 1 9112-9607 ● ● ● ●
177 16.650 SCREW; CTR GRIP
02.334 M6X25 FLANGE 		0-28680-625-0 03 1 9608- ● ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 10 1 9112-9504 ● ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 04 1 9505- ● ● ● ●
189 16.650 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9203- ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-063-5 01 1 9112-9306 ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-009-0 01 1 9307-9504 ● ● ● ●
214 16.650 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9505- ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-065-5 01 1 9112-9306 ● ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-010-0 01 1 9307-9504 ● ● ● ●
218 16.650 BOLT; BRKT
00.669 (B) M6X12 		0-20800-612-0 03 1 9505-9603 ● ● ● ●
218 16.650 BOLT; BRKT
05.815 (B) M6X10 		0-20800-610-0 03 1 9604-9607 ● ● ● ●
218 16.650 BOLT; BRKT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.686 (A) M6X14 FLANGE 		0-28080-614-0 02 1 9203- ● ● ● ●
290 16.650 BRACKET; GRIP 8-97804-058-4 01 1 9112-9504 ● ● ● ●
290 16.650 BRACKET; GRIP 8-97113-890-0 01 1 9505- ● ● ● ●
293 16.650 DUCT 8-97034-119-2 01 1 9112-9504 ● ● ● ●
293 16.650 DUCT 8-97116-662-1 01 1 9505- ● ● ● ●
294 16.650 COVER; HINGE 8-97807-243-2 01 1 9112-9504 ● ● ● ●
302 16.650 RETAINER; ASH TRAY 8-94123-300-5 02 1 9112-9512 ● ● ● ●
302 16.650 RETAINER; ASH TRAY 8-97142-901-0 02 1 9601- ● ● ● ●

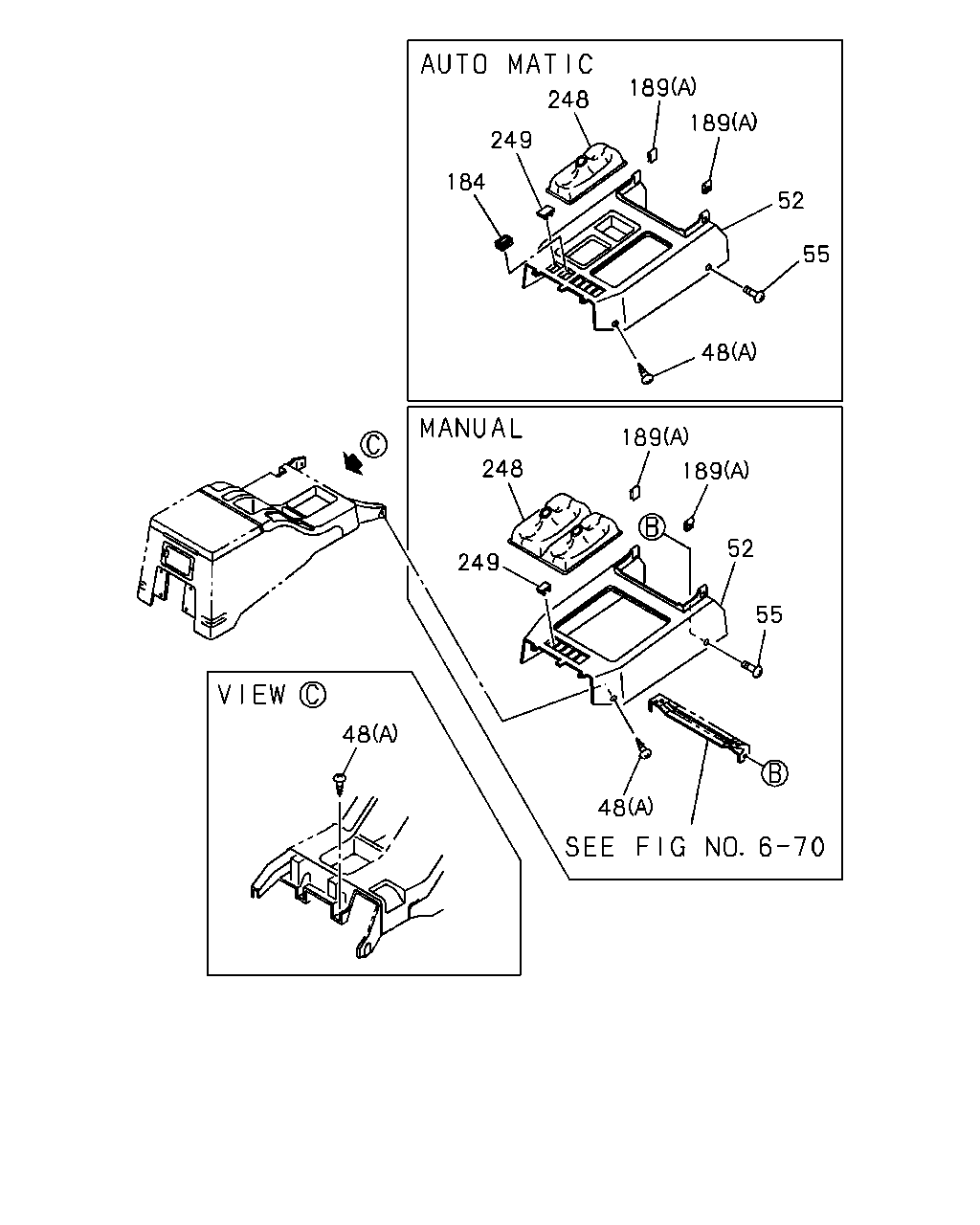

çizim 67089
48 249 248 189 52 55 189 48 48 55 52 189 189 248 249 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 16.650 SCREW; BRKT,CENTER CONSOLE
(B) M5X35 		0-71080-535-0 02 1 9112-9202 ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 (A) M5X16 		8-94295-854-0 04 1 9112-9504 ● ● ● ●
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 (A) M5X16 		8-94295-854-0 02 1 9505- ● ● ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-087-4 01 1 9112-9504 ● ● ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) DARK GRAY 		8-97098-647-3 01 1 9505- ● ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-089-4 01 1 9112-9504 ● ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-079-5 01 1 9112-9504 ● ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97098-646-3 01 1 9505- ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-081-5 01 1 9112-9504 ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
16.870 M5X19 		1-09981-152-0 02 1 9112-9202 ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
02.483 M5X20 TAPPING W/PL WASHER 		0-74315-520-0 02 1 9203-9504 ● ● ● ●
55 09.744 SCREW; FRT CONSOLE
M5X14 TAPPING 		1-72548-072-0 04 1 9505- ● ● ● ●
184 16.650 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 04.015 		8-94482-280-2 01 1 9112-9607 ● ● ● ●
184 16.650 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 04.015 		8-94482-280-2 01 1 9608- ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 10 1 9112-9504 ● ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 04 1 9505- ● ● ● ●
189 16.650 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9203- ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-091-0 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-000-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-093-0 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97810-001-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97154-520-0 01 1 9505-9707 ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97159-879-0 01 1 9708- ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-083-1 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-998-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-085-1 01 1 9112-9308 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-999-0 01 1 9309-9504 ● ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97154-521-0 01 1 9505-9707 ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97159-878-0 01 1 9708- ● ● ●
249 16.674 COVER 8-97043-732-1 AR 1 9112- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
