Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#44970) — 336 parça

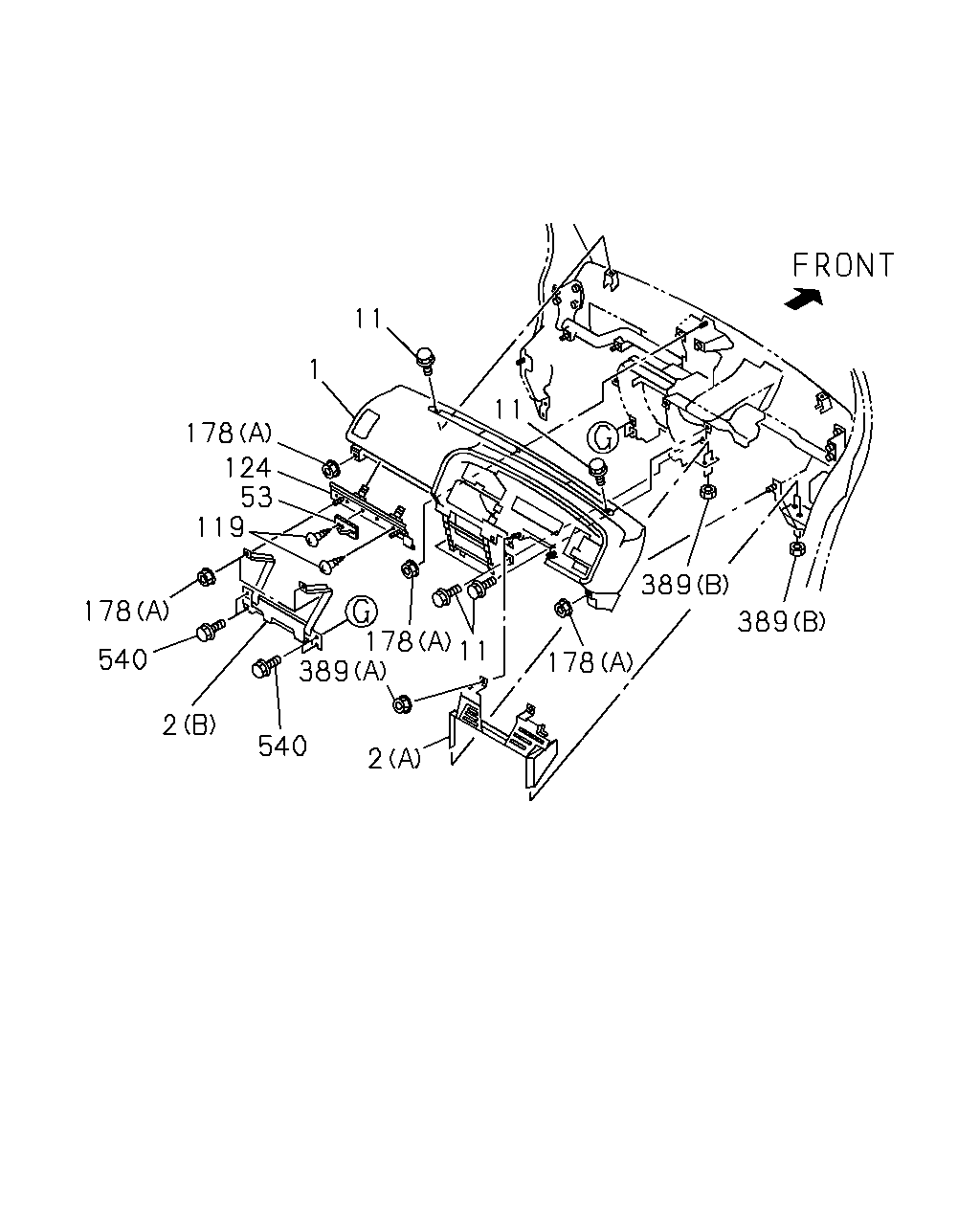

11 1 178 119 124 53 178 540 2 540 2 389 1 178 178 389 389 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.080 PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-390-9	01	1	9112-9304	●	●
1	16.080 PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-004-1	01	1	9305-9504	●	●
1	16.080 PANEL; INST DARK GRAY	8-97152-349-5	01	1	9505-9607	●	●
1	16.080 PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-5	01	1	9608-	●	●
1	16.080 PANEL; INST AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97157-873-5	01	1	9608-	●	●
1	16.080 PANEL; INST EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-871-0	01	1	9608-	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-392-9	01	1	9112-9304	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-003-1	01	1	9305-9504	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) (A)	8-97130-114-0	01	1	9608-9608	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A)	8-97130-114-0	01	1	9609-9703	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A)	8-97175-234-1	01	1	9704-	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-404-4	01	1	9112-9504	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-402-4	01	1	9112-9504	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR (B) DARK GRAY	8-97091-921-3	01	1	9505-9607	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR (B)	8-97130-115-1	01	1	9608-	●	●
11	16.090 BOLT; INST PNL 16.085	8-97805-931-0	06	1	9112-9210	●	●
11	16.090 BOLT; INST PNL 08.155	8-97032-653-0	06	1	9211-9504	●	●
11	16.090 BOLT; INST PNL 16.328 M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
53	16.115 STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	16.115 STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
119	14.655 SCREW; BRKT TO INST 16.085 M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR	8-97091-905-1	01	1	9505-9606	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR	8-97176-082-0	01	1	9607-9607	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-082-0	01	1	9608-	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97091-905-1	01	1	9608-	●	●
178	16.085 NUT; INST PANEL 07.833 (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	16.085 NUT; INST PANEL 07.833 (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	16.085 NUT; INST PANEL 09.262 (B) M5 SPIRE NUT	8-94217-271-0	26	1	9112-9211	●	●
178	16.085 NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	16.085 NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9504	●	●
178	16.085 NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9608-9608	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9609-	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) 01.540 (B) M8 FLANGE	0-91150-208-0	04	1	9608-9608	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 01.540 (B) M8 FLANGE	0-91150-208-0	04	1	9609-	●	●
540	16.085 BOLT; REINFORCEMENT 08.015 M6X20 W/WASHER	8-94112-987-1	04	1	9505-	●	●

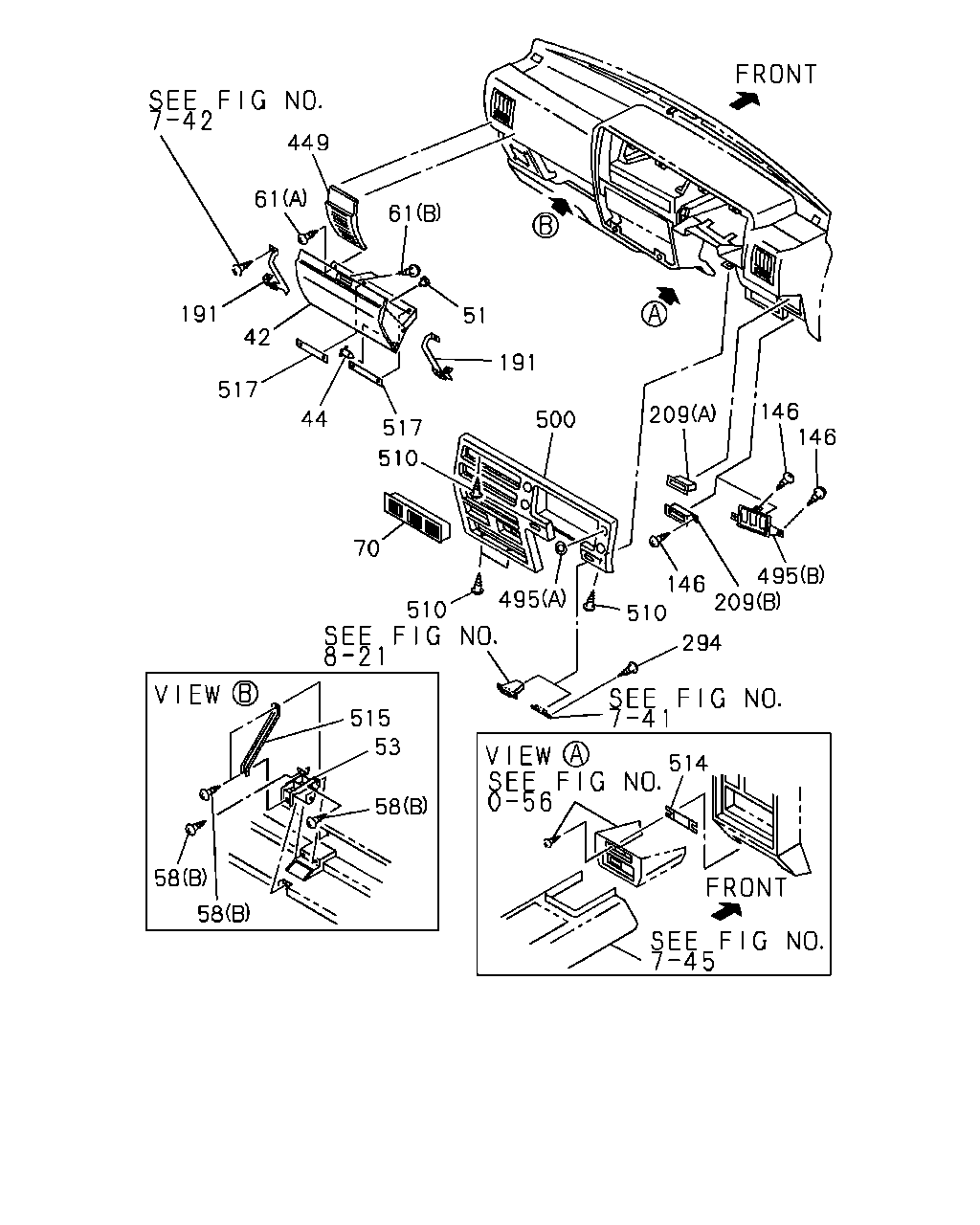

449 61 191 42 517 61 51 44 517 510 500 191 209 146 146 495 146 209 294 510 495 510 70 515 53 58 58 58 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-324-7	01	1	9112-9504	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-322-7	01	1	9112-9504	●	●
42	16.100 BOX; GLOVE,INST PNL DARK GRAY	8-97151-304-4	01	1	9505-9708	●	●
42	16.100 BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-0	01	1	9709-	●	●
44	16.100 PIN; GLOVE BOX 10.262	8-94129-687-2	02	1	9112-9210	●	●
44	16.100 PIN; GLOVE BOX 10.262	8-94344-553-1	02	1	9211-9504	●	●
51	16.110 CUSHION; STOPPER,GLOVE BOX 16.115 CENTER & SIDE	9-09956-622-0	04	1	9112-9211	●	●
51	16.110 CUSHION; STOPPER,GLOVE BOX 16.115 CENTER	9-09956-622-0	04	1	9412-9504	●	●
51	16.110 CUSHION; STOPPER,GLOVE BOX CENTER & SIDE	8-97810-124-0	04	1	9212-9504	●	●
53	16.115 STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	16.115 STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
58	16.110 SCREW; INST PANEL 08.845 (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	16.110 SCREW; INST PANEL 16.100 (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	16.110 SCREW; INST PANEL 09.744 (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
61	16.100 SCREW; GLOVE BOX 03.003 (A) D6X11 POP RIVET	8-94298-119-0	04	1	9112-9504	●	●
61	16.100 SCREW; GLOVE BOX 16.110 (B) M4X8 CK-HEAD	9-03094-408-0	02	1	9112-9401	●	●
61	16.100 SCREW; GLOVE BOX (B) M4X10	8-97107-420-0	02	1	9402-9504	●	●
61	16.100 SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9505-	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97805-300-3	01	1	9112-9208	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97808-678-2	01	1	9209-9504	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-1	01	1	9505-9603	●	●
146	16.100 SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	16.100 SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-9603	●	●
146	16.100 SCREW; TAP 09.744 (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	16.100 SCREW; TAP 09.663 (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	16.100 SCREW; TAP 16.190 (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
191	16.100 REINFORCEMENT; GLOVE BOX	8-97807-627-3	01	1	9112-9504	●	●
191	16.100 REINFORCEMENT; GLOVE BOX	8-97807-626-3	01	1	9112-9504	●	●
209	09.743 BOX; COIN (B)	8-97810-465-0	01	1	9309-9401	●	●
209	09.743 BOX; COIN EXC. ADJUST HEADLAMP<6RC> (B)	8-97810-465-0	01	1	9402-9504	●	●
209	09.743 BOX; COIN EXC. DOOR MIRROR ELEC FOLDING W/DEF(6MK) 10.260 (A)	8-94119-021-1	01	1	9112-9504	●	●
209	09.743 BOX; COIN 6VD1 SOHC ENG(RLU) AUSTRALIA EQUIPMENT(RR3) (B) BLACK	8-97806-916-1	01	1	9112-9303	●	●
209	09.743 BOX; COIN EXC. AUSTRALIA EQUIPMENT(RR3) (B) BLACK	8-97806-916-1	01	1	9112-9303	●	●
209	09.743 BOX; COIN 6VD1 SOHC ENG(RLU) AUSTRALIA EQUIPMENT(RR3) (B)	8-97810-465-0	01	1	9304-9308	●	●
209	09.743 BOX; COIN EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97810-465-0	01	1	9304-9308	●	●
294	09.744 SCREW; BEZEL 07.829 M4X14 TAPPING W/PL WASHER	0-74300-414-0	04	1	9112-9504	●	●
294	09.744 SCREW; BEZEL 07.829 M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9505-	●	●
449	16.085 COVER; SPEAKER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-405-2	01	1	9112-9504	●	●
449	16.085 COVER; SPEAKER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-407-2	01	1	9112-9504	●	●
495	09.743 BEZEL; SW (A)WIPER W/INT BLACK	8-97805-290-2	01	1	9112-9504	●	●
495	09.743 BEZEL; SW (A)LIGHTING BLACK	8-97805-292-3	01	1	9112-9504	●	●
495	09.743 BEZEL; SW (A)ILLUMI BLACK	8-97805-293-2	01	1	9112-9504	●	●
495	09.743 BEZEL; SW (A)HAZARD BLACK	8-97805-294-3	01	1	9112-9504	●	●
495	09.743 BEZEL; SW ADJUST HEADLAMP<6RC> (B) BLACK	8-97806-915-1	01	1	9309-9504	●	●
495	09.743 BEZEL; SW 4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) (B) BLACK	8-97806-915-1	01	1	9112-9308	●	●
500	16.081 CLUSTER; INST CENTER	8-97803-780-5	01	1	9112-9311	●	●
500	16.081 CLUSTER; INST CENTER	8-97810-753-0	01	1	9312-9504	●	●
500	16.081 CLUSTER; INST CENTER CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743	8-97160-271-0	01	1	9608-	●	●
500	16.081 CLUSTER; INST CENTER EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743	8-97160-270-0	01	1	9608-	●	●
510	16.081 SCREW; CENTER CLUSTER 16.085 M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
514	03.415 BEZEL; WARNING A/T THM(RMQ)	8-97803-344-0	01	1	9112-9307	●	●
515	16.085 RETAINER; GLOVE BOX	8-97804-043-0	01	1	9112-9504	●	●
517	16.100 PATCH; GLOVE BOX	8-97808-121-0	02	1	9112-9504	●	●

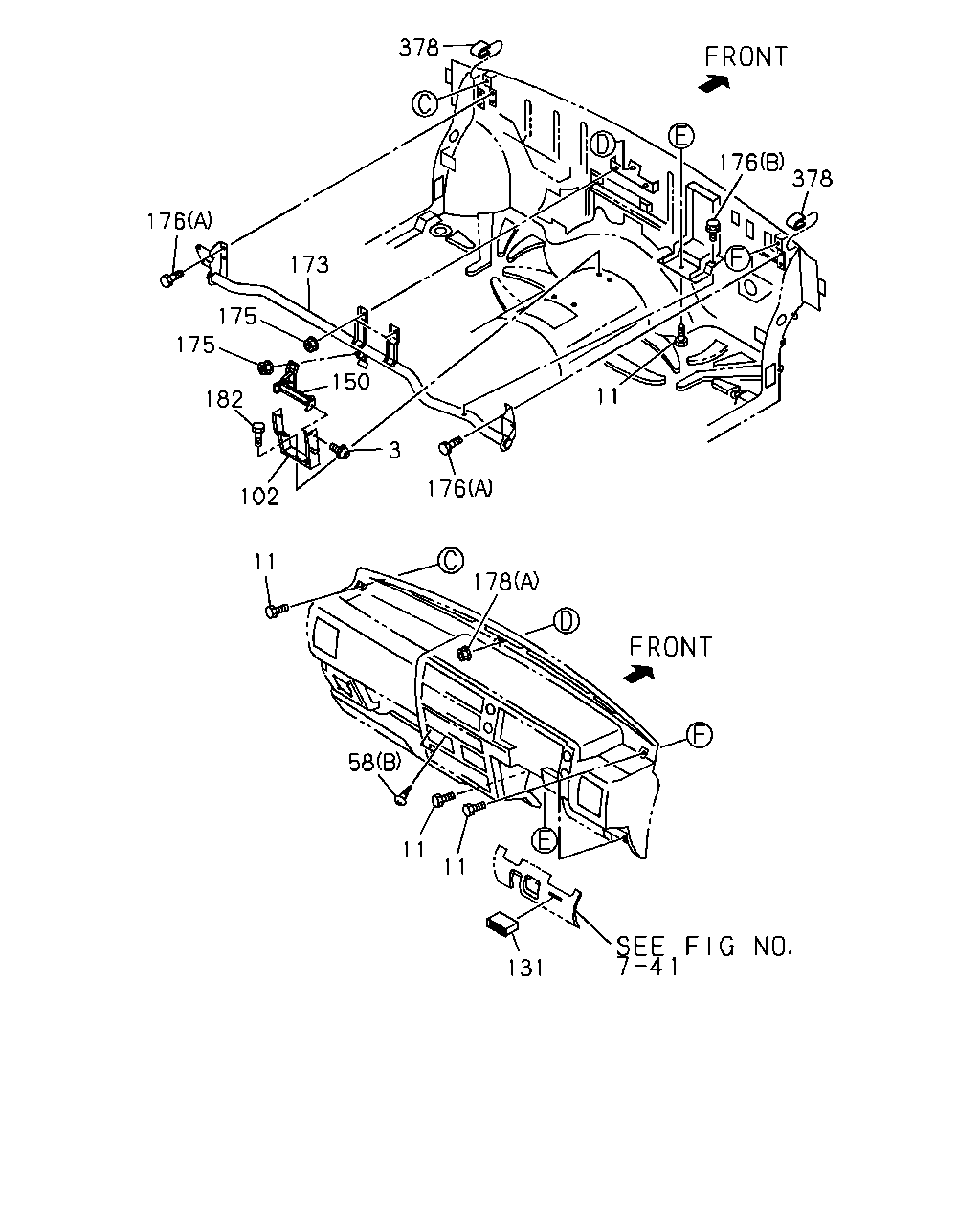

378 176 378 176 173 175 175 150 182 102 11 3 11 176 178 58 11 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.081 SCREW; BINDER HD 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	04	1	9112-9504	●	●
11	16.090 BOLT; INST PNL 16.085	8-97805-931-0	06	1	9112-9210	●	●
11	16.090 BOLT; INST PNL 08.155	8-97032-653-0	06	1	9211-9504	●	●
11	16.090 BOLT; INST PNL 16.328 M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
58	16.110 SCREW; INST PANEL 08.845 (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	16.110 SCREW; INST PANEL 16.100 (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	16.110 SCREW; INST PANEL 09.744 (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR	8-97803-731-4	01	1	9112-9504	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR	8-97093-551-3	01	1	9505-9607	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3)	8-97093-551-3	01	1	9608-9608	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97093-551-3	01	1	9609-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97133-233-0	01	1	9608-9608	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR EXC. AIR BAG DRIVER<AJ3>	8-97133-233-0	01	1	9608-9608	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-233-0	01	1	9609-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR EXC. AIR BAG DRIVER<AJ3>	8-97133-233-0	01	1	9609-	●	●
131	09.264 GRILLE ASM; LAP VENT BLACK	8-97806-851-2	02	1	9112-9504	●	●
150	16.085 STAY; INST PNL 16.081	8-94359-618-2	01	1	9112-9307	●	●
150	16.085 STAY; INST PNL	8-97810-918-0	01	1	9308-9504	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-94359-614-4	01	1	9112-9504	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-97093-538-1	01	1	9505-9607	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-97130-116-0	01	1	9608-	●	●
175	16.085 NUT; CROSS BEAM 07.833 M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	16.085 NUT; CROSS BEAM 07.833 M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	16.085 BOLT; CROSS BEAM 08.143 (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	16.085 BOLT; CROSS BEAM 08.143 (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	16.085 BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
178	16.085 NUT; INST PANEL 07.833 (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	16.085 NUT; INST PANEL 07.833 (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	16.085 NUT; INST PANEL 09.262 (B) M5 SPIRE NUT	8-94217-271-0	26	1	9112-9211	●	●
178	16.085 NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	16.085 NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9504	●	●
178	16.085 NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
182	16.085 BOLT; BRKT,INST PANEL 13.090 M6X14	8-94153-946-0	02	1	9112-9308	●	●
182	16.085 BOLT; BRKT,INST PANEL 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9309-9504	●	●
378	09.743 SEAL; INST PANEL	8-97807-547-0	04	1	9112-9210	●	●
378	09.743 SEAL; INST PANEL	8-97809-121-0	08	1	9211-9504	●	●

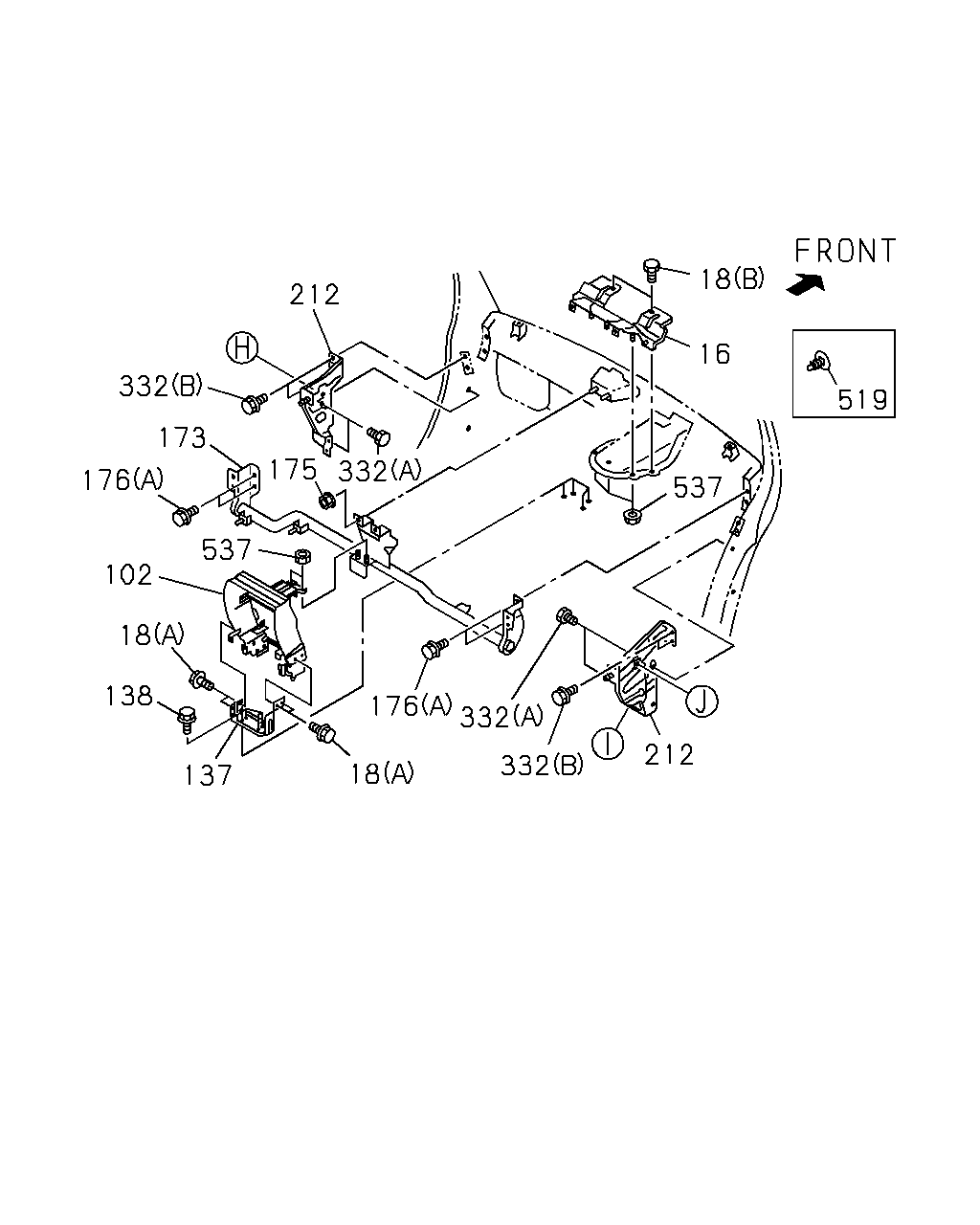

18 16 519 537 212 332 176 175 173 332 537 102 18 138 137 18 176 332 332 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	16.085 BRACKET; INST PNL	8-97808-068-1	01	1	9112-9504	●	●
16	16.085 BRACKET; INST PNL	8-97083-250-2	01	1	9505-9607	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3)	8-97133-384-0	01	1	9608-9608	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-384-0	01	1	9609-	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97133-385-0	01	1	9608-9608	●	●
16	16.085 BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97133-385-0	01	1	9608-9608	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-385-0	01	1	9609-	●	●
16	16.085 BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97133-385-0	01	1	9609-	●	●
18	16.085 BOLT; BRKT 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	04	1	9505-	●	●
18	16.085 BOLT; BRKT 16.716 (B) M8X25	8-94493-360-1	02	1	9505-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR	8-97803-731-4	01	1	9112-9504	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR	8-97093-551-3	01	1	9505-9607	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3)	8-97093-551-3	01	1	9608-9608	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97093-551-3	01	1	9609-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97133-233-0	01	1	9608-9608	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR EXC. AIR BAG DRIVER<AJ3>	8-97133-233-0	01	1	9608-9608	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-233-0	01	1	9609-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR EXC. AIR BAG DRIVER<AJ3>	8-97133-233-0	01	1	9609-	●	●
137	16.085 BRACKET; INST PNL MTG	8-97093-943-0	01	1	9505-9607	●	●
137	16.085 BRACKET; INST PNL MTG	8-97115-364-0	01	1	9608-	●	●
138	16.085 BOLT; BRKT TO BODY 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	04	1	9505-9607	●	●
138	16.085 BOLT; BRKT TO BODY 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	06	1	9608-	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-94359-614-4	01	1	9112-9504	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-97093-538-1	01	1	9505-9607	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-97130-116-0	01	1	9608-	●	●
175	16.085 NUT; CROSS BEAM 07.833 M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	16.085 NUT; CROSS BEAM 07.833 M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	16.085 BOLT; CROSS BEAM 08.143 (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	16.085 BOLT; CROSS BEAM 08.143 (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	16.085 BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
212	16.085 BRACKET; INST PNL SIDE	8-97093-552-4	01	1	9505-	●	●
212	16.085 BRACKET; INST PNL SIDE	8-97093-550-4	01	1	9505-9607	●	●
212	16.085 BRACKET; INST PNL SIDE	8-97130-117-1	01	1	9608-	●	●
332	16.085 BOLT; SIDE CLUSTER 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9505-	●	●
332	16.085 BOLT; SIDE CLUSTER 08.143 (B) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
519	16.085 PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9112-9504	●	●
519	16.085 PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
537	16.085 NUT; BRKT 07.833 M6 FLANGE	8-97063-399-0	05	1	9505-	●	●

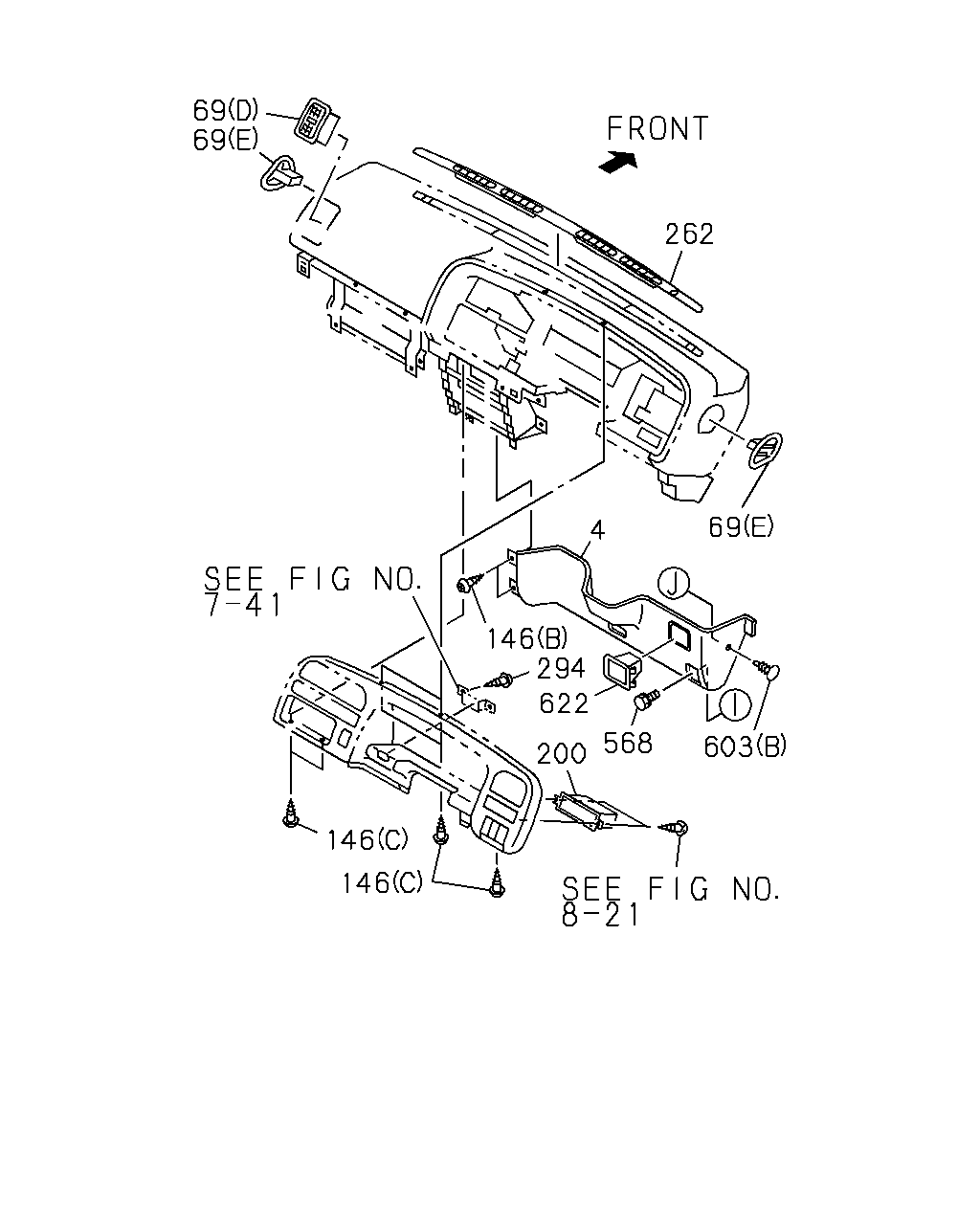

146 146 200 568 603 622 146 294 4 69 262 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	16.080 COVER; INST PNL INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97806-393-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL DARK GRAY	8-97151-278-4	01	1	9505-9607	●	●
4	16.080 COVER; INST PNL DARK GRAY	8-97155-300-0	01	1	9608-	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97806-396-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BROWN(130) (C) DARK BROWN	8-97806-399-5	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97806-395-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97806-398-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (C) DARK GRAY	8-97806-401-5	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-318-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-675-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9505-9603	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-672-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-314-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
146	16.100 SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	16.100 SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-9603	●	●
146	16.100 SCREW; TAP 09.744 (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	16.100 SCREW; TAP 09.663 (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	16.100 SCREW; TAP 16.190 (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
200	09.743 BOX; CENTER CLUSTER M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6>	8-97103-473-1	01	1	9505-	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-302-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER DARK GRAY	8-97098-380-1	01	1	9505-	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-310-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-306-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-304-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-312-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-308-0	01	1	9112-9504	●	●
294	09.744 SCREW; BEZEL 07.829 M4X14 TAPPING W/PL WASHER	0-74300-414-0	04	1	9112-9504	●	●
294	09.744 SCREW; BEZEL 07.829 M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9505-	●	●
568	09.744 BOLT; COVER 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9505-	●	●
603	16.090 CLIP; COVER 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
603	16.090 CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9505-	●	●
622	16.100 BOX; IDLE CONT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) DARK GRAY	8-97153-696-0	01	1	9505-	●	●

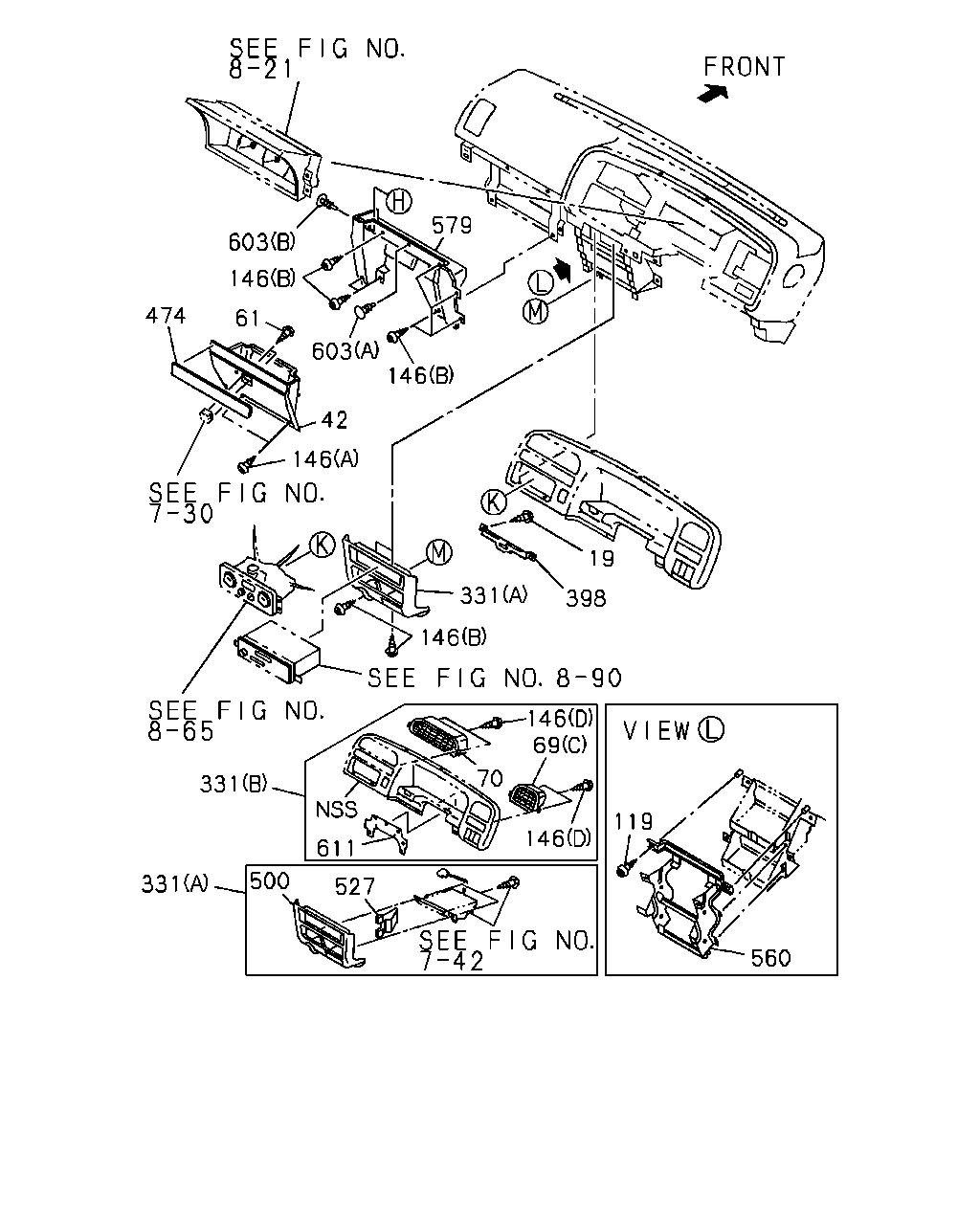

579 603 146 61 474 603 42 146 146 19 398 331 146 331 331 500 527 611 146 70 146 69 119 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	16.081 SCREW; BRKT CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 M5X16 TAPPING	9-09829-323-1	06	1	9505-	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-324-7	01	1	9112-9504	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-322-7	01	1	9112-9504	●	●
42	16.100 BOX; GLOVE,INST PNL DARK GRAY	8-97151-304-4	01	1	9505-9708	●	●
42	16.100 BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-0	01	1	9709-	●	●
61	16.100 SCREW; GLOVE BOX 03.003 (A) D6X11 POP RIVET	8-94298-119-0	04	1	9112-9504	●	●
61	16.100 SCREW; GLOVE BOX 16.110 (B) M4X8 CK-HEAD	9-03094-408-0	02	1	9112-9401	●	●
61	16.100 SCREW; GLOVE BOX (B) M4X10	8-97107-420-0	02	1	9402-9504	●	●
61	16.100 SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-318-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-675-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9505-9603	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-672-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-314-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97805-300-3	01	1	9112-9208	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97808-678-2	01	1	9209-9504	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-1	01	1	9505-9603	●	●
119	14.655 SCREW; BRKT TO INST 16.085 M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
146	16.100 SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	16.100 SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-9603	●	●
146	16.100 SCREW; TAP 09.744 (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	16.100 SCREW; TAP 09.663 (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	16.100 SCREW; TAP 16.190 (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
331	09.743 CLUSTER; INST SIDE (B)	8-97091-970-1	01	1	9505-9603	●	●
331	09.743 CLUSTER; INST SIDE (B)	8-97160-267-0	01	1	9604-	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97111-343-4	01	1	9505-9603	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97160-269-0	01	1	9604-9608	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-356-0	01	1	9609-	●	●
331	09.743 CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 16.081 (A)	8-97091-910-4	01	1	9505-9603	●	●
331	09.743 CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97160-268-0	01	1	9604-9608	●	●
331	09.743 CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-0	01	1	9609-	●	●
398	16.085 BRACKET; SUPPORT CLUSTER AUDIO DIN 'E' FORM<7LG> 16.080	8-97111-352-1	02	1	9505-	●	●
474	16.069 PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97089-513-2	01	1	9505-9607		●
474	16.069 PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97135-973-0	01	1	9608-9610		●
474	16.069 PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97169-721-0	01	1	9611-		●
500	16.081 CLUSTER; INST CENTER	8-97803-780-5	01	1	9112-9311	●	●
500	16.081 CLUSTER; INST CENTER	8-97810-753-0	01	1	9312-9504	●	●
500	16.081 CLUSTER; INST CENTER CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743	8-97160-271-0	01	1	9608-	●	●
500	16.081 CLUSTER; INST CENTER EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743	8-97160-270-0	01	1	9608-	●	●
527	16.100 CLIP; INST CLUSTER T=0.5	8-97137-828-0	04	1	9601-	●	●
560	16.085 BRACKET	8-97080-119-1	01	1	9505-	●	●
579	16.080 COVER; INST PNL DARK GRAY	8-97151-279-4	01	1	9505-	●	●
603	16.090 CLIP; COVER 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
603	16.090 CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9505-	●	●
611	16.081 SHEET	8-97103-470-1	01	1	9505-9603	●	●

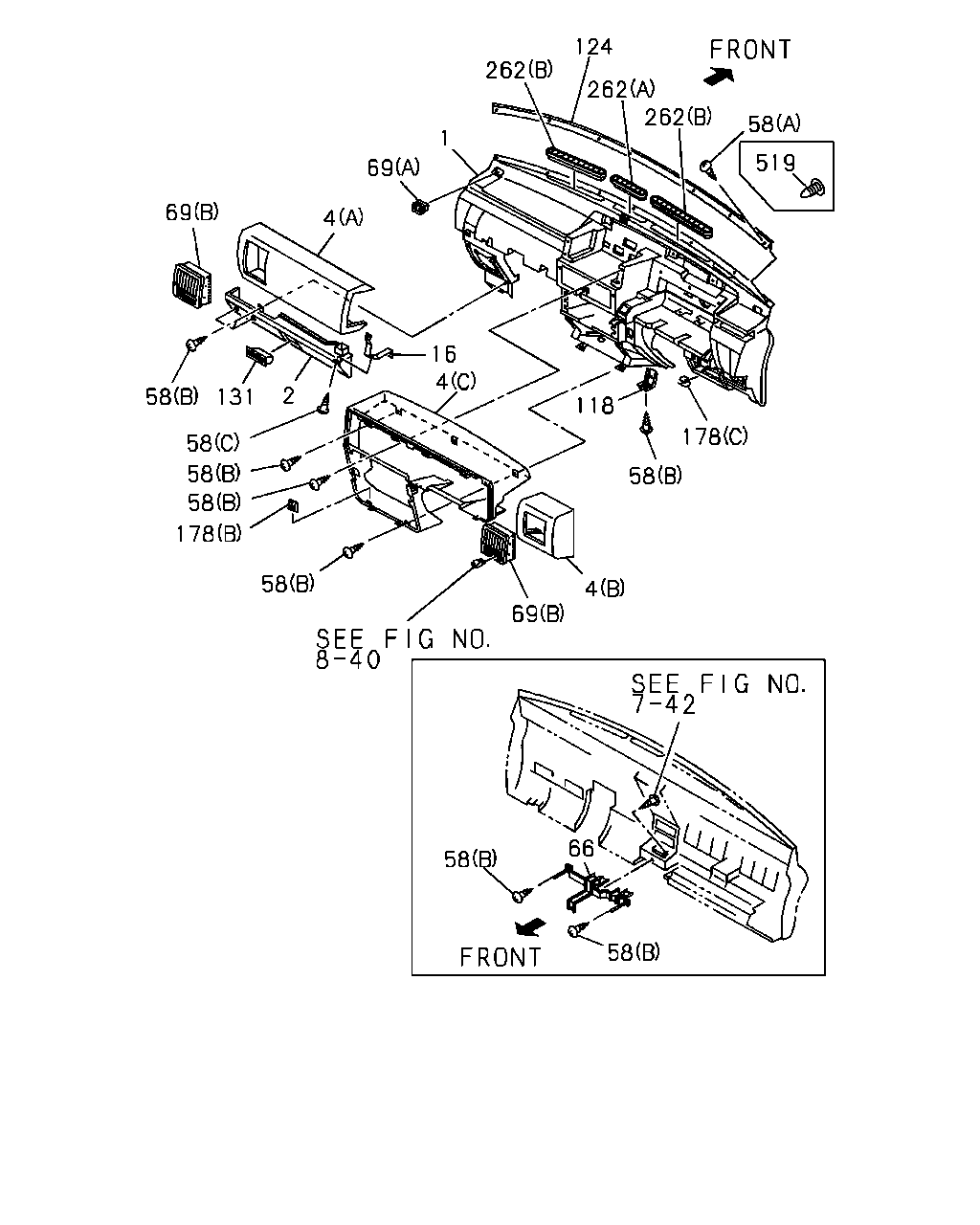

124 262 262 58 262 519 1 69 4 69 58 131 2 16 4 58 58 58 178 58 69 4 118 178 58 66 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.080 PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-390-9	01	1	9112-9304	●	●
1	16.080 PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-004-1	01	1	9305-9504	●	●
1	16.080 PANEL; INST DARK GRAY	8-97152-349-5	01	1	9505-9607	●	●
1	16.080 PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-5	01	1	9608-	●	●
1	16.080 PANEL; INST AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97157-873-5	01	1	9608-	●	●
1	16.080 PANEL; INST EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-871-0	01	1	9608-	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-392-9	01	1	9112-9304	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-003-1	01	1	9305-9504	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) (A)	8-97130-114-0	01	1	9608-9608	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A)	8-97130-114-0	01	1	9609-9703	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A)	8-97175-234-1	01	1	9704-	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-404-4	01	1	9112-9504	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-402-4	01	1	9112-9504	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR (B) DARK GRAY	8-97091-921-3	01	1	9505-9607	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR (B)	8-97130-115-1	01	1	9608-	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97806-393-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL DARK GRAY	8-97151-278-4	01	1	9505-9607	●	●
4	16.080 COVER; INST PNL DARK GRAY	8-97155-300-0	01	1	9608-	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97806-396-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BROWN(130) (C) DARK BROWN	8-97806-399-5	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97806-395-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97806-398-1	01	1	9112-9504	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (C) DARK GRAY	8-97806-401-5	01	1	9112-9504	●	●
16	16.085 BRACKET; INST PNL	8-97808-068-1	01	1	9112-9504	●	●
16	16.085 BRACKET; INST PNL	8-97083-250-2	01	1	9505-9607	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3)	8-97133-384-0	01	1	9608-9608	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-384-0	01	1	9609-	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97133-385-0	01	1	9608-9608	●	●
16	16.085 BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97133-385-0	01	1	9608-9608	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-385-0	01	1	9609-	●	●
16	16.085 BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97133-385-0	01	1	9609-	●	●
58	16.110 SCREW; INST PANEL 08.845 (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	16.110 SCREW; INST PANEL 16.100 (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	16.110 SCREW; INST PANEL 09.744 (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97804-042-5	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-318-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-675-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9505-9603	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-672-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-314-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
118	16.085 BRACKET; STRG	8-97805-932-2	01	1	9112-9504	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR	8-97091-905-1	01	1	9505-9606	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR	8-97176-082-0	01	1	9607-9607	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-082-0	01	1	9608-	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97091-905-1	01	1	9608-	●	●
131	09.264 GRILLE ASM; LAP VENT BLACK	8-97806-851-2	02	1	9112-9504	●	●
178	16.085 NUT; INST PANEL 07.833 (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	16.085 NUT; INST PANEL 07.833 (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	16.085 NUT; INST PANEL 09.262 (B) M5 SPIRE NUT	8-94217-271-0	26	1	9112-9211	●	●
178	16.085 NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	16.085 NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9504	●	●
178	16.085 NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-302-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER DARK GRAY	8-97098-380-1	01	1	9505-	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-310-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-306-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-304-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-312-0	01	1	9112-9504	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-308-0	01	1	9112-9504	●	●
519	16.085 PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9112-9504	●	●
519	16.085 PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
