Sayfa 8-20 - Isuzu EPC

8-20 — METER CABLE (#4497) — 185 parça

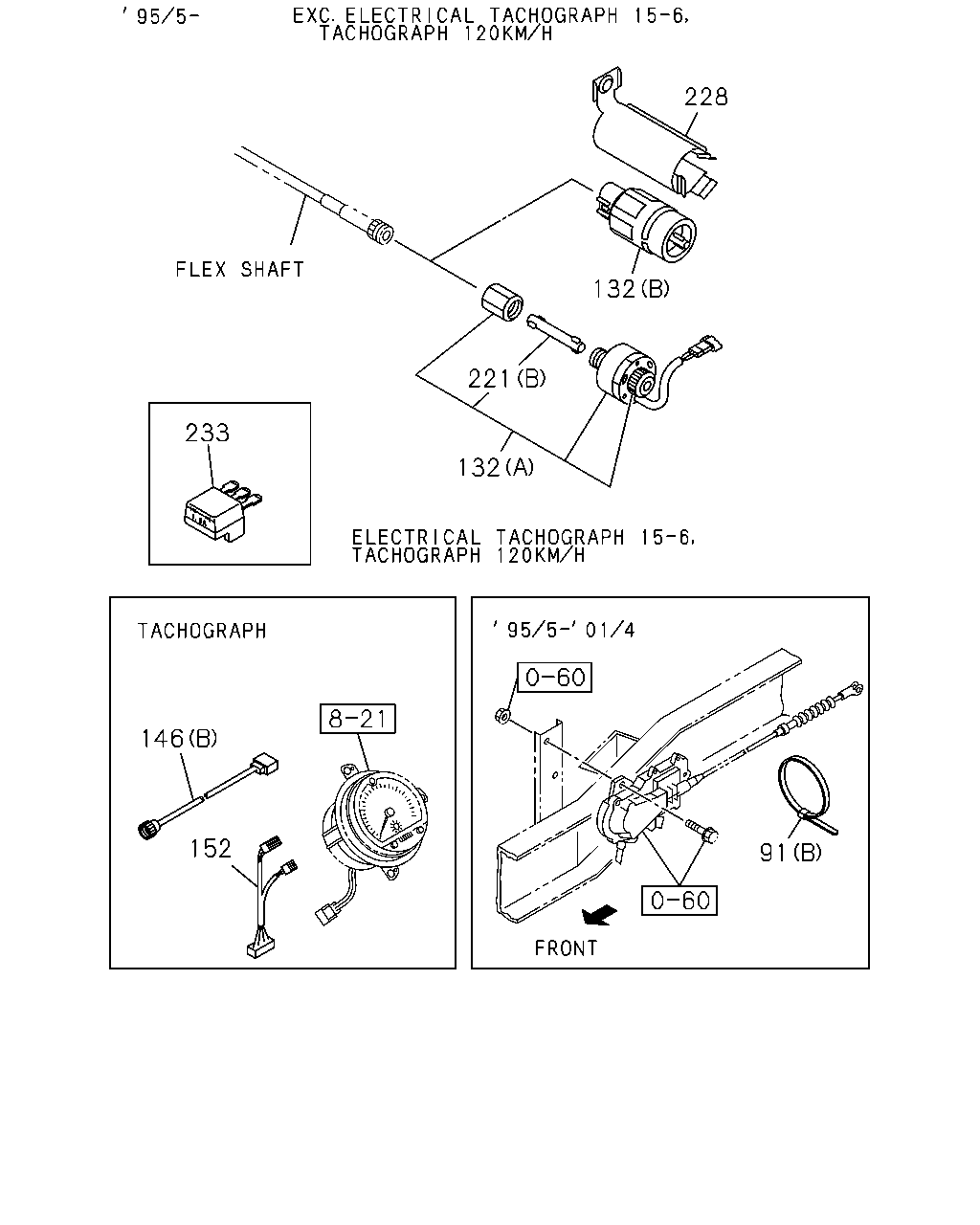

228 132 221 233 132 6 146 152 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-83129-260-1	02	1	0706-	●
6	HOLDER; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-83129-260-1	02	1	0706-	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> (A) ID=11 L=41	1-09700-403-0	01	1	9101-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> (A) ID=11 L=41	1-09700-403-0	01	1	9101-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> (B) L=140	5-09707-031-0	05	1	9101-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> (B) L=140	5-09707-031-0	05	1	9101-9504	●	●
91	CLIP; BAND OVERHEAD COOLING SYSTEM<YS9> (B) L=140	5-09707-031-0	01	1	9505-9510	●	●
91	CLIP; BAND (B) L=140	5-09707-031-1	01	1	9511-0104	●	●
132	SENSOR; SPD,SPEEDOMETER EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-2	01	1	9905-0203		●
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-2	01	1	9905-0203	●
132	SENSOR; SPD,SPEEDOMETER EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-3	01	1	0204-		●
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-3	01	1	0204-	●
132	SENSOR; SPD,SPEEDOMETER MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8> (C)	1-83127-022-0	01	1	9101-9504	●	●
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> (A)	1-83127-241-3	01	1	9505-9904	●	●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (A)	1-83127-241-3	01	1	9905-0203		●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (A)	1-83127-241-3	01	1	9905-0203	●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (A)	1-83127-241-3	01	1	0204-		●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (A)	1-83127-241-3	01	1	0204-	●
132	SENSOR; SPD,SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> (C)	1-83127-024-1	01	1	9101-9504	●	●
132	SENSOR; SPD,SPEEDOMETER FULLER M/T<X9B> (A) 25 PULSE	1-83127-414-1	01	1	9807-	●
146	HARNESS; METER AUSTRALIA EQUIPMENT<RR3> (B)	1-82672-121-0	01	1	9811-0203		●
146	HARNESS; METER NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (A)	1-83118-259-0	01	1	9101-9504		●
152	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>	1-83118-268-0	01	1	9101-9504	●	●
152	HARNESS; TACHOGRAPH ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	1-82624-665-1	01	1	9505-	●	●
221	KEY; SPEED SENSOR ISUZU M/T<X9A> (B)	1-83129-126-0	01	1	9505-9904	●	●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B)	1-83129-126-0	01	1	9905-0203		●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (B)	1-83129-126-0	01	1	9905-0203	●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B)	1-83129-126-0	01	1	0204-		●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (B)	1-83129-126-0	01	1	0204-	●
221	KEY; SPEED SENSOR EXC. TACHOGRAPH 120KM/H<SM8> (A)	1-83129-069-0	01	1	9101-9504	●	●
221	KEY; SPEED SENSOR FULLER M/T<X9B> (B)	1-83129-073-0	01	1	9807-	●
228	PROTECTOR; SENSOR EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	8-97168-308-0	01	1	9905-0203		●
228	PROTECTOR; SENSOR ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	8-97168-308-0	01	1	9905-0203	●
228	PROTECTOR; SENSOR EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	8-97168-308-0	01	1	0204-0808		●
228	PROTECTOR; SENSOR ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	8-97168-308-0	01	1	0204-0808	●
228	PROTECTOR; SENSOR EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	8-98119-901-0	01	1	0809-		●
228	PROTECTOR; SENSOR ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	8-98119-901-0	01	1	0809-	●
233	DIODE; METER AUSTRALIA EQUIPMENT<RR3> BLACK 3P-1.5A	8-94416-438-1	01	1	9811-0203		●

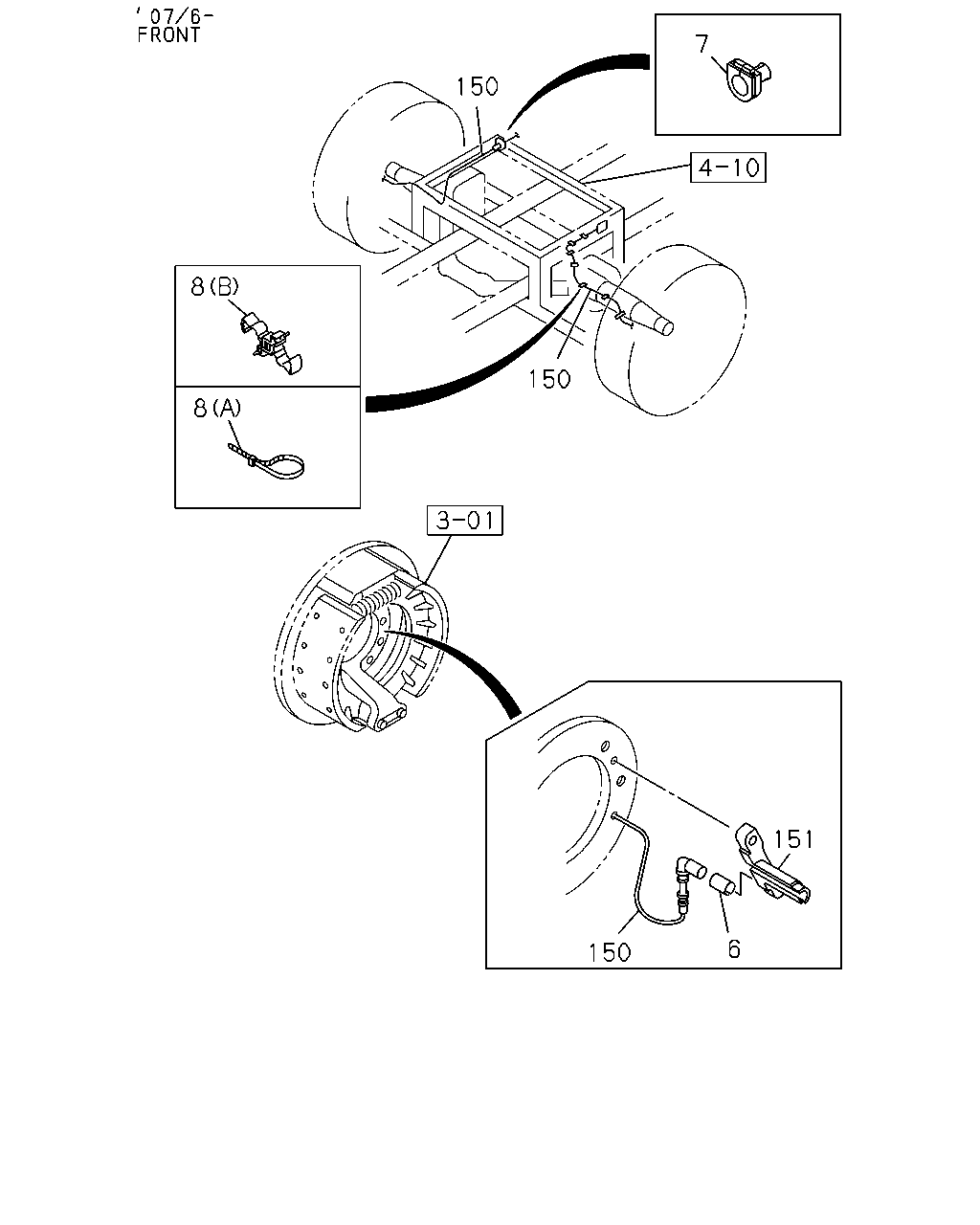

7 150 8 150 8 151 6 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-83129-260-1	02	1	0706-	●
6	HOLDER; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-83129-260-1	02	1	0706-	●
7	GROMMET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT ID=8	1-82699-740-1	02	1	0706-	●
7	GROMMET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR ID=8	1-82699-740-1	01	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) L=140	5-09707-031-1	02	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) L=140	5-09707-031-1	01	1	0706-	●
150	SENSOR; SPEED,ABS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83227-030-0	02	1	0706-	●
150	SENSOR; SPEED,ABS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83227-028-0	01	1	0706-	●
150	SENSOR; SPEED,ABS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83227-029-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83129-421-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83129-422-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83129-403-0	01	1	0706-1504	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98299-396-0	01	1	1505-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83129-404-0	01	1	0706-1504	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98299-397-0	01	1	1505-	●
151	BRACKET; SPD SENSOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8>	1-23335-281-1	01	1	9101-9504	●	●
151	BRACKET; SPD SENSOR ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,TACHOGRAPH 120KM/H<SM8>	1-23335-291-0	01	1	9101-9504	●	●

48 5 122 162 118 32 118 62 117 162 42 221 162 132 151 119 190 63 174 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	SHAFT; FLEX,TACHOMETER TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7> ENG-SENSER	1-83123-507-0	01	1	9101-9504	●	●
5	SHAFT; FLEX,TACHOMETER TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> ENG-SENSER	1-83123-507-0	01	1	9101-9504	●	●
5	SHAFT; FLEX,TACHOMETER TO ENG ENG OVERRUN BUZZER<SK4> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>, TACHOMETER<UD7> ENG-SENSER	1-83123-255-0	01	1	9101-9504	●	●
5	SHAFT; FLEX,TACHOMETER TO ENG TACHOMETER<UD7> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG-SENSER	1-83123-255-0	01	1	9101-9504	●	●
32	BOX; GEAR,FLEX SHAFT MT643 A/T ALLISON(PR7) FINAL GEAR 39/7 15.5" HYPOID(W3K) TIRE 9.00-20-12 RIB(00T),TIRE 9.00-20-14 RIB(10T), TIRE 10.00-20-14 RIB(30T),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N)	1-83126-003-2	01	1	9101-9504	●	●
32	BOX; GEAR,FLEX SHAFT MT643 A/T ALLISON(PR7) FINAL GEAR 39/7 15.5" HYPOID(W3K) TIRE 9.00R-20-14 RIB(25R)	1-83126-022-1	01	1	9101-9504	●	●
32	BOX; GEAR,FLEX SHAFT MT643 A/T ALLISON(PR7) FINAL GEAR 43/7 15.5" HYPOID(W1R) TIRE 10.00-20-14 RIB(30T),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N)	1-83126-278-0	01	1	9101-9504	●	●
32	BOX; GEAR,FLEX SHAFT MT643 A/T ALLISON(PR7) FINAL GEAR 43/7 15.5" HYPOID(W1R) TIRE 9.00-20-12 RIB(00T),TIRE 9.00-20-14 RIB(10T), TIRE 9.00R-20-14 RIB(25R)	1-83126-086-0	01	1	9101-9504	●	●
42	BOLT; BRKT ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●
42	BOLT; BRKT ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●
48	GROMMET; FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> ID=12 OD=30 T=12	9-09956-021-0	01	1	9101-9504	●	●
62	BOLT; SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> M8X16	9-05820-816-0	02	1	0706-1506	●
62	BOLT; SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●
62	BOLT; SENSOR ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M6X25 W/LK WASHER	9-01900-625-0	02	1	9101-9204	●	●
62	BOLT; SENSOR ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9504	●	●
63	NUT; SENSOR ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M6	9-09110-406-0	02	1	9101-9504	●	●
117	BRACKET; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8>	1-83129-076-0	01	1	9101-9504	●	●
118	BOLT; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9101-9504	●	●
118	BOLT; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●
118	BOLT; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●
119	NUT; BRKT ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M8	9-09110-408-0	02	1	9101-9504	●	●
122	KEY; FLEX SHAFT,COUPLING & GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> L=30	1-83129-027-0	01	1	9101-9504	●	●
132	SENSOR; SPD,SPEEDOMETER EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-2	01	1	9905-0203		●
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-2	01	1	9905-0203	●
132	SENSOR; SPD,SPEEDOMETER EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-3	01	1	0204-		●
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B) 25 PULSE	1-80240-022-3	01	1	0204-	●
132	SENSOR; SPD,SPEEDOMETER MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8> (C)	1-83127-022-0	01	1	9101-9504	●	●
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> (A)	1-83127-241-3	01	1	9505-9904	●	●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (A)	1-83127-241-3	01	1	9905-0203		●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (A)	1-83127-241-3	01	1	9905-0203	●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (A)	1-83127-241-3	01	1	0204-		●
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (A)	1-83127-241-3	01	1	0204-	●
132	SENSOR; SPD,SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> (C)	1-83127-024-1	01	1	9101-9504	●	●
132	SENSOR; SPD,SPEEDOMETER FULLER M/T<X9B> (A) 25 PULSE	1-83127-414-1	01	1	9807-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83129-421-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83129-422-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83129-403-0	01	1	0706-1504	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98299-396-0	01	1	1505-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83129-404-0	01	1	0706-1504	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98299-397-0	01	1	1505-	●
151	BRACKET; SPD SENSOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8>	1-23335-281-1	01	1	9101-9504	●	●
151	BRACKET; SPD SENSOR ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,TACHOGRAPH 120KM/H<SM8>	1-23335-291-0	01	1	9101-9504	●	●
162	NUT; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> (A) M6	9-09110-406-0	02	1	9101-9504	●	●
162	NUT; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> (A) M8	9-09110-408-0	02	1	9101-9504	●	●
162	NUT; GEAR BOX MT643 A/T ALLISON(PR7) EXC. TACHOGRAPH 120KM/H<SM8> (B) M22	9-83111-951-0	01	1	9101-9504	●	●
174	GENERATOR; TACHOMETER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08>	1-83127-024-1	01	1	9101-9504	●	●
174	GENERATOR; TACHOMETER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08>	1-83127-024-1	01	1	9101-9504	●	●
190	BOLT; GEN FIX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> M6X20 W/LK WASHER	9-01900-620-0	02	1	9101-9204	●	●
190	BOLT; GEN FIX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> M6X20 W/LK WASHER	9-01900-620-0	02	1	9101-9204	●	●
190	BOLT; GEN FIX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9504	●	●
190	BOLT; GEN FIX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9504	●	●
191	NUT; GEN FIX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> M6	9-09110-406-0	02	1	9101-9504	●	●
191	NUT; GEN FIX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> M6	9-09110-406-0	02	1	9101-9504	●	●
221	KEY; SPEED SENSOR ISUZU M/T<X9A> (B)	1-83129-126-0	01	1	9505-9904	●	●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B)	1-83129-126-0	01	1	9905-0203		●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (B)	1-83129-126-0	01	1	9905-0203	●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> (B)	1-83129-126-0	01	1	0204-		●
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> ISUZU M/T<X9A> (B)	1-83129-126-0	01	1	0204-	●
221	KEY; SPEED SENSOR EXC. TACHOGRAPH 120KM/H<SM8> (A)	1-83129-069-0	01	1	9101-9504	●	●
221	KEY; SPEED SENSOR FULLER M/T<X9B> (B)	1-83129-073-0	01	1	9807-	●

150 150 7 8 8 150 6 62 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-83129-260-1	02	1	0706-	●
6	HOLDER; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-83129-260-1	02	1	0706-	●
7	GROMMET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT ID=8	1-82699-740-1	02	1	0706-	●
7	GROMMET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR ID=8	1-82699-740-1	01	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) L=140	5-09707-031-1	02	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0706-	●
8	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) L=140	5-09707-031-1	01	1	0706-	●
62	BOLT; SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> M8X16	9-05820-816-0	02	1	0706-1506	●
62	BOLT; SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●
62	BOLT; SENSOR ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M6X25 W/LK WASHER	9-01900-625-0	02	1	9101-9204	●	●
62	BOLT; SENSOR ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8> M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9504	●	●
150	SENSOR; SPEED,ABS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83227-030-0	02	1	0706-	●
150	SENSOR; SPEED,ABS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83227-028-0	01	1	0706-	●
150	SENSOR; SPEED,ABS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83227-029-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83129-421-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT	1-83129-422-0	01	1	0706-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83129-403-0	01	1	0706-1504	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98299-396-0	01	1	1505-	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR	1-83129-404-0	01	1	0706-1504	●
151	BRACKET; SPD SENSOR PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98299-397-0	01	1	1505-	●
151	BRACKET; SPD SENSOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. TACHOGRAPH 120KM/H<SM8>	1-23335-281-1	01	1	9101-9504	●	●
151	BRACKET; SPD SENSOR ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,TACHOGRAPH 120KM/H<SM8>	1-23335-291-0	01	1	9101-9504	●	●

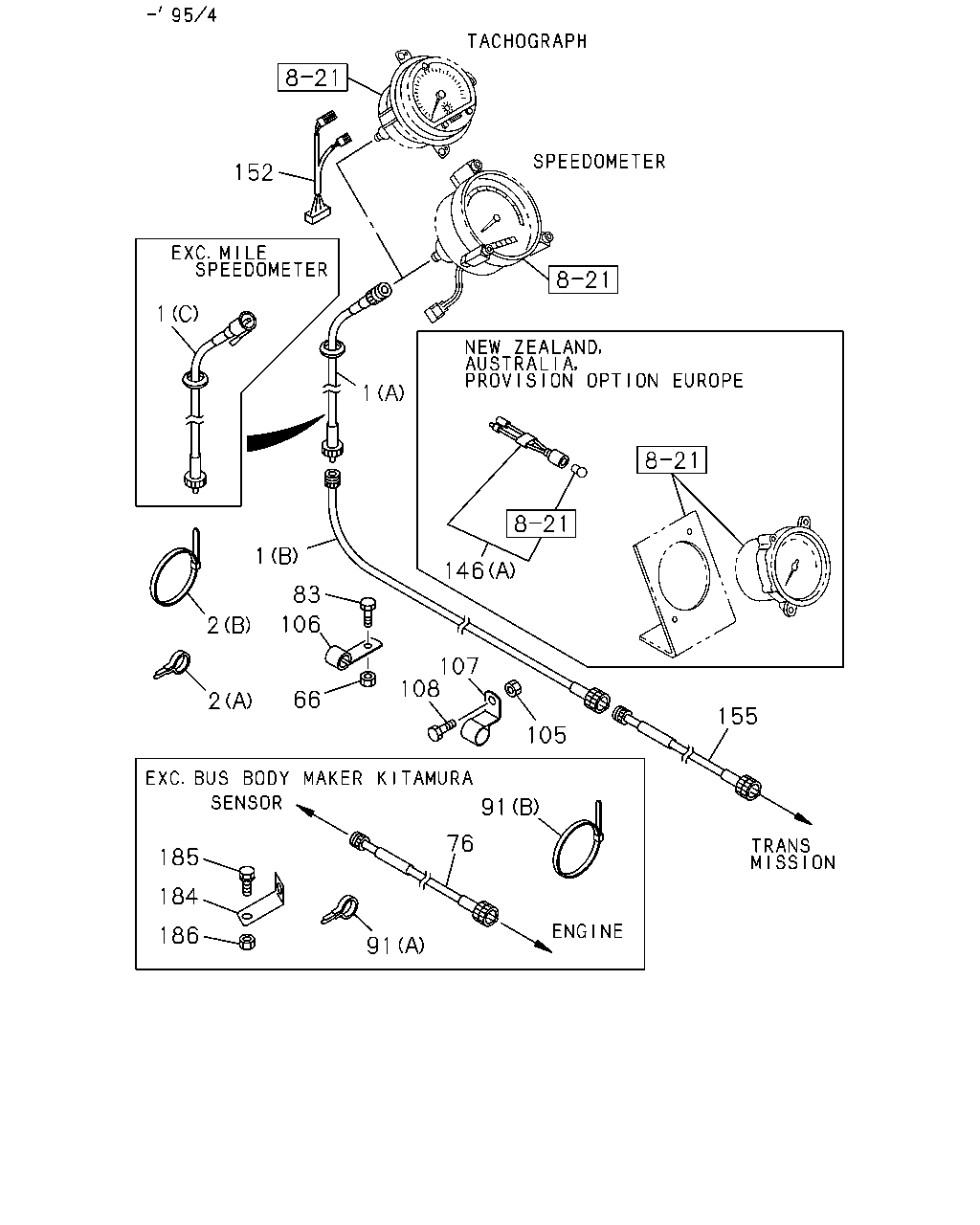

152 1 1 1 146 83 106 2 107 108 66 2 155 105 91 76 185 184 186 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; FLEX,SPD TO CONN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (A) METER-CONNECT L=2600	1-83123-905-0	01	1	9101-9304		●
1	SHAFT; FLEX,SPD TO CONN MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N), MBG6SM/T(X5D) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (A) METER-CONNECT L=2600	1-83123-905-0	01	1	9305-9504		●
1	SHAFT; FLEX,SPD TO CONN MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (A) METER-CONNECT L=2600	1-83123-905-0	01	1	9305-9504	●
1	SHAFT; FLEX,SPD TO CONN TACHOGRAPH 120KM/H<SM8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) METER-CONNECT L=2600	1-83123-286-1	01	1	9101-9504		●
1	SHAFT; FLEX,SPD TO CONN WHEEL BASE 4500MM(45W) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> (B) CONNECT-CONNECT L=4750	1-83123-334-2	01	1	9101-9504		●
1	SHAFT; FLEX,SPD TO CONN TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> (C) METER-CONNECT L=350	1-83123-258-1	01	1	9101-9504	●	●
1	SHAFT; FLEX,SPD TO CONN WHEEL BASE 5000MM(50W) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> (B) CONNECT-CONNECT L=5190	1-83123-246-2	01	1	9101-9504	●	●
1	SHAFT; FLEX,SPD TO CONN WHEEL BASE 5700MM(57W) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> (B) CONNECT-CONNECT L=5890	1-83123-272-1	01	1	9101-9504	●	●
1	SHAFT; FLEX,SPD TO CONN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (A) METER-CONNECT L=3500	1-83123-904-0	01	1	9101-9304	●
1	SHAFT; FLEX,SPD TO CONN MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (A) METER-CONNECT L=3500	1-83123-904-0	01	1	9305-9504		●
1	SHAFT; FLEX,SPD TO CONN MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (A) METER-CONNECT L=3500	1-83123-904-0	01	1	9305-9504	●
1	SHAFT; FLEX,SPD TO CONN TACHOGRAPH 120KM/H<SM8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) METER-CONNECT L=3500	1-83123-270-2	01	1	9101-9504	●
2	CLIP; FLEX SHAFT MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOGRAPH 120KM/H<SM8> (B) L=250	5-09707-030-0	10	1	9305-9504	●	●
2	CLIP; FLEX SHAFT TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> (A) ID=15 L=45	1-09700-402-0	27	1	9101-9504	●	●
2	CLIP; FLEX SHAFT TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> (A) ID=15 L=65	1-09700-466-0	01	1	9101-9504	●	●
66	NUT; FLEX SHAFT TO C/MBR TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> M8	9-09110-408-0	02	1	9101-9504	●	●
76	SHAFT; FLEX ENG TO SENSOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08>	1-83123-507-0	01	1	9101-9504	●	●
76	SHAFT; FLEX ENG TO SENSOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08>	1-83123-507-0	01	1	9101-9504	●	●
83	BOLT; FLEX SHAFT TO C/MBR TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●
83	BOLT; FLEX SHAFT TO C/MBR TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> (A) ID=11 L=41	1-09700-403-0	01	1	9101-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> (A) ID=11 L=41	1-09700-403-0	01	1	9101-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> (B) L=140	5-09707-031-0	05	1	9101-9504	●	●
91	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> (B) L=140	5-09707-031-0	05	1	9101-9504	●	●
91	CLIP; BAND OVERHEAD COOLING SYSTEM<YS9> (B) L=140	5-09707-031-0	01	1	9505-9510	●	●
91	CLIP; BAND (B) L=140	5-09707-031-1	01	1	9511-0104	●	●
105	NUT; CLIP TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> M10	9-09110-410-0	01	1	9101-9504	●	●
106	CLIP; SPEEDOMETER CABLE TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> ID=13 L=50	9-09525-286-0	02	1	9101-9504	●	●
107	CLIP; FLOOR BOARD TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>	5-09700-053-0	01	1	9101-9504	●	●
108	BOLT; CLIP TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> M10X25 W/LK WASHER	9-01901-025-0	01	1	9101-9204	●	●
108	BOLT; CLIP TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9504	●	●
146	HARNESS; METER AUSTRALIA EQUIPMENT<RR3> (B)	1-82672-121-0	01	1	9811-0203		●
146	HARNESS; METER NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (A)	1-83118-259-0	01	1	9101-9504		●
152	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1>	1-83118-268-0	01	1	9101-9504	●	●
152	HARNESS; TACHOGRAPH ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>	1-82624-665-1	01	1	9505-	●	●
155	SHAFT; FLEX,CONN TO TRANS MT643 A/T ALLISON(PR7) TACHOGRAPH 120KM/H<SM8> EXC. MILE SPEEDOMETER<UC1> L=1700	1-83123-794-1	01	1	9101-9504	●	●
155	SHAFT; FLEX,CONN TO TRANS TACHOGRAPH 120KM/H<SM8> ISUZU M/T<X9A> EXC. MILE SPEEDOMETER<UC1> L=1100	1-83123-223-4	01	1	9101-9504	●	●
184	BRACKET; FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08>	1-82699-199-0	01	1	9101-9504	●	●
184	BRACKET; FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08>	1-82699-199-0	01	1	9101-9504	●	●
185	BOLT; BRKT,FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
185	BOLT; BRKT,FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
185	BOLT; BRKT,FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●
185	BOLT; BRKT,FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●
186	NUT; BRKT,FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ENG OVERRUN BUZZER<SK4> EXC. TACHOMETER<UD7>,BUS BODY MAKER KITAMURA<Y08> M8	9-09110-408-0	01	1	9101-9504	●	●
186	NUT; BRKT,FLEX SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> TACHOMETER<UD7> EXC. BUS BODY MAKER KITAMURA<Y08> M8	9-09110-408-0	01	1	9101-9504	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
