7-10 — CAUTION PLATE AND LABEL (#44967) — 138 parça

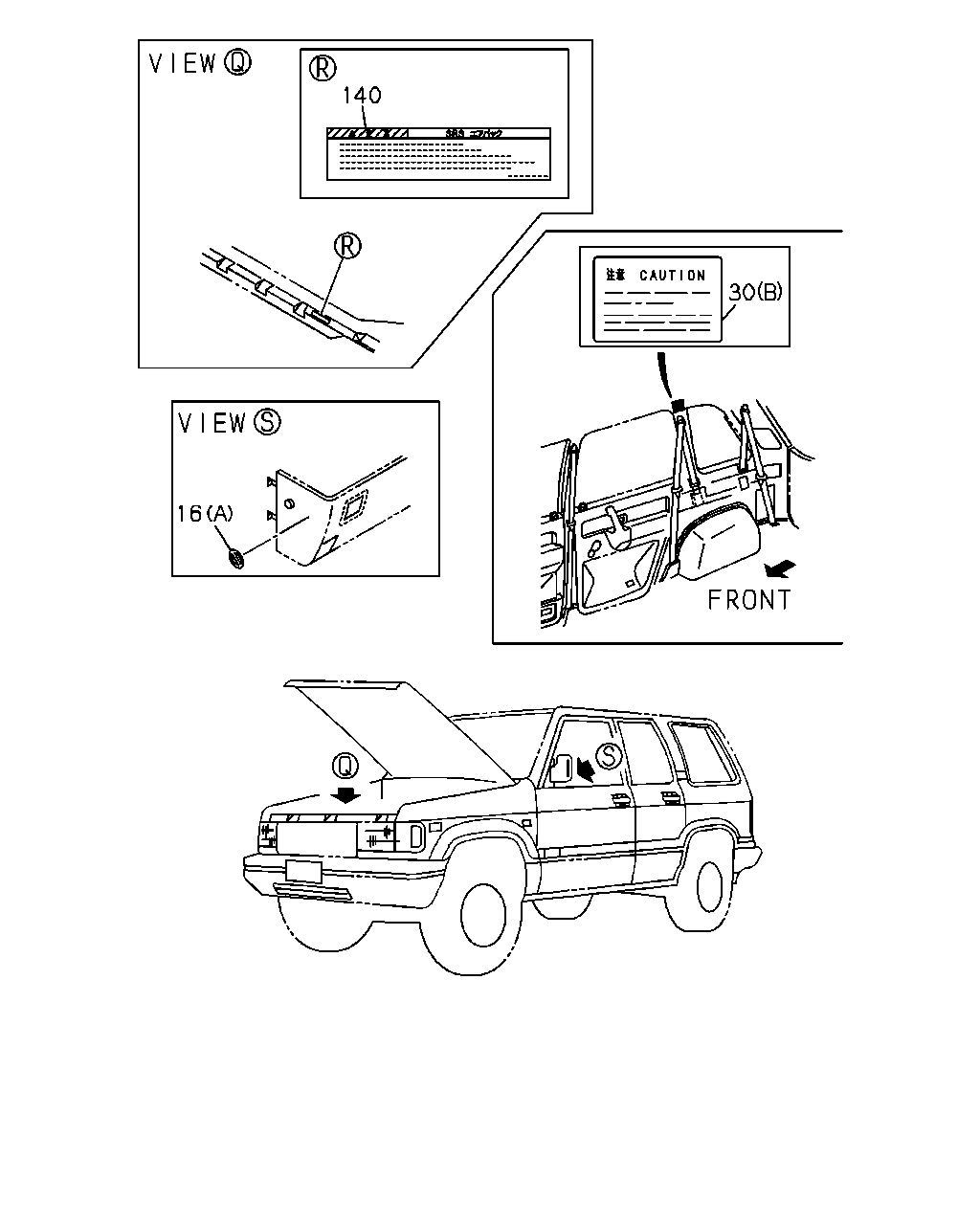

çizim 16018
140 30 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (A) 		8-97145-558-0 01 1 9608- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (B) 		8-97145-557-0 02 1 9608- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR BAG PASSENGER<7FA> (B) 		8-97145-557-0 01 1 9608- ● ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 920928- 		8-97086-937-0 01 1 9209-9301 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 		8-97092-587-1 01 1 9302-9506 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 		8-97135-363-0 01 1 9507-9512 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
(A) 		8-97135-363-0 01 1 9601- ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 		8-97135-363-0 01 1 9601- ●
30 08.808 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97069-512-2 02 1 9112-9209 ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 920928- 		8-97086-937-0 02 1 9209-9301 ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 		8-97092-587-1 02 1 9302-9506 ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 		8-97135-363-0 02 1 9507- ●
30 08.808 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97101-705-1 02 1 9309- ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97134-568-0 01 1 9608-9608 ● ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97134-568-0 01 1 9609- ● ●

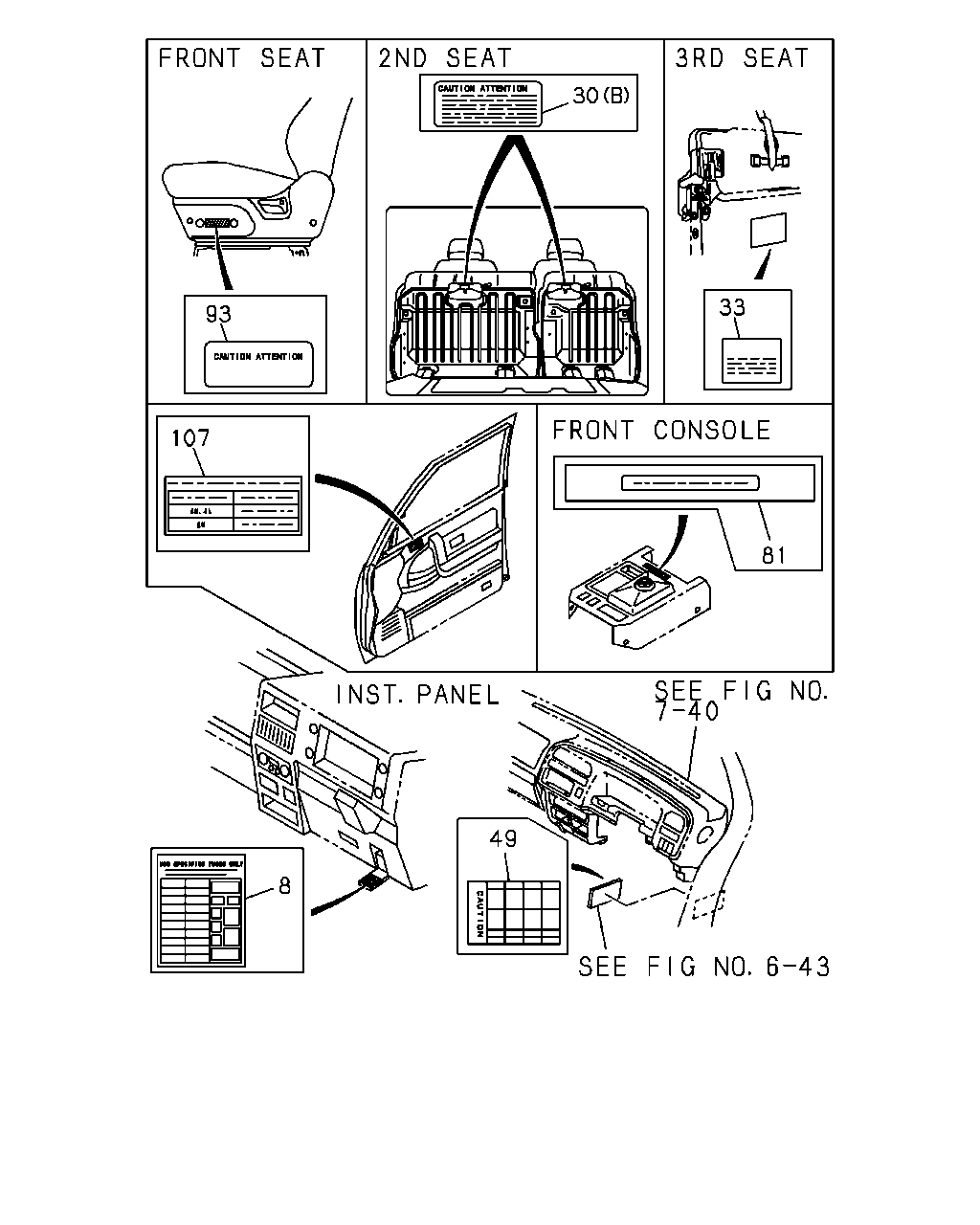

çizim 16330
30 33 93 107 81 49 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 03.680 LABEL; FUSE 8-97807-337-0 01 1 9112-9308 ● ●
8 03.680 LABEL; FUSE 8-97810-052-0 01 1 9309-9504 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 920928- 		8-97086-937-0 01 1 9209-9301 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 		8-97092-587-1 01 1 9302-9506 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 		8-97135-363-0 01 1 9507-9512 ● ●
30 08.808 PLATE; CAUTION,RR SEAT
(A) 		8-97135-363-0 01 1 9601- ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPRIT BACK<S3B> (A) 		8-97135-363-0 01 1 9601- ●
30 08.808 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97069-512-2 02 1 9112-9209 ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 920928- 		8-97086-937-0 02 1 9209-9301 ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 		8-97092-587-1 02 1 9302-9506 ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 		8-97135-363-0 02 1 9507- ●
30 08.808 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97101-705-1 02 1 9309- ●
33 08.808 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97044-903-1 02 1 9112-9501 ●
33 08.808 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97115-760-0 02 1 9502-9506 ●
33 08.808 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97124-953-0 02 1 9507- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97110-336-1 01 1 9505- ● ●
81 04.008 LABEL; CAUTION,A/T SHIFT
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97063-034-1 01 1 9112-9308 ● ●
81 04.008 LABEL; CAUTION,A/T SHIFT
A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97063-034-1 01 1 9309-9607 ● ●
93 08.808 PLATE; CAUTION,WALK-IN SEAT
EXC. REAR SEAT DELETION(AP6) 		8-97069-513-2 01 1 9112-9209 ●
93 08.808 PLATE; CAUTION,WALK-IN SEAT
EXC. REAR SEAT DELETION(AP6) 920928- 		8-97086-935-0 01 1 9209-9301 ●
93 08.808 PLATE; CAUTION,WALK-IN SEAT
EXC. REAR SEAT DELETION(AP6) 		8-97092-625-1 01 1 9302- ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-94103-623-0 01 1 9112-9308 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97101-553-0 01 1 9309-9310 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97107-439-0 01 1 9311-9311 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97108-671-0 01 1 9312-9504 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-94157-936-0 01 1 9112-9308 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97101-554-0 01 1 9309-9310 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97107-440-0 01 1 9311-9311 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97108-672-0 01 1 9312-9504 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		5-85883-065-1 01 1 9112-9308 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97101-556-0 01 1 9309-9310 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97107-442-0 01 1 9311-9311 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97108-674-0 01 1 9312-9504 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		5-85883-064-1 01 1 9112-9308 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97101-555-0 01 1 9309-9310 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97107-441-0 01 1 9311-9311 ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97108-673-0 01 1 9312-9504 ● ●

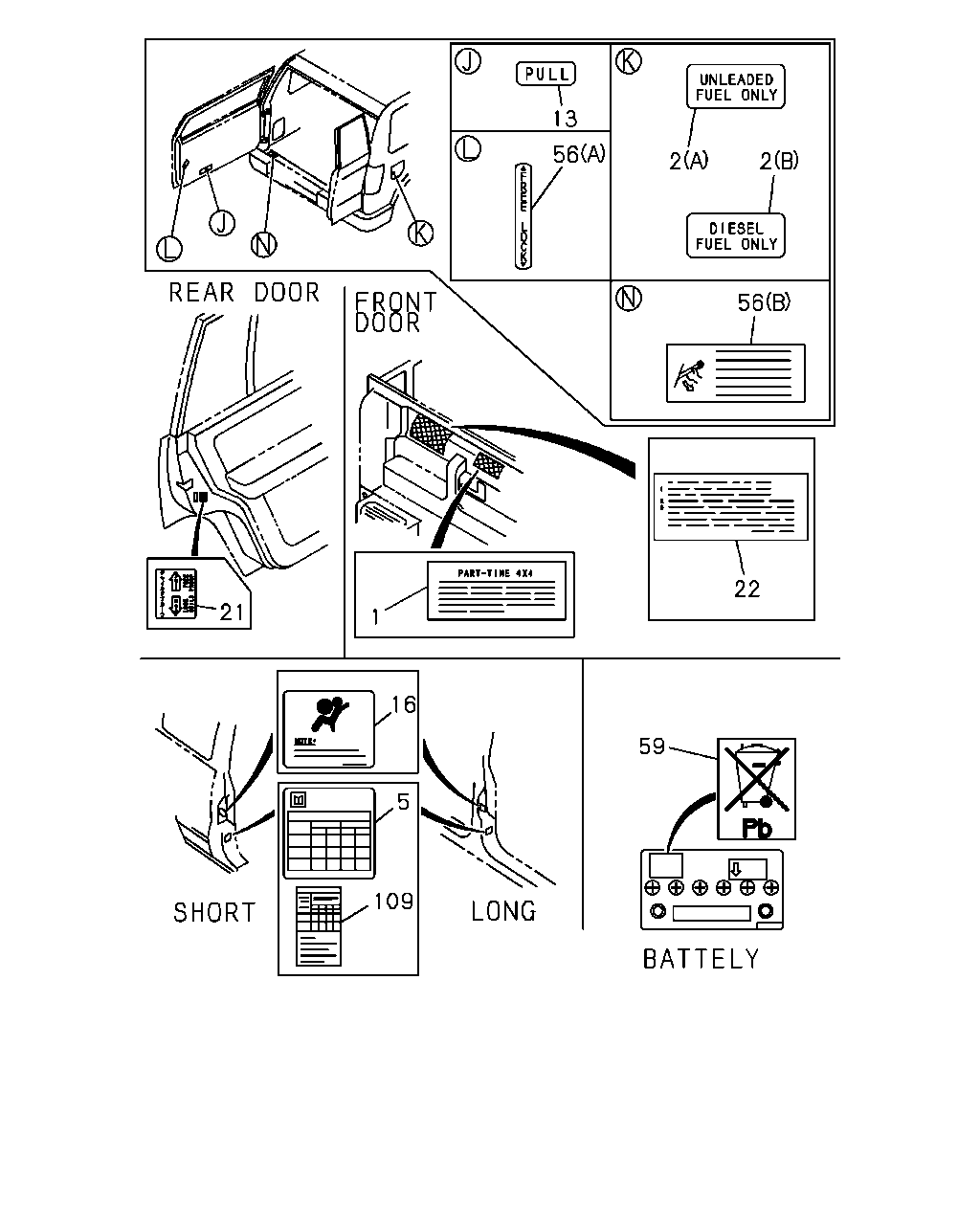

çizim 66089
59 16 5 109 1 21 22 56 2 2 56 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		5-85883-056-1 01 1 9112-9308 ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		5-85883-056-1 01 1 9309-9312 ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		8-97108-716-0 01 1 9401-9504 ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		8-97131-711-0 01 1 9505- ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		5-85883-055-1 01 1 9112-9312 ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		8-97108-715-0 01 1 9401-9504 ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		8-97131-709-0 01 1 9505- ● ●
2 03.680 LABEL; FUEL CAUTION
6VD1 SOHC ENG(RLU) CATALYSIS CONTROL(6MZ) 08.808 (A) 		8-94206-917-1 01 1 9112- ● ●
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC),4JG1 ENG(RLT) (B) 		8-94414-353-0 01 1 9112-9504 ● ●
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC) (B) 		8-94414-353-0 01 1 9505-9607 ● ●
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC) (B) 		8-94414-353-0 01 1 9608- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 08.808 		8-97106-700-0 01 1 9608- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> 		8-97039-231-1 01 1 9112- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
NEW ZEALAND EQUIPMENT(7AZ) 		8-97039-229-1 01 1 9112-9309 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3),CAUTION SPANISH<YN1> 		8-97039-229-1 01 1 9112-9309 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3),CAUTION SPANISH<YN1> 		8-97039-229-1 01 1 9310- ● ●
13 08.808 LABEL; CAUTION,CHECK LINK 8-94187-413-0 01 1 9209-9308 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (A) 		8-97145-558-0 01 1 9608- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (B) 		8-97145-557-0 02 1 9608- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR BAG PASSENGER<7FA> (B) 		8-97145-557-0 01 1 9608- ● ●
21 16.328 PLATE; CAUTION,CHILD LOCK 8-94117-828-0 02 1 9112-9509 ●
21 16.328 PLATE; CAUTION,CHILD LOCK 8-97022-812-0 02 1 9510- ●
22 04.017 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CAUTION SPANISH<YN1> 		8-97038-811-1 01 1 9112-9309 ● ●
22 04.017 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CAUTION SPANISH<YN1> 930913- 		8-97105-389-0 01 1 9309-9504 ● ●
22 04.017 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. CAUTION SPANISH<YN1> 		8-97024-123-1 01 1 9112-9309 ● ●
22 04.017 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. CAUTION SPANISH<YN1> 930913- 		8-97105-390-0 01 1 9309-9504 ● ●
56 08.147 PLATE; NAME,CAUTION
(A) 		8-94186-486-0 01 1 9112-9504 ● ●
56 08.147 PLATE; NAME,CAUTION
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94186-486-0 01 1 9505- ● ●
56 08.147 PLATE; NAME,CAUTION
3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94186-486-0 01 1 9505- ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4) (B) 		8-97807-978-1 01 1 9112-9201 ● ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97807-978-1 01 1 9202-9311 ● ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97807-978-1 01 1 9312-9507 ● ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97135-652-0 01 1 9508- ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPE EQUIPMENT(EK4) FRIGID ZONE<YL3> 10 PER 1 SHEET 		8-97116-760-0 02 1 9504- ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPE EQUIPMENT(EK4) EXC. FRIGID ZONE<YL3> 10 PER 1 SHEET 		8-97116-760-0 01 1 9504- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97039-233-1 01 1 9112-9309 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97106-700-0 01 1 9310-9607 ● ●

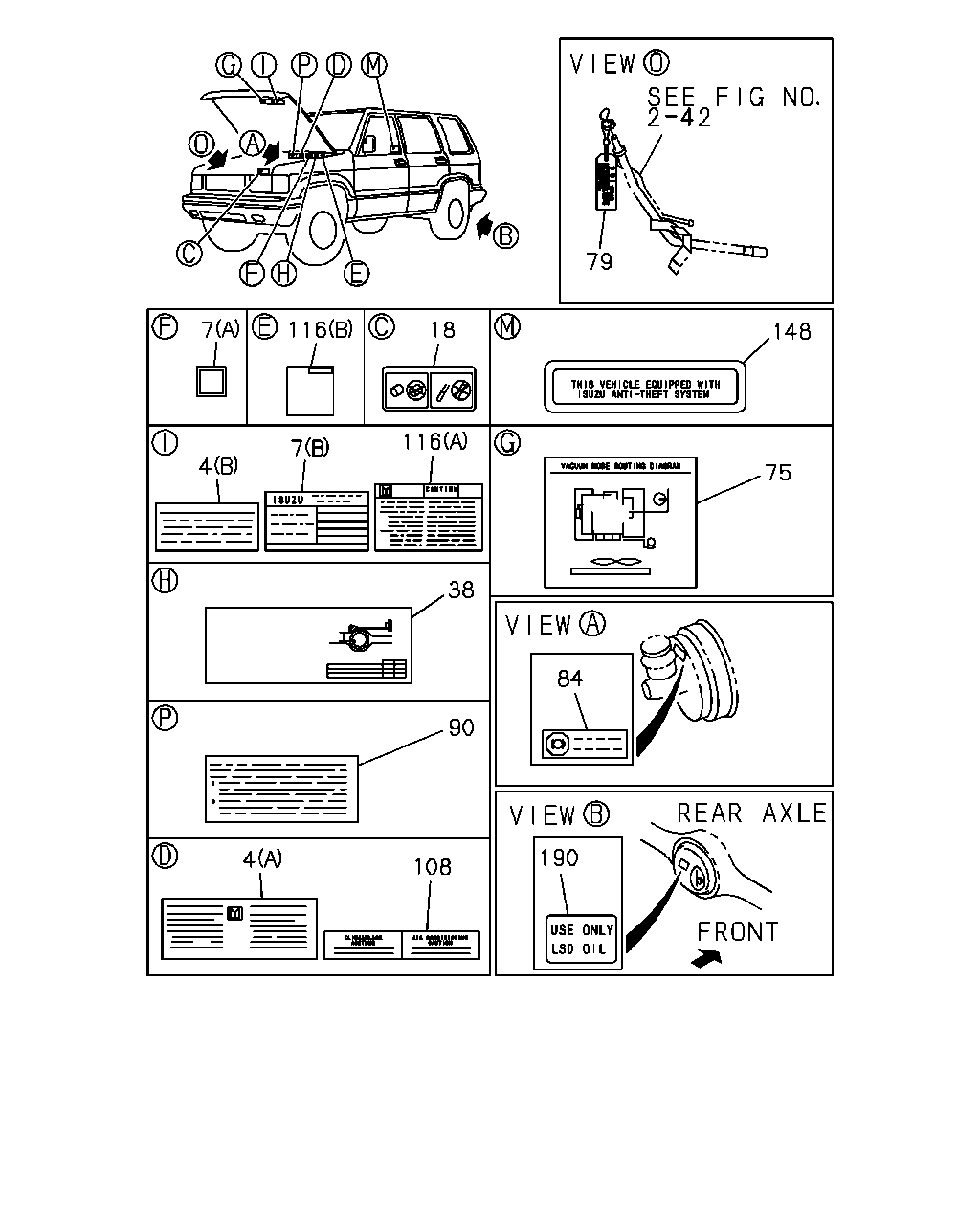

çizim 68718
190 108 4 90 84 38 75 116 7 4 7 116 18 148 79
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
4JG1 ENG(RLT) (A) 		8-97039-225-1 01 1 9112-9504 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (A) 		8-97110-513-0 01 1 9505- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-97039-223-1 01 1 9112- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97039-224-0 01 1 9112-9504 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97039-224-0 01 1 9505- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4ZE1 ENG(RLJ) (B) 		8-94160-628-0 01 1 9112- ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-94418-517-0 01 1 9506-9506 ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-94418-517-0 01 1 9506-9506 ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-94418-517-0 01 1 9507-9509 ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-94418-517-0 01 1 9507-9509 ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-94418-517-0 01 1 9510- ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-97068-712-0 01 1 9112-9208 ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-97084-360-0 01 1 9209-9308 ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (A) 		8-94418-517-0 01 1 9309-9504 ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) TURBOCHARGER<K51> WEST MALAYSIA EQUIPMENT(S3D) EXC. CERAMIC HEATER<6YX> (A) 		8-97142-566-0 01 1 9510-9608 ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. CERAMIC HEATER<6YX> (A) 		8-97142-566-0 01 1 9608- ●
7 03.680 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97044-323-1 01 1 9112-9208 ● ●
7 03.680 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97044-323-1 01 1 9209-9212 ● ●
7 03.680 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97044-323-2 01 1 9301-9308 ● ●
7 03.680 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97044-323-2 01 1 9309-9608 ● ●
7 03.680 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRAL IA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97044-323-2 01 1 9608- ● ●
18 01.426 LABEL; ENG OIL
4JG2 ENG(RJC) 		8-94447-186-0 01 1 9112-9504 ● ●
18 01.426 LABEL; ENG OIL
4JG2 ENG(RJC) TURBOCHARGER<K51> 		8-94447-186-0 01 1 9505- ● ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.730 		8-97064-111-0 01 1 9112-9409 ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) 		8-97115-827-0 01 1 9410-9607 ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) 		8-97139-518-0 01 1 9608- ●
38 08.808 PLATE; CAUTION,LSV
SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97094-884-0 01 1 9304-9409 ●
38 08.808 PLATE; CAUTION,LSV
SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97120-128-0 01 1 9410-9506 ●
38 08.808 PLATE; CAUTION,LSV
SOUTH AFRICA EQUIPMENT(SW2) 		8-97120-128-0 01 1 9507- ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.730 		8-97064-110-0 01 1 9112-9303 ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.730 		8-97064-110-0 01 1 9304-9308 ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.730 		8-97064-110-0 01 1 9309-9409 ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) 		8-97115-828-0 01 1 9410-9607 ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) 		8-97139-517-0 01 1 9608- ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97044-322-0 01 1 9112-9208 ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97080-555-0 01 1 9209-9301 ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97087-682-0 01 1 9302-9308 ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 		8-97087-682-0 01 1 9309- ● ●
79 04.017 PLATE; CAUTION,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CAUTION SPANISH<YN1> 		8-97108-038-0 01 1 9312-9607 ● ●
79 04.017 PLATE; CAUTION,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. CAUTION SPANISH<YN1> 		8-97108-035-0 01 1 9312-9607 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPE EQUIPMENT(EK4) 		8-97062-755-1 01 1 9112-9308 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97062-755-2 01 1 9309-9509 ● ●
90 08.808 LABEL; CAUTION,TIMING BELT
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 		8-94481-501-0 01 1 9112- ● ●
108 08.808 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 		8-97086-600-0 01 1 9209-9303 ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 03.680 (B) 		8-94332-263-1 01 1 9112-9410 ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 03.680 (A) 		8-94246-254-0 01 1 9112-9410 ● ●
148 08.808 PLATE; CAUTION,ANTI THEFT
ANTI THEFT<UA6> 		8-97129-695-0 02 1 9112- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97106-816-0 01 1 9311-9607 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97106-816-0 01 1 9608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
