Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#44965) — 136 parça

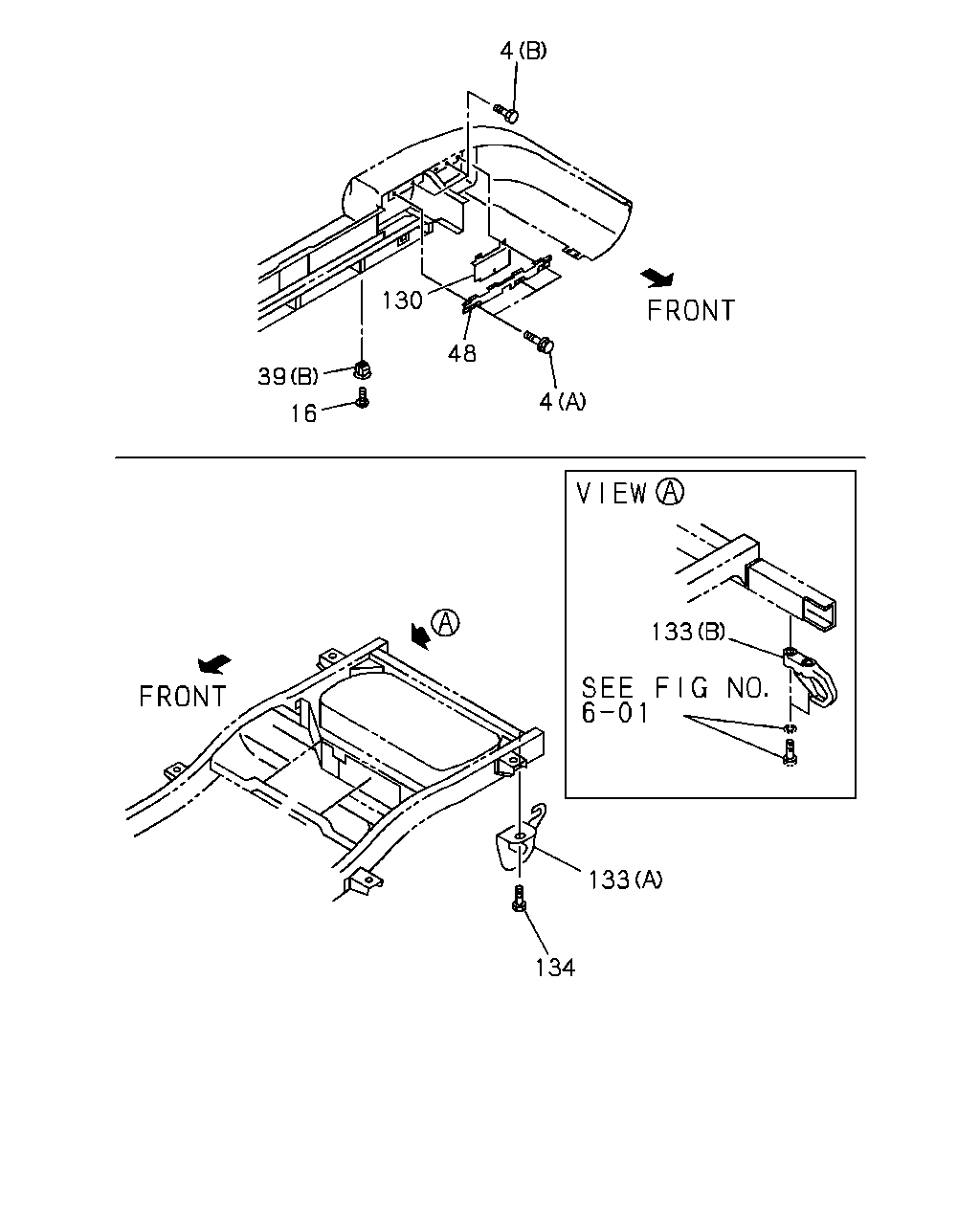

134 133 133 4 48 130 16 39 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	07.070 BOLT; BUMPER 07.875 (B) M6X12	8-97807-917-0	04	1	9112-9607	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.875 (B) M6X12	8-97807-917-0	04	1	9608-	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	12	1	9112-9311	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	12	1	9312-9506	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	12	1	9507-9607	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	15	1	9608-	●	●
4	07.070 BOLT; BUMPER AUSTRALIA EQUIPMENT(RR3) 16.085 (B) M6X16	8-94493-405-0	12	1	9608-	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	10	1	9112-9208	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	10	1	9309-9311	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	10	1	9312-9408	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	10	1	9209-9308	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	08	1	9409-9506	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3), SOUTHAFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	08	1	9507-	●	●
16	07.070 SCREW; RR BUMPER 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9112-9607	●	●
16	07.070 SCREW; RR BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9608-	●	●
16	07.070 SCREW; RR BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9608-	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT 09.190 (A) D=9X9 L=8 M6	8-94222-314-0	06	1	9112-	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT 07.833 (B)	8-97804-050-2	07	1	9112-9607	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.833 (B)	8-97804-050-2	02	1	9608-	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.833 (B)	8-97804-050-2	07	1	9608-	●	●
48	07.875 RETAINER; BUMPER RR SIDE	8-97803-993-1	01	1	9112-9607	●	●
48	07.875 RETAINER; BUMPER RR SIDE EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-97803-993-1	01	1	9608-	●	●
48	07.875 RETAINER; BUMPER RR SIDE	8-97803-992-1	01	1	9112-9607	●	●
48	07.875 RETAINER; BUMPER RR SIDE EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-97803-992-1	01	1	9608-	●	●
48	07.875 RETAINER; BUMPER RR SIDE EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-883-1	01	1	9608-	●	●
130	02.662 PLATE; RR COMB LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97803-086-0	01	1	9112-9311	●	●
130	02.662 PLATE; RR COMB LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97803-086-0	01	1	9312-9506	●	●
130	02.662 PLATE; RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97803-086-0	01	1	9507-	●	●
130	02.662 PLATE; RR COMB LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97803-085-0	01	1	9112-9311	●	●
130	02.662 PLATE; RR COMB LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97803-085-0	01	1	9312-9506	●	●
130	02.662 PLATE; RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97803-085-0	01	1	9507-	●	●
133	07.112 HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97062-055-2	01	1	9112-9501	●	●
133	07.112 HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97128-726-0	01	1	9502-9607	●	●
133	07.112 HOOK (A)	8-97128-726-0	01	1	9608-	●	●
133	07.112 HOOK 07.068 (B)	8-97041-464-2	01	1	9112-9504	●	●
133	07.112 HOOK 07.068 (B)	8-97121-060-0	01	1	9505-	●	●
134	07.068 BOLT; HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 07.831	0-28281-230-0	01	1	9112-9607	●	●
134	07.068 BOLT; HOOK 07.831	0-28281-230-0	01	1	9608-9610	●	●
134	07.068 BOLT; HOOK 07.395 M12X30 FLANGE	0-28681-230-0	01	1	9611-	●	●

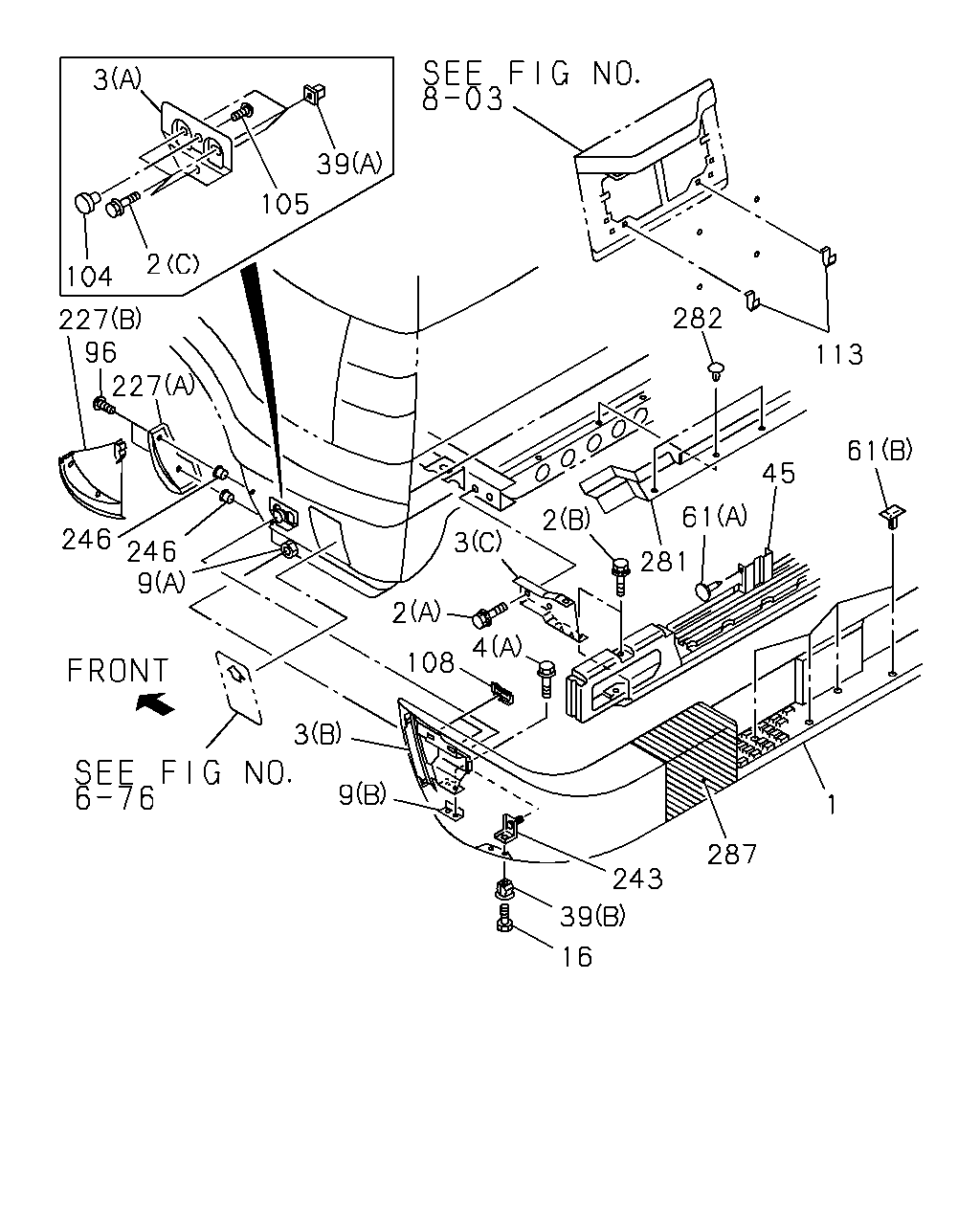

3 9 16 39 243 287 1 61 45 61 281 2 3 4 108 2 9 246 246 227 96 227 104 2 105 39 3 282 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) PRIMER	8-97807-863-1	01	1	9112-9311	●	●
1	07.070 BUMPER; RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) PRIMER	8-97807-863-1	01	1	9312-9506	●	●
1	07.070 BUMPER; RR EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) PRIMER	8-97807-863-1	01	1	9507-	●	●
1	07.070 BUMPER; RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) PRIMER	8-97807-862-1	01	1	9112-9311	●	●
1	07.070 BUMPER; RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) PRIMER	8-97807-862-1	01	1	9312-9506	●	●
1	07.070 BUMPER; RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) PRIMER	8-97807-862-1	01	1	9507-9607	●
1	07.070 BUMPER; RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2), OVER FENDER<6GH> PRIMER	8-97807-862-1	01	1	9507-9607		●
1	07.070 BUMPER; RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2), OVER FENDER<6GH> PRIMER	8-97183-086-0	01	1	9608-	●	●
1	07.070 BUMPER; RR OVER FENDER<6GH> PRIMER	8-97102-641-1	01	1	9507-9607		●
1	07.070 BUMPER; RR OVER FENDER<6GH> PRIMER	8-97183-088-0	01	1	9608-		●
1	07.070 BUMPER; RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) PRIMER	8-97115-719-1	01	1	9608-	●	●
2	07.874 BOLT; BACK BAR 16.085 (C) M6X16	8-94493-405-0	06	1	9112-	●	●
2	07.874 BOLT; BACK BAR 00.862 (B) M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9112-9204	●	●
2	07.874 BOLT; BACK BAR 12.187 (B) M8X20 W/LK&PL WASHER	0-50140-820-0	06	1	9205-9412	●	●
2	07.874 BOLT; BACK BAR 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9501-	●	●
2	07.874 BOLT; BACK BAR RR COIL & LINK SUSPENSION<6SV> 07.070 (A) M12X30 FLANGE	8-94475-424-0	04	1	9112-9504	●	●
2	07.874 BOLT; BACK BAR 07.070 (A) M12X30 FLANGE	8-94475-424-0	04	1	9505-9509	●	●
2	07.874 BOLT; BACK BAR (A) M12X30 FLANGE	0-28691-230-0	04	1	9510-	●	●
2	07.874 BOLT; BACK BAR EXC. RR COIL & LINK SUSPENSION<6SV> (A) M10X25	8-94188-801-1	04	1	9112-9504	●	●
3	07.875 BRACKET; BUMPER 07.829 (C)	8-97800-132-2	01	1	9112-	●	●
3	07.875 BRACKET; BUMPER 07.869 (A)	8-97805-157-1	01	1	9112-	●	●
3	07.875 BRACKET; BUMPER 07.829 (C)	8-97800-131-2	01	1	9112-	●	●
3	07.875 BRACKET; BUMPER 07.869 (A)	8-97805-156-1	01	1	9112-	●	●
3	07.875 BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-172-3	01	1	9112-9607	●	●
3	07.875 BRACKET; BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97805-172-3	01	1	9608-	●	●
3	07.875 BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-172-3	01	1	9608-		●
3	07.875 BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-171-3	01	1	9112-9607	●	●
3	07.875 BRACKET; BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97805-171-3	01	1	9608-	●	●
3	07.875 BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-171-3	01	1	9608-		●
3	07.875 BRACKET; BUMPER EXC. FORMED MUD FLAP<6WL> 07.869 (B)	8-97800-119-1	01	1	9112-9607	●	●
3	07.875 BRACKET; BUMPER EXC. COLOR KEYED ROCKER SKIRT<6YA> 07.869 (B)	8-97800-119-1	01	1	9608-	●
3	07.875 BRACKET; BUMPER EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> 07.869 (B)	8-97800-119-1	01	1	9608-		●
3	07.875 BRACKET; BUMPER EXC. FORMED MUD FLAP<6WL> 07.869 (B)	8-97800-118-1	01	1	9112-9607	●	●
3	07.875 BRACKET; BUMPER EXC. COLOR KEYED ROCKER SKIRT<6YA> 07.869 (B)	8-97800-118-1	01	1	9608-	●
3	07.875 BRACKET; BUMPER EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> 07.869 (B)	8-97800-118-1	01	1	9608-		●
4	07.070 BOLT; BUMPER 07.875 (B) M6X12	8-97807-917-0	04	1	9112-9607	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.875 (B) M6X12	8-97807-917-0	04	1	9608-	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	12	1	9112-9311	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	12	1	9312-9506	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	12	1	9507-9607	●	●
4	07.070 BOLT; BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	15	1	9608-	●	●
4	07.070 BOLT; BUMPER AUSTRALIA EQUIPMENT(RR3) 16.085 (B) M6X16	8-94493-405-0	12	1	9608-	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	10	1	9112-9208	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	10	1	9309-9311	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	10	1	9312-9408	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.085 (A) M6X16	8-94493-405-0	10	1	9209-9308	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	08	1	9409-9506	●	●
4	07.070 BOLT; BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3), SOUTHAFRICA EQUIPMENT(SW2) 16.085 (A) M6X16	8-94493-405-0	08	1	9507-	●	●
9	07.070 NUT; BUMPER 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9112-	●	●
9	07.070 NUT; BUMPER (B) M6 & M6	8-97801-185-1	02	1	9112-	●	●
16	07.070 SCREW; RR BUMPER 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9112-9607	●	●
16	07.070 SCREW; RR BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9608-	●	●
16	07.070 SCREW; RR BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9608-	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT 09.190 (A) D=9X9 L=8 M6	8-94222-314-0	06	1	9112-	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT 07.833 (B)	8-97804-050-2	07	1	9112-9607	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.833 (B)	8-97804-050-2	02	1	9608-	●	●
39	07.829 GROMMET; SCREW,BUMPER BRKT EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.833 (B)	8-97804-050-2	07	1	9608-	●	●
45	07.831 REINFORCEMENT; RR BUMPER	8-97800-982-4	01	1	9112-9607	●	●
45	07.831 REINFORCEMENT; RR BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-97800-982-4	01	1	9608-	●	●
45	07.831 REINFORCEMENT; RR BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-97115-717-1	01	1	9608-	●	●
61	07.833 CLIP; BUMPER RR (A)	8-94175-178-1	02	1	9112-9607	●	●
61	07.833 CLIP; BUMPER RR EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3), SOUTHAFRICA EQUIPMENT(SW2) (A)	8-94175-178-1	02	1	9608-	●	●
61	07.833 CLIP; BUMPER RR 07.070 (B)	8-97805-166-0	07	1	9112-9607	●	●
61	07.833 CLIP; BUMPER RR EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 07.070 (B)	8-97805-166-0	07	1	9608-	●	●
61	07.833 CLIP; BUMPER RR EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97133-938-1	08	1	9608-	●	●
96	07.831 SCREW; PROTECTOR 08.133 M6X16	8-97805-189-0	04	1	9112-	●	●
104	07.832 SLIDER; SUPPORT,RR BUMPER	8-97805-152-2	02	1	9112-	●	●
105	07.832 SCREW; SLIDER M6X18	8-97805-235-0	02	1	9112-	●	●
108	07.832 SPIRE; RR BUMPER	8-94401-528-1	04	1	9112-	●	●
113	07.800 BRACKET; LICENSE PLATE EUROPE EQUIPMENT(EK4)	8-97801-412-1	02	1	9112-9311	●	●
113	07.800 BRACKET; LICENSE PLATE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97801-412-1	02	1	9312-9607	●	●
227	07.831 PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-603-3	01	1	9309-9607	●	●
227	07.831 PROTECTOR; RR BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-603-3	01	1	9608-	●	●
227	07.831 PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-603-3	01	1	9608-		●
227	07.831 PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-602-3	01	1	9309-9607	●	●
227	07.831 PROTECTOR; RR BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-602-3	01	1	9608-	●	●
227	07.831 PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-602-3	01	1	9608-		●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4> (A)	8-97800-966-0	01	1	9112-9308	●	●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A)	8-97800-966-0	01	1	9309-9607	●	●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-966-0	01	1	9608-	●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL>, COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-966-0	01	1	9608-		●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4> (A)	8-97800-965-0	01	1	9112-9308	●	●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A)	8-97800-965-0	01	1	9309-9607	●	●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-965-0	01	1	9608-	●
227	07.831 PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL>, COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-965-0	01	1	9608-		●
243	07.869 BRACKET	8-97805-168-1	01	1	9112-	●	●
243	07.869 BRACKET	8-97805-167-1	01	1	9112-	●	●
246	07.833 GROMMET; SCREW,RR BUMPER COVER 12.242	8-94159-130-0	04	1	9112-	●	●
281	07.100 COVER; 6TH CROSS MEMBER	8-94359-701-1	01	1	9112-	●	●
282	07.100 CLIP; COVER 12.934 D5.8 SCREW & GROMMET NYLON	8-94242-150-0	05	1	9112-9503	●	●
282	07.100 CLIP; COVER 12.934 D5.8 SCREW & GROMMET NYLON	8-94242-150-0	03	1	9504-	●	●
282	07.100 CLIP; COVER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-94279-820-0	05	1	9608-	●	●
287	07.875 FILM; PROTECTION,BUMPER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9205-9607	●	●
287	07.875 FILM; PROTECTION,BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SPARE TIRE COVER SOFT<P17>, SOUTH AFRICA EQUIPMENT(SW2),SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9608-	●	●
287	07.875 FILM; PROTECTION,BUMPER EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-	●	●
287	07.875 FILM; PROTECTION,BUMPER EXC. EUROPE EQUIPMENT(EK4),SPARE TIRE COVER SOFT<P17>,AUSTRALIA EQUIPMENT(RR3), SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9205-9506	●	●
287	07.875 FILM; PROTECTION,BUMPER EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SPARE TIRE COVER SOFT<P17>, AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPM ENT(SW2),SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9507-	●	●
