6-86 — TRUNK OPENER AND FUEL LID (#44963) — 56 parça

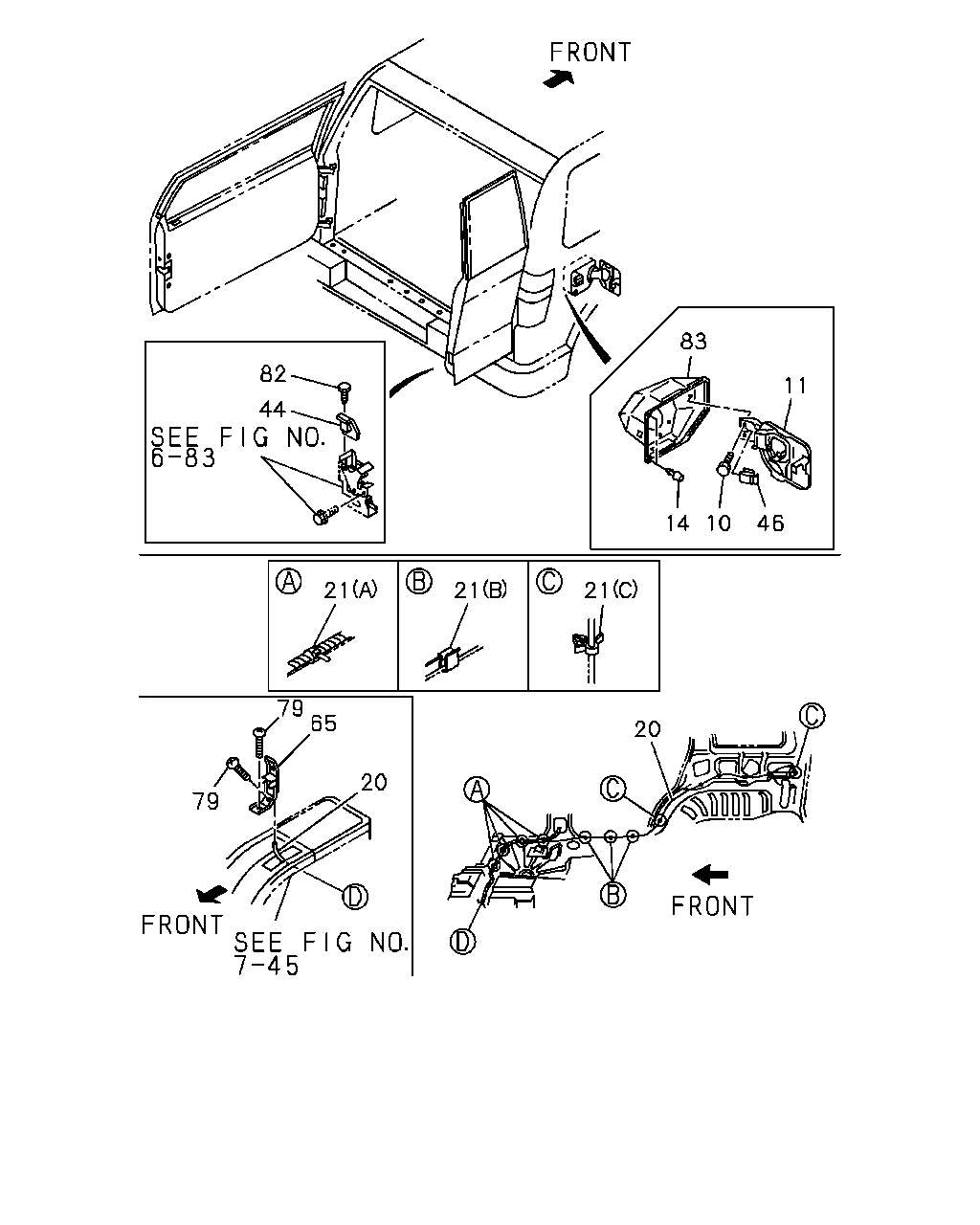

82 44 83 11 46 10 14 21 21 20 20 79 79 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	17.505 BOLT; FUEL FILLER LID 03.164 M6X18	9-01960-618-0	02	1	9112-9204	●	●
10	17.505 BOLT; FUEL FILLER LID 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9205-	●	●
11	17.505 LID; FUEL	8-94358-634-5	01	1	9112-	●	●
14	17.505 CUSHION; RUBBER,FUEL LID 12.945	8-94466-607-0	02	1	9112-	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97803-061-2	01	1	9112-9504	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-377-0	01	1	9505-	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97803-060-2	01	1	9112-9504		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-376-0	01	1	9505-		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	06	1	9112-	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-0	04	1	9112-9404	●	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-0	03	1	9405-	●	●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	03	1	9112-9311		●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	02	1	9312-		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	9112-9308		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	06	1	9209-9308	●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	9309-		●
44	16.345 COVER; LK CYL	8-94358-459-2	01	1	9112-9706	●	●
44	16.345 COVER; LK CYL	8-97163-766-0	01	1	9707-	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-94358-492-2	01	1	9112-9505	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-97811-383-0	01	1	9506-	●	●
65	17.505 KNOB; FUEL FILLER DOOR INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-186-2	01	1	9112-9308	●	●
65	17.505 KNOB; FUEL FILLER DOOR INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) BLACK	8-97817-143-2	01	1	9309-9504	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-97817-143-2	01	1	9505-	●	●
65	17.505 KNOB; FUEL FILLER DOOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-188-2	01	1	9112-9308	●	●
79	17.225 SCREW; LEVER TO ROCKER PNL 09.743 M5X16	8-94295-854-0	02	1	9112-	●	●
82	16.345 CLIP; COVER BLACK	8-94259-671-0	01	1	9112-	●	●
83	16.750 RECESS; FILLER NECK	8-94359-901-2	01	1	9112-9707	●	●
83	16.750 RECESS; FILLER NECK	8-97164-304-0	01	1	9708-	●	●

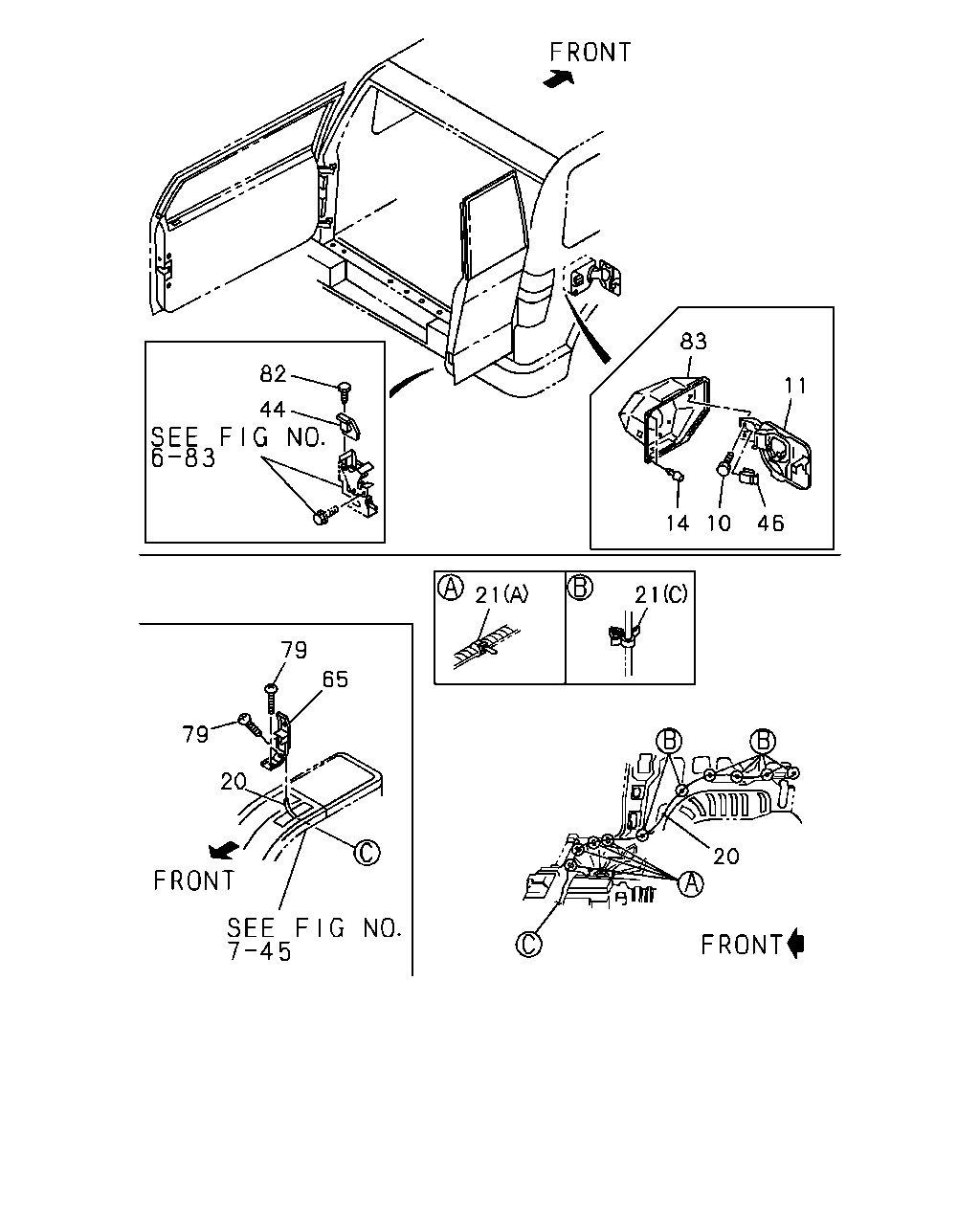

83 11 46 10 14 21 21 21 82 44 79 65 20 79 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	17.505 BOLT; FUEL FILLER LID 03.164 M6X18	9-01960-618-0	02	1	9112-9204	●	●
10	17.505 BOLT; FUEL FILLER LID 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9205-	●	●
11	17.505 LID; FUEL	8-94358-634-5	01	1	9112-	●	●
14	17.505 CUSHION; RUBBER,FUEL LID 12.945	8-94466-607-0	02	1	9112-	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97803-061-2	01	1	9112-9504	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-377-0	01	1	9505-	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97803-060-2	01	1	9112-9504		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-376-0	01	1	9505-		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	06	1	9112-	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-0	04	1	9112-9404	●	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-0	03	1	9405-	●	●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	03	1	9112-9311		●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	02	1	9312-		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	9112-9308		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	06	1	9209-9308	●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	9309-		●
44	16.345 COVER; LK CYL	8-94358-459-2	01	1	9112-9706	●	●
44	16.345 COVER; LK CYL	8-97163-766-0	01	1	9707-	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-94358-492-2	01	1	9112-9505	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-97811-383-0	01	1	9506-	●	●
65	17.505 KNOB; FUEL FILLER DOOR INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-186-2	01	1	9112-9308	●	●
65	17.505 KNOB; FUEL FILLER DOOR INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) BLACK	8-97817-143-2	01	1	9309-9504	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-97817-143-2	01	1	9505-	●	●
65	17.505 KNOB; FUEL FILLER DOOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-188-2	01	1	9112-9308	●	●
79	17.225 SCREW; LEVER TO ROCKER PNL 09.743 M5X16	8-94295-854-0	02	1	9112-	●	●
82	16.345 CLIP; COVER BLACK	8-94259-671-0	01	1	9112-	●	●
83	16.750 RECESS; FILLER NECK	8-94359-901-2	01	1	9112-9707	●	●
83	16.750 RECESS; FILLER NECK	8-97164-304-0	01	1	9708-	●	●
