◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#44955) — 210 parça

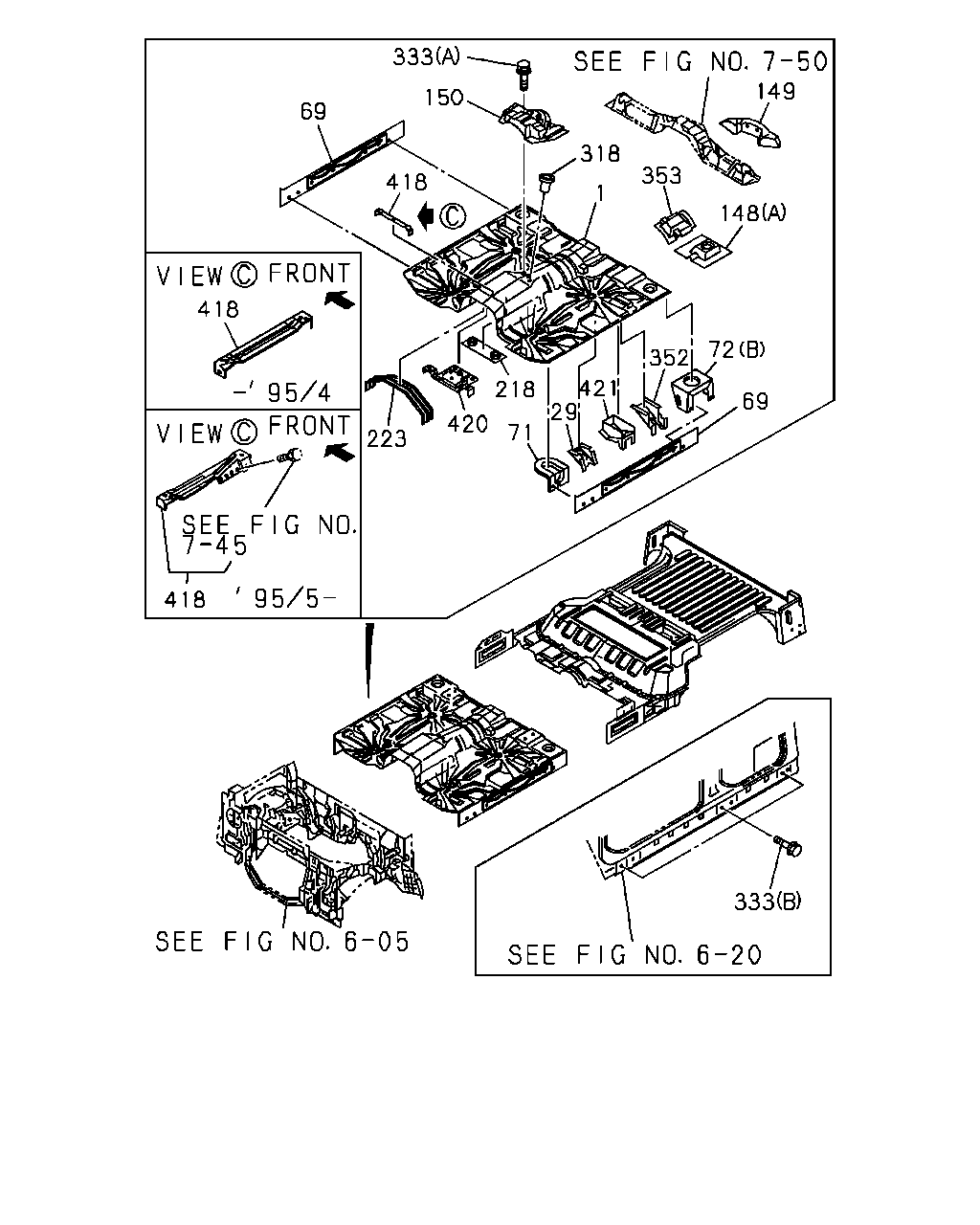

çizim 66029
69 333 150 418 318 1 353 149 148 72 69 352 421 29 71 218 420 223 418 418 333
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-94359-284-1 01 1 9112-9504 ●
1 16.545 PANEL; FLOOR 8-97105-362-0 01 1 9505-9607 ●
1 16.545 PANEL; FLOOR 8-97121-265-2 01 1 9608- ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9112-9504 ●
1 16.545 PANEL; FLOOR 8-97105-361-0 01 1 9505-9607 ●
1 16.545 PANEL; FLOOR 8-97121-264-2 01 1 9608- ●
29 16.545 GUSSET 8-94359-305-0 02 1 9112- ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-308-2 01 1 9112- ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-307-2 01 1 9112- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-0 01 1 9112-9710 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9711- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-0 01 1 9112-9710 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9711- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-499-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-498-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 16.674 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
149 16.545 BRACKET; SEAT BELT ROD 8-94359-295-2 01 1 9112-9710 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9711- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9112- ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9112- ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9112- ● ●
223 16.650 PATCH; CONSOLE BOX 8-97800-541-0 01 1 9112-9504 ● ●
223 16.650 PATCH; CONSOLE BOX 8-97104-212-0 01 1 9505-9607 ● ●
223 16.650 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9608- ● ●
318 16.545 NUT; COVER 8-97808-115-0 02 1 9112-9505 ● ●
318 16.545 NUT; COVER
16.570 950529- M8 POP NUT 		8-94279-538-0 02 1 9505- ● ●
333 16.545 BOLT; BRKT
08.143 (B) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 9112- ● ●
333 16.545 BOLT; BRKT
08.143 (B) M10X16 W/PL WASHER 		8-97807-818-0 06 1 9112-9201 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9202- ●
352 16.545 GUSSET; FRT SEAT 8-94359-306-1 02 1 9112-9607 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9112- ● ●
418 16.545 BRACKET; CONSOLE
16.650 		8-97801-457-0 01 1 9112-9504 ● ●
418 16.545 BRACKET; CONSOLE 8-97103-466-4 01 1 9505-9607 ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97109-931-1 01 1 9608- ● ●
421 16.545 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9608- ● ●

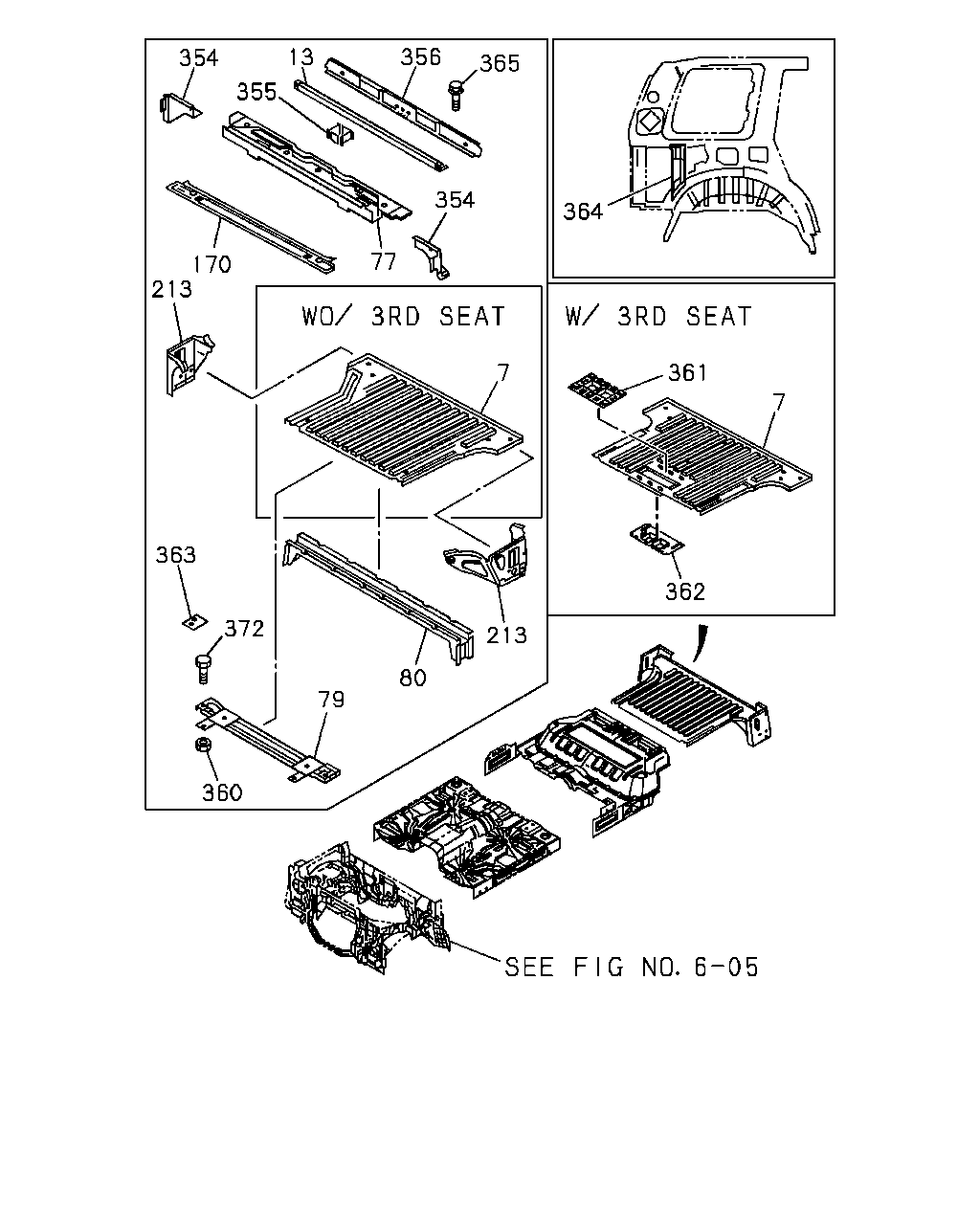

çizim 66051
354 13 355 356 365 364 354 77 170 213 7 361 7 362 213 80 79 372 363 360
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.545 PANEL; RR FLOOR,RR 8-94359-667-3 01 1 9112-9208 ●
7 16.545 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9209- ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-176-3 01 1 9112-9208 ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9209- ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-666-3 01 1 9112-9208 ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9209- ●
13 16.545 PANEL; FAIRING RR 8-94358-823-5 01 1 9112- ● ●
77 16.545 BOLSTER ASM; END 8-94358-746-4 01 1 9112-9412 ● ●
77 16.545 BOLSTER ASM; END 8-97127-025-0 01 1 9501- ● ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9112- ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97802-168-3 01 1 9112- ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3
AUSTRALIA EQUIPMENT(RR3) 		8-97803-626-3 01 1 9112- ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4
AUSTRALIA EQUIPMENT(RR3) 		8-97803-627-1 01 1 9112- ● ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97802-182-1 01 1 9112- ● ●
170 16.545 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9112- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-280-2 01 1 9112-9305 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9306- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9112- ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9112- ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9112- ● ●
355 16.545 BRACKET; END BOLSTER 8-94359-683-0 02 1 9112- ● ●
356 16.545 CLOSING; END BOLSTER 8-97803-733-1 01 1 9112- ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.143 		8-94334-769-0 02 1 9209-9311 ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 08.143 		8-94334-769-0 02 1 9312- ● ●
361 16.545 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9112- ●
361 16.545 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9112- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9112- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9112- ●
363 16.545 PATCH; TETHER ANCHOR
AUSTRALIA EQUIPMENT(RR3) 		8-97803-595-1 01 1 9112-9601 ●
363 16.545 PATCH; TETHER ANCHOR
AUSTRALIA EQUIPMENT(RR3) 		8-97145-552-0 01 1 9602- ●
363 16.545 PATCH; TETHER ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97803-596-1 01 1 9112- ●
364 16.545 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-404-2 01 1 9112- ●
365 16.545 BOLT; RR FAIRING
08.143 M10X16 W/PL WASHER 		8-97807-818-0 02 1 9112-9201 ● ●
365 16.545 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9202- ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9209-9311 ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9312- ● ●

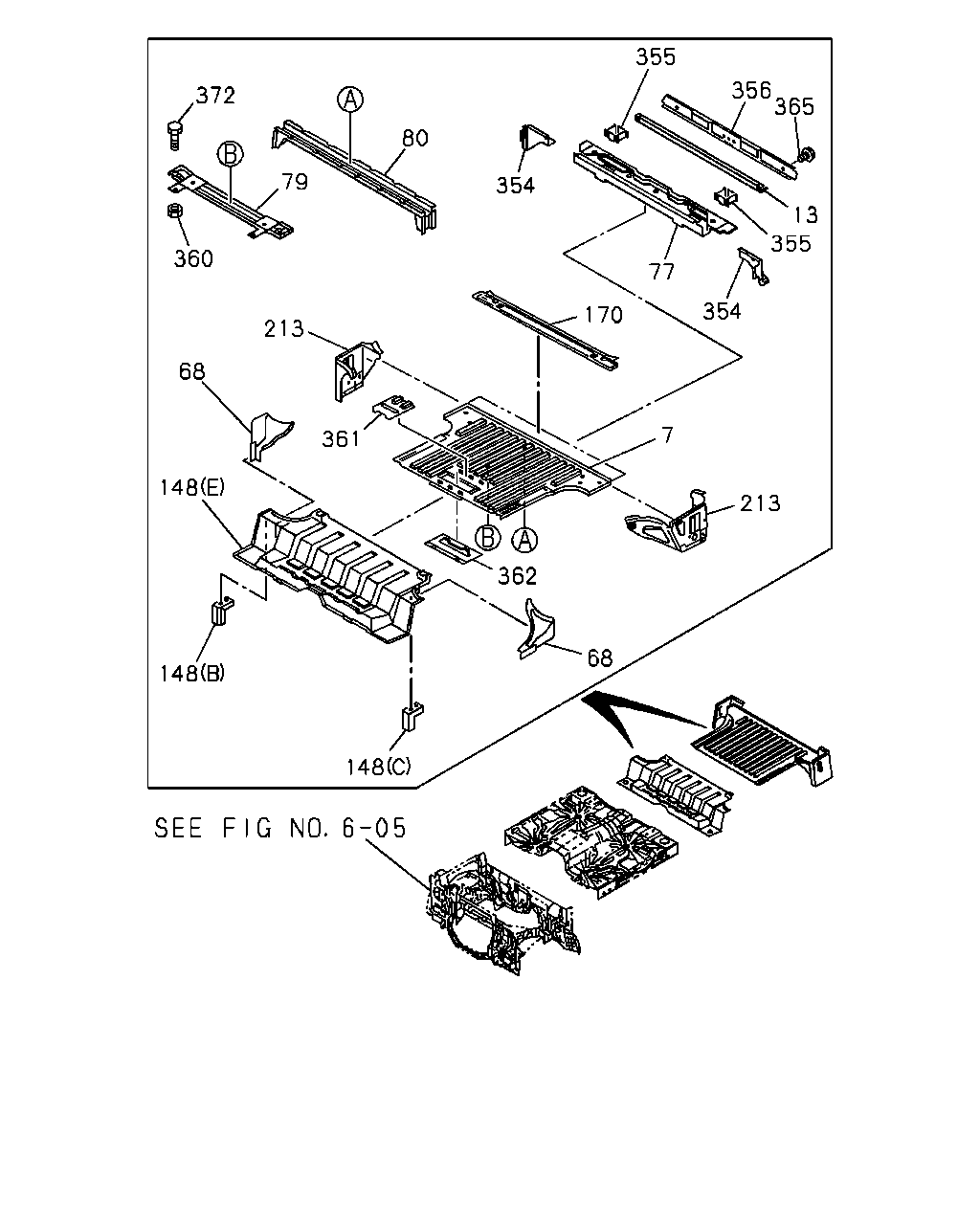

çizim 66225
148 148 148 68 213 361 362 68 7 213 170 354 77 355 13 365 356 355 354 80 79 372 360
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.545 PANEL; RR FLOOR,RR 8-94359-667-3 01 1 9112-9208 ●
7 16.545 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9209- ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-176-3 01 1 9112-9208 ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9209- ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-666-3 01 1 9112-9208 ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9209- ●
13 16.545 PANEL; FAIRING RR 8-94358-823-5 01 1 9112- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-841-0 01 1 9112- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-840-0 01 1 9112- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-751-2 01 1 9112- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-750-2 01 1 9112- ●
77 16.545 BOLSTER ASM; END 8-94358-746-4 01 1 9112-9412 ● ●
77 16.545 BOLSTER ASM; END 8-97127-025-0 01 1 9501- ● ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9112- ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97802-168-3 01 1 9112- ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3
AUSTRALIA EQUIPMENT(RR3) 		8-97803-626-3 01 1 9112- ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4
AUSTRALIA EQUIPMENT(RR3) 		8-97803-627-1 01 1 9112- ● ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97802-182-1 01 1 9112- ● ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 16.674 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
170 16.545 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9112- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-280-2 01 1 9112-9305 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9306- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9112- ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9112- ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9112- ● ●
355 16.545 BRACKET; END BOLSTER 8-94359-683-0 02 1 9112- ● ●
356 16.545 CLOSING; END BOLSTER 8-97803-733-1 01 1 9112- ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.143 		8-94334-769-0 02 1 9209-9311 ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 08.143 		8-94334-769-0 02 1 9312- ● ●
361 16.545 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9112- ●
361 16.545 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9112- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9112- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9112- ●
365 16.545 BOLT; RR FAIRING
08.143 M10X16 W/PL WASHER 		8-97807-818-0 02 1 9112-9201 ● ●
365 16.545 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9202- ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9209-9311 ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9312- ● ●

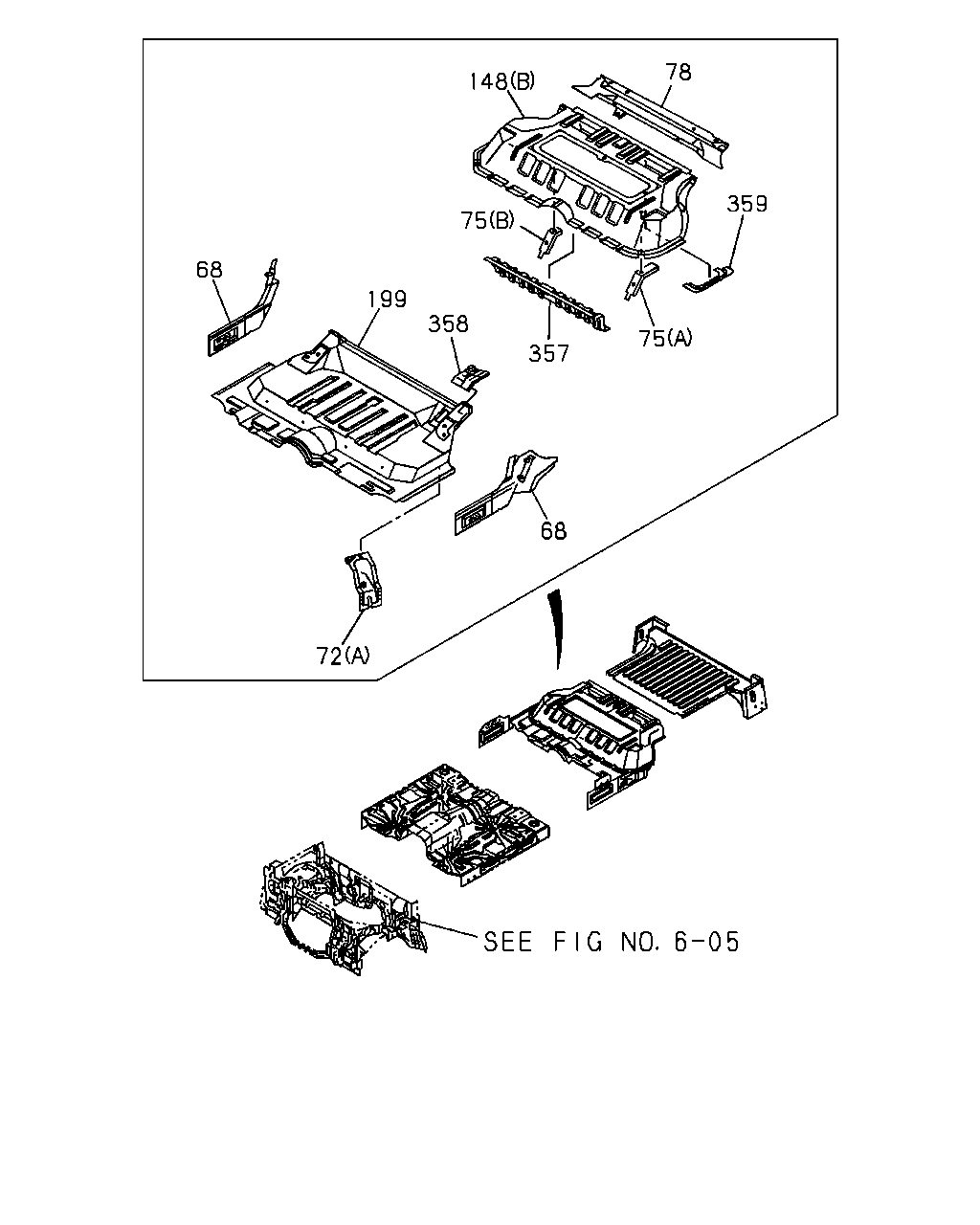

çizim 66317
68 199 72 68 358 75 357 75 359 78 148
BalonParca AdiParca NoAdetTipApplied Date A B
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-841-0 01 1 9112- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-840-0 01 1 9112- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-751-2 01 1 9112- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-750-2 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-499-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-498-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
75 16.674 REINFORCEMENT; RR SEAT BELT,CENT
16.545 (A) 		8-94359-649-0 02 1 9112- ●
75 16.674 REINFORCEMENT; RR SEAT BELT,CENT
16.545 (B) 		8-94359-653-1 02 1 9112- ●
78 16.545 BOLSTER ASM; RR FLOOR NO 2 8-97808-086-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 16.674 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
199 16.545 PANEL; RR FLOOR 8-94359-641-1 01 1 9112-9609 ●
199 16.545 PANEL; RR FLOOR 8-97164-296-0 01 1 9610- ●
357 16.545 REINFORCEMENT; LID HINGE 8-94359-656-3 01 1 9112- ●
358 16.545 BRACKET; RR FLOOR SIDE 8-97803-333-0 01 1 9112- ●
358 16.545 BRACKET; RR FLOOR SIDE 8-97803-332-0 01 1 9112- ●
359 16.545 REINFORCEMENT; HOLE SIDE 8-94359-657-0 02 1 9112- ●

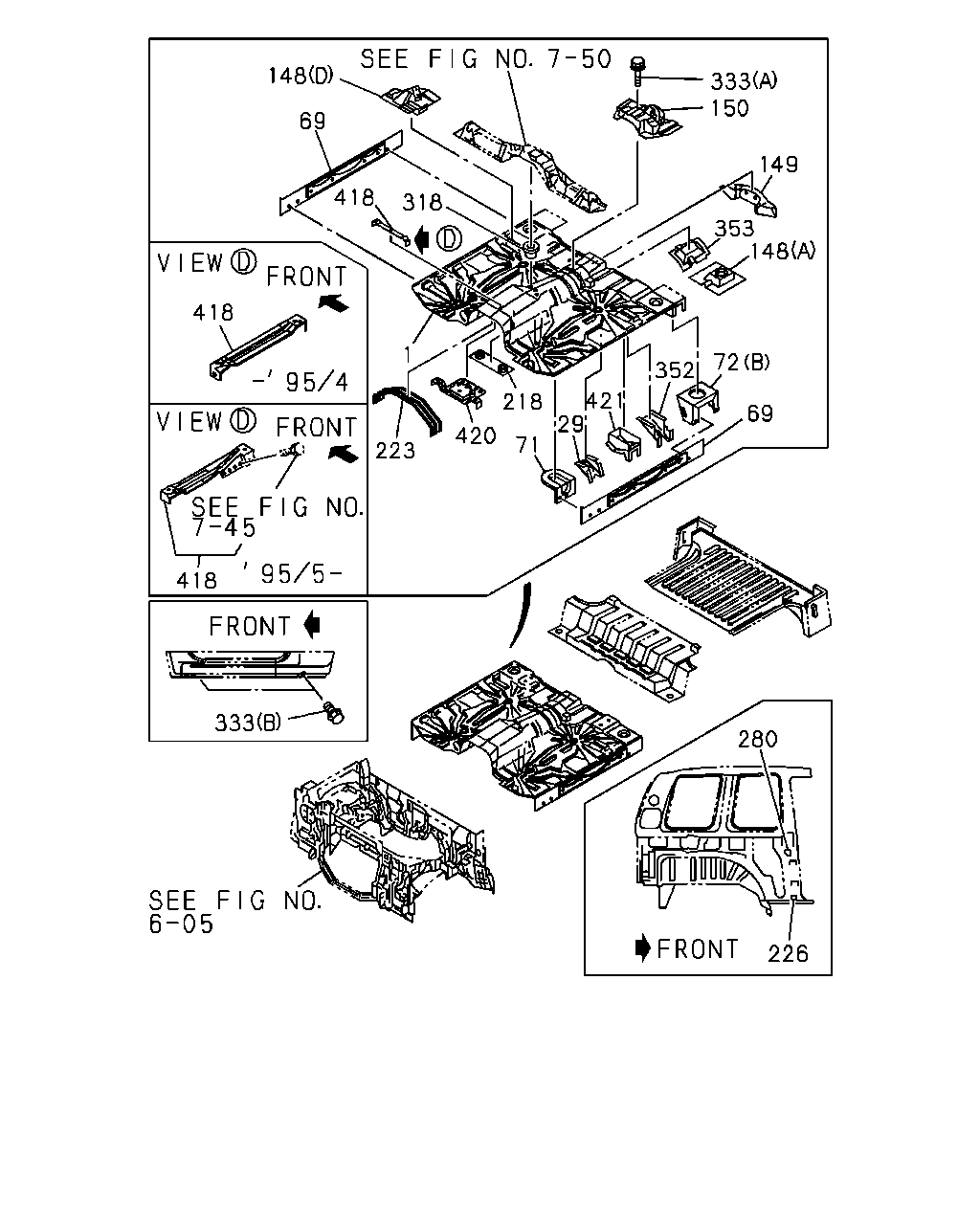

çizim 66521
148 333 150 149 353 148 72 69 352 421 29 71 218 420 223 1 318 418 69 418 418 333 280 226
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-94359-284-1 01 1 9112-9504 ●
1 16.545 PANEL; FLOOR 8-97105-362-0 01 1 9505-9607 ●
1 16.545 PANEL; FLOOR 8-97121-265-2 01 1 9608- ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9112-9504 ●
1 16.545 PANEL; FLOOR 8-97105-361-0 01 1 9505-9607 ●
1 16.545 PANEL; FLOOR 8-97121-264-2 01 1 9608- ●
29 16.545 GUSSET 8-94359-305-0 02 1 9112- ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-308-2 01 1 9112- ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-307-2 01 1 9112- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-0 01 1 9112-9710 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9711- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-0 01 1 9112-9710 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9711- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-499-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-498-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 16.674 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 16.674 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
149 16.545 BRACKET; SEAT BELT ROD 8-94359-295-2 01 1 9112-9710 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9711- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9112- ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9112- ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9112- ● ●
223 16.650 PATCH; CONSOLE BOX 8-97800-541-0 01 1 9112-9504 ● ●
223 16.650 PATCH; CONSOLE BOX 8-97104-212-0 01 1 9505-9607 ● ●
223 16.650 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9608- ● ●
226 16.585 PATCH; SEAT BELT,LWR 8-97801-964-1 02 1 9112- ●
280 16.545 PATCH; SEAT BELT 8-97803-584-1 01 1 9112- ●
280 16.545 PATCH; SEAT BELT 8-97803-583-1 01 1 9112- ●
318 16.545 NUT; COVER 8-97808-115-0 02 1 9112-9505 ● ●
318 16.545 NUT; COVER
16.570 950529- M8 POP NUT 		8-94279-538-0 02 1 9505- ● ●
333 16.545 BOLT; BRKT
08.143 (B) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 9112- ● ●
333 16.545 BOLT; BRKT
08.143 (B) M10X16 W/PL WASHER 		8-97807-818-0 06 1 9112-9201 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9202- ●
352 16.545 GUSSET; FRT SEAT 8-94359-306-1 02 1 9112-9607 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9112- ● ●
418 16.545 BRACKET; CONSOLE
16.650 		8-97801-457-0 01 1 9112-9504 ● ●
418 16.545 BRACKET; CONSOLE 8-97103-466-4 01 1 9505-9607 ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97109-931-1 01 1 9608- ● ●
421 16.545 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
