◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#44953) — 271 parça

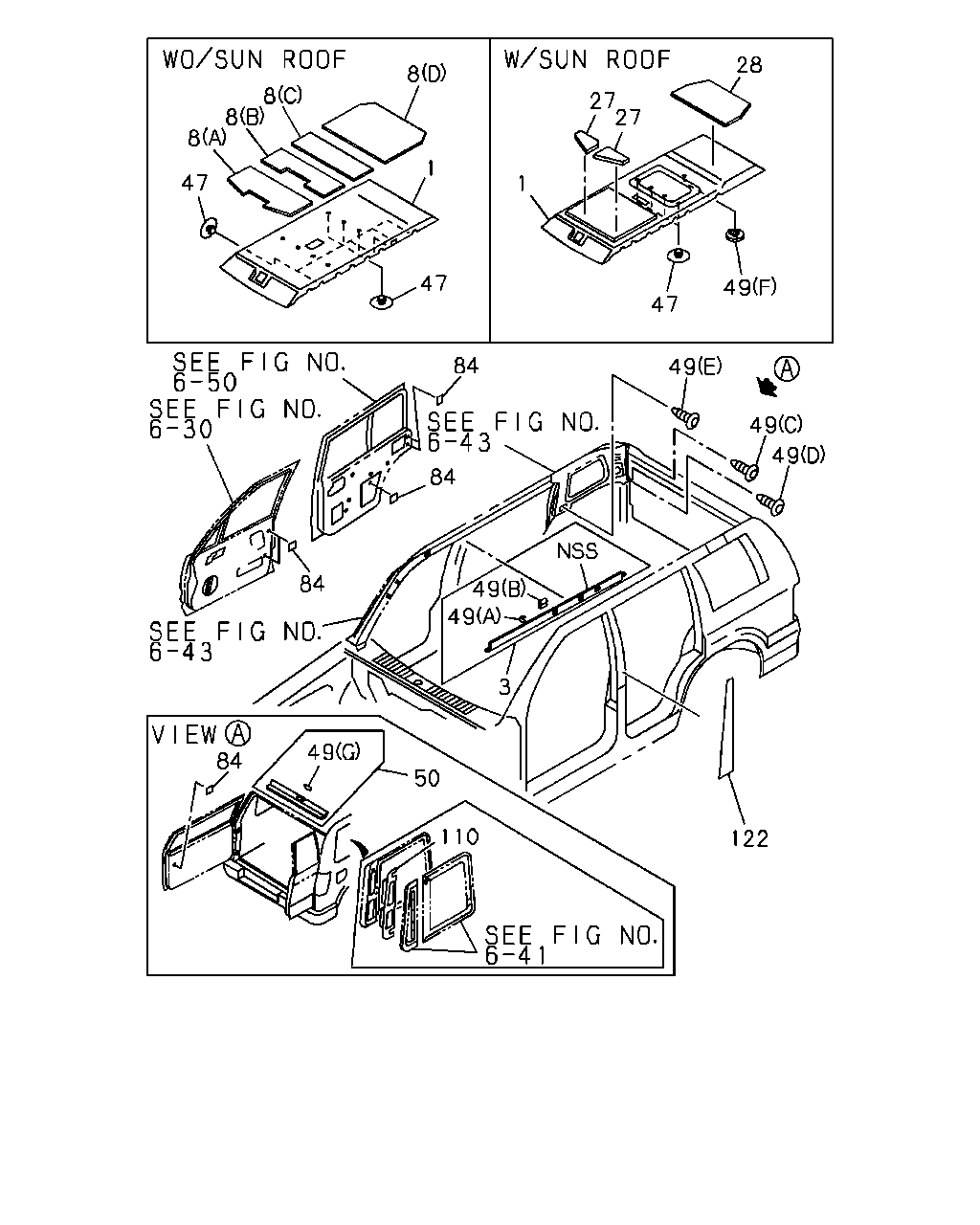

çizim 65535
1 8 8 8 8 47 47 1 27 27 28 49 47 84 84 84 49 49 49 49 49 122 3 50 49 84 110
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-370-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-373-4 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97151-314-5 01 1 9505-9607 ● ●
1 16.742 LINING; HD
SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97151-314-5 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-367-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97151-311-8 01 1 9505-9607 ● ●
1 16.742 LINING; HD
SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97151-311-8 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-372-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-392-8 01 1 9505-9607 ● ●
1 16.742 LINING; HD
SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-392-8 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-375-4 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-369-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-360-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-364-3 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97098-389-4 01 1 9505-9506 ● ●
1 16.742 LINING; HD
LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97098-389-4 01 1 9507- ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-356-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-362-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-391-6 01 1 9505-9506 ● ●
1 16.742 LINING; HD
LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-391-6 01 1 9507- ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-366-3 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-358-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97098-390-6 01 1 9505-9506 ● ●
1 16.742 LINING; HD
LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97098-390-6 01 1 9507- ● ●
1 16.742 LINING; HD
LONG(UB***F) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97151-308-2 01 1 9506- ● ●
1 16.742 LINING; HD
LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> LIGHT GRAY 		8-97151-309-2 01 1 9506- ● ●
1 16.742 LINING; HD
SHORT(UB***C) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> 		8-97151-312-2 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> 		8-97151-313-2 01 1 9608- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-076-3 01 1 9112-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) DARK GRAY 		8-97151-317-3 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-073-2 01 1 9112-9308 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) DARK GRAY 		8-97151-318-3 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-073-3 01 1 9309-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-078-3 01 1 9112-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-075-3 01 1 9112-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-070-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) 		8-97817-349-0 01 1 9501-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) DARK GRAY 		8-97152-038-0 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-067-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-351-0 01 1 9501-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) DARK GRAY 		8-97152-039-0 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-072-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-350-0 01 1 9501-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-069-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-352-0 01 1 9501-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97802-960-2 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97811-267-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97811-267-0 01 1 9505- ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-2 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97811-268-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97811-268-0 01 1 9505- ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97803-215-1 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97811-269-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97811-269-0 01 1 9505- ● ● ●
8 16.742 PAD; HEADLINING
SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97802-963-1 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97811-271-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97811-271-0 01 1 9505- ● ●
8 16.742 PAD; HEADLINING
LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97802-962-1 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97811-270-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97811-270-0 01 1 9505- ● ●
27 16.165 INSULATION; ROOF
LONG(UB***F) SUNROOF<CF5> 		8-97135-975-0 01 1 9608- ● ●
27 16.165 INSULATION; ROOF
LONG(UB***F) SUNROOF<CF5> 		8-97135-974-0 01 1 9608- ● ●
28 16.742 INSULATION; ROOF,RR
LONG(UB***F) SUNROOF<CF5> 		8-97135-976-0 01 1 9608- ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-482-0 12 1 9112-9404 ● ● ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-192-0 12 1 9405-9504 ● ● ● ●
47 16.742 CLIP; HEADLINING
LIGHT GRAY 		8-97098-397-0 12 1 9505- ● ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-484-0 12 1 9112-9404 ● ● ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-193-0 12 1 9405-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
14.651 (G) 		8-94313-458-0 06 1 9112-9405 ● ● ● ●
49 16.742 CLIP; TRIM COVER
08.131 (D) BLACK 		8-94355-808-1 02 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
08.131 (D) BLACK 		8-94355-808-1 02 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (B) 		8-94388-826-0 06 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) 16.165 (C) DARK BROWN 		8-97805-801-0 04 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
(C) DARK GRAY 		8-97098-326-0 04 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) SUNROOF<CF5> 16.165 (F) DARK BROWN 		8-97805-906-2 01 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SUNROOF<CF5> (F) LIGHT GRAY 		8-97098-388-2 01 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) 16.165 (C) DARK GRAY 		8-97805-803-0 04 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) (E) DARK GRAY 		8-97098-326-0 02 1 9505- ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) SUNROOF<CF5> 16.165 (F) BEIGE 		8-97805-908-2 01 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (A) 		8-94313-458-0 04 1 9112-9308 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9112-9308 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (A) 		8-94313-458-0 04 1 9309-9405 ● ● ● ●
49 16.742 CLIP; TRIM COVER
14.651 (G) 		8-94313-458-0 04 1 9406-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (G) 		8-94313-458-0 04 1 9406-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
14.651 (G) 		8-94313-458-0 04 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (G) 		8-94313-458-0 04 1 9505- ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 07.831 (E) GRAY 		8-94429-372-0 02 1 9112-9308 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9309-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 07.831 (E) GRAY 		8-94429-372-0 02 1 9309-9310 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) INTERIOR COLOR BROWN(130) 16.165 (E) DARK BROWN 		8-97805-801-0 02 1 9311-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9505-9607 ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9608- ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) INTERIOR COLOR GRAY(153) 16.165 (E) DARK GRAY 		8-97805-803-0 02 1 9311-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (B) 		8-94388-826-0 06 1 9505-9607 ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (B) 		8-94388-826-0 06 1 9608- ● ●
50 16.742 TRIM; ROOF BACK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-294-1 01 1 9112-9504 ● ● ● ●
50 16.742 TRIM; ROOF BACK
DARK GRAY 		8-97098-398-1 01 1 9505- ● ● ●
50 16.742 TRIM; ROOF BACK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-296-1 01 1 9112-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9112-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) 45X45 T=0.08 		8-94238-288-1 AR 1 9505- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9112-9308 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9309-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9505- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9309-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9505- ● ●
110 16.576 VALVE; OUTLET VENT 8-97801-166-3 01 1 9112-9504 ● ● ● ●
110 16.576 VALVE; OUTLET VENT 8-97801-166-3 01 1 9505- ● ● ●
110 16.576 VALVE; OUTLET VENT 8-94358-809-3 01 1 9112-9504 ● ● ● ●
110 16.576 VALVE; OUTLET VENT 8-94358-809-3 01 1 9505- ● ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EUROPE EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-147-0 01 1 9203-9504 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-147-0 01 1 9505-9604 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97156-101-1 01 1 9605- ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EUROPE EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-146-0 01 1 9203-9504 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-146-0 01 1 9505-9604 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97156-100-1 01 1 9605- ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9112-9309 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-731-0 01 1 9112-9309 ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXC. VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737),BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR LT.SILVER MET(753),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR FIR GREEN MICA/IRO N GRAY MET(797),BODY COLOR IRON GRAY MET(849),BODY COLOR FIR GREEN MICA(871),B ODY COLOR RED ROCK MICA(872),BODY COLORFIR GREEN MICA/LT.SILVER MET(883) EXC. EUROPE EQUIPMENT(EK4) BLACK 		8-97807-731-0 01 1 9505-9509 ● ● ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-731-0 01 1 9510-9604 ● ● ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97156-002-1 01 1 9605- ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9112-9309 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-730-0 01 1 9112-9309 ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXC. VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-730-0 01 1 9505-9604 ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97156-001-1 01 1 9605- ● ●

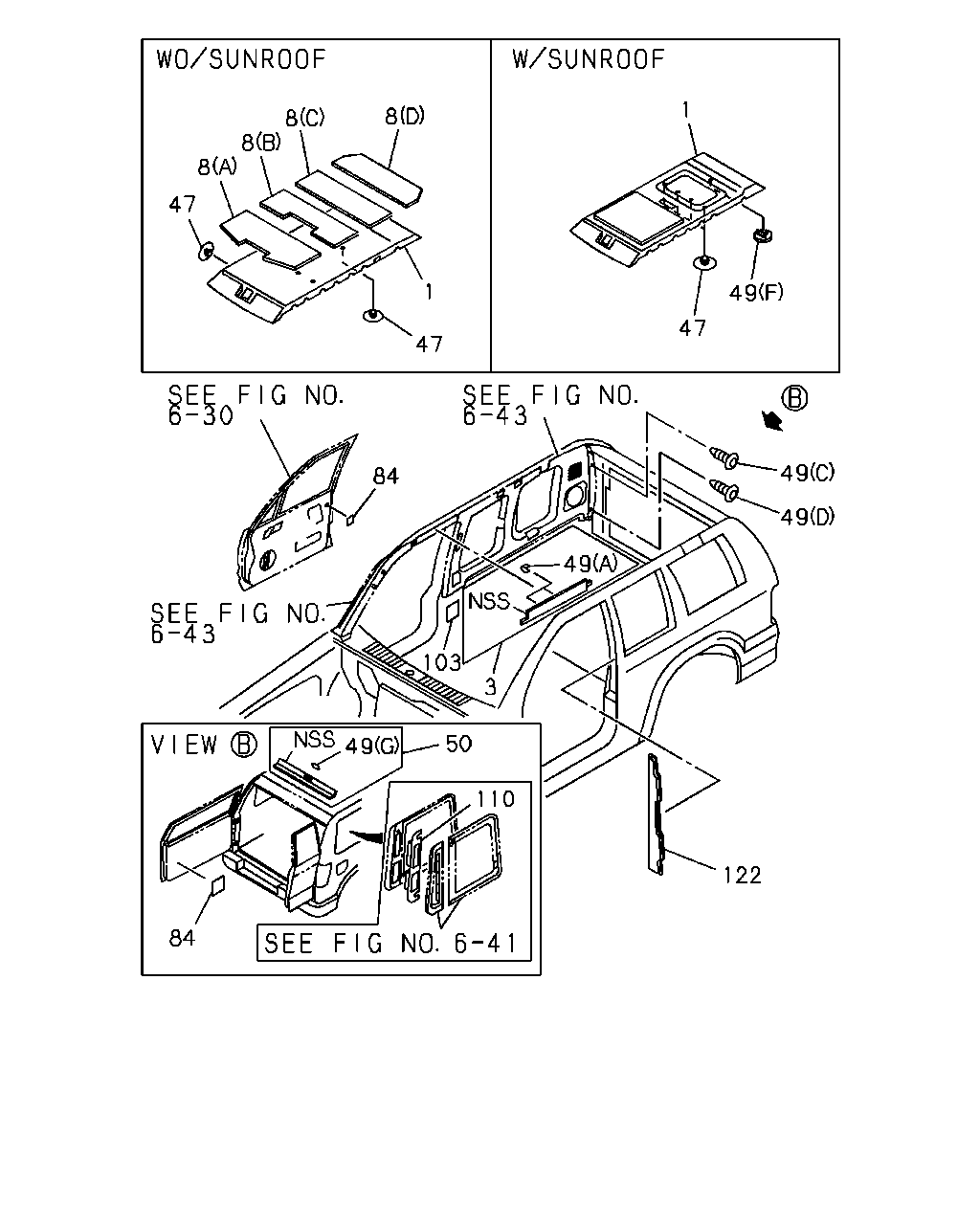

çizim 66221
8 8 8 8 47 1 47 47 49 1 49 49 49 84 103 3 50 122 110 84 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-370-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-373-4 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97151-314-5 01 1 9505-9607 ● ●
1 16.742 LINING; HD
SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97151-314-5 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-367-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97151-311-8 01 1 9505-9607 ● ●
1 16.742 LINING; HD
SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97151-311-8 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-372-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-392-8 01 1 9505-9607 ● ●
1 16.742 LINING; HD
SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-392-8 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-375-4 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-369-7 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-360-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-364-3 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97098-389-4 01 1 9505-9506 ● ●
1 16.742 LINING; HD
LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97098-389-4 01 1 9507- ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-356-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-362-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-391-6 01 1 9505-9506 ● ●
1 16.742 LINING; HD
LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-391-6 01 1 9507- ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-366-3 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-358-5 01 1 9112-9504 ● ● ● ●
1 16.742 LINING; HD
LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97098-390-6 01 1 9505-9506 ● ●
1 16.742 LINING; HD
LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97098-390-6 01 1 9507- ● ●
1 16.742 LINING; HD
LONG(UB***F) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97151-308-2 01 1 9506- ● ●
1 16.742 LINING; HD
LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> LIGHT GRAY 		8-97151-309-2 01 1 9506- ● ●
1 16.742 LINING; HD
SHORT(UB***C) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> 		8-97151-312-2 01 1 9608- ● ●
1 16.742 LINING; HD
SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> 		8-97151-313-2 01 1 9608- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-076-3 01 1 9112-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) DARK GRAY 		8-97151-317-3 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-073-2 01 1 9112-9308 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) DARK GRAY 		8-97151-318-3 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-073-3 01 1 9309-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-078-3 01 1 9112-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-075-3 01 1 9112-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-070-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) 		8-97817-349-0 01 1 9501-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) DARK GRAY 		8-97152-038-0 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-067-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-351-0 01 1 9501-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) DARK GRAY 		8-97152-039-0 01 1 9505- ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-072-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-350-0 01 1 9501-9504 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-069-5 01 1 9112-9412 ● ● ● ●
3 16.575 COVER; TRIM,ROOF SIDE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-352-0 01 1 9501-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97802-960-2 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97811-267-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97811-267-0 01 1 9505- ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-2 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97811-268-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97811-268-0 01 1 9505- ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97803-215-1 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97811-269-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97811-269-0 01 1 9505- ● ● ●
8 16.742 PAD; HEADLINING
SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97802-963-1 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97811-271-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97811-271-0 01 1 9505- ● ●
8 16.742 PAD; HEADLINING
LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97802-962-1 01 1 9112-9407 ● ● ● ●
8 16.742 PAD; HEADLINING
LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97811-270-0 01 1 9408-9504 ● ● ● ●
8 16.742 PAD; HEADLINING
LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97811-270-0 01 1 9505- ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-482-0 12 1 9112-9404 ● ● ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-192-0 12 1 9405-9504 ● ● ● ●
47 16.742 CLIP; HEADLINING
LIGHT GRAY 		8-97098-397-0 12 1 9505- ● ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-484-0 12 1 9112-9404 ● ● ● ●
47 16.742 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-193-0 12 1 9405-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
14.651 (G) 		8-94313-458-0 06 1 9112-9405 ● ● ● ●
49 16.742 CLIP; TRIM COVER
08.131 (D) BLACK 		8-94355-808-1 02 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
08.131 (D) BLACK 		8-94355-808-1 02 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (B) 		8-94388-826-0 06 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) 16.165 (C) DARK BROWN 		8-97805-801-0 04 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
(C) DARK GRAY 		8-97098-326-0 04 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) SUNROOF<CF5> 16.165 (F) DARK BROWN 		8-97805-906-2 01 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SUNROOF<CF5> (F) LIGHT GRAY 		8-97098-388-2 01 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) 16.165 (C) DARK GRAY 		8-97805-803-0 04 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) (E) DARK GRAY 		8-97098-326-0 02 1 9505- ● ●
49 16.742 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) SUNROOF<CF5> 16.165 (F) BEIGE 		8-97805-908-2 01 1 9112-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (A) 		8-94313-458-0 04 1 9112-9308 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9112-9308 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (A) 		8-94313-458-0 04 1 9309-9405 ● ● ● ●
49 16.742 CLIP; TRIM COVER
14.651 (G) 		8-94313-458-0 04 1 9406-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (G) 		8-94313-458-0 04 1 9406-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
14.651 (G) 		8-94313-458-0 04 1 9505- ● ● ●
49 16.742 CLIP; TRIM COVER
SHORT(UB***C) 14.651 (G) 		8-94313-458-0 04 1 9505- ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 07.831 (E) GRAY 		8-94429-372-0 02 1 9112-9308 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9309-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 07.831 (E) GRAY 		8-94429-372-0 02 1 9309-9310 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) INTERIOR COLOR BROWN(130) 16.165 (E) DARK BROWN 		8-97805-801-0 02 1 9311-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9505-9607 ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (A) 		8-94313-458-0 10 1 9608- ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) INTERIOR COLOR GRAY(153) 16.165 (E) DARK GRAY 		8-97805-803-0 02 1 9311-9504 ● ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (B) 		8-94388-826-0 06 1 9505-9607 ● ● ●
49 16.742 CLIP; TRIM COVER
LONG(UB***F) 14.651 (B) 		8-94388-826-0 06 1 9608- ● ●
50 16.742 TRIM; ROOF BACK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-294-1 01 1 9112-9504 ● ● ● ●
50 16.742 TRIM; ROOF BACK
DARK GRAY 		8-97098-398-1 01 1 9505- ● ● ●
50 16.742 TRIM; ROOF BACK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-296-1 01 1 9112-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9112-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) 45X45 T=0.08 		8-94238-288-1 AR 1 9505- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9112-9308 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9309-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9505- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9309-9504 ● ● ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9505- ● ●
103 16.165 SEAL; RR PILLAR
SHORT(UB***C) 16.592 		8-97805-792-2 02 1 9112-9607 ● ● ● ●
103 16.165 SEAL; RR PILLAR
SHORT(UB***C) 16.592 		8-97805-792-2 02 1 9608- ● ●
110 16.576 VALVE; OUTLET VENT 8-97801-166-3 01 1 9112-9504 ● ● ● ●
110 16.576 VALVE; OUTLET VENT 8-97801-166-3 01 1 9505- ● ● ●
110 16.576 VALVE; OUTLET VENT 8-94358-809-3 01 1 9112-9504 ● ● ● ●
110 16.576 VALVE; OUTLET VENT 8-94358-809-3 01 1 9505- ● ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EUROPE EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-147-0 01 1 9203-9504 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-147-0 01 1 9505-9604 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97156-101-1 01 1 9605- ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EUROPE EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9203-9504 ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-146-0 01 1 9203-9504 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97809-146-0 01 1 9505-9604 ● ●
122 16.570 SEAL; CENTER PILLAR
SHORT(UB***C) BLACK 		8-97156-100-1 01 1 9605- ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9112-9309 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-731-0 01 1 9112-9309 ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXC. VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-731-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737),BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR LT.SILVER MET(753),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR FIR GREEN MICA/IRO N GRAY MET(797),BODY COLOR IRON GRAY MET(849),BODY COLOR FIR GREEN MICA(871),B ODY COLOR RED ROCK MICA(872),BODY COLORFIR GREEN MICA/LT.SILVER MET(883) EXC. EUROPE EQUIPMENT(EK4) BLACK 		8-97807-731-0 01 1 9505-9509 ● ● ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-731-0 01 1 9510-9604 ● ● ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97156-002-1 01 1 9605- ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9112-9309 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-730-0 01 1 9112-9309 ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) EXC. VAUXHALL EQUIPMENT<EK3> BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-730-0 01 1 9310-9504 ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97807-730-0 01 1 9505-9604 ● ●
122 16.570 SEAL; CENTER PILLAR
LONG(UB***F) BLACK 		8-97156-001-1 01 1 9605- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
