6-65 — SUNROOF (#44952) — 68 parça

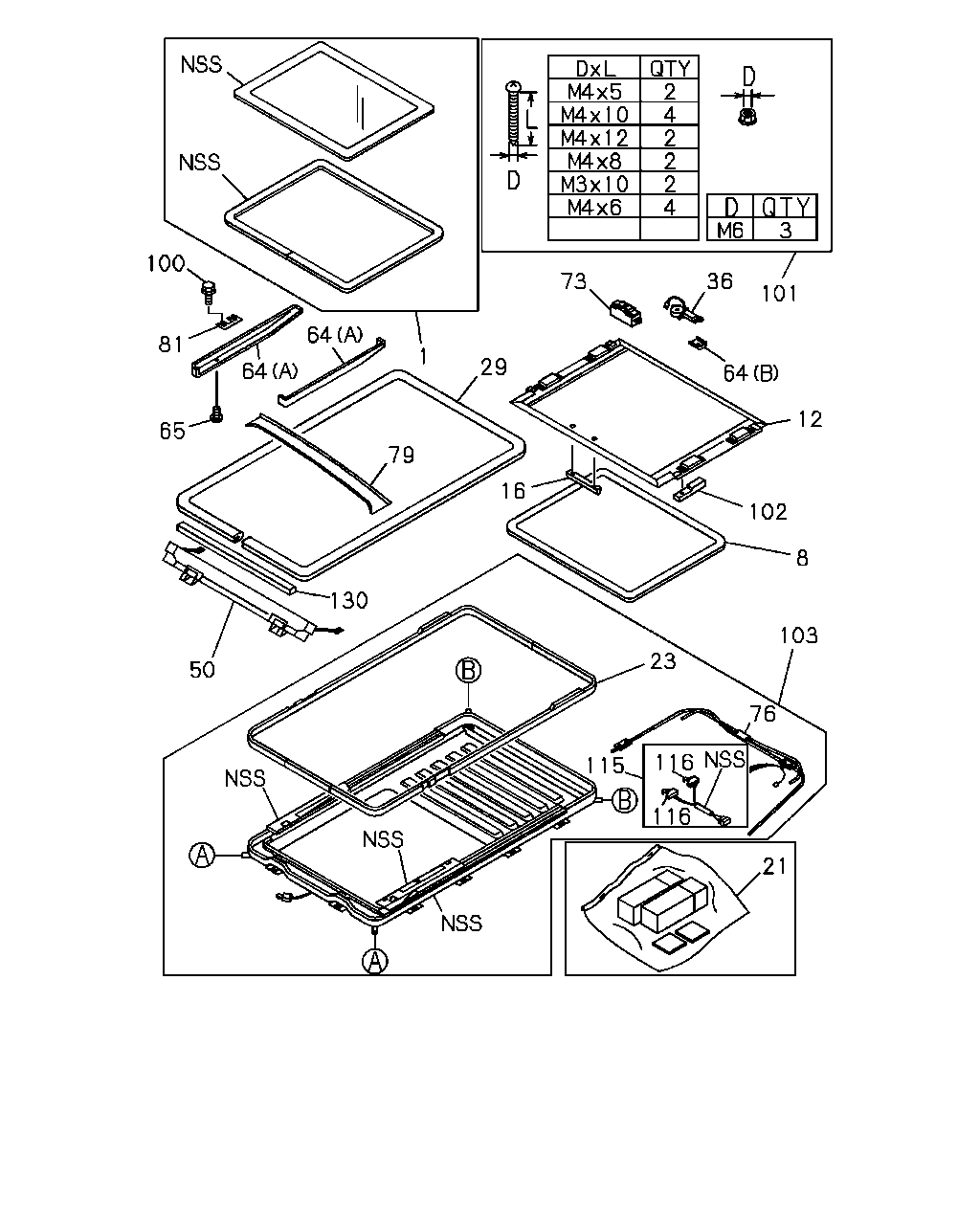

1 29 73 36 101 64 12 102 8 103 76 23 16 79 64 64 100 81 65 130 50 115 116 116 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	14.090 GLASS; SUNROOF SUNROOF<CF5>	8-97805-515-1	01	1	9112-9309	●	●
1	14.090 GLASS; SUNROOF SUNROOF<CF5>	8-97810-938-1	01	1	9310-9407	●	●
1	14.090 GLASS; SUNROOF SUNROOF<CF5>	8-97114-407-0	01	1	9408-9504	●	●
1	14.090 GLASS; SUNROOF SUNROOF<CF5>	8-97121-755-1	01	1	9505-	●	●
8	16.585 WEATHERSTRIP; OUTER SUNROOF SUNROOF<CF5>	8-97803-023-5	01	1	9112-9710	●	●
8	16.585 WEATHERSTRIP; OUTER SUNROOF SUNROOF<CF5>	8-97186-458-0	01	1	9711-	●	●
12	14.090 SUNSHADE; SUNROOF INTERIOR COLOR BROWN(130) SUNROOF<CF5> 14.575 DARK BROWN	8-97805-582-4	01	1	9112-9504	●	●
12	14.090 SUNSHADE; SUNROOF SUNROOF<CF5> LIGHT GRAY	8-97151-535-4	01	1	9505-	●	●
12	14.090 SUNSHADE; SUNROOF INTERIOR COLOR GRAY(153) SUNROOF<CF5> 14.575 DARK GRAY	8-97805-584-4	01	1	9112-9504	●	●
16	14.575 LOCK; ROTARY,SUNSHADE INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN	8-97805-785-0	01	1	9112-9504	●	●
16	14.575 LOCK; ROTARY,SUNSHADE SUNROOF<CF5> LIGHT GRAY	8-97151-537-0	01	1	9505-	●	●
16	14.575 LOCK; ROTARY,SUNSHADE INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY	8-97805-787-0	01	1	9112-9504	●	●
21	12.810 SEAL; RR,SUNROOF SUNROOF<CF5>	8-97146-874-0	01	1	9608-	●	●
23	12.810 SEAL; RUBBER,SUNROOF,CENTER SUNROOF<CF5>	8-97805-702-0	01	1	9112-	●
23	12.810 SEAL; RUBBER,SUNROOF,CENTER SUNROOF<CF5>	8-97805-701-0	01	1	9112-		●
29	16.742 FINISHER; SUNROOF INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN	8-97806-907-2	01	1	9112-9504	●	●
29	16.742 FINISHER; SUNROOF SUNROOF<CF5> LIGHT GRAY	8-97098-399-2	01	1	9505-	●	●
29	16.742 FINISHER; SUNROOF INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY	8-97806-909-2	01	1	9112-9504	●	●
36	14.550 MOTOR; SUNROOF SUNROOF<CF5>	8-97805-524-1	01	1	9112-	●	●
50	14.090 DEFLECTOR; SUNROOF SUNROOF<CF5>	8-97806-599-1	01	1	9112-	●	●
64	14.090 COVER; SUNROOF DECORATION SUNROOF<CF5> 14.575 (A)	8-97805-527-0	01	1	9112-	●	●
64	14.090 COVER; SUNROOF DECORATION SUNROOF<CF5> 14.575 (A)	8-97805-526-0	01	1	9112-	●	●
64	14.090 COVER; SUNROOF DECORATION SUNROOF<CF5> EUROPE EQUIPMENT(EK4) (B)	8-97811-425-0	01	1	9510-	●	●
65	16.585 SCREW; DECORATION COVER SUNROOF<CF5> 16.115 M4X6	9-03494-406-0	04	1	9112-	●	●
73	14.090 CONTROLLER; SUNROOF SUNROOF<CF5>	8-94332-306-0	01	1	9112-9211	●	●
73	14.090 CONTROLLER; SUNROOF SUNROOF<CF5>	8-97810-119-0	01	1	9212-	●	●
76	14.550 DRIVE UNIT; SUNROOF SUNROOF<CF5>	8-97805-522-0	01	1	9112-	●	●
79	14.575 DRAIN ASM; SUNROOF SUNROOF<CF5>	8-97805-523-1	01	1	9112-	●	●
81	14.575 SHIM; SUNROOF SUNROOF<CF5>	8-97805-529-0	AR	1	9112-	●	●
100	14.090 BOLT; LID SUNROOF<CF5> M6X11	8-97808-812-0	AR	1	9112-	●	●
100	14.090 BOLT; LID SUNROOF<CF5> M6X9	8-97808-813-0	AR	1	9112-	●	●
101	14.090 FIXING KIT; SUNROOF SUNROOF<CF5>	8-97810-404-1	01	1	9303-	●	●
102	14.090 STOPPER; SUN SHADE SUNROOF<CF5>	8-97810-405-0	02	1	9505-	●	●
103	16.585 SUNROOF SET SUNROOF<CF5>	8-97810-403-1	01	1	9112-9702	●
103	16.585 SUNROOF SET SUNROOF<CF5>	8-97169-678-0	01	1	9703-9708	●
103	16.585 SUNROOF SET SUNROOF<CF5>	8-97184-890-0	01	1	9709-	●
103	16.585 SUNROOF SET SUNROOF<CF5>	8-97810-402-1	01	1	9112-9702		●
103	16.585 SUNROOF SET SUNROOF<CF5>	8-97169-679-0	01	1	9703-9708		●
103	16.585 SUNROOF SET SUNROOF<CF5>	8-97184-891-0	01	1	9709-		●
115	16.585 SWITCH KIT SUNROOF<CF5>	8-97148-298-0	01	1	9607-	●	●
116	16.585 SWITCH; MICRO SUNROOF<CF5>	8-97148-297-0	02	1	9607-	●	●
130	12.810 SEAL; SUNROOF SUNROOF<CF5>	8-97186-534-0	01	1	9711-	●	●

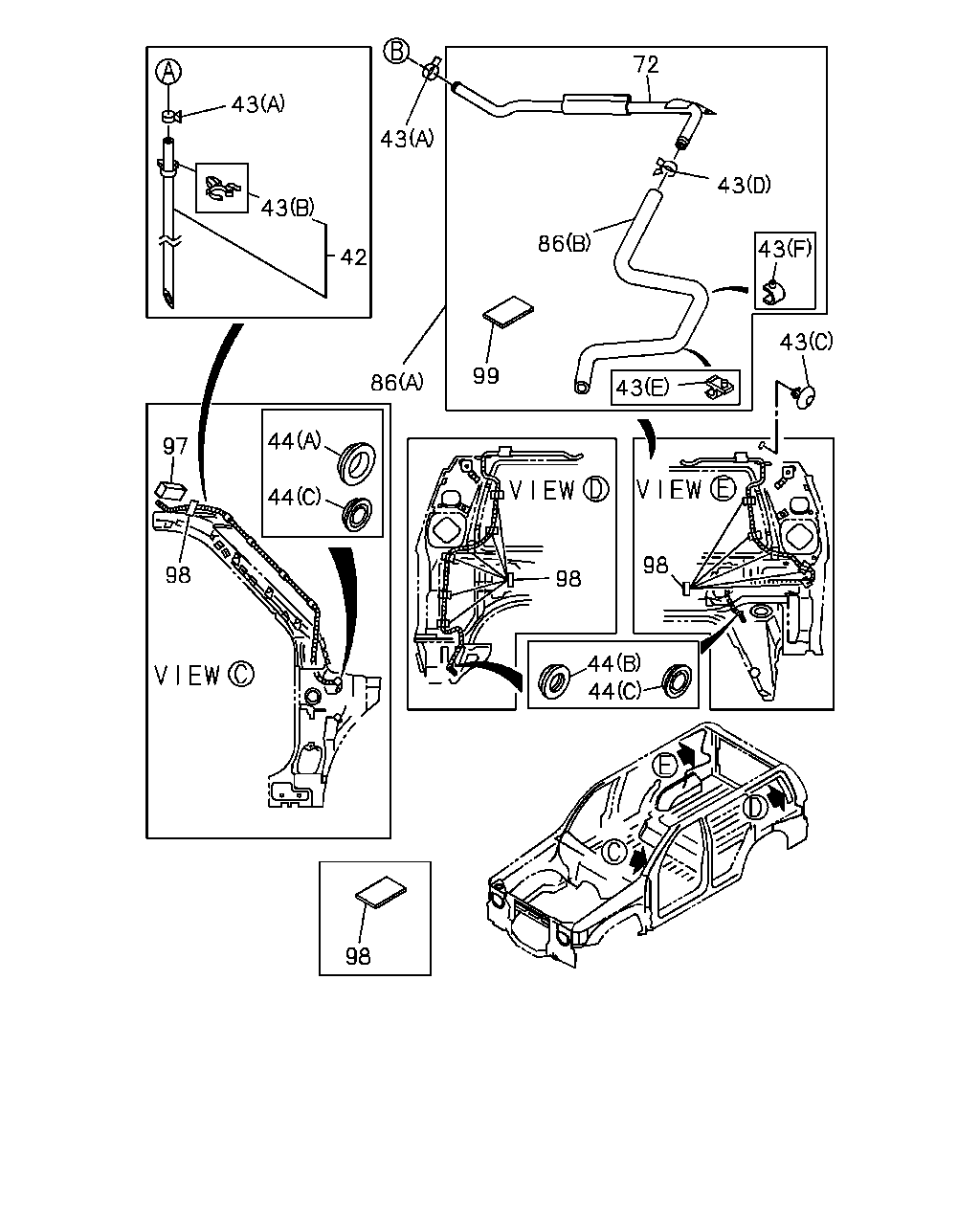

43 43 42 43 72 43 86 99 43 43 43 86 44 44 97 98 98 98 44 44 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUNROOF<CF5>	8-97809-581-0	01	1	9112-	●	●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUNROOF<CF5>	8-97809-580-0	01	1	9112-	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> 01.219 (A) ID=13	8-94238-571-0	04	1	9112-	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> (B)	8-97809-577-0	08	1	9112-	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> (C)	8-97809-579-0	02	1	9112-	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> (E)	8-97809-576-0	01	1	9112-	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> (F)	8-97809-578-0	01	1	9112-	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> 03.162 (D) ID=13	8-94205-561-1	02	1	9112-9409	●	●
43	03.163 CLIP; DRAIN HOSE SUNROOF<CF5> 02.559 (D) L=100	8-94279-939-0	02	1	9410-	●	●
44	01.409 GROMMET; DRAIN HOSE SUNROOF<CF5> 08.854 (A)	5-09333-026-1	02	1	9112-	●	●
44	01.409 GROMMET; DRAIN HOSE SUNROOF<CF5> (B)	8-97809-167-0	02	1	9112-	●	●
44	01.409 GROMMET; DRAIN HOSE EXC. SUNROOF<CF5> 12.182 (C) OD=26	8-94141-484-0	04	1	9112-	●	●
72	16.585 PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-585-0	01	1	9112-	●
72	16.585 PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-584-0	01	1	9112-	●
72	16.585 PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-583-0	01	1	9112-		●
72	16.585 PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-474-0	01	1	9112-		●
86	16.585 HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-161-2	01	1	9112-	●
86	16.585 HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-160-2	01	1	9112-	●
86	16.585 HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (B)	8-97809-472-0	01	1	9112-	●	●
86	16.585 HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (B)	8-97809-472-0	01	1	9112-	●	●
86	16.585 HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-159-2	01	1	9112-		●
86	16.585 HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-158-2	01	1	9112-		●
97	14.550 CUSHION; SUNROOF SUNROOF<CF5>	8-97809-154-1	02	1	9203-	●	●
98	14.472 TAPE; DRAIN HOSE SUNROOF<CF5>	8-97809-155-0	15	1	9112-9409	●	●
98	14.472 TAPE; DRAIN HOSE SUNROOF<CF5>	8-97809-155-0	13	1	9410-	●	●
99	16.585 TAPE; SUNROOF SUNROOF<CF5> 14.472	8-97809-155-0	02	1	9305-		●
