◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#4495) — 897 parça

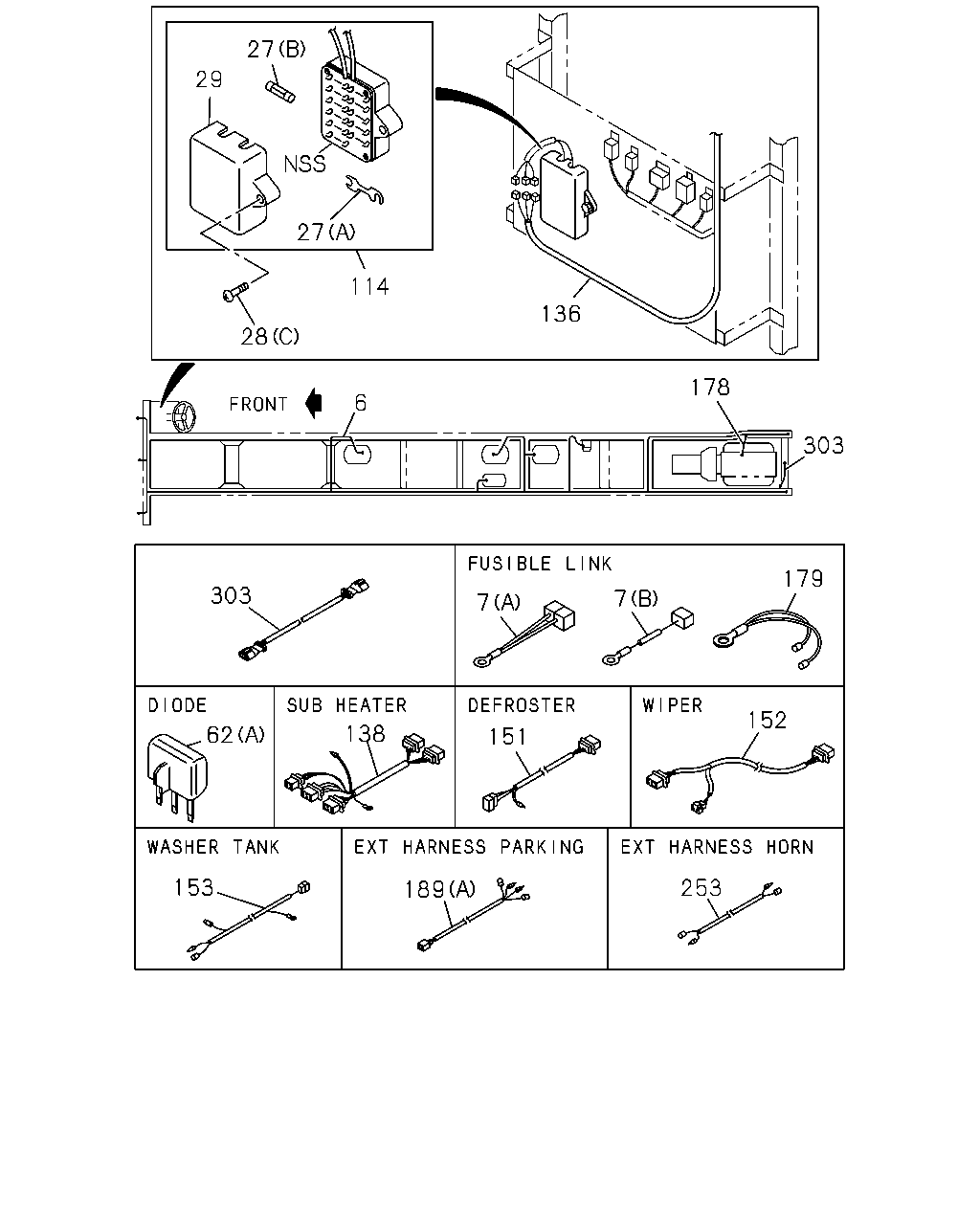

çizim 4672
27 29 27 114 136 28 178 6 303 179 303 7 7 152 62 151 153 253 189 138
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) AUSTRALIA EQUIPMENT<RR3> 		1-82634-132-6 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-058-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-058-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-058-2 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-058-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT<PK5> 		1-82635-399-2 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-061-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-061-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-4 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82634-090-4 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-059-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-059-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-4 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> ISUZU M/T<X9A> 		1-82634-131-6 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-062-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-062-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-3 01 1 0204- ● ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82634-709-4 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-054-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-054-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-054-2 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-054-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82634-710-4 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-055-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-055-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-055-3 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-055-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> 		1-82634-707-3 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-053-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-053-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-053-3 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-053-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> 		1-82636-733-2 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-060-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-060-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-210-0 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-3 01 1 9803-9805 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-3 01 1 9806-9806 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-4 01 1 9807-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-5 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-911-0 01 1 9808-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-911-2 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82633-615-5 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-057-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-057-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-057-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-057-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-057-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> 		1-82634-708-4 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-056-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-056-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-056-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-056-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-056-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82670-506-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82670-506-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82670-506-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82670-506-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-211-0 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-4 01 1 9803-9807 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-912-0 01 1 9808-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-912-2 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EURO2 SPECIFICATION<THN> 		1-82670-507-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EURO2 SPECIFICATION<THN> 		1-82670-507-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82670-507-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EURO2 SPECIFICATION<THN> 		1-82670-507-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-4 01 1 9808-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-5 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-064-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-064-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-064-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-064-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-064-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-063-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-063-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-063-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-063-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-063-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82670-821-0 01 1 9709-9802 ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82670-821-0 01 1 9803-9805 ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82670-822-0 01 1 9709-9802 ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82670-822-0 01 1 9803-9805 ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-007-0 01 1 9101-9504 ● ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-112-0 02 1 9505- ● ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-031-1 01 1 9304-9504 ● ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-101-0 02 1 9505- ● ●
27 FUSE UNIT
(A) 30A 		1-82516-001-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 125A 		9-82941-130-1 AR 1 9505- ● ●
27 FUSE UNIT
(B) 10A YELLOW 		9-82941-136-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 100A 		9-82941-126-0 AR 1 9505- ● ●
27 FUSE UNIT
(B) 15A BLUE 		9-82941-137-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(C) 10A RED 		5-82516-002-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 20A YELLOW 		5-82516-004-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 30A GREEN 		8-94159-008-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 9702- ● ●
28 SCREW; FUSE BOX
(C) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9101-9504 ● ●
28 SCREW; FUSE BOX
(A) M6X42 		8-97811-324-0 02 1 9505- ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9505-9808 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9505-9808 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 0204-0604 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 0204-0604 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		0-36220-625-0 02 1 0605- ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		0-36220-625-0 02 1 0605- ● ●
29 COVER; FUSE BOX 1-82513-011-0 01 1 9101-9504 ● ●
62 DIODE; HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9905-9907 ● ●
62 DIODE; HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9905-9907 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9505-9904 ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) BLACK 10P 		1-82699-703-0 01 1 9505-9904 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 02 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) BLACK 10P 		1-82699-703-0 01 1 0204-1211 ● ●
62 DIODE; HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (B) BLACK 10P 		1-82699-703-0 01 1 0204-1211 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (B) BLACK 10P 		1-82699-703-0 01 1 1212- ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 1212- ●
62 DIODE; HARNESS
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A) BLACK 3P-1.5A 		8-94422-640-0 01 1 9101-9504 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9505-9904 ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9505-9904 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 02 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0204-1211 ● ●
62 DIODE; HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0204-1211 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1212- ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1212- ●
62 DIODE; HARNESS
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> (C) BLACK 2P-1.5A 		8-94422-639-1 01 1 9709-9802 ●
62 DIODE; HARNESS
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (C) BLACK 2P-1.5A 		8-94422-639-1 01 1 9803-9805 ●
114 BOX ASM; FUSE 1-82510-192-2 01 1 9101-9504 ● ●

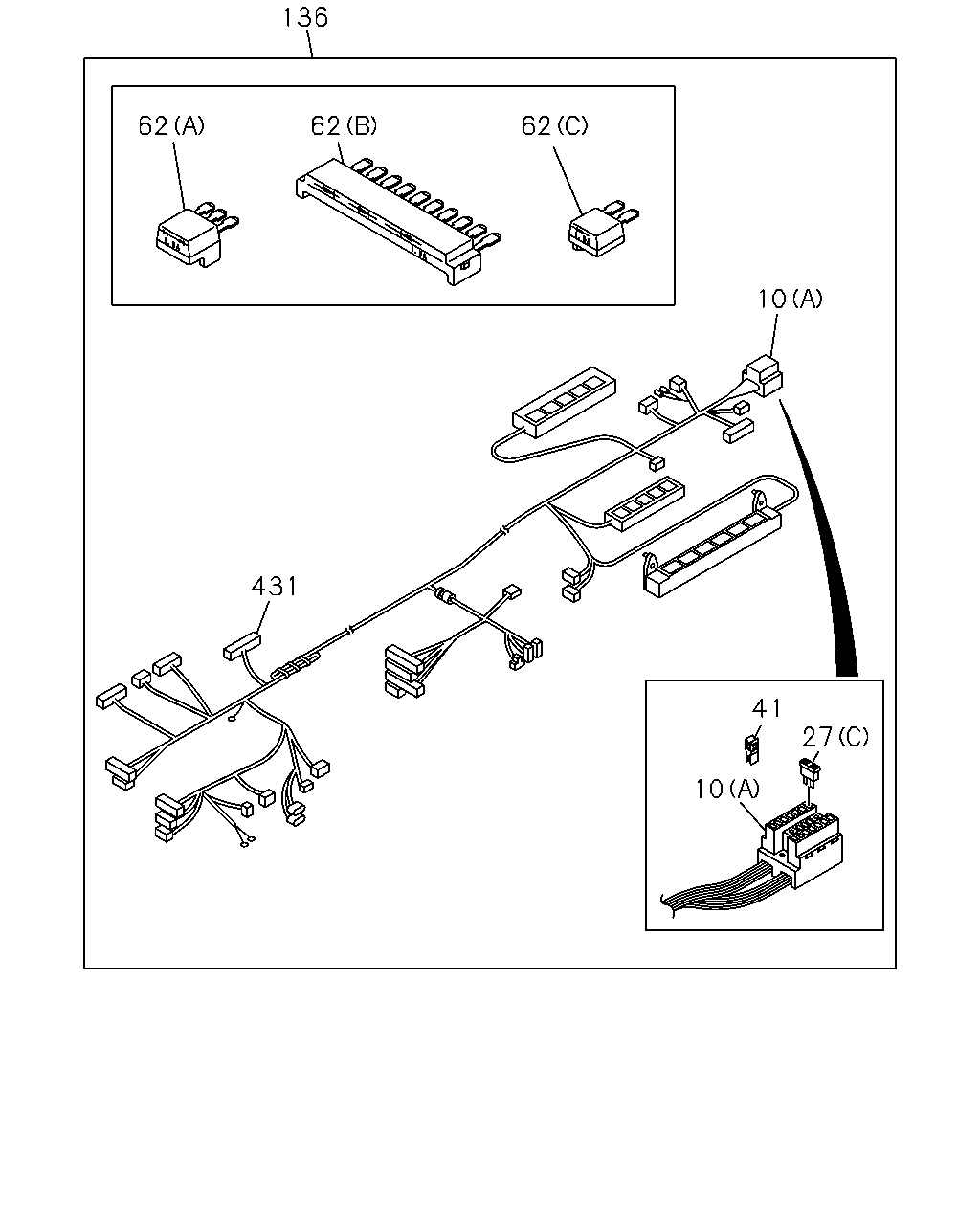

136 HARNESS; DASH
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> 		8-98229-812-0 01 1 1212- ● ●
136 HARNESS; DASH
AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> ISUZU M/T<X9A> 		1-82622-743-4 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> ISUZU M/T<X9A> EXC. INDICATOR WARNING BUZZER<WF9> 		1-82623-390-0 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> INDICATOR WARNING BUZZER<WF9> ISUZU M/T<X9A> 		1-82623-391-0 01 1 9101-9504 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) AUSTRALIA EQUIPMENT<RR3> 		1-82622-744-4 01 1 9101-9504 ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-996-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-740-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-583-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-583-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-997-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-741-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-584-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-973-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82624-292-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-742-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-585-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-585-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		8-98229-349-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82624-293-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-743-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-586-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		8-98229-350-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> 		1-82626-949-0 01 1 9702-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9803-9805 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9806-9806 ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-949-1 01 1 9807-0203 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-98229-811-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-977-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-974-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82622-739-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82622-740-3 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-995-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-994-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9709-9802 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9803-9805 ●
138 HARNESS; SUB HTR
HEATER & DEFROSTER<C41> 		1-82623-513-0 01 1 9101-9504 ● ●
151 HARNESS; DEFROSTER
AUXILIARY HEATER<C36> 		1-82621-467-0 01 1 9101-9504 ● ●

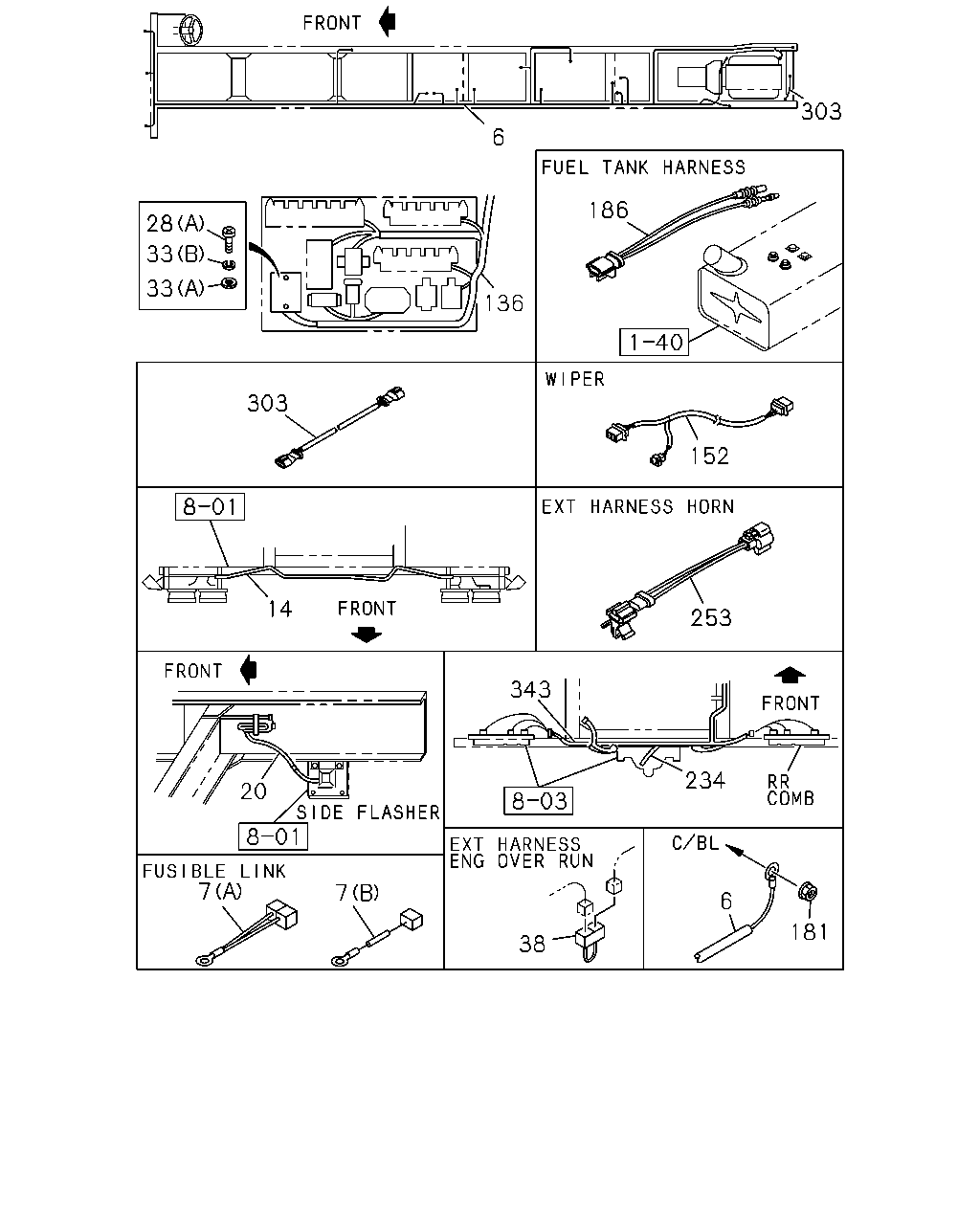

152 HARNESS; WIPER
WIPER BLADE LONG<YD4> 		1-82621-295-0 01 1 9101-9504 ● ●
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82620-468-0 01 1 9101-9504 ● ●
152 HARNESS; WIPER
PARALLEL WIPER<SBT> 		1-82625-630-0 01 1 9505- ● ●
153 HARNESS; WASHER TANK
WINDSHIELD WASHER<C11> 		1-82620-467-0 01 1 9101-9504 ● ●
178 HARNESS; THERMO SENSOR
ENG OVERRUN BUZZER<SK4> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>, TACHOMETER<UD7> 		1-82636-160-0 01 1 9101-9504 ● ●
178 HARNESS; THERMO SENSOR
TACHOMETER<UD7> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82636-160-0 01 1 9101-9504 ● ●
179 FUSIBLE LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82659-032-1 01 1 9101-9504 ● ●

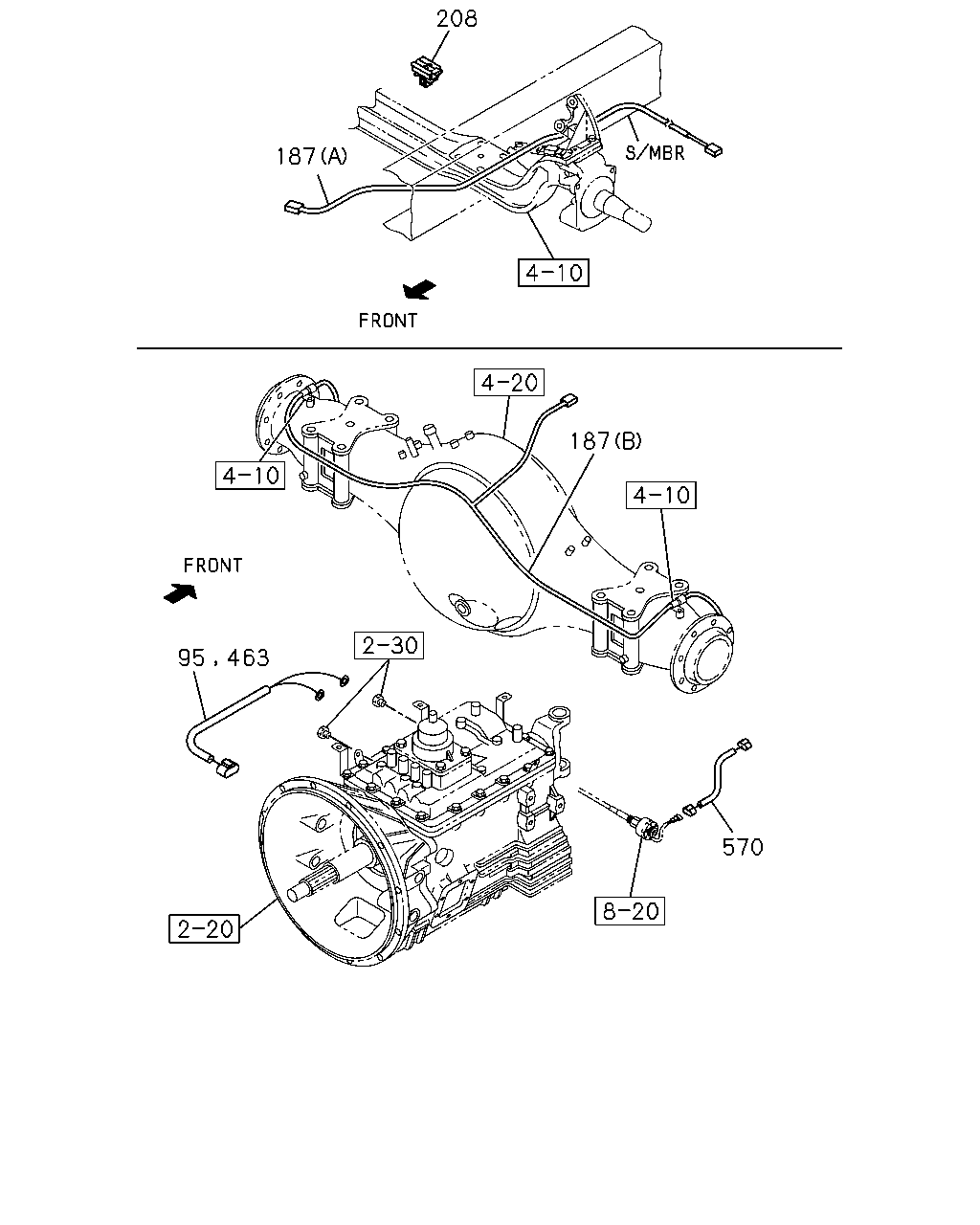

189 HARNESS; EXT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-82634-712-0 01 1 9101-9504 ●
189 HARNESS; EXT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (B) 		1-82672-122-0 01 1 9811-0203 ● ●
189 HARNESS; EXT
EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (B) 		1-82672-122-0 01 1 0204- ● ●
189 HARNESS; EXT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-82634-711-0 01 1 9101-9504 ●
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82634-091-0 01 1 9101-9504 ●
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82639-083-1 01 1 9505- ● ●
303 HARNESS; WATER LEVEL 1-82632-272-0 01 1 9101-9504 ● ●
303 HARNESS; WATER LEVEL 1-82639-208-0 01 1 9505-9706 ● ●
303 HARNESS; WATER LEVEL 1-82670-567-0 01 1 9707- ● ●

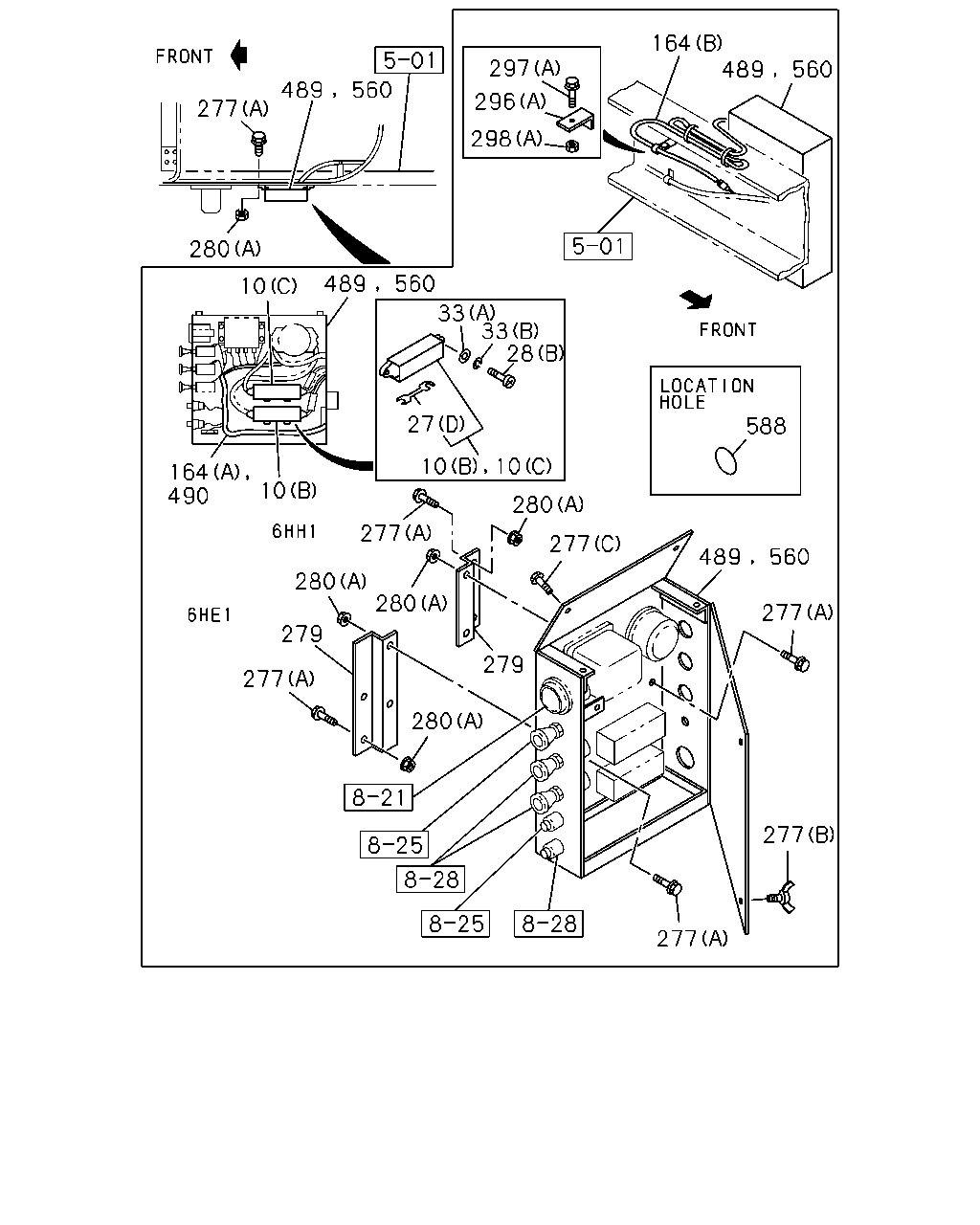

çizim 4673
164 489 560 297 296 560 489 277 298 280 489 560 33 33 28 10 27 588 10 10 164 490 10 280 280 280 277 277 489 560 277 279 279 277 280 277 277
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9702-9802 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9803-9805 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 10AX1 20AX1 		1-82510-380-0 01 1 9806-9806 ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9807-0203 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 10AX1 20AX1 		1-82510-380-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 125A 		1-82510-234-2 01 1 9505- ● ●
10 BOX; FUSE,HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9505-9904 ● ●
10 BOX; FUSE,HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9505-9904 ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 02 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9908-0203 ● ●
10 BOX; FUSE,HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9908-0203 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 1212- ● ●
10 BOX; FUSE,HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 9505-9808 ● ●
10 BOX; FUSE,HARNESS
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (C) 100A 		1-82510-235-2 01 1 9809-0203 ● ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 9809-0203 ● ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 0204- ● ●
27 FUSE UNIT
(A) 30A 		1-82516-001-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 125A 		9-82941-130-1 AR 1 9505- ● ●
27 FUSE UNIT
(B) 10A YELLOW 		9-82941-136-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 100A 		9-82941-126-0 AR 1 9505- ● ●
27 FUSE UNIT
(B) 15A BLUE 		9-82941-137-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(C) 10A RED 		5-82516-002-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 20A YELLOW 		5-82516-004-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 30A GREEN 		8-94159-008-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 9702- ● ●
28 SCREW; FUSE BOX
(C) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9101-9504 ● ●
28 SCREW; FUSE BOX
(A) M6X42 		8-97811-324-0 02 1 9505- ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9505-9808 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9505-9808 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 0204-0604 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 0204-0604 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		0-36220-625-0 02 1 0605- ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		0-36220-625-0 02 1 0605- ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		9-09150-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		9-09150-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 0204-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		9-09150-506-0 02 1 0204-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		9-09150-506-0 02 1 0204-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (B) ID=6.4 		9-09160-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4 		9-09160-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0204- ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (B) ID=6.4 		9-09160-506-0 02 1 0204- ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4 		9-09160-506-0 02 1 0204- ● ●
164 HARNESS; ELEC
ENG ROOM SW BOX<TEK> (A) 		1-82638-398-2 01 1 9505-0212 ● ●
164 HARNESS; ELEC
ENG ROOM SW BOX<TEK> (A) 		1-82672-515-0 01 1 0301- ● ●
164 HARNESS; ELEC
ENG ROOM SW BOX<TEK> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 		1-82639-082-1 01 1 9505- ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9702-9802 ● ●
277 BOLT; BOX ASM FIX
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9803-0203 ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0204-0512 ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28080-820-0 08 1 9505-9510 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-0512 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 9505- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X25 FLANGE 		0-28080-825-0 04 1 9511-9606 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X30 FLANGE 		0-28680-830-0 04 1 9607-0512 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> OVERHEAD COOLING SYSTEM<YS9> (C) M8X20 FLANGE 		0-28080-820-0 02 1 9505-9606 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> OVERHEAD COOLING SYSTEM<YS9> (C) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9705 ● ●
277 BOLT; BOX ASM FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28680-820-0 02 1 9706-0512 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28680-820-0 02 1 9706-0512 ● ●
277 BOLT; BOX ASM FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
279 BRACKET; CONNECTOR BOX
ENG ROOM SW BOX<TEK> 		1-48495-100-0 02 1 9505-9702 ● ●
279 BRACKET; CONNECTOR BOX
6HH1 STD ENG(65L) ENG ROOM SW BOX<TEK> 		1-48495-100-0 02 1 9703- ● ●
279 BRACKET; CONNECTOR BOX
6HE1 TCC ENG(76L) ENG ROOM SW BOX<TEK> 		1-48495-200-0 02 1 9703-9709 ● ●
279 BRACKET; CONNECTOR BOX
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ENG ROOM SW BOX<TEK> 		1-48495-200-2 02 1 9710- ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8 		9-09110-408-0 02 1 9702-9802 ● ●
280 NUT; BOX ASM FIX
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 		9-09110-408-0 02 1 9803-0203 ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8 		9-09110-408-0 02 1 0204-0512 ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8 		0-91110-508-0 02 1 0601- ● ●
280 NUT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8 		9-09110-408-0 08 1 9505-9606 ● ●
280 NUT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8 FLANGE 		0-91150-108-0 08 1 9607-0602 ● ●
280 NUT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> (B) 		1-82699-962-0 01 1 9702-9802 ● ●
296 BRACKET; HARNESS BOX
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) 		1-82699-962-0 01 1 9803-0203 ● ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> (B) 		1-82699-962-0 01 1 0204- ● ●
296 BRACKET; HARNESS BOX
ENG ROOM SW BOX<TEK> (A) L=105 B=25 		1-47476-161-0 01 1 9505-9601 ● ●
296 BRACKET; HARNESS BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) L=105 B=25 		1-47476-161-0 01 1 9602-9705 ● ●
296 BRACKET; HARNESS BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=105 B=25 		1-47476-161-0 01 1 9706- ● ●
296 BRACKET; HARNESS BOX
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) L=105 B=25 		1-47476-161-0 01 1 9706- ● ●
296 BRACKET; HARNESS BOX
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) L=95 		1-82699-085-0 01 1 0103- ● ●
296 BRACKET; HARNESS BOX
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) L=95 		1-82699-085-0 01 1 0103- ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ● ●
297 BOLT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9803-0203 ● ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ● ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> (A) M8X25 FLANGE 		0-28080-825-0 01 1 9505-9601 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8X25 FLANGE 		0-28080-825-0 01 1 9602-9606 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9705 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9706-0102 ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9706-0102 ● ●
297 BOLT; BOX BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512 ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512 ● ●
297 BOLT; BOX BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 9702-9802 ● ●
298 NUT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 9803-0102 ● ●
298 NUT; BOX BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0103-0103 ● ●
298 NUT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 0103-0103 ● ●
298 NUT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 0104-0203 ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> (A) M8 		9-09110-408-0 01 1 9505-9601 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8 		9-09110-408-0 01 1 9602-9606 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8 FLANGE 		0-91150-108-0 01 1 9607-9705 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 9706-0103 ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 9706-0103 ● ●
298 NUT; BOX BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0104-0602 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 0104-0602 ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 0104-0602 ● ●
298 NUT; BOX BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
489 BOX; BASE
ENG ROOM SW BOX<TEK> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82698-163-0 01 1 9905-9907 ● ●
489 BOX; BASE
ENG ROOM SW BOX<TEK> EXC. NIKKO<Y70> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82698-163-0 01 1 9908-0111 ● ●
489 BOX; BASE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82698-164-0 01 1 9905-9907 ● ●
489 BOX; BASE
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> 		1-82698-164-0 01 1 9905-9907 ● ●
489 BOX; BASE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. NIKKO<Y70> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82698-164-1 01 1 9908-0203 ● ●
489 BOX; BASE
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> EXC. NIKKO<Y70> 		1-82698-164-1 01 1 9908-0203 ● ●
490 HARNESS; BOX
ENG ROOM SW BOX<TEK> 		1-82672-515-0 01 1 9905-9907 ● ●
490 HARNESS; BOX
ENG ROOM SW BOX<TEK> EXC. NIKKO<Y70> 		1-82672-515-0 01 1 9908-0203 ● ●
560 BOX; ELECTRIC
ENG ROOM SW BOX<TEK> OVERHEAD COOLING SYSTEM<YS9> 		1-82699-730-2 01 1 9505-9705 ● ●
560 BOX; ELECTRIC
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82699-730-2 01 1 9706-0212 ● ●
560 BOX; ELECTRIC
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> 		1-82699-730-2 01 1 9706-0212 ● ●
560 BOX; ELECTRIC
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82698-164-3 01 1 0301- ● ●
560 BOX; ELECTRIC
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> 		1-82698-164-3 01 1 0301- ● ●
560 BOX; ELECTRIC
ENG ROOM SW BOX<TEK> EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-82699-729-1 01 1 9505-9705 ● ●
560 BOX; ELECTRIC
ENG ROOM SW BOX<TEK> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82699-729-1 01 1 9706-0111 ● ●
560 BOX; ELECTRIC
ENG ROOM SW BOX<TEK> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82698-163-1 01 1 0112- ● ●
588 SEAL; LOCATION HOLE
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) OD=52 BLACK 		1-76798-041-0 01 1 9706-9709 ● ●
çizim 36497
208 187 187 95 463 570
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW
FULLER FSB6406A M/T(MWO) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) 		1-82639-626-0 01 1 9810-0203 ●
95 HARNESS; NEUTRAL SW
FULLER FSB6406A M/T(MWO) CLU SYSTEM MINIPACK(B1Z) 		1-82639-626-0 01 1 0204- ●
187 HARNESS; AXLE
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (A) L=350 		1-82657-064-0 01 1 9806-9806 ● ●
187 HARNESS; AXLE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (B) 		1-82671-435-1 01 1 9803-0203 ● ●
187 HARNESS; AXLE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) 		1-82671-436-0 02 1 9803-0203 ● ●
208 HOLDER; CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		8-94377-313-1 02 1 9803-0203 ● ●
463 HARNESS; SW,BACK UP
FULLER FSB6406A M/T(MWO) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) 		1-82639-626-0 01 1 9810-0203 ●
463 HARNESS; SW,BACK UP
FULLER FSB6406A M/T(MWO) CLU SYSTEM MINIPACK(B1Z) 		1-82639-626-0 01 1 0204- ●
570 HARNESS; SPEED SENSOR
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 		1-82670-566-0 01 1 9905-9907 ●
570 HARNESS; SPEED SENSOR
ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 		1-82670-566-0 01 1 9905-9907 ●
570 HARNESS; SPEED SENSOR
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 		1-82670-012-0 01 1 9908-0203 ●
570 HARNESS; SPEED SENSOR
ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 		1-82670-012-0 01 1 9908-0203 ●
570 HARNESS; SPEED SENSOR
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 		1-82670-012-0 01 1 0204- ●
570 HARNESS; SPEED SENSOR
ISUZU M/T<X9A> EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 		1-82670-012-0 01 1 0204- ●
570 HARNESS; SPEED SENSOR
FULLER M/T<X9B> 		1-82671-891-0 01 1 9807- ●
çizim 36788
303 6 186 28 33 33 136 303 152 14 253 343 234 20 7 7 6 181 38
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) AUSTRALIA EQUIPMENT<RR3> 		1-82634-132-6 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-058-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-058-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-058-2 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-058-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
NEW ZEALAND EQUIPMENT<PK5> 		1-82635-399-2 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-061-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-061-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-061-4 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82634-090-4 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-059-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-059-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-059-4 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> ISUZU M/T<X9A> 		1-82634-131-6 01 1 9101-9504 ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-062-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-062-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-062-3 01 1 0204- ● ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82634-709-4 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-054-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-054-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-054-2 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-054-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82634-710-4 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-055-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-055-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-055-3 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-055-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> 		1-82634-707-3 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-053-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-053-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-053-3 01 1 9706-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-053-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> 		1-82636-733-2 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-060-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-060-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-060-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-210-0 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-3 01 1 9803-9805 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-3 01 1 9806-9806 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-4 01 1 9807-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-210-5 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-911-0 01 1 9808-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-911-2 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-82633-615-5 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-057-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-057-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-057-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-057-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-057-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> 		1-82634-708-4 01 1 9101-9504 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-056-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-056-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-056-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-056-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-056-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82670-506-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82670-506-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82670-506-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82670-506-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-211-0 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-4 01 1 9803-9807 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-912-0 01 1 9808-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-82671-912-2 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) EURO2 SPECIFICATION<THN> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82670-505-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EURO2 SPECIFICATION<THN> 		1-82670-507-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EURO2 SPECIFICATION<THN> 		1-82670-507-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82670-507-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) CENTER SPLIT TYPE FRAME<TLW> EXC. EURO2 SPECIFICATION<THN> 		1-82670-507-3 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-4 01 1 9808-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),CENTER SPLIT TYPE FRAME<TLW> 		1-82670-211-5 01 1 0204- ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-064-2 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82639-064-2 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-064-2 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-064-2 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82639-064-2 01 1 9803-0203 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82639-063-3 01 1 9505-9701 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82639-063-3 01 1 9702-9705 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-063-3 01 1 9706-9706 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN>,C ENTER SPLIT TYPE FRAME<TLW> 		1-82639-063-3 01 1 9707-9802 ● ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82639-063-3 01 1 9803-0203 ● ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82670-821-0 01 1 9709-9802 ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82670-821-0 01 1 9803-9805 ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN>,CENTER SPLIT TYPE FRAME<TLW> 		1-82670-822-0 01 1 9709-9802 ●
6 HARNESS; FRAME
MT643 A/T ALLISON(PR7) WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN>, CENTER SPLIT TYPE FRAME<TLW> 		1-82670-822-0 01 1 9803-9805 ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-007-0 01 1 9101-9504 ● ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-112-0 02 1 9505- ● ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-031-1 01 1 9304-9504 ● ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-101-0 02 1 9505- ● ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-072-1 02 1 9505-0005 ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. AMBER HEADLAMPS<T75> 		1-82639-072-1 02 1 9505-0005 ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-072-2 02 1 0006-0407 ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		1-82639-072-2 02 1 0006-0407 ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-072-2 02 1 0408- ●
14 HARNESS; HEADLAMP 1-82639-072-2 02 1 0408- ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82639-073-1 02 1 9505- ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> 		1-82639-071-1 02 1 9505-0005 ●
14 HARNESS; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82639-071-1 02 1 9505-0005 ●
14 HARNESS; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82639-071-1 02 1 9505-0005 ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> 		1-82639-071-2 02 1 0006-0407 ●
14 HARNESS; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5> 		1-82639-071-2 02 1 0006-0407 ●
20 HARNESS; SIDE FLASHER 1-82638-388-1 02 1 9505- ● ●
28 SCREW; FUSE BOX
(C) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9101-9504 ● ●
28 SCREW; FUSE BOX
(A) M6X42 		8-97811-324-0 02 1 9505- ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9505-9808 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9505-9808 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 9809-0203 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 0204-0604 ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		9-03910-625-0 02 1 0204-0604 ● ●
28 SCREW; FUSE BOX
OVERHEAD COOLING SYSTEM<YS9> (B) M6X25 W/LK WASHER 		0-36220-625-0 02 1 0605- ● ●
28 SCREW; FUSE BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER 		0-36220-625-0 02 1 0605- ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		9-09150-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		9-09150-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		9-09150-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 0204-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		9-09150-506-0 02 1 0204-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		9-09150-506-0 02 1 0204-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (B) ID=6.4 		9-09160-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4 		9-09160-506-0 02 1 9505-9808 ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (B) ID=6.4 		9-09160-506-0 02 1 9809-0203 ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0204- ● ●
33 WASHER; LK,FUSE BOX FIX
OVERHEAD COOLING SYSTEM<YS9> (B) ID=6.4 		9-09160-506-0 02 1 0204- ● ●
33 WASHER; LK,FUSE BOX FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4 		9-09160-506-0 02 1 0204- ● ●
38 HARNESS; CHAS
ENG OVERRUN BUZZER<SK4> 		1-82625-451-0 01 1 9505- ● ●
136 HARNESS; DASH
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> 		8-98229-812-0 01 1 1212- ● ●
136 HARNESS; DASH
AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> ISUZU M/T<X9A> 		1-82622-743-4 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> ISUZU M/T<X9A> EXC. INDICATOR WARNING BUZZER<WF9> 		1-82623-390-0 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> INDICATOR WARNING BUZZER<WF9> ISUZU M/T<X9A> 		1-82623-391-0 01 1 9101-9504 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) AUSTRALIA EQUIPMENT<RR3> 		1-82622-744-4 01 1 9101-9504 ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-996-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-740-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-583-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-583-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-997-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-741-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-584-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-973-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82624-292-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-742-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-585-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-585-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		8-98229-349-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82624-293-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-743-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-586-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		8-98229-350-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> 		1-82626-949-0 01 1 9702-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9803-9805 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9806-9806 ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-949-1 01 1 9807-0203 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-98229-811-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-977-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-974-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82622-739-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82622-740-3 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-995-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-994-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9709-9802 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9803-9805 ●
152 HARNESS; WIPER
WIPER BLADE LONG<YD4> 		1-82621-295-0 01 1 9101-9504 ● ●
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82620-468-0 01 1 9101-9504 ● ●
152 HARNESS; WIPER
PARALLEL WIPER<SBT> 		1-82625-630-0 01 1 9505- ● ●
181 NUT; GLOW PLUG HARNESS
EXC. THAILAND EQUIPMENT<PM9> M4 FLANGE 		5-09440-007-0 01 1 0102-0203 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0102-0203 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0204- ● ●
186 HARNESS; FUEL TANK
BUS BODY MAKER FUJIJUKO<Y07> 		1-82639-049-0 01 1 9605-0203 ●
234 HARNESS; LICENSE LAMP
DLX STOP & TAIL LAMPS<T81> 		1-82639-372-0 01 1 9510- ● ●
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82634-091-0 01 1 9101-9504 ●
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82639-083-1 01 1 9505- ● ●
303 HARNESS; WATER LEVEL 1-82632-272-0 01 1 9101-9504 ● ●
303 HARNESS; WATER LEVEL 1-82639-208-0 01 1 9505-9706 ● ●
303 HARNESS; WATER LEVEL 1-82670-567-0 01 1 9707- ● ●
343 HARNESS; EXT,RR COMB LAMP
DLX STOP & TAIL LAMPS<T81> 		1-82638-900-0 02 1 9505-9509 ● ●
343 HARNESS; EXT,RR COMB LAMP
DLX STOP & TAIL LAMPS<T81> EXC. BUS BODY MAKER FUJIJUKO<Y07> 		1-82638-900-0 02 1 9510-0203 ● ●
343 HARNESS; EXT,RR COMB LAMP
DLX STOP & TAIL LAMPS<T81> 		1-82638-900-0 02 1 0204- ● ●
çizim 36789
136 27 10 10 277 2 275 280 297 296 189 298
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> BLACK 2P-1.5A 		8-94422-639-1 01 1 9706-9711 ● ●
2 DIODE; CABLE HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BLACK 2P-1.5A 		8-94422-639-1 01 1 9712-0203 ● ●
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9702-9802 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9803-9805 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 10AX1 20AX1 		1-82510-380-0 01 1 9806-9806 ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9807-0203 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 10AX1 20AX1 		1-82510-380-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 125A 		1-82510-234-2 01 1 9505- ● ●
10 BOX; FUSE,HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9505-9904 ● ●
10 BOX; FUSE,HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9505-9904 ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 02 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9908-0203 ● ●
10 BOX; FUSE,HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9908-0203 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 1212- ● ●
10 BOX; FUSE,HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 9505-9808 ● ●
10 BOX; FUSE,HARNESS
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (C) 100A 		1-82510-235-2 01 1 9809-0203 ● ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 9809-0203 ● ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 0204- ● ●
27 FUSE UNIT
(A) 30A 		1-82516-001-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 125A 		9-82941-130-1 AR 1 9505- ● ●
27 FUSE UNIT
(B) 10A YELLOW 		9-82941-136-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 100A 		9-82941-126-0 AR 1 9505- ● ●
27 FUSE UNIT
(B) 15A BLUE 		9-82941-137-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(C) 10A RED 		5-82516-002-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 20A YELLOW 		5-82516-004-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 30A GREEN 		8-94159-008-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 9702- ● ●
136 HARNESS; DASH
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> 		8-98229-812-0 01 1 1212- ● ●
136 HARNESS; DASH
AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> ISUZU M/T<X9A> 		1-82622-743-4 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> ISUZU M/T<X9A> EXC. INDICATOR WARNING BUZZER<WF9> 		1-82623-390-0 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> INDICATOR WARNING BUZZER<WF9> ISUZU M/T<X9A> 		1-82623-391-0 01 1 9101-9504 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) AUSTRALIA EQUIPMENT<RR3> 		1-82622-744-4 01 1 9101-9504 ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-996-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-740-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-583-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-583-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-997-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-741-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-584-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-973-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82624-292-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-742-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-585-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-585-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		8-98229-349-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82624-293-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-743-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-586-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		8-98229-350-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> 		1-82626-949-0 01 1 9702-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9803-9805 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9806-9806 ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-949-1 01 1 9807-0203 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-98229-811-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-977-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-974-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82622-739-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82622-740-3 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-995-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-994-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9709-9802 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9803-9805 ●
189 HARNESS; EXT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-82634-712-0 01 1 9101-9504 ●
189 HARNESS; EXT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (B) 		1-82672-122-0 01 1 9811-0203 ● ●
189 HARNESS; EXT
EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (B) 		1-82672-122-0 01 1 0204- ● ●
189 HARNESS; EXT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-82634-711-0 01 1 9101-9504 ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 9702-9802 ● ●
275 BOX ASM; FRAME HARNESS
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 9803-0203 ● ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION<THN> 		1-82699-378-0 01 1 0204- ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9702-9802 ● ●
277 BOLT; BOX ASM FIX
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9803-0203 ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0204-0512 ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (D) M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28080-820-0 08 1 9505-9510 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-0512 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 9505- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X25 FLANGE 		0-28080-825-0 04 1 9511-9606 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X30 FLANGE 		0-28680-830-0 04 1 9607-0512 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> OVERHEAD COOLING SYSTEM<YS9> (C) M8X20 FLANGE 		0-28080-820-0 02 1 9505-9606 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> OVERHEAD COOLING SYSTEM<YS9> (C) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9705 ● ●
277 BOLT; BOX ASM FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28680-820-0 02 1 9706-0512 ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28680-820-0 02 1 9706-0512 ● ●
277 BOLT; BOX ASM FIX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8 		9-09110-408-0 02 1 9702-9802 ● ●
280 NUT; BOX ASM FIX
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 		9-09110-408-0 02 1 9803-0203 ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8 		9-09110-408-0 02 1 0204-0512 ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION<THN> (B) M8 		0-91110-508-0 02 1 0601- ● ●
280 NUT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8 		9-09110-408-0 08 1 9505-9606 ● ●
280 NUT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8 FLANGE 		0-91150-108-0 08 1 9607-0602 ● ●
280 NUT; BOX ASM FIX
ENG ROOM SW BOX<TEK> (A) M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> (B) 		1-82699-962-0 01 1 9702-9802 ● ●
296 BRACKET; HARNESS BOX
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) 		1-82699-962-0 01 1 9803-0203 ● ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION<THN> (B) 		1-82699-962-0 01 1 0204- ● ●
296 BRACKET; HARNESS BOX
ENG ROOM SW BOX<TEK> (A) L=105 B=25 		1-47476-161-0 01 1 9505-9601 ● ●
296 BRACKET; HARNESS BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) L=105 B=25 		1-47476-161-0 01 1 9602-9705 ● ●
296 BRACKET; HARNESS BOX
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=105 B=25 		1-47476-161-0 01 1 9706- ● ●
296 BRACKET; HARNESS BOX
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) L=105 B=25 		1-47476-161-0 01 1 9706- ● ●
296 BRACKET; HARNESS BOX
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) L=95 		1-82699-085-0 01 1 0103- ● ●
296 BRACKET; HARNESS BOX
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) L=95 		1-82699-085-0 01 1 0103- ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ● ●
297 BOLT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9803-0203 ● ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ● ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> (A) M8X25 FLANGE 		0-28080-825-0 01 1 9505-9601 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8X25 FLANGE 		0-28080-825-0 01 1 9602-9606 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9705 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9706-0102 ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9706-0102 ● ●
297 BOLT; BOX BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512 ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512 ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512 ● ●
297 BOLT; BOX BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
297 BOLT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
297 BOLT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 9702-9802 ● ●
298 NUT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 9803-0102 ● ●
298 NUT; BOX BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0103-0103 ● ●
298 NUT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 0103-0103 ● ●
298 NUT; BOX BRKT
EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 0104-0203 ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ● ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> (A) M8 		9-09110-408-0 01 1 9505-9601 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8 		9-09110-408-0 01 1 9602-9606 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> (A) M8 FLANGE 		0-91150-108-0 01 1 9607-9705 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 9706-0103 ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 9706-0103 ● ●
298 NUT; BOX BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0104-0602 ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 0104-0602 ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 0104-0602 ● ●
298 NUT; BOX BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
298 NUT; BOX BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) ENG ROOM SW BOX<TEK> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
298 NUT; BOX BRKT
ENG ROOM SW BOX<TEK> CENTER SPLIT TYPE FRAME<TLW> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
çizim 36806
136 62 62 62 10 431 41 27 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9702-9802 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9803-9805 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 10AX1 20AX1 		1-82510-380-0 01 1 9806-9806 ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 9807-0203 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 10AX1 20AX1 		1-82510-380-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EURO2 SPECIFICATION<THN> (D) 10AX1 20AX1 		1-82510-380-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 125A 		1-82510-234-2 01 1 9505- ● ●
10 BOX; FUSE,HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9505-9904 ● ●
10 BOX; FUSE,HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9505-9904 ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 02 1 9905-9907 ● ●
10 BOX; FUSE,HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9908-0203 ● ●
10 BOX; FUSE,HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 9908-0203 ● ●
10 BOX; FUSE,HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0204-1211 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 1212- ● ●
10 BOX; FUSE,HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (A) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 1212- ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 9505-9808 ● ●
10 BOX; FUSE,HARNESS
GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> (C) 100A 		1-82510-235-2 01 1 9809-0203 ● ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 9809-0203 ● ●
10 BOX; FUSE,HARNESS
OVERHEAD COOLING SYSTEM<YS9> (C) 100A 		1-82510-235-2 01 1 0204- ● ●
27 FUSE UNIT
(A) 30A 		1-82516-001-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 125A 		9-82941-130-1 AR 1 9505- ● ●
27 FUSE UNIT
(B) 10A YELLOW 		9-82941-136-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(D) 100A 		9-82941-126-0 AR 1 9505- ● ●
27 FUSE UNIT
(B) 15A BLUE 		9-82941-137-0 AR 1 9101-9504 ● ●
27 FUSE UNIT
(C) 10A RED 		5-82516-002-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 20A YELLOW 		5-82516-004-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 30A GREEN 		8-94159-008-0 AR 1 9505- ● ●
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 9702- ● ●
41 PULLER; FUSE
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 01 1 9905-9907 ● ●
41 PULLER; FUSE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 01 1 9905-9907 ● ●
41 PULLER; FUSE
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 01 1 9505-9904 ● ●
41 PULLER; FUSE
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=31.0 B=10.0 		8-94369-144-0 01 1 9505-9904 ●
41 PULLER; FUSE
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 02 1 9905-9907 ● ●
41 PULLER; FUSE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 01 1 9908-0203 ● ●
41 PULLER; FUSE
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 01 1 9908-0203 ● ●
41 PULLER; FUSE
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=31.0 B=10.0 		8-94369-144-0 01 1 0204-1211 ● ●
41 PULLER; FUSE
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> L=31.0 B=10.0 		8-94369-144-0 01 1 0204-1211 ● ●
41 PULLER; FUSE
ISUZU M/T<X9A> L=31.0 B=10.0 		8-94369-144-0 01 1 1212- ● ●
41 PULLER; FUSE
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> L=31.0 B=10.0 		8-94369-144-0 01 1 1212- ●
62 DIODE; HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9905-9907 ● ●
62 DIODE; HARNESS
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9905-9907 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9505-9904 ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) BLACK 10P 		1-82699-703-0 01 1 9505-9904 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 02 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) BLACK 10P 		1-82699-703-0 01 1 0204-1211 ● ●
62 DIODE; HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (B) BLACK 10P 		1-82699-703-0 01 1 0204-1211 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (B) BLACK 10P 		1-82699-703-0 01 1 1212- ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (B) BLACK 10P 		1-82699-703-0 01 1 1212- ●
62 DIODE; HARNESS
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A) BLACK 3P-1.5A 		8-94422-640-0 01 1 9101-9504 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9505-9904 ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9505-9904 ●
62 DIODE; HARNESS
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 02 1 9905-9907 ● ●
62 DIODE; HARNESS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9908-0203 ● ●
62 DIODE; HARNESS
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0204-1211 ● ●
62 DIODE; HARNESS
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0204-1211 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1212- ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> EURO2 SPECIFICATION<THN> (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1212- ●
62 DIODE; HARNESS
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> (C) BLACK 2P-1.5A 		8-94422-639-1 01 1 9709-9802 ●
62 DIODE; HARNESS
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> (C) BLACK 2P-1.5A 		8-94422-639-1 01 1 9803-9805 ●
136 HARNESS; DASH
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EURO2 SPECIFICATION<THN> 		8-98229-812-0 01 1 1212- ● ●
136 HARNESS; DASH
AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> ISUZU M/T<X9A> 		1-82622-743-4 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> ISUZU M/T<X9A> EXC. INDICATOR WARNING BUZZER<WF9> 		1-82623-390-0 01 1 9101-9504 ●
136 HARNESS; DASH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5> INDICATOR WARNING BUZZER<WF9> ISUZU M/T<X9A> 		1-82623-391-0 01 1 9101-9504 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) AUSTRALIA EQUIPMENT<RR3> 		1-82622-744-4 01 1 9101-9504 ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-996-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-740-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-583-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-583-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-583-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-997-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-741-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-584-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-584-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-973-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82624-292-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-742-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-585-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>, EURO2SPECIFICATION<THN> 		1-82626-585-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		1-82626-585-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EURO2 SPECIFICATION<THN> 		8-98229-349-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82624-293-1 01 1 9101-9504 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82625-743-1 01 1 9505-9607 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-586-0 01 1 9608-9701 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9702-9706 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9707-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-586-0 01 1 9803-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82626-586-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		8-98229-350-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> 		1-82626-949-0 01 1 9702-9802 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9803-9805 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> FULLER M/T<X9B> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 9806-9806 ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82626-949-1 01 1 9807-0203 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82626-949-1 01 1 0204-1211 ● ●
136 HARNESS; DASH
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-98229-811-0 01 1 1212- ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-977-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82628-974-0 01 1 9905-0203 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>,INDICATOR WARNING BUZZER<WF9> 		1-82622-739-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
ISUZU M/T<X9A> INDICATOR WARNING BUZZER<WF9> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-82622-740-3 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) INDICATOR WARNING BUZZER<WF9> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> 		1-82622-995-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,INDICATOR WARNING BUZZER<WF9> 		1-82622-994-2 01 1 9101-9504 ● ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9709-9802 ●
136 HARNESS; DASH
MT643 A/T ALLISON(PR7) GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 		1-82627-292-0 01 1 9803-9805 ●
431 CONNECTOR; JOINT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2),EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 10P BROWN 		1-82699-601-0 02 1 9905-9907 ● ●
431 CONNECTOR; JOINT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 10P BROWN 		1-82699-601-0 02 1 9905-9907 ● ●
431 CONNECTOR; JOINT
ISUZU M/T<X9A> EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 10P BROWN 		1-82699-601-0 02 1 9505-9904 ● ●
431 CONNECTOR; JOINT
FULLER M/T<X9B> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 10P BROWN 		1-82699-601-0 02 1 9505-9904 ●
431 CONNECTOR; JOINT
ISUZU M/T<X9A> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 10P BROWN 		1-82699-601-0 04 1 9905-9907 ● ●
431 CONNECTOR; JOINT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 10P BROWN 		1-82699-601-0 02 1 9908-0203 ● ●
431 CONNECTOR; JOINT
EXC. EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 10P BROWN 		1-82699-601-0 02 1 9908-0203 ● ●
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 10P BROWN 		1-82699-601-0 02 1 0204-1211 ● ●
431 CONNECTOR; JOINT
EXC. EURO2 SPECIFICATION<THN> ISUZU M/T<X9A> 10P BROWN 		1-82699-601-0 02 1 0204-1211 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
