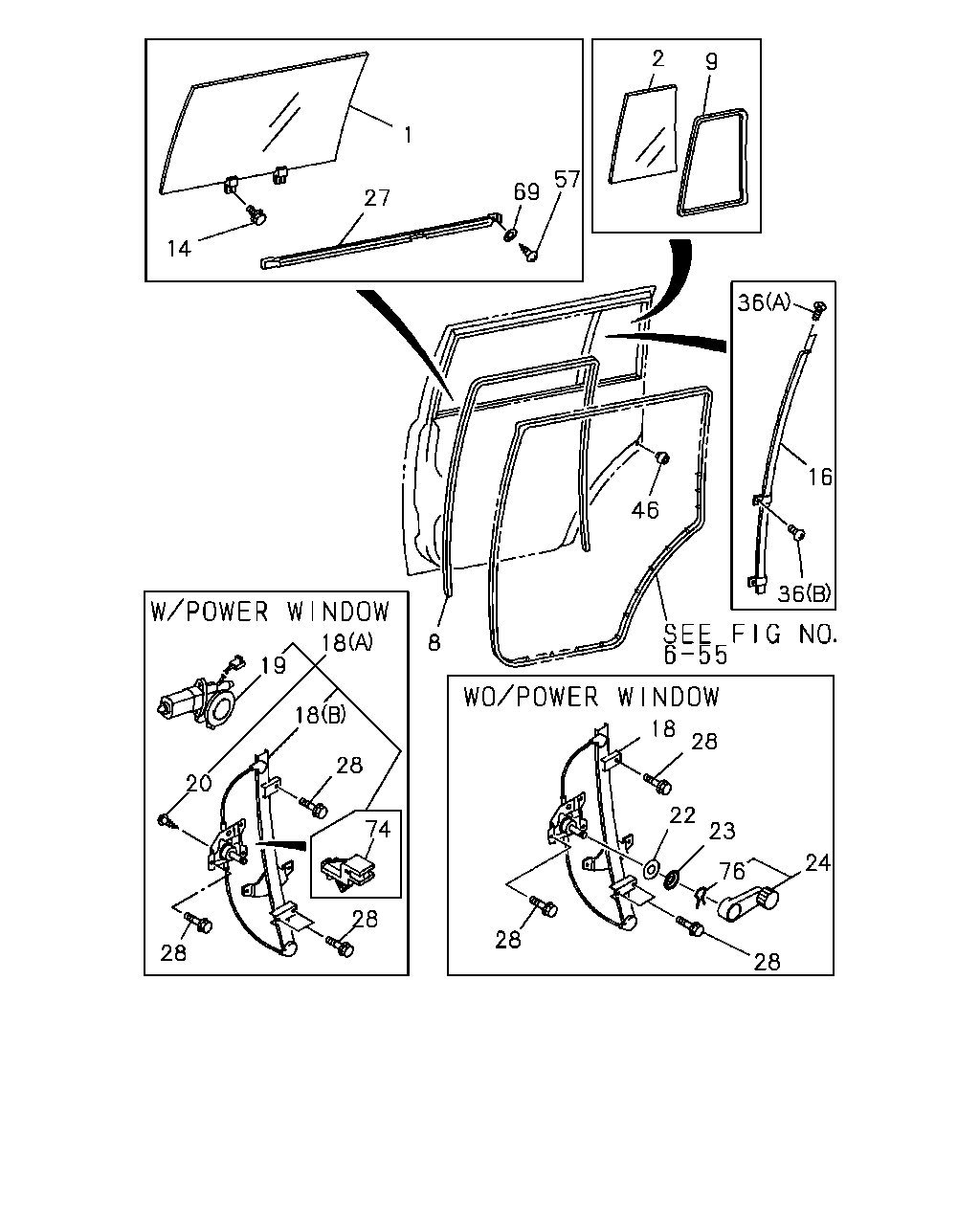

6-51 — REAR DOOR GLASS AND REGULATOR (#44948) — 87 parça

1 2 9 57 69 27 14 46 36 16 36 8 18 28 22 23 24 76 28 28 28 74 28 18 18 19 20 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.180 GLASS; RR DOOR BRONZE GLASS(X72)	8-94358-592-0	01	1	9112-9309	●
1	16.180 GLASS; RR DOOR BRONZE GLASS(X72)	8-97810-975-1	01	1	9310-	●
1	16.180 GLASS; RR DOOR BRONZE GLASS(X72)	8-94358-591-0	01	1	9112-9309	●
1	16.180 GLASS; RR DOOR BRONZE GLASS(X72)	8-97810-974-1	01	1	9310-	●
1	16.180 GLASS; RR DOOR EXC. BRONZE GLASS(X72)	8-94358-590-0	01	1	9112-9309	●
1	16.180 GLASS; RR DOOR EXC. BRONZE GLASS(X72)	8-97810-973-0	01	1	9310-9504	●
1	16.180 GLASS; RR DOOR EXC. BRONZE GLASS(X72)	8-97121-748-1	01	1	9505-	●
1	16.180 GLASS; RR DOOR EXC. BRONZE GLASS(X72)	8-94358-589-0	01	1	9112-9309	●
1	16.180 GLASS; RR DOOR EXC. BRONZE GLASS(X72)	8-97810-972-0	01	1	9310-9504	●
1	16.180 GLASS; RR DOOR EXC. BRONZE GLASS(X72)	8-97121-747-1	01	1	9505-	●
2	16.180 GLASS; RR DOOR,RR BRONZE GLASS(X72)	8-94358-604-0	01	1	9112-9309	●
2	16.180 GLASS; RR DOOR,RR BRONZE GLASS(X72)	8-97810-993-1	01	1	9310-	●
2	16.180 GLASS; RR DOOR,RR BRONZE GLASS(X72)	8-94358-603-0	01	1	9112-9309	●
2	16.180 GLASS; RR DOOR,RR BRONZE GLASS(X72)	8-97810-992-1	01	1	9310-	●
2	16.180 GLASS; RR DOOR,RR EXC. BRONZE GLASS(X72)	8-94358-602-0	01	1	9112-9309	●
2	16.180 GLASS; RR DOOR,RR EXC. BRONZE GLASS(X72)	8-97810-991-0	01	1	9310-9504	●
2	16.180 GLASS; RR DOOR,RR EXC. BRONZE GLASS(X72)	8-97121-750-1	01	1	9505-	●
2	16.180 GLASS; RR DOOR,RR EXC. BRONZE GLASS(X72)	8-94358-601-0	01	1	9112-9309	●
2	16.180 GLASS; RR DOOR,RR EXC. BRONZE GLASS(X72)	8-97810-990-0	01	1	9310-9504	●
2	16.180 GLASS; RR DOOR,RR EXC. BRONZE GLASS(X72)	8-97121-749-1	01	1	9505-	●
8	16.190 RUN; GLASS,RR DOOR	8-94358-580-2	01	1	9112-9604	●
8	16.190 RUN; GLASS,RR DOOR	8-97128-690-0	01	1	9605-	●
8	16.190 RUN; GLASS,RR DOOR	8-94358-579-2	01	1	9112-9604	●
8	16.190 RUN; GLASS,RR DOOR	8-97128-689-0	01	1	9605-	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-614-1	01	1	9112-	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-613-1	01	1	9112-	●
14	16.270 BOLT; RR DOOR GLASS 10.701 M6X8	8-94155-893-0	04	1	9112-	●
16	16.190 SASH ASM; DIVISION	8-94358-584-4	01	1	9112-	●
16	16.190 SASH ASM; DIVISION	8-94358-583-4	01	1	9112-	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (A)	8-94358-574-1	01	1	9112-9208	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97800-045-1	01	1	9209-9302	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97810-470-1	01	1	9303-9504	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97811-106-0	01	1	9505-9505	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97810-470-2	01	1	9506-9509	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97135-175-0	01	1	9510-9608	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97165-870-1	01	1	9609-	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (A)	8-94358-573-1	01	1	9112-9208	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97800-044-1	01	1	9209-9302	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97810-469-0	01	1	9303-9310	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97810-469-1	01	1	9311-9504	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97811-105-0	01	1	9505-9505	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97810-469-2	01	1	9506-9509	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97135-174-0	01	1	9510-9608	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> (B)	8-97165-869-1	01	1	9609-	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-94358-576-2	01	1	9112-9504	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97811-100-0	01	1	9505-9507	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-94358-576-3	01	1	9508-9509	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97135-169-0	01	1	9510-9610	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97164-500-1	01	1	9611-	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-94358-575-2	01	1	9112-9504	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97811-099-0	01	1	9505-9507	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-94358-575-3	01	1	9508-9509	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97135-168-0	01	1	9510-9610	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97164-499-1	01	1	9611-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30>	8-97800-049-1	01	1	9112-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30>	8-97800-048-1	01	1	9112-	●
20	16.270 SCREW POWER WINDOW<A30> 01.277 M6X14 W/LK WASHER	9-03910-614-0	06	1	9112-	●
22	16.270 GASKET; DUST SEAL,WINDOW REG EXC. POWER WINDOW<A30> 10.783	8-94106-830-1	02	1	9112-	●
23	16.270 ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30> 10.805	8-94220-668-1	02	1	9112-	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK BROWN	8-97806-031-0	02	1	9112-9311	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. POWER WINDOW<A30> DARK BROWN	8-97806-031-0	02	1	9312-9504	●
24	16.270 HANDLE; WINDOW REG,RR DOOR EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. POWER WINDOW<A30> DARK GRAY	8-97151-346-0	02	1	9505-	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BROWN(130) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK BROWN	8-97806-639-0	02	1	9112-9311	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BROWN(130) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN	8-97806-639-0	02	1	9312-9504	●
24	16.270 HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY	8-97098-453-0	02	1	9505-	●	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY	8-97806-030-0	02	1	9112-9311	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. POWER WINDOW<A30> DARK GRAY	8-97806-030-0	02	1	9312-9504	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR GRAY(153) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY	8-97805-571-0	02	1	9112-9311	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR GRAY(153) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY	8-97805-571-0	02	1	9312-9504	●
27	16.183 SEAL; WAIST,RR DOOR EXTERIOR CHROME PACKAGE<6CX>	8-94358-663-3	01	1	9112-	●
27	16.183 SEAL; WAIST,RR DOOR EXTERIOR CHROME PACKAGE<6CX>	8-94358-662-3	01	1	9112-	●
27	16.183 SEAL; WAIST,RR DOOR EXC. EXTERIOR CHROME PACKAGE<6CX>	8-94358-618-5	01	1	9112-	●
27	16.183 SEAL; WAIST,RR DOOR EXC. EXTERIOR CHROME PACKAGE<6CX>	8-94358-617-5	01	1	9112-	●
28	16.181 BOLT; WINDOW REG 10.701 M6X8	8-94155-893-0	12	1	9112-9509	●
28	16.181 BOLT; WINDOW REG 10.701 M6X8	8-94155-893-0	14	1	9510-	●
36	16.320 SCREW; DIVISION SASH 10.701 (B) M6X8	8-94155-893-0	04	1	9112-	●
36	16.320 SCREW; DIVISION SASH 08.913 (A) M4X8 CK-HEAD	9-93090-408-0	04	1	9112-9210	●
36	16.320 SCREW; DIVISION SASH (A) M4X8	8-97810-107-0	04	1	9211-9408	●
36	16.320 SCREW; DIVISION SASH (A) M4X8	8-97810-107-0	02	1	9409-9409	●
36	16.320 SCREW; DIVISION SASH 10.747 (A) M4X8	9-03800-408-0	02	1	9410-	●
46	16.400 BUFFER; RR DOOR	8-94358-581-0	02	1	9112-	●
57	16.183 SCREW; WAIST OUTER SEAL	8-97802-968-1	02	1	9112-	●
69	16.225 WASHER; WAIST SEAL ID=6	8-94126-642-0	02	1	9112-9404	●
69	16.225 WASHER; WAIST SEAL 08.054 D=16	8-94427-941-0	02	1	9405-	●
74	16.270 HOLDER POWER WINDOW<A30>	8-97805-403-0	02	1	9112-9506	●
74	16.270 HOLDER	8-97805-403-0	02	1	9607-	●
76	16.260 PIN EXC. POWER WINDOW<A30> 16.270	8-94220-591-0	02	1	9502-	●
