◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#44946) — 120 parça

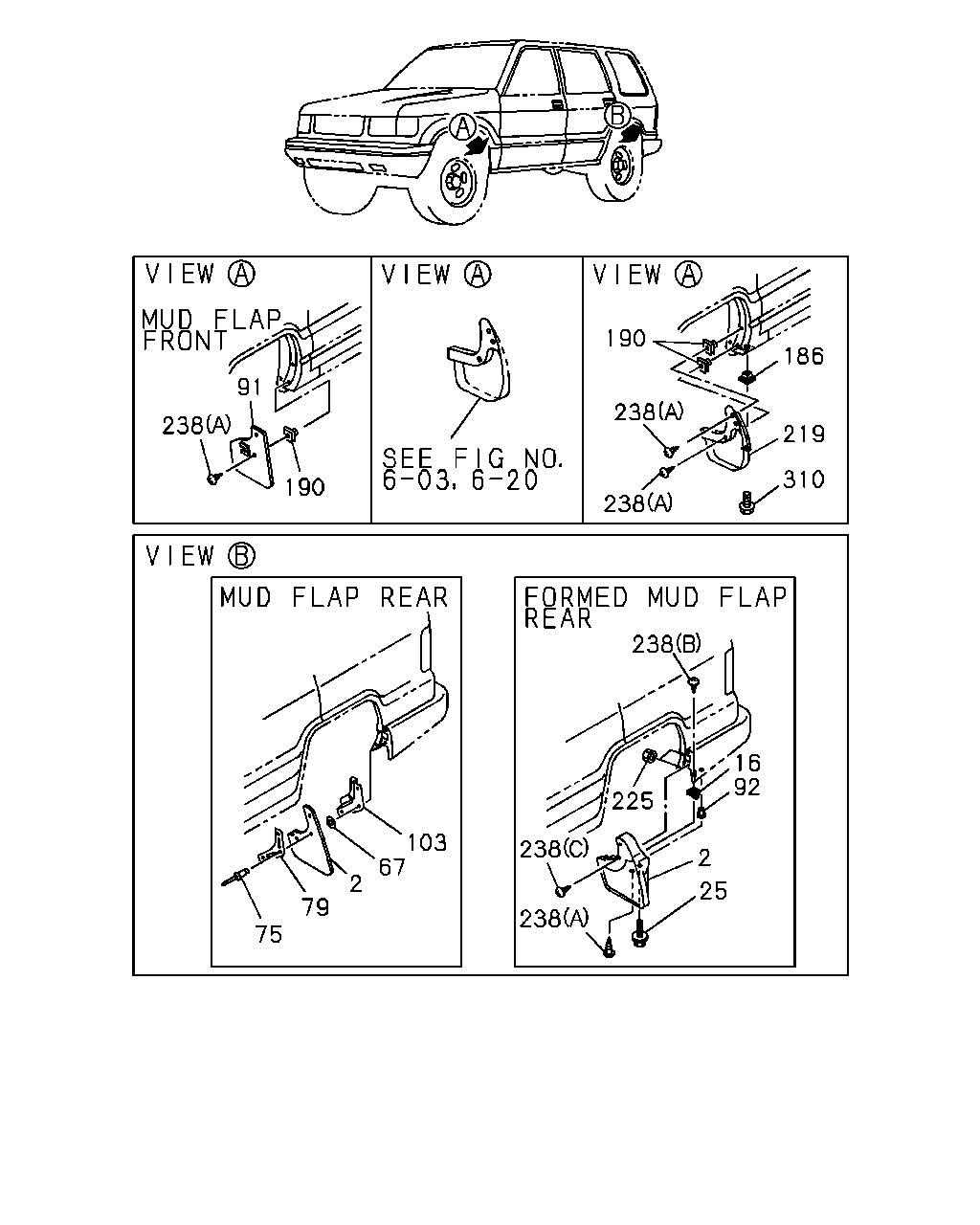

çizim 65193
190 238 186 219 310 238 238 16 92 2 25 225 238 238 103 67 2 79 75 190 91 238
BalonParca AdiParca NoAdetTipApplied Date A B
2 08.154 COVER; MUD,TIRE RR
FORMED MUD FLAP<6WL> PRIMER 		8-97807-871-0 01 1 9505-9607 ●
2 08.154 COVER; MUD,TIRE RR
FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> PRIMER 		8-97807-871-0 01 1 9505-9607 ●
2 08.154 COVER; MUD,TIRE RR
FORMED MUD FLAP<6WL> COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> PRIMER 		8-97807-871-0 01 1 9608- ●
2 08.154 COVER; MUD,TIRE RR
FORMED MUD FLAP<6WL> PRIMER 		8-97807-870-0 01 1 9505-9607 ●
2 08.154 COVER; MUD,TIRE RR
FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> PRIMER 		8-97807-870-0 01 1 9505-9607 ●
2 08.154 COVER; MUD,TIRE RR
FORMED MUD FLAP<6WL> COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> PRIMER 		8-97807-870-0 01 1 9608- ●
2 08.154 COVER; MUD,TIRE RR
EUROPE EQUIPMENT(EK4) MUD FLAP<VH4> 		8-97808-526-0 01 1 9112-9311 ● ●
2 08.154 COVER; MUD,TIRE RR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4> 		8-97808-526-0 01 1 9312- ● ●
2 08.154 COVER; MUD,TIRE RR
EUROPE EQUIPMENT(EK4) MUD FLAP<VH4> 		8-97808-525-0 01 1 9112-9311 ● ●
2 08.154 COVER; MUD,TIRE RR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4> 		8-97808-525-0 01 1 9312- ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4) 		8-97805-350-1 01 1 9112-9311 ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97805-350-1 01 1 9312- ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4) 		8-97805-220-1 01 1 9112-9311 ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97805-220-1 01 1 9312- ● ●
2 08.154 COVER; MUD,TIRE RR
OVER FENDER<6GH> FORMED MUD FLAP<6WL> PRIMER 		8-97103-299-2 01 1 9507- ●
2 08.154 COVER; MUD,TIRE RR
OVER FENDER<6GH> FORMED MUD FLAP<6WL> PRIMER 		8-97103-298-2 01 1 9507- ●
16 08.155 NUT; FLANGE,BRKT TO BODY
FORMED MUD FLAP<6WL> 		8-97805-829-0 02 1 9112-9410 ● ●
25 08.155 BOLT; PLATE TO MUD COVER
FORMED MUD FLAP<6WL> 10.152 M6X28 W/PL WASHER 		8-94148-420-0 02 1 9112-9607 ● ●
25 08.155 BOLT; PLATE TO MUD COVER
COLOR KEYED ROCKER SKIRT<6YA> 10.152 M6X28 W/PL WASHER 		8-94148-420-0 02 1 9608- ● ●
25 08.155 BOLT; PLATE TO MUD COVER
FORMED MUD FLAP<6WL> 10.152 M6X28 W/PL WASHER 		8-94148-420-0 02 1 9608- ●
67 08.155 WASHER; PL
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 08.225 		1-09985-170-0 06 1 9503-9605 ● ●
67 08.155 WASHER; PL
MUD FLAP<VH4> 08.225 		1-09985-170-0 06 1 9606- ● ●
75 08.155 RIVET; MUD COVER
MUD FLAP<VH4> 08.131 		8-97802-566-0 06 1 9112-9307 ● ●
75 08.155 RIVET; MUD COVER
MUD FLAP<VH4> 		1-09987-128-0 06 1 9308- ● ●
79 08.155 RETAINER; MUD COVER
MUD FLAP<VH4> 		8-97807-360-0 02 1 9112-9502 ● ●
79 08.155 RETAINER; MUD COVER
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4> 		8-97807-360-0 02 1 9503-9605 ● ●
91 08.154 COVER; MUD,FRT
EUROPE EQUIPMENT(EK4) MUD FLAP<VH4> 		8-97805-867-0 01 1 9112-9311 ● ●
91 08.154 COVER; MUD,FRT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4> 		8-97805-867-0 01 1 9312- ● ●
91 08.154 COVER; MUD,FRT
EUROPE EQUIPMENT(EK4) MUD FLAP<VH4> 		8-97805-866-0 01 1 9112-9311 ● ●
91 08.154 COVER; MUD,FRT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4> 		8-97805-866-0 01 1 9312- ● ●
91 08.154 COVER; MUD,FRT
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4) 		8-97807-553-0 01 1 9112-9311 ● ●
91 08.154 COVER; MUD,FRT
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97807-553-0 01 1 9312- ● ●
91 08.154 COVER; MUD,FRT
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4) 		8-97805-165-0 01 1 9112-9311 ● ●
91 08.154 COVER; MUD,FRT
MUD FLAP<VH4> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97805-165-0 01 1 9312- ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> 03.403 WELL NUT 		8-94311-999-0 02 1 9112-9305 ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> 16.065 M6 RUBBER NUT 		8-97023-281-0 02 1 9306-9607 ● ●
92 08.155 NUT; MUD COVER
COLOR KEYED ROCKER SKIRT<6YA> 16.065 M6 RUBBER NUT 		8-97023-281-0 02 1 9608- ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> 16.065 M6 RUBBER NUT 		8-97023-281-0 02 1 9608- ●
92 08.155 NUT; MUD COVER
THAILAND EQUIPMENT(PM9) EXC. COLOR KEYED ROCKER SKIRT<6YA> ID=5.2 H=10 		8-97032-135-0 04 1 9505-9607 ●
92 08.155 NUT; MUD COVER
THAILAND EQUIPMENT(PM9) ID=5.2 H=10 		8-97032-135-0 04 1 9608- ●
103 08.214 BRACKET ASM; RR MUD FLAP
MUD FLAP<VH4> 		8-97807-328-0 01 1 9112- ● ●
103 08.214 BRACKET ASM; RR MUD FLAP
MUD FLAP<VH4> 		8-97807-327-0 01 1 9112- ● ●
186 08.155 GROMMET; MUD COVER
THAILAND EQUIPMENT(PM9) EXC. COLOR KEYED ROCKER SKIRT<6YA> 09.190 D=9X9 L=8 M6 		8-94222-314-0 02 1 9505-9607 ●
186 08.155 GROMMET; MUD COVER
THAILAND EQUIPMENT(PM9) 09.190 D=9X9 L=8 M6 		8-94222-314-0 02 1 9608- ●
190 08.155 NUT; FENDER COVER
MUD FLAP<VH4> ID=5.2 H=10 		8-97032-135-0 06 1 9112- ● ●
219 08.155 FLAP; MUD GUARD
THAILAND EQUIPMENT(PM9) EXC. COLOR KEYED ROCKER SKIRT<6YA> 		8-97121-240-0 01 1 9505-9607 ●
219 08.155 FLAP; MUD GUARD
THAILAND EQUIPMENT(PM9) 		8-97121-240-0 01 1 9608- ●
219 08.155 FLAP; MUD GUARD
THAILAND EQUIPMENT(PM9) EXC. COLOR KEYED ROCKER SKIRT<6YA> 		8-97121-239-0 01 1 9505-9607 ●
219 08.155 FLAP; MUD GUARD
THAILAND EQUIPMENT(PM9) 		8-97121-239-0 01 1 9608- ●
225 08.155 NUT; MUD GUARD
OVER FENDER<6GH> FORMED MUD FLAP<6WL> 07.833 M6 FLANGE 		8-97063-399-0 04 1 9506-9607 ●
225 08.155 NUT; MUD GUARD
OVER FENDER<6GH> 07.833 M6 FLANGE 		8-97063-399-0 04 1 9608- ●
238 08.153 SCREW; MUD GUARD
FORMED MUD FLAP<6WL> 03.671 (C) M6X12 		0-28010-612-0 04 1 9112-9204 ● ●
238 08.153 SCREW; MUD GUARD
FORMED MUD FLAP<6WL> 01.428 (C) M6X12 FLANGE 		0-28080-612-0 04 1 9205-9607 ● ●
238 08.153 SCREW; MUD GUARD
COLOR KEYED ROCKER SKIRT<6YA> 01.428 (C) M6X12 FLANGE 		0-28080-612-0 04 1 9608- ● ●
238 08.153 SCREW; MUD GUARD
FORMED MUD FLAP<6WL> 01.428 (C) M6X12 FLANGE 		0-28080-612-0 04 1 9608- ●
238 08.153 SCREW; MUD GUARD
FORMED MUD FLAP<6WL> 08.155 (B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 02 1 9112-9410 ● ●
238 08.153 SCREW; MUD GUARD
MUD FLAP<VH4> 08.155 (A) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9112- ● ●
310 08.155 SCREW; MUD COVER
THAILAND EQUIPMENT(PM9) EXC. COLOR KEYED ROCKER SKIRT<6YA> 14.686 M6X16 TAPPING W/PL WASHER 		0-74315-616-0 02 1 9505-9607 ●
310 08.155 SCREW; MUD COVER
THAILAND EQUIPMENT(PM9) 14.686 M6X16 TAPPING W/PL WASHER 		0-74315-616-0 02 1 9608- ●
310 08.155 SCREW; MUD COVER
THAILAND EQUIPMENT(PM9) EXC. COLOR KEYED ROCKER SKIRT<6YA> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9505-9607 ●
310 08.155 SCREW; MUD COVER
THAILAND EQUIPMENT(PM9) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9608- ●
çizim 68735
295 294 40 39 41 40 41 39 45 294 264
BalonParca AdiParca NoAdetTipApplied Date A B
39 08.131 LINER; FENDER
(B) FRONT 		8-94359-272-5 01 1 9112-9408 ● ●
39 08.131 LINER; FENDER
(B) FRONT 		8-97103-849-2 01 1 9409- ● ●
39 08.131 LINER; FENDER
(A) REAR 		8-97804-158-0 01 1 9112-9308 ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97808-606-0 01 1 9309-9502 ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97106-346-2 01 1 9503-9504 ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97106-342-2 01 1 9505-9607 ● ●
39 08.131 LINER; FENDER
COLOR KEYED ROCKER SKIRT<6YA> (A) REAR 		8-97106-342-2 01 1 9608- ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97106-342-2 01 1 9608- ●
39 08.131 LINER; FENDER
(A) REAR 		8-97804-157-1 01 1 9112-9308 ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97808-605-0 01 1 9309-9502 ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97106-345-2 01 1 9503-9504 ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97106-341-2 01 1 9505-9607 ● ●
39 08.131 LINER; FENDER
COLOR KEYED ROCKER SKIRT<6YA> (A) REAR 		8-97106-341-2 01 1 9608- ● ●
39 08.131 LINER; FENDER
FORMED MUD FLAP<6WL> (A) REAR 		8-97106-341-2 01 1 9608- ●
39 08.131 LINER; FENDER
(B) FRONT 		8-94359-271-5 01 1 9112-9408 ● ●
39 08.131 LINER; FENDER
(B) FRONT 		8-97103-848-2 01 1 9409- ● ●
39 08.131 LINER; FENDER
EXC. FORMED MUD FLAP<6WL> (A) REAR 		8-97804-158-1 01 1 9309-9502 ● ●
39 08.131 LINER; FENDER
EXC. FORMED MUD FLAP<6WL> (A) REAR 		8-97103-851-2 01 1 9503-9504 ● ●
39 08.131 LINER; FENDER
EXC. FORMED MUD FLAP<6WL> (A) REAR 		8-97106-344-2 01 1 9505-9607 ● ●
39 08.131 LINER; FENDER
EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) REAR 		8-97106-344-2 01 1 9608- ●
39 08.131 LINER; FENDER
EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> (A) REAR 		8-97106-344-2 01 1 9608- ●
39 08.131 LINER; FENDER
EXC. FORMED MUD FLAP<6WL> (A) REAR 		8-97804-157-2 01 1 9309-9502 ● ●
39 08.131 LINER; FENDER
EXC. FORMED MUD FLAP<6WL> (A) REAR 		8-97103-850-2 01 1 9503-9504 ● ●
39 08.131 LINER; FENDER
EXC. FORMED MUD FLAP<6WL> (A) REAR 		8-97106-343-2 01 1 9505-9607 ● ●
39 08.131 LINER; FENDER
EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) REAR 		8-97106-343-2 01 1 9608- ●
39 08.131 LINER; FENDER
EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> (A) REAR 		8-97106-343-2 01 1 9608- ●
40 08.155 CLIP; INNER LINER
08.131 (A) 		8-94215-212-0 02 1 9505- ●
40 08.155 CLIP; INNER LINER
EXC. OVER FENDER<6GH> 08.131 (A) 		8-94215-212-0 02 1 9505- ●
40 08.155 CLIP; INNER LINER
(B) 		8-97805-240-0 09 1 9112- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 AR 1 9112- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97801-576-1 01 1 9112-9504 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JG2 ENG(RJC) 		8-97801-576-1 01 1 9505-9512 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4) 		8-97801-576-1 01 1 9601-9601 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-94359-625-2 01 1 9112-9512 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-94359-625-2 01 1 9601-9601 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. EUROPE EQUIPMENT(EK4) 		8-97138-227-0 01 1 9602- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EUROPE EQUIPMENT(EK4) 		8-97132-943-0 01 1 9601- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 		8-94359-624-2 01 1 9112-9504 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 		8-94359-624-2 01 1 9505-9512 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-94359-624-2 01 1 9601-9601 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4ZE1 ENG(RLJ) 		8-97801-575-2 01 1 9112-9512 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4ZE1 ENG(RLJ) EXC. EUROPE EQUIPMENT(EK4) 		8-97801-575-2 01 1 9601-9601 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. EUROPE EQUIPMENT(EK4) 		8-97138-226-1 01 1 9602- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EUROPE EQUIPMENT(EK4) 		8-97132-942-2 01 1 9601- ● ●
264 08.154 FINISHER; FRT FENDER 8-97808-857-0 02 1 9207-9504 ● ●
264 08.154 FINISHER; FRT FENDER 8-97808-857-0 02 1 9505- ●
264 08.154 FINISHER; FRT FENDER
EXC. OVER FENDER<6GH> 		8-97808-857-0 02 1 9505- ●
264 08.154 FINISHER; FRT FENDER
OVER FENDER<6GH> 		8-97107-799-0 02 1 9505- ●
294 08.154 CLIP; MUD COVER 8-94215-211-0 14 1 9112-9308 ● ●
294 08.154 CLIP; MUD COVER 8-94215-211-0 22 1 9309-9602 ● ●
294 08.154 CLIP; MUD COVER
REAR 		8-94215-211-0 08 1 9603- ● ●
294 08.154 CLIP; MUD COVER
EUROPE EQUIPMENT(EK4) 03.163 FRONT 		8-97809-579-0 14 1 9603- ● ●
294 08.154 CLIP; MUD COVER
EXC. EUROPE EQUIPMENT(EK4) FRONT 		8-94215-211-0 14 1 9603- ● ●
295 08.153 COVER; WHEEL HOUSE 8-97809-125-2 01 1 9309-9504 ● ●
295 08.153 COVER; WHEEL HOUSE 8-97119-720-0 01 1 9505-9512 ● ●
295 08.153 COVER; WHEEL HOUSE 8-97143-180-0 01 1 9601- ● ●
295 08.153 COVER; WHEEL HOUSE 8-97809-124-2 01 1 9309-9504 ● ●
295 08.153 COVER; WHEEL HOUSE 8-97119-719-0 01 1 9505-9512 ● ●
295 08.153 COVER; WHEEL HOUSE 8-97143-179-0 01 1 9601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
