◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#44944) — 279 parça

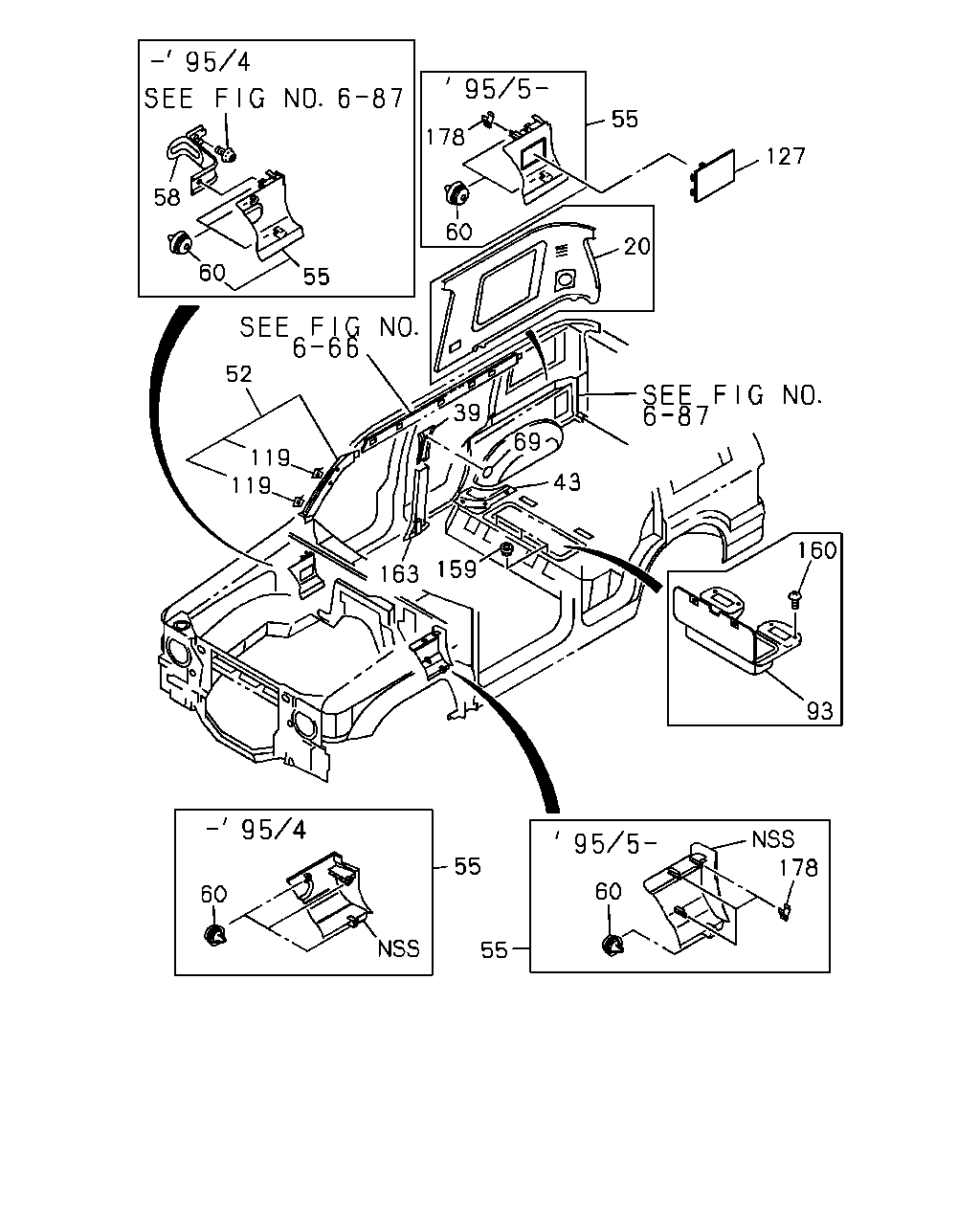

çizim 68304
60 55 55 60 178 93 160 163 159 43 69 39 20 127 55 178 60 55 60 58 52 119 119
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-100-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97151-325-8 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-097-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97151-324-8 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-324-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-321-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-102-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-099-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-326-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-411-7 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-323-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-410-7 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97806-094-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-740-1 01 1 9207-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-740-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-740-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-327-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH A FRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-327-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97806-091-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-738-1 01 1 9207-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-738-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-738-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-326-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH A FRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-326-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-094-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-744-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-744-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-744-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK BROWN 		8-97808-744-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-744-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-329-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-329-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-092-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-742-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-742-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-742-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK BROWN 		8-97808-742-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-742-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-328-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-328-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-318-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-736-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-736-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-736-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-413-1 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-314-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-733-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-733-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-733-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-412-1 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97806-096-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-741-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97806-093-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-739-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-741-1 01 1 9209-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-741-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-741-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-739-1 01 1 9209-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-739-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-739-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-095-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-745-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-093-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-743-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-745-1 01 1 9209-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-745-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-745-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97808-745-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-745-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-743-1 01 1 9209-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-743-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-743-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97808-743-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-743-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-320-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-316-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-734-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-800-0 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9209-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-737-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-734-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-734-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-799-0 01 1 9507- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49> DARK BROWN 		8-97806-082-5 01 1 9112-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49> DARK GRAY 		8-97151-320-5 01 1 9505-9607 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49>,SEAT BELT 3 POINT PRE TENSIONER<7MC> DARK GRAY 		8-97151-320-5 01 1 9608- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49> DARK BROWN 		8-97806-079-5 01 1 9112-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49> DARK GRAY 		8-97151-321-5 01 1 9505-9607 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49>,SEAT BELT 3 POINT PRE TENSIONER<7MC> DARK GRAY 		8-97151-321-5 01 1 9608- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) FRT SEAT BELT W/RETRACTOR<A49> EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-302-3 01 1 9112-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-302-4 01 1 9410-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-406-4 01 1 9505- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) FRT SEAT BELT W/RETRACTOR<A49> EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-298-3 01 1 9112-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-298-4 01 1 9410-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) FRT SEAT BELT W/RETRACTOR<A49> EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-407-4 01 1 9505-9507 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-407-4 01 1 9508- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. FRT SEAT BELT W/RETRACTOR<A49> DARK BROWN 		8-97806-088-3 01 1 9112-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. FRT SEAT BELT W/RETRACTOR<A49> DARK BROWN 		8-97806-085-3 01 1 9112-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49> DARK GRAY 		8-97806-084-5 01 1 9112-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> FRT SEAT BELT W/RETRACTOR<A49> DARK GRAY 		8-97806-081-5 01 1 9112-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) FRT SEAT BELT W/RETRACTOR<A49> EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-304-3 01 1 9309-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-304-4 01 1 9410-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) FRT SEAT BELT W/RETRACTOR<A49> EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-300-3 01 1 9309-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-300-4 01 1 9410-9504 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. FRT SEAT BELT W/RETRACTOR<A49> DARK GRAY 		8-97806-090-3 01 1 9112-9409 ● ● ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. FRT SEAT BELT W/RETRACTOR<A49> DARK GRAY 		8-97806-087-3 01 1 9112-9409 ● ● ● ●
43 16.547 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-052-6 01 1 9112-9607 ● ● ● ●
43 16.547 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-052-6 01 1 9608- ● ●
43 16.547 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-051-6 01 1 9112-9607 ● ● ● ●
43 16.547 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-051-6 01 1 9608- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-064-5 01 1 9112-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
DARK GRAY 		8-97151-284-0 01 1 9505- ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97804-276-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97804-276-5 01 1 9312-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97098-378-0 01 1 9505- ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97804-272-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK BROWN 		8-97804-272-5 01 1 9312-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97151-285-0 01 1 9505- ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-066-5 01 1 9112-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97804-278-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97804-278-5 01 1 9312-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97804-274-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97804-274-5 01 1 9312-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-061-3 01 1 9112-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-282-0 01 1 9505- ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-058-3 01 1 9112-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-281-2 01 1 9505- ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-063-3 01 1 9112-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-060-3 01 1 9112-9504 ● ● ● ●
58 16.551 BRACKET
16.351 		8-97807-758-0 01 1 9112-9504 ● ● ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD
16.165 H=16.7 		8-97022-017-0 06 1 9203-9504 ● ● ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD
16.165 H=16.7 		8-97022-017-0 01 1 9505- ● ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD
16.165 H=16.7 		8-97022-017-0 02 1 9505- ● ● ●
69 16.585 PLUG; HOLE
LONG(UB***F) EXC. FRT SEAT BELT W/RETRACTOR<A49> 09.775 ID=10.5 		8-97808-143-1 02 1 9112-9504 ● ● ● ●
69 16.585 PLUG; HOLE
LONG(UB***F) EXC. FRT SEAT BELT W/RETRACTOR<A49> 09.775 ID=10.5 		8-97808-143-1 02 1 9505- ● ●
93 08.849 BOX; LUGGAGE
LONG(UB***F) BLACK 		8-97817-140-4 01 1 9309-9504 ● ● ● ●
93 08.849 BOX; LUGGAGE
LONG(UB***F) BLACK 		8-97817-140-4 01 1 9505- ● ●
93 08.849 BOX; LUGGAGE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-015-3 01 1 9112-9308 ● ● ● ●
93 08.849 BOX; LUGGAGE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-017-3 01 1 9112-9308 ● ● ● ●
119 16.165 CLIP; FRT PILLAR
14.651 		8-94313-458-0 04 1 9112-9504 ● ● ● ●
119 16.165 CLIP; FRT PILLAR
14.651 		8-94313-458-0 04 1 9505-9607 ● ● ●
119 16.165 CLIP; FRT PILLAR
14.651 		8-94313-458-0 02 1 9608- ● ● ●
127 02.483 LID; FUSE BOX
DARK GRAY 		8-97098-655-3 01 1 9505- ● ● ●
159 08.849 GROMMET; BOX
LONG(UB***F) 09.743 		8-94203-326-0 10 1 9112-9403 ● ● ● ●
159 08.849 GROMMET; BOX
LONG(UB***F) 09.743 		8-94203-326-0 08 1 9404-9607 ● ● ● ●
159 08.849 GROMMET; BOX
LONG(UB***F) 09.743 		8-94203-326-0 08 1 9608- ● ●
160 08.849 SCREW; BOX
LONG(UB***F) 09.743 M5X16 		8-94295-854-0 11 1 9112-9403 ● ● ● ●
160 08.849 SCREW; BOX
LONG(UB***F) 09.743 M5X16 		8-94295-854-0 09 1 9404-9607 ● ● ● ●
160 08.849 SCREW; BOX
LONG(UB***F) 09.743 M5X16 		8-94295-854-0 09 1 9608- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-310-4 01 1 9112-9504 ● ● ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) DARK GRAY 		8-97098-408-4 01 1 9505- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-306-4 01 1 9112-9504 ● ● ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) DARK GRAY 		8-97098-409-4 01 1 9505- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-312-4 01 1 9112-9504 ● ● ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-308-4 01 1 9112-9504 ● ● ● ●
178 16.165 CLIP; TRIM COVER 8-97122-119-0 01 1 9505- ● ● ●
178 16.165 CLIP; TRIM COVER 8-97122-119-0 03 1 9505- ● ● ●

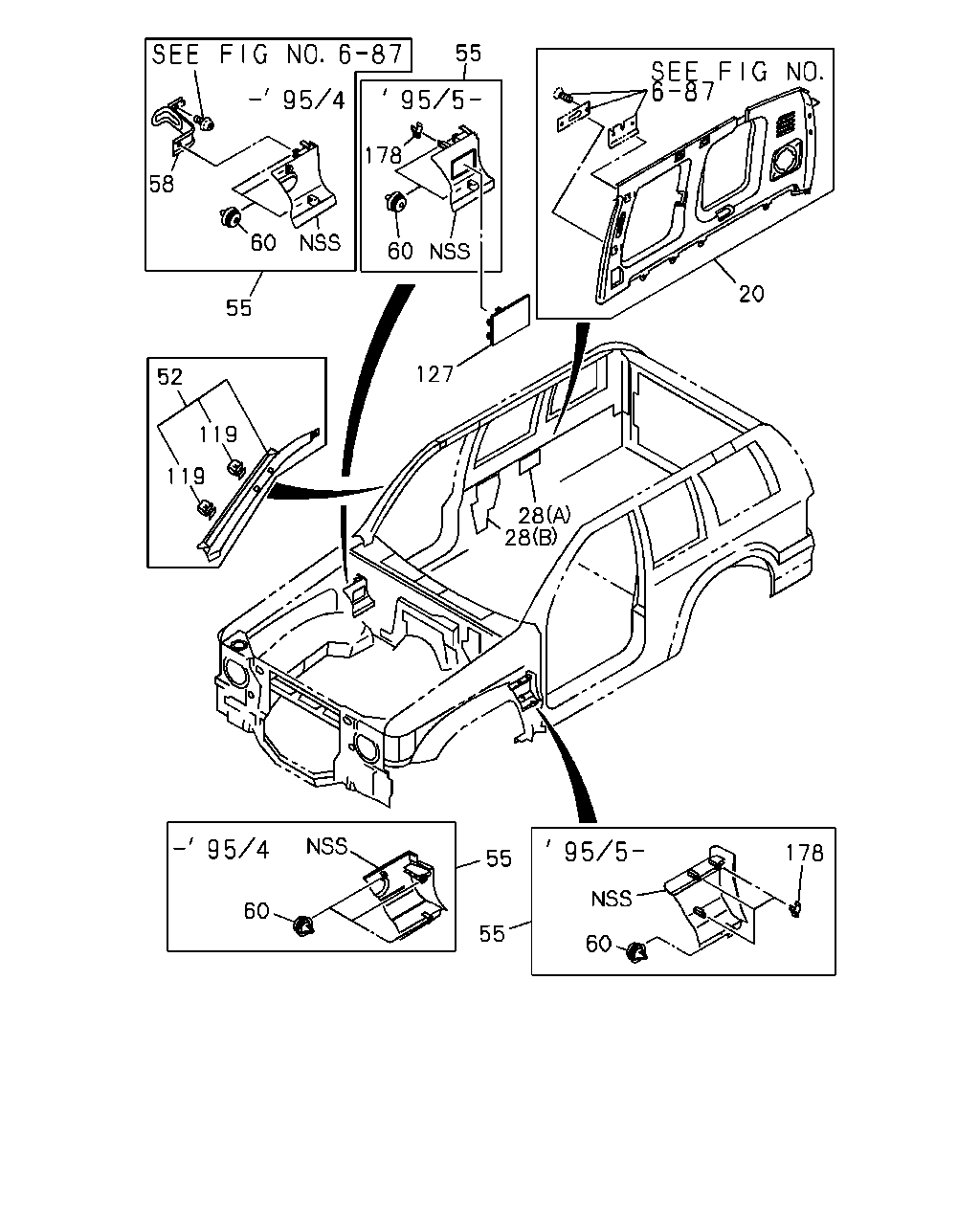

çizim 68459
55 20 127 60 178 60 55 58 52 119 119 28 28 60 55 55 60 178
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-100-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97151-325-8 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-097-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97151-324-8 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-324-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-321-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-102-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-099-8 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-326-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-411-7 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-323-7 01 1 9112-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
SHORT(UB***C) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-410-7 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97806-094-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-740-1 01 1 9207-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-740-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-740-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-327-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH A FRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-327-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97806-091-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-738-1 01 1 9207-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-738-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-738-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-326-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH A FRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-326-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-094-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-744-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-744-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-744-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK BROWN 		8-97808-744-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-744-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-329-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-329-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-092-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-742-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97808-742-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-742-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK BROWN 		8-97808-742-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97808-742-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-328-1 01 1 9505-9506 ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-328-1 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-318-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-736-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-736-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-736-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-413-1 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-314-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-733-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK BROWN 		8-97808-733-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97808-733-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-412-1 01 1 9505- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97806-096-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-741-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97806-093-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-739-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-741-1 01 1 9209-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-741-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-741-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-739-1 01 1 9209-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-739-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-739-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-095-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-745-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-093-2 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-743-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-745-1 01 1 9209-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-745-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-745-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97808-745-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-745-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-743-1 01 1 9209-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97808-743-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-743-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97808-743-1 01 1 9312-9402 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97808-743-1 01 1 9403-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-320-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9207-9208 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-316-9 01 1 9112-9206 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-734-1 01 1 9207-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-800-0 01 1 9507- ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9209-9308 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-737-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97808-734-1 01 1 9309-9311 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-734-1 01 1 9312-9504 ● ● ● ●
20 16.165 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SO UTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97151-799-0 01 1 9507- ● ●
28 16.165 SEAL; QUARTER UPR
SHORT(UB***C) (A) 		8-97805-817-1 01 1 9112- ● ● ● ●
28 16.165 SEAL; QUARTER UPR
SHORT(UB***C) (A) 		8-97805-816-1 01 1 9112- ● ● ● ●
28 16.165 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97805-825-2 01 1 9112-9607 ● ● ● ●
28 16.165 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97176-005-0 01 1 9608- ● ● ● ●
28 16.165 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97805-824-2 01 1 9112-9607 ● ● ● ●
28 16.165 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97176-004-0 01 1 9608- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-064-5 01 1 9112-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
DARK GRAY 		8-97151-284-0 01 1 9505- ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97804-276-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97804-276-5 01 1 9312-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97098-378-0 01 1 9505- ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97804-272-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK BROWN 		8-97804-272-5 01 1 9312-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97151-285-0 01 1 9505- ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-066-5 01 1 9112-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97804-278-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97804-278-5 01 1 9312-9504 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97804-274-5 01 1 9112-9311 ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICAEQUIPMENT(SW2) DARK GRAY 		8-97804-274-5 01 1 9312-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-061-3 01 1 9112-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-282-0 01 1 9505- ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-058-3 01 1 9112-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-281-2 01 1 9505- ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-063-3 01 1 9112-9504 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-060-3 01 1 9112-9504 ● ● ● ●
58 16.551 BRACKET
16.351 		8-97807-758-0 01 1 9112-9504 ● ● ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD
16.165 H=16.7 		8-97022-017-0 06 1 9203-9504 ● ● ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD
16.165 H=16.7 		8-97022-017-0 01 1 9505- ● ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD
16.165 H=16.7 		8-97022-017-0 02 1 9505- ● ● ●
119 16.165 CLIP; FRT PILLAR
14.651 		8-94313-458-0 04 1 9112-9504 ● ● ● ●
119 16.165 CLIP; FRT PILLAR
14.651 		8-94313-458-0 04 1 9505-9607 ● ● ●
119 16.165 CLIP; FRT PILLAR
14.651 		8-94313-458-0 02 1 9608- ● ● ●
127 02.483 LID; FUSE BOX
DARK GRAY 		8-97098-655-3 01 1 9505- ● ● ●
178 16.165 CLIP; TRIM COVER 8-97122-119-0 01 1 9505- ● ● ●
178 16.165 CLIP; TRIM COVER 8-97122-119-0 03 1 9505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
