◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#44940) — 106 parça

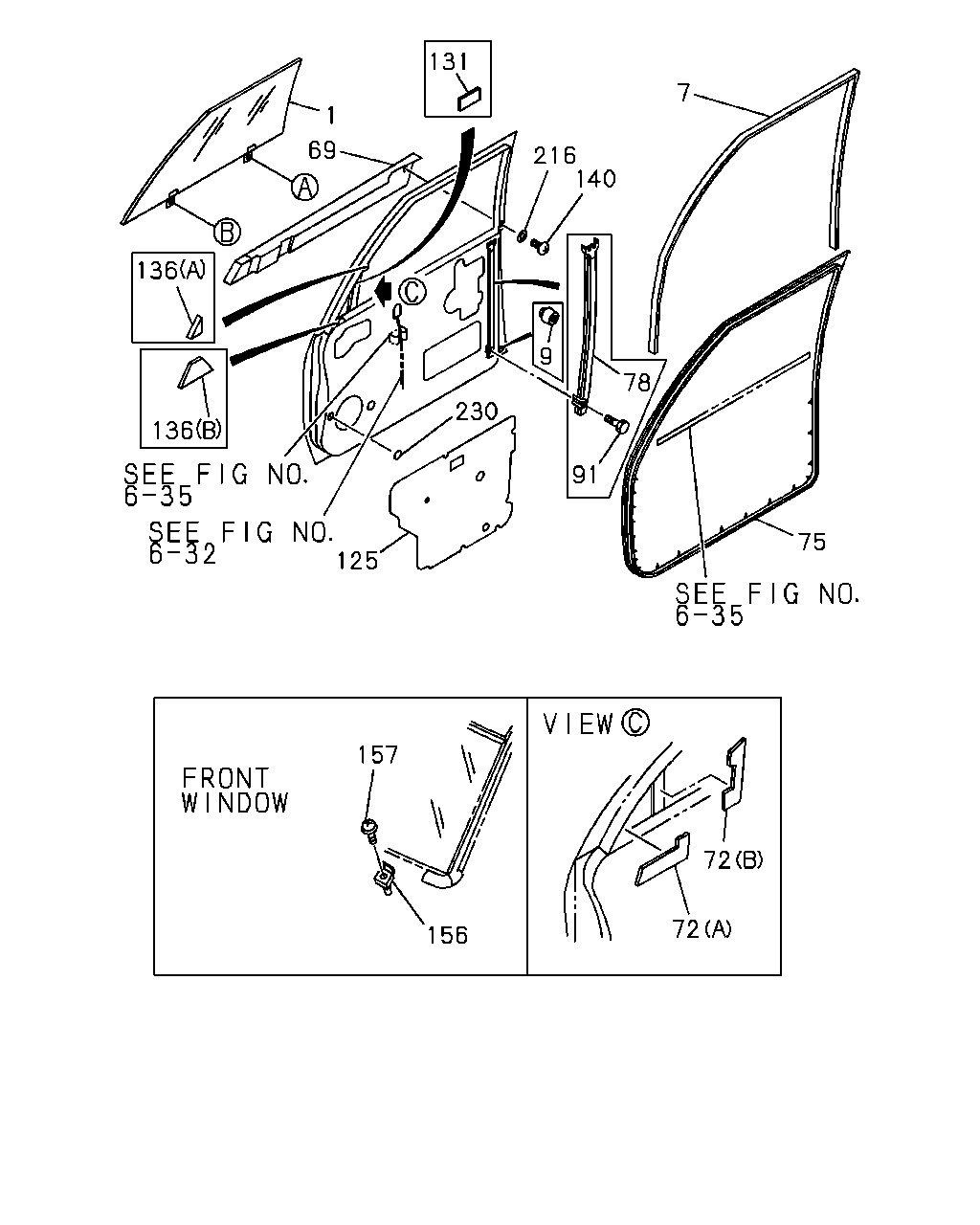

çizim 65510
1 69 131 216 140 7 75 78 9 91 230 125 136 136 157 156 72 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-94358-588-0 01 1 9112-9309 ● ●
1 16.180 GLASS; FRT DOOR
BRONZE GLASS(X72) NSG 		8-97810-967-0 01 1 9310-9404 ● ●
1 16.180 GLASS; FRT DOOR
BRONZE GLASS(X72) ASAHI 		8-97811-220-1 01 1 9405- ● ●
1 16.180 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-94358-587-0 01 1 9112-9309 ● ●
1 16.180 GLASS; FRT DOOR
BRONZE GLASS(X72) NSG 		8-97810-966-0 01 1 9310-9404 ● ●
1 16.180 GLASS; FRT DOOR
BRONZE GLASS(X72) ASAHI 		8-97811-219-1 01 1 9405- ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-94358-586-0 01 1 9112-9309 ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) NSG 		8-97810-965-0 01 1 9310-9404 ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) ASAHI 		8-97811-218-0 01 1 9405-9504 ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-97121-780-1 01 1 9505- ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-94358-585-0 01 1 9112-9309 ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) NSG 		8-97810-964-0 01 1 9310-9404 ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) ASAHI 		8-97811-217-0 01 1 9405-9504 ● ●
1 16.180 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-97121-779-1 01 1 9505- ● ●
7 16.190 GLASS RUN; FRT DOOR 8-94358-578-7 01 1 9112-9604 ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97128-688-0 01 1 9605- ● ●
7 16.190 GLASS RUN; FRT DOOR 8-94358-577-7 01 1 9112-9604 ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97128-687-0 01 1 9605- ● ●
9 16.400 BUFFER; DOOR GLASS RUN 8-94358-581-0 04 1 9112- ● ●
69 16.225 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-661-6 01 1 9112-9504 ● ●
69 16.225 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-661-6 01 1 9505- ●
69 16.225 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-660-6 01 1 9112-9504 ● ●
69 16.225 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-660-6 01 1 9505- ●
69 16.225 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-616-7 01 1 9112-9504 ● ●
69 16.225 SEAL; DOOR WAIST 8-94358-616-7 01 1 9505- ●
69 16.225 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-616-7 01 1 9505- ●
69 16.225 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-615-7 01 1 9112-9504 ● ●
69 16.225 SEAL; DOOR WAIST 8-94358-615-7 01 1 9505- ●
69 16.225 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-615-7 01 1 9505- ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) 		8-97137-579-2 01 1 9509- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) 		8-97137-578-2 01 1 9509- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) 		8-97139-401-0 01 1 9510- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) 		8-97139-400-0 01 1 9510- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-608-3 01 1 9112-9302 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97810-339-0 01 1 9303-9503 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97811-404-0 01 1 9504-9504 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97811-404-0 01 1 9505-9603 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97128-682-0 01 1 9604- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-607-3 01 1 9112-9302 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97810-338-0 01 1 9303-9503 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97811-403-0 01 1 9504-9504 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97811-403-0 01 1 9505-9603 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97128-681-0 01 1 9604- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97807-357-3 01 1 9112-9302 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97810-335-0 01 1 9303-9503 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-400-0 01 1 9504-9504 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97811-424-0 01 1 9505-9603 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-424-0 01 1 9505-9603 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-680-1 01 1 9604- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97128-680-1 01 1 9604- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97807-356-3 01 1 9112-9302 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97810-334-0 01 1 9303-9503 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-399-0 01 1 9504-9504 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97811-423-0 01 1 9505-9603 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-423-0 01 1 9505-9603 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-679-1 01 1 9604- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97128-679-1 01 1 9604- ●
78 16.190 RAIL; FRT GUIDE 8-94358-624-3 01 1 9112-9309 ● ●
78 16.190 RAIL; FRT GUIDE
930913- 		8-97810-349-1 01 1 9309- ● ●
78 16.190 RAIL; FRT GUIDE 8-94358-623-3 01 1 9112-9309 ● ●
78 16.190 RAIL; FRT GUIDE
930913- 		8-97810-348-1 01 1 9309- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 		8-94155-893-0 02 1 9112- ● ●
125 16.183 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> 		8-97800-163-4 02 1 9112- ● ●
125 16.183 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97800-161-4 02 1 9112- ● ●
131 16.183 SEAL; FRT DOOR
GRADE S(RBA) EXC. EUROPE EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> 		8-97808-593-0 02 1 9201-9210 ●
131 16.183 SEAL; FRT DOOR
GRADE S(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97808-593-0 02 1 9201-9210 ●
136 16.183 SEAL; DOOR INNER,FRT DOOR
(A) 		8-97807-983-1 02 1 9112-9503 ● ●
136 16.183 SEAL; DOOR INNER,FRT DOOR
(B) 		8-97808-076-0 04 1 9112-9301 ● ●
136 16.183 SEAL; DOOR INNER,FRT DOOR
(B) 		8-97808-076-0 02 1 9302-9312 ● ●
136 16.183 SEAL; DOOR INNER,FRT DOOR
(B) 		8-97811-165-0 02 1 9401-9504 ● ●
140 16.183 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 9112- ● ●
156 08.133 SUPPORT; WINDSHIELD,LWR 8-97807-477-0 02 1 9112-9607 ● ●
157 08.133 SCREW; SUPPORT TO BRKT
M6X16 		8-97805-189-0 02 1 9112-9607 ● ●
216 16.225 WASHER; WAIST SEAL
ID=6 		8-94126-642-0 02 1 9112-9404 ● ●
216 16.225 WASHER; WAIST SEAL
08.054 D=16 		8-94427-941-0 02 1 9405- ● ●
230 16.165 SEAL; DOOR
16.520 		1-76798-005-0 04 1 9209-9312 ● ●
230 16.165 SEAL; DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9401- ● ●

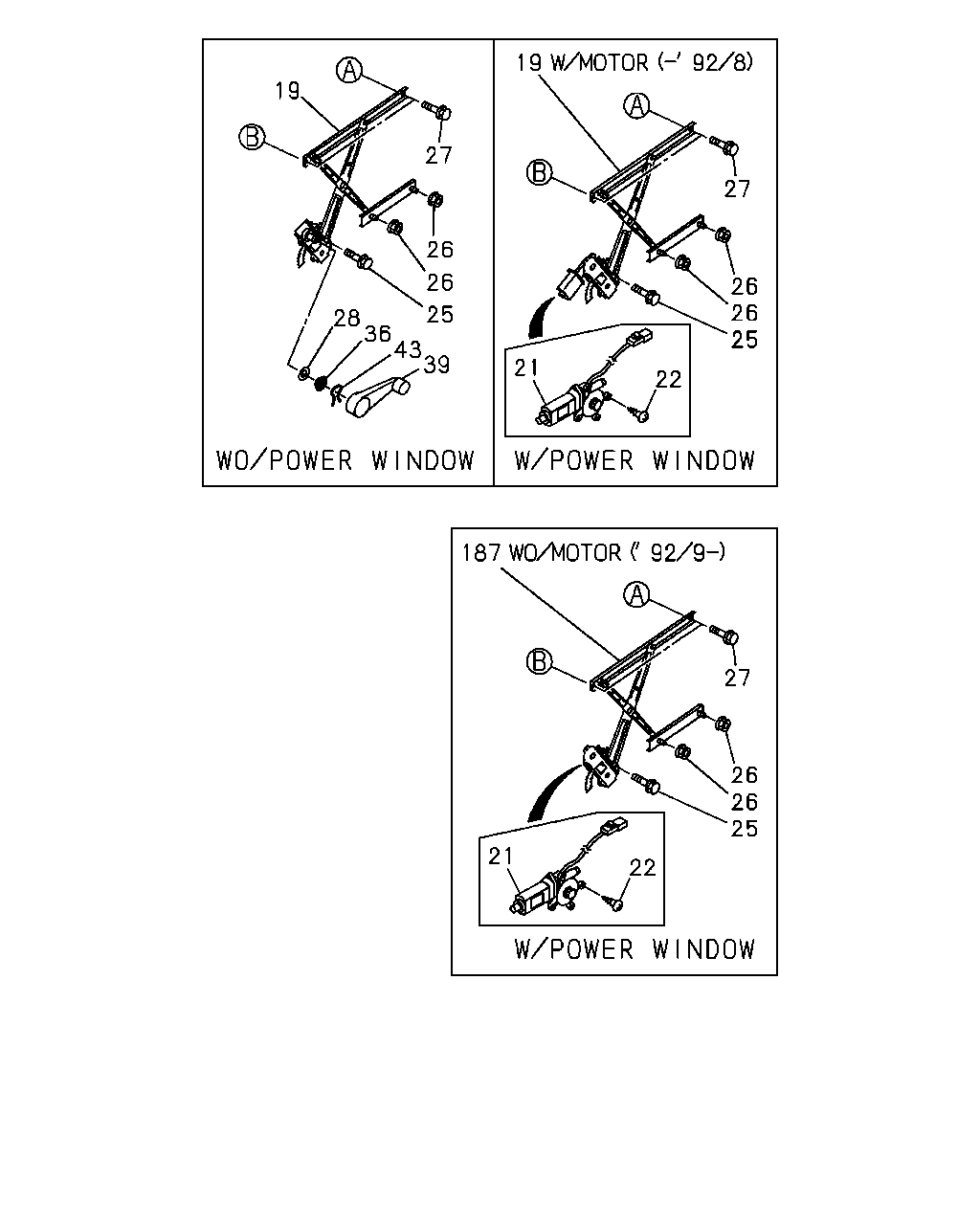

çizim 65900
21 22 25 26 26 27 22 21 25 26 26 27 19 19 27 26 25 26 28 36 43 39 187
BalonParca AdiParca NoAdetTipApplied Date A B
19 16.260 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-94358-570-0 01 1 9112-9208 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94358-572-0 01 1 9112- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-94358-569-0 01 1 9112-9208 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94358-571-0 01 1 9112- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97800-047-0 01 1 9112-9608 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-864-0 01 1 9609- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97800-046-0 01 1 9112-9608 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-863-0 01 1 9609- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A30> 01.277 M6X14 W/LK WASHER 		9-03910-614-0 06 1 9112- ● ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 08 1 9112- ● ●
26 16.270 NUT; FLANGE,WINDOW REG
07.829 M6 FLANGE 		5-09440-004-0 04 1 9112- ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 9112- ● ●
28 16.155 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 10.783 		8-94106-830-1 02 1 9112- ● ●
36 16.270 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 10.805 		8-94220-668-1 02 1 9112- ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK BROWN 		8-97806-031-0 02 1 9112-9311 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BROWN(130) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. POWER WINDOW<A30> DARK BROWN 		8-97806-031-0 02 1 9312-9504 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 9505- ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BROWN(130) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK BROWN 		8-97806-639-0 02 1 9112-9311 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BROWN(130) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK BROWN 		8-97806-639-0 02 1 9312-9504 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97098-453-0 02 1 9505- ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY 		8-97806-030-0 02 1 9112-9311 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR GRAY(153) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. POWER WINDOW<A30> DARK GRAY 		8-97806-030-0 02 1 9312-9504 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR GRAY(153) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97805-571-0 02 1 9112-9311 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR GRAY(153) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) DARK GRAY 		8-97805-571-0 02 1 9312-9504 ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94220-591-0 02 1 9502- ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97800-042-0 01 1 9209-9608 ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-861-0 01 1 9609- ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97800-043-0 01 1 9209-9608 ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-862-0 01 1 9609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
