6-30 — FRONT DOOR AND HINGE (#44939) — 30 parça

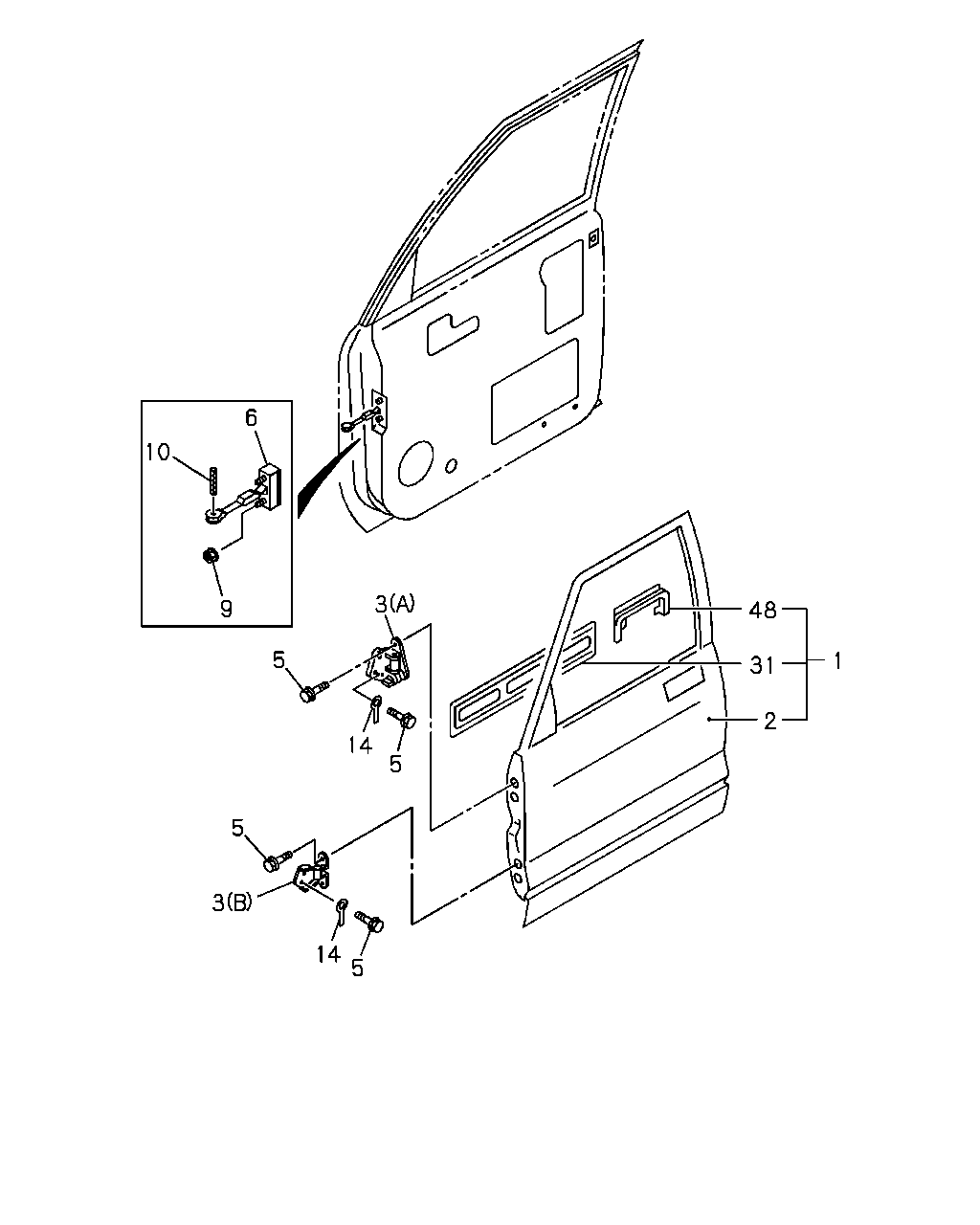

çizim 68458
6 10 9 3 5 14 5 48 31 1 2 5 14 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; FRT,WO/TRIM 8-94358-438-0 01 1 9112-9209 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
920914- 		8-97808-946-1 01 1 9209-9504 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97808-946-2 01 1 9505-9607 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. THAILAND EQUIPMENT(PM9) 		8-97808-946-2 01 1 9505-9607 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) ,WEST MALAYSIA EQUIPMENT(S3D) 		8-97161-753-0 01 1 9608- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-94358-437-0 01 1 9112-9209 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
920914- 		8-97808-945-1 01 1 9209-9504 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97808-945-2 01 1 9505-9607 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. THAILAND EQUIPMENT(PM9) 		8-97808-945-2 01 1 9505-9607 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) ,WEST MALAYSIA EQUIPMENT(S3D) 		8-97161-752-0 01 1 9608- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THAILAND EQUIPMENT(PM9) 		8-97808-954-2 01 1 9505-9607 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WESTMALAYSIA EQUIPMENT(S3D) 		8-97161-761-0 01 1 9608- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THAILAND EQUIPMENT(PM9) 		8-97808-953-2 01 1 9505-9607 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WESTMALAYSIA EQUIPMENT(S3D) 		8-97161-760-0 01 1 9608- ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-373-2 01 1 9112- ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-372-2 01 1 9112- ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-314-2 01 1 9112- ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-392-4 01 1 9112- ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-315-2 01 1 9112- ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-393-4 01 1 9112- ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 16 1 9112- ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-94358-619-0 02 1 9112- ● ●
9 16.320 NUT; CHECK ARM
07.829 M6 FLANGE 		5-09440-004-0 04 1 9112- ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-97020-859-0 02 1 9112- ● ●
14 16.320 WASHER; PL,HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9608-9612 ● ●
14 16.320 WASHER; PL,HINGE
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9701- ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-94358-446-0 01 1 9112- ● ●
31 16.152 REINFORCEMENT; FRT DOOR
16.150 		8-94358-445-0 01 1 9112- ● ●
48 16.152 REINFORCEMENT; HANDLE 8-94358-448-2 01 1 9112- ● ●
48 16.152 REINFORCEMENT; HANDLE 8-94358-447-2 01 1 9112- ● ●
