Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#44938) — 358 parça

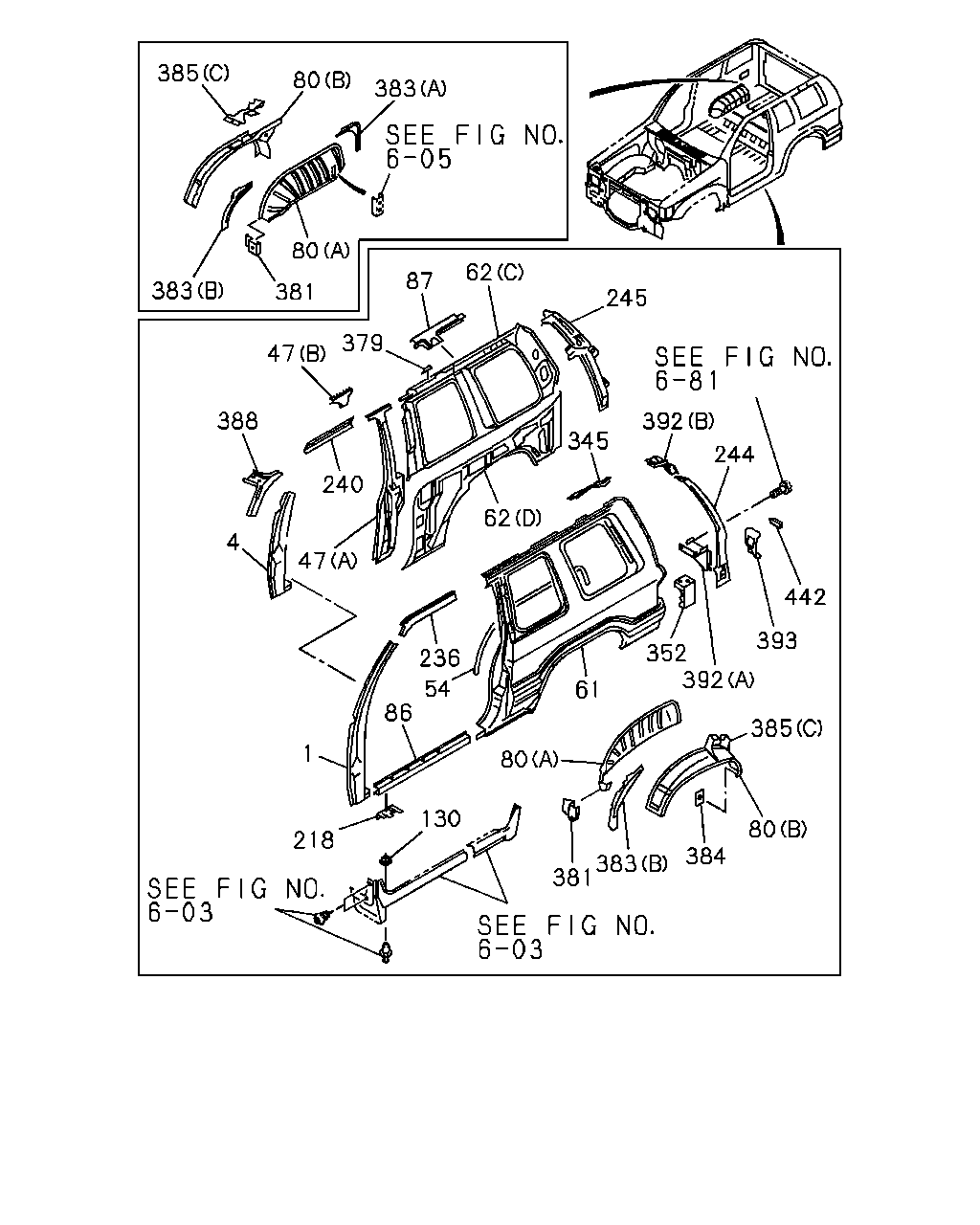

218 1 130 381 80 86 236 54 61 392 352 383 384 385 80 393 442 244 392 345 62 47 4 388 47 379 240 87 62 245 80 383 381 383 80 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-94359-854-1	01	1	9112-9508	●	●
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-97811-440-0	01	1	9509-	●	●
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-94359-853-1	01	1	9112-9508	●	●
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-97811-439-0	01	1	9509-	●	●
4	16.570 PANEL; A-POST INNER,UPR	8-94359-918-0	01	1	9112-	●	●
4	16.570 PANEL; A-POST INNER,UPR	8-94359-917-1	01	1	9112-	●	●
47	16.575 REINFORCEMENT; B-POST (A)	8-97801-871-2	01	1	9112-	●
47	16.575 REINFORCEMENT; B-POST (B)	8-97803-931-1	01	1	9112-	●
47	16.575 REINFORCEMENT; B-POST (A)	8-97801-870-2	01	1	9112-	●
47	16.575 REINFORCEMENT; B-POST (B)	8-97803-930-1	01	1	9112-	●
54	16.335 PATCH; DOOR STRIKER	8-97808-594-0	02	1	9112-	●	●
61	16.570 PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-983-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-904-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-904-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-982-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-903-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-903-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER	8-94358-358-9	01	1	9112-9202		●
61	16.570 PANEL; SIDE OUTER	8-97808-712-0	01	1	9203-9504		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-712-0	01	1	9505-9710		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97808-712-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-712-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97103-259-1	01	1	9505-9607		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97183-083-0	01	1	9608-		●
61	16.570 PANEL; SIDE OUTER	8-94358-357-9	01	1	9112-9202		●
61	16.570 PANEL; SIDE OUTER	8-97808-711-0	01	1	9203-9504		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-711-0	01	1	9505-9710		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97808-711-0	01	1	9608-9710		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97808-711-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-711-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97103-258-1	01	1	9505-9607		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97183-082-0	01	1	9608-		●
62	16.570 PANEL; BODY SIDE INNER (C)	8-94359-989-6	01	1	9112-9404	●
62	16.570 PANEL; BODY SIDE INNER (C)	8-97110-496-3	01	1	9405-	●
62	16.570 PANEL; BODY SIDE INNER (D)	8-97801-875-9	01	1	9112-9404	●
62	16.570 PANEL; BODY SIDE INNER (D)	8-97103-662-0	01	1	9405-	●
62	16.570 PANEL; BODY SIDE INNER (C)	8-94359-988-5	01	1	9112-9404	●
62	16.570 PANEL; BODY SIDE INNER (C)	8-97110-495-2	01	1	9405-	●
62	16.570 PANEL; BODY SIDE INNER (D)	8-97801-874-6	01	1	9112-	●
62	16.570 PANEL; BODY SIDE INNER (A)	8-94358-414-5	01	1	9112-9404		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-97110-494-2	01	1	9405-		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97801-091-9	01	1	9112-9203		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97808-789-1	01	1	9204-9404		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97104-211-0	01	1	9405-9504		●
62	16.570 PANEL; BODY SIDE INNER COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3),OVER FENDER<6GH> (B)	8-97104-211-0	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97104-211-0	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER 3RD SEAT 7 PASSENGERS(AS3) COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97104-211-0	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97808-789-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97104-211-0	01	1	9510-		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-94358-413-4	01	1	9112-9404		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-97110-493-1	01	1	9405-9504		●
62	16.570 PANEL; BODY SIDE INNER COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3),OVER FENDER<6GH> (A)	8-97110-493-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97110-493-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER 3RD SEAT 7 PASSENGERS(AS3) COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97110-493-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (A)	8-94358-413-6	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-97110-493-1	01	1	9510-		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97801-090-9	01	1	9112-		●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-94358-669-5	01	1	9112-9403	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-97103-599-2	01	1	9404-	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97800-544-0	01	1	9112-9208	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97809-011-0	01	1	9209-9305	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97810-389-1	01	1	9306-	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-94358-668-7	01	1	9112-9403	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-97103-598-1	01	1	9404-	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97800-543-0	01	1	9112-9208	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97809-010-0	01	1	9209-9305	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97810-388-1	01	1	9306-	●	●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-902-4	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-902-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-184-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-901-4	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-901-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-183-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-967-3	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-967-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-182-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-966-3	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-966-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-181-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9112-9504		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9505-9602		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-161-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-180-0	01	1	9712-		●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9112-9504		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9505-9602		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-160-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-179-0	01	1	9712-		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-94358-667-4	01	1	9112-9602		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97133-179-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97187-977-0	01	1	9712-		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-94358-666-4	01	1	9112-9602		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97133-178-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97187-976-0	01	1	9712-		●
87	16.570 REINFORCEMENT; SEAT BELT,RETRACT	8-97803-612-4	01	1	9112-	●
87	16.570 REINFORCEMENT; SEAT BELT,RETRACT	8-97803-611-4	01	1	9112-	●
130	16.570 GROMMET; SCREW,PROTECTOR ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9112-9504	●	●
130	16.570 GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9505-9508	●
130	16.570 GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9505-9508		●
218	09.011 PATCH; CAB MTG	8-97803-283-3	01	1	9112-	●	●
218	09.011 PATCH; CAB MTG	8-97803-282-3	01	1	9112-	●	●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9112-	●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9112-	●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-965-2	01	1	9112-9607		●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-97166-947-1	01	1	9608-		●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-964-2	01	1	9112-9607		●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-97166-946-1	01	1	9608-		●
240	16.575 CANTRAIL; RR INNER	8-97801-919-0	01	1	9112-	●
240	16.575 CANTRAIL; RR INNER	8-97801-918-0	01	1	9112-	●
240	16.575 CANTRAIL; RR INNER	8-97801-528-0	01	1	9112-		●
240	16.575 CANTRAIL; RR INNER	8-97801-527-0	01	1	9112-		●
244	16.570 PANEL; RR PILLAR UPR,OUTER	8-94358-369-7	01	1	9112-	●	●
244	16.570 PANEL; RR PILLAR UPR,OUTER	8-94358-368-7	01	1	9112-	●	●
245	16.575 PANEL; REINF,RR PILLAR	8-94359-904-3	01	1	9112-	●
245	16.575 PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-904-3	01	1	9112-		●
245	16.575 PANEL; REINF,RR PILLAR	8-94359-903-3	01	1	9112-	●
245	16.575 PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-903-3	01	1	9112-		●
245	16.575 PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-743-7	01	1	9112-		●
245	16.575 PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-742-7	01	1	9112-		●
345	16.570 PANEL; EXT,SIDE OUTER	8-94359-890-3	01	1	9112-	●	●
345	16.570 PANEL; EXT,SIDE OUTER	8-94359-889-3	01	1	9112-	●	●
352	16.570 CLOSING ASM; D POST	8-97803-336-1	01	1	9112-	●	●
352	16.570 CLOSING ASM; D POST	8-94359-915-2	01	1	9112-	●	●
379	16.570 PATCH; ROOF RACK	8-94359-867-1	02	1	9112-	●
379	16.570 PATCH; ROOF RACK	8-94359-867-1	06	1	9112-		●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-995-3	01	1	9112-	●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-994-3	01	1	9112-	●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-941-2	01	1	9112-		●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-940-2	01	1	9112-		●
383	08.153 PANEL; SIDE INNER (B)	8-94359-993-1	01	1	9112-	●
383	08.153 PANEL; SIDE INNER (B)	8-94359-992-1	01	1	9112-	●
383	08.153 PANEL; SIDE INNER (A)	8-94359-939-0	01	1	9112-	●	●
383	08.153 PANEL; SIDE INNER (B)	8-94359-938-1	01	1	9112-		●
383	08.153 PANEL; SIDE INNER (B)	8-94359-937-1	01	1	9112-		●
384	08.153 PATCH; WHEEL HOUSE	8-97805-173-1	01	1	9112-	●	●
385	08.153 BRACKET; ANCHOR (C)	8-97802-007-2	01	1	9112-	●
385	08.153 BRACKET; ANCHOR (C)	8-97802-006-2	01	1	9112-	●
385	08.153 BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9112-		●
385	08.153 BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9112-		●
385	08.153 BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9112-		●
385	08.153 BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9112-		●
385	08.153 BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-235-1	01	1	9112-		●
385	08.153 BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-234-1	01	1	9112-		●
388	16.570 REINFORCEMENT; FRONT PILLAR	8-94359-922-4	01	1	9112-	●	●
388	16.570 REINFORCEMENT; FRONT PILLAR	8-94359-921-4	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (B) UPPER	8-94359-894-2	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (A) LOWER	8-94359-896-4	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (B) UPPER	8-94359-893-2	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (A) LOWER	8-94359-895-3	01	1	9112-	●	●
393	16.750 PANEL; LAMP HOUSING	8-94359-900-1	01	1	9112-	●	●
393	16.750 PANEL; LAMP HOUSING	8-94359-899-1	01	1	9112-	●	●
442	16.507 PATCH	8-97811-443-0	02	1	9602-	●	●

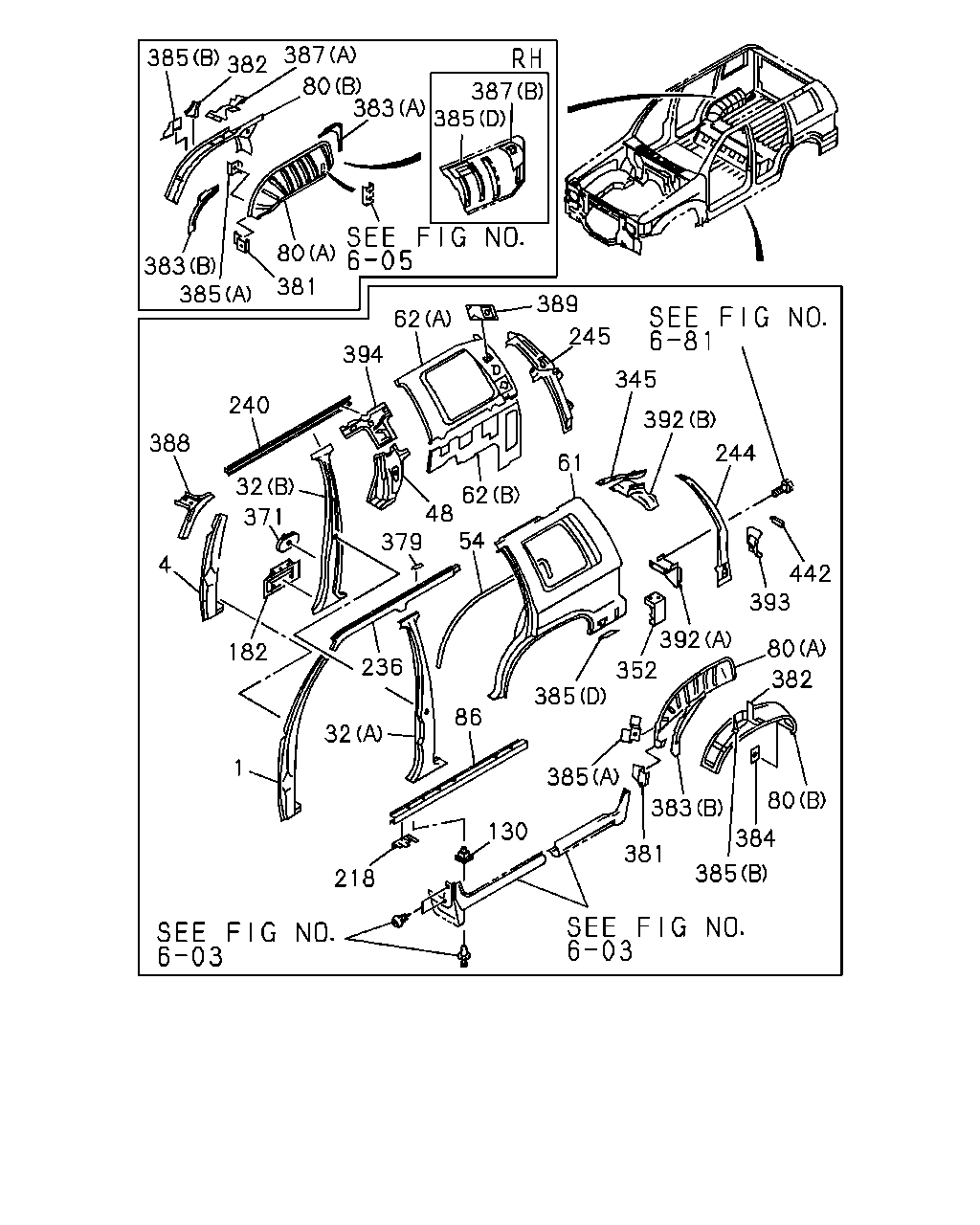

218 1 182 32 236 86 385 385 130 381 385 383 384 80 382 80 442 393 392 352 379 54 48 62 61 244 392 345 245 389 62 394 240 371 32 4 388 383 385 381 80 387 385 383 80 387 382 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-94359-854-1	01	1	9112-9508	●	●
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-97811-440-0	01	1	9509-	●	●
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-94359-853-1	01	1	9112-9508	●	●
1	16.570 PANEL; A-POST OUTER ASM,UPR	8-97811-439-0	01	1	9509-	●	●
4	16.570 PANEL; A-POST INNER,UPR	8-94359-918-0	01	1	9112-	●	●
4	16.570 PANEL; A-POST INNER,UPR	8-94359-917-1	01	1	9112-	●	●
32	16.570 PANEL; BC-POST (A)	8-94359-870-2	01	1	9112-9508		●
32	16.570 PANEL; BC-POST (A)	8-97811-436-0	01	1	9509-		●
32	16.570 PANEL; BC-POST 16.575 (B)	8-97800-568-0	01	1	9112-9308		●
32	16.570 PANEL; BC-POST (B)	8-94358-367-2	01	1	9309-9501		●
32	16.570 PANEL; BC-POST (B)	8-97811-380-0	01	1	9502-		●
32	16.570 PANEL; BC-POST 16.575 (B)	8-97800-567-0	01	1	9112-9308		●
32	16.570 PANEL; BC-POST (B)	8-94358-366-2	01	1	9309-9501		●
32	16.570 PANEL; BC-POST (B)	8-97811-379-0	01	1	9502-		●
32	16.570 PANEL; BC-POST (A)	8-94359-869-2	01	1	9112-9508		●
32	16.570 PANEL; BC-POST (A)	8-97811-435-0	01	1	9509-		●
48	16.570 REINFORCEMENT; C POST	8-97803-010-2	01	1	9112-9403		●
48	16.570 REINFORCEMENT; C POST	8-97111-054-2	01	1	9404-		●
48	16.570 REINFORCEMENT; C POST	8-97803-009-2	01	1	9112-9403		●
48	16.570 REINFORCEMENT; C POST	8-97111-053-2	01	1	9404-		●
54	16.335 PATCH; DOOR STRIKER	8-97808-594-0	02	1	9112-	●	●
61	16.570 PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-983-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-904-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-904-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-982-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-903-9	01	1	9112-9504	●
61	16.570 PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-903-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9505-	●
61	16.570 PANEL; SIDE OUTER	8-94358-358-9	01	1	9112-9202		●
61	16.570 PANEL; SIDE OUTER	8-97808-712-0	01	1	9203-9504		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-712-0	01	1	9505-9710		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97808-712-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-712-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97103-259-1	01	1	9505-9607		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97183-083-0	01	1	9608-		●
61	16.570 PANEL; SIDE OUTER	8-94358-357-9	01	1	9112-9202		●
61	16.570 PANEL; SIDE OUTER	8-97808-711-0	01	1	9203-9504		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-711-0	01	1	9505-9710		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97808-711-0	01	1	9608-9710		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97808-711-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-711-0	01	1	9711-		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97103-258-1	01	1	9505-9607		●
61	16.570 PANEL; SIDE OUTER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA>	8-97183-082-0	01	1	9608-		●
62	16.570 PANEL; BODY SIDE INNER (C)	8-94359-989-6	01	1	9112-9404	●
62	16.570 PANEL; BODY SIDE INNER (C)	8-97110-496-3	01	1	9405-	●
62	16.570 PANEL; BODY SIDE INNER (D)	8-97801-875-9	01	1	9112-9404	●
62	16.570 PANEL; BODY SIDE INNER (D)	8-97103-662-0	01	1	9405-	●
62	16.570 PANEL; BODY SIDE INNER (C)	8-94359-988-5	01	1	9112-9404	●
62	16.570 PANEL; BODY SIDE INNER (C)	8-97110-495-2	01	1	9405-	●
62	16.570 PANEL; BODY SIDE INNER (D)	8-97801-874-6	01	1	9112-	●
62	16.570 PANEL; BODY SIDE INNER (A)	8-94358-414-5	01	1	9112-9404		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-97110-494-2	01	1	9405-		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97801-091-9	01	1	9112-9203		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97808-789-1	01	1	9204-9404		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97104-211-0	01	1	9405-9504		●
62	16.570 PANEL; BODY SIDE INNER COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3),OVER FENDER<6GH> (B)	8-97104-211-0	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97104-211-0	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER 3RD SEAT 7 PASSENGERS(AS3) COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97104-211-0	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97808-789-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97104-211-0	01	1	9510-		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-94358-413-4	01	1	9112-9404		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-97110-493-1	01	1	9405-9504		●
62	16.570 PANEL; BODY SIDE INNER COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3),OVER FENDER<6GH> (A)	8-97110-493-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97110-493-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER 3RD SEAT 7 PASSENGERS(AS3) COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97110-493-1	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (A)	8-94358-413-6	01	1	9505-9509		●
62	16.570 PANEL; BODY SIDE INNER (A)	8-97110-493-1	01	1	9510-		●
62	16.570 PANEL; BODY SIDE INNER (B)	8-97801-090-9	01	1	9112-		●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-94358-669-5	01	1	9112-9403	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-97103-599-2	01	1	9404-	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97800-544-0	01	1	9112-9208	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97809-011-0	01	1	9209-9305	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97810-389-1	01	1	9306-	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-94358-668-7	01	1	9112-9403	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (B)	8-97103-598-1	01	1	9404-	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97800-543-0	01	1	9112-9208	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97809-010-0	01	1	9209-9305	●	●
80	08.153 PANEL; WHEEL HOUSE,INNER (A)	8-97810-388-1	01	1	9306-	●	●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-902-4	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-902-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-184-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-901-4	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-901-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-183-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-967-3	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-967-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-182-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-966-3	01	1	9112-9504	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-966-4	01	1	9505-9711	●
86	16.570 PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-181-0	01	1	9712-	●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9112-9504		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9505-9602		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-161-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-180-0	01	1	9712-		●
86	16.570 PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9112-9504		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9505-9602		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-160-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-179-0	01	1	9712-		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-94358-667-4	01	1	9112-9602		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97133-179-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97187-977-0	01	1	9712-		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-94358-666-4	01	1	9112-9602		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97133-178-0	01	1	9603-9711		●
86	16.570 PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKERSKIRT<6YA>	8-97187-976-0	01	1	9712-		●
130	16.570 GROMMET; SCREW,PROTECTOR ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9112-9504	●	●
130	16.570 GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9505-9508	●
130	16.570 GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9505-9508		●
182	16.570 PANEL; CLOSING,CTR PILLAR LWR	8-97802-757-2	01	1	9112-		●
182	16.570 PANEL; CLOSING,CTR PILLAR LWR	8-97802-756-2	01	1	9112-		●
218	09.011 PATCH; CAB MTG	8-97803-283-3	01	1	9112-	●	●
218	09.011 PATCH; CAB MTG	8-97803-282-3	01	1	9112-	●	●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9112-	●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9112-	●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-965-2	01	1	9112-9607		●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-97166-947-1	01	1	9608-		●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-94359-964-2	01	1	9112-9607		●
236	16.570 PANEL; CANTRAIL OUTER,FRT	8-97166-946-1	01	1	9608-		●
240	16.575 CANTRAIL; RR INNER	8-97801-919-0	01	1	9112-	●
240	16.575 CANTRAIL; RR INNER	8-97801-918-0	01	1	9112-	●
240	16.575 CANTRAIL; RR INNER	8-97801-528-0	01	1	9112-		●
240	16.575 CANTRAIL; RR INNER	8-97801-527-0	01	1	9112-		●
244	16.570 PANEL; RR PILLAR UPR,OUTER	8-94358-369-7	01	1	9112-	●	●
244	16.570 PANEL; RR PILLAR UPR,OUTER	8-94358-368-7	01	1	9112-	●	●
245	16.575 PANEL; REINF,RR PILLAR	8-94359-904-3	01	1	9112-	●
245	16.575 PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-904-3	01	1	9112-		●
245	16.575 PANEL; REINF,RR PILLAR	8-94359-903-3	01	1	9112-	●
245	16.575 PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-903-3	01	1	9112-		●
245	16.575 PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-743-7	01	1	9112-		●
245	16.575 PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-742-7	01	1	9112-		●
345	16.570 PANEL; EXT,SIDE OUTER	8-94359-890-3	01	1	9112-	●	●
345	16.570 PANEL; EXT,SIDE OUTER	8-94359-889-3	01	1	9112-	●	●
352	16.570 CLOSING ASM; D POST	8-97803-336-1	01	1	9112-	●	●
352	16.570 CLOSING ASM; D POST	8-94359-915-2	01	1	9112-	●	●
371	16.570 PATCH; SEAT BELT 08.225	8-97804-637-1	02	1	9309-		●
379	16.570 PATCH; ROOF RACK	8-94359-867-1	02	1	9112-	●
379	16.570 PATCH; ROOF RACK	8-94359-867-1	06	1	9112-		●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-995-3	01	1	9112-	●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-994-3	01	1	9112-	●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-941-2	01	1	9112-		●
381	08.153 GUSSET; WHEEL HOUSE	8-94359-940-2	01	1	9112-		●
382	08.153 GUSSET; QTR PLR	8-97801-478-0	01	1	9112-		●
382	08.153 GUSSET; QTR PLR	8-97801-477-0	01	1	9112-		●
383	08.153 PANEL; SIDE INNER (B)	8-94359-993-1	01	1	9112-	●
383	08.153 PANEL; SIDE INNER (B)	8-94359-992-1	01	1	9112-	●
383	08.153 PANEL; SIDE INNER (A)	8-94359-939-0	01	1	9112-	●	●
383	08.153 PANEL; SIDE INNER (B)	8-94359-938-1	01	1	9112-		●
383	08.153 PANEL; SIDE INNER (B)	8-94359-937-1	01	1	9112-		●
384	08.153 PATCH; WHEEL HOUSE	8-97805-173-1	01	1	9112-	●	●
385	08.153 BRACKET; ANCHOR (C)	8-97802-007-2	01	1	9112-	●
385	08.153 BRACKET; ANCHOR (C)	8-97802-006-2	01	1	9112-	●
385	08.153 BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9112-		●
385	08.153 BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9112-		●
385	08.153 BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9112-		●
385	08.153 BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9112-		●
385	08.153 BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-235-1	01	1	9112-		●
385	08.153 BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-234-1	01	1	9112-		●
387	08.153 BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (A)	8-97802-007-2	01	1	9112-		●
387	08.153 BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (A)	8-97802-006-2	01	1	9112-		●
387	08.153 BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97803-403-1	01	1	9112-		●
388	16.570 REINFORCEMENT; FRONT PILLAR	8-94359-922-4	01	1	9112-	●	●
388	16.570 REINFORCEMENT; FRONT PILLAR	8-94359-921-4	01	1	9112-	●	●
389	16.570 BRACKET; SIDE 3RD SEAT 7 PASSENGERS(AS3)	8-97802-015-1	01	1	9112-		●
389	16.570 BRACKET; SIDE 3RD SEAT 7 PASSENGERS(AS3)	8-97802-014-1	01	1	9112-		●
392	16.750 GUSSET; RR PILLAR (B) UPPER	8-94359-894-2	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (A) LOWER	8-94359-896-4	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (B) UPPER	8-94359-893-2	01	1	9112-	●	●
392	16.750 GUSSET; RR PILLAR (A) LOWER	8-94359-895-3	01	1	9112-	●	●
393	16.750 PANEL; LAMP HOUSING	8-94359-900-1	01	1	9112-	●	●
393	16.750 PANEL; LAMP HOUSING	8-94359-899-1	01	1	9112-	●	●
394	16.570 BRACKET; QUARTER UPR	8-94359-957-2	01	1	9112-		●
394	16.570 BRACKET; QUARTER UPR	8-94359-956-2	01	1	9112-		●
442	16.507 PATCH	8-97811-443-0	02	1	9602-	●	●

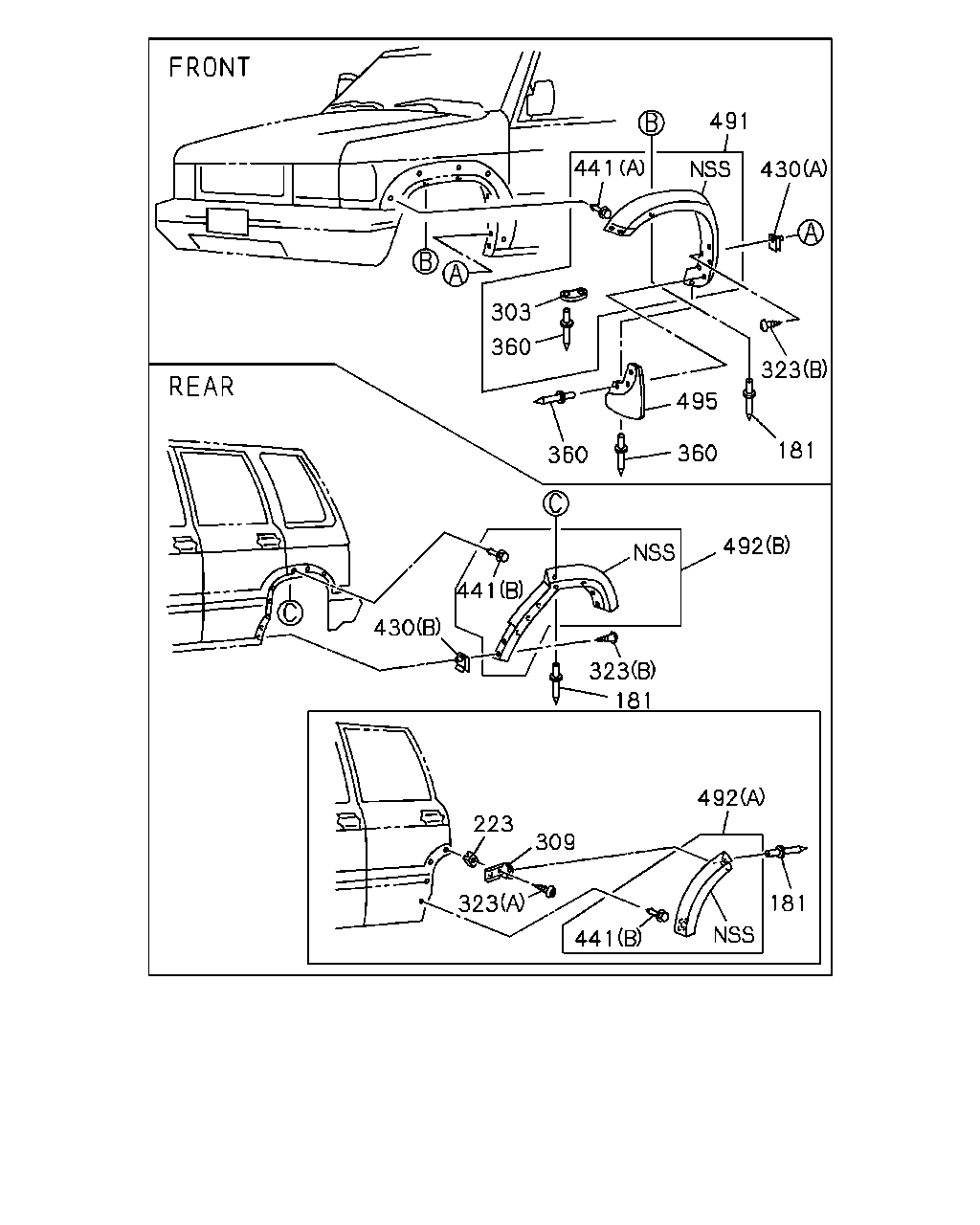

441 323 309 223 181 492 181 323 441 430 492 181 360 495 360 360 303 430 491 441 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
181	08.131 RIVET; OVER FENDER OVER FENDER<6GH> FRONT	8-97122-143-0	08	1	9506-	●
181	08.131 RIVET; OVER FENDER OVER FENDER<6GH> REAR	8-97122-143-0	14	1	9506-	●
223	16.570 GROMMET; LOCATION HOLE OVER FENDER<6GH> 02.726	8-94291-927-0	04	1	9506-	●
303	07.832 RETAINER; SIDE SKIRT,ROCKER OVER FENDER<6GH>	8-97117-762-1	02	1	9506-	●
309	08.155 BRACKET; FENDER COVER OVER FENDER<6GH>	8-97103-867-3	02	1	9506-	●
323	08.155 SCREW; SET OVER FENDER<6GH> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	9506-	●
323	08.155 SCREW; SET OVER FENDER<6GH> 09.011 (A) M5X16 TAPPING CK-HEAD	9-07006-516-0	04	1	9506-	●
360	08.131 RIVET; FENDER OVER FENDER<6GH>	8-97163-054-0	12	1	9506-	●
430	16.570 NUT; PANEL OVER FENDER<6GH> 08.155 (A) ID=5.2 H=10	8-97032-135-0	04	1	9506-	●
430	16.570 NUT; PANEL OVER FENDER<6GH> (B) H=11.5	8-97807-757-0	04	1	9506-	●
441	07.829 CLIP OVER FENDER<6GH> (B)	8-97117-942-0	12	1	9506-	●
441	07.829 CLIP OVER FENDER<6GH> (B)	8-97117-942-0	14	1	9506-9507	●
441	07.829 CLIP OVER FENDER<6GH> (B)	8-97117-942-0	08	1	9508-	●
441	07.829 CLIP OVER FENDER<6GH> (A)	8-97135-071-0	04	1	9508-	●
491	16.674 EXTENSION; WHL,FRT OVER FENDER<6GH> GRAY	8-97098-599-4	01	1	9506-9606	●
491	16.674 EXTENSION; WHL,FRT OVER FENDER<6GH> GRAY	8-97158-136-0	01	1	9607-	●
491	16.674 EXTENSION; WHL,FRT OVER FENDER<6GH> GRAY	8-97098-598-4	01	1	9506-9606	●
491	16.674 EXTENSION; WHL,FRT OVER FENDER<6GH> GRAY	8-97158-131-0	01	1	9607-	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (A) GRAY	8-97098-512-4	01	1	9506-9606	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (A) GRAY	8-97158-103-0	01	1	9607-	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (B) GRAY	8-97098-516-4	01	1	9506-9507	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (B) GRAY	8-97154-983-0	01	1	9508-9606	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (B) GRAY	8-97158-105-0	01	1	9607-	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (A) GRAY	8-97098-510-4	01	1	9506-9606	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (A) GRAY	8-97158-102-0	01	1	9607-	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (B) GRAY	8-97098-514-4	01	1	9506-9507	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (B) GRAY	8-97154-981-0	01	1	9508-9606	●
492	16.674 EXTENSION; WHL,RR OVER FENDER<6GH> (B) GRAY	8-97158-104-0	01	1	9607-	●
495	08.228 FLAP OVER FENDER<6GH> DARK GRAY	8-97098-602-0	01	1	9506-9606	●
495	08.228 FLAP OVER FENDER<6GH> DARK GRAY	8-97158-139-0	01	1	9607-	●
495	08.228 FLAP OVER FENDER<6GH> DARK GRAY	8-97098-601-0	01	1	9506-9606	●
495	08.228 FLAP OVER FENDER<6GH> DARK GRAY	8-97158-134-0	01	1	9607-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
