6-10 — ENGINE HOOD AND LOCK (#44936) — 78 parça

13 9 14 134 13 15 15 8 13 9 9 72 5 8 133 133 9 15 8 8 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

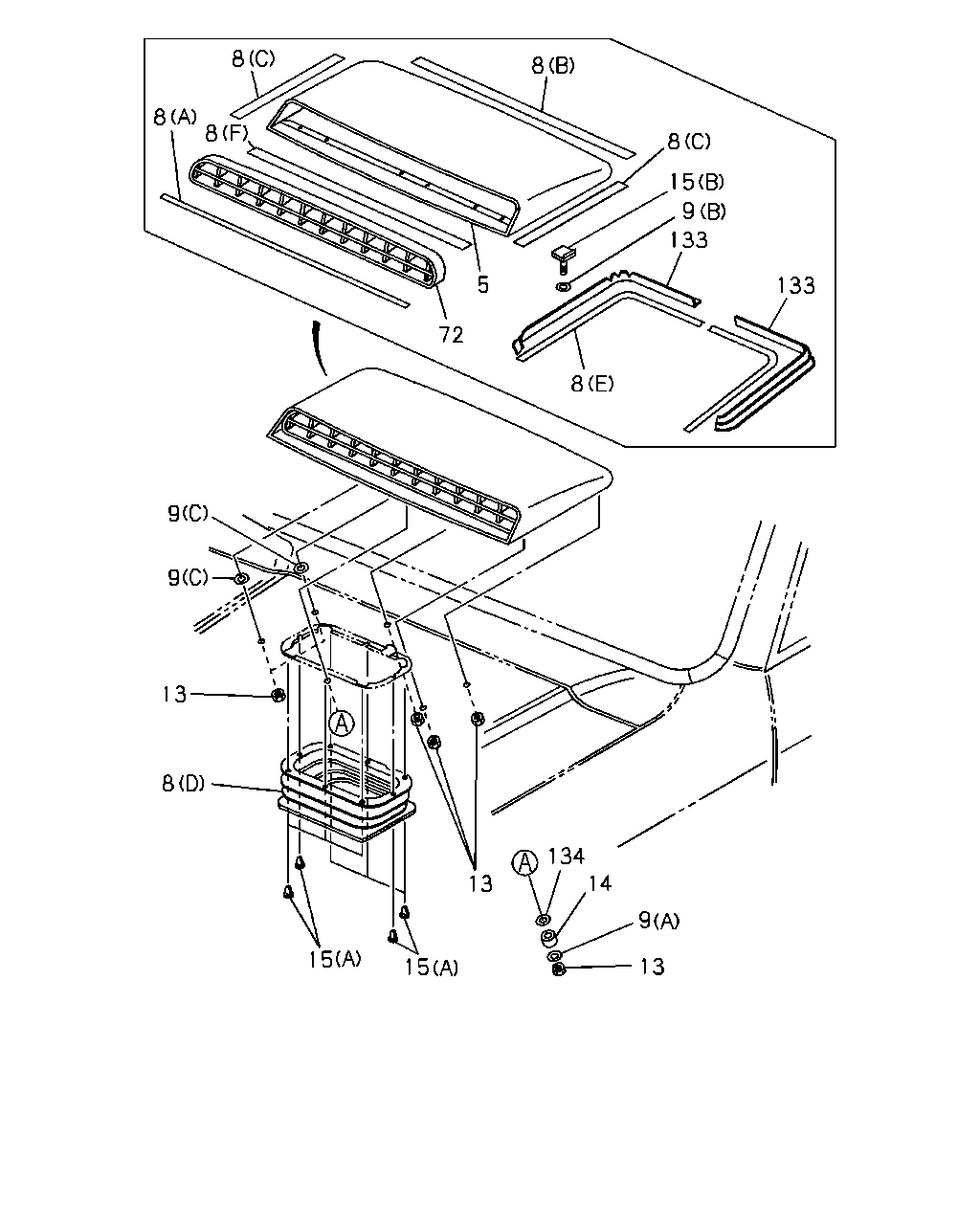

5	08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG CHARGE AIR COOLER<6PL> PRIMER PRIMER	8-97806-838-2	01	1	9112-9404	●	●
5	08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG CHARGE AIR COOLER<6PL> PRIMER	8-97811-183-0	01	1	9405-	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97807-714-0	01	1	9112-9202	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (C)	8-97807-715-0	02	1	9112-9202	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (E)	8-97808-652-0	01	1	9203-9302	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (E)	8-97810-477-0	01	1	9303-9306	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (F)	8-97810-866-0	01	1	9307-	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (D)	8-97803-749-0	01	1	9112-9509	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (D)	8-97133-889-0	01	1	9510-	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97807-713-0	01	1	9112-9302	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-476-0	01	1	9303-9306	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-865-0	01	1	9307-9506	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-476-0	01	1	9507-	●	●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> 08.131 (A) D=22	8-94358-648-0	01	1	9112-	●	●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (B) D=16	8-94427-941-0	05	1	9112-	●	●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (C) D=16	8-94427-941-0	AR	1	9112-	●	●
13	08.054 NUT; AIR SCOOP CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	06	1	9112-	●	●
14	08.054 SPACER; AIR SCOOP,ENG HOOD CHARGE AIR COOLER<6PL>	8-97807-069-0	01	1	9112-9302	●	●
14	08.054 SPACER; AIR SCOOP,ENG HOOD CHARGE AIR COOLER<6PL>	8-97810-466-0	01	1	9303-	●	●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (A) L=13.5	8-97031-931-0	08	1	9112-9509	●	●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (A) L=13.5	8-97031-931-0	06	1	9510-	●	●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97806-845-2	05	1	9112-	●	●
72	08.054 STRAINER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97806-840-1	01	1	9112-9409	●	●
72	08.054 STRAINER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97811-204-0	01	1	9410-	●	●
133	08.054 FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97810-868-0	01	1	9307-9606	●	●
133	08.054 FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97810-867-0	01	1	9307-9606	●	●
133	08.054 FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97162-066-1	02	1	9607-	●	●
134	08.007 WASHER; BULGE CHARGE AIR COOLER<6PL> 11.377 D=22 T=1	8-94425-158-0	01	1	9508-	●	●

50 35 124 4 18 82 17 95 131 3 123 128 3 1 22 129 131 25 4 30 131 46 32 132 31 43 126 126 26 49 48 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

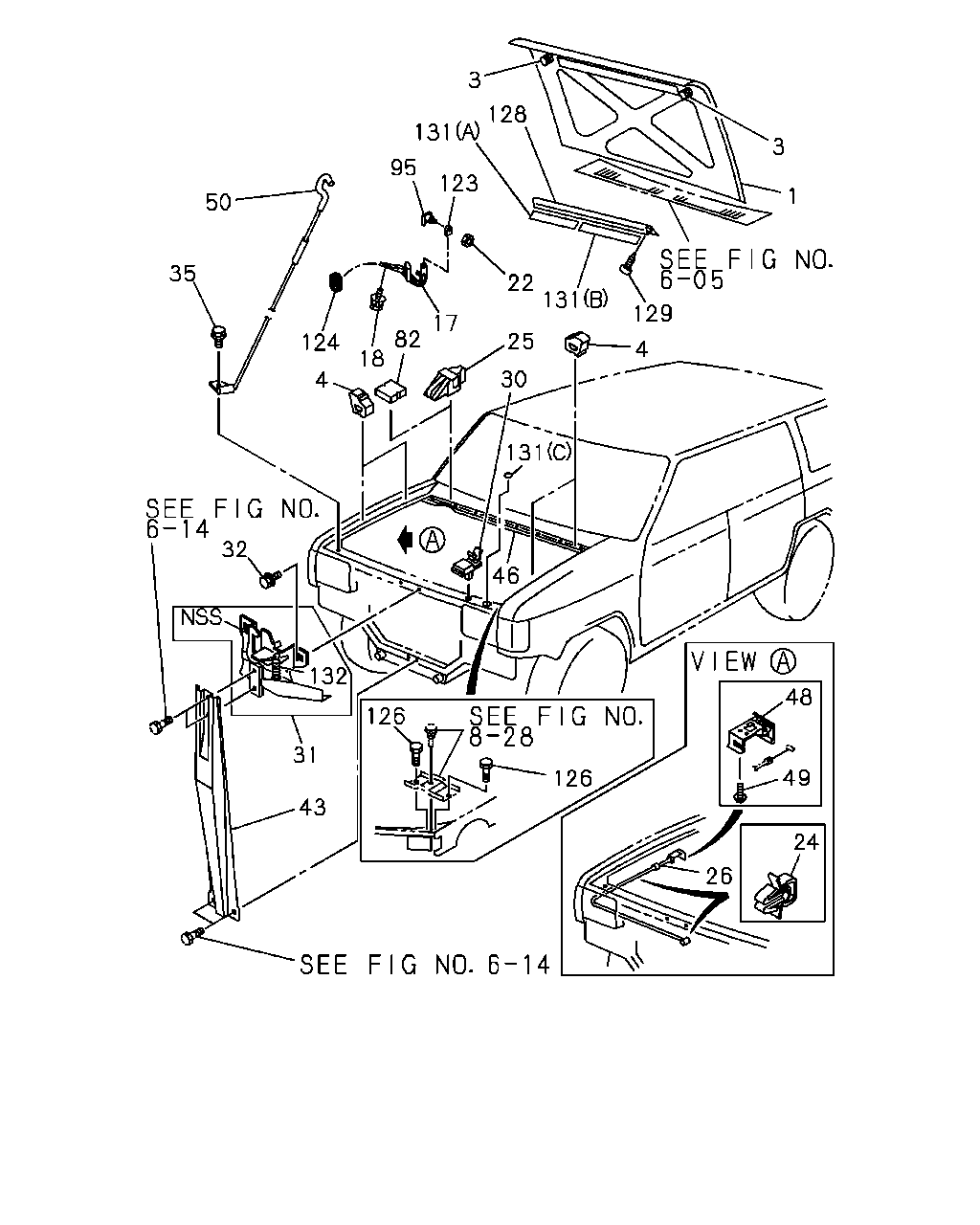

1	08.000 HOOD; ENG CHARGE AIR COOLER<6PL>	8-97803-722-2	01	1	9112-9501	●	●
1	08.000 HOOD; ENG CHARGE AIR COOLER<6PL>	8-97127-823-0	01	1	9502-	●	●
1	08.000 HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-94358-428-2	01	1	9112-9501	●	●
1	08.000 HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-97127-771-0	01	1	9502-	●	●
3	08.077 BUFFER; ENG HOOD,FRT 08.024	8-94237-385-0	02	1	9112-9304	●	●
3	08.077 BUFFER; ENG HOOD,FRT	8-97810-601-0	02	1	9305-	●	●
4	08.024 REST; SIDE	8-94358-784-1	04	1	9112-	●	●
17	08.015 HINGE; ENG HOOD	8-94358-436-4	01	1	9112-	●	●
17	08.015 HINGE; ENG HOOD	8-94358-435-4	01	1	9112-	●	●
18	08.015 BOLT; HINGE M6X20 W/WASHER	8-94112-987-1	04	1	9112-	●	●
22	08.015 NUT; HINGE 04.594 M6 FLANGE	0-91150-106-0	02	1	9112-	●	●
24	08.077 CLIP; CONT CABLE	8-94225-098-0	02	1	9112-	●	●
25	08.015 COVER; ENG HOOD HINGE	8-97803-631-1	02	1	9112-9504	●	●
25	08.015 COVER; ENG HOOD HINGE	8-97803-631-1	01	1	9505-9505	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97801-574-0	01	1	9112-9501	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97122-147-0	01	1	9502-9504	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97131-324-0	01	1	9505-9707	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97180-675-0	01	1	9708-	●	●
30	08.077 CLIP; SUPPORT ROD,HOOD	8-94441-538-0	01	1	9112-9504	●	●
30	08.077 CLIP; SUPPORT ROD,HOOD	8-97104-427-0	01	1	9505-	●	●
31	08.083 LOCK; ENG HOOD	8-94359-083-0	01	1	9112-9301	●	●
31	08.083 LOCK; ENG HOOD	8-97810-324-0	01	1	9302-	●	●
32	08.077 BOLT; HOOD LK M6X18	8-94408-386-1	02	1	9112-9302	●	●
32	08.077 BOLT; HOOD LK M6X18	8-97071-681-0	02	1	9303-	●	●
35	08.080 BOLT; STRIKER TO HOOD 10.230 M6X16 FLANGE	8-94380-676-1	01	1	9112-	●	●
43	08.077 STAY; ENG HOOD,FRT END	8-94358-457-0	01	1	9112-9608	●	●
43	08.077 STAY; ENG HOOD,FRT END	8-97162-509-0	01	1	9608-	●	●
46	01.272 SEAL; ENG HOOD 08.021	8-94358-811-3	01	1	9112-9407	●	●
46	01.272 SEAL; ENG HOOD	8-97811-307-0	01	1	9408-9505	●	●
46	01.272 SEAL; ENG HOOD	8-97811-326-0	01	1	9506-	●	●
48	08.083 LEVER; ENG HOOD BLACK	8-97806-914-0	01	1	9112-9305	●	●
48	08.083 LEVER; ENG HOOD BLACK	8-97808-822-0	01	1	9306-	●	●
49	08.083 SCREW; LEVER,ENG HOOD OPENER 08.077 M5X10	9-09829-185-0	02	1	9112-	●	●
50	08.015 ROD; SUPPORT,ENG HOOD	8-97804-823-3	01	1	9112-	●	●
82	08.054 RUBBER; CUSHION,ENG HOOD	8-97811-398-0	01	1	9505-	●	●
95	08.015 PIN; HINGE,HOOD CENTER	8-94359-692-0	02	1	9112-	●	●
123	08.015 SPACER; HINGE	8-94359-693-0	02	1	9112-9203	●	●
123	08.015 SPACER; HINGE	8-97808-777-0	02	1	9204-	●	●
124	08.015 SEAL; HINGE	8-94358-506-2	02	1	9112-	●	●
126	08.083 BOLT; BRKT ANTI THEFT<UA6> 03.671 M6X12	0-28010-612-0	02	1	9112-9204	●	●
126	08.083 BOLT; BRKT ANTI THEFT<UA6> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9205-9410	●	●
126	08.083 BOLT; BRKT ANTI THEFT<UA6> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9411-	●	●
128	08.010 SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-133-0	01	1	9112-9408	●	●
128	08.010 SEAL; PLATFORM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97102-694-1	01	1	9609-		●
129	08.010 CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 15.100 BLACK	8-94104-935-0	07	1	9112-9408	●	●
129	08.010 CLIP; ENG HOOD SEAL 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) 15.100 BLACK	8-94104-935-0	06	1	9609-		●
131	08.010 TAPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97082-085-0	01	1	9208-9408	●	●
131	08.010 TAPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97082-086-0	01	1	9208-9408	●	●
131	08.010 TAPE (C)	8-97808-119-1	02	1	9505-	●	●
132	08.083 SPRING; ENG HOOD LOCK	8-97810-346-0	01	1	9212-9607	●	●
