◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#44932) — 89 parça

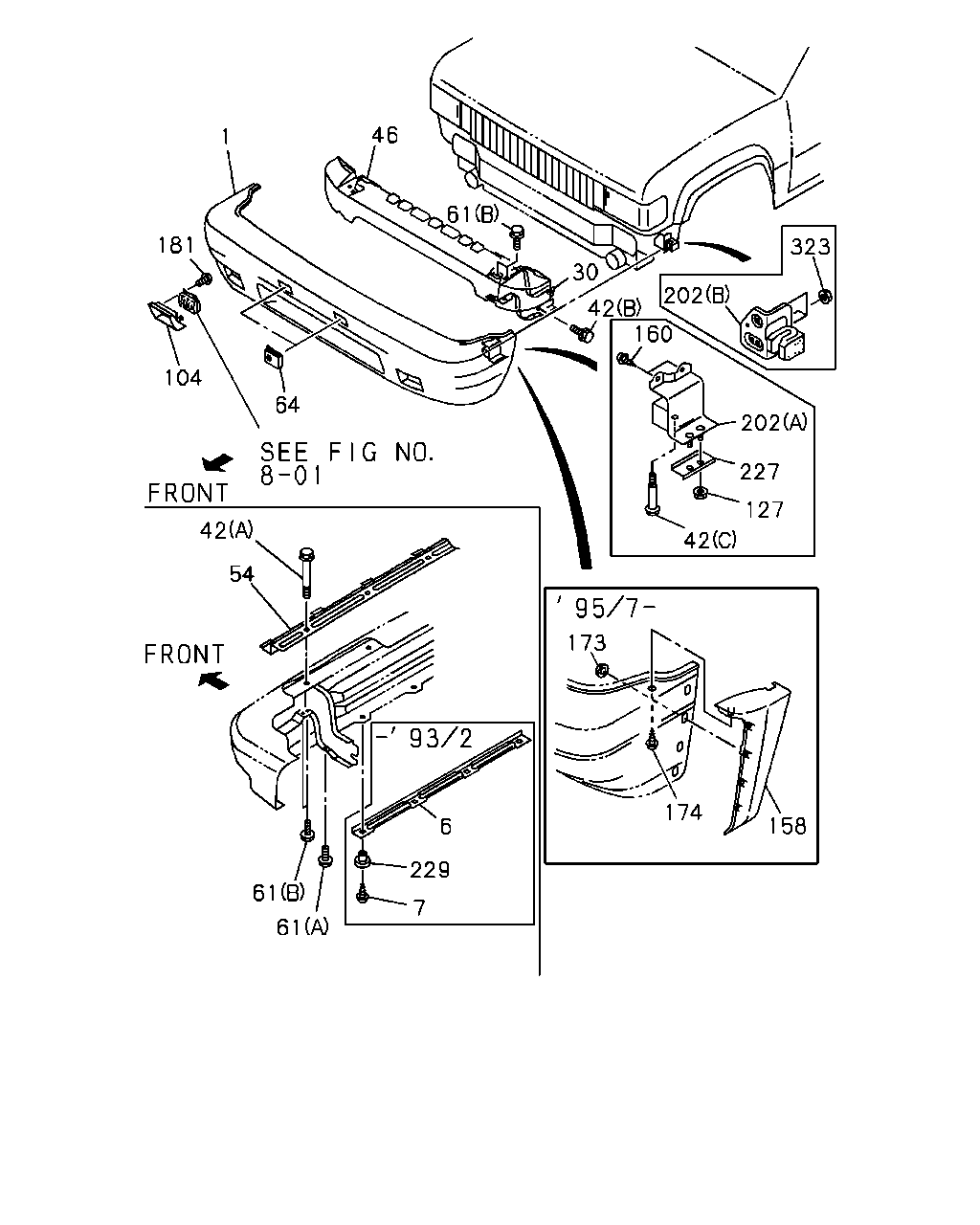

çizim 65589
46 1 181 104 64 61 30 323 202 42 160 202 227 127 42 173 174 158 6 229 7 61 61 54 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.831 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-858-0 01 1 9112-9504 ● ●
1 07.831 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) PRIMER 		8-97127-880-0 01 1 9505-9509 ● ●
1 07.831 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH> PRIMER 		8-97127-880-0 01 1 9510- ● ●
1 07.831 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97807-861-0 01 1 9112-9504 ● ●
1 07.831 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97127-882-0 01 1 9505-9509 ● ●
1 07.831 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH> PRIMER 		8-97127-882-0 01 1 9510- ● ●
1 07.831 BUMPER ASM; FRT
OVER FENDER<6GH> PRIMER 		8-97127-820-0 01 1 9507-9509 ●
1 07.831 BUMPER ASM; FRT
OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97127-820-0 01 1 9510- ●
6 07.831 SUPPORT; FRT BUMPER SIDE 8-97804-155-0 01 1 9112-9302 ● ●
7 07.833 SCREW; FRT BUMPER
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-0 04 1 9112-9302 ● ●
30 07.869 BRACKET; FRT BUMPER 8-97800-078-6 01 1 9112-9410 ● ●
30 07.869 BRACKET; FRT BUMPER 8-97811-368-0 01 1 9411- ● ●
30 07.869 BRACKET; FRT BUMPER 8-97800-076-6 01 1 9112-9410 ● ●
30 07.869 BRACKET; FRT BUMPER 8-97811-367-0 01 1 9411- ● ●
42 07.874 BOLT; BUMPER
11.629 (A) M6X16 FLANGE 		0-28210-616-0 05 1 9112-9204 ● ●
42 07.874 BOLT; BUMPER
12.809 (A) M6X16 FLANGE 		0-28280-616-0 05 1 9205- ● ●
42 07.874 BOLT; BUMPER
07.070 (B) M12X30 FLANGE 		8-94475-424-0 04 1 9112-9509 ● ●
42 07.874 BOLT; BUMPER
(B) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ●
42 07.874 BOLT; BUMPER
(C) 		8-97807-321-0 02 1 9112-9507 ● ●
42 07.874 BOLT; BUMPER
(C) 		8-97131-643-0 02 1 9508- ● ●
46 07.840 REINFORCEMENT; BUMPER 8-97800-088-8 01 1 9112- ● ●
54 07.832 RETAINER; FRT BUMPER 8-97804-154-2 01 1 9112- ● ●
61 07.832 BOLT; BACK BAR
16.335 (B) M8X20 		8-94198-479-0 08 1 9112-9405 ● ●
61 07.832 BOLT; BACK BAR
12.187 (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 08 1 9406-9412 ● ●
61 07.832 BOLT; BACK BAR
02.664 (B) M8X20 FLANGE 		0-28680-820-0 08 1 9501-9607 ● ●
61 07.832 BOLT; BACK BAR
02.183 (B) M8X35 FLANGE 		0-28680-835-0 08 1 9708-9710 ● ●
61 07.832 BOLT; BACK BAR
02.664 (B) M8X20 FLANGE 		0-28680-820-0 08 1 9711- ● ●
61 07.832 BOLT; BACK BAR
07.875 (A) M6X16 FLANGE 		8-97804-671-1 02 1 9112- ● ●
64 07.829 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94342-576-1 02 1 9112-9201 ● ●
64 07.829 NUT; CLIP
NEW ZEALAND EQUIPMENT(7AZ) 		8-94342-576-1 02 1 9202- ● ●
64 07.829 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94342-576-1 02 1 9202- ● ●
104 07.837 COVER; HOLE,FOG LAMP
FOG LAMP HALOGEN(T37) 07.883 PRIMER 		8-97807-827-1 01 1 9112- ● ●
104 07.837 COVER; HOLE,FOG LAMP
FOG LAMP HALOGEN(T37) 07.883 PRIMER 		8-97807-826-1 01 1 9112- ● ●
127 07.829 NUT; FRT BUMPER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> PRIMER 		8-97103-296-1 01 1 9507-9509 ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97103-296-1 01 1 9510- ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> PRIMER 		8-97103-297-1 01 1 9507-9509 ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97103-297-1 01 1 9510- ●
160 07.874 SCREW
02.708 		8-94198-480-0 04 1 9112- ● ●
173 07.874 NUT; EXT
OVER FENDER<6GH> 07.833 M6 FLANGE 		8-97063-399-0 08 1 9507-9509 ●
173 07.874 NUT; EXT
OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) 07.833 M6 FLANGE 		8-97063-399-0 08 1 9510- ●
174 07.829 SCREW; EXT
OVER FENDER<6GH> 01.276 M5X10 TAPPING W/PL WASHER 		0-74100-510-0 02 1 9507-9509 ●
174 07.829 SCREW; EXT
OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) 01.276 M5X10 TAPPING W/PL WASHER 		0-74100-510-0 02 1 9510- ●
181 07.831 SCREW; TAP,FOG LAMP COVER
FOG LAMP HALOGEN(T37) 15.100 M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9112- ● ●
202 07.869 BRACKET; BUMPER SIDE
(A) 		8-97805-154-1 01 1 9112- ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97807-316-2 01 1 9112-9610 ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97161-070-0 01 1 9611- ● ●
202 07.869 BRACKET; BUMPER SIDE
(A) 		8-97800-096-1 01 1 9112- ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97807-315-2 01 1 9112-9501 ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97811-364-0 01 1 9502-9610 ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97161-072-0 01 1 9611- ● ●
227 07.874 WASHER; SPECIAL,BUMPER LWR 8-97800-981-1 02 1 9112- ● ●
229 07.833 GROMMET 8-97804-050-2 04 1 9112-9302 ● ●
323 07.829 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 06 1 9112- ● ●

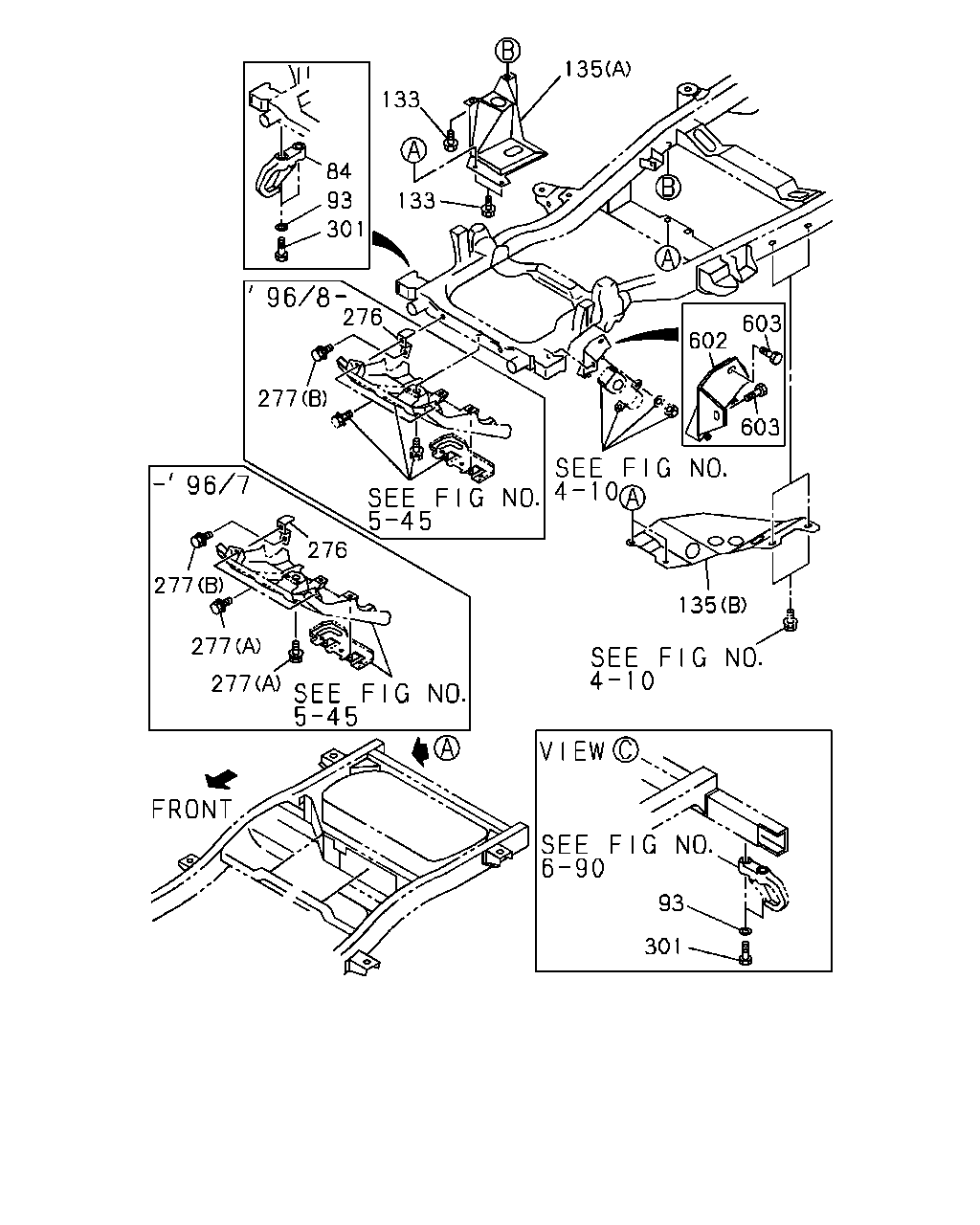

çizim 66055
301 93 135 603 602 603 135 133 133 84 301 93 276 277 276 277 277 277
BalonParca AdiParca NoAdetTipApplied Date A B
84 07.068 HOOK
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-97041-464-2 01 1 9112-9608 ● ●
84 07.068 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-97041-464-2 01 1 9112-9608 ● ●
84 07.068 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 9609-9610 ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 9609-9610 ● ●
84 07.068 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) CONVENIENT PACKAGE<6QZ> 		8-97041-464-2 01 1 9609-9610 ●
84 07.068 HOOK
EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 9611- ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 9611- ● ●
84 07.068 HOOK
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-97041-464-2 01 1 9505-9607 ● ●
84 07.068 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-97041-464-2 01 1 9505-9607 ● ●
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4) 07.330 		8-94183-262-0 01 1 9608- ● ●
93 07.068 WASHER; LK,HOOK
08.929 ID=10.2 		9-09150-810-0 04 1 9112-9308 ● ●
93 07.068 WASHER; LK,HOOK
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 08.929 ID=10.2 		9-09150-810-0 04 1 9309- ●
133 07.875 BOLT; PROTECTOR FIX
01.267 M10X25 		8-94492-949-0 04 1 9112-9310 ● ●
133 07.875 BOLT; PROTECTOR FIX
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 04 1 9311- ● ●
135 04.510 PROTECTOR; TRANSFER
M/T MUA 5 SPEED(RMN) (A) 		8-94375-527-2 01 1 9112- ● ●
135 04.510 PROTECTOR; TRANSFER
6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B) 		8-97049-784-0 01 1 9112- ● ●
276 08.153 BRACKET; GUARD 8-97063-046-2 01 1 9112- ● ●
276 08.153 BRACKET; GUARD 8-97063-045-2 01 1 9112- ● ●
277 08.153 BOLT; GUARD TO BRKT
01.267 (A),(B) M10X25 		8-94492-949-0 05 1 9112-9310 ● ●
277 08.153 BOLT; GUARD TO BRKT
03.690 (A),(B) M10X28 W/LK&PL WASHER 		8-97104-788-0 05 1 9311-9502 ● ●
277 08.153 BOLT; GUARD TO BRKT
03.690 (A) M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9503-9607 ● ●
277 08.153 BOLT; GUARD TO BRKT
03.611 (B) M10X20 FLANGE 		0-28681-020-0 02 1 9503- ● ●
301 07.068 BOLT; HOOK TO FRAME 8-97070-072-0 04 1 9112-9210 ● ●
301 07.068 BOLT; HOOK TO FRAME
M10X50 FLANGE 		0-28091-050-0 04 1 9211-9607 ● ●
301 07.068 BOLT; HOOK TO FRAME
M10X50 FLANGE 		0-28091-050-0 02 1 9608-9608 ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9608-9608 ● ●
301 07.068 BOLT; HOOK TO FRAME
CONVENIENT PACKAGE<6QZ> EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9609-9610 ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9611- ● ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> 02.042 M10X45 FLANGE 		0-28091-045-0 02 1 9608-9610 ● ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4) 02.042 M10X45 FLANGE 		0-28091-045-0 02 1 9611- ● ●
602 07.242 BRACKET; FRT STABILIZER 8-97801-156-4 01 1 9112- ● ●
602 07.242 BRACKET; FRT STABILIZER 8-97801-155-4 01 1 9112- ● ●
603 07.247 BOLT; BRKT
14.785 M10X25 FLANGE 		0-28281-025-0 06 1 9112-9411 ● ●
603 07.247 BOLT; BRKT
14.785 M10X25 FLANGE 		0-28281-025-0 04 1 9412-9412 ● ●
603 07.247 BOLT; BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9501- ● ●
