Sayfa 5-45 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-45 - UNDER GUARD ▶

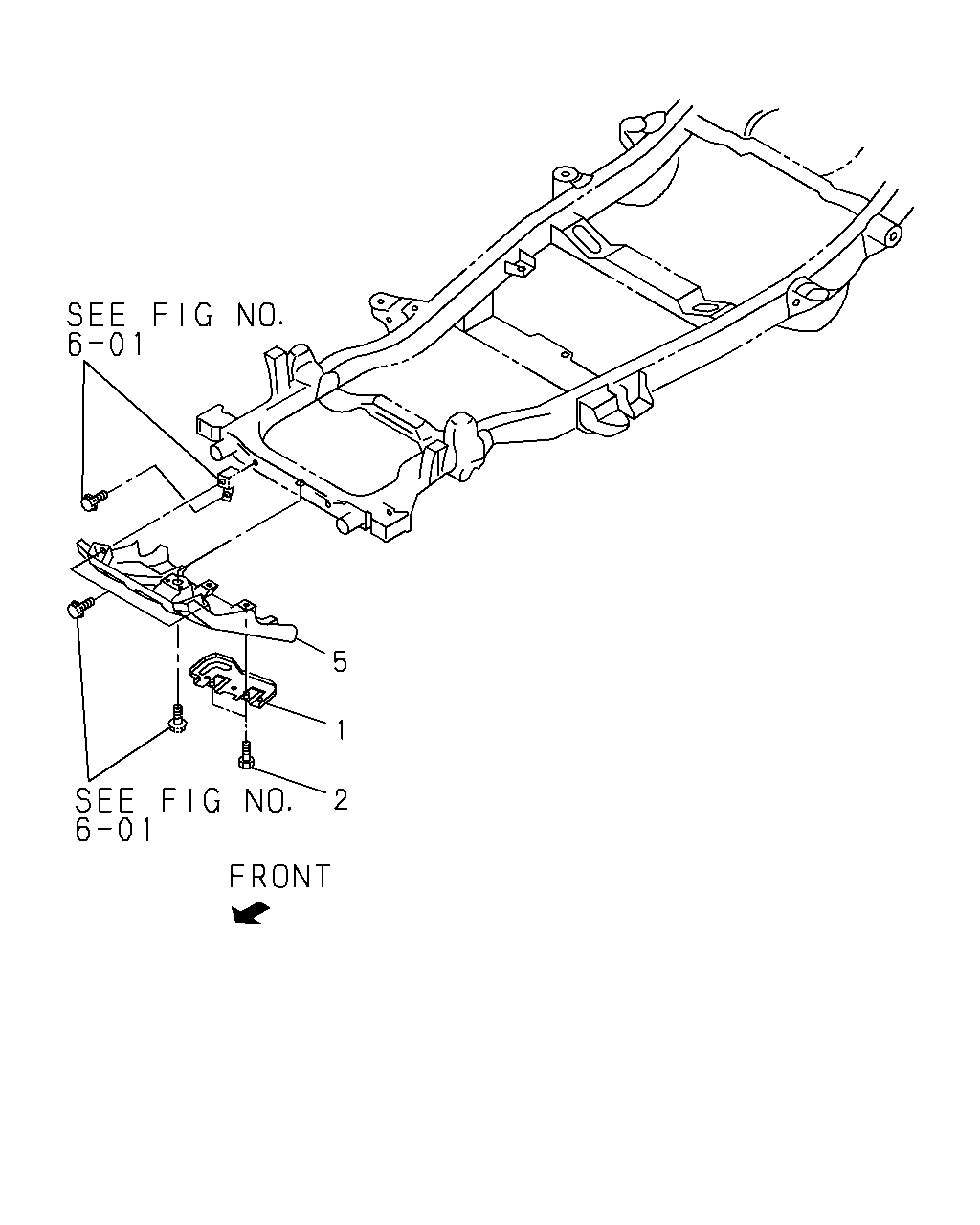

5-45 — UNDER GUARD (#44931) — 10 parça

5 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.153 COVER; MUD,ENG	8-97018-376-3	01	1	9112-9503	●	●
1	08.153 COVER; MUD,ENG	8-97123-328-0	01	1	9504-	●	●
2	08.154 BOLT; MUD COVER 01.267 M10X25	8-94492-949-0	02	1	9112-9310	●	●
2	08.154 BOLT; MUD COVER 03.690 M10X28 W/LK&PL WASHER	8-97104-788-0	02	1	9311-9503	●	●
2	08.154 BOLT; MUD COVER 16.320 M8X22 W/LK&PL WASHER	8-94279-148-1	02	1	9504-	●	●
5	08.153 GUARD; UNDER,FRT	8-97049-702-2	01	1	9112-9312	●	●
5	08.153 GUARD; UNDER,FRT	8-97106-743-0	01	1	9401-9510	●	●
5	08.153 GUARD; UNDER,FRT	8-97134-924-0	01	1	9511-9607	●	●
5	08.153 GUARD; UNDER,FRT EXC. AIR BAG DRIVER<AJ3>,TRUCK PACKAGE<7QG>	8-97134-924-0	01	1	9608-	●	●
5	08.153 GUARD; UNDER,FRT AIR BAG DRIVER<AJ3>	8-97136-378-2	01	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
