◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#44930) — 33 parça

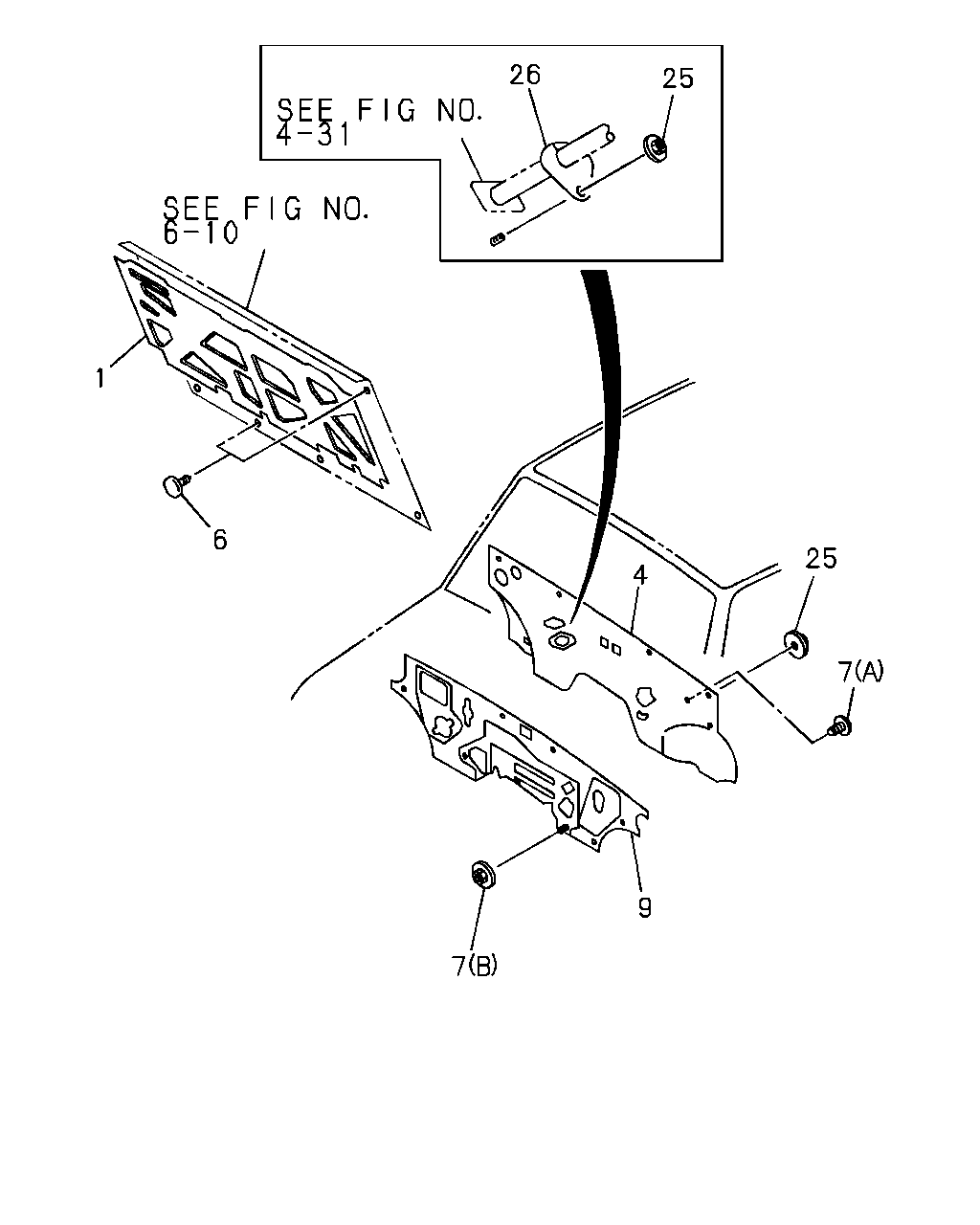

çizim 66054
1 6 26 25 4 25 7 9 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97805-970-2 01 1 9112-9208 ● ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) CHARGE AIR COOLER<6PL> 		8-97809-350-1 01 1 9209-9507 ● ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) CHARGE AIR COOLER<6PL> 		8-97133-913-0 01 1 9508-9607 ● ●
1 08.021 INSULATION; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97133-913-0 01 1 9608- ● ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-94358-816-2 01 1 9112-9208 ● ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. CHARGE AIR COOLER<6PL> 		8-97809-349-1 01 1 9209-9311 ● ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97809-349-1 01 1 9312-9507 ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) EXC. CHARGE AIR COOLER<6PL> 		8-97809-349-1 01 1 9312-9507 ●
1 08.021 INSULATION; ENG HOOD
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) EXC. CHARGE AIR COOLER<6PL> 		8-97133-912-0 01 1 9508-9607 ● ●
1 08.021 INSULATION; ENG HOOD
EXC. CHARGE AIR COOLER<6PL> 		8-97133-912-0 01 1 9608- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97807-907-3 01 1 9112-9301 ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97810-123-0 01 1 9302-9307 ● ●
4 08.021 INSULATION; DASH PNL,INNER 8-97810-748-0 01 1 9308-9504 ● ●
4 08.021 INSULATION; DASH PNL,INNER 8-97111-184-4 01 1 9505-9510 ● ●
4 08.021 INSULATION; DASH PNL,INNER 8-97138-531-2 01 1 9511- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-97807-692-3 01 1 9112-9301 ● ●
4 08.021 INSULATION; DASH PNL,INNER
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-97810-122-0 01 1 9302-9307 ● ●
6 08.021 CLIP; ENG HOOD INSULATION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.549 OD=30 		8-94279-952-0 14 1 9112-9204 ● ●
6 08.021 CLIP; ENG HOOD INSULATION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) ID=6.2 L=11.4 		8-97808-623-0 16 1 9205-9311 ● ●
6 08.021 CLIP; ENG HOOD INSULATION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) ID=6.2 L=11.4 		8-97808-623-0 16 1 9312-9507 ●
6 08.021 CLIP; ENG HOOD INSULATION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) ID=6.2 L=11.4 		8-97808-623-0 16 1 9312-9507 ●
6 08.021 CLIP; ENG HOOD INSULATION
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) ID=6.2 L=11.4 		8-97808-623-0 16 1 9508-9607 ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 16 1 9608- ● ●
7 08.021 CLIP; INSULATION
16.550 (B) H=10.5 		8-94441-810-0 08 1 9112- ● ●
7 08.021 CLIP; INSULATION
16.165 (A) DARK GRAY 		8-97805-803-0 01 1 9112-9709 ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97801-573-3 01 1 9112-9308 ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97810-332-0 01 1 9309-9603 ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97147-062-0 01 1 9604-9605 ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97176-112-1 01 1 9606- ● ●
25 16.802 CLIP; DASH INSULATION
16.550 H=10.5 		8-94441-810-0 05 1 9112-9304 ● ●
25 16.802 CLIP; DASH INSULATION
16.550 H=10.5 		8-94441-810-0 06 1 9305-9511 ● ●
25 16.802 CLIP; DASH INSULATION
16.550 H=10.5 		8-94441-810-0 05 1 9512- ● ●
26 16.802 INSULATION; PAD,STRG COLUMN 8-97805-952-4 01 1 9112-9301 ● ●
