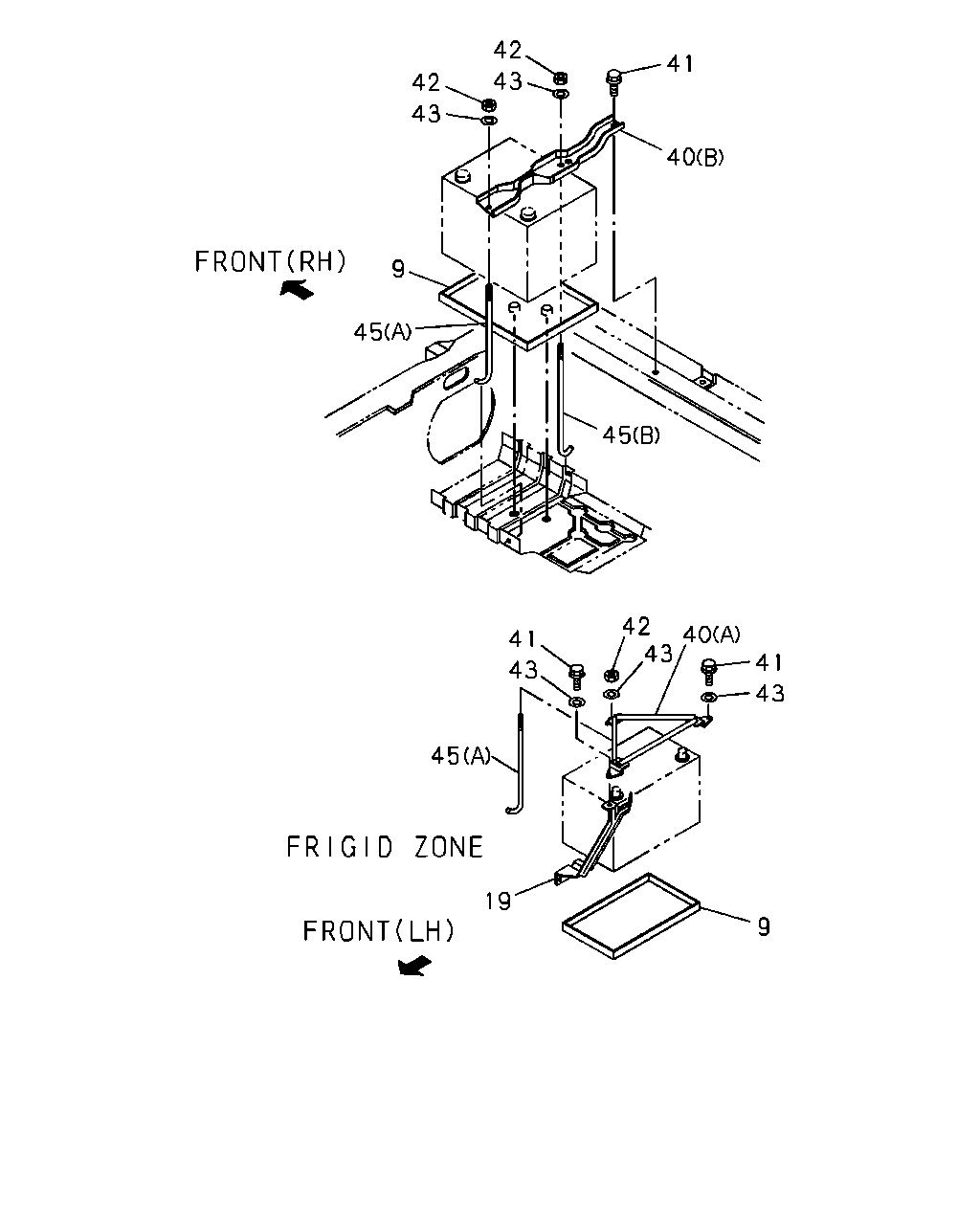

5-20 — BATTERY CARRIER (#44928) — 25 parça

41 40 42 43 42 43 9 45 45 40 41 43 9 19 45 43 41 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU)	8-94405-030-0	01	1	9112-9504	●	●
9	02.333 SEAT; BATTERY FRIGID ZONE<YL3>	8-94405-030-0	01	1	9112-9504	●	●
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU)	8-94405-030-0	01	1	9505-	●	●
9	02.333 SEAT; BATTERY FRIGID ZONE<YL3>	8-94405-030-0	01	1	9505-	●	●
9	02.333 SEAT; BATTERY 4ZE1 ENG(RLJ)	8-94405-031-0	01	1	9112-	●	●
19	07.039 STAY; BATTERY FRIGID ZONE<YL3>	8-97803-750-0	01	1	9112-	●	●
40	02.335 CLAMP; BATTERY (B)	8-94387-851-1	01	1	9112-	●	●
40	02.335 CLAMP; BATTERY FRIGID ZONE<YL3> (A)	8-97029-258-2	01	1	9112-	●	●
41	02.334 BOLT; CLAMP,BATTERY 09.211 M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
41	02.334 BOLT; CLAMP,BATTERY 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9209	●	●
41	02.334 BOLT; CLAMP,BATTERY 920914- M8X18	8-94478-122-0	01	1	9209-	●	●
41	02.334 BOLT; CLAMP,BATTERY FRIGID ZONE<YL3> 01.652 M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
41	02.334 BOLT; CLAMP,BATTERY FRIGID ZONE<YL3> 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9412	●	●
41	02.334 BOLT; CLAMP,BATTERY FRIGID ZONE<YL3> M6X25 FLANGE	0-28680-625-0	02	1	9501-	●	●
42	02.334 NUT; CLAMP	8-94238-948-0	02	1	9112-9412	●	●
42	02.334 NUT; CLAMP 04.594 M6 FLANGE	0-91150-106-0	02	1	9501-	●	●
42	02.334 NUT; CLAMP FRIGID ZONE<YL3>	8-94238-948-0	01	1	9112-9412	●	●
42	02.334 NUT; CLAMP FRIGID ZONE<YL3> 04.594 M6 FLANGE	0-91150-106-0	01	1	9501-	●	●
43	02.334 WASHER; PL,CLAMP FRIGID ZONE<YL3> 08.154 ID=6.4 OD=14	9-09164-606-0	03	1	9112-9412	●	●
43	02.334 WASHER; PL,CLAMP 08.154 ID=6.4 OD=14	9-09164-606-0	02	1	9209-9412	●	●
45	02.334 ROD; TENSION,BATTERY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (A) L=190	8-94238-991-0	01	1	9112-9504	●	●
45	02.334 ROD; TENSION,BATTERY 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) L=202	8-97039-079-1	01	1	9112-9504	●	●
45	02.334 ROD; TENSION,BATTERY (A) L=202	8-97039-079-1	01	1	9505-	●	●
45	02.334 ROD; TENSION,BATTERY (B) L=230	8-94133-637-0	01	1	9112-	●	●
45	02.334 ROD; TENSION,BATTERY FRIGID ZONE<YL3> (A) L=204	8-94259-857-0	01	1	9112-	●	●
