Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#44927) — 179 parça

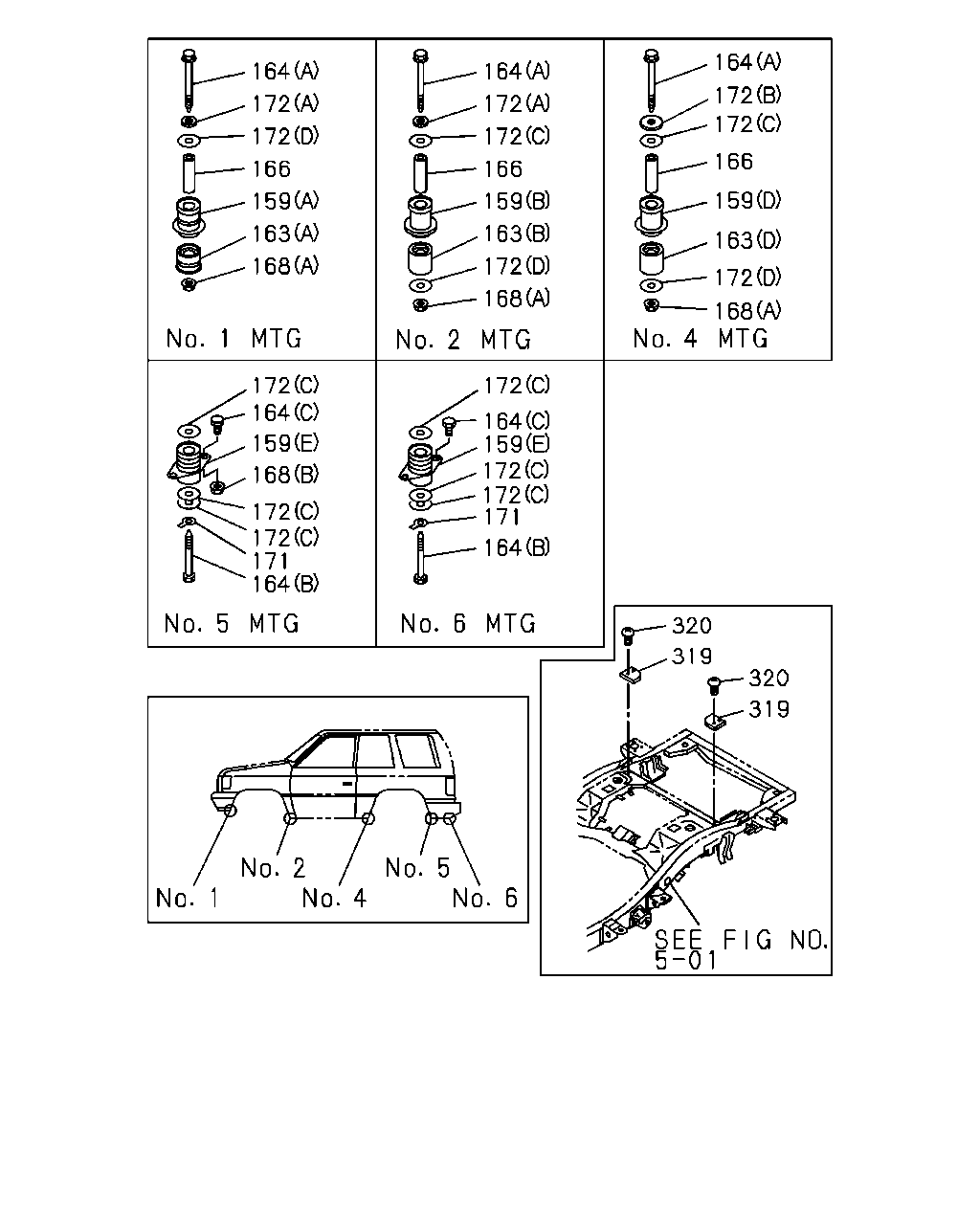

164 172 166 172 159 163 168 164 172 172 166 159 163 172 168 164 172 172 166 163 159 172 168 172 164 159 172 172 171 164 164 171 168 172 172 159 164 172 172 166 163 159 172 171 164 319 320 319 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9202-9504	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9505-	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9202-9504	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9505-	●
159	09.023 RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9112-9201	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-	●
159	09.023 RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-		●
159	09.023 RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-94325-155-2	02	1	9112-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-94370-629-2	02	1	9112-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9112-9302	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-97035-571-2	02	1	9303-9308	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9309-9410	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9411-9506	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9507-		●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9112-9302	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9303-9308	●	●
159	09.023 RUBBER; CUSHION,CAB MTG SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-94227-778-3	02	1	9303-9308		●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9309-9410	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-94325-158-2	02	1	9112-		●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-078-0	02	1	9507-	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-94325-156-0	02	1	9112-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9112-9302	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-97035-572-1	02	1	9303-9308	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9309-9410	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9411-9506	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9507-		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-94227-777-1	02	1	9112-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9112-9302	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-94227-777-1	02	1	9303-9308	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9303-9308	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9309-9410	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-94157-885-0	02	1	9112-		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-079-0	02	1	9507-	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28081-020-0	08	1	9112-9412	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG 03.611 (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28681-020-0	08	1	9501-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X100	8-94318-911-2	04	1	9112-9302	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X102	8-97091-599-0	04	1	9303-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X100	8-94318-911-2	02	1	9112-9302		●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X102	8-97091-599-0	02	1	9303-		●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWBNO.4 MTG M10X125	8-97042-439-1	06	1	9112-9501	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWBNO.4 MTG M10X120	8-97122-607-1	06	1	9502-9507	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWBNO.4 MTG M10X120	8-97134-968-0	06	1	9508-9607	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 MTG M10X120	8-97134-968-0	02	1	9608-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.2 NO.3 MTG SWB NO.4 MTG M10X105	8-97142-724-0	04	1	9608-	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97042-440-0	06	1	9112-9605	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97148-478-0	06	1	9606-	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97042-440-0	02	1	9112-9605		●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97148-478-0	02	1	9606-		●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 04.785 (B) NO.5 MTG M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 08.917 (A)NO.1 NO.2 NO.3 SWB NO.4 MTG M10 FLANGE	0-91150-210-0	06	1	9112-	●	●
171	09.011 WASHER; BODY MTG RUBBER 08.929 NO.5 NO.6 MTG ID=10.2	9-09150-810-0	04	1	9112-9302	●	●
171	09.011 WASHER; BODY MTG RUBBER 08.929 SWB NO.4 MTG ID=10.2	9-09150-810-0	02	1	9112-9302		●
172	09.011 WASHER; BODY MTG RUBBER (A) NO.1 NO.2 MTG OD=32 T=6.0	8-94416-693-0	04	1	9112-	●	●
172	09.011 WASHER; BODY MTG RUBBER (B) LWB NO.3 SWB NO.4 MTG OD=48 T=6.0	8-94416-694-0	02	1	9112-	●	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.2 NO.4 NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	16	1	9112-9207	●	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	08	1	9208-9308	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9309-9504	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9505-	●
172	09.011 WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308		●
172	09.011 WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-		●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.2 NO.4 MTG OD=62 T=2.9	8-97077-385-1	04	1	9209-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1 NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	06	1	9112-9207	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1,2,4 NO.3 MTG UPPER OD=48 T=2.9	8-97077-386-1	06	1	9208-9308	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9309-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 MTG UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 MTG UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-		●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.2 NO.4 MTG OD=62 T=2.9	8-97077-385-0	04	1	9208-9208	●	●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.3 MTG LOWER ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9309-		●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.3 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9112-9207		●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.3 MTG OD=48 T=2.9	8-97077-386-1	04	1	9208-9308		●
319	09.023 GASKET; BODY MTG BOLT EXC. RR COIL & LINK SUSPENSION<6SV>	8-94362-270-0	02	1	9112-9504	●	●
319	09.023 GASKET; BODY MTG BOLT RR COIL & LINK SUSPENSION<6SV>	8-97021-539-3	02	1	9112-9504	●	●
319	09.023 GASKET; BODY MTG BOLT	8-97021-539-3	02	1	9505-	●	●
320	09.011 SCREW; BODY MTG GASKET 16.575 M6X16 TAPPING CK-HEAD	0-70180-616-0	04	1	9112-	●	●

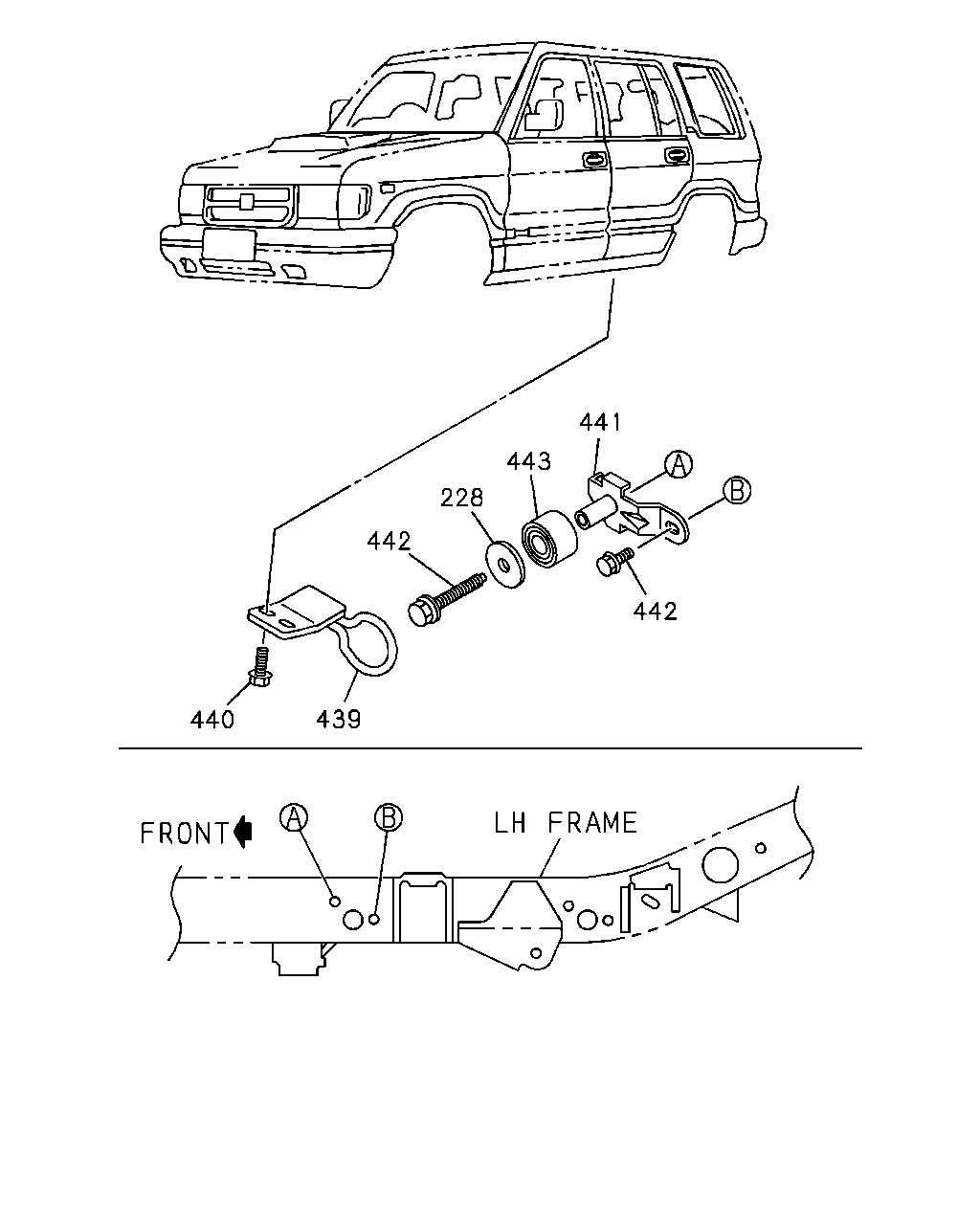

440 439 442 442 228 441 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
228	09.008 WASHER; PL AIR BAG DRIVER<AJ3> 08.929 ID=15 OD=36	9-09164-714-0	02	1	9608-	●	●
439	07.380 ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-499-1	01	1	9608-	●	●
439	07.380 ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-498-1	01	1	9608-	●	●
440	09.008 BOLT; ROD AIR BAG DRIVER<AJ3> M14X30 FLANGE	0-28691-430-0	04	1	9608-	●	●
441	09.003 BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-500-1	01	1	9608-	●	●
441	09.003 BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-501-1	01	1	9608-	●	●
442	09.003 BOLT; BRKT AIR BAG DRIVER<AJ3> M10X25 FLANGE	0-28691-025-0	02	1	9608-	●	●
442	09.003 BOLT; BRKT AIR BAG DRIVER<AJ3> 07.242 M14X85 FLANGE	8-97022-802-2	02	1	9608-	●	●
443	09.003 CUSHION; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-502-0	02	1	9608-	●	●

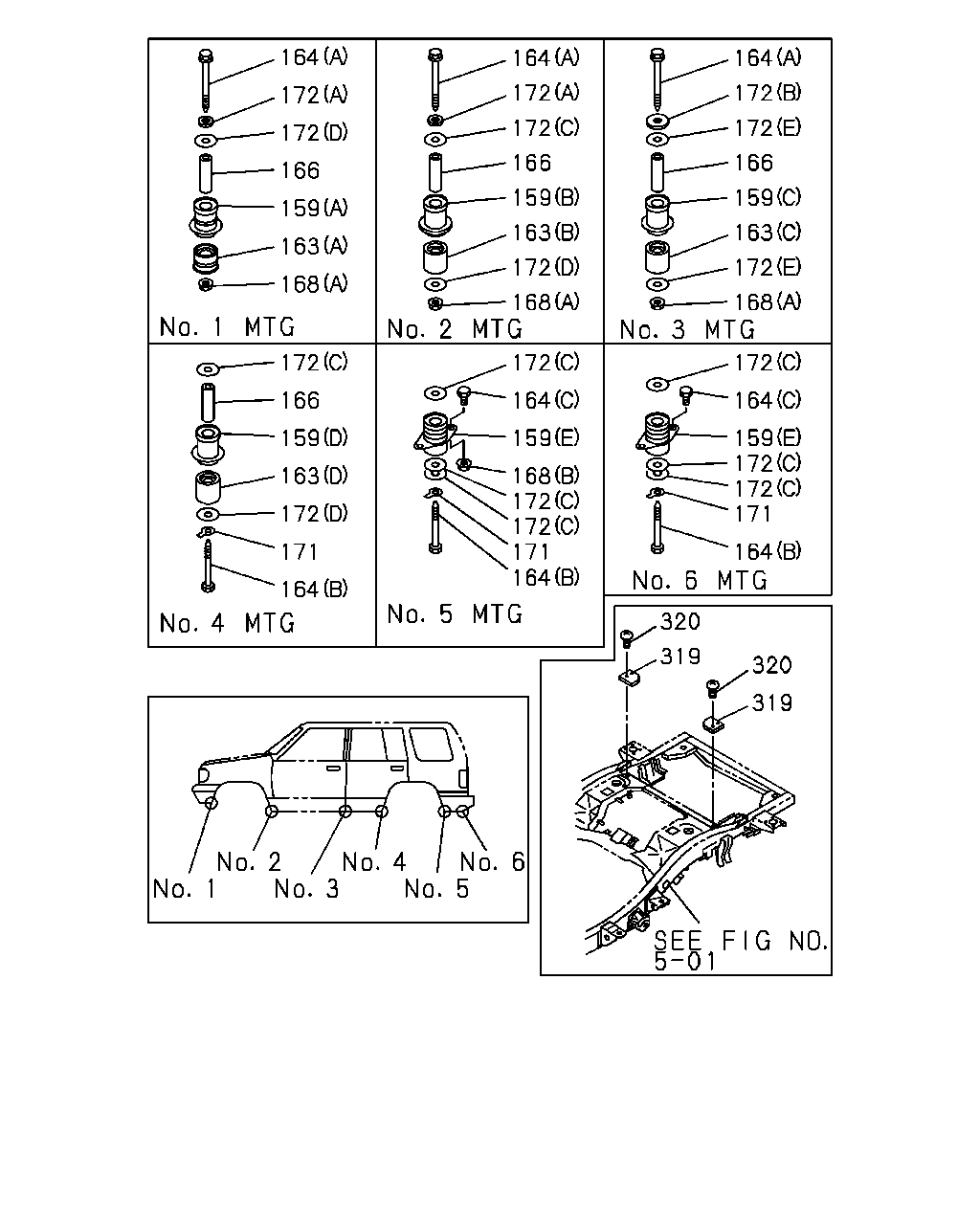

319 320 319 320 164 171 159 164 172 172 172 164 171 168 172 172 159 164 172 168 163 159 166 172 172 164 164 172 172 166 159 163 168 172 168 172 163 159 166 172 172 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9202-9504	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9505-	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9202-9504	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9505-	●
159	09.023 RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9112-9201	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-	●
159	09.023 RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-		●
159	09.023 RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-94325-155-2	02	1	9112-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-94370-629-2	02	1	9112-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9112-9302	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-97035-571-2	02	1	9303-9308	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9309-9410	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9411-9506	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9507-		●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9112-9302	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9303-9308	●	●
159	09.023 RUBBER; CUSHION,CAB MTG SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-94227-778-3	02	1	9303-9308		●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9309-9410	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-94325-158-2	02	1	9112-		●
159	09.023 RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-078-0	02	1	9507-	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-94325-156-0	02	1	9112-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9112-9302	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-97035-572-1	02	1	9303-9308	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9309-9410	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9411-9506	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9507-		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-94227-777-1	02	1	9112-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9112-9302	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND SOUTH AFRICA EQUIPMENT(SW2) (B) NO.2 MTG	8-94227-777-1	02	1	9303-9308	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9303-9308	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9309-9410	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-94157-885-0	02	1	9112-		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-079-0	02	1	9507-	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28081-020-0	08	1	9112-9412	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG 03.611 (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28681-020-0	08	1	9501-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X100	8-94318-911-2	04	1	9112-9302	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X102	8-97091-599-0	04	1	9303-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X100	8-94318-911-2	02	1	9112-9302		●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X102	8-97091-599-0	02	1	9303-		●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWBNO.4 MTG M10X125	8-97042-439-1	06	1	9112-9501	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWBNO.4 MTG M10X120	8-97122-607-1	06	1	9502-9507	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWBNO.4 MTG M10X120	8-97134-968-0	06	1	9508-9607	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 MTG M10X120	8-97134-968-0	02	1	9608-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.2 NO.3 MTG SWB NO.4 MTG M10X105	8-97142-724-0	04	1	9608-	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97042-440-0	06	1	9112-9605	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97148-478-0	06	1	9606-	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97042-440-0	02	1	9112-9605		●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97148-478-0	02	1	9606-		●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 04.785 (B) NO.5 MTG M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 08.917 (A)NO.1 NO.2 NO.3 SWB NO.4 MTG M10 FLANGE	0-91150-210-0	06	1	9112-	●	●
171	09.011 WASHER; BODY MTG RUBBER 08.929 NO.5 NO.6 MTG ID=10.2	9-09150-810-0	04	1	9112-9302	●	●
171	09.011 WASHER; BODY MTG RUBBER 08.929 SWB NO.4 MTG ID=10.2	9-09150-810-0	02	1	9112-9302		●
172	09.011 WASHER; BODY MTG RUBBER (A) NO.1 NO.2 MTG OD=32 T=6.0	8-94416-693-0	04	1	9112-	●	●
172	09.011 WASHER; BODY MTG RUBBER (B) LWB NO.3 SWB NO.4 MTG OD=48 T=6.0	8-94416-694-0	02	1	9112-	●	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.2 NO.4 NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	16	1	9112-9207	●	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	08	1	9208-9308	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9309-9504	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9505-	●
172	09.011 WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308		●
172	09.011 WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-		●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.2 NO.4 MTG OD=62 T=2.9	8-97077-385-1	04	1	9209-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1 NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	06	1	9112-9207	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1,2,4 NO.3 MTG UPPER OD=48 T=2.9	8-97077-386-1	06	1	9208-9308	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9309-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 MTG UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 MTG UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-		●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.2 NO.4 MTG OD=62 T=2.9	8-97077-385-0	04	1	9208-9208	●	●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.3 MTG LOWER ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9309-		●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.3 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9112-9207		●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.3 MTG OD=48 T=2.9	8-97077-386-1	04	1	9208-9308		●
319	09.023 GASKET; BODY MTG BOLT EXC. RR COIL & LINK SUSPENSION<6SV>	8-94362-270-0	02	1	9112-9504	●	●
319	09.023 GASKET; BODY MTG BOLT RR COIL & LINK SUSPENSION<6SV>	8-97021-539-3	02	1	9112-9504	●	●
319	09.023 GASKET; BODY MTG BOLT	8-97021-539-3	02	1	9505-	●	●
320	09.011 SCREW; BODY MTG GASKET 16.575 M6X16 TAPPING CK-HEAD	0-70180-616-0	04	1	9112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
