◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#44926) — 176 parça

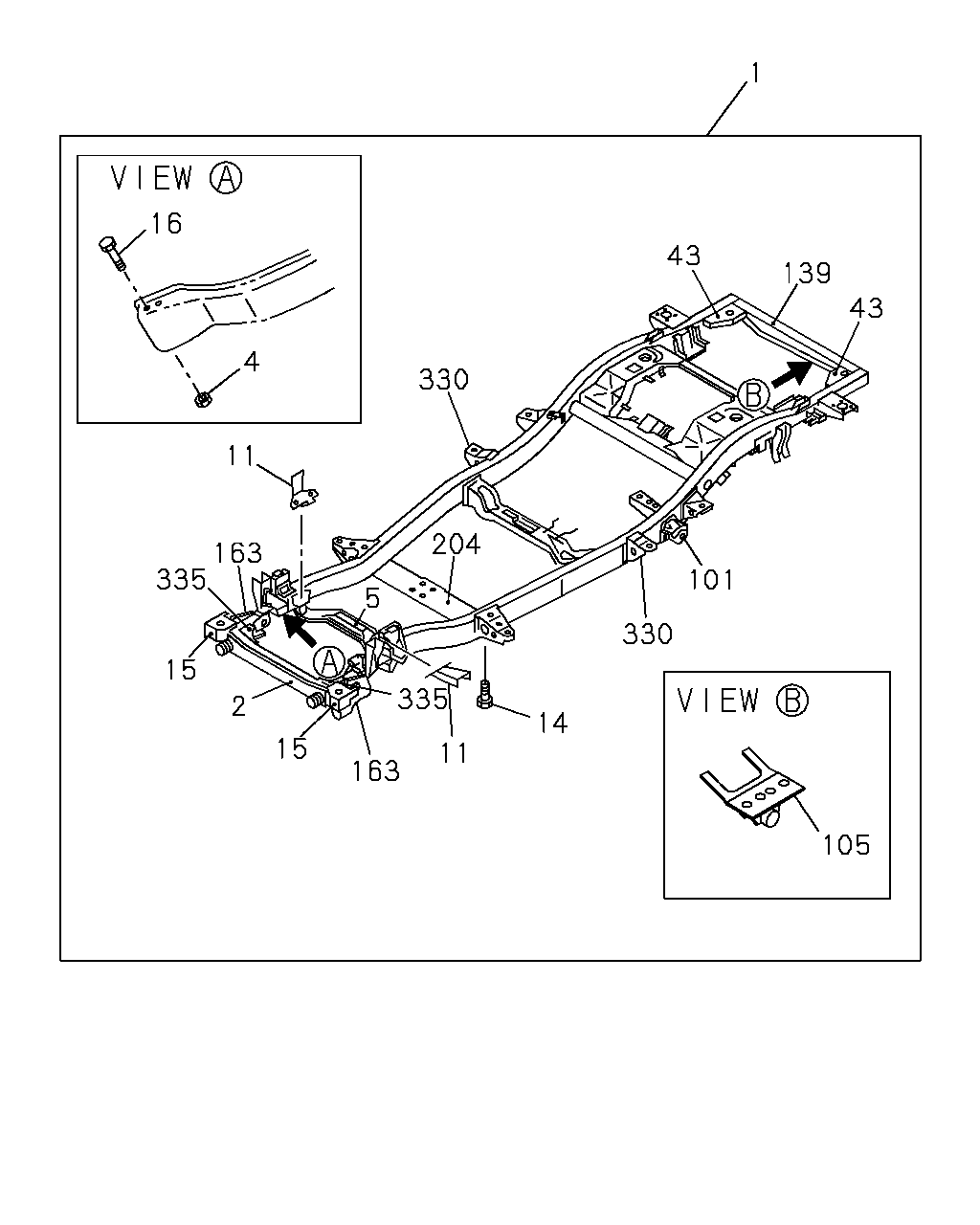

çizim 66057
1 139 43 43 101 330 105 14 11 335 163 15 2 15 335 5 163 1 204 330 4 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.003 FRAME ASM
4JG1 ENG(RLT) 		8-94359-362-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
4JG1 ENG(RLT) 		8-97809-815-4 01 1 9309-9504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) 		8-94359-361-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) 		8-97809-814-5 01 1 9309-9504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) 		8-97105-749-3 01 1 9505-9607 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4) 		8-97132-976-1 01 1 9608- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97146-752-1 01 1 9608- ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-94359-365-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-97809-817-4 01 1 9309-9504 ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-97105-751-2 01 1 9505-9607 ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-97132-978-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-94359-369-5 01 1 9112-9308 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-97809-823-5 01 1 9309-9504 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-97105-755-2 01 1 9505-9607 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97146-754-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97132-982-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-94359-367-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-97809-820-5 01 1 9309-9504 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-97105-753-2 01 1 9505-9607 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97146-753-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4) 		8-97132-980-0 01 1 9608- ●
1 07.003 FRAME ASM
4JG1 ENG(RLT) 		8-94359-372-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
4JG1 ENG(RLT) 		8-97809-826-4 01 1 9309-9504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) 		8-94359-371-7 01 1 9112-9308 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) 		8-97809-825-5 01 1 9309-9504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) 		8-97105-757-3 01 1 9505-9607 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97146-755-1 01 1 9608- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97132-983-4 01 1 9608- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97132-984-1 01 1 9608- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97132-984-1 01 1 9608- ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-94359-375-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-97809-828-4 01 1 9309-9504 ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-97105-759-2 01 1 9505-9607 ●
1 07.003 FRAME ASM
4ZE1 ENG(RLJ) 		8-97132-986-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-94359-379-6 01 1 9112-9308 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-97809-834-5 01 1 9309-9504 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-97105-763-2 01 1 9505-9607 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97146-757-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97132-990-3 01 1 9608-9608 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97132-990-3 01 1 9609- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CONVENIENT PACKAGE<6QZ> 		8-97132-990-3 01 1 9609- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97132-991-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97132-991-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-94359-377-7 01 1 9112-9308 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-97809-831-5 01 1 9309-9504 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 		8-97105-761-2 01 1 9505-9607 ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97146-756-0 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97132-987-3 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97132-988-1 01 1 9608- ●
1 07.003 FRAME ASM
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97132-988-1 01 1 9608- ●
2 07.010 MEMBER; CROSS,1ST 8-97803-103-1 01 1 9112-9308 ● ●
2 07.010 MEMBER; CROSS,1ST 8-97810-572-0 01 1 9309-9607 ● ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97810-572-1 01 1 9608- ● ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97810-572-1 01 1 9608- ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97133-008-1 01 1 9608- ● ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97133-008-1 01 1 9608- ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
M10 FLANGE 		8-94383-595-0 02 1 9112- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 		8-94485-919-0 01 1 9112-9504 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4ZE1 ENG(RLJ) 		8-94485-919-0 01 1 9505-9507 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4ZE1 ENG(RLJ) 		8-97134-403-0 01 1 9508- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
6VD1 SOHC ENG(RLU) 		8-94498-707-1 01 1 9112-9607 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
6VD1 SOHC ENG(RLU) 		8-94498-707-1 01 1 9608-9608 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
6VD1 SOHC ENG(RLU) CONVENIENT PACKAGE<6QZ> 		8-94498-707-1 01 1 9609- ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97118-209-0 01 1 9608- ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97118-209-0 01 1 9608- ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97118-210-0 01 1 9608- ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97118-210-0 01 1 9608- ●
11 00.029 BRACKET; ENG MTG
4ZE1 ENG(RLJ) 		8-97800-854-0 01 1 9112- ● ●
11 00.029 BRACKET; ENG MTG
4ZE1 ENG(RLJ) 		8-97800-855-0 01 1 9112- ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 		8-97800-856-1 01 1 9505-9607 ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97800-856-1 01 1 9608- ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97800-856-1 01 1 9608- ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 		8-97800-857-1 01 1 9505-9607 ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97800-857-1 01 1 9608- ● ●
11 00.029 BRACKET; ENG MTG
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97800-857-1 01 1 9608- ●
14 07.039 BOLT; TRANS MTG MBR,FRAME
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-94488-777-0 08 1 9112-9504 ● ●
14 07.039 BOLT; TRANS MTG MBR,FRAME
4JG2 ENG(RJC) 		8-94488-777-0 08 1 9505-9610 ● ●
14 07.039 BOLT; TRANS MTG MBR,FRAME
4JG2 ENG(RJC) M12X31 FLANGE 		8-97166-862-0 08 1 9611- ● ●
14 07.039 BOLT; TRANS MTG MBR,FRAME
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M12X25 		8-94498-772-0 08 1 9112-9609 ● ●
14 07.039 BOLT; TRANS MTG MBR,FRAME
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) CONVENIENT PACKAGE<6QZ> M12X25 		8-94498-772-0 08 1 9609-9610 ● ●
14 07.039 BOLT; TRANS MTG MBR,FRAME
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) CONVENIENT PACKAGE<6QZ> M12X25 		8-97166-861-0 08 1 9611- ● ●
15 07.039 BRACKET; BODY MTG,FRT 8-97805-940-1 01 1 9112-9607 ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97805-940-1 01 1 9608-9701 ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97805-940-1 01 1 9608-9701 ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97170-736-0 01 1 9702- ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97170-736-0 01 1 9702- ●
15 07.039 BRACKET; BODY MTG,FRT 8-97805-941-1 01 1 9112-9607 ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97805-941-1 01 1 9608-9701 ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97805-941-1 01 1 9608-9701 ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 		8-97170-737-0 01 1 9702- ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97170-737-0 01 1 9702- ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97133-013-1 01 1 9608-9701 ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97133-013-1 01 1 9608-9701 ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97170-734-0 01 1 9702- ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97170-734-0 01 1 9702- ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97133-014-1 01 1 9608-9701 ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97133-014-1 01 1 9608-9701 ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) 		8-97170-735-0 01 1 9702- ● ●
15 07.039 BRACKET; BODY MTG,FRT
4JG2 ENG(RJC) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97170-735-0 01 1 9702- ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
M10X83 FLANGE 		8-97805-841-0 02 1 9112- ● ●
43 09.003 BRACKET; CAB MTG,RR 8-97800-850-1 01 1 9112- ● ●
43 09.003 BRACKET; CAB MTG,RR 8-97800-851-1 01 1 9112- ● ●
101 07.112 BRACKET; RR SPR,FRT
4ZE1 ENG(RLJ),4JG1 ENG(RLT) 		8-97801-821-0 01 1 9112- ● ●
101 07.112 BRACKET; RR SPR,FRT
4ZE1 ENG(RLJ),4JG1 ENG(RLT) 		8-97801-820-0 01 1 9112- ● ●
105 07.112 BRACKET; RR SPR,RR
4ZE1 ENG(RLJ),4JG1 ENG(RLT) 		8-97803-122-0 01 1 9112-9504 ● ●
105 07.112 BRACKET; RR SPR,RR
4ZE1 ENG(RLJ),4JG1 ENG(RLT) 		8-97802-225-0 01 1 9112-9504 ● ●
139 07.012 MEMBER; CROSS,6TH 8-97800-845-4 01 1 9112- ● ●
163 07.105 BRACKET; LINK ARM 8-94498-720-2 01 1 9209-9512 ● ●
163 07.105 BRACKET; LINK ARM 8-97142-703-0 01 1 9601-9607 ● ●
163 07.105 BRACKET; LINK ARM 8-97142-703-0 01 1 9608- ●
163 07.105 BRACKET; LINK ARM
4ZE1 ENG(RLJ) 		8-97142-703-0 01 1 9608- ●
163 07.105 BRACKET; LINK ARM
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE S(RBA) 		8-97142-703-0 01 1 9608- ●
163 07.105 BRACKET; LINK ARM
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE LS(RBD) 		8-94498-720-2 01 1 9608-9608 ●
163 07.105 BRACKET; LINK ARM
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE LS(RBD) CONVENIENT PACKAGE<6QZ> 		8-94498-720-2 01 1 9609- ●
163 07.105 BRACKET; LINK ARM 8-94498-721-2 01 1 9209-9512 ● ●
163 07.105 BRACKET; LINK ARM 8-97142-704-0 01 1 9601-9607 ● ●
163 07.105 BRACKET; LINK ARM 8-97142-704-0 01 1 9608- ●
163 07.105 BRACKET; LINK ARM
4ZE1 ENG(RLJ) 		8-97142-704-0 01 1 9608- ●
163 07.105 BRACKET; LINK ARM
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE S(RBA) 		8-97142-704-0 01 1 9608- ●
163 07.105 BRACKET; LINK ARM
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE LS(RBD) 		8-94498-721-2 01 1 9608-9608 ●
163 07.105 BRACKET; LINK ARM
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) GRADE LS(RBD) CONVENIENT PACKAGE<6QZ> 		8-94498-721-2 01 1 9609- ●
204 07.010 MEMBER; CROSS,TRANS MTG
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97806-767-1 01 1 9112-9504 ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
4JG2 ENG(RJC) 		8-97806-767-1 01 1 9505-9509 ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
4JG2 ENG(RJC) 		8-97119-803-0 01 1 9510-9510 ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-97119-803-2 01 1 9511- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-97800-937-1 01 1 9112-9510 ● ●
330 07.039 BRACKET; BODY MTG
09.003 		8-94158-629-0 02 1 9505- ●
335 07.039 PATCH; 1ST C/MBR
UPPER 		8-97800-939-0 01 1 9112-9607 ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) UPPER 		8-97800-939-0 01 1 9608- ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) UPPER 		8-97800-939-0 01 1 9608- ●
335 07.039 PATCH; 1ST C/MBR
UPPER 		8-97800-940-0 01 1 9112-9607 ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) UPPER 		8-97800-940-0 01 1 9608- ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) UPPER 		8-97800-940-0 01 1 9608- ●
335 07.039 PATCH; 1ST C/MBR
LOWER 		8-97800-941-1 01 1 9112-9607 ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) LOWER 		8-97800-941-1 01 1 9608- ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) LOWER 		8-97800-941-1 01 1 9608- ●
335 07.039 PATCH; 1ST C/MBR
LOWER 		8-97800-942-1 01 1 9112-9607 ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) LOWER 		8-97800-942-1 01 1 9608- ● ●
335 07.039 PATCH; 1ST C/MBR
4JG2 ENG(RJC) GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) LOWER 		8-97800-942-1 01 1 9608- ●

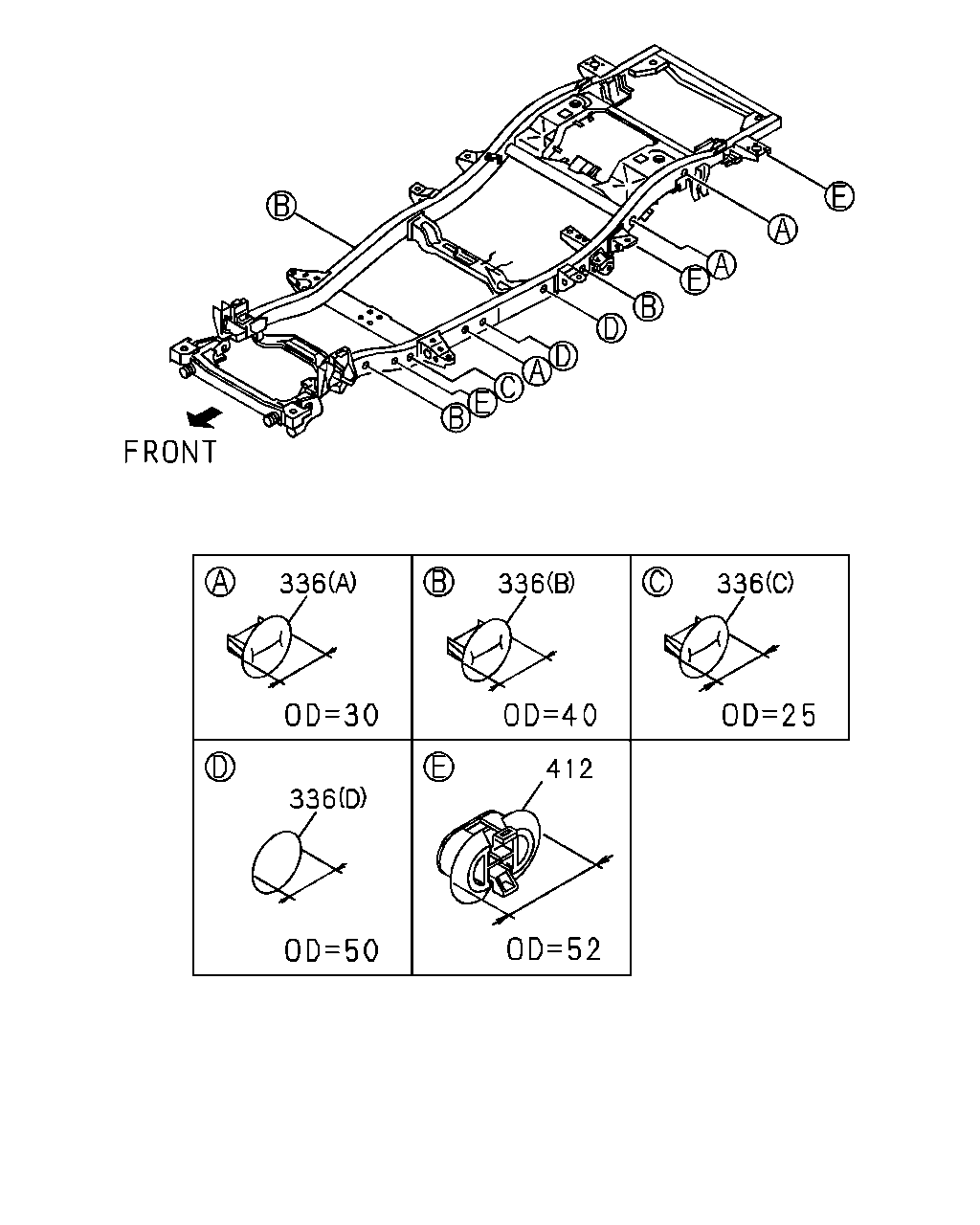

çizim 66063
336 336 336 412 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 03 1 9608-9706 ●
336 07.068 PLUG; HOLE
AIR BAG DRIVER<AJ3> SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 03 1 9707- ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) (D) OD=50 		8-94241-235-0 03 1 9608-9706 ● ●
336 07.068 PLUG; HOLE
AIR BAG DRIVER<AJ3> SHIFT ON THE FLY(7EX) (D) OD=50 		8-94241-235-0 03 1 9707- ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) (B) OD=40 BLACK 		8-97806-918-0 06 1 9112-9504 ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) OD=40 BLACK 		8-97806-918-0 06 1 9505-9607 ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 06 1 9608-9706 ●
336 07.068 PLUG; HOLE
EXC. AIR BAG DRIVER<AJ3>,SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 06 1 9707- ●
336 07.068 PLUG; HOLE
AIR BAG DRIVER<AJ3> EXC. SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 06 1 9707- ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) 07.070 (C) OD=27 GRAY 		8-97071-775-0 02 1 9112-9308 ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 07.070 (C) OD=27 GRAY 		8-97071-775-0 02 1 9309-9706 ● ●
336 07.068 PLUG; HOLE
07.070 (C) OD=27 GRAY 		8-97071-775-0 02 1 9707- ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) (A) OD=30 BLACK 		8-97806-920-0 06 1 9112-9308 ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) OD=30 BLACK 		8-97806-920-0 06 1 9309-9706 ● ●
336 07.068 PLUG; HOLE
(A) OD=30 BLACK 		8-97806-920-0 06 1 9707- ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) (B) OD=40 BLACK 		8-97806-918-0 08 1 9112-9308 ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) OD=40 BLACK 		8-97806-918-0 08 1 9309-9504 ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 08 1 9505-9607 ●
336 07.068 PLUG; HOLE
SOUTH AFRICA EQUIPMENT(SW2) EXC. SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 08 1 9608-9706 ●
336 07.068 PLUG; HOLE
EXC. AIR BAG DRIVER<AJ3>,SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 08 1 9707- ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (D) OD=50 		8-94241-235-0 02 1 9608-9706 ● ●
336 07.068 PLUG; HOLE
AIR BAG DRIVER<AJ3> EXC. SHIFT ON THE FLY(7EX) (D) OD=50 		8-94241-235-0 02 1 9707- ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) SHIFT ON THE FLY(7EX) (D) OD=50 		8-94241-235-0 01 1 9505-9607 ● ●
336 07.068 PLUG; HOLE
SOUTH AFRICA EQUIPMENT(SW2) SHIFT ON THE FLY(7EX) (D) OD=50 		8-94241-235-0 01 1 9608-9706 ●
336 07.068 PLUG; HOLE
SHIFT ON THE FLY(7EX) EXC. AIR BAG DRIVER<AJ3> (D) OD=50 		8-94241-235-0 01 1 9707- ● ●
336 07.068 PLUG; HOLE
SOUTH AFRICA EQUIPMENT(SW2) SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 07 1 9608-9706 ●
336 07.068 PLUG; HOLE
SHIFT ON THE FLY(7EX) EXC. AIR BAG DRIVER<AJ3> (B) OD=40 BLACK 		8-97806-918-0 07 1 9707- ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 04 1 9505-9607 ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 04 1 9608-9706 ●
336 07.068 PLUG; HOLE
AIR BAG DRIVER<AJ3> EXC. SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 04 1 9707- ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 01 1 9505-9607 ● ●
336 07.068 PLUG; HOLE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 05 1 9608-9706 ●
336 07.068 PLUG; HOLE
SHIFT ON THE FLY(7EX) EXC. AIR BAG DRIVER<AJ3> (B) OD=40 BLACK 		8-97806-918-0 05 1 9707- ●
336 07.068 PLUG; HOLE
AIR BAG DRIVER<AJ3> SHIFT ON THE FLY(7EX) (B) OD=40 BLACK 		8-97806-918-0 05 1 9707- ●
412 07.039 PLUG; TIE DOWN HOLE
EUROPE EQUIPMENT(EK4) 		8-97071-716-1 06 1 9112-9308 ● ●
412 07.039 PLUG; TIE DOWN HOLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97071-716-1 06 1 9309-9706 ● ●
412 07.039 PLUG; TIE DOWN HOLE 8-97071-716-1 06 1 9707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
