Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#44922) — 146 parça

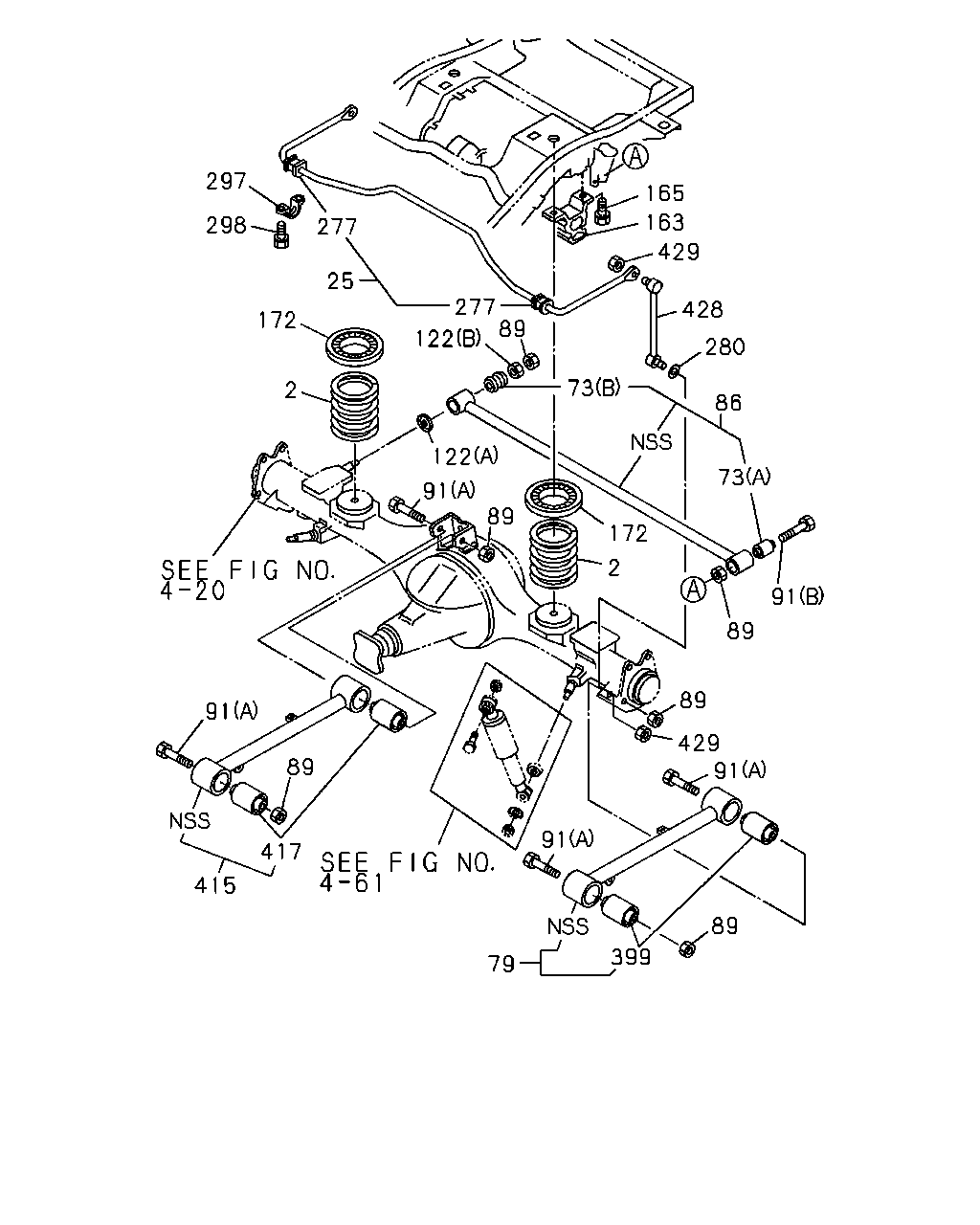

297 298 277 25 172 2 122 277 89 73 165 163 429 428 280 86 73 91 89 172 2 89 122 91 91 89 417 415 79 399 91 89 91 429 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.503 SPRING; COIL,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-97024-489-0	02	1	9112-9405	●
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4) RR COIL & LINK SUSPENSION<6SV>	8-97108-028-0	02	1	9406-9504	●
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4)	8-97108-028-0	02	1	9505-	●
2	07.503 SPRING; COIL,RR SUSP AUSTRALIA EQUIPMENT(RR3) RR COIL & LINK SUSPENSION<6SV>	8-94375-108-1	02	1	9112-9208		●
2	07.503 SPRING; COIL,RR SUSP AUSTRALIA EQUIPMENT(RR3) RR COIL & LINK SUSPENSION<6SV>	8-94375-109-1	02	1	9209-9212		●
2	07.503 SPRING; COIL,RR SUSP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) RR COIL & LINK SUSPENSION<6SV>	8-94375-109-1	02	1	9301-9405		●
2	07.503 SPRING; COIL,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. EUROPE EQUIPMENT(EK4)	8-97108-026-0	02	1	9406-9504	●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE&HANDLING<FE2>	8-97108-026-0	02	1	9505-9607	●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE&HANDLING<FE2>	8-97108-026-0	02	1	9505-9607	●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4)	8-97108-026-0	02	1	9608-	●
2	07.503 SPRING; COIL,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97024-488-0	02	1	9112-9212		●
2	07.503 SPRING; COIL,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97024-488-0	02	1	9301-9405		●
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4) RR COIL & LINK SUSPENSION<6SV>	8-97108-027-0	02	1	9406-9504		●
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4)	8-97108-027-0	02	1	9505-		●
2	07.503 SPRING; COIL,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97108-025-0	02	1	9406-9504		●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE&HANDLING<FE2>	8-97108-025-0	02	1	9505-9505		●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D)	8-97108-025-0	02	1	9506-9608		●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819-	8-97108-025-0	02	1	9608-		●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE&HANDLING<FE2> RR COIL & LINK SUSPENSION<6SV>	8-97108-030-0	02	1	9406-9505		●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D)	8-97108-030-0	02	1	9506-9608		●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819-	8-97108-030-0	02	1	9608-		●
2	07.503 SPRING; COIL,RR SUSP WEST MALAYSIA EQUIPMENT(S3D)	8-97114-055-0	02	1	9506-9608		●
2	07.503 SPRING; COIL,RR SUSP EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819-	8-97114-055-0	02	1	9608-		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-97039-331-1	01	1	9112-9212	●
25	07.241 BAR ASM; STAB,RR SUSP AUSTRALIA EQUIPMENT(RR3) RR COIL & LINK SUSPENSION<6SV>	8-97039-331-1	01	1	9112-9212		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-97039-331-1	01	1	9301-9308	●
25	07.241 BAR ASM; STAB,RR SUSP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) RR COIL & LINK SUSPENSION<6SV>	8-97039-331-1	01	1	9301-9308		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-97039-331-2	01	1	9309-9405	●
25	07.241 BAR ASM; STAB,RR SUSP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) RR COIL & LINK SUSPENSION<6SV>	8-97039-331-2	01	1	9309-9405		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-97039-331-2	01	1	9406-9504	●
25	07.241 BAR ASM; STAB,RR SUSP SUSPENSION RIDE&HANDLING<FE2> RR COIL & LINK SUSPENSION<6SV>	8-97039-331-2	01	1	9406-9504		●
25	07.241 BAR ASM; STAB,RR SUSP	8-97039-331-2	01	1	9505-9505	●
25	07.241 BAR ASM; STAB,RR SUSP SUSPENSION RIDE&HANDLING<FE2>	8-97039-331-2	01	1	9505-9505		●
25	07.241 BAR ASM; STAB,RR SUSP	8-97039-331-2	01	1	9506-9608	●
25	07.241 BAR ASM; STAB,RR SUSP SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D)	8-97039-331-2	01	1	9506-9608		●
25	07.241 BAR ASM; STAB,RR SUSP WEST MALAYSIA EQUIPMENT(S3D)	8-97039-331-2	01	1	9506-9608		●
25	07.241 BAR ASM; STAB,RR SUSP	8-97039-331-2	01	1	9609-	●
25	07.241 BAR ASM; STAB,RR SUSP SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-331-2	01	1	9609-		●
25	07.241 BAR ASM; STAB,RR SUSP EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-331-2	01	1	9609-		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97047-737-1	01	1	9112-9212		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97047-737-2	01	1	9301-9405		●
25	07.241 BAR ASM; STAB,RR SUSP RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2>	8-97047-737-2	01	1	9406-9504		●
25	07.241 BAR ASM; STAB,RR SUSP EXC. SUSPENSION RIDE&HANDLING<FE2>	8-97047-737-2	01	1	9505-9505		●
25	07.241 BAR ASM; STAB,RR SUSP EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D)	8-97047-737-2	01	1	9506-9608		●
25	07.241 BAR ASM; STAB,RR SUSP EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819-	8-97047-737-2	01	1	9608-		●
73	07.243 BUSHING; LATERAL ROD,RR SUSP RR COIL & LINK SUSPENSION<6SV> (B)	8-94375-107-1	01	1	9112-9205	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP RR COIL & LINK SUSPENSION<6SV> (B)	8-97081-408-0	01	1	9206-9504	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (B)	8-97081-408-0	01	1	9505-	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP RR COIL & LINK SUSPENSION<6SV> (A)	8-94375-106-0	01	1	9112-9504	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (A)	8-94375-106-0	01	1	9505-	●	●
79	07.240 LINK; TRAILING,RR SUSP RR COIL & LINK SUSPENSION<6SV> 02.480	8-97069-398-0	02	1	9112-9504	●
79	07.240 LINK; TRAILING,RR SUSP 02.480	8-97069-398-0	02	1	9505-9505	●
79	07.240 LINK; TRAILING,RR SUSP	8-97130-543-0	02	1	9505-	●
79	07.240 LINK; TRAILING,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-94374-441-2	02	1	9112-9504		●
79	07.240 LINK; TRAILING,RR SUSP	8-94374-441-2	02	1	9505-9505		●
79	07.240 LINK; TRAILING,RR SUSP	8-97130-541-0	02	1	9505-		●
86	07.241 ROD; LATERAL,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-94374-445-2	01	1	9112-9504	●	●
86	07.241 ROD; LATERAL,RR SUSP	8-94374-445-2	01	1	9505-	●	●
89	07.242 NUT; LATERAL ROD TO RR AXLE RR COIL & LINK SUSPENSION<6SV> 07.417 M14 FLANGE	8-94137-483-0	08	1	9112-9504	●	●
89	07.242 NUT; LATERAL ROD TO RR AXLE 07.417 M14 FLANGE	8-94137-483-0	08	1	9505-	●	●
91	07.242 BOLT; LATERAL ROD TO BODY RR COIL & LINK SUSPENSION<6SV> (A) M14X106 FLANGE	8-97022-753-2	06	1	9112-9504	●	●
91	07.242 BOLT; LATERAL ROD TO BODY (A) M14X106 FLANGE	8-97022-753-2	06	1	9505-	●	●
91	07.242 BOLT; LATERAL ROD TO BODY RR COIL & LINK SUSPENSION<6SV> (B) M14X85 FLANGE	8-97022-802-2	01	1	9112-9504	●	●
91	07.242 BOLT; LATERAL ROD TO BODY (B) M14X85 FLANGE	8-97022-802-2	01	1	9505-	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL RR COIL & LINK SUSPENSION<6SV> (A)	8-94379-595-1	01	1	9112-9504	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL (A)	8-94379-595-1	01	1	9505-	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL RR COIL & LINK SUSPENSION<6SV> (B)	8-94379-596-1	01	1	9112-9504	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL (B)	8-94379-596-1	01	1	9505-	●	●
163	07.529 RUBBER; HELPER,RR SPR RR COIL & LINK SUSPENSION<6SV>	8-94374-448-1	02	1	9112-9504	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-94374-448-1	02	1	9505-	●	●
163	07.529 RUBBER; HELPER,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> 07.535	8-94234-897-2	02	1	9112-9504	●	●
165	07.529 BOLT; HELPER RUBBER 06.606 M10X20 W/LK WASHER	8-97033-053-1	04	1	9112-	●	●
172	07.545 INSULATOR; RR SPR UPR RR COIL & LINK SUSPENSION<6SV>	8-94374-447-1	02	1	9112-9410	●	●
172	07.545 INSULATOR; RR SPR UPR RR COIL & LINK SUSPENSION<6SV>	8-97113-325-0	02	1	9411-9504	●	●
172	07.545 INSULATOR; RR SPR UPR	8-97113-325-0	02	1	9505-	●	●
277	07.243 BUSHING; STAB,RR UPR RR COIL & LINK SUSPENSION<6SV>	8-97039-520-0	02	1	9309-9405	●
277	07.243 BUSHING; STAB,RR UPR AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) RR COIL & LINK SUSPENSION<6SV>	8-97039-520-0	02	1	9309-9405		●
277	07.243 BUSHING; STAB,RR UPR RR COIL & LINK SUSPENSION<6SV>	8-97039-520-0	02	1	9406-9504	●
277	07.243 BUSHING; STAB,RR UPR SUSPENSION RIDE&HANDLING<FE2> RR COIL & LINK SUSPENSION<6SV>	8-97039-520-0	02	1	9406-9504		●
277	07.243 BUSHING; STAB,RR UPR	8-97039-520-0	02	1	9505-9505	●
277	07.243 BUSHING; STAB,RR UPR SUSPENSION RIDE&HANDLING<FE2>	8-97039-520-0	02	1	9505-9505		●
277	07.243 BUSHING; STAB,RR UPR	8-97039-520-0	02	1	9506-9608	●
277	07.243 BUSHING; STAB,RR UPR SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D)	8-97039-520-0	02	1	9506-9608		●
277	07.243 BUSHING; STAB,RR UPR WEST MALAYSIA EQUIPMENT(S3D)	8-97039-520-0	02	1	9506-9608		●
277	07.243 BUSHING; STAB,RR UPR	8-97039-520-0	02	1	9609-	●
277	07.243 BUSHING; STAB,RR UPR SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-520-0	02	1	9609-		●
277	07.243 BUSHING; STAB,RR UPR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-520-0	02	1	9609-		●
277	07.243 BUSHING; STAB,RR UPR RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97048-318-0	02	1	9404-9405		●
277	07.243 BUSHING; STAB,RR UPR RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2>	8-97048-318-0	02	1	9406-9504		●
277	07.243 BUSHING; STAB,RR UPR EXC. SUSPENSION RIDE&HANDLING<FE2>	8-97048-318-0	02	1	9505-9505		●
277	07.243 BUSHING; STAB,RR UPR EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D)	8-97048-318-0	02	1	9506-9608		●
277	07.243 BUSHING; STAB,RR UPR EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819-	8-97048-318-0	02	1	9608-		●
280	07.242 WASHER; PL,STAB BAR RR COIL & LINK SUSPENSION<6SV>	8-97049-475-0	02	1	9112-9504	●	●
280	07.242 WASHER; PL,STAB BAR	8-97049-475-0	02	1	9505-	●	●
297	07.242 CAP; STAB BAR RR COIL & LINK SUSPENSION<6SV> ID=36	8-97032-869-0	02	1	9112-9504	●	●
297	07.242 CAP; STAB BAR ID=36	8-97032-869-0	02	1	9505-	●	●
298	08.900 BOLT; STAB BAR TO BODY RR COIL & LINK SUSPENSION<6SV> M8X20 W/LK WASHER	0-50040-820-0	04	1	9112-9504	●	●
298	08.900 BOLT; STAB BAR TO BODY M8X20 W/LK WASHER	0-50040-820-0	04	1	9505-	●	●
399	07.243 BUSHING; TRAILING ROD RR COIL & LINK SUSPENSION<6SV>	8-94375-105-0	04	1	9112-9504	●
399	07.243 BUSHING; TRAILING ROD	8-94375-105-0	04	1	9505-	●
399	07.243 BUSHING; TRAILING ROD RR COIL & LINK SUSPENSION<6SV> 07.242	8-97021-055-0	04	1	9112-9504		●
399	07.243 BUSHING; TRAILING ROD 07.242	8-97021-055-0	04	1	9505-		●
415	07.240 LINK; CENTER,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-94374-443-0	01	1	9112-9504	●	●
415	07.240 LINK; CENTER,RR SUSP	8-94374-443-0	01	1	9505-	●	●
417	07.242 BUSHING; CENTER LINK RR COIL & LINK SUSPENSION<6SV>	8-97021-055-0	02	1	9112-9504	●	●
417	07.242 BUSHING; CENTER LINK	8-97021-055-0	02	1	9505-	●	●
428	07.240 LINK; RR STABILIZER RR COIL & LINK SUSPENSION<6SV>	8-97018-125-1	02	1	9112-9504	●	●
428	07.240 LINK; RR STABILIZER	8-97018-125-2	02	1	9505-	●	●
429	07.242 NUT; LINK RR COIL & LINK SUSPENSION<6SV>	8-97035-383-0	04	1	9112-9504	●	●
429	07.242 NUT; LINK	8-97035-383-0	04	1	9505-	●	●

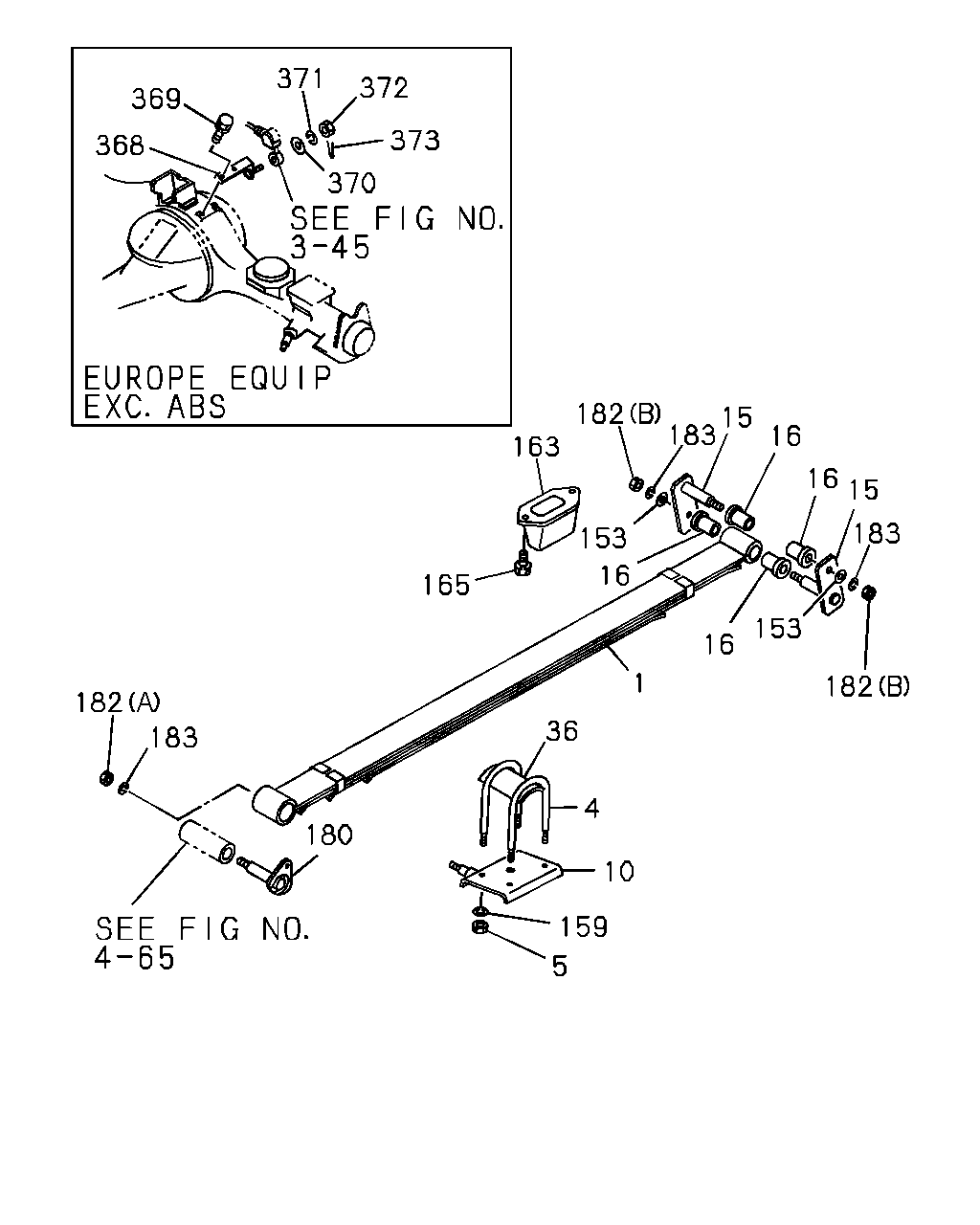

372 371 369 368 373 370 165 163 153 1 182 15 183 16 16 16 183 15 182 153 1 36 4 10 159 5 180 183 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. RR COIL & LINK SUSPENSION<6SV>	8-94386-144-0	02	1	9112-9504	●	●
4	07.516 U-BOLT; RR SPR EXC. RR COIL & LINK SUSPENSION<6SV>	8-97011-874-0	04	1	9112-9504	●	●
5	07.529 NUT; U-BOLT,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> M14	9-99110-514-0	08	1	9112-9504	●	●
10	07.529 CLAMP; LWR,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV>	8-94386-180-0	02	1	9112-9504	●	●
15	07.523 SHACKLE; RR SPR EXC. RR COIL & LINK SUSPENSION<6SV>	8-94253-846-1	04	1	9112-9502	●	●
15	07.523 SHACKLE; RR SPR EXC. RR COIL & LINK SUSPENSION<6SV>	8-97023-145-1	04	1	9503-9504	●	●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV>	8-94234-319-0	08	1	9112-9504	●	●
36	07.529 SEAT; HELPER RUBBER,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV>	8-97022-246-0	02	1	9112-9504	●	●
153	07.529 WASHER; PL,SPRING PIN EXC. RR COIL & LINK SUSPENSION<6SV> ID=14.5 OD=30	8-94476-635-0	02	1	9112-9504	●	●
159	07.529 WASHER; LK,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> 05.387 ID=14.2	9-09150-614-0	08	1	9112-9504	●	●
163	07.529 RUBBER; HELPER,RR SPR RR COIL & LINK SUSPENSION<6SV>	8-94374-448-1	02	1	9112-9504	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-94374-448-1	02	1	9505-	●	●
163	07.529 RUBBER; HELPER,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> 07.535	8-94234-897-2	02	1	9112-9504	●	●
165	07.529 BOLT; HELPER RUBBER 06.606 M10X20 W/LK WASHER	8-97033-053-1	04	1	9112-	●	●
180	07.529 PIN; RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> M14X106	8-94438-834-1	02	1	9112-9504	●	●
182	07.529 NUT; PIN,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> (A) M14	8-94232-849-0	02	1	9112-9504	●	●
182	07.529 NUT; PIN,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> 06.232 (B) M14	9-99110-414-0	04	1	9112-9504	●	●
183	07.529 WASHER; LK,PIN,RR SPR EXC. RR COIL & LINK SUSPENSION<6SV> 05.387 ID=14.2	9-09150-614-0	04	1	9112-9504	●	●
368	07.526 BRACKET; SHACKLE TO RR AXLE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97012-291-0	01	1	9112-9308	●	●
368	07.526 BRACKET; SHACKLE TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97012-291-0	01	1	9309-9506	●	●
368	07.526 BRACKET; SHACKLE TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97012-291-0	01	1	9507-	●	●
369	07.526 BOLT; BRKT TO RR AXLE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9308	●	●
369	07.526 BOLT; BRKT TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9309-9506	●	●
369	07.526 BOLT; BRKT TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9507-	●	●
370	07.529 RETAINER; SHACKLE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.710	8-94241-364-0	01	1	9112-9308	●	●
370	07.529 RETAINER; SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.710	8-94241-364-0	01	1	9309-9506	●	●
370	07.529 RETAINER; SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.710	8-94241-364-0	01	1	9507-	●	●
371	07.529 WASHER; LK,SHACKLE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 00.002 ID=8.2	9-09150-508-0	01	1	9112-9308	●	●
371	07.529 WASHER; LK,SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 00.002 ID=8.2	9-09150-508-0	01	1	9309-9506	●	●
371	07.529 WASHER; LK,SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 00.002 ID=8.2	9-09150-508-0	01	1	9507-	●	●
372	07.529 NUT; SHACKLE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) M8	9-09117-408-0	01	1	9112-9308	●	●
372	07.529 NUT; SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) M8	9-09117-408-0	01	1	9309-9506	●	●
372	07.529 NUT; SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M8	9-09117-408-0	01	1	9507-	●	●
373	07.529 PIN; SPLIT,SHACKLE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9112-9308	●	●
373	07.529 PIN; SPLIT,SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9309-9506	●	●
373	07.529 PIN; SPLIT,SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9507-	●	●
