4-50 — FRONT SUSPENSION (#44921) — 116 parça

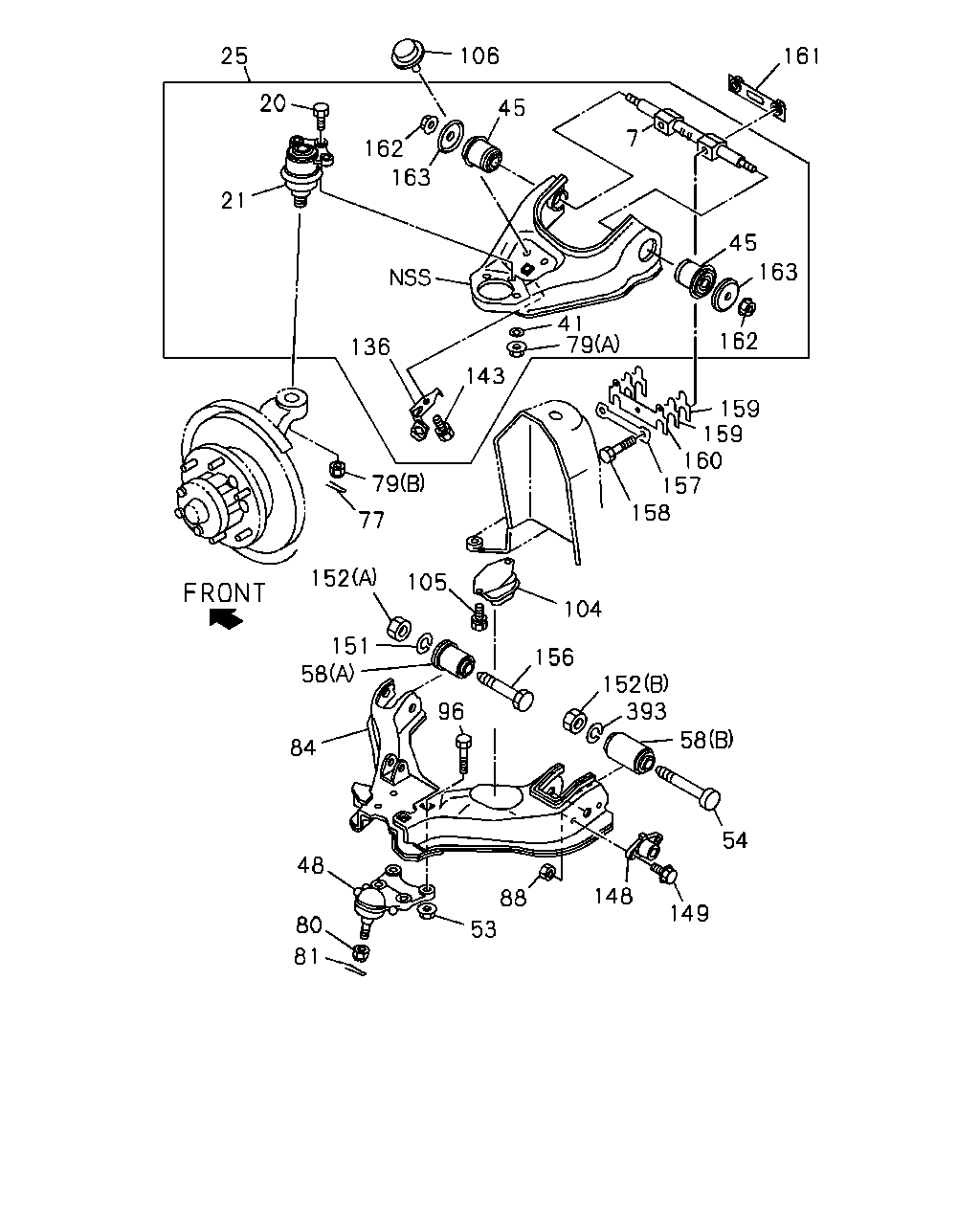

çizim 19049
25 21 20 162 106 163 45 7 161 45 162 163 79 41 143 136 79 77 152 105 151 58 84 48 80 81 53 148 88 149 54 96 156 104 152 393 58 158 160 157 159 159
BalonParca AdiParca NoAdetTipApplied Date A B
7 06.174 PIN; FULCRUM,UPR LINK 8-94381-234-3 02 1 9112- ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
M10X28 		8-94382-103-0 06 1 9112-9401 ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
16.674 M10X30 		8-97010-129-0 06 1 9402- ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM 8-94374-424-0 02 1 9112- ● ●
25 06.168 ARM; UPR CONT 8-94374-418-5 01 1 9112-9505 ● ●
25 06.168 ARM; UPR CONT 8-94374-418-5 01 1 9506- ●
25 06.168 ARM; UPR CONT
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94374-418-5 01 1 9506- ●
25 06.168 ARM; UPR CONT 8-94374-419-5 01 1 9112-9505 ● ●
25 06.168 ARM; UPR CONT 8-94374-419-5 01 1 9506- ●
25 06.168 ARM; UPR CONT
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94374-419-5 01 1 9506- ●
25 06.168 ARM; UPR CONT
WIDE TREAD SUSPENSION<7FC> 		8-97104-174-1 01 1 9506- ●
25 06.168 ARM; UPR CONT
WIDE TREAD SUSPENSION<7FC> 		8-97104-175-1 01 1 9506- ●
41 06.174 WASHER; LK,UPR LINK END TO UPR L
08.929 ID=10.2 		9-09150-810-0 06 1 9112-9401 ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 9112-9505 ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 9506- ●
45 06.164 BUSHING; UPR LINK,FRT
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94408-840-3 04 1 9506- ●
45 06.164 BUSHING; UPR LINK,FRT
WIDE TREAD SUSPENSION<7FC> 		8-97104-178-0 04 1 9506- ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-94459-465-2 02 1 9112-9505 ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94459-465-2 02 1 9506- ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
FINAL GEAR RATIO 41/9(HC6) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97103-437-0 02 1 9506-9506 ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
FINAL GEAR RATIO 41/9(HC6) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC> EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97103-437-0 02 1 9507- ●
53 06.174 NUT; LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 08 1 9112- ● ●
54 06.174 PIN; FULCRUM,LWR LINK
M18X127 		8-97032-986-0 02 1 9112- ● ●
58 06.170 BUSHING; LWR LINK
(A) FRONT 		8-97018-165-0 02 1 9112- ● ●
58 06.170 BUSHING; LWR LINK
(B) REAR ID=18.2 OD=44.1 L=85.2 		8-97018-166-1 02 1 9112- ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
08.938 OD=2.8 L=28 		9-08113-028-0 02 1 9112- ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
06.164 (B) M14 SLOTTED 		8-94124-556-0 02 1 9112- ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.039 (A) M10 FLANGE 		8-94383-595-0 06 1 9112- ● ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 9112- ● ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 9112- ● ●
84 06.168 ARM; LWR CONT 8-94374-429-1 01 1 9112- ● ●
84 06.168 ARM; LWR CONT 8-94374-428-1 01 1 9112- ● ●
88 06.174 NUT; LWR LINK
07.243 M12 FLANGE 		0-91150-212-0 04 1 9112- ● ●
96 06.174 BOLT; LWR LINK
00.002 M12X50 		9-92061-250-0 08 1 9510- ● ●
96 06.174 BOLT; LWR LINK
08.900 M12X35 		9-92061-235-0 08 1 9112-9308 ● ●
96 06.174 BOLT; LWR LINK
08.900 M12X35 		9-92061-235-0 08 1 9309-9407 ● ●
96 06.174 BOLT; LWR LINK
00.002 M12X50 		9-92061-250-0 08 1 9408-9509 ● ●
104 07.170 RUBBER; BUMPER,STRUT 8-94374-431-0 01 1 9112- ● ●
104 07.170 RUBBER; BUMPER,STRUT 8-94374-430-0 01 1 9112- ● ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9112- ● ●
106 07.170 RUBBER; REBOUND,STRUT 8-94374-432-0 02 1 9112- ● ●
136 04.686 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-605-1 01 1 9112- ● ●
136 04.686 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-604-1 01 1 9112- ● ●
143 04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9112- ● ●
148 06.170 ARM; LWR LINK 8-97018-220-0 02 1 9112- ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
M12X37 FLANGE 		8-94382-104-1 04 1 9112- ● ●
151 06.172 WASHER; LK,LWR LINK TO FRT C/MBR
05.002 ID=16.2 		9-09150-616-0 02 1 9112- ● ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 9112- ● ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9112- ● ●
156 06.172 PIN; FULCRUM,FRT SUSPENSION
M16X91 		8-94173-359-0 02 1 9112- ● ●
157 06.176 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 9112- ● ●
158 06.178 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 9112- ● ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=0.40 		8-94227-053-1 AR 1 9112- ● ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=1.60 		8-94227-054-2 AR 1 9112- ● ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=3.20 		8-94241-885-3 AR 1 9112- ● ●
160 06.164 SHIM; CAMBER ANGLE,FRT SUSPENSIO
T=3.20 		8-94381-376-1 AR 1 9112- ● ●
160 06.164 SHIM; CAMBER ANGLE,FRT SUSPENSIO
T=1.60 		8-94381-377-1 AR 1 9112- ● ●
161 06.178 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 9112- ● ●
162 04.686 NUT; FULCRUM PIN TO UPR ARM
07.417 M14 FLANGE 		8-94137-483-0 04 1 9112- ● ●
163 06.163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 9112- ● ●
393 07.347 WASHER; PL
06.172 ID=18.2 		9-09150-818-0 02 1 9112-9411 ● ●
393 07.347 WASHER; PL
ID=19 OD=36 		9-09164-618-0 02 1 9412- ● ●
çizim 66083
14 65 18 17 62 17 65 60 76 103
BalonParca AdiParca NoAdetTipApplied Date A B
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9112-9502 ● ●
14 07.389 NUT; S/ABS,UPR
SUSPENSION RIDE&HANDLING<FE2> M10 		8-94317-772-0 02 1 9503- ● ●
14 07.389 NUT; S/ABS,UPR
RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-140-0 02 1 9503-9504 ● ●
14 07.389 NUT; S/ABS,UPR
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-140-0 02 1 9505-9505 ● ●
14 07.389 NUT; S/ABS,UPR
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-140-0 02 1 9506-9608 ●
14 07.389 NUT; S/ABS,UPR
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-97120-140-0 02 1 9506-9608 ●
14 07.389 NUT; S/ABS,UPR
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97120-140-0 02 1 9608- ● ●
17 07.388 BUSHING; RUBBER,S/ABS 8-97036-284-0 04 1 9112-9502 ● ●
17 07.388 BUSHING; RUBBER,S/ABS
SUSPENSION RIDE&HANDLING<FE2> 		8-97036-284-0 04 1 9503- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-138-0 04 1 9503-9504 ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-138-0 04 1 9505-9505 ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-138-0 04 1 9506-9608 ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-97120-138-0 04 1 9506-9608 ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97120-138-0 04 1 9608- ● ●
18 07.347 WASHER; CENTERING,S/ABS 8-97036-285-0 02 1 9112-9502 ● ●
18 07.347 WASHER; CENTERING,S/ABS
SUSPENSION RIDE&HANDLING<FE2> 		8-97036-285-0 02 1 9503- ● ●
18 07.347 WASHER; CENTERING,S/ABS
RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-137-0 02 1 9503-9504 ● ●
18 07.347 WASHER; CENTERING,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-137-0 02 1 9505-9505 ● ●
18 07.347 WASHER; CENTERING,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-137-0 02 1 9506-9608 ●
18 07.347 WASHER; CENTERING,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-97120-137-0 02 1 9506-9608 ●
18 07.347 WASHER; CENTERING,S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97120-137-0 02 1 9608- ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X50 		0-10811-250-0 02 1 9112-9611 ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 9612- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
AUSTRALIA EQUIPMENT(RR3) RR COIL & LINK SUSPENSION<6SV> 		8-97043-816-1 02 1 9112-9405 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING<FE2> RR COIL & LINK SUSPENSION<6SV> 		8-97043-816-1 02 1 9406-9504 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING<FE2> 		8-97043-816-1 02 1 9505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97039-320-1 02 1 9112-9212 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
RR COIL & LINK SUSPENSION<6SV> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97039-320-1 02 1 9301-9405 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97039-320-1 02 1 9406-9502 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-036-0 02 1 9503-9504 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-036-0 02 1 9505-9505 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-036-0 02 1 9506-9608 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-97120-036-0 02 1 9506-9608 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97120-036-0 02 1 9608- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94374-440-1 02 1 9112-9504 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
AUSTRALIA EQUIPMENT(RR3) RR COIL & LINK SUSPENSION<6SV> 		8-97039-319-1 02 1 9112-9212 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) RR COIL & LINK SUSPENSION<6SV> 		8-97039-319-1 02 1 9301-9405 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING<FE2> RR COIL & LINK SUSPENSION<6SV> 		8-97039-319-1 02 1 9406-9504 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING<FE2> 		8-97039-319-1 02 1 9505-9505 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D) 		8-97039-319-1 02 1 9506-9608 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97039-319-1 02 1 9608- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
WEST MALAYSIA EQUIPMENT(S3D) 		8-97113-500-0 02 1 9506-9608 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97113-500-0 02 1 9608- ●
65 07.347 WASHER; S/ABS
ID=10.8 		8-97036-286-0 04 1 9209-9502 ● ●
65 07.347 WASHER; S/ABS
SUSPENSION RIDE&HANDLING<FE2> ID=10.8 		8-97036-286-0 04 1 9503-9504 ● ●
65 07.347 WASHER; S/ABS
SUSPENSION RIDE&HANDLING<FE2> ID=10.8 		8-97036-286-0 04 1 9505-9505 ● ●
65 07.347 WASHER; S/ABS
SUSPENSION RIDE&HANDLING<FE2> ID=10.8 		8-97036-286-0 04 1 9506- ● ●
65 07.347 WASHER; S/ABS
RR COIL & LINK SUSPENSION<6SV> EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-136-0 04 1 9503-9504 ● ●
65 07.347 WASHER; S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-136-0 04 1 9505-9505 ● ●
65 07.347 WASHER; S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97120-136-0 04 1 9506-9608 ●
65 07.347 WASHER; S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-97120-136-0 04 1 9506-9608 ●
65 07.347 WASHER; S/ABS
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97120-136-0 04 1 9608- ● ●
76 07.347 WASHER; LK,S/ABS TO LWR LINK
04.634 ID=12.2 		9-09150-512-0 02 1 9112- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 9112- ● ●
