Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#44920) — 250 parça

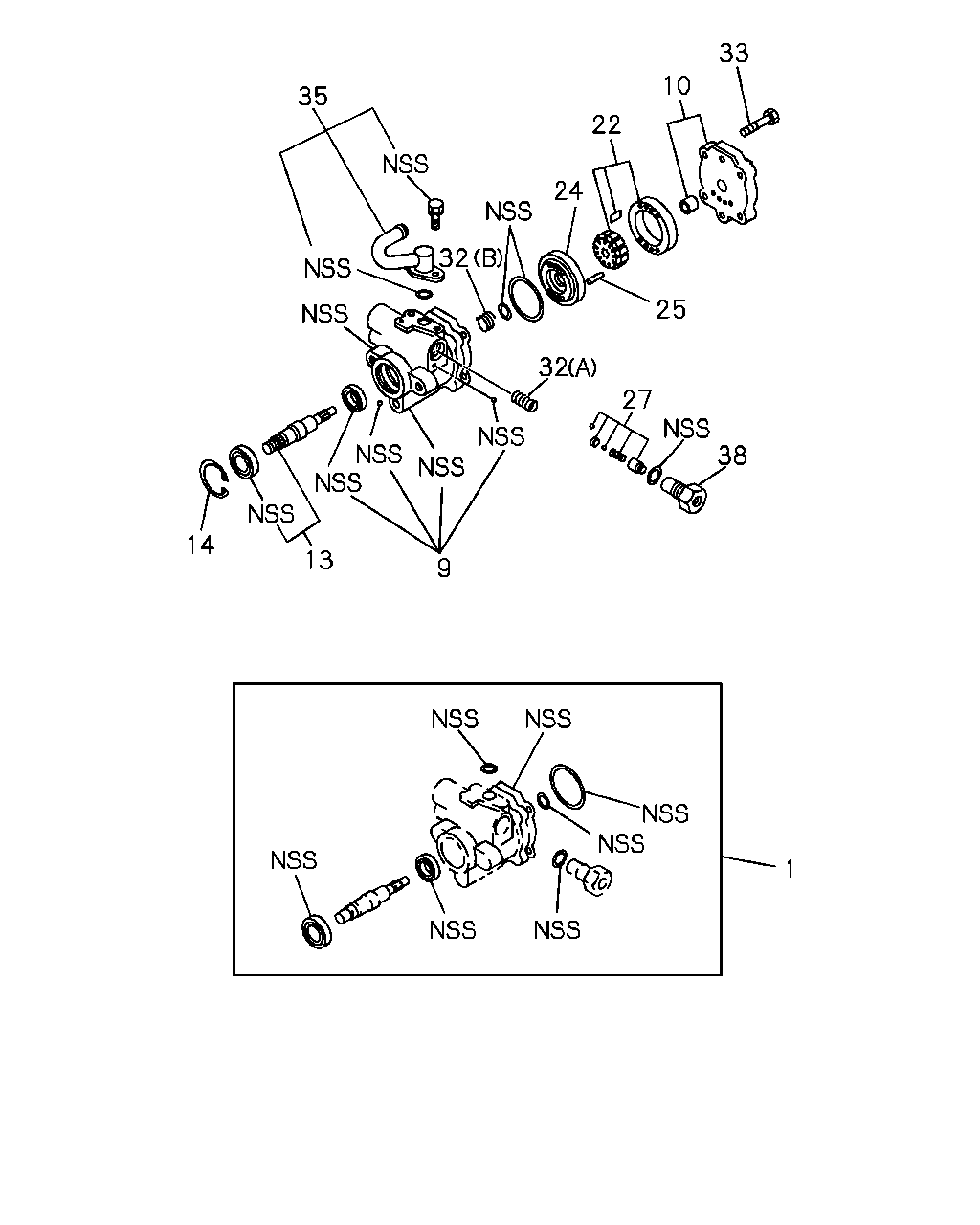

1 14 13 16 12 11 32 38 25 33 10 22 24 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-058-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97061-711-2, 97061711	8-97061-640-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-143-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97085-147-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97085-147-0	01	1	-9505
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97131-341-0	01	1	9506-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-638-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-139-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97072-885-0	01	1	-9504
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97102-294-0	01	1	9505-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-97094-200-1, 97094200	8-97102-294-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97044-059-0	01	1	-9504
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-94365-012-4, 94365012	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97102-297-0	01	1	9505-
13	06.605 SHAFT KIT; RET ASM PART: F = 8-97094-200-1, 97094200	8-97102-297-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-620-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-637-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-619-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-136-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97110-274-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: A = 8-94365-012-4, 94365012	8-97061-632-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97063-133-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-981-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-984-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-94365-012-4, 94365012	8-97065-137-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-113-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: G = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711	8-94311-982-1	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: C = 8-94388-923-2, 94388923, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: G = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	02	1	-9203
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	03	1	9204-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-94365-012-4, 94365012	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: I = 8-97129-593-1, 97129593	8-97084-979-0	01	1	-9505
33	06.606 BOLT; COVER 06.608, (A) ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97084-979-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: I = 8-97129-593-1, 97129593	8-97131-502-0	01	1	9506-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97104-020-0, 97104020	8-94311-986-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-138-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-057-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-142-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-139-1	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP 06.609, ID=11.0 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-140-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP 06.602 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-890-0	01	1	-

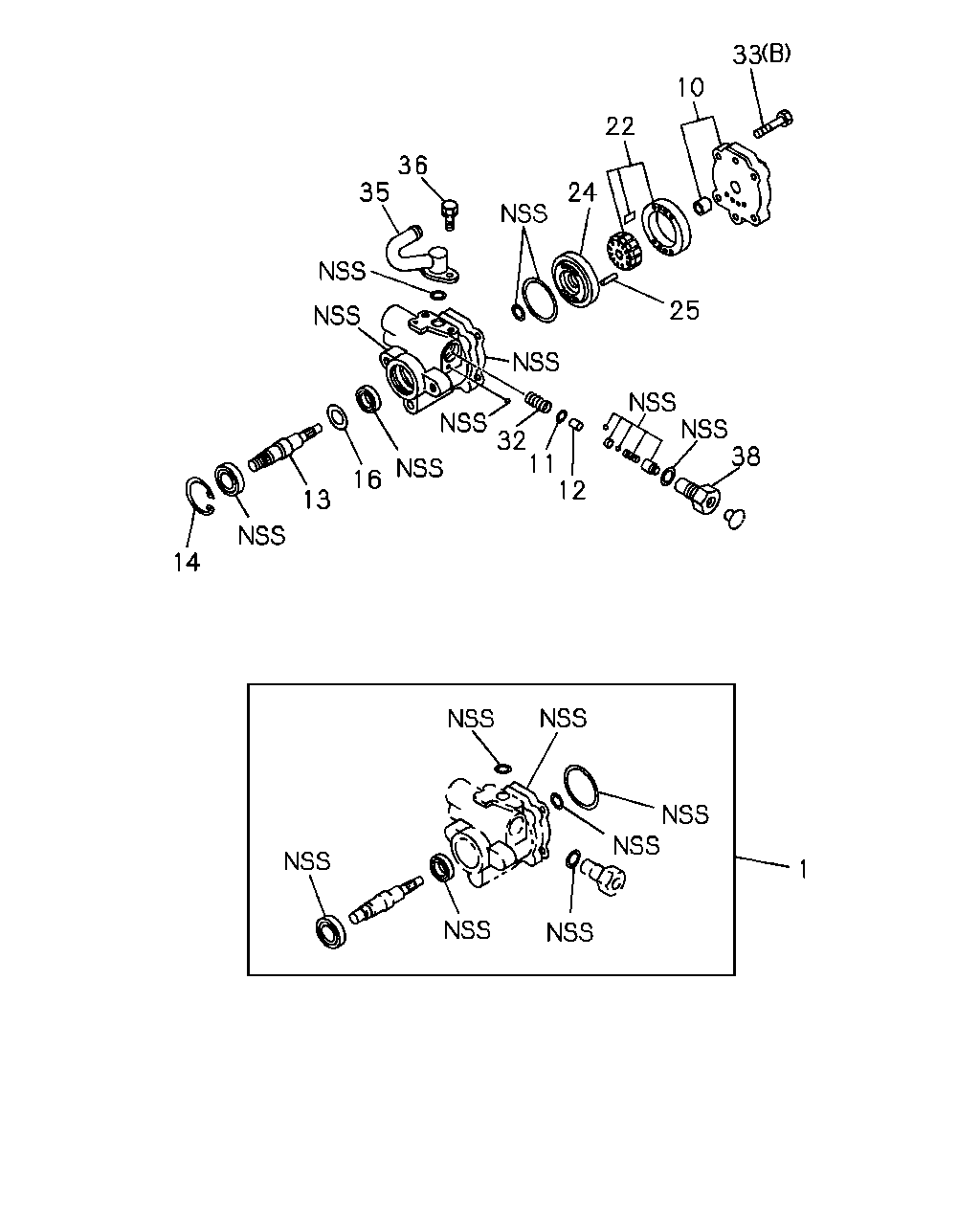

36 35 9 12 38 32 11 24 22 10 33 33 25 16 13 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-058-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97061-711-2, 97061711	8-97061-640-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-143-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97085-147-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97085-147-0	01	1	-9505
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97131-341-0	01	1	9506-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-94388-923-2, 94388923	8-97014-668-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-888-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-638-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-139-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97072-885-0	01	1	-9504
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97102-294-0	01	1	9505-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-97094-200-1, 97094200	8-97102-294-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97044-059-0	01	1	-9504
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-94365-012-4, 94365012	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97102-297-0	01	1	9505-
13	06.605 SHAFT KIT; RET ASM PART: F = 8-97094-200-1, 97094200	8-97102-297-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-620-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-637-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-619-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-136-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97110-274-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: A = 8-94365-012-4, 94365012	8-97061-632-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97063-133-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-981-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-984-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-94365-012-4, 94365012	8-97065-137-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-113-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: G = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711	8-94311-982-1	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: C = 8-94388-923-2, 94388923, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: G = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	02	1	-9203
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	03	1	9204-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-94365-012-4, 94365012	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: I = 8-97129-593-1, 97129593	8-97084-979-0	01	1	-9505
33	06.606 BOLT; COVER 06.608, (A) ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97084-979-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: I = 8-97129-593-1, 97129593	8-97131-502-0	01	1	9506-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97104-020-0, 97104020	8-94311-986-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-138-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-057-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-142-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-139-1	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP 06.609, ID=11.0 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-140-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP 06.602 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-890-0	01	1	-

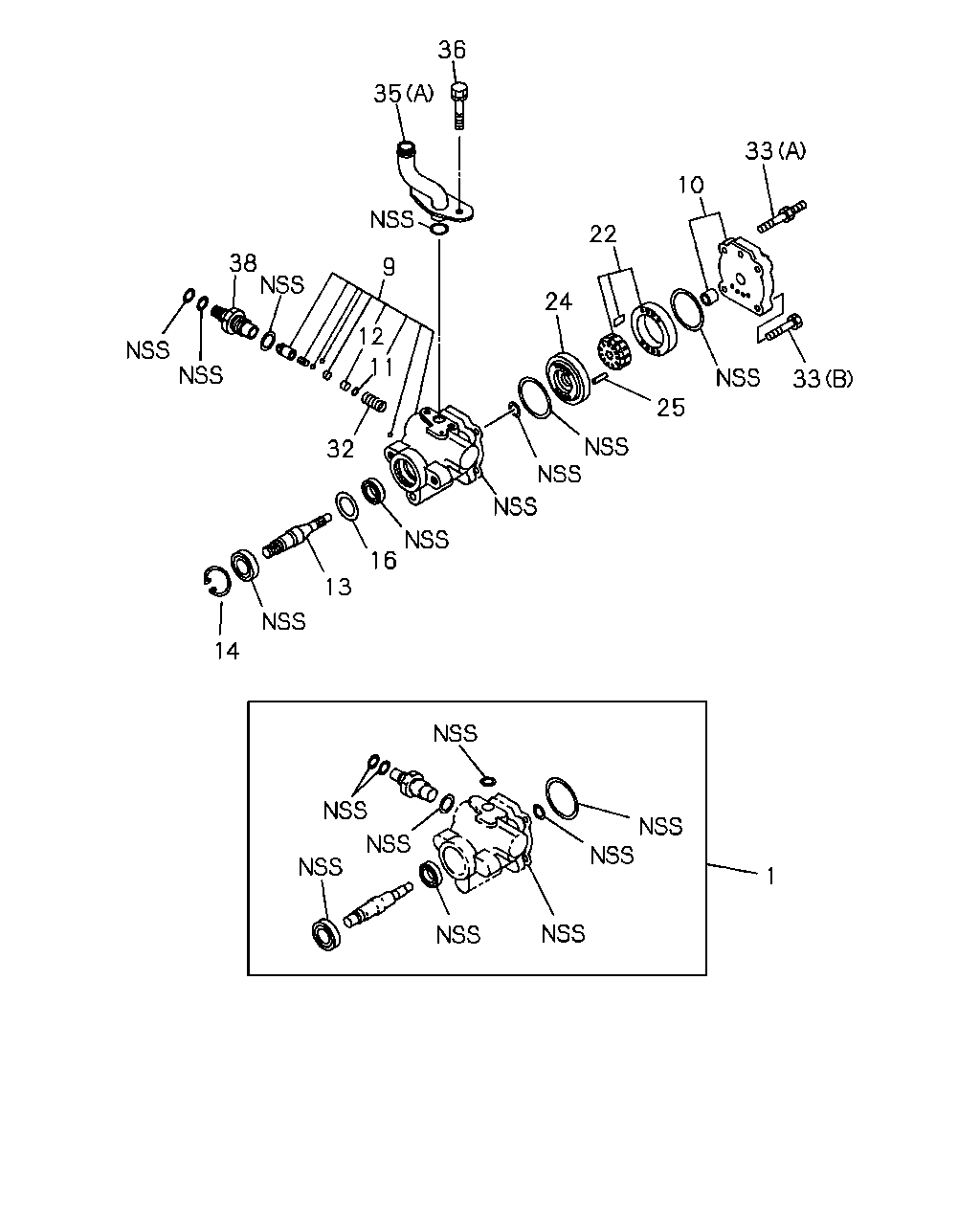

33 10 22 35 36 35 9 12 11 38 32 14 13 16 25 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-058-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97061-711-2, 97061711	8-97061-640-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-143-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97085-147-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97085-147-0	01	1	-9505
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97131-341-0	01	1	9506-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-94388-923-2, 94388923	8-97014-668-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-888-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-638-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-139-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97072-885-0	01	1	-9504
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97102-294-0	01	1	9505-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-97094-200-1, 97094200	8-97102-294-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97044-059-0	01	1	-9504
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-94365-012-4, 94365012	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97102-297-0	01	1	9505-
13	06.605 SHAFT KIT; RET ASM PART: F = 8-97094-200-1, 97094200	8-97102-297-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-620-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-637-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-619-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-136-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97110-274-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-984-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-94365-012-4, 94365012	8-97065-137-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-113-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: G = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711	8-94311-982-1	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: C = 8-94388-923-2, 94388923, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: G = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	02	1	-9203
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	03	1	9204-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-94365-012-4, 94365012	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: I = 8-97129-593-1, 97129593	8-97084-979-0	01	1	-9505
33	06.606 BOLT; COVER 06.608, (A) ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97084-979-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: I = 8-97129-593-1, 97129593	8-97131-502-0	01	1	9506-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97104-020-0, 97104020	8-94311-986-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-138-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-057-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-142-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-139-1	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP 06.609, ID=11.0 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-140-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP 06.602 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-890-0	01	1	-

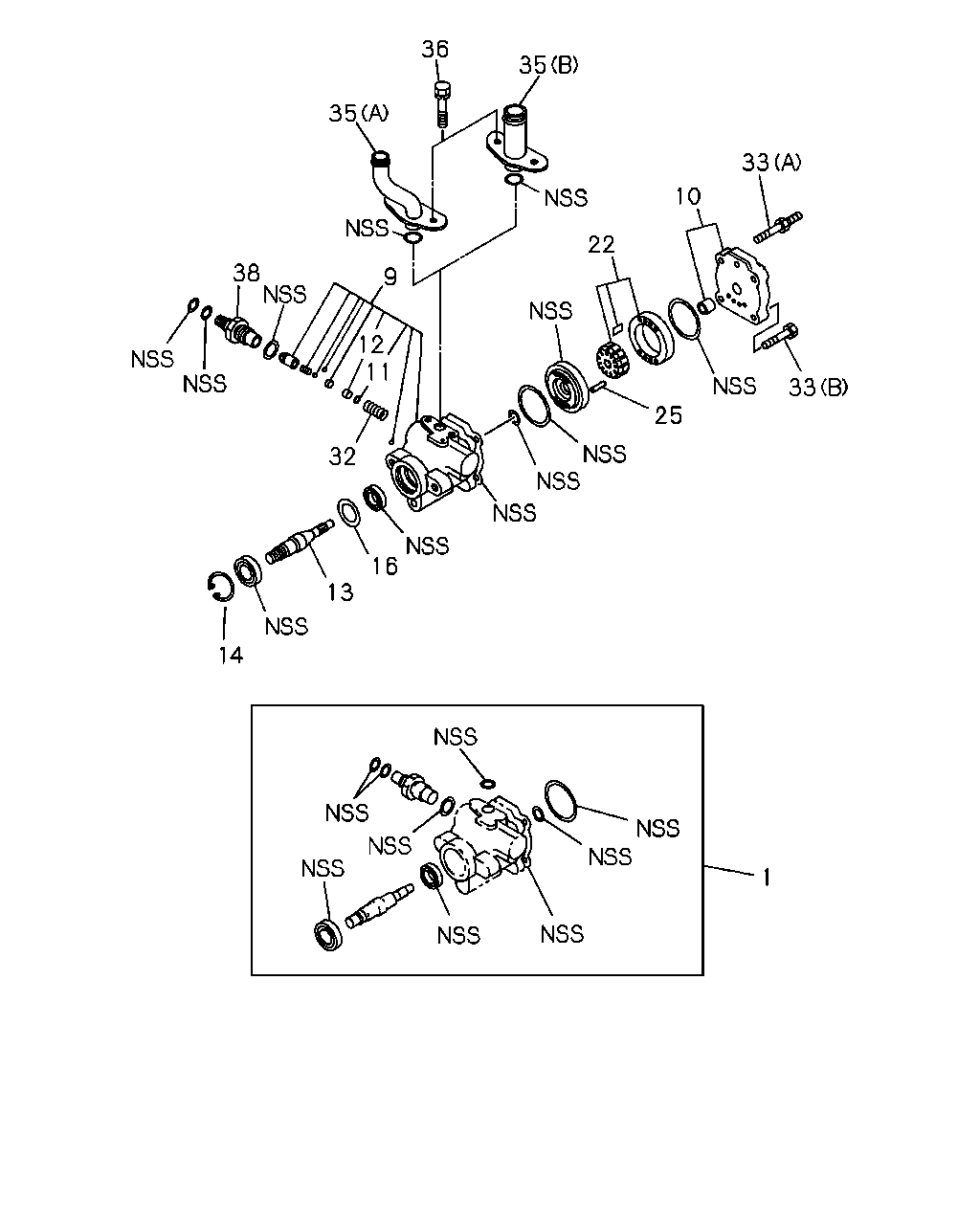

33 10 22 24 25 32 35 14 13 9 32 38 27 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-058-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97061-711-2, 97061711	8-97061-640-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-143-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97085-147-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97085-147-0	01	1	-9505
1	06.609 REPAIR KIT; OIL PUMP ASM PART: I = 8-97129-593-1, 97129593	8-97131-341-0	01	1	9506-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-94388-923-2, 94388923	8-97014-668-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-888-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: G = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-638-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-139-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97072-885-0	01	1	-9504
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97102-294-0	01	1	9505-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-97094-200-1, 97094200	8-97102-294-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97044-059-0	01	1	-9504
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-94365-012-4, 94365012	8-97047-208-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-94375-242-2, 94375242	8-97102-297-0	01	1	9505-
13	06.605 SHAFT KIT; RET ASM PART: F = 8-97094-200-1, 97094200	8-97102-297-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-620-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, G = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-619-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-136-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97110-274-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: A = 8-94365-012-4, 94365012	8-97061-632-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-97063-133-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-981-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-984-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-94365-012-4, 94365012	8-97065-137-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, 94375242	8-97064-986-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: F = 8-97094-200-1, 97094200	8-97094-142-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-113-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: G = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711	8-94311-982-1	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: C = 8-94388-923-2, 94388923, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: G = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	02	1	-9203
33	06.606 BOLT; COVER 06.608, (B) ASM PART: D = 8-97061-711-2, 97061711	8-94475-381-0	03	1	9204-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-94365-012-4, 94365012	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: I = 8-97129-593-1, 97129593	8-97084-979-0	01	1	-9505
33	06.606 BOLT; COVER 06.608, (A) ASM PART: E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269	8-97084-979-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: I = 8-97129-593-1, 97129593	8-97131-502-0	01	1	9506-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: G = 8-97104-020-0, 97104020	8-94311-986-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94461-138-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97044-057-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-142-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP 06.609, ID=11.0 ASM PART: A = 8-94365-012-4, 94365012, C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	9-09561-111-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-94388-923-2, 94388923, D = 8-97061-711-2, 97061711, E = 8-97084-953-1, 97084953, G = 8-97104-020-0, 97104020, H = 8-97110-269-0, 97110269, I = 8-97129-593-1, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-4, 94365012	8-97065-140-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP 06.602 ASM PART: B = 8-94375-242-2, 94375242, F = 8-97094-200-1, 97094200	8-97072-890-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
