Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#4492) — 220 parça

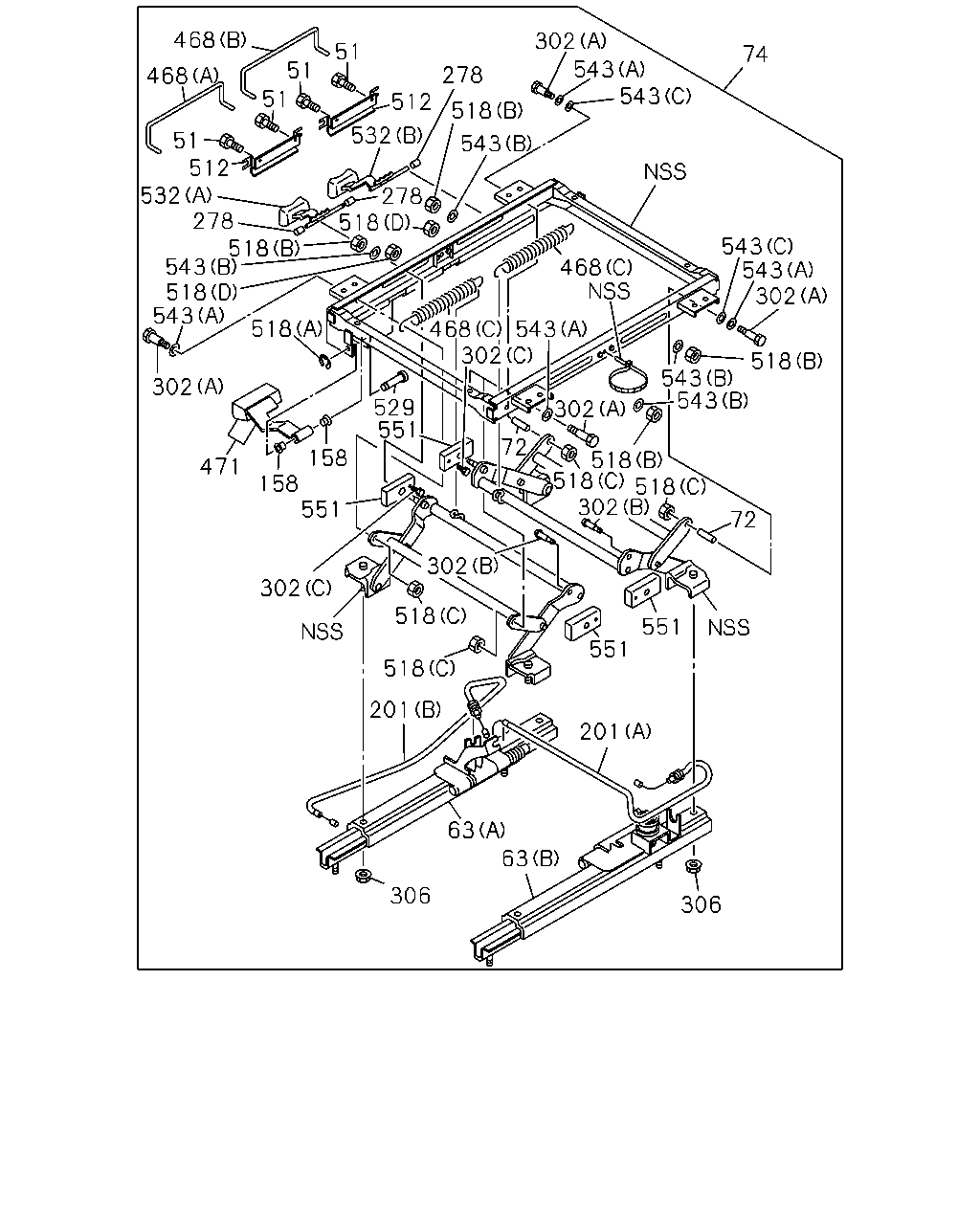

468 302 51 74 543 543 51 278 468 51 512 518 532 51 512 532 278 518 543 518 543 543 278 518 468 543 543 302 302 518 518 543 543 302 302 529 551 72 158 518 518 518 302 471 158 551 72 302 302 518 551 551 518 201 201 63 63 306 306 468 543

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-0	04	1	0002-0105	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0106-	●	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M6X12 W/LK WASHER	9-03910-612-0	04	1	9505-0001	●	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M6X12 W/LK WASHER	9-03910-612-0	04	1	0002-0105		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-198-0	01	1	9505-9706	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-294-0	01	1	9707-0001	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-323-0	01	1	0002-	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-199-1	01	1	9505-	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-226-0	01	1	9505-9803		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-227-1	01	1	9804-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-0	01	1	9505-9706		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-295-0	01	1	9707-0001		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-324-0	01	1	0002-		●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-269-0	02	1	9604-0105	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0106-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-061-7	01	1	9505-9601	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-242-0	01	1	9602-9603	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-259-1	01	1	9604-9706	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-275-0	01	1	9707-9803	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-299-0	01	1	9804-0001	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-317-1	01	1	0002-0105	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-330-3	01	1	0106-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-200-4	01	1	9505-9603		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-255-1	01	1	9604-9706		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-276-0	01	1	9707-9803		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-300-0	01	1	9804-0001		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-318-1	01	1	0002-0105		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-331-3	01	1	0106-		●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	9505-	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-201-0	01	1	9505-9706	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	9707-	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-202-1	01	1	9505-9706	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	9707-	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	9505-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-236-0	04	1	9505-9603	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	9604-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	9604-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-271-1	02	1	9604-0105	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0106-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	8-94279-518-0	04	1	9505-0001	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0002-0105	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	06	1	0106-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	06	1	0002-0105		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9505-	●	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-205-1	01	1	9505-9803	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-291-0	01	1	9804-0903	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-869-0	01	1	0904-	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-220-1	01	1	9505-9803		●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-290-0	01	1	9804-0903		●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	0904-		●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	9505-	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	9505-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	9604-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	9604-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	9604-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	9604-	●	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	9604-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	9505-	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	9505-	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	9505-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	9505-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=10.5	9-09164-510-0	04	1	9505-9805	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=10.5	9-09164-510-0	02	1	9806-0105	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0106-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=6.4	9-09160-506-0	04	1	9604-0212	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0301-0308	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=6.4	9-09160-506-0	04	1	0309-0602	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0603-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (C)	1-75518-337-0	02	1	0106-0411	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	9604-	●	●

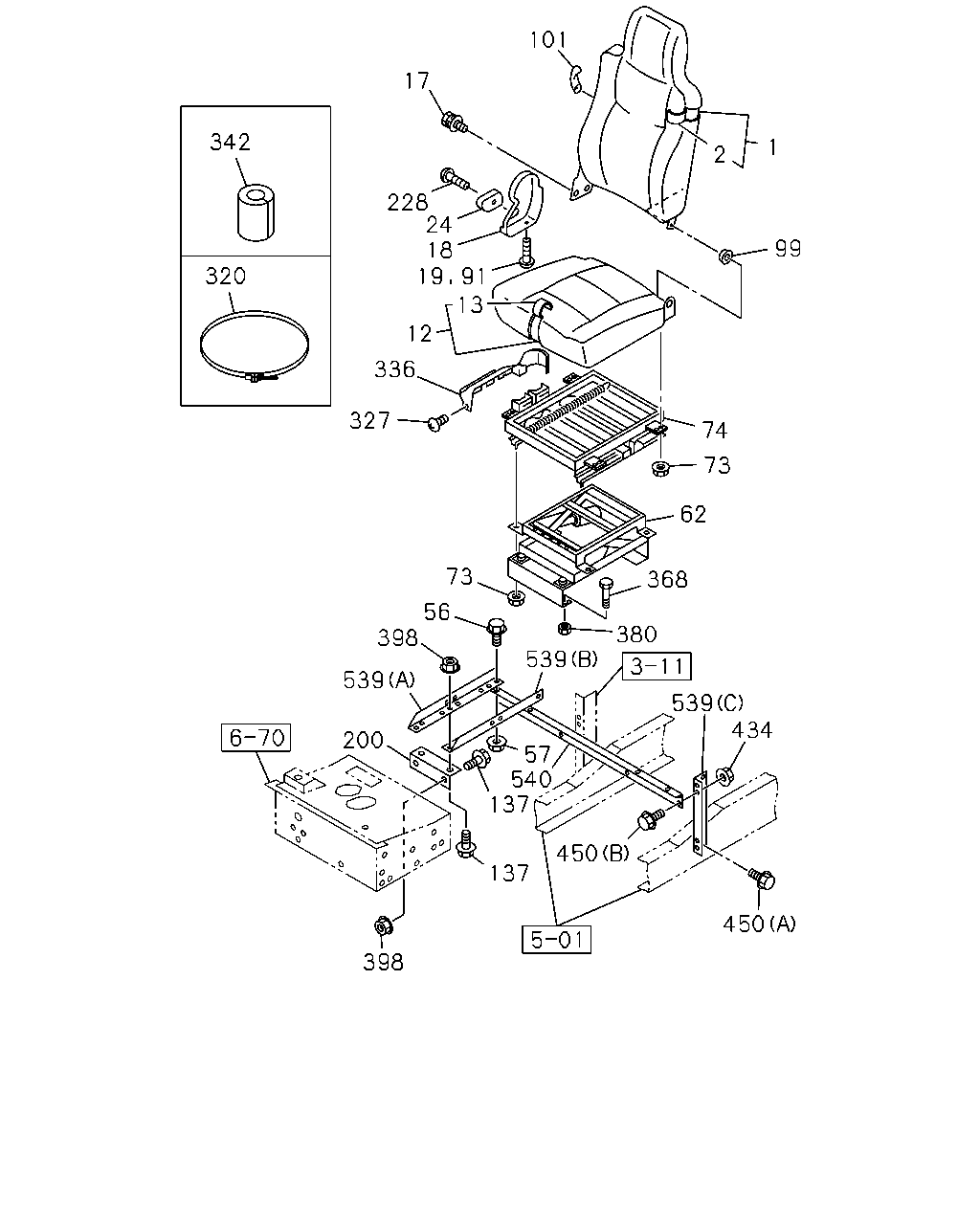

101 17 342 1 2 228 24 18 99 320 13 12 336 327 74 73 62 73 368 56 398 380 539 539 539 434 57 540 137 200 450 137 450 398 19 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-575-0	01	1	9505-9601	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-760-1	01	1	9602-0006	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75207-160-0	01	1	0007-0212	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75207-447-0	01	1	0301-0308	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-065-2	01	1	0309-0903	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	8-98135-611-0	01	1	0904-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-576-1	01	1	9505-0006		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75207-163-0	01	1	0007-0212		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75207-450-0	01	1	0301-0308		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-073-2	01	1	0309-0903		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	8-98135-614-0	01	1	0904-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-261-0	01	1	9505-9601	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-296-1	01	1	9602-0006	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-560-0	01	1	0007-0308	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-594-1	01	1	0309-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9505-0006		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-562-0	01	1	0007-0308		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-708-1	01	1	0309-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75027-292-4	01	1	9505-9601	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-763-1	01	1	9602-0006	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75207-146-1	01	1	0007-0308	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-693-3	01	1	0309-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9505-0006		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75207-149-1	01	1	0007-0308		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-697-3	01	1	0309-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-761-3	01	1	9505-9601	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-835-0	01	1	9602-0006	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75127-096-0	01	1	0007-0308	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-681-1	01	1	0309-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9505-0006		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-714-0	01	1	0007-0308		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-685-1	01	1	0309-		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> M8X18	8-94279-109-1	02	1	9505-0006	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> M8X20	8-97255-906-0	02	1	0007-	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>	1-75418-049-0	01	1	9505-9601	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>	1-75418-050-0	01	1	9602-0308	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97867-020-0	01	1	0309-	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>	1-75418-052-0	01	1	9505-0308		●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97859-018-0	01	1	0309-		●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9505-	●	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-058-0	01	1	9505-9601	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-059-0	01	1	9602-0308	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97867-021-0	01	1	0309-0903	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-066-0	01	1	0904-	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-056-0	01	1	9505-0308		●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97859-019-0	01	1	0309-0903		●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-067-0	01	1	0904-		●
56	BOLT; STAY M10X25 FLANGE	0-28081-025-0	06	1	9505-9606	●	●
56	BOLT; STAY M10X30 FLANGE	0-28681-030-0	06	1	9607-0512	●	●
56	BOLT; STAY M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●
57	NUT; STAY M10	9-09110-510-0	06	1	9505-9606	●	●
57	NUT; STAY M10 FLANGE	0-91150-210-0	06	1	9607-0602	●	●
57	NUT; STAY M10 FLANGE	0-91180-210-0	06	1	0603-	●	●

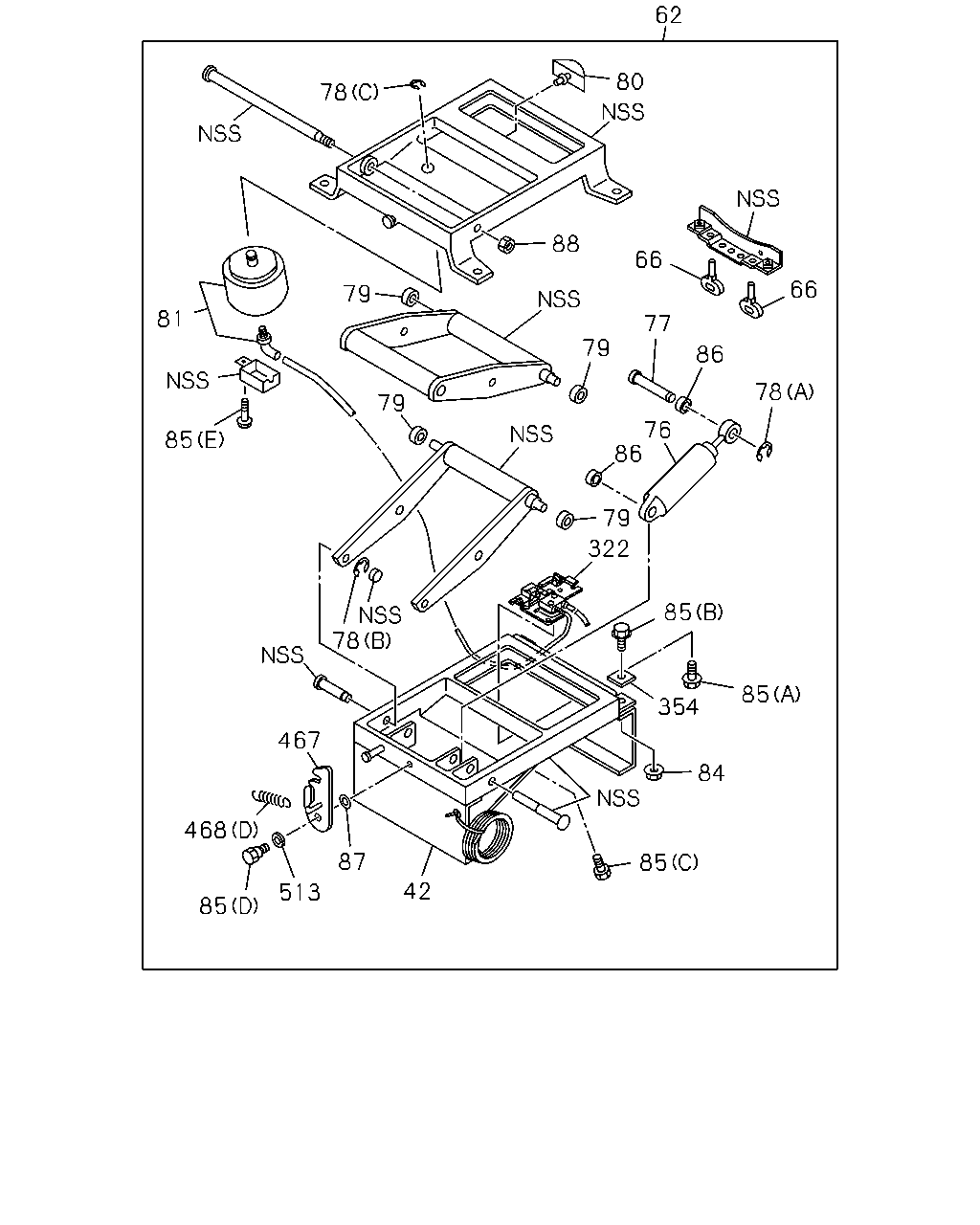

62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-104-0	01	1	9505-9601	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-109-1	01	1	9602-9603	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-111-0	01	1	9604-9803	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-156-8	01	1	9804-	●	●
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	8-94279-518-0	08	1	9505-0006	●	●
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	08	1	0007-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-061-7	01	1	9505-9601	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-242-0	01	1	9602-9603	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-259-1	01	1	9604-9706	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-275-0	01	1	9707-9803	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-299-0	01	1	9804-0001	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-317-1	01	1	0002-0105	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-330-3	01	1	0106-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-200-4	01	1	9505-9603		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-255-1	01	1	9604-9706		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-276-0	01	1	9707-9803		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-300-0	01	1	9804-0001		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-318-1	01	1	0002-0105		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-331-3	01	1	0106-		●
91	SCREW; SEAT ADJ COVER AIR SUSP DRIVER SEAT<A56> M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9505-		●
99	BUSHING; SEAT BACK AIR SUSP DRIVER SEAT<A56>	8-97854-087-0	01	1	9505-	●	●
101	LEVER ASM; LUMBAR AIR SUSP DRIVER SEAT<A56>	5-75190-138-0	01	1	9505-	●	●
137	BOLT; STAND M10X25 FLANGE	0-28081-025-0	04	1	9505-9603	●	●
200	BRACKET; SEAT	1-75590-024-2	01	1	9505-	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4X6	8-97042-273-0	01	1	9505-0903	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0904-	●	●
320	CLIP; BAND,SEAT AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	05	1	9505-	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-250-0	02	1	9505-9601	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-249-0	02	1	9602-0308	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	02	1	0309-	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-249-0	01	1	9505-0308		●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-065-3	01	1	9505-0308	●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-303-0	01	1	0309-	●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-194-2	01	1	9505-0308		●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-313-0	01	1	0309-		●
342	SLEEVE AIR SUSP DRIVER SEAT<A56> ID=17 OD=21 L=40	1-09337-012-0	03	1	9505-	●	●
368	BOLT; SEAT AIR SUSP DRIVER SEAT<A56> M10X30 FLANGE	0-28651-030-0	04	1	0702-	●	●
380	NUT; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> M10 FLANGE	0-91180-210-0	04	1	0702-	●	●
398	NUT; STAND M10	9-09110-510-0	04	1	9505-9603	●	●
434	NUT; BRKT M10	9-09110-510-0	04	1	9505-9606	●	●
434	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9607-0602	●	●
434	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
450	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	04	1	9505-9606	●	●
450	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	9607-0512	●	●
450	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
450	BOLT; BRKT (A) M12X30 FLANGE	0-28081-230-0	02	1	9505-9606	●	●
450	BOLT; BRKT (A) M12X35 FLANGE	0-28681-235-0	02	1	9607-0512	●	●
450	BOLT; BRKT (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●
539	STAY; SEAT (B)	1-75590-042-1	01	1	9505-	●	●
539	STAY; SEAT (A)	1-75590-043-1	01	1	9505-	●	●
539	STAY; SEAT (C)	1-75590-044-0	01	1	9505-	●	●
540	OUTRIGGER; STAY	1-75590-029-1	01	1	9505-	●	●

62 78 80 81 79 88 66 66 85 79 79 77 86 78 76 86 79 322 78 85 85 354 84 467 468 85 513 87 42 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STAND; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75590-021-2	02	1	9505-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-104-0	01	1	9505-9601	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-109-1	01	1	9602-9603	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-111-0	01	1	9604-9803	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-156-8	01	1	9804-	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	9505-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	9505-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	9505-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	9505-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	9505-0411	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	9505-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-155-0	04	1	9505-9603	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	9604-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	9505-	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	9505-1409	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1410-	●	●
84	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	04	1	9505-9803	●	●
84	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	5-09440-005-0	02	1	9804-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (E) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1410-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X30 FLANGE	0-28080-830-0	04	1	9505-0903	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X30 FLANGE	0-28050-830-0	04	1	0904-1010	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X30 W/LK&PL WASHER	0-50140-830-0	04	1	1011-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9505-0105	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0106-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9505-0001	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0002-1409	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1410-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D)	1-09980-577-1	01	1	9505-	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9505-	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	9505-	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-97279-519-0	01	1	9505-0001	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0002-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75530-103-0	01	1	9505-9601	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75530-110-0	01	1	9602-0212	●	●
354	BRACKET; SUSPENSION DEVICE AIR SUSP DRIVER SEAT<A56>	1-75590-031-0	02	1	9505-9803	●	●
354	BRACKET; SUSPENSION DEVICE AIR SUSP DRIVER SEAT<A56>	1-75590-031-0	04	1	9804-	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	9505-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9505-	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
