Sayfa 4-36 - Isuzu EPC

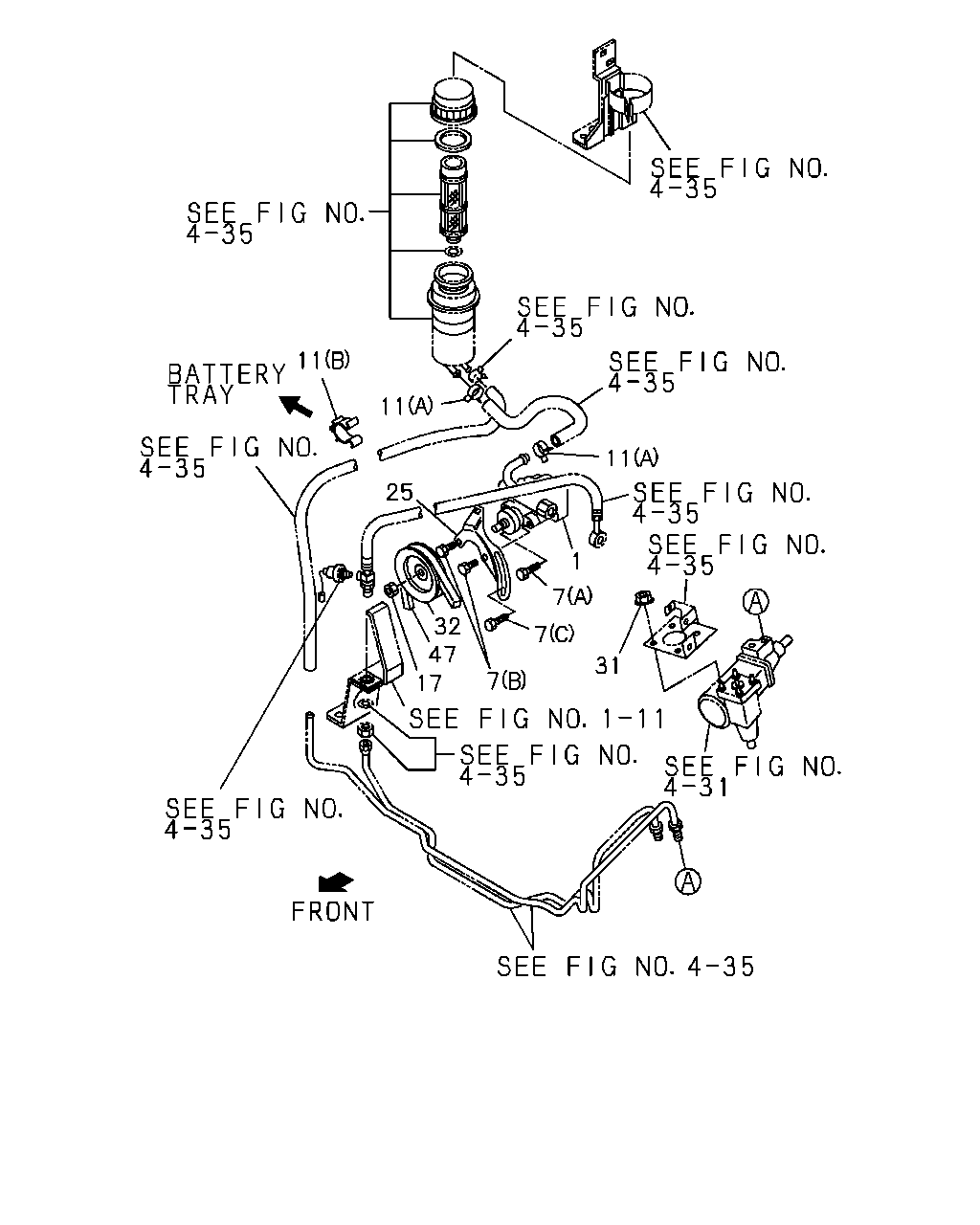

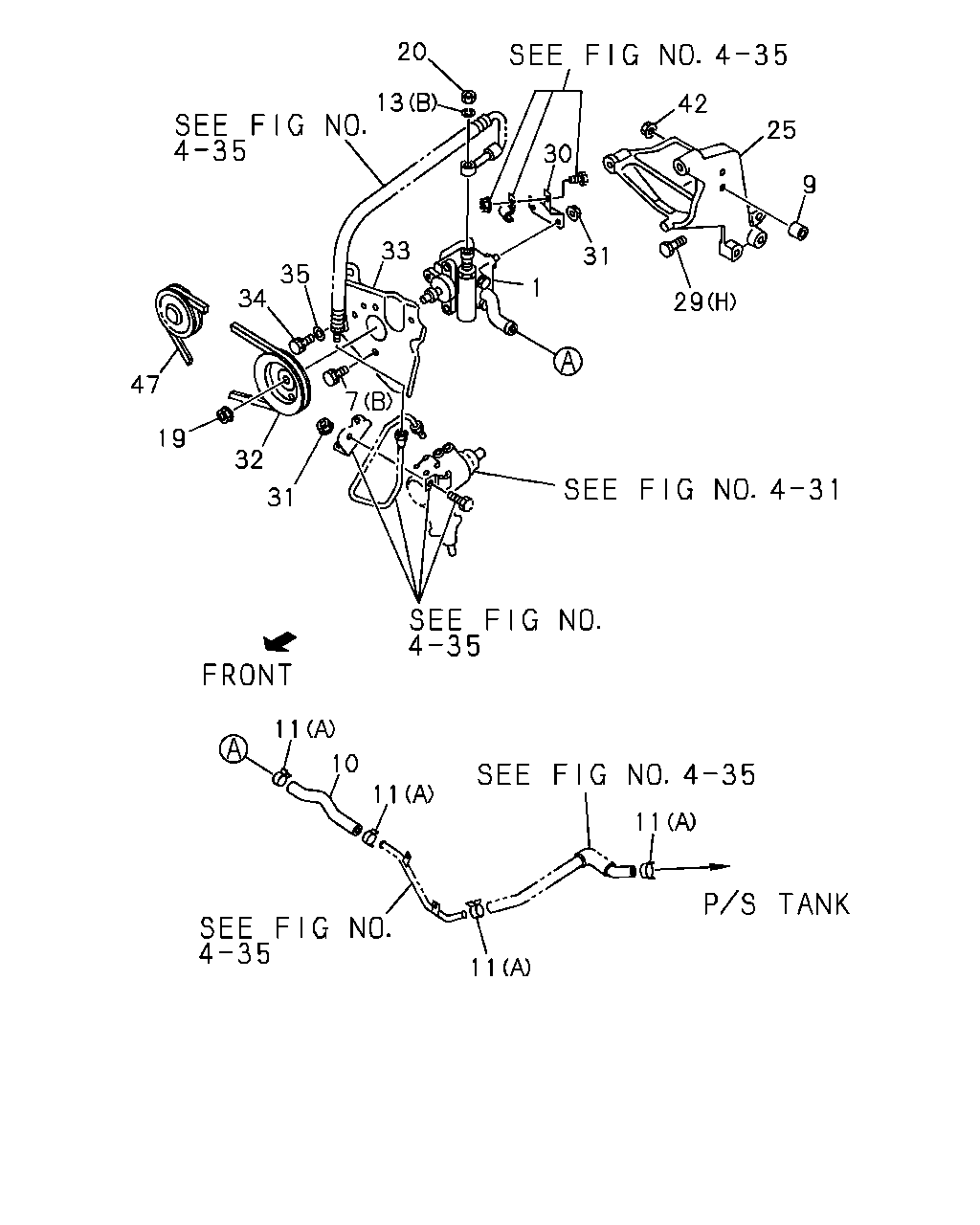

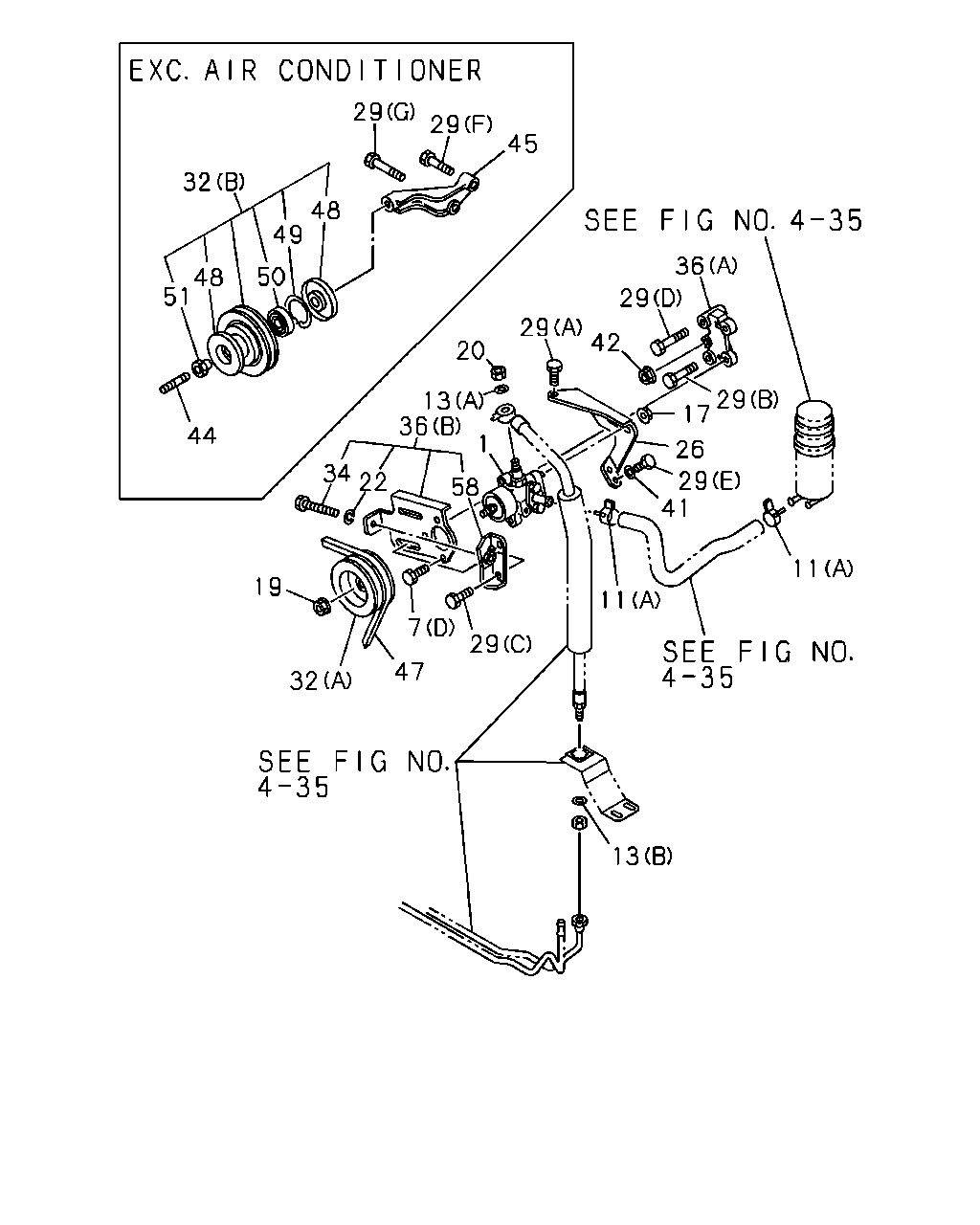

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#44918) — 267 parça

29 29 45 32 48 49 50 48 51 44 19 32 47 58 22 34 36 1 13 20 29 42 29 36 29 17 26 29 41 11 11 29 7 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97061-711-2	01	1	9112-9211	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97084-953-1	01	1	9212-9405	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97110-269-0	01	1	9406-9504	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97110-269-0	01	1	9505-9505	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-1	01	1	9506-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-94388-923-2	01	1	9112-9504	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-97104-020-0	01	1	9505-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94365-012-4	01	1	9112-9308	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94375-242-2	01	1	9309-9607	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-97094-200-1	01	1	9608-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.606 (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-9504	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) 06.606 (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9505-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4ZE1 ENG(RLJ) 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	03	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 06.606 (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE 4ZE1 ENG(RLJ) (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE 6VD1 SOHC ENG(RLU) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9112-9504	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9505-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9112-9504	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9505-	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) 08.917 M10 FLANGE	0-91150-210-0	01	1	9112-9504	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC) 08.917 M10 FLANGE	0-91150-210-0	01	1	9505-	●	●
17	06.606 NUT; POWER STRG PUMP 6VD1 SOHC ENG(RLU) M12	8-94139-015-0	01	1	9112-9607	●	●
17	06.606 NUT; POWER STRG PUMP 6VD1 SOHC ENG(RLU) M12	8-94139-015-0	01	1	9609-	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 06.606 M12	8-94139-015-0	01	1	9112-9504	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 06.606 M12	8-94139-015-0	01	1	9505-9608	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 06.606 M12	8-94139-015-0	01	1	9608-	●	●
20	06.673 NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 07.347 M12	9-99111-412-0	01	1	9112-9504	●	●
20	06.673 NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 07.347 M12	9-99111-412-0	01	1	9505-	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 00.002 ID=10.2	9-09150-510-0	01	1	9112-9504	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JG2 ENG(RJC) 00.002 ID=10.2	9-09150-510-0	01	1	9505-	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97062-791-3	01	1	9112-9504	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JG2 ENG(RJC)	8-97062-791-3	01	1	9505-9507	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JG2 ENG(RJC)	8-97134-149-0	01	1	9508-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 12.187 (E) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9202	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 01.270 (E) M6X16 W/WASHER	8-97075-268-0	01	1	9203-9207	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 00.738 (E) M6X16 FLANGE	0-28080-616-0	01	1	9208-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.738 (E) M6X16 FLANGE	0-28080-616-0	01	1	9505-9507	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.415 (E) M8X35 FLANGE	0-28080-835-0	01	1	9508-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4ZE1 ENG(RLJ) 00.004 (H) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●
32	06.665 PULLEY; IDLER,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (B)	8-97112-740-0	01	1	9406-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-740-0	01	1	9505-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.655 (A)	8-97042-266-1	01	1	9112-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) 06.655 (A)	8-97042-266-1	01	1	9505-	●	●
32	06.665 PULLEY; IDLER,P/S 4ZE1 ENG(RLJ) 06.655	8-94450-564-2	01	1	9112-	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-94386-088-0	01	1	9112-9208	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-97068-765-0	01	1	9209-9308	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-97068-764-0	01	1	9309-	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.655 M10X70	9-02051-070-0	01	1	9112-9304	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M10X70	0-20801-070-0	01	1	9305-9504	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC) M10X70	0-20801-070-0	01	1	9505-	●	●
34	09.181 BOLT; ADJ PLATE 4ZE1 ENG(RLJ) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9112-9403	●	●
34	09.181 BOLT; ADJ PLATE 4ZE1 ENG(RLJ) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9404-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-94478-880-1	01	1	9112-9504	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (A)	8-94478-880-1	01	1	9505-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) (B)	8-97066-758-1	01	1	9112-9504	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (B)	8-97066-758-1	01	1	9505-	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	9208-9504	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	9505-9507	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9508-	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) 05.510 ID=10 OD=18 T=2	9-09651-116-0	01	1	9211-9504	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 05.510 ID=10 OD=18 T=2	9-09651-116-0	01	1	9505-9507	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 00.206 ID=8.4	9-09164-508-0	01	1	9508-	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) 01.540 M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC) 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-	●	●
42	06.672 NUT; ADJ PLATE 4ZE1 ENG(RLJ) 00.854 M8 FLANGE	5-09440-005-0	01	1	9112-	●	●
42	06.672 NUT; ADJ PLATE 4ZE1 ENG(RLJ) 08.917 M10 FLANGE	0-91150-210-0	02	1	9401-	●	●
44	06.665 STUD; IDLER PULLEY 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.275 M10X25 L=40	9-04411-025-0	01	1	9309-9504	●	●
44	06.665 STUD; IDLER PULLEY 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 03.275 M10X25 L=40	9-04411-025-0	01	1	9309-9504	●	●
44	06.665 STUD; IDLER PULLEY 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.275 M10X25 L=40	9-04411-025-0	01	1	9505-	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94449-652-0	01	1	9309-9504	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94449-652-0	01	1	9309-9504	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94449-652-0	01	1	9505-9505	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC)	8-94449-652-0	01	1	9506-	●	●
47	01.066 BELT; P/S PUMP 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94450-395-0	01	1	9112-9210	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94450-395-0	01	1	9112-9210	●	●
47	01.066 BELT; P/S PUMP 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9505-9505	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9506-	●	●
47	01.066 BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9112-9504	●	●
47	01.066 BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9505-	●	●
47	01.066 BELT; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94382-105-0	01	1	9112-	●	●
48	06.665 COVER; IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94476-310-0	02	1	9112-9405	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94476-310-0	02	1	9112-9405	●	●
48	06.665 COVER; IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) FRONT	8-97092-819-0	01	1	9406-9504	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> FRONT	8-97092-819-0	01	1	9406-9504	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) FRONT	8-97092-819-0	01	1	9505-	●	●
48	06.665 COVER; IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.181 REAR	9-13669-603-0	01	1	9406-9504	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 09.181 REAR	9-13669-603-0	01	1	9406-9504	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.181 REAR	9-13669-603-0	01	1	9505-	●	●
49	06.665 RING; SNAP,IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.412 OD=50.5	9-09180-147-0	01	1	9112-9405	●	●
49	06.665 RING; SNAP,IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 04.412 OD=50.5	9-09180-147-0	01	1	9112-9405	●	●
49	06.665 RING; SNAP,IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94175-036-0	01	1	9406-9504	●	●
49	06.665 RING; SNAP,IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94175-036-0	01	1	9406-9504	●	●
49	06.665 RING; SNAP,IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94175-036-0	01	1	9505-	●	●
50	06.665 BEARING; IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94251-052-0	01	1	9112-9504	●	●
50	06.665 BEARING; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94251-052-0	01	1	9112-9504	●	●
50	06.665 BEARING; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94251-052-0	01	1	9505-	●	●
51	06.665 NUT; IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94372-495-0	01	1	9112-9405	●	●
51	06.665 NUT; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94372-495-0	01	1	9112-9405	●	●
51	06.665 NUT; IDLER 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97092-813-0	01	1	9406-9504	●	●
51	06.665 NUT; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-97092-813-0	01	1	9406-9504	●	●
51	06.665 NUT; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97092-813-0	01	1	9505-	●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94479-122-0	01	1	9112-9504	●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JG2 ENG(RJC)	8-94479-122-0	01	1	9505-	●	●

11 11 11 25 1 7 32 47 17 7 31 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97061-711-2	01	1	9112-9211	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97084-953-1	01	1	9212-9405	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97110-269-0	01	1	9406-9504	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97110-269-0	01	1	9505-9505	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-1	01	1	9506-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-94388-923-2	01	1	9112-9504	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-97104-020-0	01	1	9505-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94365-012-4	01	1	9112-9308	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94375-242-2	01	1	9309-9607	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-97094-200-1	01	1	9608-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.606 (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-9504	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) 06.606 (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9505-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4ZE1 ENG(RLJ) 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	03	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 06.606 (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE 4ZE1 ENG(RLJ) (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE 6VD1 SOHC ENG(RLU) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) 08.917 M10 FLANGE	0-91150-210-0	01	1	9112-9504	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC) 08.917 M10 FLANGE	0-91150-210-0	01	1	9505-	●	●
17	06.606 NUT; POWER STRG PUMP 6VD1 SOHC ENG(RLU) M12	8-94139-015-0	01	1	9112-9607	●	●
17	06.606 NUT; POWER STRG PUMP 6VD1 SOHC ENG(RLU) M12	8-94139-015-0	01	1	9609-	●	●
25	06.606 BRACKET; P/S PUMP 4ZE1 ENG(RLJ)	8-94420-004-0	01	1	9112-	●	●
25	06.606 BRACKET; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94374-508-1	01	1	9112-	●	●
31	06.672 NUT; FLEX HOSE 4ZE1 ENG(RLJ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
31	06.672 NUT; FLEX HOSE 6VD1 SOHC ENG(RLU) 04.785 M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●
32	06.665 PULLEY; IDLER,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (B)	8-97112-740-0	01	1	9406-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-740-0	01	1	9505-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.655 (A)	8-97042-266-1	01	1	9112-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) 06.655 (A)	8-97042-266-1	01	1	9505-	●	●
32	06.665 PULLEY; IDLER,P/S 4ZE1 ENG(RLJ) 06.655	8-94450-564-2	01	1	9112-	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-94386-088-0	01	1	9112-9208	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-97068-765-0	01	1	9209-9308	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-97068-764-0	01	1	9309-	●	●
47	01.066 BELT; P/S PUMP 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94450-395-0	01	1	9112-9210	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94450-395-0	01	1	9112-9210	●	●
47	01.066 BELT; P/S PUMP 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9505-9505	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9506-	●	●
47	01.066 BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9112-9504	●	●
47	01.066 BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9505-	●	●
47	01.066 BELT; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94382-105-0	01	1	9112-	●	●

9 25 42 30 31 29 1 20 13 33 35 34 7 47 19 32 31 11 10 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97061-711-2	01	1	9112-9211	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97084-953-1	01	1	9212-9405	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97110-269-0	01	1	9406-9504	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97110-269-0	01	1	9505-9505	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-1	01	1	9506-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-94388-923-2	01	1	9112-9504	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-97104-020-0	01	1	9505-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94365-012-4	01	1	9112-9308	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94375-242-2	01	1	9309-9607	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-97094-200-1	01	1	9608-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.606 (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-9504	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) 06.606 (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9505-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4ZE1 ENG(RLJ) 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	03	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 06.606 (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
9	06.606 COLLAR; IDLER 4ZE1 ENG(RLJ)	8-94146-294-0	01	1	9112-	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4ZE1 ENG(RLJ) 06.673	8-94471-683-0	01	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE 4ZE1 ENG(RLJ) (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	06.672 CLIP; FLEX HOSE 6VD1 SOHC ENG(RLU) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9112-9504	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9505-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9112-9504	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9505-	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 06.606 M12	8-94139-015-0	01	1	9112-9504	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 06.606 M12	8-94139-015-0	01	1	9505-9608	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 06.606 M12	8-94139-015-0	01	1	9608-	●	●
20	06.673 NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 07.347 M12	9-99111-412-0	01	1	9112-9504	●	●
20	06.673 NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 07.347 M12	9-99111-412-0	01	1	9505-	●	●
25	06.606 BRACKET; P/S PUMP 4ZE1 ENG(RLJ)	8-94420-004-0	01	1	9112-	●	●
25	06.606 BRACKET; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94374-508-1	01	1	9112-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9308	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9112-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9505-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 12.187 (E) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9202	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 01.270 (E) M6X16 W/WASHER	8-97075-268-0	01	1	9203-9207	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 00.738 (E) M6X16 FLANGE	0-28080-616-0	01	1	9208-9504	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.738 (E) M6X16 FLANGE	0-28080-616-0	01	1	9505-9507	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.415 (E) M8X35 FLANGE	0-28080-835-0	01	1	9508-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4ZE1 ENG(RLJ) 00.004 (H) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-	●	●
30	06.672 BRACKET; FLEX HOSE 4ZE1 ENG(RLJ)	8-94463-474-0	01	1	9112-	●	●
31	06.672 NUT; FLEX HOSE 4ZE1 ENG(RLJ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
31	06.672 NUT; FLEX HOSE 6VD1 SOHC ENG(RLU) 04.785 M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●
32	06.665 PULLEY; IDLER,P/S 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> (B)	8-97112-740-0	01	1	9406-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-740-0	01	1	9505-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.655 (A)	8-97042-266-1	01	1	9112-9504	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) 06.655 (A)	8-97042-266-1	01	1	9505-	●	●
32	06.665 PULLEY; IDLER,P/S 4ZE1 ENG(RLJ) 06.655	8-94450-564-2	01	1	9112-	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-94386-088-0	01	1	9112-9208	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-97068-765-0	01	1	9209-9308	●	●
32	06.665 PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU)	8-97068-764-0	01	1	9309-	●	●
33	06.655 PLATE; ADJ,P/S 4ZE1 ENG(RLJ)	8-94472-342-0	01	1	9112-	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.655 M10X70	9-02051-070-0	01	1	9112-9304	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M10X70	0-20801-070-0	01	1	9305-9504	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC) M10X70	0-20801-070-0	01	1	9505-	●	●
34	09.181 BOLT; ADJ PLATE 4ZE1 ENG(RLJ) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9112-9403	●	●
34	09.181 BOLT; ADJ PLATE 4ZE1 ENG(RLJ) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9404-	●	●
35	04.085 WASHER; PL,ADJ PLATE 4ZE1 ENG(RLJ) ID=10.5 OD=26	9-09164-710-0	02	1	9112-	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) 01.540 M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC) 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-	●	●
42	06.672 NUT; ADJ PLATE 4ZE1 ENG(RLJ) 00.854 M8 FLANGE	5-09440-005-0	01	1	9112-	●	●
42	06.672 NUT; ADJ PLATE 4ZE1 ENG(RLJ) 08.917 M10 FLANGE	0-91150-210-0	02	1	9401-	●	●
47	01.066 BELT; P/S PUMP 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94450-395-0	01	1	9112-9210	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D>	8-94450-395-0	01	1	9112-9210	●	●
47	01.066 BELT; P/S PUMP 4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9505-9505	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9506-	●	●
47	01.066 BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9112-9504	●	●
47	01.066 BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9505-	●	●
47	01.066 BELT; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94382-105-0	01	1	9112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
