Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#44917) — 299 parça

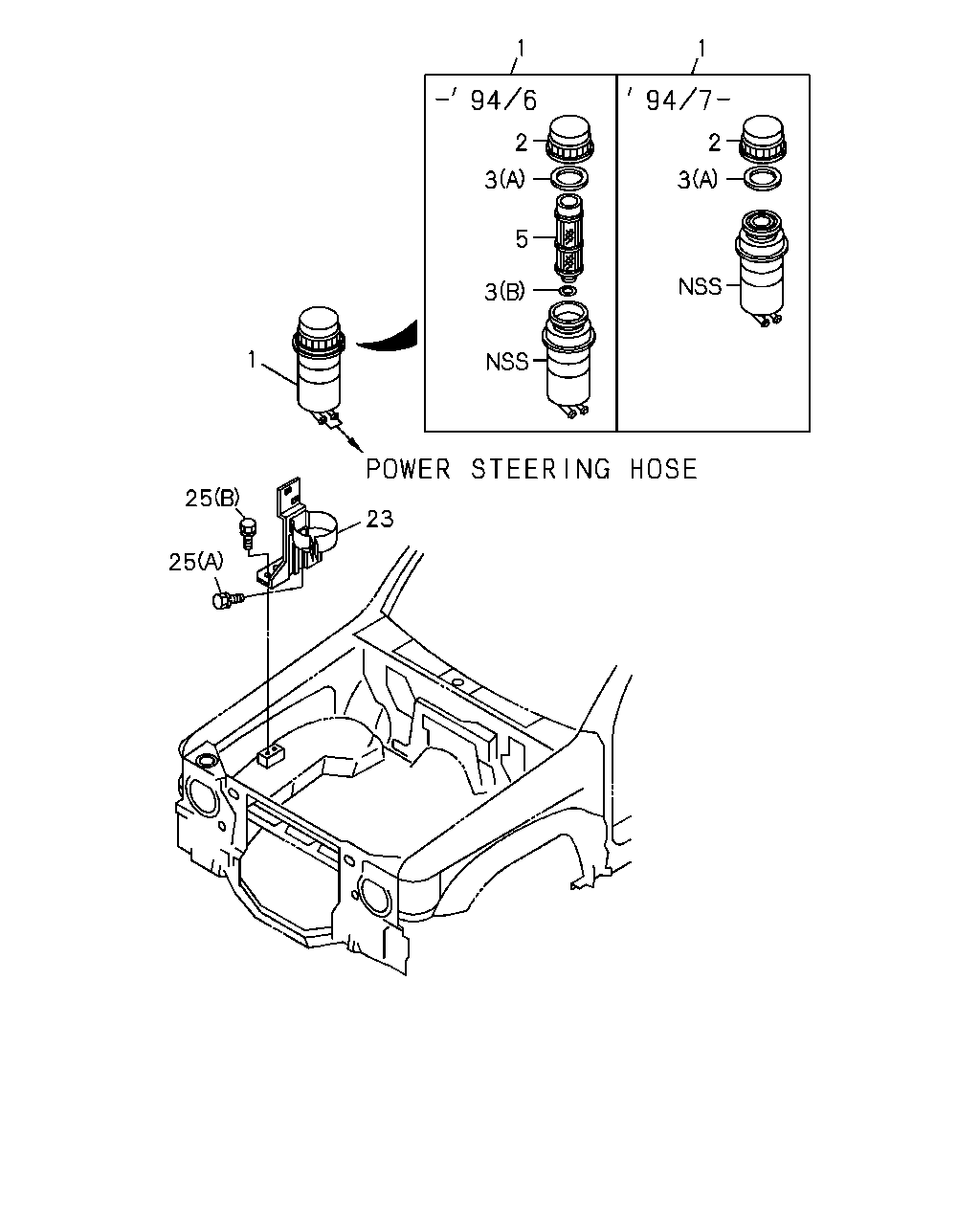

1 1 2 3 2 3 5 3 1 23 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	06.635 TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	06.673 GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	06.673 GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-988-0	01	1	9112-9504	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9505-	●	●
23	06.672 BRACKET; OIL TANK,P/S 4ZE1 ENG(RLJ)	8-94440-403-1	01	1	9112-	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 SOHC ENG(RLU)	8-94381-052-1	01	1	9112-	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 06.672 (B) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	01	1	9205-9504	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	01	1	9505-	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (B) M8X16 FLANGE	0-28410-816-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9205-9208	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9209-	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 06.672 (A) M6X16	0-28410-616-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	02	1	9205-	●	●

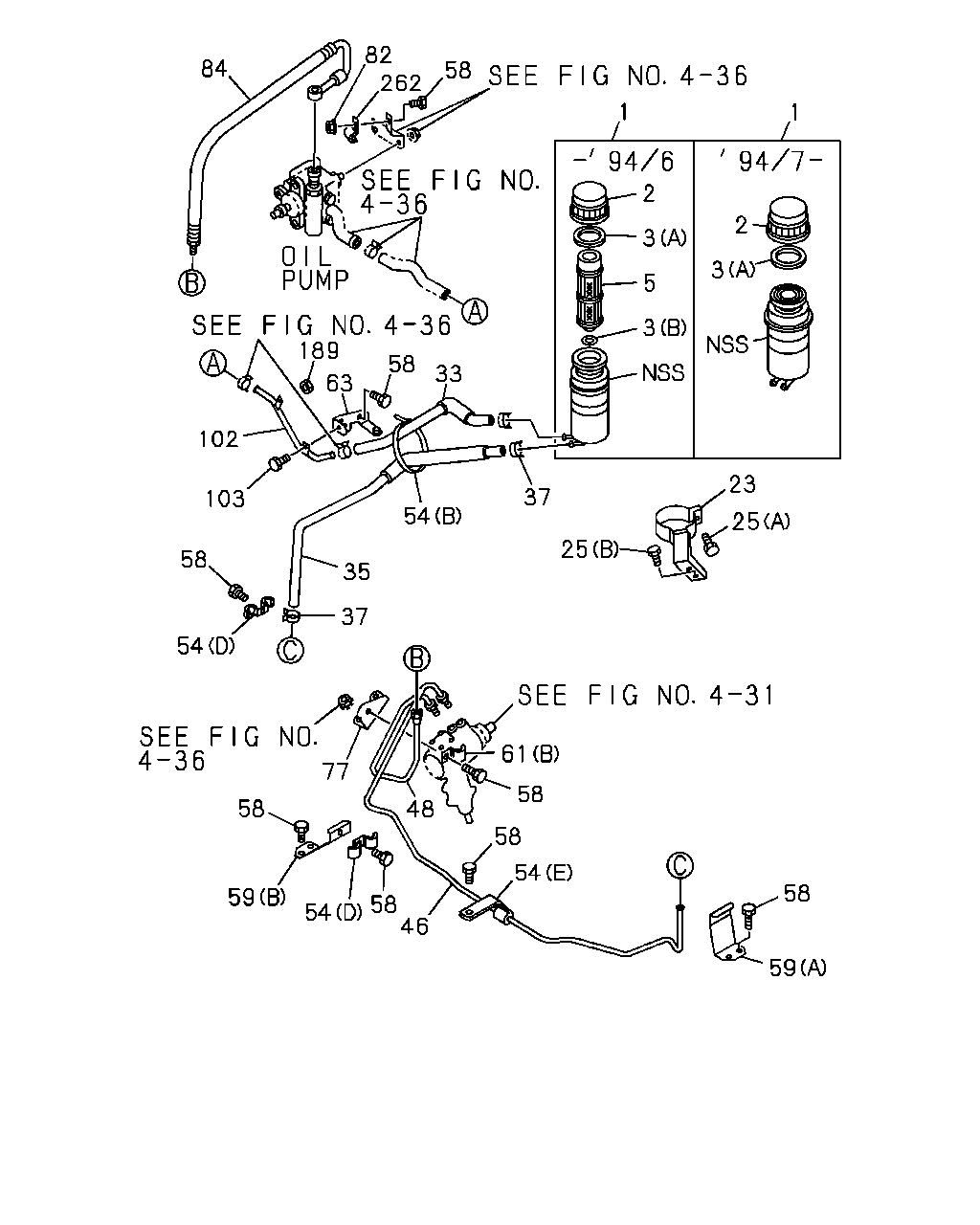

1 1 2 3 5 3 2 3 58 82 84 262 58 189 3 63 102 103 58 35 54 37 25 23 25 37 54 77 61 58 48 58 59 54 58 46 58 54 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	06.635 TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	06.673 GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	06.673 GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-988-0	01	1	9112-9504	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9505-	●	●
23	06.672 BRACKET; OIL TANK,P/S 4ZE1 ENG(RLJ)	8-94440-403-1	01	1	9112-	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 SOHC ENG(RLU)	8-94381-052-1	01	1	9112-	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 06.672 (B) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	01	1	9205-9504	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	01	1	9505-	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (B) M8X16 FLANGE	0-28410-816-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9205-9208	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9209-	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 06.672 (A) M6X16	0-28410-616-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	02	1	9205-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-908-0	01	1	9112-9504	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9505-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZE1 ENG(RLJ)	8-94329-645-2	01	1	9112-	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU)	8-97023-716-2	01	1	9112-9607	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU)	8-97133-567-0	01	1	9608-	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.930 ID=16	8-94238-568-0	02	1	9112-9504	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.930 ID=16	8-94238-568-0	02	1	9505-	●	●
37	01.762 CLIP; HOSE,P/S 6VD1 SOHC ENG(RLU) 04.930 ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	01.762 CLIP; HOSE,P/S 6VD1 SOHC ENG(RLU) 03.280 ID=17.1	8-94122-679-0	01	1	9609-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-037-1	01	1	9112-9203	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-456-0	01	1	9204-9504	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97076-456-0	01	1	9505-9607	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97111-119-0	01	1	9608-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZE1 ENG(RLJ)	8-97031-533-0	01	1	9112-9203	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZE1 ENG(RLJ)	8-97076-459-0	01	1	9204-9607	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZE1 ENG(RLJ)	8-97111-120-0	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-036-1	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-455-0	01	1	9204-9504	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97076-455-0	01	1	9505-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97111-114-2	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97031-532-0	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97076-458-0	01	1	9204-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97111-116-0	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-94374-924-2	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97076-453-0	01	1	9204-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97111-113-0	01	1	9608-	●	●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	9112-	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9112-9504	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9505-	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.342 (D)	8-94222-795-1	02	1	9112-9504	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.342 (D)	8-94222-795-1	02	1	9505-	●	●
54	06.672 CLIP; OIL PIPE 4ZE1 ENG(RLJ) (E)	8-94178-110-0	01	1	9112-	●	●
54	06.672 CLIP; OIL PIPE 6VD1 SOHC ENG(RLU) 04.785 (C)	8-94147-869-0	01	1	9112-	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16	0-28410-616-0	08	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE	0-28480-616-0	08	1	9205-9501	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE	0-28480-616-0	06	1	9502-9504	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 06.635 M6X16 FLANGE	0-28480-616-0	06	1	9505-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	05	1	9502-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 04.785 M8X22 FLANGE	0-28010-822-0	03	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 08.900 M8X22 FLANGE	0-28080-822-0	03	1	9205-9504	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 M8X22 FLANGE	0-28080-822-0	03	1	9505-9601	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9502-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	06.672 BOLT; CLIP M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	07	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	07	1	9205-9501	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16	0-28410-616-0	04	1	9112-9204	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9205-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-94442-104-1	01	1	9112-9203	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-97075-969-0	01	1	9204-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-97120-705-0	01	1	9502-	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-94442-105-1	01	1	9112-9203	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-97075-968-0	01	1	9204-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-97120-706-0	01	1	9502-9504	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (A)	8-97120-706-0	01	1	9505-	●	●
61	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) ID=10X2 H=22	8-94252-455-2	01	1	9112-9504	●	●
61	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) ID=10X2 H=22	8-94252-455-2	01	1	9505-	●	●
61	06.672 CLIP; OIL PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B)	8-94363-358-0	01	1	9112-	●	●
63	06.672 BRACKET; CLIP,P/S 4ZE1 ENG(RLJ)	8-94329-683-0	01	1	9112-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZE1 ENG(RLJ)	8-97031-078-0	01	1	9112-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.681 M16	9-99111-416-0	01	1	9112-9504	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC) 04.681 M16	9-99111-416-0	01	1	9505-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4ZE1 ENG(RLJ) 04.594 M6 FLANGE	0-91150-106-0	01	1	9112-	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97038-205-0	01	1	9112-9504	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97038-205-0	01	1	9505-9608	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-979-0	01	1	9609-	●	●
84	06.670 HOSE; FLEX,P/S 4ZE1 ENG(RLJ) 06.673	8-94473-737-3	01	1	9112-9608	●	●
84	06.670 HOSE; FLEX,P/S 4ZE1 ENG(RLJ) 06.673	8-97165-978-0	01	1	9609-	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97020-589-2	01	1	9112-9509	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97137-019-1	01	1	9510-9608	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97165-975-0	01	1	9609-	●	●
102	06.671 PIPE; SUCTION,P/S 4ZE1 ENG(RLJ)	8-94146-056-1	01	1	9112-	●	●
103	06.760 BOLT; P/S SUCTION PIPE 4ZE1 ENG(RLJ) M8X16 FLANGE	0-28210-816-0	01	1	9112-9204	●	●
103	06.760 BOLT; P/S SUCTION PIPE 4ZE1 ENG(RLJ) 06.672 M8X16 FLANGE	0-28280-816-0	01	1	9205-	●	●
189	06.672 SPACER; PIPE,P/S 4ZE1 ENG(RLJ)	9-46133-003-0	01	1	9112-	●	●
262	06.672 CLIP; P/S PIPE 4ZE1 ENG(RLJ) 04.930	9-09716-061-0	01	1	9112-	●	●

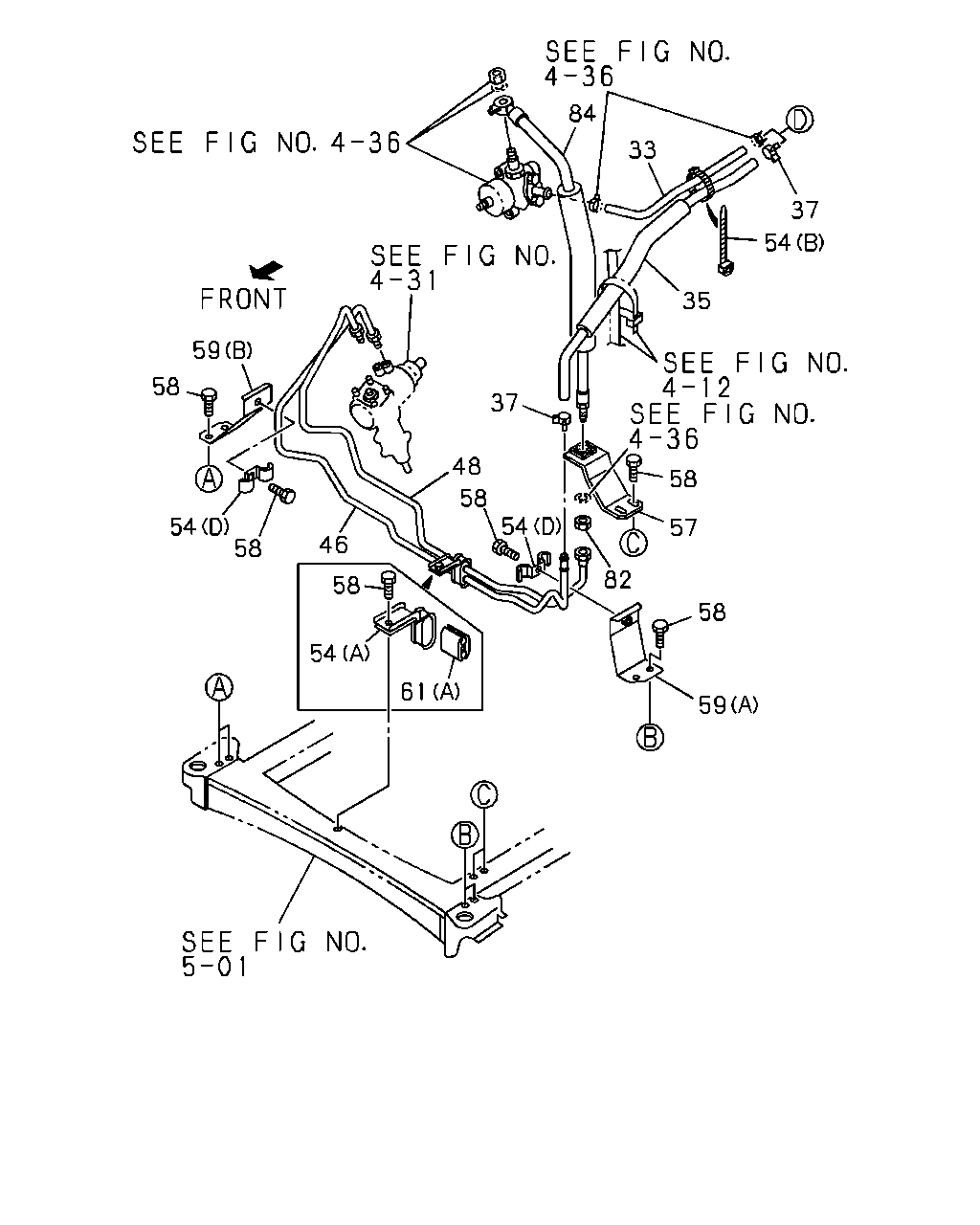

84 33 37 54 35 58 57 58 59 61 54 58 46 54 82 58 48 37 59 58 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.673	8-97037-467-0	01	1	9112-9308	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.673	8-97037-467-0	01	1	9309-9504	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) 06.673	8-97037-467-0	01	1	9505-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZE1 ENG(RLJ) 06.673	8-94434-125-2	01	1	9112-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VD1 SOHC ENG(RLU) 06.673	8-97023-665-2	01	1	9112-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-908-0	01	1	9112-9504	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9505-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZE1 ENG(RLJ)	8-94329-645-2	01	1	9112-	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU)	8-97023-716-2	01	1	9112-9607	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU)	8-97133-567-0	01	1	9608-	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.930 ID=16	8-94238-568-0	02	1	9112-9504	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.930 ID=16	8-94238-568-0	02	1	9505-	●	●
37	01.762 CLIP; HOSE,P/S 6VD1 SOHC ENG(RLU) 04.930 ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	01.762 CLIP; HOSE,P/S 6VD1 SOHC ENG(RLU) 03.280 ID=17.1	8-94122-679-0	01	1	9609-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-037-1	01	1	9112-9203	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-456-0	01	1	9204-9504	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97076-456-0	01	1	9505-9607	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97111-119-0	01	1	9608-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZE1 ENG(RLJ)	8-97031-533-0	01	1	9112-9203	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZE1 ENG(RLJ)	8-97076-459-0	01	1	9204-9607	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZE1 ENG(RLJ)	8-97111-120-0	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-036-1	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-455-0	01	1	9204-9504	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97076-455-0	01	1	9505-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97111-114-2	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97031-532-0	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97076-458-0	01	1	9204-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97111-116-0	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-94374-924-2	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97076-453-0	01	1	9204-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97111-113-0	01	1	9608-	●	●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	9112-	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9112-9504	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9505-	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.342 (D)	8-94222-795-1	02	1	9112-9504	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.342 (D)	8-94222-795-1	02	1	9505-	●	●
54	06.672 CLIP; OIL PIPE 4ZE1 ENG(RLJ) (E)	8-94178-110-0	01	1	9112-	●	●
54	06.672 CLIP; OIL PIPE 6VD1 SOHC ENG(RLU) 04.785 (C)	8-94147-869-0	01	1	9112-	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94454-664-0	01	1	9112-9211	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97087-533-1	01	1	9212-9504	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-97087-533-1	01	1	9505-	●	●
57	06.672 BRACKET; POWER STRG PIPE 6VD1 SOHC ENG(RLU)	8-94387-726-2	01	1	9112-9607	●	●
57	06.672 BRACKET; POWER STRG PIPE 6VD1 SOHC ENG(RLU)	8-97133-469-0	01	1	9608-	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16	0-28410-616-0	08	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE	0-28480-616-0	08	1	9205-9501	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE	0-28480-616-0	06	1	9502-9504	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 06.635 M6X16 FLANGE	0-28480-616-0	06	1	9505-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	05	1	9502-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 04.785 M8X22 FLANGE	0-28010-822-0	03	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 08.900 M8X22 FLANGE	0-28080-822-0	03	1	9205-9504	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 M8X22 FLANGE	0-28080-822-0	03	1	9505-9601	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9502-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	06.672 BOLT; CLIP M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	07	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	07	1	9205-9501	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16	0-28410-616-0	04	1	9112-9204	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9205-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-94442-104-1	01	1	9112-9203	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-97075-969-0	01	1	9204-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-97120-705-0	01	1	9502-	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-94442-105-1	01	1	9112-9203	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-97075-968-0	01	1	9204-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-97120-706-0	01	1	9502-9504	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (A)	8-97120-706-0	01	1	9505-	●	●
61	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) ID=10X2 H=22	8-94252-455-2	01	1	9112-9504	●	●
61	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) ID=10X2 H=22	8-94252-455-2	01	1	9505-	●	●
61	06.672 CLIP; OIL PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B)	8-94363-358-0	01	1	9112-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.681 M16	9-99111-416-0	01	1	9112-9504	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC) 04.681 M16	9-99111-416-0	01	1	9505-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4ZE1 ENG(RLJ) 04.594 M6 FLANGE	0-91150-106-0	01	1	9112-	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97038-205-0	01	1	9112-9504	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97038-205-0	01	1	9505-9608	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-979-0	01	1	9609-	●	●
84	06.670 HOSE; FLEX,P/S 4ZE1 ENG(RLJ) 06.673	8-94473-737-3	01	1	9112-9608	●	●
84	06.670 HOSE; FLEX,P/S 4ZE1 ENG(RLJ) 06.673	8-97165-978-0	01	1	9609-	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97020-589-2	01	1	9112-9509	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97137-019-1	01	1	9510-9608	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97165-975-0	01	1	9609-	●	●

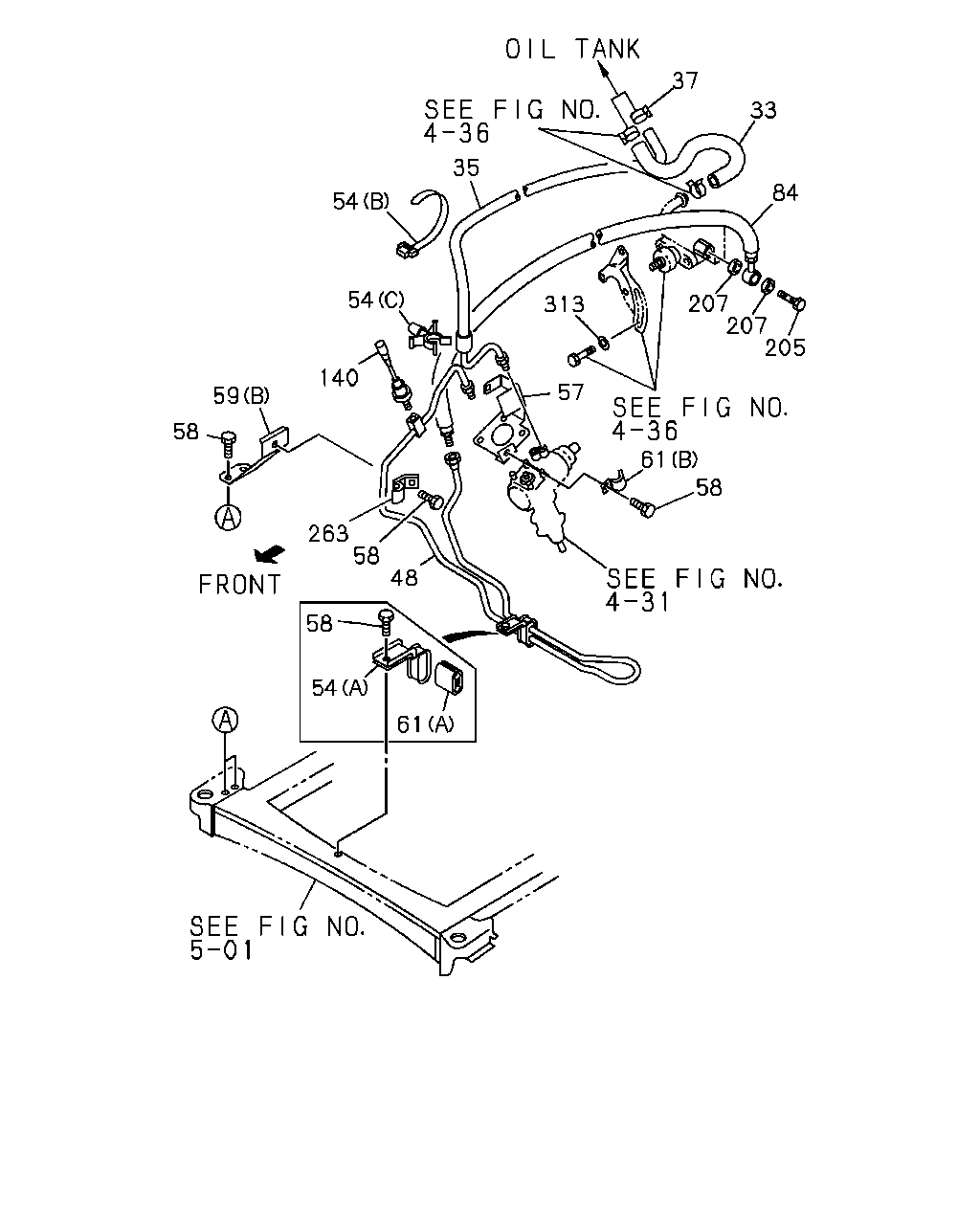

61 54 58 263 58 48 58 61 57 313 207 207 205 84 33 37 35 54 54 140 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.673	8-97037-467-0	01	1	9112-9308	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.673	8-97037-467-0	01	1	9309-9504	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) 06.673	8-97037-467-0	01	1	9505-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZE1 ENG(RLJ) 06.673	8-94434-125-2	01	1	9112-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VD1 SOHC ENG(RLU) 06.673	8-97023-665-2	01	1	9112-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-908-0	01	1	9112-9504	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9505-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZE1 ENG(RLJ)	8-94329-645-2	01	1	9112-	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU)	8-97023-716-2	01	1	9112-9607	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU)	8-97133-567-0	01	1	9608-	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.930 ID=16	8-94238-568-0	02	1	9112-9504	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.930 ID=16	8-94238-568-0	02	1	9505-	●	●
37	01.762 CLIP; HOSE,P/S 6VD1 SOHC ENG(RLU) 04.930 ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	01.762 CLIP; HOSE,P/S 6VD1 SOHC ENG(RLU) 03.280 ID=17.1	8-94122-679-0	01	1	9609-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-036-1	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-455-0	01	1	9204-9504	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97076-455-0	01	1	9505-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97111-114-2	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97031-532-0	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97076-458-0	01	1	9204-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97111-116-0	01	1	9608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-94374-924-2	01	1	9112-9203	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97076-453-0	01	1	9204-9607	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97111-113-0	01	1	9608-	●	●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	9112-	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9112-9504	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9505-	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) 04.342 (D)	8-94222-795-1	02	1	9112-9504	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) 04.342 (D)	8-94222-795-1	02	1	9505-	●	●
54	06.672 CLIP; OIL PIPE 4ZE1 ENG(RLJ) (E)	8-94178-110-0	01	1	9112-	●	●
54	06.672 CLIP; OIL PIPE 6VD1 SOHC ENG(RLU) 04.785 (C)	8-94147-869-0	01	1	9112-	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94454-664-0	01	1	9112-9211	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97087-533-1	01	1	9212-9504	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-97087-533-1	01	1	9505-	●	●
57	06.672 BRACKET; POWER STRG PIPE 6VD1 SOHC ENG(RLU)	8-94387-726-2	01	1	9112-9607	●	●
57	06.672 BRACKET; POWER STRG PIPE 6VD1 SOHC ENG(RLU)	8-97133-469-0	01	1	9608-	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16	0-28410-616-0	08	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE	0-28480-616-0	08	1	9205-9501	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE	0-28480-616-0	06	1	9502-9504	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 06.635 M6X16 FLANGE	0-28480-616-0	06	1	9505-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	05	1	9502-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 04.785 M8X22 FLANGE	0-28010-822-0	03	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 08.900 M8X22 FLANGE	0-28080-822-0	03	1	9205-9504	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 M8X22 FLANGE	0-28080-822-0	03	1	9505-9601	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9502-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	06.672 BOLT; CLIP M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	07	1	9112-9204	●	●
58	06.672 BOLT; CLIP 4ZE1 ENG(RLJ) 06.635 M6X16 FLANGE	0-28480-616-0	07	1	9205-9501	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16	0-28410-616-0	04	1	9112-9204	●	●
58	06.672 BOLT; CLIP 6VD1 SOHC ENG(RLU) 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9205-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-94442-104-1	01	1	9112-9203	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-97075-969-0	01	1	9204-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE (B)	8-97120-705-0	01	1	9502-	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-94442-105-1	01	1	9112-9203	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-97075-968-0	01	1	9204-9501	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A)	8-97120-706-0	01	1	9502-9504	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (A)	8-97120-706-0	01	1	9505-	●	●
61	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) ID=10X2 H=22	8-94252-455-2	01	1	9112-9504	●	●
61	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) ID=10X2 H=22	8-94252-455-2	01	1	9505-	●	●
61	06.672 CLIP; OIL PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B)	8-94363-358-0	01	1	9112-	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97038-205-0	01	1	9112-9504	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97038-205-0	01	1	9505-9608	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-979-0	01	1	9609-	●	●
84	06.670 HOSE; FLEX,P/S 4ZE1 ENG(RLJ) 06.673	8-94473-737-3	01	1	9112-9608	●	●
84	06.670 HOSE; FLEX,P/S 4ZE1 ENG(RLJ) 06.673	8-97165-978-0	01	1	9609-	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97020-589-2	01	1	9112-9509	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97137-019-1	01	1	9510-9608	●	●
84	06.670 HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97165-975-0	01	1	9609-	●	●
140	08.846 SWITCH; PRESSURE,POWER STEERING 6VD1 SOHC ENG(RLU)	8-94384-434-1	01	1	9112-9608	●	●
140	08.846 SWITCH; PRESSURE,POWER STEERING 6VD1 SOHC ENG(RLU) '960826-	8-97162-814-0	01	1	9608-	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 6VD1 SOHC ENG(RLU) M16X28	8-94383-489-0	01	1	9112-	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 6VD1 SOHC ENG(RLU) 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	9112-	●	●
263	06.672 BRACKET; P/S PIPE 6VD1 SOHC ENG(RLU)	8-97035-367-0	01	1	9112-9203	●	●
263	06.672 BRACKET; P/S PIPE 6VD1 SOHC ENG(RLU)	8-97076-470-0	01	1	9204-	●	●
313	06.673 WASHER; PL,FLEX HOSE,P/S 6VD1 SOHC ENG(RLU) 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9112-	●	●

1 23 25 26 3 5 3 2 1 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	06.635 TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	06.673 GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	06.673 GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-988-0	01	1	9112-9504	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9505-	●	●
23	06.672 BRACKET; OIL TANK,P/S 4ZE1 ENG(RLJ)	8-94440-403-1	01	1	9112-	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 SOHC ENG(RLU)	8-94381-052-1	01	1	9112-	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 06.672 (B) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	01	1	9205-9504	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	01	1	9505-	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (B) M8X16 FLANGE	0-28410-816-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9205-9208	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9209-	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) 06.672 (A) M6X16	0-28410-616-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	02	1	9112-9204	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	02	1	9205-	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) 07.633 M8 FLANGE	0-91150-108-0	02	1	9112-9504	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
