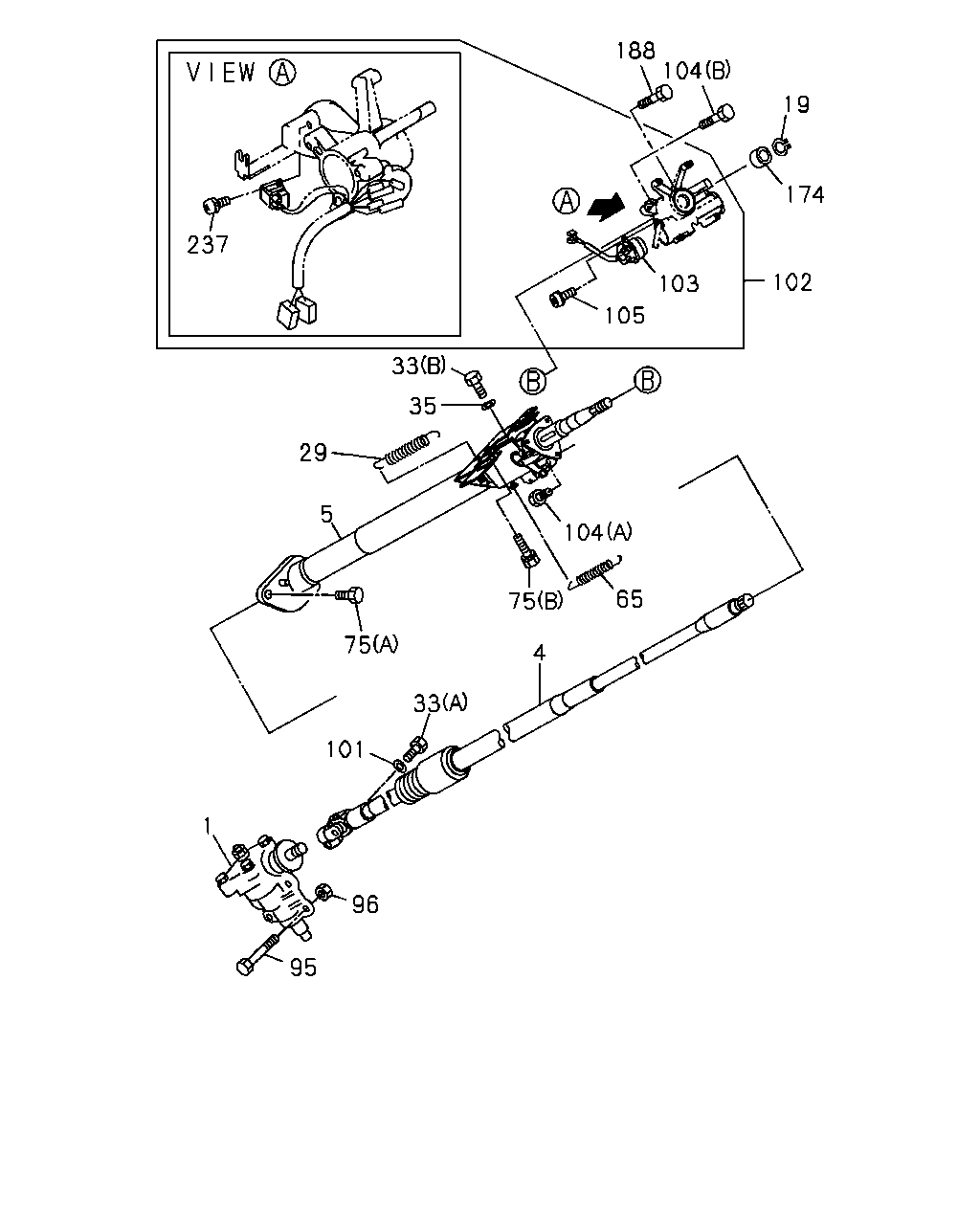

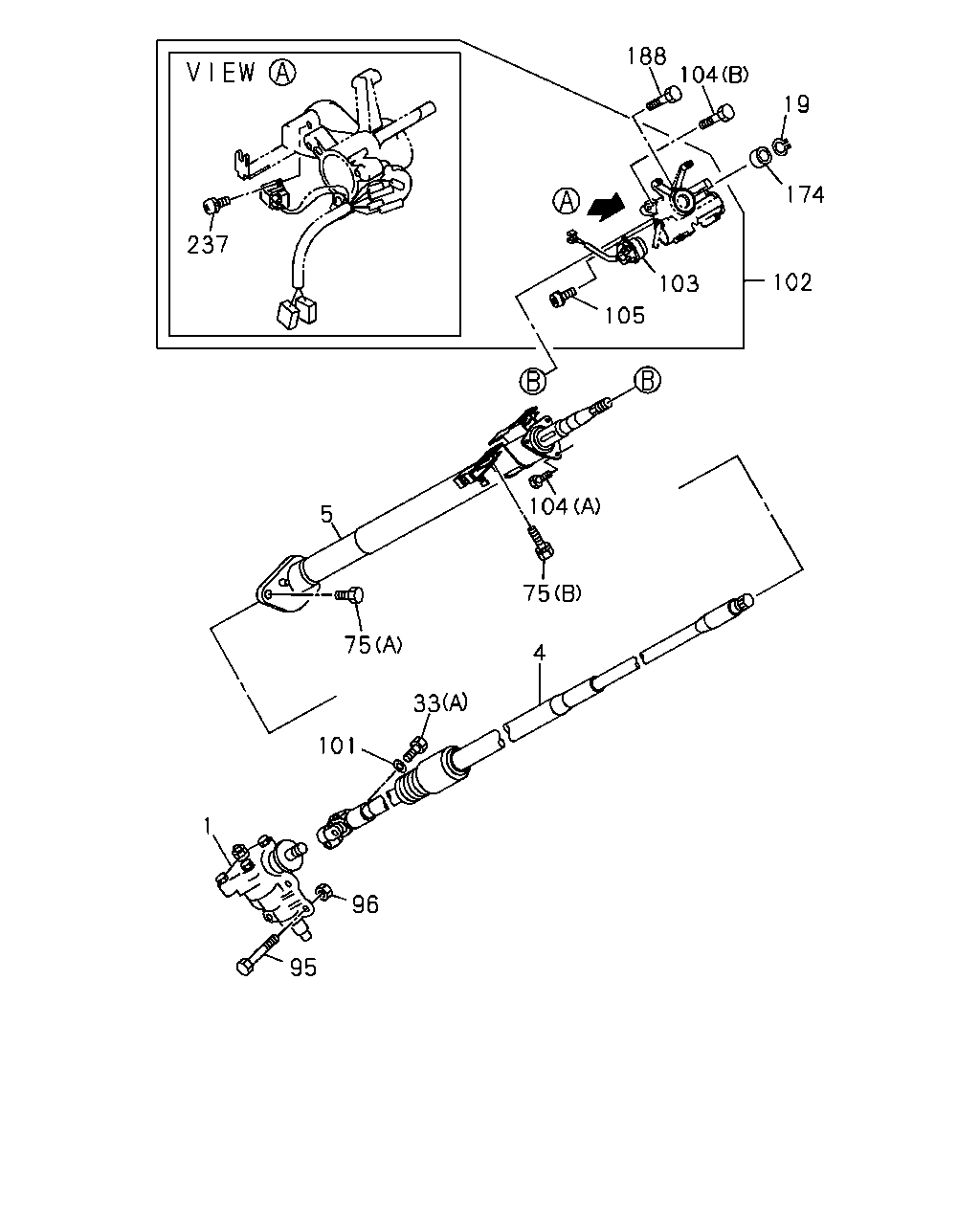

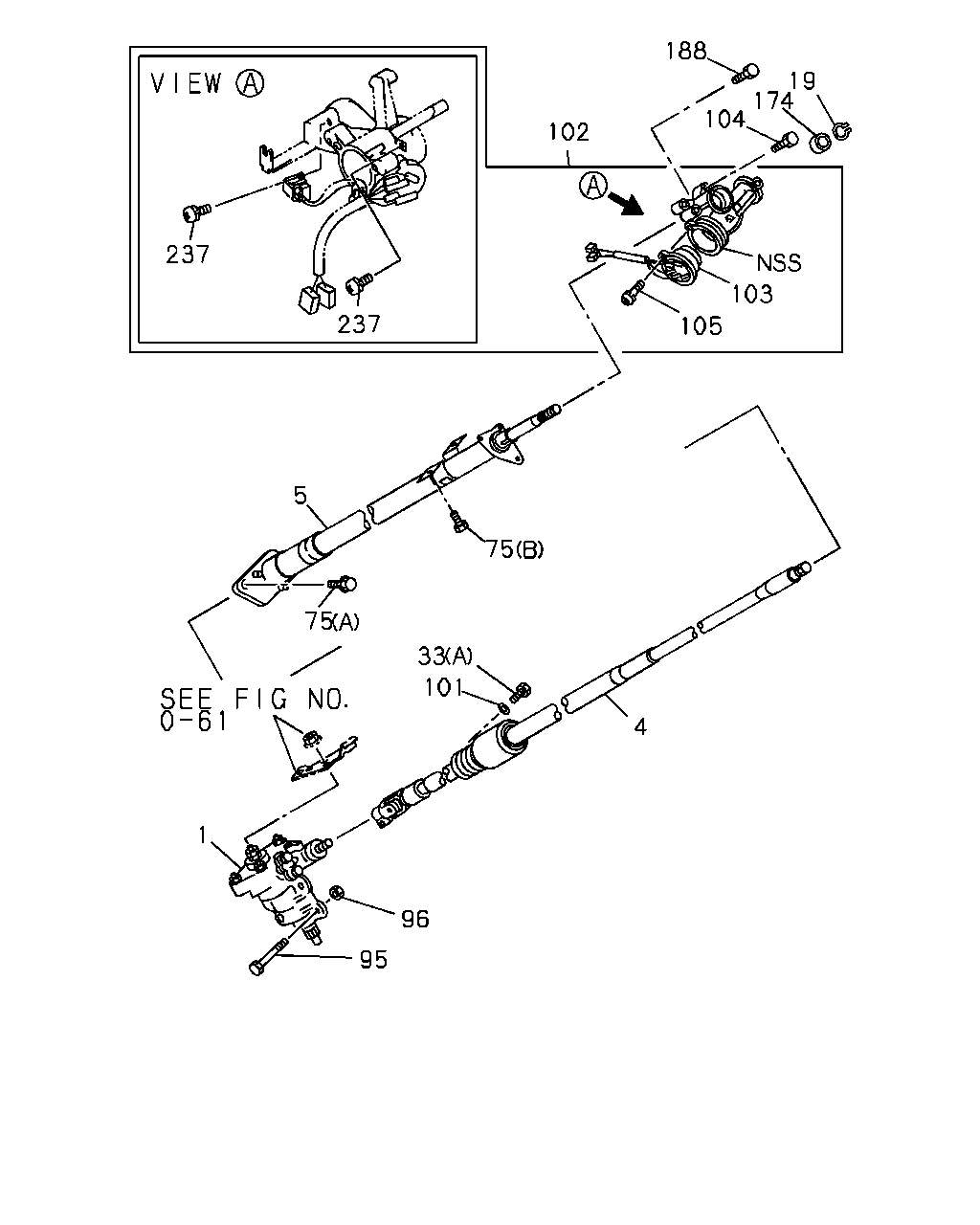

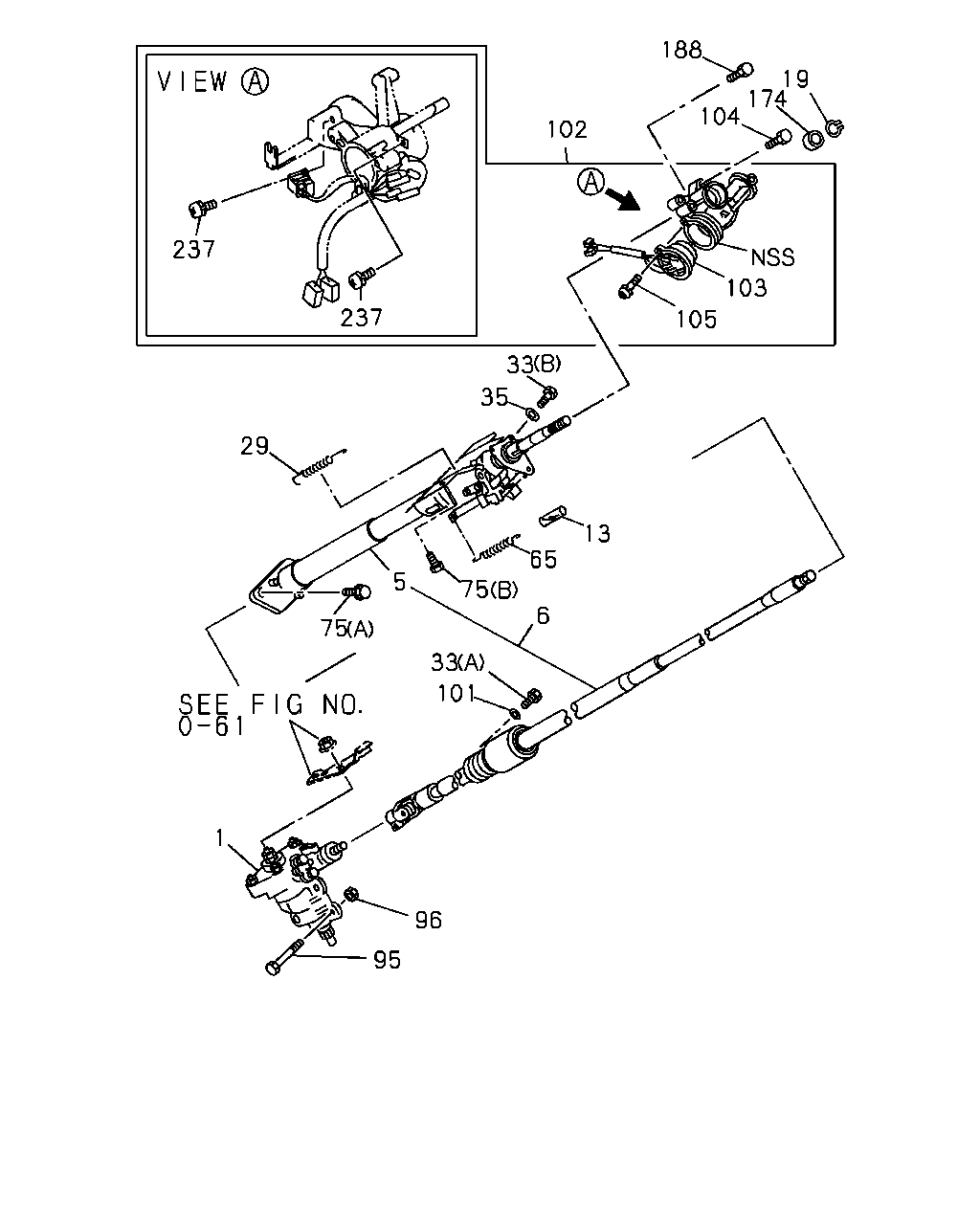

4-31 — STEERING COLUMN AND SHAFT (#44915) — 362 parça

237 33 29 35 5 75 101 33 1 95 96 4 75 104 65 105 103 102 174 19 104 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97070-003-1	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-356-1	01	1	9404-9504		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9505-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-204-3	01	1	9112-9208	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-204-4	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9607	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-357-1	01	1	9404-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9607	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9607	●	●
4	06.524 SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97069-496-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97088-690-1	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97112-184-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9608-9708	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97203-773-0	01	1	9709-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9608-	●	●
19	06.515 RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9505-	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97069-501-1	01	1	9112-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33>	8-94477-979-0	01	1	9112-	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97069-500-0	01	1	9112-9112	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97077-926-0	01	1	9201-9504	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-	●	●
75	03.417 BOLT; STRG COLUMN 10.455 (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	03.417 BOLT; STRG COLUMN 06.760 (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	03.417 BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	06.525 WASHER; LK,STRG SHAFT TO UNIT 00.002 ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-94375-509-2	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-509-3	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-082-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-995-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97130-084-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97135-996-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97130-083-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-994-0	01	1	9510-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-860-1	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97123-780-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97123-779-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 00.738 (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-9308	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94474-206-0	01	1	9309-	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

237 188 104 19 174 103 105 102 104 75 5 75 4 33 101 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97070-003-1	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-356-1	01	1	9404-9504		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9505-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-204-3	01	1	9112-9208	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-204-4	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9607	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-357-1	01	1	9404-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9607	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9607	●	●
4	06.524 SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97069-496-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97088-690-1	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97112-184-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9608-9708	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97203-773-0	01	1	9709-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9608-	●	●
19	06.515 RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9505-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
75	03.417 BOLT; STRG COLUMN 10.455 (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	03.417 BOLT; STRG COLUMN 06.760 (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	03.417 BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	06.525 WASHER; LK,STRG SHAFT TO UNIT 00.002 ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-94375-509-2	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-509-3	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-082-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-995-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97130-084-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97135-996-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97130-083-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-994-0	01	1	9510-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-860-1	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97123-780-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97123-779-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 00.738 (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-9308	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94474-206-0	01	1	9309-	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

237 237 102 188 19 174 104 103 105 33 35 13 65 75 6 5 29 75 33 101 96 95 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97070-003-1	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-356-1	01	1	9404-9504		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9505-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-204-3	01	1	9112-9208	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-204-4	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9607	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-357-1	01	1	9404-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97069-496-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97088-690-1	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97112-184-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9608-9708	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97203-773-0	01	1	9709-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9608-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97069-493-1	01	1	9112-9504	●	●
13	06.521 COVER; SPR TILT STEERING<N33>	8-94477-983-0	01	1	9112-9312	●	●
19	06.515 RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9505-	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97069-501-1	01	1	9112-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33>	8-94477-979-0	01	1	9112-	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97069-500-0	01	1	9112-9112	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97077-926-0	01	1	9201-9504	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-	●	●
75	03.417 BOLT; STRG COLUMN 10.455 (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	03.417 BOLT; STRG COLUMN 06.760 (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	03.417 BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	06.525 WASHER; LK,STRG SHAFT TO UNIT 00.002 ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-94375-509-2	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-509-3	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-082-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-995-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97130-084-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97135-996-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97130-083-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-994-0	01	1	9510-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-860-1	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97123-780-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97123-779-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 00.738 (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-9308	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94474-206-0	01	1	9309-	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

237 237 102 188 104 19 174 103 105 75 5 75 33 101 4 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97070-003-1	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-356-1	01	1	9404-9504		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9505-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-204-3	01	1	9112-9208	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-204-4	01	1	9209-9403	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9607	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-357-1	01	1	9404-9607		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9607	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9607	●	●
4	06.524 SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9608-	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97069-496-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97088-690-1	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97112-184-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9608-9708	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> 06.524	8-97203-773-0	01	1	9709-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9607	●	●
5	06.518 COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9608-	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9608-	●	●
19	06.515 RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9505-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
75	03.417 BOLT; STRG COLUMN 10.455 (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	03.417 BOLT; STRG COLUMN 06.760 (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	03.417 BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	06.525 WASHER; LK,STRG SHAFT TO UNIT 00.002 ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-94375-509-2	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-509-3	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-082-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-995-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97130-084-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-97135-996-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-94375-507-1	01	1	9112-9308	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94375-507-2	01	1	9309-9504	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97130-080-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97135-992-0	01	1	9510-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97130-083-0	01	1	9505-9509	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-994-0	01	1	9510-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-860-1	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC>	8-97123-780-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9208	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97018-792-0	01	1	9209-9301	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4)	8-97090-861-0	01	1	9302-9308	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97090-861-0	01	1	9309-9504	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97123-779-0	01	1	9505-	●	●
103	02.188 SWITCH; IGNITION A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97123-779-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN 00.738 (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 01.652 M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4) 04.054 M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-9308	●	●
188	06.500 BOLT; TORQUE,STEERING EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94474-206-0	01	1	9309-	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	02.195 SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
