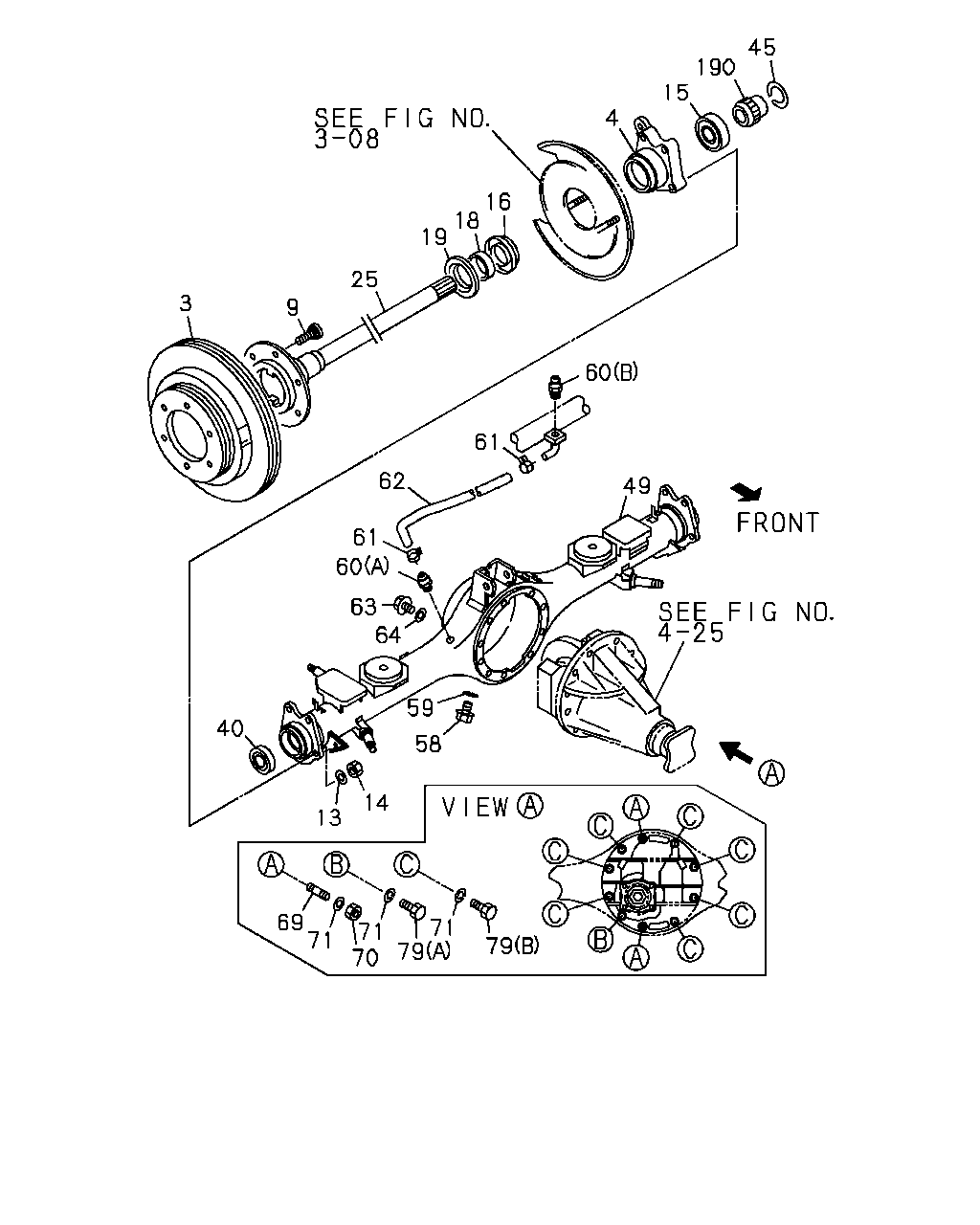

3 |
05.809 ROTOR; DISC BRK,RR
|
8-94375-425-1 |
02 |
1 |
9112- |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94373-254-4 |
01 |
1 |
9112- |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94373-255-4 |
01 |
1 |
9112- |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97020-792-3 |
01 |
1 |
9112- |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97020-791-3 |
01 |
1 |
9112- |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
|
9-42331-601-2 |
12 |
1 |
9112- |
● |
● |
| |
13 |
05.816 WASHER; LK,BRG HOLDER TO CASE
04.634
ID=12.2
|
9-09150-512-0 |
08 |
1 |
9112- |
● |
● |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12
|
9-99110-412-0 |
08 |
1 |
9112- |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
|
8-94429-847-0 |
02 |
1 |
9112- |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
|
8-94441-817-1 |
02 |
1 |
9112- |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97042-641-0 |
02 |
1 |
9112- |
● |
● |
| |
19 |
05.815 COVER; DUST,OIL SEAL
|
8-94441-534-1 |
02 |
1 |
9112- |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94373-252-4 |
01 |
1 |
9112-9505 |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-94373-252-4 |
01 |
1 |
9506- |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
WIDE TREAD SUSPENSION<7FC>
|
8-97104-160-1 |
01 |
1 |
9506- |
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94373-253-4 |
01 |
1 |
9112-9505 |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-94373-253-4 |
01 |
1 |
9506- |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
WIDE TREAD SUSPENSION<7FC>
|
8-97104-162-1 |
01 |
1 |
9506- |
|
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
|
8-94178-277-0 |
02 |
1 |
9112- |
● |
● |
| |
45 |
05.816 RING; RR AXLE BRG
|
8-94454-098-0 |
02 |
1 |
9112- |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94371-999-9 |
01 |
1 |
9112-9409 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97116-607-1 |
01 |
1 |
9410-9504 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97116-607-1 |
01 |
1 |
9505-9505 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM(JE5)
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-97116-607-1 |
01 |
1 |
9506- |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94373-249-7 |
01 |
1 |
9112-9504 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94373-249-7 |
01 |
1 |
9505-9505 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5),WIDE
TREAD SUSPENSION<7FC>
|
8-94373-249-7 |
01 |
1 |
9506- |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/9(S2J)
|
8-94376-173-9 |
01 |
1 |
9112-9304 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/9(S2J)
|
8-97078-188-0 |
01 |
1 |
9305-9504 |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
ANTI LOCK BRAKE SYSTEM(JE5)
WIDE TREAD SUSPENSION<7FC>
|
8-97104-141-2 |
01 |
1 |
9506- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
WIDE TREAD SUSPENSION<7FC>
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97104-142-0 |
01 |
1 |
9506- |
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
05.506
|
8-94363-097-0 |
01 |
1 |
9112-9407 |
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9408- |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9112- |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(A)
L=37
|
8-94226-849-1 |
01 |
1 |
9112- |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(B)
L=30
|
8-94416-611-1 |
01 |
1 |
9112- |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
03.120
ID=11 WHITE
|
5-09707-005-1 |
02 |
1 |
9112- |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
L=400
SERVICED BY L=3000
|
0-04650-300-0 |
01 |
1 |
9112- |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9112- |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9112- |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9112-9201 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X29 L=40
|
9-09830-140-0 |
02 |
1 |
9202-9312 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X28
|
8-94342-713-0 |
02 |
1 |
9401-9409 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
M10X28
|
8-94342-713-0 |
02 |
1 |
9410-9502 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
ANTI LOCK BRAKE SYSTEM(JE5)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9410-9502 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9503- |
● |
● |
| |
70 |
05.387 NUT; CARRIER
00.002
M10
|
9-09110-510-0 |
02 |
1 |
9112- |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
9-09150-610-0 |
10 |
1 |
9112-9612 |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9701- |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
(A)
M10X90
|
9-01061-090-0 |
01 |
1 |
9112-9612 |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
(A)
M10X90
|
0-50061-090-0 |
01 |
1 |
9701- |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
09.008
(B)
M10X32
|
9-02061-032-0 |
07 |
1 |
9112-9612 |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
(B)
M10X30
|
0-50061-030-0 |
07 |
1 |
9701- |
● |
● |
| |
190 |
05.811 SENSOR; ROTOR
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97018-426-1 |
02 |
1 |
9112- |
● |
● |
