1 |

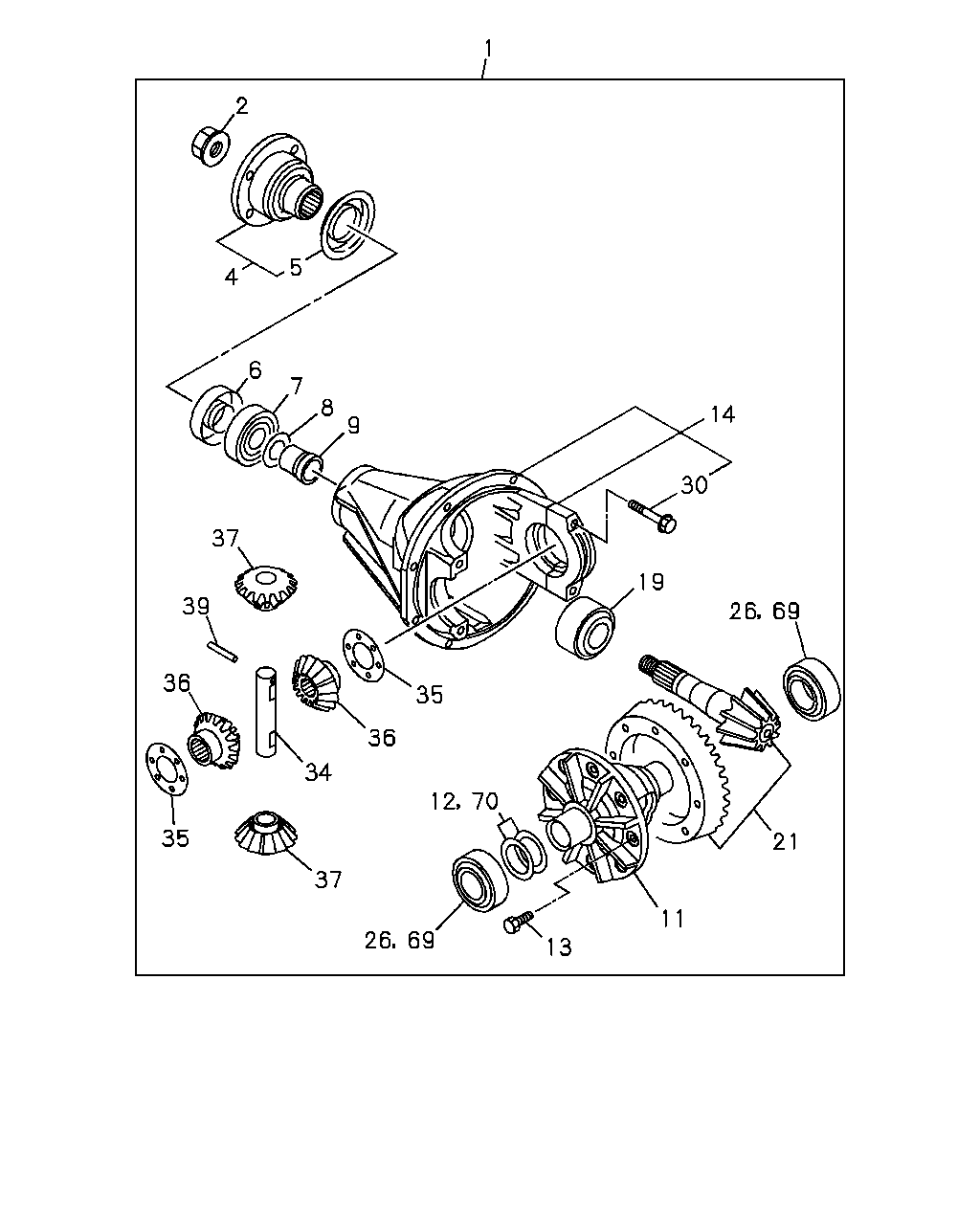

05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-94376-220-1 |
01 |
1 |
9112- |
● |
● |
| |
1 |
05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97039-254-0 |
01 |
1 |
9112- |
● |
● |
| |
1 |
05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97039-250-0 |
01 |
1 |
9112- |
● |
● |
| |
2 |
05.595 NUT; FINAL DRIVE PINION
M18 LOCK NUT
|
8-94376-262-0 |
01 |
1 |
9112- |
● |
● |
| |
4 |
05.545 COUPLING; FINAL DRIVE PINION
|
8-94318-527-3 |
01 |
1 |
9112- |
● |
● |
| |
5 |
05.545 COVER; DUST,PINION,FINAL DRIVE
|
8-94318-409-0 |
01 |
1 |
9112- |
● |
● |
| |
6 |
05.469 SEAL; OIL,FINAL PINION
|
8-94318-520-1 |
01 |
1 |
9112- |
● |
● |
| |
7 |
05.447 BEARING; PINION,OUTER
05.484
NSK
|
8-94472-099-0 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.18
|
9-41519-153-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.20
|
9-41519-154-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.22
|
9-41519-155-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.24
|
9-41519-156-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.26
|
9-41519-157-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.28
|
9-41519-158-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.30
|
9-41519-159-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.32
|
9-41519-160-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.34
|
9-41519-161-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.36
|
9-41519-162-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.38
|
9-41519-163-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.40
|
9-41519-164-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.42
|
9-41519-165-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.44
|
9-41519-166-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.46
|
9-41519-167-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.48
|
9-41519-168-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.50
|
9-41519-169-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.52
|
9-41519-170-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.54
|
9-41519-171-1 |
01 |
1 |
9112- |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
T=2.56
|
9-41519-172-1 |
01 |
1 |
9112- |
● |
● |
| |
9 |
05.453 COLLAR; DIST,PINION
|
8-94472-118-0 |
01 |
1 |
9112-9407 |
● |
● |
| |
9 |
05.453 COLLAR; DIST,PINION
|
8-97117-080-0 |
01 |
1 |
9408-9411 |
● |
● |
| |
9 |
05.453 COLLAR; DIST,PINION
941107-
|
8-94472-118-0 |
01 |
1 |
9411- |
● |
● |
| |
11 |
05.453 CAGE; FINAL PINION
05.510
|
8-94313-589-0 |
01 |
1 |
9112-9310 |
● |
● |
| |
11 |
05.453 CAGE; FINAL PINION
|
8-97038-515-1 |
01 |
1 |
9311- |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
T=0.24
|
9-41519-109-0 |
AR |
1 |
9112- |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
T=0.18
|
9-41519-110-0 |
AR |
1 |
9112-9504 |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
T=0.10
|
8-97130-386-0 |
AR |
1 |
9505- |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
T=0.15
|
9-41519-111-0 |
AR |
1 |
9112- |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
T=0.12
|
9-41519-112-0 |
AR |
1 |
9112-9504 |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
T=0.50
|
8-97130-387-0 |
AR |
1 |
9505- |
● |
● |
| |
13 |
05.531 BOLT; FINAL PINION CAGE
M10X17
|
8-97038-065-0 |
10 |
1 |
9112- |
● |
● |
| |
14 |
05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
|
8-94376-231-2 |
01 |
1 |
9112- |
● |
● |
| |
19 |
05.484 BEARING; PINION,INNER
NSK
|
9-00093-621-0 |
01 |
1 |
9112- |
● |
● |
| |
21 |
05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-94376-223-1 |
01 |
1 |
9112- |
● |
● |
| |
21 |
05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97039-255-1 |
01 |
1 |
9112- |
● |
● |
| |
21 |
05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97039-251-1 |
01 |
1 |
9112- |
● |
● |
| |
26 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-074-0 |
02 |
1 |
9112- |
● |
● |
| |
30 |
05.506 BOLT; DIFF CAGE SETTING
05.387
M12X62
|
8-94376-322-0 |
04 |
1 |
9112- |
● |
● |
| |
34 |
05.520 PIN; CROSS,DIFF PINION
05.517
|
9-41521-044-1 |
01 |
1 |
9112- |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.00
|
5-41562-005-1 |
02 |
1 |
9112- |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.05
|
5-41562-006-1 |
02 |
1 |
9112- |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.10
|
5-41562-007-1 |
02 |
1 |
9112- |
● |
● |
| |
36 |
05.528 GEAR; SIDE,DIFF
|
8-94474-302-0 |
02 |
1 |
9112-9210 |
● |
● |
| |
36 |
05.528 GEAR; SIDE,DIFF
Z=17
|
8-97079-519-1 |
02 |
1 |
9211- |
● |
● |
| |
37 |
05.527 GEAR; PINION DIFF
05.526
|
8-94474-301-0 |
02 |
1 |
9112-9210 |
● |
● |
| |
37 |
05.527 GEAR; PINION DIFF
Z=10
|
8-97079-518-0 |
02 |
1 |
9211- |
● |
● |
| |
39 |
05.518 PIN; LK,CROSS PIN
OD=5 L=35
|
9-09878-096-0 |
01 |
1 |
9112- |
● |
● |
| |
69 |
05.453 BEARING; DIFF SIDE
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
05.536
NSK
|
9-00093-074-0 |
02 |
1 |
9506-9506 |
|
● |
| |
69 |
05.453 BEARING; DIFF SIDE
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),HONG KONG
EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)
05.536
NSK
|
9-00093-074-0 |
02 |
1 |
9507- |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
05.537
T=0.10
|
8-97130-386-0 |
AR |
1 |
9506-9506 |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),HONG KONG
EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)
05.537
T=0.10
|
8-97130-386-0 |
AR |
1 |
9507- |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
05.537
T=0.50
|
8-97130-387-0 |
AR |
1 |
9506-9506 |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),HONG KONG
EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)
05.537
T=0.50
|
8-97130-387-0 |
AR |
1 |
9507- |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
05.537
T=0.24
|
9-41519-109-0 |
AR |
1 |
9506-9506 |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),HONG KONG
EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)
05.537
T=0.24
|
9-41519-109-0 |
AR |
1 |
9507- |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
05.537
T=0.15
|
9-41519-111-0 |
AR |
1 |
9506-9506 |
|
● |
| |
70 |
05.453 SHIM
FINAL GEAR RATIO 41/9(HC6)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
WIDE TREAD SUSPENSION<7FC>
EXC. EUROPE EQUIPMENT(EK4),HONG KONG
EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)
05.537
T=0.15
|
9-41519-111-0 |
AR |
1 |
9507- |
|
● |
