7-40 — INSTRUMENT PANEL AND BOX (#4491) — 69 parça

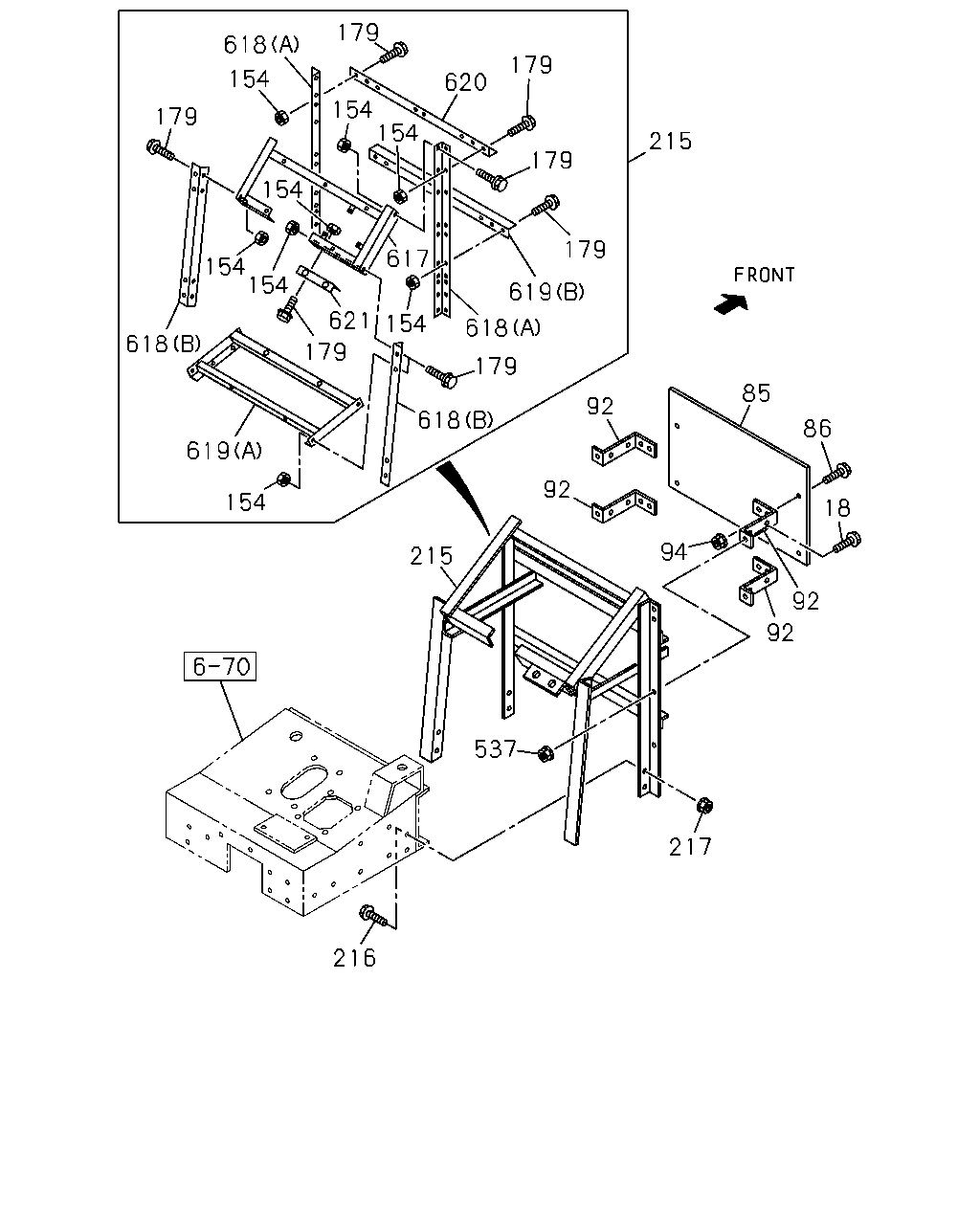

179 618 154 179 154 154 620 179 215 179 154 154 154 617 154 179 619 618 621 179 618 179 85 92 618 86 619 92 154 18 94 215 92 92 537 217 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	9505-9606	●	●
18	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-0512	●	●
18	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
85	PANEL; ELEC	1-65600-348-1	01	1	9101-9504	●	●
85	PANEL; ELEC	1-65600-461-1	01	1	9505-9607	●	●
85	PANEL; ELEC	1-65600-484-2	01	1	9608-	●	●
86	BOLT; ELEC PNL M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●
86	BOLT; ELEC PNL M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●
86	BOLT; ELEC PNL M8X20 FLANGE	0-28080-820-0	04	1	9505-9606	●	●
86	BOLT; ELEC PNL M8X25 FLANGE	0-28680-825-0	04	1	9607-0512	●	●
86	BOLT; ELEC PNL M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
92	BRACKET; ELEC PANEL	8-94300-644-3	04	1	9505-	●	●
94	NUT; PANEL BRKT M8	9-09110-508-0	04	1	9101-9606	●	●
94	NUT; PANEL BRKT M8 FLANGE	0-91150-108-0	04	1	9607-0602	●	●
94	NUT; PANEL BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
154	NUT M10	9-09110-510-0	14	1	9505-0512	●	●
154	NUT M10	0-91110-510-0	14	1	0601-	●	●
179	BOLT; STAY,INST PANEL M10X20 FLANGE	0-28081-020-0	14	1	9505-0512	●	●
179	BOLT; STAY,INST PANEL M10X20 FLANGE	0-28051-020-0	14	1	0601-	●	●
215	BOARD ASM; DASH EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-370-2	01	1	9101-9504	●
215	BOARD ASM; DASH BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-362-3	01	1	9101-9504	●	●
215	BOARD ASM; DASH	1-65600-462-3	01	1	9505-	●	●
215	BOARD ASM; DASH EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-371-2	01	1	9101-9504		●
216	BOLT; DASH BOARD M10X22 W/LK WASHER	0-50041-022-0	08	1	9101-9504	●	●
216	BOLT; DASH BOARD M10X25 FLANGE	0-28081-025-0	08	1	9505-9606	●	●
216	BOLT; DASH BOARD M10X30 FLANGE	0-28681-030-0	08	1	9607-0512	●	●
216	BOLT; DASH BOARD M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
216	BOLT; DASH BOARD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK WASHER	0-50041-020-0	02	1	9101-9504	●	●
217	NUT; DASH BOARD M10	9-09110-510-0	08	1	9101-9606	●	●
217	NUT; DASH BOARD M10 FLANGE	0-91150-210-0	08	1	9607-0602	●	●
217	NUT; DASH BOARD M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
537	NUT; BRKT M8	9-09110-508-0	04	1	9505-9606	●	●
537	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-0602	●	●
537	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
617	STAY; DASH BOARD	1-65600-464-1	01	1	9505-	●	●
618	STAY; PEDAL BOARD (A)	1-65600-468-1	02	1	9505-	●	●
618	STAY; PEDAL BOARD (B)	1-65600-469-0	02	1	9505-	●	●
619	STAY; PEDAL BRKT (A)	1-65600-465-3	01	1	9505-	●	●
619	STAY; PEDAL BRKT (B)	1-65600-467-2	01	1	9505-	●	●
620	STAY; BACK MIRROR	1-65600-467-2	01	1	9505-	●	●
621	PEDAL; IDLING CONT	1-65600-470-0	01	1	9505-	●	●

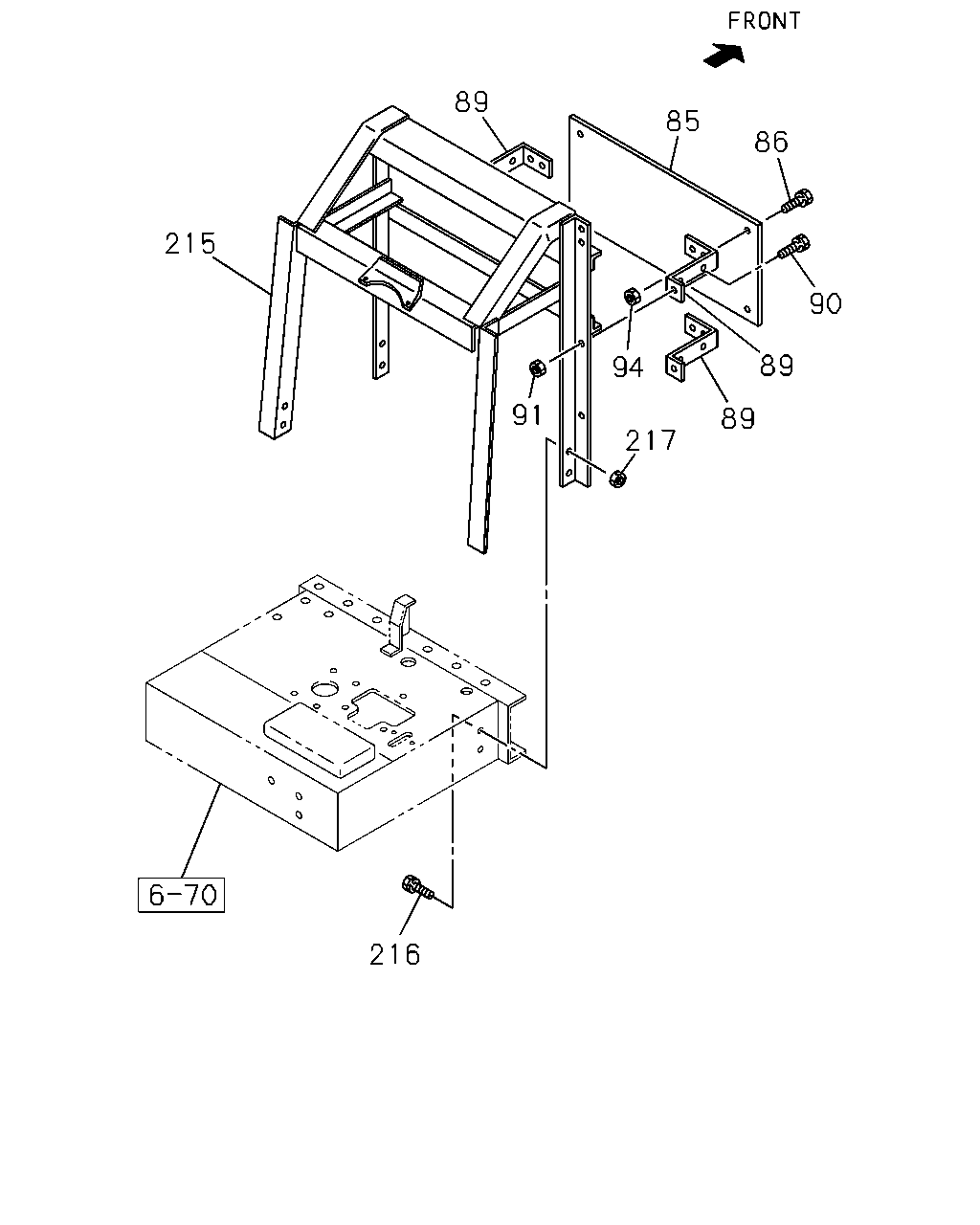

89 85 86 215 90 89 94 91 89 217 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	PANEL; ELEC	1-65600-348-1	01	1	9101-9504	●	●
85	PANEL; ELEC	1-65600-461-1	01	1	9505-9607	●	●
85	PANEL; ELEC	1-65600-484-2	01	1	9608-	●	●
86	BOLT; ELEC PNL M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●
86	BOLT; ELEC PNL M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●
86	BOLT; ELEC PNL M8X20 FLANGE	0-28080-820-0	04	1	9505-9606	●	●
86	BOLT; ELEC PNL M8X25 FLANGE	0-28680-825-0	04	1	9607-0512	●	●
86	BOLT; ELEC PNL M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
89	STAY; ELEC PANEL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	8-94300-644-3	04	1	9101-9504	●	●
89	STAY; ELEC PANEL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33659-127-0	04	1	9101-9504	●	●
90	BOLT; STAY,ELEC PANEL M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●
90	BOLT; STAY,ELEC PANEL M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●
91	NUT; STAY,ELEC PANEL M8	9-09110-508-0	04	1	9101-9504	●	●
94	NUT; PANEL BRKT M8	9-09110-508-0	04	1	9101-9606	●	●
94	NUT; PANEL BRKT M8 FLANGE	0-91150-108-0	04	1	9607-0602	●	●
94	NUT; PANEL BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
215	BOARD ASM; DASH EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-370-2	01	1	9101-9504	●
215	BOARD ASM; DASH BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-362-3	01	1	9101-9504	●	●
215	BOARD ASM; DASH	1-65600-462-3	01	1	9505-	●	●
215	BOARD ASM; DASH EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-371-2	01	1	9101-9504		●
216	BOLT; DASH BOARD M10X22 W/LK WASHER	0-50041-022-0	08	1	9101-9504	●	●
216	BOLT; DASH BOARD M10X25 FLANGE	0-28081-025-0	08	1	9505-9606	●	●
216	BOLT; DASH BOARD M10X30 FLANGE	0-28681-030-0	08	1	9607-0512	●	●
216	BOLT; DASH BOARD M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
216	BOLT; DASH BOARD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK WASHER	0-50041-020-0	02	1	9101-9504	●	●
217	NUT; DASH BOARD M10	9-09110-510-0	08	1	9101-9606	●	●
217	NUT; DASH BOARD M10 FLANGE	0-91150-210-0	08	1	9607-0602	●	●
217	NUT; DASH BOARD M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
