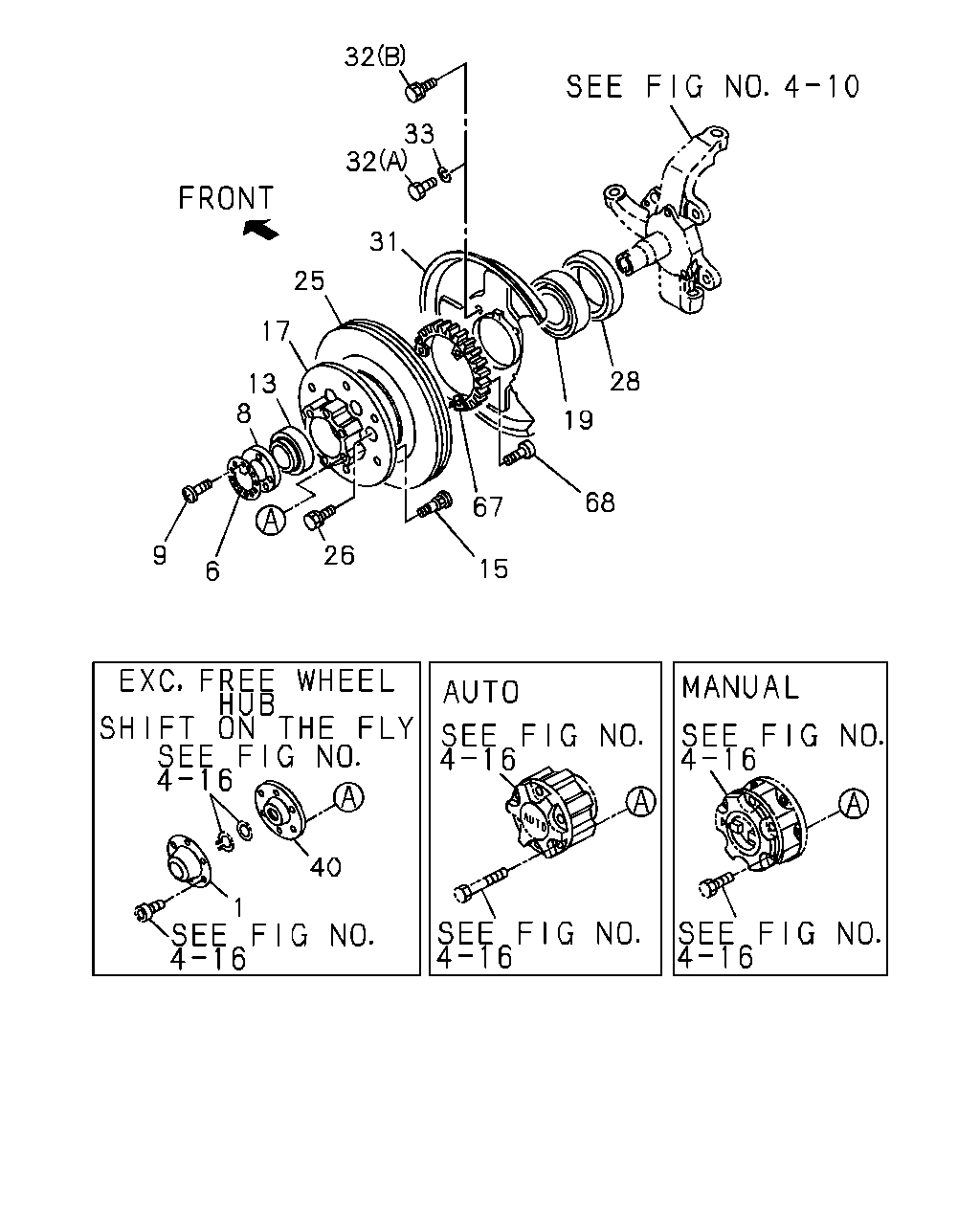

1 |
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO
LOCKINGHUB(S1Y)
|
8-94173-314-1 |
02 |
1 |
9112-9504 |
● |
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2)
|
8-94173-314-1 |
02 |
1 |
9505-9505 |
● |
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
SHIFT ON THE FLY(7EX)
|
8-94173-314-1 |
02 |
1 |
9505-9505 |
● |
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),ANTI LOCK
BRAKE SYSTEM(JE5)
|
8-94173-314-1 |
02 |
1 |
9506-9506 |
● |
|
| |
1 |
06.330 CAP; HUB,FRT AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5),WIDE
TREAD SUSPENSION<7FC>
|
8-94173-314-1 |
02 |
1 |
9506-9506 |
|
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2)
|
8-94173-314-1 |
02 |
1 |
9507-9601 |
● |
|
| |
1 |
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),ANTI LOCK
BRAKE SYSTEM(JE5)
|
8-94173-314-1 |
02 |
1 |
9507-9601 |
|
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2)
|
8-94173-314-1 |
02 |
1 |
9602- |
● |
● |
| |
6 |
05.812 WASHER; LK,FRT HUB
T=1.8 OD=65
|
8-94442-398-0 |
02 |
1 |
9112- |
● |
● |
| |
8 |
05.812 NUT; ADJ,FRT HUB
|
8-94442-399-1 |
02 |
1 |
9112- |
● |
● |
| |
9 |
05.812 SCREW; ADJ,NUT
08.913
M4X8 CK-HEAD
|
9-93090-408-0 |
06 |
1 |
9112- |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
06.311
NSK
|
8-94227-041-0 |
02 |
1 |
9112- |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
TIMKEN
|
8-97118-306-0 |
02 |
1 |
9410- |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
|
8-94223-200-0 |
12 |
1 |
9112- |
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
|
8-94381-084-2 |
02 |
1 |
9112- |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
06.314
NSK
|
8-94258-819-0 |
02 |
1 |
9112- |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
TIMKEN
|
8-97118-307-0 |
02 |
1 |
9410- |
● |
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94375-416-4 |
02 |
1 |
9112- |
● |
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
|
8-94375-533-4 |
02 |
1 |
9112- |
● |
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
M12X31.5
|
8-94409-921-0 |
12 |
1 |
9112- |
● |
● |
| |
28 |
06.326 SEAL; OIL,FRT HUB
06.308
|
8-94407-711-0 |
02 |
1 |
9112- |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-94375-418-0 |
01 |
1 |
9112- |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-94375-417-0 |
01 |
1 |
9112- |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(A)
M8X10
|
9-02040-810-0 |
06 |
1 |
9112-9204 |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(A)
M8X10
|
0-20800-810-0 |
06 |
1 |
9205-9409 |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
EXC. EUROPE EQUIPMENT(EK4)
(A)
M8X10
|
0-20800-810-0 |
06 |
1 |
9410-9411 |
● |
|
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/9(S2J)
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
(A)
M8X10
|
0-20800-810-0 |
06 |
1 |
9410-9411 |
|
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/10(S7C)
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
(B)
M8X10 W/LK WASHER
|
8-97025-916-0 |
06 |
1 |
9410-9411 |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(B)
M8X10 W/LK WASHER
|
8-97025-916-0 |
06 |
1 |
9412- |
● |
● |
| |
33 |
05.002 WASHER; LK,DRUM COVER
00.002
ID=8.2
|
9-09150-508-0 |
06 |
1 |
9112-9409 |
● |
● |
| |
33 |
05.002 WASHER; LK,DRUM COVER
EXC. EUROPE EQUIPMENT(EK4)
00.002
ID=8.2
|
9-09150-508-0 |
06 |
1 |
9410-9411 |
● |
|
| |
33 |
05.002 WASHER; LK,DRUM COVER
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/9(S2J)
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
00.002
ID=8.2
|
9-09150-508-0 |
06 |
1 |
9410-9411 |
|
● |
| |
40 |
06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2),AUTO
LOCKINGHUB(S1Y)
|
8-94173-313-0 |
02 |
1 |
9112-9504 |
● |
● |
| |
40 |
06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2)
|
8-94173-313-0 |
02 |
1 |
9505- |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM(JE5)
|
8-97018-425-1 |
02 |
1 |
9112-9505 |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM(JE5)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
|
8-97018-425-1 |
02 |
1 |
9506-9506 |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM(JE5)
MANUAL LOCKING HUB(ED2)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
|
8-97018-425-1 |
02 |
1 |
9507- |
● |
|
| |
67 |
05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM(JE5)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
|
8-97018-425-1 |
02 |
1 |
9507- |
|
● |
| |
68 |
05.812 BOLT; SENSOR ROTOR
ANTI LOCK BRAKE SYSTEM(JE5)
08.900
M8X16
|
9-05820-816-0 |
06 |
1 |
9112-9505 |
● |
● |
| |
68 |
05.812 BOLT; SENSOR ROTOR
ANTI LOCK BRAKE SYSTEM(JE5)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
08.900
M8X16
|
9-05820-816-0 |
06 |
1 |
9506-9506 |
● |
● |
| |
68 |
05.812 BOLT; SENSOR ROTOR
ANTI LOCK BRAKE SYSTEM(JE5)
MANUAL LOCKING HUB(ED2)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
08.900
M8X16
|
9-05820-816-0 |
06 |
1 |
9507- |
● |
|
| |
68 |
05.812 BOLT; SENSOR ROTOR
ANTI LOCK BRAKE SYSTEM(JE5)
MANUAL LOCKING HUB(ED2),SHIFT ON THE
FLY(7EX)
EXC. FRONT AXLE URETHANE BOOTS<6HV>
08.900
M8X16
|
9-05820-816-0 |
06 |
1 |
9507- |
|
● |
