◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#44907) — 89 parça
çizim 16924
138 142 142 138
BalonParca AdiParca NoAdetTipApplied Date A B
138 07.829 PROTECTOR; FUEL TANK
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97049-703-3 01 1 9112-9308 ● ●
138 07.829 PROTECTOR; FUEL TANK
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97049-703-4 01 1 9309-9409 ● ●
138 07.829 PROTECTOR; FUEL TANK
EUROPE EQUIPMENT(EK4) 		8-97049-704-1 01 1 9112-9308 ● ●
138 07.829 PROTECTOR; FUEL TANK
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97049-704-2 01 1 9309-9409 ● ●
142 07.039 BOLT; FUEL TANK PROTECTOR
EUROPE EQUIPMENT(EK4) 08.900 (A) M6X16 		0-51200-616-0 01 1 9112-9204 ● ●
142 07.039 BOLT; FUEL TANK PROTECTOR
EUROPE EQUIPMENT(EK4) 12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9308 ● ●
142 07.039 BOLT; FUEL TANK PROTECTOR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9309-9409 ● ●
142 07.039 BOLT; FUEL TANK PROTECTOR
EUROPE EQUIPMENT(EK4) 03.008 (B) M8X16 		0-51200-816-0 03 1 9112-9204 ● ●
142 07.039 BOLT; FUEL TANK PROTECTOR
EUROPE EQUIPMENT(EK4) (B) M8X16 W/LK&PL WASHER 		0-51240-816-0 03 1 9205-9308 ● ●
142 07.039 BOLT; FUEL TANK PROTECTOR
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M8X16 W/LK&PL WASHER 		0-51240-816-0 03 1 9309-9409 ● ●

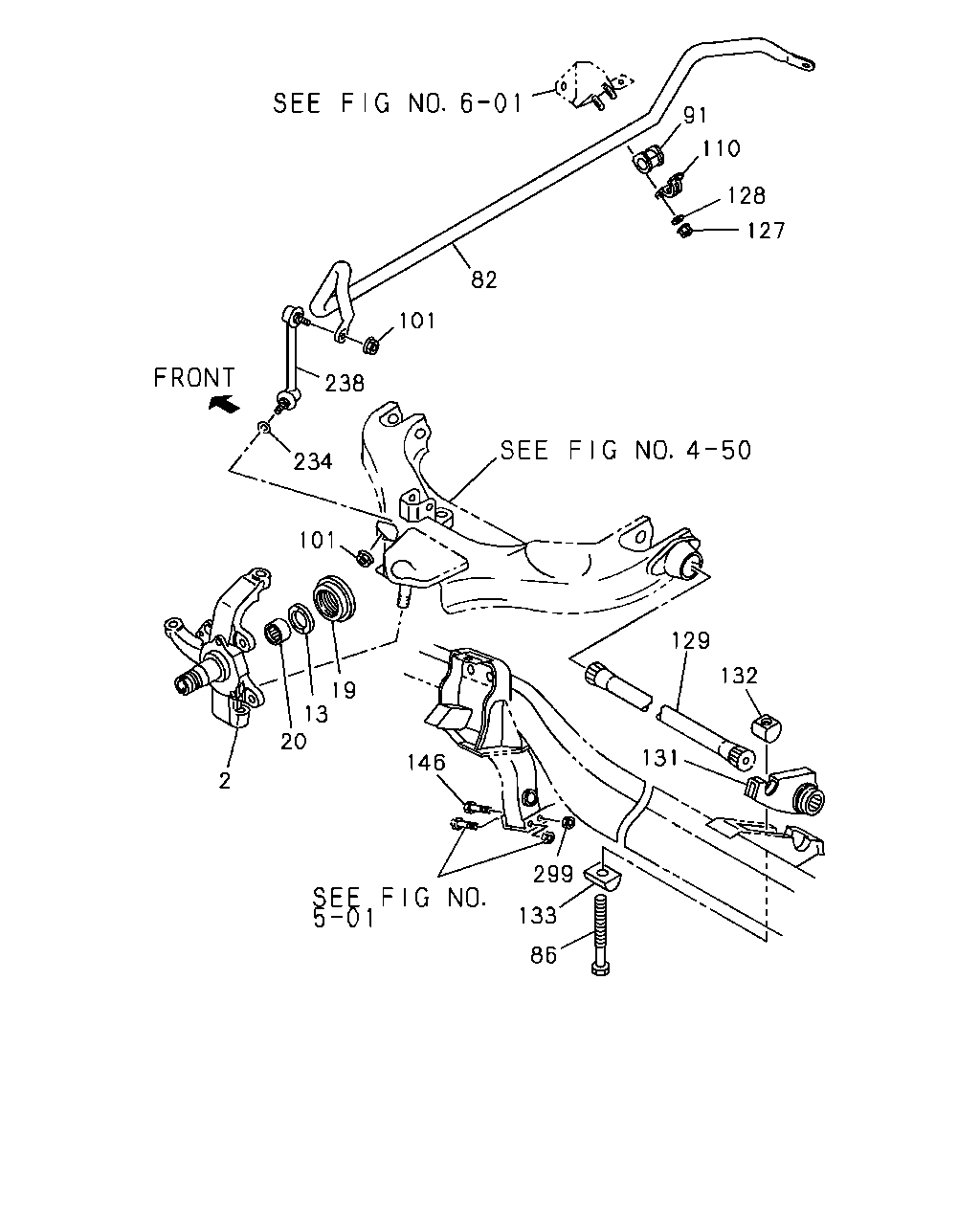

çizim 66012
86 133 299 131 132 129 146 19 13 20 2 101 234 238 101 82 127 128 110 91
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.020 KNUCKLE; FRT AXLE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94374-413-0 01 1 9112-9604 ● ●
2 06.020 KNUCKLE; FRT AXLE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97104-464-0 01 1 9605- ● ●
2 06.020 KNUCKLE; FRT AXLE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94374-414-0 01 1 9112-9604 ● ●
2 06.020 KNUCKLE; FRT AXLE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97104-465-0 01 1 9605- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-94374-642-0 01 1 9112-9604 ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97104-467-0 01 1 9605- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-94374-641-0 01 1 9112-9604 ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97104-466-0 01 1 9605- ● ●
13 06.104 WASHER; THRUST,KNUCKLE 8-94407-718-0 02 1 9112- ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-94407-725-1 02 1 9112-9501 ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 9502- ● ●
20 06.104 BEARING; KNUCKLE 8-94407-708-0 02 1 9112- ● ●
82 07.241 BAR; STAB,FRT SUSP
AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97024-485-1 01 1 9112-9405 ● ●
82 07.241 BAR; STAB,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> 		8-97024-485-1 01 1 9406-9505 ● ●
82 07.241 BAR; STAB,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D) 		8-97024-485-1 01 1 9506-9608 ● ●
82 07.241 BAR; STAB,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97024-485-1 01 1 9608- ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-94374-434-1 01 1 9112-9405 ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-94374-434-1 01 1 9406-9505 ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-94374-434-1 01 1 9506-9608 ●
82 07.241 BAR; STAB,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-94374-434-1 01 1 9506-9608 ●
82 07.241 BAR; STAB,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-94374-434-1 01 1 9608- ● ●
82 07.241 BAR; STAB,FRT SUSP
WEST MALAYSIA EQUIPMENT(S3D) 		8-97070-318-0 01 1 9506-9608 ●
82 07.241 BAR; STAB,FRT SUSP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97070-318-0 01 1 9608- ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9112- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97039-518-0 02 1 9112-9405 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
SUSPENSION RIDE&HANDLING<FE2> 		8-97039-518-0 02 1 9406-9505 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D) 		8-97039-518-0 02 1 9506-9608 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97039-518-0 02 1 9608- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97036-342-0 02 1 9112-9405 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97036-342-0 02 1 9406-9505 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-97036-342-0 02 1 9506-9608 ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-97036-342-0 02 1 9506-9608 ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97036-342-0 02 1 9608- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
WEST MALAYSIA EQUIPMENT(S3D) 		8-97070-359-0 02 1 9506-9608 ●
91 07.243 BUSHING; RUBBER,STAB BAR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97070-359-0 02 1 9608- ●
101 07.242 NUT; STAB BAR 8-97035-383-0 04 1 9112- ● ●
110 07.242 CLAMP; STAB TO ROD
ID=36 		8-97032-869-0 02 1 9112- ● ●
127 07.242 NUT; CLAMP
00.002 M8 		9-09110-508-0 04 1 9112- ● ●
128 07.242 WASHER; LK,CLAMP
04.046 ID=8.2 		9-09150-808-0 04 1 9112- ● ●
129 07.412 BAR; TORSION,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) 		8-97039-311-0 01 1 9112-9212 ● ●
129 07.412 BAR; TORSION,FRT SUSP
AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97039-311-0 01 1 9301-9405 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> 		8-97039-311-0 01 1 9406-9504 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> 		8-97039-311-0 01 1 9505-9505 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D) 		8-97039-311-0 01 1 9506-9608 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97039-311-0 01 1 9608- ● ●
129 07.412 BAR; TORSION,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) 		8-97039-312-0 01 1 9112-9212 ● ●
129 07.412 BAR; TORSION,FRT SUSP
AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97039-312-0 01 1 9301-9405 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> 		8-97039-312-0 01 1 9406-9504 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> 		8-97039-312-0 01 1 9505-9505 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> EXC. WEST MALAYSIA EQUIPMENT(S3D) 		8-97039-312-0 01 1 9506-9608 ● ●
129 07.412 BAR; TORSION,FRT SUSP
SUSPENSION RIDE&HANDLING<FE2> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97039-312-0 01 1 9608- ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94374-438-0 01 1 9112-9212 ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-94374-438-0 01 1 9301-9405 ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-94374-438-0 01 1 9406-9505 ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-94374-438-0 01 1 9506-9608 ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-94374-438-0 01 1 9506-9608 ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-94374-438-0 01 1 9608- ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94374-439-0 01 1 9112-9212 ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-94374-439-0 01 1 9301-9405 ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-94374-439-0 01 1 9406-9505 ● ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2> 		8-94374-439-0 01 1 9506-9608 ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2>,WEST MALAYSIA EQUIPMENT(S3D) 		8-94374-439-0 01 1 9506-9608 ●
129 07.412 BAR; TORSION,FRT SUSP
EXC. SUSPENSION RIDE&HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-94374-439-0 01 1 9608- ● ●
129 07.412 BAR; TORSION,FRT SUSP
WEST MALAYSIA EQUIPMENT(S3D) 		8-97047-733-0 01 1 9506-9608 ●
129 07.412 BAR; TORSION,FRT SUSP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97047-733-0 01 1 9608- ●
129 07.412 BAR; TORSION,FRT SUSP
WEST MALAYSIA EQUIPMENT(S3D) 		8-97047-734-0 01 1 9506-9608 ●
129 07.412 BAR; TORSION,FRT SUSP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) '960819- 		8-97047-734-0 01 1 9608- ●
131 07.436 ARM; HEIGHT CONT 8-94368-633-1 02 1 9112-9308 ● ●
131 07.436 ARM; HEIGHT CONT 8-97093-571-0 02 1 9309-9607 ● ●
131 07.436 ARM; HEIGHT CONT
EXC. EUROPE EQUIPMENT(EK4) 		8-97093-571-1 02 1 9608- ● ●
131 07.436 ARM; HEIGHT CONT
EUROPE EQUIPMENT(EK4) 		8-97133-451-1 01 1 9608- ● ●
131 07.436 ARM; HEIGHT CONT
EUROPE EQUIPMENT(EK4) 		8-97133-450-1 01 1 9608- ● ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9112- ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9112- ● ●
146 07.039 BOLT; SUPPORT
M10X83 FLANGE 		8-97805-841-0 02 1 9505- ● ●
234 07.242 WASHER; STAB 8-97049-475-0 02 1 9112- ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97018-228-2 01 1 9112- ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97018-227-2 01 1 9112- ● ●
299 07.039 NUT; SUPPORT BAR
M10 FLANGE 		8-94383-595-0 02 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
