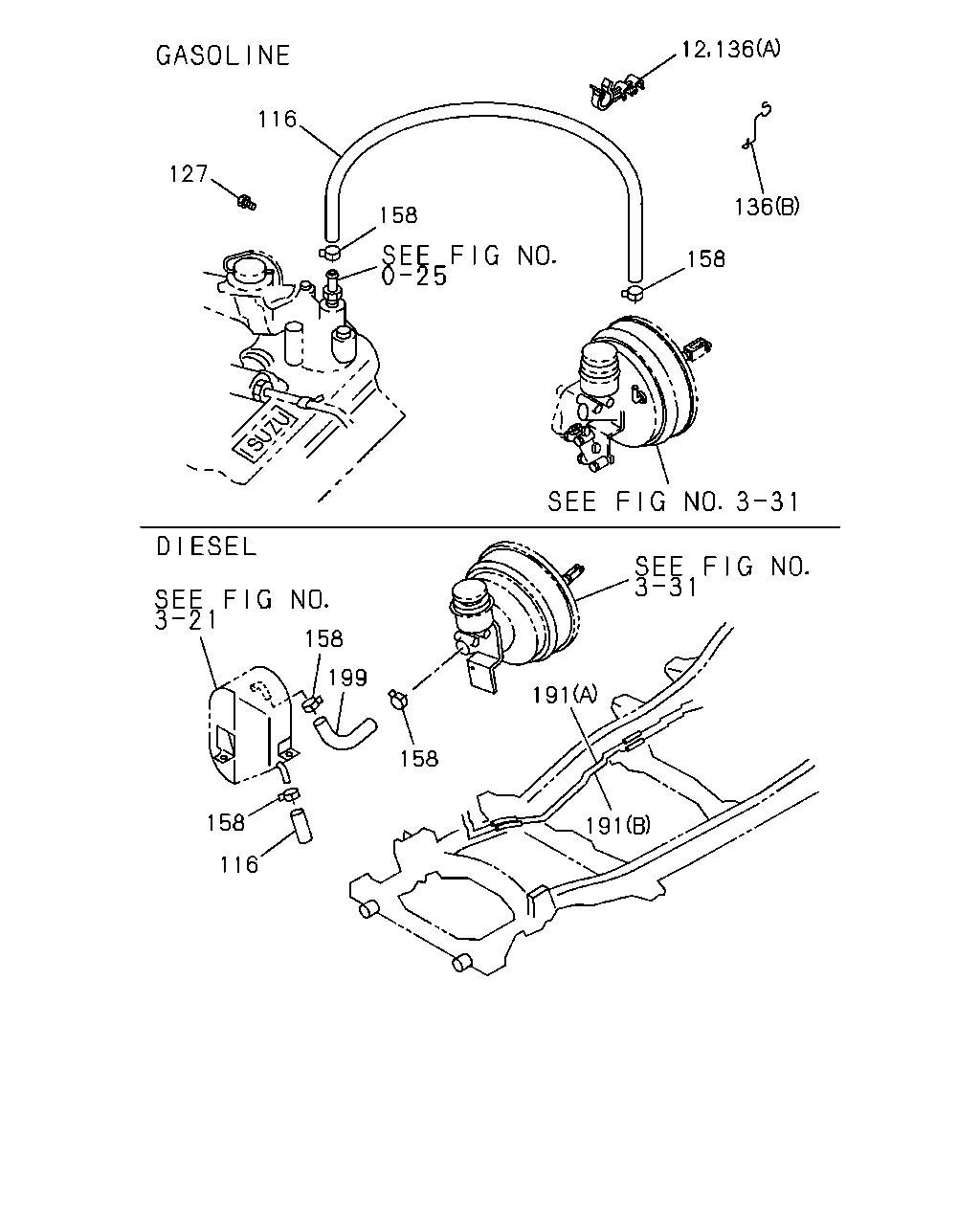

3-60 — BRAKE PIPING; VACUUM (#44905) — 26 parça

127 158 116 12 136 136 158 158 199 158 191 191 116 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 4ZE1 ENG(RLJ) 02.183 ID=16.5 & 4.8	8-94415-087-0	01	1	9112-	●	●
116	04.931 HOSE; VAC,M/VAC 4JG2 ENG(RJC),4JG1 ENG(RLT) L=180 SERVICED BY L=1000	0-08358-100-0	01	1	9112-9208	●	●
116	04.931 HOSE; VAC,M/VAC 4JG2 ENG(RJC),4JG1 ENG(RLT) L=180 SERVICED BY L=3000	0-08358-300-0	01	1	9209-9501	●	●
116	04.931 HOSE; VAC,M/VAC 4JG2 ENG(RJC),4JG1 ENG(RLT) SERVICED BY L=3000	0-08158-300-0	01	1	9502-9504	●	●
116	04.931 HOSE; VAC,M/VAC 4JG2 ENG(RJC) SERVICED BY L=3000	0-08158-300-0	01	1	9505-9608	●	●
116	04.931 HOSE; VAC,M/VAC 4JG2 ENG(RJC)	8-97175-856-1	01	1	9608-	●	●
116	04.931 HOSE; VAC,M/VAC 4ZE1 ENG(RLJ)	8-97038-471-1	01	1	9112-	●	●
116	04.931 HOSE; VAC,M/VAC 6VD1 SOHC ENG(RLU)	8-97018-370-1	01	1	9112-9302	●	●
116	04.931 HOSE; VAC,M/VAC 6VD1 SOHC ENG(RLU)	8-97085-694-1	01	1	9303-	●	●
127	04.930 BOLT; CLIP 6VD1 SOHC ENG(RLU) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9303-	●	●
136	04.681 CLIP; VAC HOSE 4ZE1 ENG(RLJ) 03.162 (A)	8-94357-279-0	01	1	9209-	●	●
136	04.681 CLIP; VAC HOSE 6VD1 SOHC ENG(RLU) 03.278 (B)	8-94486-777-1	01	1	9303-	●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.930 ID=16	8-94238-568-0	04	1	9112-9504	●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC) 04.930 ID=16	8-94238-568-0	04	1	9505-9704	●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC) ID=16	8-97173-222-0	04	1	9705-	●	●
158	04.681 CLIP; HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 04.930 ID=16	8-94238-568-0	02	1	9112-9704	●	●
158	04.681 CLIP; HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ID=16	8-97173-222-0	02	1	9705-	●	●
191	04.685 PIPE; VAC 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.685 (A)	8-97043-602-1	01	1	9112-9308	●	●
191	04.685 PIPE; VAC 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 00.685 (A)	8-97043-602-1	01	1	9309-9504	●	●
191	04.685 PIPE; VAC 4JG2 ENG(RJC) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97109-533-2	01	1	9505-9607	●	●
191	04.685 PIPE; VAC 4JG2 ENG(RJC) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97133-271-1	01	1	9608-	●	●
191	04.685 PIPE; VAC 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.685 (B)	8-97043-603-1	01	1	9112-9308	●	●
191	04.685 PIPE; VAC 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 00.685 (B)	8-97043-603-1	01	1	9309-9503	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.931 L=230 SERVICED BY L=3000	0-08358-300-0	01	1	9112-9504	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JG2 ENG(RJC) 04.931 L=230 SERVICED BY L=3000	0-08358-300-0	01	1	9505-9607	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JG2 ENG(RJC) 04.931 L=230 SERVICED BY L=1000	0-08358-100-0	01	1	9608-	●	●
