3-58 — FIXING PARTS; OIL PIPING (#44904) — 222 parça

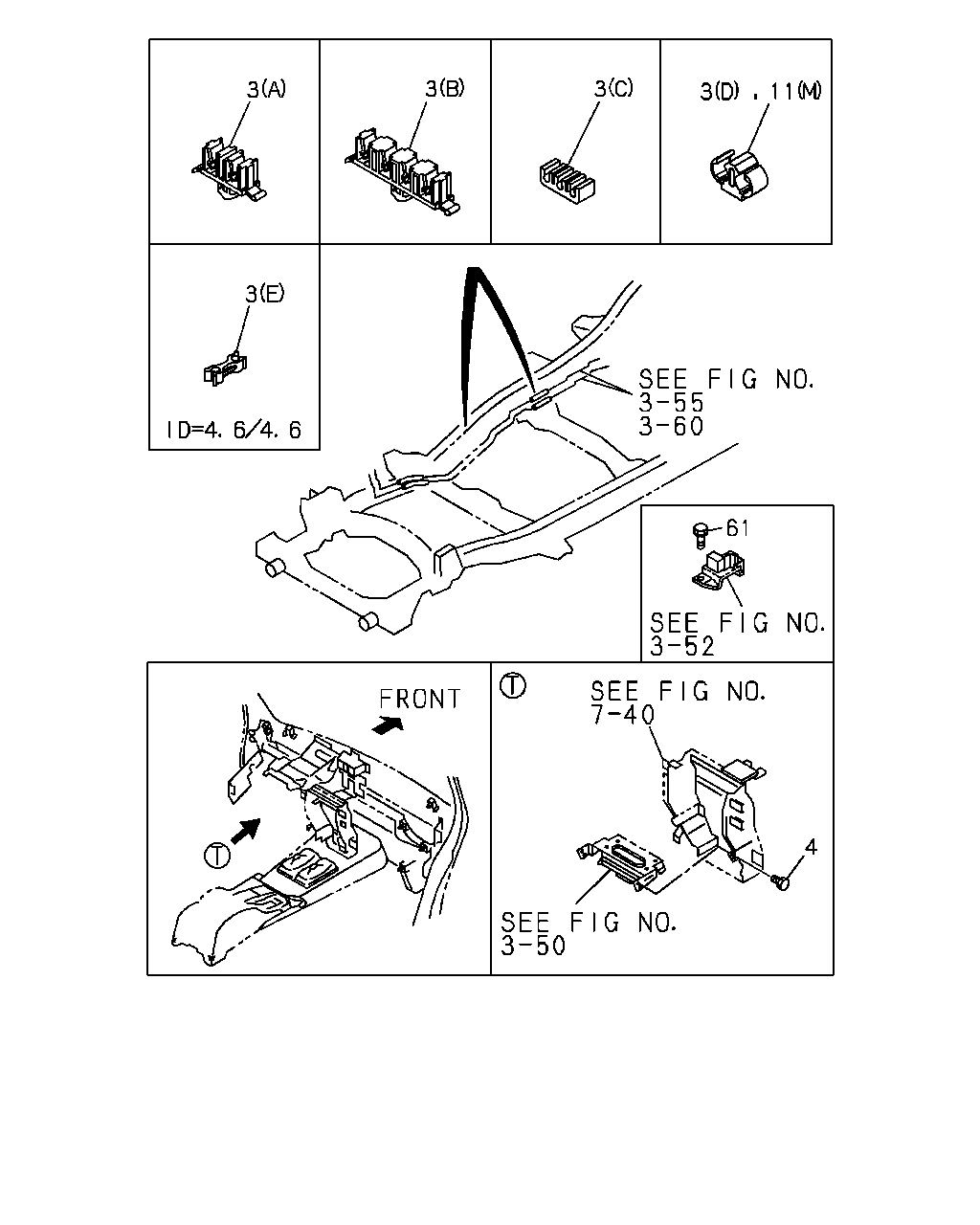

çizim 66013
4 61 3 3 3 3 3 11
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.685 CLIP; BRK PIPE
4JG1 ENG(RLT) 04.686 (A) 		8-94326-752-0 07 1 9112-9504 ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) 04.686 (A) 		8-94326-752-0 05 1 9505- ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 04.686 (A) 		8-94326-752-0 01 1 9112-9504 ●
3 04.685 CLIP; BRK PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 04.686 (A) 		8-94326-752-0 01 1 9112-9504 ●
3 04.685 CLIP; BRK PIPE
04.686 (A) 		8-94326-752-0 01 1 9505- ●
3 04.685 CLIP; BRK PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 04.686 (A) 		8-94326-752-0 01 1 9505- ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D) ID=4.76X3 		8-94122-333-0 02 1 9112-9308 ● ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D) ID=4.76X3 		8-94122-333-0 02 1 9309-9412 ● ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (D) ID=4.76X3 		8-94122-333-0 02 1 9501-9504 ● ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.686 (D) ID=4.8X3 		8-94487-369-0 02 1 9505-9607 ● ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.686 (D) ID=4.8X3 		8-94487-369-0 01 1 9608- ● ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9112-9308 ● ●
3 04.685 CLIP; BRK PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9309-9607 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (D) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (D) ID=4.76X3 		8-94122-333-0 01 1 9309-9504 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.162 (E) ID=6.35 & 6.35 		8-94474-113-0 01 1 9112-9308 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 03.162 (E) ID=6.35 & 6.35 		8-94474-113-0 01 1 9309-9503 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) RR COIL & LINK SUSPENSION<6SV> 04.686 (B) 		8-97043-724-0 05 1 9112-9504 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) 04.686 (A) 		8-94326-752-0 02 1 9112- ●
3 04.685 CLIP; BRK PIPE
4JG1 ENG(RLT) 04.686 (A) 		8-94326-752-0 09 1 9112-9504 ●
4 04.686 BOLT; BRKT
ANTI LOCK BRAKE SYSTEM(JE5) 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9505-9607 ● ●
11 04.686 CLIP; OIL PIPE
(D) 		8-97035-570-3 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
(K) 		8-97069-554-1 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4) (E) 		8-94435-553-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9309-9706 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E) 		8-94435-553-0 01 1 9309-9706 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9707- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9707- ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (E) 		8-94435-553-0 01 1 9707- ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 02 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 02 1 9411-9504 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 03 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-94107-743-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94107-743-0 01 1 9309- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 02 1 9112-9402 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9403-9504 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9403-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97037-992-3 04 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 03 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9112-9309 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9310-9504 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9310-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9112-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9505-9607 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9608- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9309-9407 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9309-9407 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9408-9409 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) (I) 		8-94338-104-0 01 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9410-9410 ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (I) 		8-94338-104-0 01 1 9411-9607 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (I) 		8-94338-104-0 01 1 9608- ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 05 1 9112-9309 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (B) H=9.5 		8-94375-291-0 05 1 9310- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=4.8 & 10 		8-94152-110-0 01 1 9112-9201 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97037-992-3 05 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9411-9504 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.480 (N) ID=10.5 & 4.8 		8-97019-966-0 01 1 9608- ● ●
61 04.686 BOLT; BRK PIPE
09.211 M6X16 W/LK WASHER 		9-01900-616-0 02 1 9112-9204 ● ●
61 04.686 BOLT; BRK PIPE
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9205- ● ●

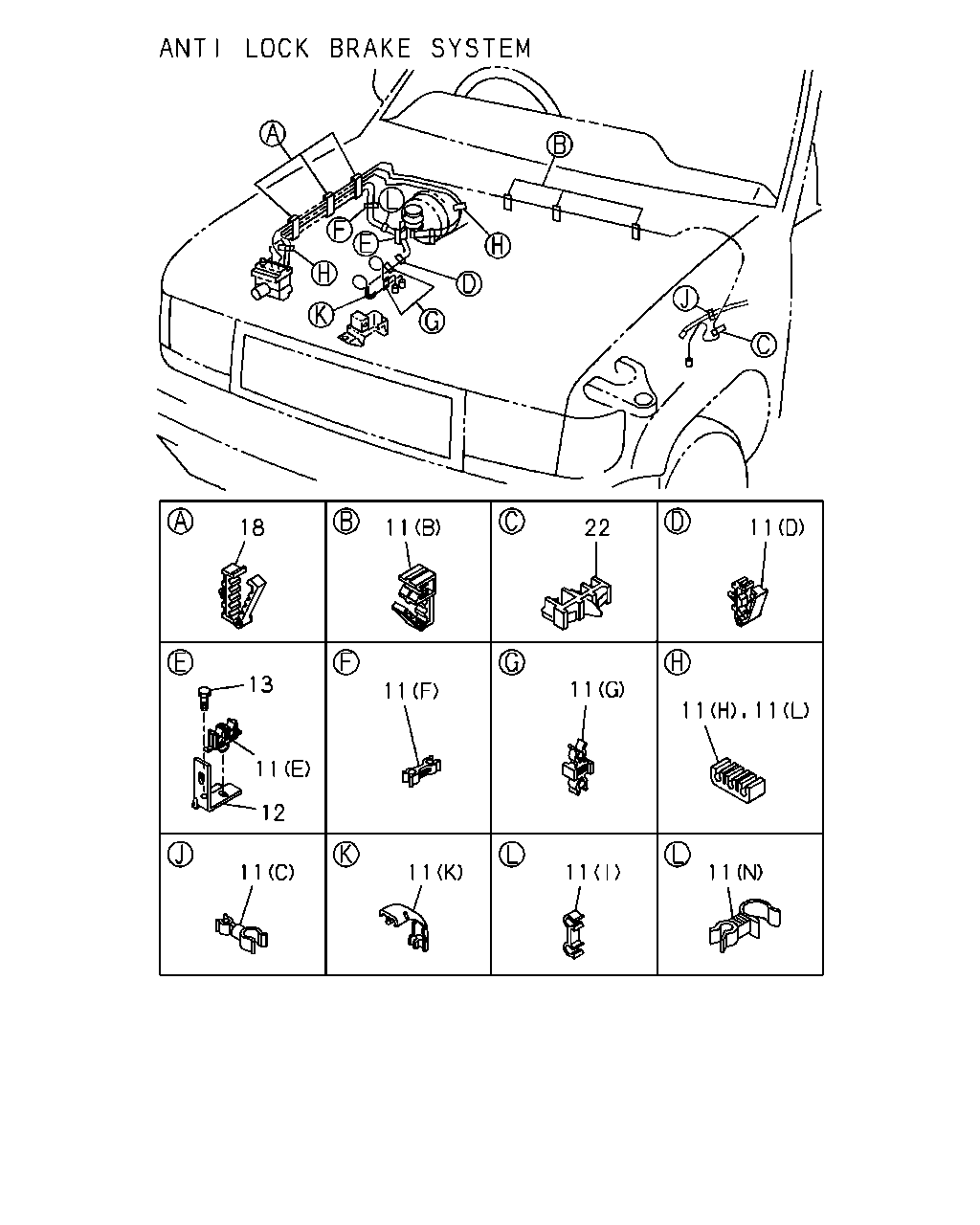

çizim 66058
18 11 22 11 11 11 11 11 13 11 12 11 11 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 CLIP; OIL PIPE
(D) 		8-97035-570-3 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
(K) 		8-97069-554-1 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4) (E) 		8-94435-553-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9309-9706 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E) 		8-94435-553-0 01 1 9309-9706 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9707- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9707- ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (E) 		8-94435-553-0 01 1 9707- ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 02 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 02 1 9411-9504 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 03 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-94107-743-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94107-743-0 01 1 9309- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 02 1 9112-9402 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9403-9504 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9403-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97037-992-3 04 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 03 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9112-9309 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9310-9504 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9310-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9112-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9505-9607 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9608- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9309-9407 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9309-9407 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9408-9409 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) (I) 		8-94338-104-0 01 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9410-9410 ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (I) 		8-94338-104-0 01 1 9411-9607 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (I) 		8-94338-104-0 01 1 9608- ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 05 1 9112-9309 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (B) H=9.5 		8-94375-291-0 05 1 9310- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=4.8 & 10 		8-94152-110-0 01 1 9112-9201 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97037-992-3 05 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9411-9504 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.480 (N) ID=10.5 & 4.8 		8-97019-966-0 01 1 9608- ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 		8-97038-830-3 01 1 9112-9504 ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97038-830-3 01 1 9112-9504 ● ●
12 04.686 BRACKET; OIL PIPE
6VD1 SOHC ENG(RLU) 		8-97038-830-3 01 1 9112-9504 ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. EUROPE EQUIPMENT(EK4) 		8-97038-830-3 01 1 9505- ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97038-830-3 01 1 9505- ● ●
12 04.686 BRACKET; OIL PIPE
6VD1 SOHC ENG(RLU) 		8-97038-830-3 01 1 9505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VD1 SOHC ENG(RLU) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9310 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9310 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VD1 SOHC ENG(RLU) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9310 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9311-9504 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9311-9504 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VD1 SOHC ENG(RLU) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9311- ● ●
18 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97062-177-1 03 1 9112- ● ●
22 04.686 CLIP; PIPE TO FRAME
4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 		8-94442-883-1 01 1 9112-9504 ● ●
22 04.686 CLIP; PIPE TO FRAME
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 		8-94442-883-1 01 1 9505- ● ●
22 04.686 CLIP; PIPE TO FRAME
4ZE1 ENG(RLJ) 		8-94442-883-1 02 1 9112- ● ●

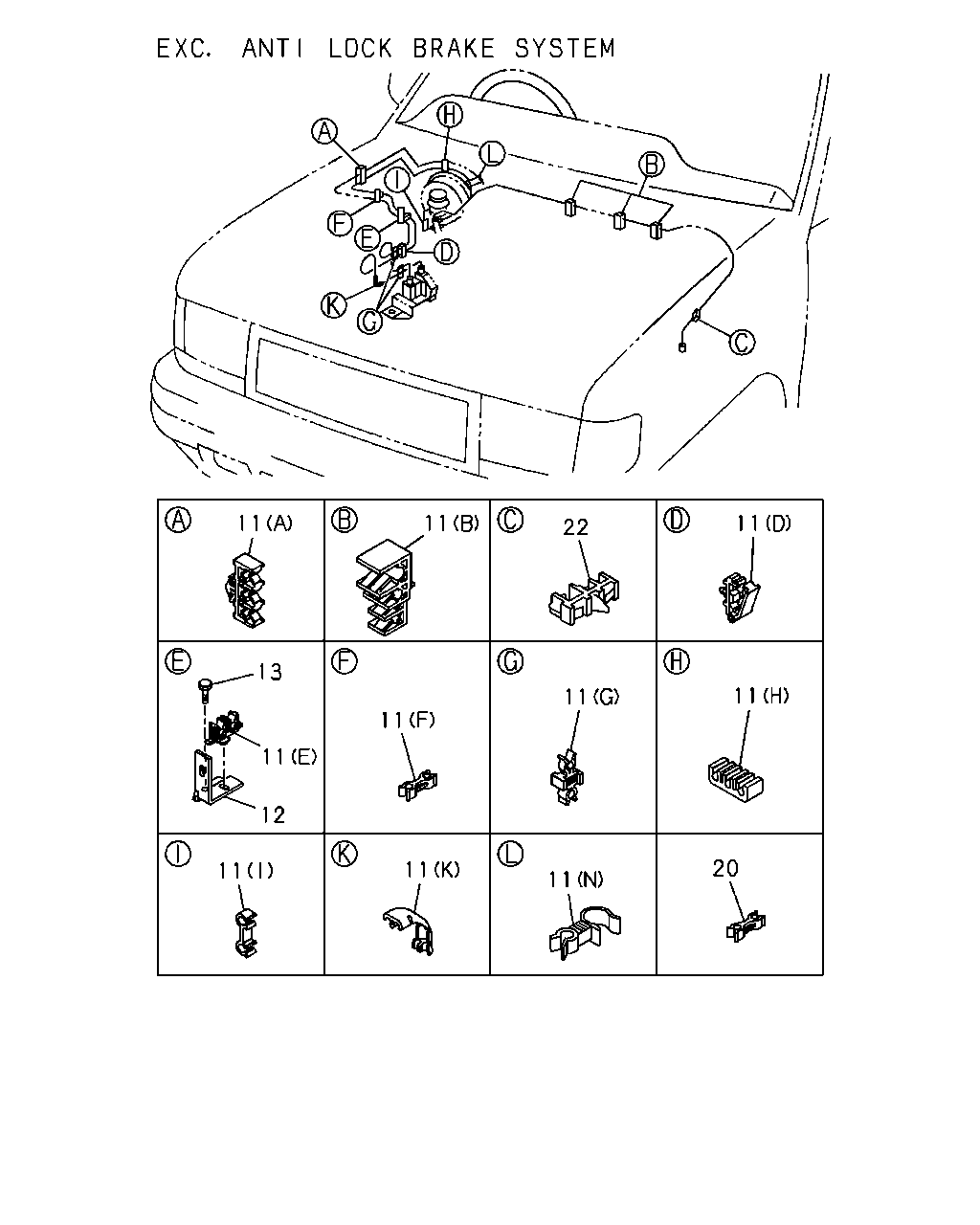

çizim 66060
11 11 11 20 11 11 11 12 11 13 11 11 22 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 CLIP; OIL PIPE
(D) 		8-97035-570-3 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
(K) 		8-97069-554-1 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4) (E) 		8-94435-553-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9309-9706 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E) 		8-94435-553-0 01 1 9309-9706 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9707- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94435-553-0 01 1 9707- ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (E) 		8-94435-553-0 01 1 9707- ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 02 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 02 1 9411-9504 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (M) ID=6.35 & 6.35 		8-94474-113-0 03 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-94107-743-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94107-743-0 01 1 9309- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 02 1 9112-9402 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9403-9504 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9403-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97037-992-3 04 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 03 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (H) ID=4.76X3 		8-94122-333-0 01 1 9309-9402 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9112-9309 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9310-9504 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9310-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 04 1 9505- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9112-9504 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9505-9607 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) 02.183 (G) ID=6 & 4.8 		8-94313-325-0 01 1 9608- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9112-9308 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9309-9407 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9309-9407 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9408-9409 ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4) (I) 		8-94338-104-0 01 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (I) 		8-94338-104-0 01 1 9410-9410 ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (I) 		8-94338-104-0 01 1 9411-9607 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (I) 		8-94338-104-0 01 1 9608- ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) H=9.5 		8-94375-291-0 05 1 9112-9309 ● ●
11 04.686 CLIP; OIL PIPE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (B) H=9.5 		8-94375-291-0 05 1 9310- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=4.8 & 10 		8-94152-110-0 01 1 9112-9201 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97037-992-3 05 1 9112- ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9410-9410 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9411-9504 ● ●
11 04.686 CLIP; OIL PIPE
6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.480 (N) ID=10.5 & 4.8 		8-97019-966-0 01 1 9608- ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 		8-97038-830-3 01 1 9112-9504 ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97038-830-3 01 1 9112-9504 ● ●
12 04.686 BRACKET; OIL PIPE
6VD1 SOHC ENG(RLU) 		8-97038-830-3 01 1 9112-9504 ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. EUROPE EQUIPMENT(EK4) 		8-97038-830-3 01 1 9505- ● ●
12 04.686 BRACKET; OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97038-830-3 01 1 9505- ● ●
12 04.686 BRACKET; OIL PIPE
6VD1 SOHC ENG(RLU) 		8-97038-830-3 01 1 9505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VD1 SOHC ENG(RLU) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9310 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9310 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VD1 SOHC ENG(RLU) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9310 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9311-9504 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9311-9504 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VD1 SOHC ENG(RLU) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9311- ● ●
20 04.686 CLIP; BRK PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) ID=6.4 & 4.8 		8-94257-329-0 01 1 9112-9308 ● ●
20 04.686 CLIP; BRK PIPE
6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) ID=6.4 & 4.8 		8-94257-329-0 01 1 9309-9312 ● ●
22 04.686 CLIP; PIPE TO FRAME
4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) 		8-94442-883-1 01 1 9112-9504 ● ●
22 04.686 CLIP; PIPE TO FRAME
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 		8-94442-883-1 01 1 9505- ● ●
22 04.686 CLIP; PIPE TO FRAME
4ZE1 ENG(RLJ) 		8-94442-883-1 02 1 9112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
