Sayfa 3-52 - Isuzu EPC

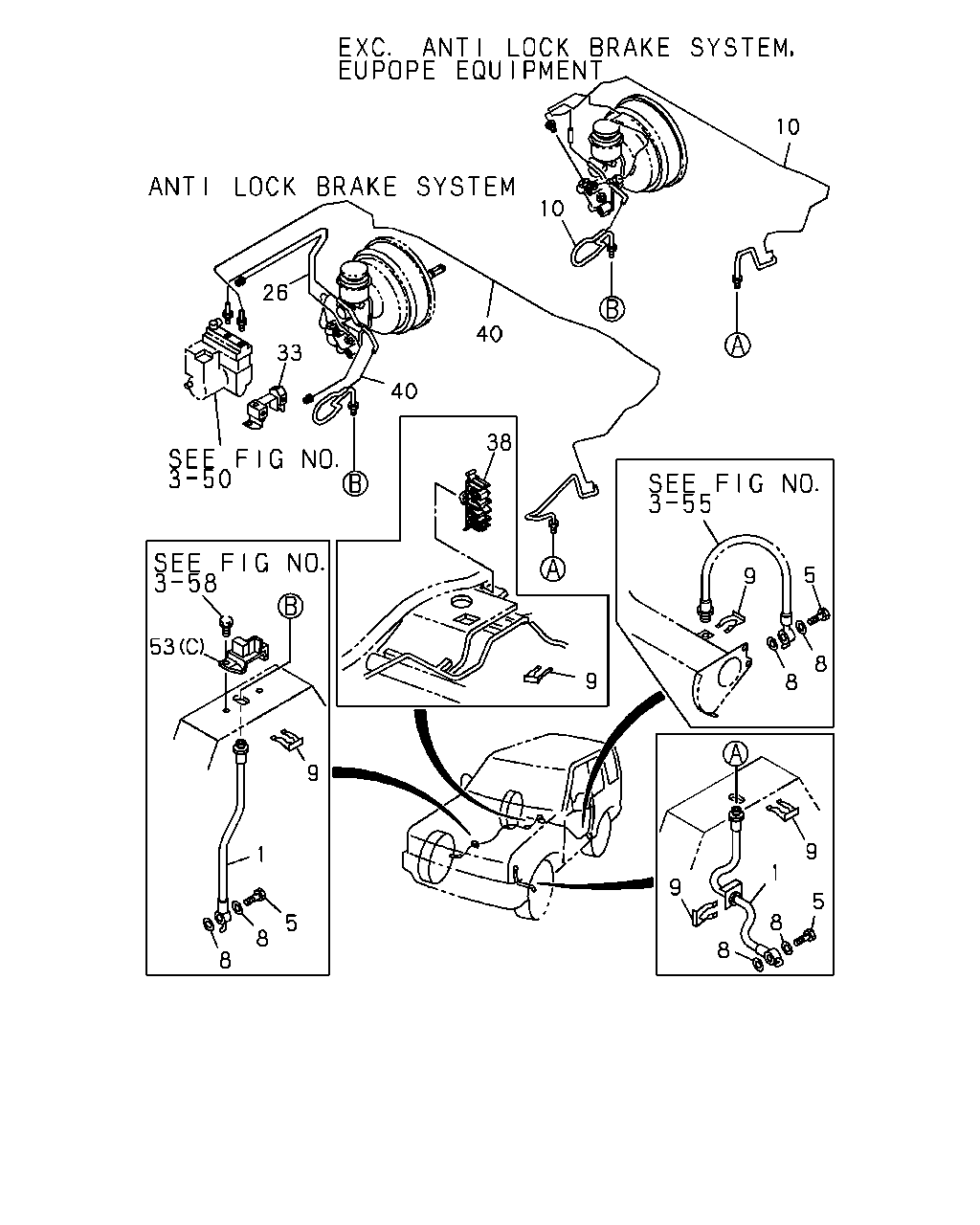

3-52 — BRAKE PIPING; OIL,FRONT (#44902) — 115 parça

26 33 40 40 10 10 38 53 9 1 5 8 8 9 8 1 8 9 5 9 9 5 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9112-9504	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9505-	●
1	04.680 HOSE; FLEX,FRT BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-94385-433-1	02	1	9505-		●
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-0	02	1	9505-		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	9112-	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	9112-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	9112-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-464-4	01	1	9112-9308	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97038-464-4	01	1	9309-9607	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97145-363-2	01	1	9608-9707	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97181-560-2	01	1	9708-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-466-2	01	1	9112-9504	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-466-5	01	1	9505-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97160-845-1	01	1	9608-9608	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97108-868-1	01	1	9608-9608	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97160-845-2	01	1	9609-9709	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97184-326-2	01	1	9710-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-463-3	01	1	9112-9308	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97038-463-3	01	1	9309-9403	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97110-343-0	01	1	9404-9607	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97145-364-2	01	1	9608-9707	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97181-842-0	01	1	9708-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97116-394-1	01	1	9410-9410	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97116-394-1	01	1	9411-9607	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97145-555-1	01	1	9608-9707	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-835-0	01	1	9708-	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-846-1	01	1	9410-9410	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-846-1	01	1	9411-	●	●
38	04.686 CLIP 4JG2 ENG(RJC) 03.162 L=8.9	8-94435-551-1	01	1	9511-		●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-823-5	01	1	9112-9409	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4)	8-94374-823-5	01	1	9410-9410	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94374-823-5	01	1	9411-9504	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-461-0	01	1	9410-9410	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-461-0	01	1	9411-9504	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-461-0	01	1	9505-9607	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-97145-357-1	01	1	9608-9707	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-839-0	01	1	9708-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-459-2	01	1	9112-9607	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-182-2	01	1	9608-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-829-3	01	1	9112-9403	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5)	8-97108-867-0	01	1	9404-9607	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-179-3	01	1	9608-9709	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-445-0	01	1	9710-	●	●
53	04.686 CONNECTOR; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94385-273-0	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94385-273-0	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94385-273-0	01	1	9309-9409	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-94385-273-0	01	1	9309-9409	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-94385-273-1	01	1	9410-9412	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9501-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97012-436-0	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97012-436-2	01	1	9309-9503	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97115-929-0	01	1	9504-9607	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9608-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-1	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9309-9409	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9410-	●	●

93 13 53 18 9 5 8 8 1 5 9 8 8 50 18 53 9 1 5 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9112-9504	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9505-	●
1	04.680 HOSE; FLEX,FRT BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-94385-433-1	02	1	9505-		●
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-0	02	1	9505-		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	9112-	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	9112-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	9112-	●	●
13	04.685 PIPE; OIL,UNION TO UNION EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-814-4	01	1	9112-9308	●	●
13	04.685 PIPE; OIL,UNION TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-814-4	01	1	9309-9607	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97162-280-0	01	1	9608-9707	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-559-0	01	1	9708-	●	●
13	04.685 PIPE; OIL,UNION TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97162-281-0	01	1	9608-9707	●	●
13	04.685 PIPE; OIL,UNION TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-834-0	01	1	9708-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-1	01	1	9112-9308	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-2	01	1	9309-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-467-5	01	1	9112-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-805-2	01	1	9112-9308	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-805-2	01	1	9309-9607	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97147-411-6	01	1	9608-	●	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97122-772-0	01	1	9411-9504	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-472-3	01	1	9505-9601	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97143-192-0	01	1	9602-9607	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97043-689-2	01	1	9112-9409	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4)	8-97122-661-0	01	1	9410-9504	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4)	8-97112-714-2	01	1	9505-9601	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4)	8-97143-194-0	01	1	9602-9607	●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97122-774-0	01	1	9411-9504	●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-470-2	01	1	9505-9607	●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-809-2	01	1	9112-9409	●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4)	8-97122-770-0	01	1	9410-9504	●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4)	8-97117-605-1	01	1	9505-9607	●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97122-773-0	01	1	9411-9504		●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97043-691-2	01	1	9112-9409		●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4)	8-97122-662-0	01	1	9410-9504		●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4)	8-97131-022-0	01	1	9505-9601		●
50	04.685 PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4)	8-97143-195-0	01	1	9602-9607		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-810-2	01	1	9112-9308		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-810-2	01	1	9309-9409		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97122-771-0	01	1	9410-9410		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97122-771-0	01	1	9411-9504		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97117-607-1	01	1	9505-9607		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97122-775-0	01	1	9411-9504		●
50	04.685 PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-471-2	01	1	9505-9607		●
53	04.686 CONNECTOR; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94385-273-0	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94385-273-0	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94385-273-0	01	1	9309-9409	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-94385-273-0	01	1	9309-9409	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-94385-273-1	01	1	9410-9412	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9501-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97012-436-0	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97012-436-2	01	1	9309-9503	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97115-929-0	01	1	9504-9607	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9608-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-1	01	1	9112-9308	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9309-9409	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9410-	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9308	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9309-9409	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
