Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#44901) — 202 parça

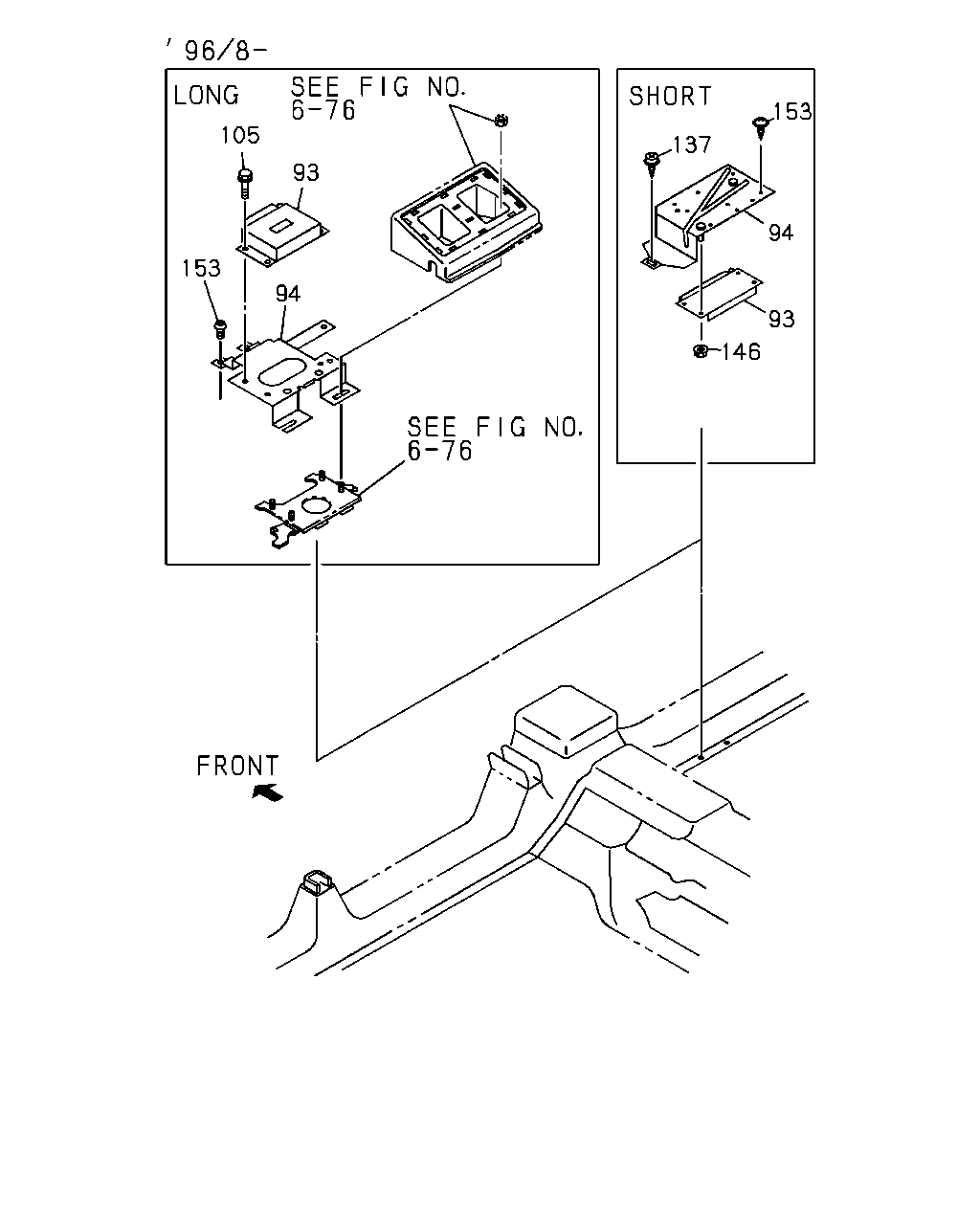

146 93 94 153 137 93 94 153 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97066-414-0	01	1	9112-9308	●	●
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97085-391-0	01	1	9309-9410	●	●
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-360-0	01	1	9411-9607	●	●
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-976-2	01	1	9608-	●	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97085-392-1	01	1	9309-9504	●	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97102-615-0	01	1	9505-9607	●	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-979-2	01	1	9608-	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-978-1	01	1	9608-		●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) 13.090 (A) M6X14	8-94153-946-0	04	1	9112-9112	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) (A) M6X16	8-97069-289-0	04	1	9201-9504	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) 10.230 (B) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9309-9504	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	9608-		●
137	04.720 SCREW; COVER ANTI LOCK BRAKE SYSTEM(JE5)	8-94164-662-0	01	1	9608-	●
146	04.685 NUT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 09.744 M5 FLANGE	5-09440-003-0	04	1	9505-9607	●	●
146	04.685 NUT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 02.575 M4	9-99110-404-0	01	1	9608-	●	●
146	04.685 NUT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 01.062 M6 FLANGE	0-91150-206-0	02	1	9608-	●
153	04.730 SCREW; BRKT FIX ANTI LOCK BRAKE SYSTEM(JE5) 09.663 M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9608-	●	●

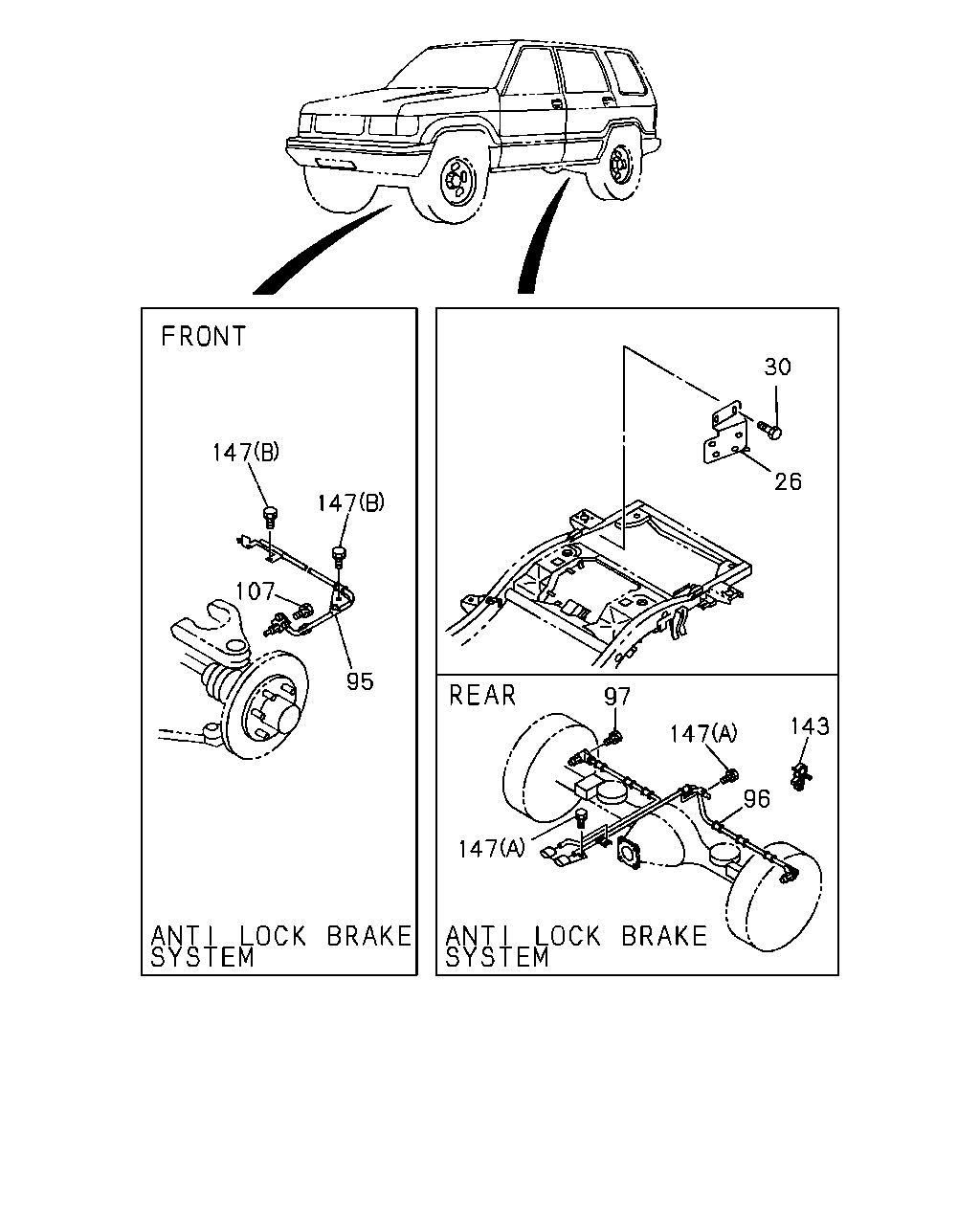

147 147 107 95 147 97 147 96 143 26 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	04.730 BRACKET; PROPORTIONING VLV EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97012-292-0	01	1	9112-9308	●	●
26	04.730 BRACKET; PROPORTIONING VLV EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97012-292-0	01	1	9309-9506	●	●
26	04.730 BRACKET; PROPORTIONING VLV EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97012-292-0	01	1	9507-9603	●	●
26	04.730 BRACKET; PROPORTIONING VLV EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97139-069-0	01	1	9604-	●	●
30	04.686 BOLT; PROPORTIONING BRKT TO BODY EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9112-9308	●	●
30	04.686 BOLT; PROPORTIONING BRKT TO BODY EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9309-9506	●	●
30	04.686 BOLT; PROPORTIONING BRKT TO BODY EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9507-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-858-4	01	1	9112-9504	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-858-5	01	1	9505-9509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97128-740-0	01	1	9510-9607	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97115-781-1	01	1	9608-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-857-4	01	1	9112-9504	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-857-5	01	1	9505-9509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97128-739-0	01	1	9510-9607	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97115-780-1	01	1	9608-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC>	8-97103-108-2	01	1	9505-9607		●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC>	8-97132-308-0	01	1	9608-		●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC>	8-97103-107-2	01	1	9505-9607		●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC>	8-97132-307-0	01	1	9608-		●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-860-5	01	1	9112-9504	●	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-860-6	01	1	9505-9508	●	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97110-577-1	01	1	9509-	●	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC>	8-97103-109-2	01	1	9505-9508		●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC>	8-97110-076-1	01	1	9509-		●
97	04.686 BOLT; SPD SENSOR TO AXLE ANTI LOCK BRAKE SYSTEM(JE5) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-	●	●
107	04.710 BOLT; WHEEL SPD SENSOR ANTI LOCK BRAKE SYSTEM(JE5) 01.540 M6X14 HEX SOCKET	9-05820-614-0	02	1	9112-	●	●
143	04.710 CLIP; SPEED SENSOR ANTI LOCK BRAKE SYSTEM(JE5) 02.559	8-97069-960-0	02	1	9410-	●	●
147	04.710 BOLT; SPEED SENSOR ANTI LOCK BRAKE SYSTEM(JE5) 09.211 (B) M6X16 W/LK WASHER	9-01900-616-0	02	1	9112-9204	●	●
147	04.710 BOLT; SPEED SENSOR ANTI LOCK BRAKE SYSTEM(JE5) 04.686 (B) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-	●	●
147	04.710 BOLT; SPEED SENSOR ANTI LOCK BRAKE SYSTEM(JE5) 04.595 (A) M8X20 FLANGE	0-28480-820-0	05	1	9112-	●	●

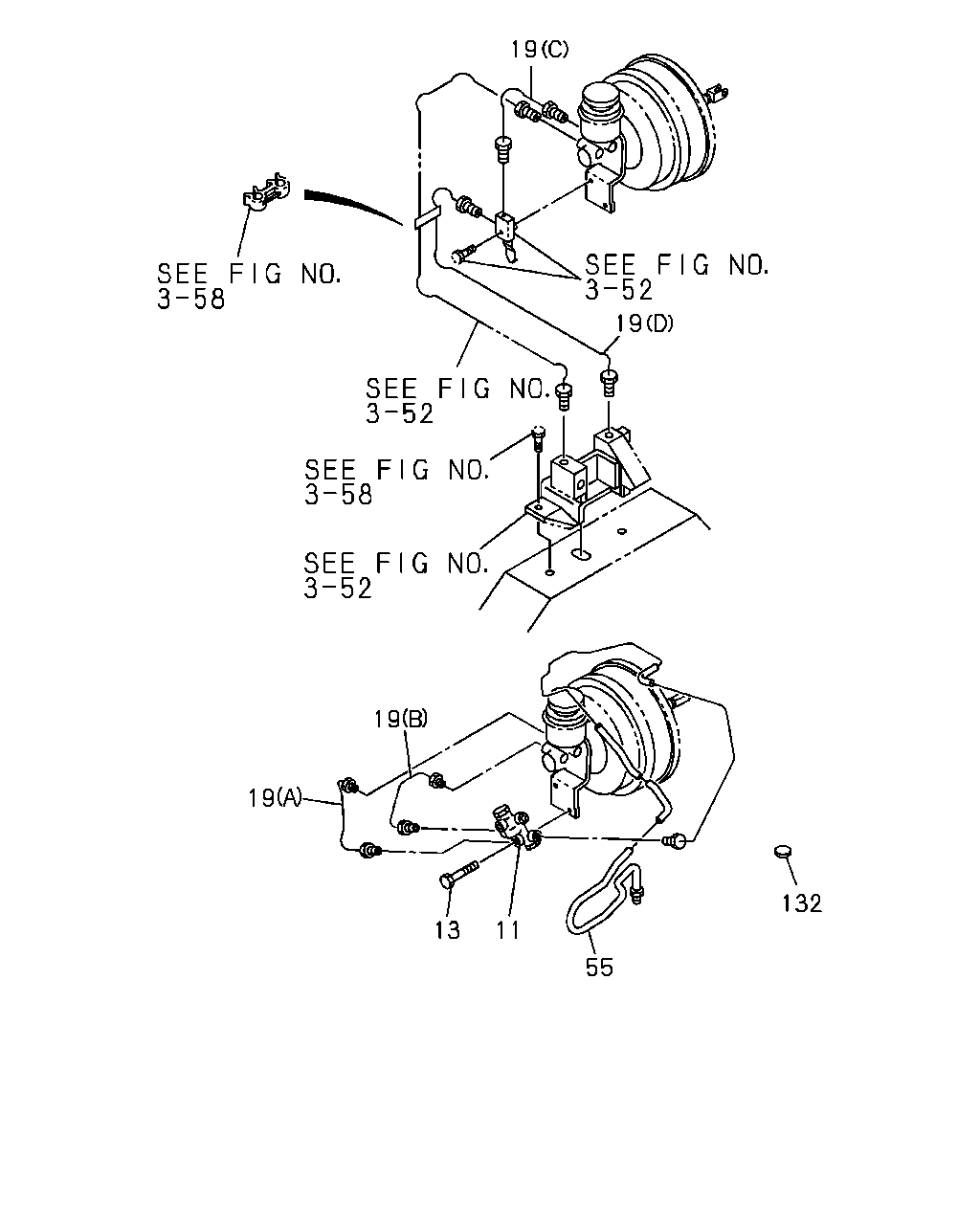

19 19 19 19 13 11 55 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT ANTI LOCK BRAKE SYSTEM(JE5)	8-94376-321-0	01	1	9112-9409	●	●
11	04.686 VALVE; BRK CONT ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4)	8-94376-321-0	01	1	9410-9506	●	●
11	04.686 VALVE; BRK CONT ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94376-321-0	01	1	9507-	●	●
11	04.686 VALVE; BRK CONT EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.690	8-94137-648-3	01	1	9112-	●	●
13	04.686 BOLT; VLV TO BRKT EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	04.686 BOLT; VLV TO BRKT EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9308	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9308	●	●
13	04.686 BOLT; VLV TO BRKT EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-9409	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-9409	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9410-9507	●	●
13	04.686 BOLT; VLV TO BRKT ANTI LOCK BRAKE SYSTEM(JE5) SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9410-9507		●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9508-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-817-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4) (A)	8-94374-817-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-817-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-1	01	1	9410-9507		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-1	01	1	9508-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-3	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97109-040-1	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94374-818-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4) (B)	8-94374-818-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94374-818-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-1	01	1	9410-9507		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-1	01	1	9508-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-3	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97109-041-1	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94374-796-0	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94374-796-0	01	1	9309-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94374-796-1	01	1	9608-9701	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-94374-804-2	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-94374-804-2	01	1	9309-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97145-359-1	01	1	9608-9707	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97181-556-0	01	1	9708-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (E)	8-97110-829-1	01	1	9410-9410	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E)	8-97110-829-1	01	1	9411-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E)	8-97110-829-2	01	1	9608-9701	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E)	8-97172-531-1	01	1	9702-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E)	8-97110-828-2	01	1	9608-	●	●
55	04.686 PIPE; BRK,VLV TO UNION EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-465-5	01	1	9112-9308	●	●
55	04.686 PIPE; BRK,VLV TO UNION EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97038-465-5	01	1	9309-9403	●	●
55	04.686 PIPE; BRK,VLV TO UNION EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97112-527-0	01	1	9404-9607	●	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97145-360-1	01	1	9608-9707	●	●
55	04.686 PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97181-558-2	01	1	9708-	●	●
55	04.686 PIPE; BRK,VLV TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97145-361-1	01	1	9608-9707	●	●
55	04.686 PIPE; BRK,VLV TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97181-843-0	01	1	9708-	●	●
132	04.710 TAPE; SEALING EXC. ANTI LOCK BRAKE SYSTEM(JE5) 15.222 OD=16	8-94111-207-1	02	1	9203-9203	●	●

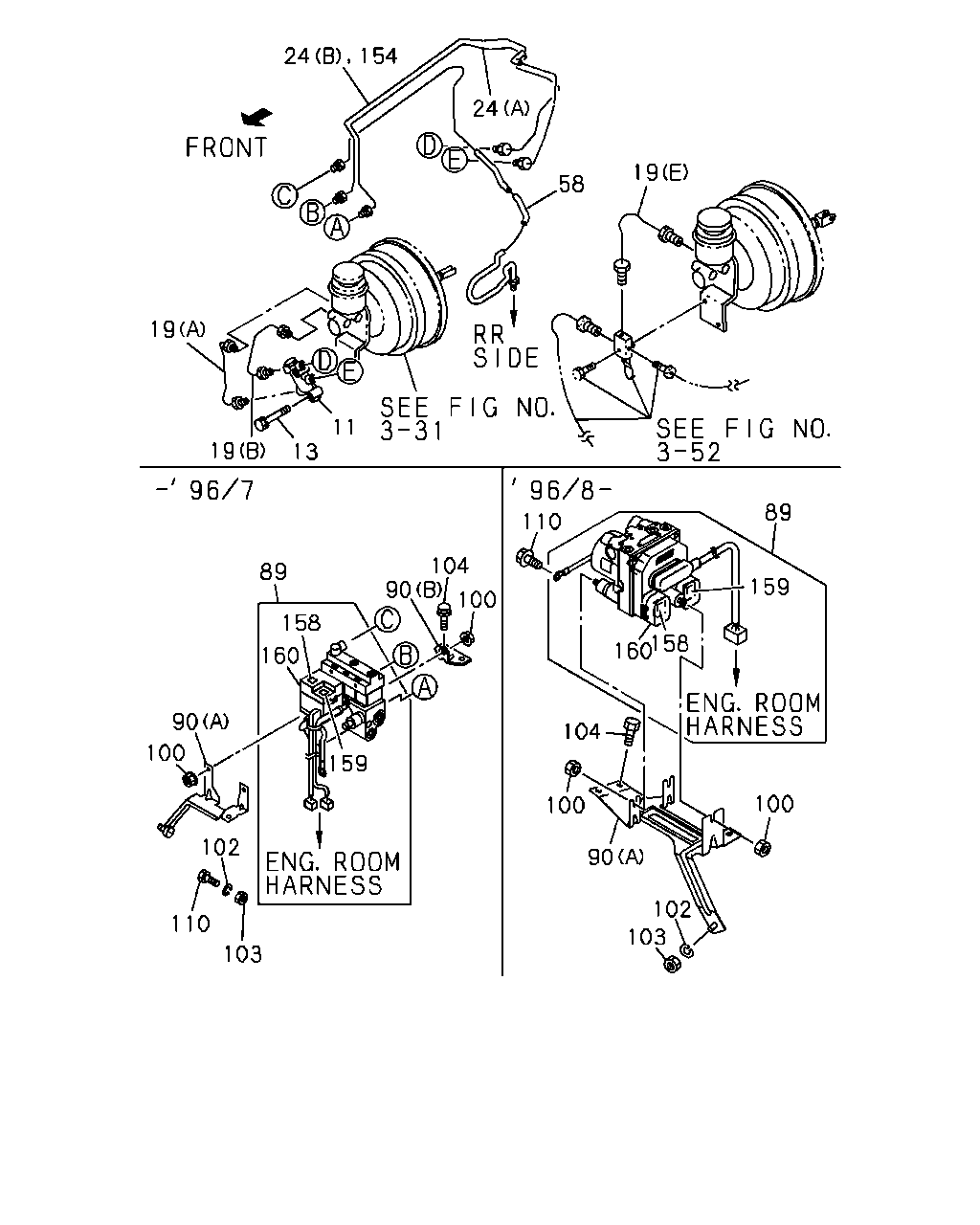

24 154 24 58 19 11 13 19 19 89 90 100 104 158 160 90 100 159 102 110 103 103 90 102 100 100 104 160 158 159 89 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT ANTI LOCK BRAKE SYSTEM(JE5)	8-94376-321-0	01	1	9112-9409	●	●
11	04.686 VALVE; BRK CONT ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4)	8-94376-321-0	01	1	9410-9506	●	●
11	04.686 VALVE; BRK CONT ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94376-321-0	01	1	9507-	●	●
11	04.686 VALVE; BRK CONT EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.690	8-94137-648-3	01	1	9112-	●	●
13	04.686 BOLT; VLV TO BRKT EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	04.686 BOLT; VLV TO BRKT EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9308	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9308	●	●
13	04.686 BOLT; VLV TO BRKT EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-9409	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-9409	●	●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9410-9507	●	●
13	04.686 BOLT; VLV TO BRKT ANTI LOCK BRAKE SYSTEM(JE5) SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9410-9507		●
13	04.686 BOLT; VLV TO BRKT EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	02	1	9508-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-817-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4) (A)	8-94374-817-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-817-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-1	01	1	9410-9507		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-1	01	1	9508-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-817-3	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97109-040-1	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94374-818-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4) (B)	8-94374-818-1	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94374-818-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-1	01	1	9309-9409	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-1	01	1	9410-9507		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-1	01	1	9508-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-94374-818-3	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97109-041-1	01	1	9608-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94374-796-0	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94374-796-0	01	1	9309-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-94374-796-1	01	1	9608-9701	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-94374-804-2	01	1	9112-9308	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-94374-804-2	01	1	9309-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97145-359-1	01	1	9608-9707	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97181-556-0	01	1	9708-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (E)	8-97110-829-1	01	1	9410-9410	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E)	8-97110-829-1	01	1	9411-9607	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (E)	8-97110-829-2	01	1	9608-9701	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E)	8-97172-531-1	01	1	9702-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (E)	8-97110-828-2	01	1	9608-	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-827-2	01	1	9112-9409	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4) (A)	8-94374-827-2	01	1	9410-9506	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94374-827-2	01	1	9507-9607	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97111-478-1	01	1	9608-	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97110-177-1	01	1	9608-	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94374-828-2	01	1	9112-9403	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97112-526-0	01	1	9404-9409	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97112-526-0	01	1	9410-9506	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97112-526-0	01	1	9507-9607	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97111-483-1	01	1	9608-	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97110-178-1	01	1	9608-	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-824-6	01	1	9112-9409	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4)	8-94374-824-6	01	1	9410-9410	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-94374-824-6	01	1	9411-9504	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-460-0	01	1	9410-9410	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-460-0	01	1	9411-9504	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-460-0	01	1	9505-9607	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI ANTI LOCK BRAKE SYSTEM(JE5)	8-97145-358-1	01	1	9608-9707	●	●
58	04.685 PIPE; BRK,UNION TO HYDRAULIC UNI ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-840-0	01	1	9708-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-855-6	01	1	9112-9607	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-058-2	01	1	9608-	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-856-1	01	1	9112-9607	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97110-059-0	01	1	9608-	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94377-749-0	01	1	9112-9607	●	●
100	04.730 NUT; HYDRAULIC UNIT ANTI LOCK BRAKE SYSTEM(JE5) 07.633 M8 FLANGE	0-91150-108-0	03	1	9112-	●	●
102	04.710 WASHER; PL,HYDRAULIC UNIT BRKT ANTI LOCK BRAKE SYSTEM(JE5) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9112-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT ANTI LOCK BRAKE SYSTEM(JE5) 07.633 M8 FLANGE	0-91150-108-0	01	1	9112-	●	●
104	04.730 BOLT; BRKT TO BODY ANTI LOCK BRAKE SYSTEM(JE5) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9112-9302	●	●
104	04.730 BOLT; BRKT TO BODY ANTI LOCK BRAKE SYSTEM(JE5) 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9303-	●	●
110	04.730 BOLT; HYDRAULIC UNIT ANTI LOCK BRAKE SYSTEM(JE5) 02.343 M8X22	8-94122-771-0	01	1	9112-9308	●	●
110	04.730 BOLT; HYDRAULIC UNIT ANTI LOCK BRAKE SYSTEM(JE5) 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9309-	●	●
154	04.685 PIPE ASM; M/CYL TO ABS EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-462-1	01	1	9410-9410	●	●
154	04.685 PIPE ASM; M/CYL TO ABS EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-462-1	01	1	9411-9607	●	●
154	04.685 PIPE ASM; M/CYL TO ABS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-833-1	01	1	9608-	●	●
154	04.685 PIPE ASM; M/CYL TO ABS 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-832-2	01	1	9608-	●	●
158	04.730 RELAY; MOTOR,ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-839-0	01	1	9309-9607	●	●
158	04.730 RELAY; MOTOR,ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97133-915-0	01	1	9608-	●	●
159	04.730 RELAY; VALVE,ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-840-0	01	1	9309-	●	●
160	04.730 COVER; RELAY BOX ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-845-0	01	1	9309-9607	●	●
160	04.730 COVER; RELAY BOX ANTI LOCK BRAKE SYSTEM(JE5)	8-97133-917-0	02	1	9608-	●	●

108 129 128 99 99 146 151 128 129 93 105 146 94 93 93 94 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97066-414-0	01	1	9112-9308	●	●
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97085-391-0	01	1	9309-9410	●	●
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97114-360-0	01	1	9411-9607	●	●
93	04.730 CONTROL UNIT; ABS ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-976-2	01	1	9608-	●	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97085-392-1	01	1	9309-9504	●	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97102-615-0	01	1	9505-9607	●	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-979-2	01	1	9608-	●
94	04.730 BRACKET; ABS CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5)	8-97131-978-1	01	1	9608-		●
99	04.710 SENSOR; DECELERATION ANTI LOCK BRAKE SYSTEM(JE5)	8-94467-772-1	01	1	9112-9607	●	●
99	04.710 SENSOR; DECELERATION ANTI LOCK BRAKE SYSTEM(JE5)	8-97133-553-1	01	1	9608-	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) 13.090 (A) M6X14	8-94153-946-0	04	1	9112-9112	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) (A) M6X16	8-97069-289-0	04	1	9201-9504	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) 10.230 (B) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9309-9504	●	●
105	04.730 BOLT; CONT UNIT ANTI LOCK BRAKE SYSTEM(JE5) 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	9608-		●
108	04.710 SCREW; DECELERATION SENSOR ANTI LOCK BRAKE SYSTEM(JE5) 07.832	9-03090-620-0	02	1	9112-9607	●	●
128	04.710 BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE SYSTEM(JE5)	8-94377-750-1	01	1	9112-9112	●	●
128	04.710 BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE SYSTEM(JE5)	8-97073-016-0	01	1	9201-9304	●	●
128	04.710 BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE SYSTEM(JE5)	8-97087-094-1	01	1	9305-9607	●	●
128	04.710 BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-060-1	01	1	9608-	●	●
129	04.710 BOLT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9112-9708	●	●
129	04.710 BOLT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9709-	●	●
146	04.685 NUT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 09.744 M5 FLANGE	5-09440-003-0	04	1	9505-9607	●	●
146	04.685 NUT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 02.575 M4	9-99110-404-0	01	1	9608-	●	●
146	04.685 NUT; BRKT ANTI LOCK BRAKE SYSTEM(JE5) 01.062 M6 FLANGE	0-91150-206-0	02	1	9608-	●
151	04.690 WASHER; PL,BRKT ANTI LOCK BRAKE SYSTEM(JE5) 02.688 ID=4.3	9-09160-504-0	01	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
