3-45 — LOAD SENSING PROPORTIONING VALVE (#44900) — 22 parça

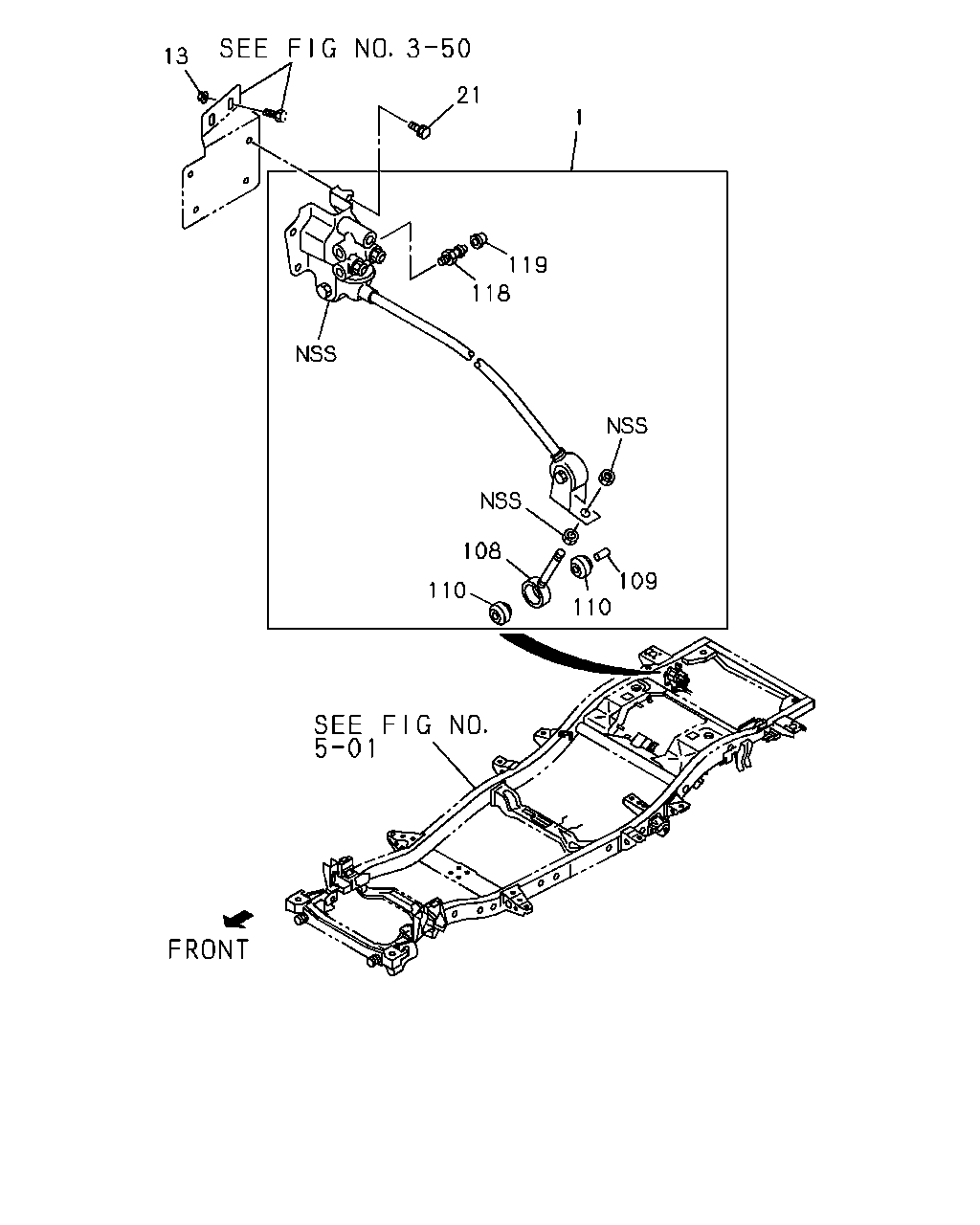

çizim 16034
1 21 13 119 118 108 110 109 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97012-334-1 01 1 9112-9308 ● ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97012-334-1 01 1 9309-9506 ● ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97012-334-1 01 1 9507- ● ●
13 04.730 NUT; LSPV TO BRKT
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.440 		8-97039-201-0 02 1 9112-9308 ● ●
13 04.730 NUT; LSPV TO BRKT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.440 		8-97039-201-0 02 1 9309-9506 ● ●
13 04.730 NUT; LSPV TO BRKT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.440 		8-97039-201-0 02 1 9507-9603 ● ●
21 04.730 BOLT; BRKT
EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9112-9308 ● ●
21 04.730 BOLT; BRKT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9309-9506 ● ●
21 04.730 BOLT; BRKT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9507- ● ●
108 04.710 SHACKLE; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97045-985-0 01 1 9505-9506 ● ●
108 04.710 SHACKLE; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97045-985-0 01 1 9507-9607 ● ●
108 04.710 SHACKLE; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97173-366-0 01 1 9608- ● ●
109 04.710 COLLAR; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97139-186-0 01 1 9505-9506 ● ●
109 04.710 COLLAR; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97139-186-0 01 1 9507-9607 ● ●
109 04.710 COLLAR; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97139-186-0 03 1 9608- ● ●
110 04.710 BUSHING; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97045-986-0 02 1 9505-9506 ● ●
110 04.710 BUSHING; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97045-986-0 02 1 9507-9607 ● ●
110 04.710 BUSHING; LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 05.544 L=1350 		8-97148-631-0 02 1 9608- ● ●
118 04.710 SCREW; BLEEDER,LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.685 		8-97093-663-0 01 1 9505-9506 ● ●
118 04.710 SCREW; BLEEDER,LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 		8-97093-663-0 01 1 9507- ● ●
119 04.710 CAP; BLEEDER SCREW,LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.685 		8-97093-662-0 01 1 9505-9506 ● ●
119 04.710 CAP; BLEEDER SCREW,LSPV
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.685 		8-97093-662-0 01 1 9507- ● ●
