0-52B — OIL AND VACUUM PIPING; ENGINE (#449) — 97 parça

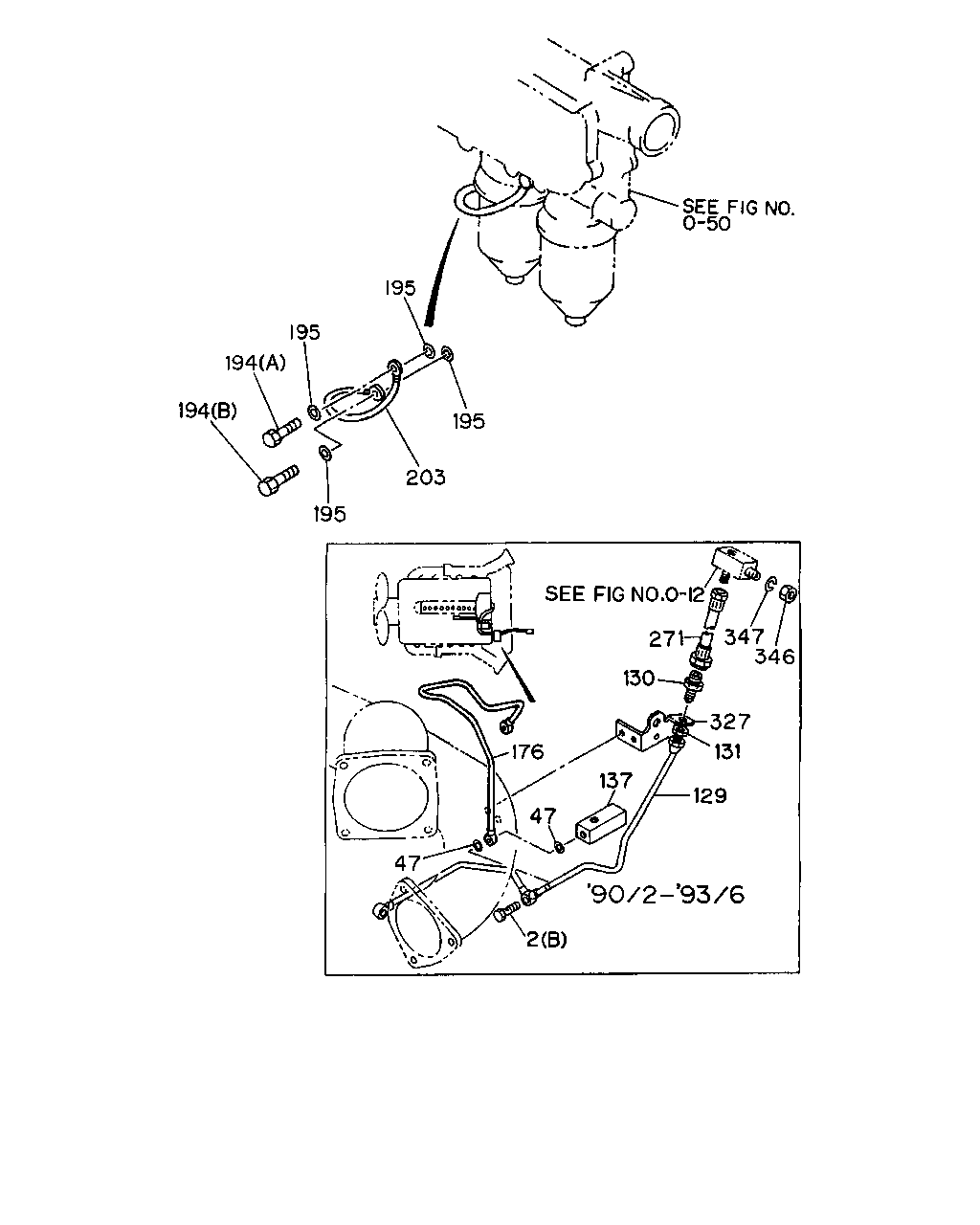

çizim 92800
195 195 194 194 195 203 195 271 347 346 327 131 130 137 129 176 47 47 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(A) M12X27 FLANGE 		1-09675-085-0 01 1 8712-9001 ●
2 BOLT; EYE,OIL PIPE
(A) M12X27 FLANGE 		1-09675-085-0 01 1 8712-9306 ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X27 FLANGE 		1-09675-085-0 01 1 9307- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 04 1 9307- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9002-9306 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9002- ●
129 PIPE; OIL,INJ PUMP TO OIL PRESS UNIT 1-13312-927-1 01 1 9002-9306 ●
130 UNION; OIL PRESS UNIT 1-09654-278-1 01 1 9002-9306 ●
131 NUT; UNION
M12 		9-09840-280-0 01 1 9002-9306 ●
137 UNION; OIL PIPE 1-09664-016-1 01 1 8712-9001 ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9002-9306 ●
137 UNION; OIL PIPE 1-09664-016-1 01 1 9307- ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13311-992-0 01 1 8712-9001 ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-953-0 01 1 9002-9306 ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-941-0 01 1 9307- ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(C) 		1-09675-086-0 02 1 8712-9001 ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) 		1-09675-023-1 01 1 9002- ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) 		1-09675-088-0 01 1 9002- ●
195 GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2 		1-09630-085-0 04 1 8712- ● ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=460 		1-09364-444-0 01 1 8712-8805 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=460 		1-09364-653-0 01 1 8806-9001 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=550 		1-09364-707-0 01 1 9002-9102 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=525 		1-09364-767-0 01 1 9103- ●
271 TUBE; FLEX,OIL PRESS UNIT 1-09364-716-1 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-288-0 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-283-0 01 1 9307- ●
346 NUT; CONNECTOR
M10 		9-09110-510-0 01 1 9002-9306 ●
347 WASHER; LK
ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 9002-9306 ●
çizim 94840
279 279 315 430 430 434 277 448 434 434 449 278 448 449
BalonParca AdiParca NoAdetTipApplied Date A B
277 CAP; OIL FILLER 1-11750-024-1 01 1 8712- ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-066-1 01 1 8712- ● ●
279 CLIP; RUBBER HOSE
ID=40 		9-09916-024-1 02 1 8712- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-026-0 01 1 8712-9003 ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9004- ●
430 WASHER; LK,BRKT,OIL FILLER
SP WASHER 		9-09150-510-0 02 1 8712-9306 ● ●
430 WASHER; LK,BRKT,OIL FILLER
PL WASHER 		9-09160-510-0 02 1 8712-9306 ● ●
434 NUT; OIL FILLER
M8 		9-09110-408-0 04 1 8712- ● ●
434 NUT; OIL FILLER
M10 		9-09110-410-0 02 1 8712-9306 ● ●
434 NUT; OIL FILLER
M10 FLANGE 		0-91150-110-0 02 1 9307- ●
448 FILLER; OIL
(A) 		1-11740-163-0 01 1 8712-9001 ●
448 FILLER; OIL
(B) 		1-13341-142-1 01 1 8712- ● ●
448 FILLER; OIL
(A) 		1-11740-212-1 01 1 9002- ●
449 BOLT; OIL FILLER
M8X20 W/LK&PL WASHER 		9-01960-820-0 04 1 9002-9204 ●
449 BOLT; OIL FILLER
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9205-9304 ●
449 BOLT; OIL FILLER
M8X20 FLANGE 		0-28080-820-0 04 1 9305- ●

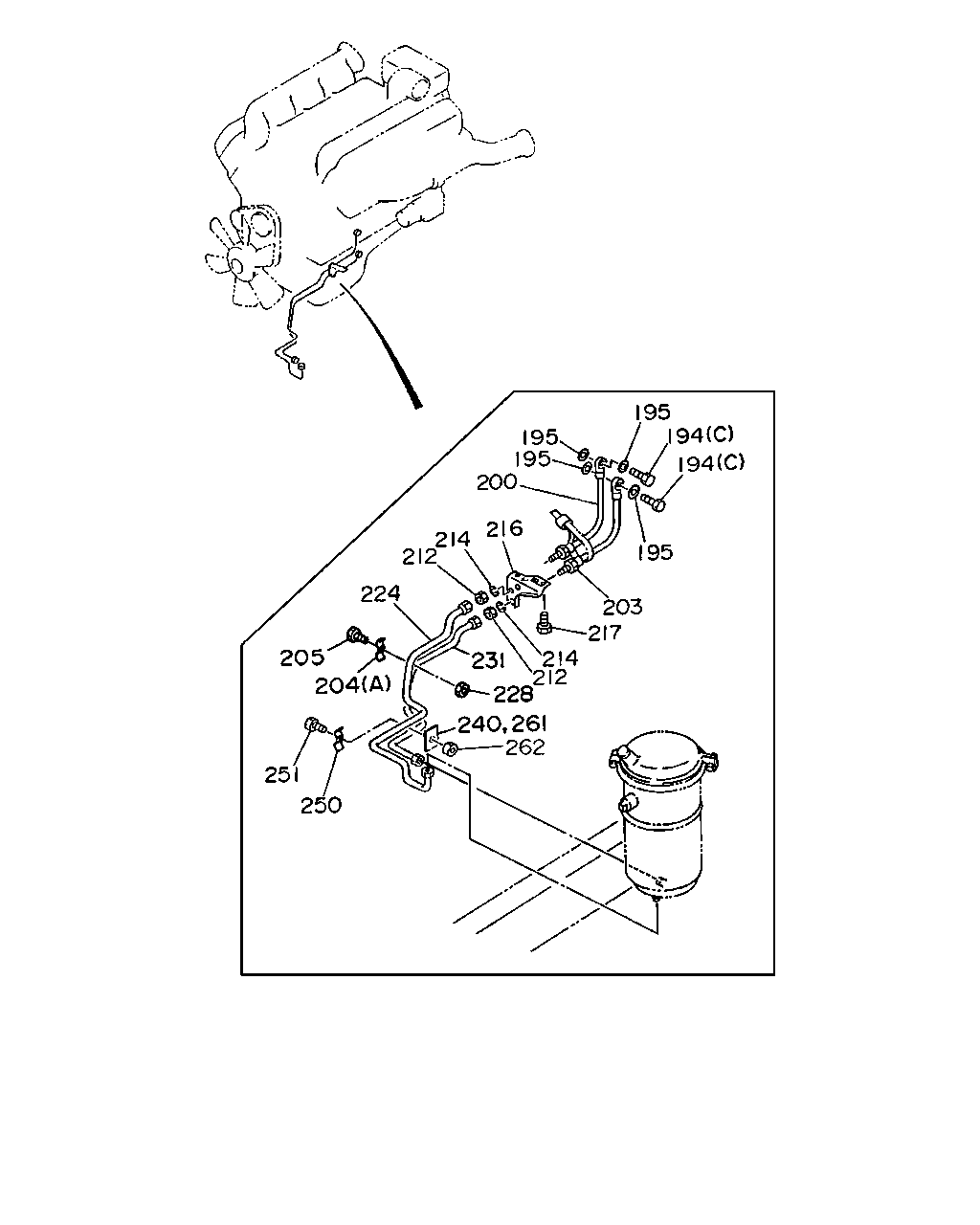

çizim 95006
195 194 195 194 195 200 195 216 203 214 212 217 214 212 231 224 205 204 251 250 240 262 228 261
BalonParca AdiParca NoAdetTipApplied Date A B
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(C) 		1-09675-086-0 02 1 8712-9001 ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) 		1-09675-023-1 01 1 9002- ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) 		1-09675-088-0 01 1 9002- ●
195 GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2 		1-09630-085-0 04 1 8712- ● ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
L=460 		1-09364-444-0 01 1 8712-9001 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=460 		1-09364-444-0 01 1 8712-8805 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=460 		1-09364-653-0 01 1 8806-9001 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=550 		1-09364-707-0 01 1 9002-9102 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=525 		1-09364-767-0 01 1 9103- ●
204 CLIP; OIL PIPE
(A) ID=11 & 11 L=15 & 15 		1-09700-656-0 01 1 8712-9001 ●
205 BOLT; CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 8712-9001 ●
212 NUT; FLEX HOSE,PARTIAL FILTER
M16 		9-99111-416-0 02 1 8712-9001 ●
214 WASHER; LK,FLEX HOSE,PARTIAL FILTER
ID=16.2 		9-09150-516-0 02 1 8712-9001 ●
216 BRACKET; FLEX HOSE,PARTIAL OIL FILTER 1-47475-296-1 01 1 8712-9001 ●
217 BOLT; BRKT
M8X30 W/LK WASHER 		9-01900-830-0 02 1 8712-9001 ●
224 PIPE; OIL,DELIVERY 1-13312-675-1 01 1 8712-9001 ●
228 NUT; CLIP
M8 		9-09110-408-0 01 1 8712-9001 ●
231 PIPE; OIL,RETURN 1-13312-708-1 01 1 8712-9001 ●
240 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 8712-9001 ●
250 CLIP; OIL PIPE,PARTIAL FILTER
ID=11 & 11 L=15 & 15 		1-09700-656-0 01 1 8712-9001 ●
251 BOLT; CLIP,OIL PIPE
M8X20 W/LK WASHER 		9-01900-820-0 01 1 8712-8903 ●
251 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER 		9-01900-816-0 01 1 8904-9001 ●
261 BRACKET; CLIP,OIL PIPE
L=50 		1-47475-299-2 01 1 8712-9001 ●
262 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 8712-9001 ●

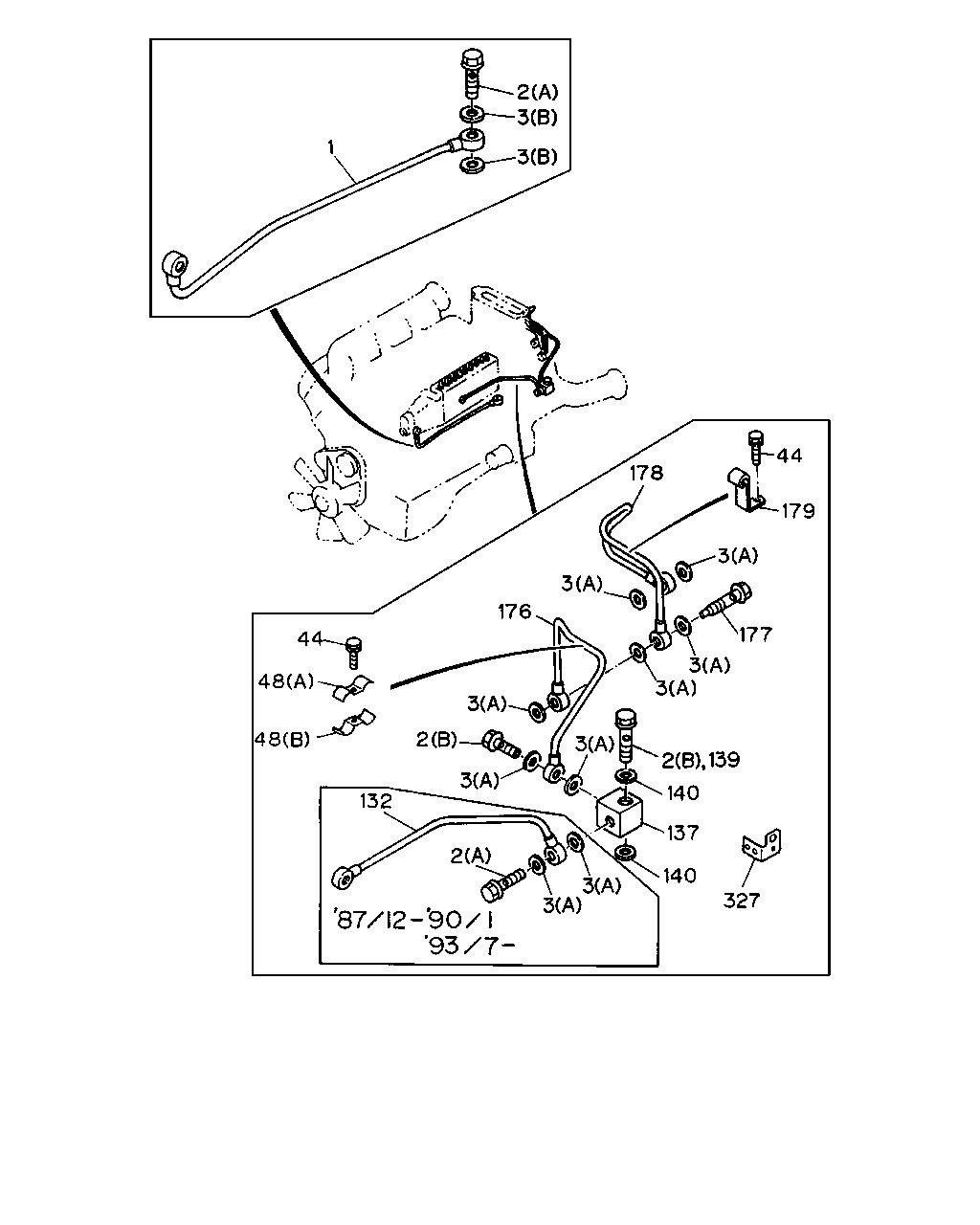

çizim 95336
2 3 3 1 44 179 178 3 3 177 176 44 48 48 3 2 132 2 3 3 140 327 139 2 140 137 3 3 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-692-1 01 1 8712- ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X27 FLANGE 		1-09675-085-0 01 1 8712-9001 ●
2 BOLT; EYE,OIL PIPE
(A) M12X27 FLANGE 		1-09675-085-0 01 1 8712-9306 ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X27 FLANGE 		1-09675-085-0 01 1 9307- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 04 1 9307- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9002-9306 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 09 1 8712- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 02 1 8712- ● ●
44 BOLT; CLIP,OIL PIPE
M6X25 		9-01910-625-0 01 1 8712-9001 ●
44 BOLT; CLIP,OIL PIPE
M6X22 		0-28020-622-0 02 1 9002-9005 ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 02 1 9006- ●
48 CLIP; OIL PIPE
(A) ID=10 & 6 L=20 		1-09700-404-0 02 1 8712- ● ●
48 CLIP; OIL PIPE
(B) ID=10 & 6 L=20 W/NUT 		1-09700-405-0 02 1 8712- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13311-623-0 01 1 8712-9001 ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13311-623-0 01 1 9307- ●
137 UNION; OIL PIPE 1-09664-016-1 01 1 8712-9001 ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9002-9306 ●
137 UNION; OIL PIPE 1-09664-016-1 01 1 9307- ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 8712- ● ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 8712- ● ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13311-992-0 01 1 8712-9001 ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-953-0 01 1 9002-9306 ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-941-0 01 1 9307- ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 8712- ● ●
178 PIPE ASM; OIL,CVR,HSG TO CMPR 1-13312-421-1 01 1 8712-9001 ●
178 PIPE ASM; OIL,CVR,HSG TO CMPR 1-13312-921-0 01 1 9002- ●
179 CLIP; PIPE,HSG TO CMPR 1-09700-876-0 01 1 8712- ● ●
327 BRACKET; UNION 1-22196-288-0 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-283-0 01 1 9307- ●
