Isuzu WW
▶
SUV
▶
UBS
▶
50658 - UBS-RHD
▶
3 - Brakes, Brake System
▶

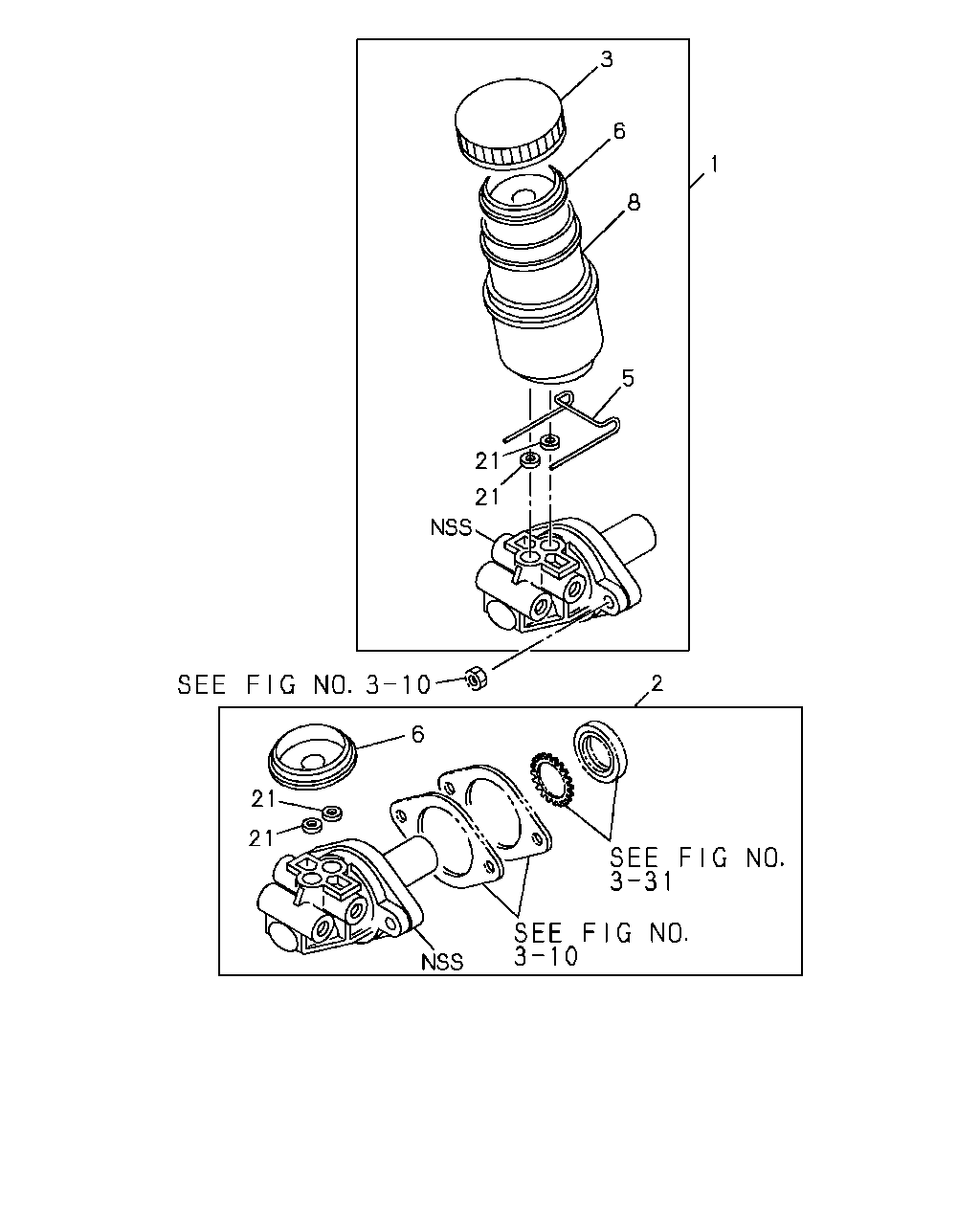

3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#44898) — 22 parça
Tümü
A - UBS5VC
B - UBS5VF
2
6
21
21
21
21
5
8
6
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.650 CYLINDER ASM; BRK MASTER
8-94375-411-2
01
1
9112-9308
●
●
1
04.650 CYLINDER ASM; BRK MASTER
8-97089-677-0
01
1
9309-9504
●
●
1
04.650 CYLINDER ASM; BRK MASTER
8-97089-677-0
01
1
9505-9509
●
●
1
04.650 CYLINDER ASM; BRK MASTER
EXC. EUROPE EQUIPMENT(EK4)
8-97089-677-0
01
1
9510-9704
●
●
1
04.650 CYLINDER ASM; BRK MASTER
EXC. EUROPE EQUIPMENT(EK4)
8-97178-010-0
01
1
9705-
●
●
1
04.650 CYLINDER ASM; BRK MASTER
EUROPE EQUIPMENT(EK4)
8-97137-618-0
01
1
9510-9704
●
●
1
04.650 CYLINDER ASM; BRK MASTER
EUROPE EQUIPMENT(EK4)
8-97178-011-0
01
1
9705-
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
8-97061-569-0
01
1
9112-9308
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
8-97089-737-0
01
1
9309-9504
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
8-97089-737-0
01
1
9505-9704
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
8-97178-913-0
01
1
9705-
●
●
3
04.651 CAP; OIL TANK
8-94124-872-0
01
1
9112-9504
●
●
3
04.651 CAP; OIL TANK
8-94124-872-0
01
1
9505-9509
●
●
3
04.651 CAP; OIL TANK
EXC. EUROPE EQUIPMENT(EK4)
8-94124-872-0
01
1
9510-
●
●
3
04.651 CAP; OIL TANK
EUROPE EQUIPMENT(EK4)
8-97138-667-0
01
1
9510-
●
●
5
04.651 RETAINER; DIAPH,M/CYL
8-97061-568-0
01
1
9112-9504
●
●
5
04.651 RETAINER; DIAPH,M/CYL
8-97061-568-0
01
1
9505-
●
●
6
04.651 DIAPHRAGM; BRK M/CYL
04.657
8-94124-873-0
01
1
9112-9504
●
●
6
04.651 DIAPHRAGM; BRK M/CYL
04.657
8-94124-873-0
01
1
9505-
●
●
8
04.651 TANK; OIL,M/CYL
8-97061-565-0
01
1
9112-9504
●
●
8
04.651 TANK; OIL,M/CYL
8-97061-565-0
01
1
9505-
●
●
21
04.651 GROMMET; BRK M/CYL
8-97061-567-0
02
1
9112-
●
●
