3 |

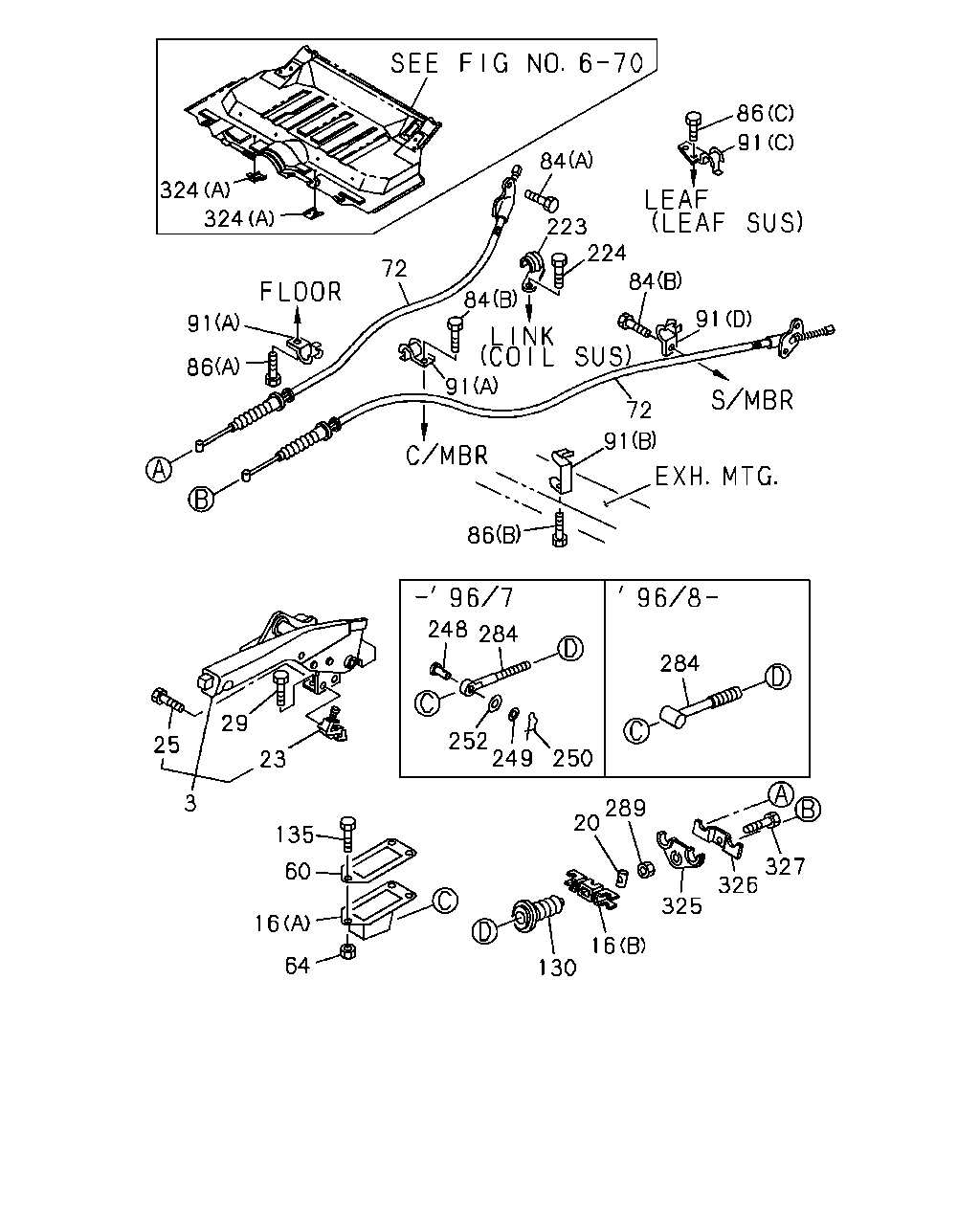

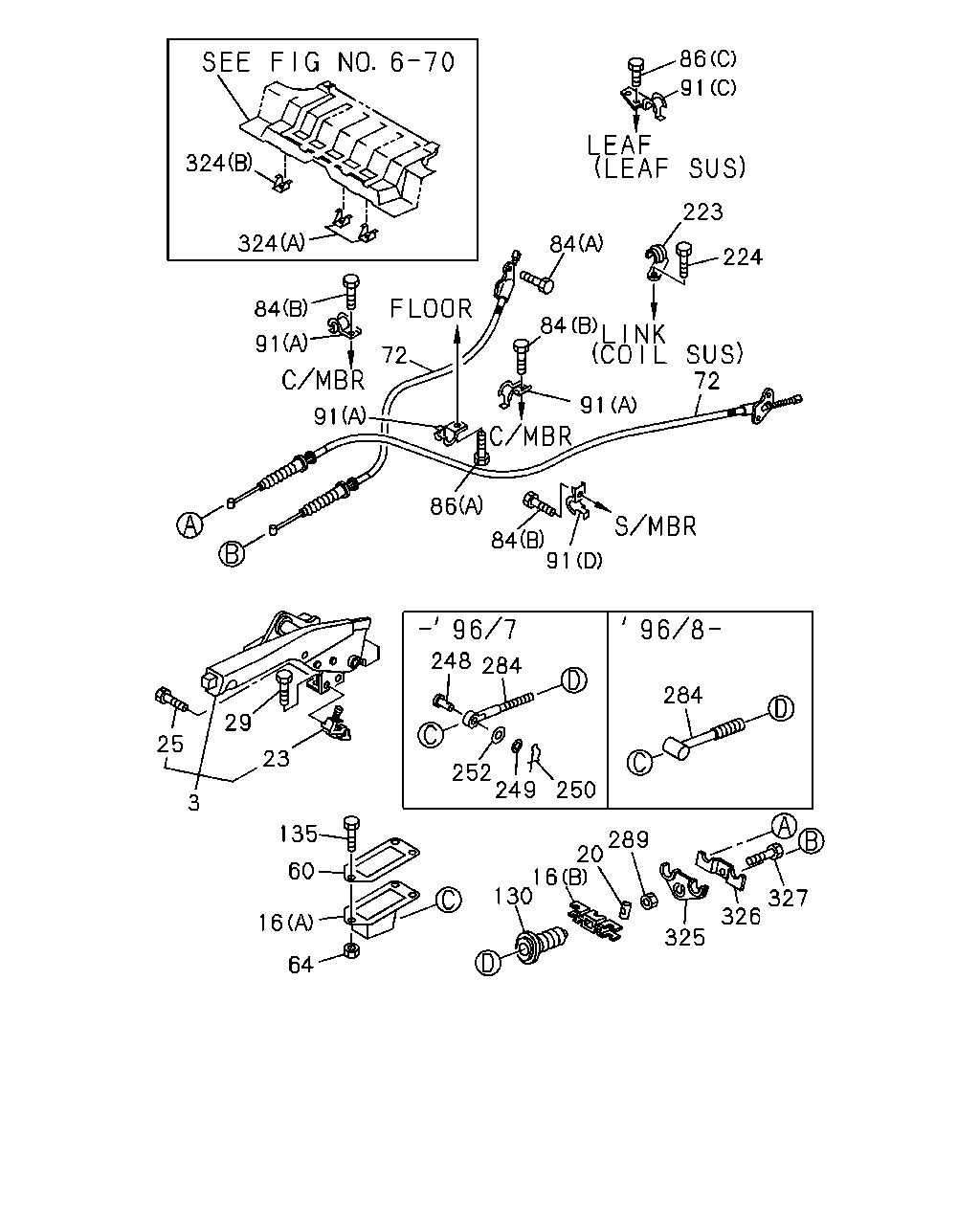

04.591 LEVER; PARKING BRK
INTERIOR COLOR BROWN(130)
DARK BROWN
|
8-97007-710-2 |
01 |
1 |
9112-9308 |
● |
● |
| |
3 |
04.591 LEVER; PARKING BRK
INTERIOR COLOR GRAY(153)
DARK GRAY
|
8-97007-711-2 |
01 |
1 |
9112-9308 |
● |
● |
| |
3 |
04.591 LEVER; PARKING BRK
|
8-97100-838-0 |
01 |
1 |
9309-9411 |
● |
● |
| |
3 |
04.591 LEVER; PARKING BRK
|
8-97118-395-0 |
01 |
1 |
9412-9607 |
● |
● |
| |
3 |
04.591 LEVER; PARKING BRK
|
8-97132-586-1 |
01 |
1 |
9608- |
● |
● |
| |
16 |
04.591 BRACKET; PARKING BRK
(B)
|
8-97046-791-1 |
01 |
1 |
9112-9607 |
● |
● |
| |
16 |
04.591 BRACKET; PARKING BRK
(B)
|
8-97142-956-2 |
01 |
1 |
9608- |
● |
● |
| |
16 |
04.591 BRACKET; PARKING BRK
(A)
|
8-97046-793-2 |
01 |
1 |
9112- |
● |
● |
| |
20 |
04.790 PIN; PARKING BRK
|
8-97046-790-1 |
01 |
1 |
9112-9607 |
● |
● |
| |
23 |
04.589 SWITCH; PARKING BRK
|
8-97083-258-0 |
01 |
1 |
9112-9607 |
● |
● |
| |
23 |
04.589 SWITCH; PARKING BRK
|
8-97031-820-0 |
01 |
1 |
9608- |
● |
● |
| |
25 |
04.589 SCREW; SW,PARKING BRK
|
8-97103-556-0 |
01 |
1 |
9112- |
● |
● |
| |
29 |
04.595 BOLT; PARKING BRK LEVER TO BODY
00.862
M8X20 W/LK&PL WASHER
|
9-01960-820-0 |
04 |
1 |
9112-9204 |
● |
● |
| |
29 |
04.595 BOLT; PARKING BRK LEVER TO BODY
12.187
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
04 |
1 |
9205-9412 |
● |
● |
| |
29 |
04.595 BOLT; PARKING BRK LEVER TO BODY
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9501- |
● |
● |
| |
60 |
04.595 GASKET; PARKING BRK
|
8-97046-789-1 |
01 |
1 |
9112- |
● |
● |
| |
64 |
04.595 NUT; PARKING BRK
16.176
M6
|
9-09110-406-0 |
01 |
1 |
9112-9208 |
● |
● |
| |
64 |
04.595 NUT; PARKING BRK
00.413
|
9-09110-506-0 |
01 |
1 |
9209-9504 |
● |
● |
| |
64 |
04.595 NUT; PARKING BRK
16.176
M6
|
9-09110-406-0 |
01 |
1 |
9505-9607 |
● |
● |
| |
64 |
04.595 NUT; PARKING BRK
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9608- |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
EXC. RR COIL & LINK SUSPENSION<6SV>
|
8-97018-159-4 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
|
8-97018-155-5 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
|
8-97018-155-5 |
01 |
1 |
9505-9607 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
|
8-97133-263-0 |
01 |
1 |
9608- |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
EXC. RR COIL & LINK SUSPENSION<6SV>
|
8-97018-160-4 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
|
8-97018-156-6 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
|
8-97018-156-6 |
01 |
1 |
9505-9607 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
SHORT(UB***C)
|
8-97133-240-0 |
01 |
1 |
9608- |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
EXC. RR COIL & LINK SUSPENSION<6SV>
|
8-97018-157-4 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
|
8-97018-153-3 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-97018-153-3 |
01 |
1 |
9505-9607 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-97133-236-0 |
01 |
1 |
9608- |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
WIDE TREAD SUSPENSION<7FC>
|
8-97131-203-0 |
01 |
1 |
9505- |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
EXC. RR COIL & LINK SUSPENSION<6SV>
|
8-97018-158-4 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
|
8-97018-154-5 |
01 |
1 |
9112-9504 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-97018-154-5 |
01 |
1 |
9505-9607 |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
EXC. WIDE TREAD SUSPENSION<7FC>
|
8-97133-237-0 |
01 |
1 |
9608- |
● |
● |
| |
72 |
04.779 CABLE; PARKING BRK
LONG(UB***F)
WIDE TREAD SUSPENSION<7FC>
|
8-97131-204-0 |
01 |
1 |
9505- |
● |
● |
| |
84 |
04.790 BOLT; CABLE
00.206
(A)
M6X16 W/LK&PL WASHER
|
9-01960-616-0 |
04 |
1 |
9112-9204 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
12.187
(A)
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
04 |
1 |
9205- |
● |
● |
| |
84 |
04.790 BOLT; CABLE
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
03 |
1 |
9112-9205 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
LONG(UB***F)
EXC. RR COIL & LINK SUSPENSION<6SV>
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
03 |
1 |
9112-9205 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
LONG(UB***F)
EXC. RR COIL & LINK SUSPENSION<6SV>
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
03 |
1 |
9206-9206 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
02.559
(B)
M6X20 W/LK&PL WASHER
|
0-50140-620-0 |
01 |
1 |
9206-9504 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
SHORT(UB***C)
02.559
(B)
M6X20 W/LK&PL WASHER
|
0-50140-620-0 |
01 |
1 |
9505- |
● |
● |
| |
84 |
04.790 BOLT; CABLE
SHORT(UB***C)
EXC. RR COIL & LINK SUSPENSION<6SV>
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9112-9205 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9112-9205 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
SHORT(UB***C)
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9206-9206 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9206-9206 |
● |
● |
| |
84 |
04.790 BOLT; CABLE
08.900
(B)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9207- |
● |
● |
| |
86 |
04.785 BOLT
EXC. RR COIL & LINK SUSPENSION<6SV>
08.900
(C)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
04 |
1 |
9112-9504 |
● |
● |
| |
86 |
04.785 BOLT
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
(A)
M6X14 W/LK&PL WASHER
|
9-01960-614-0 |
01 |
1 |
9112-9204 |
● |
● |
| |
86 |
04.785 BOLT
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
08.900
(C)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
01 |
1 |
9205-9504 |
● |
● |
| |
86 |
04.785 BOLT
SHORT(UB***C)
08.900
(C)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
01 |
1 |
9505- |
● |
● |
| |
86 |
04.785 BOLT
SHORT(UB***C)
EXC. RR COIL & LINK SUSPENSION<6SV>
(A)
M6X14 W/LK&PL WASHER
|
9-01960-614-0 |
02 |
1 |
9112-9204 |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
(A)
M6X14 W/LK&PL WASHER
|
9-01960-614-0 |
02 |
1 |
9112-9204 |
● |
● |
| |
86 |
04.785 BOLT
SHORT(UB***C)
EXC. RR COIL & LINK SUSPENSION<6SV>
08.900
(C)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9205-9504 |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
08.900
(C)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9205-9504 |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
08.900
(C)
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9505- |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
00.862
(B)
M8X20 W/LK&PL WASHER
|
9-01960-820-0 |
01 |
1 |
9112-9204 |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
12.187
(B)
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
01 |
1 |
9205-9412 |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
02.664
(B)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9501-9504 |
● |
● |
| |
86 |
04.785 BOLT
LONG(UB***F)
02.664
(B)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9505- |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
RR COIL & LINK SUSPENSION<6SV>
(A)
ID=14
|
9-09916-883-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
(A)
ID=14
|
9-09916-883-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
(A)
ID=14
|
9-09916-883-0 |
01 |
1 |
9505-9607 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
WIDE TREAD SUSPENSION<7FC>
(A)
ID=14
|
9-09916-883-0 |
01 |
1 |
9505-9607 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
(A)
ID=14
|
9-09916-883-0 |
01 |
1 |
9505-9607 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
(A)
ID=14
|
9-09916-883-0 |
01 |
1 |
9608- |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
EXC. RR COIL & LINK SUSPENSION<6SV>
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9112-9206 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
SHORT(UB***C)
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9112-9206 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
SHORT(UB***C)
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9207-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
EXC. RR COIL & LINK SUSPENSION<6SV>
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9207-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
EXC. RR COIL & LINK SUSPENSION<6SV>
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9207-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
SHORT(UB***C)
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9505-9607 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
(A)
ID=14
|
9-09916-883-0 |
02 |
1 |
9608- |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
EXC. RR COIL & LINK SUSPENSION<6SV>
(C)
|
8-94126-640-1 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
EXC. RR COIL & LINK SUSPENSION<6SV>
(C)
|
8-94126-639-1 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
SHORT(UB***C)
RR COIL & LINK SUSPENSION<6SV>
(D)
|
8-97035-577-1 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
SHORT(UB***C)
(D)
|
8-97035-577-1 |
01 |
1 |
9505-9607 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
SHORT(UB***C)
(D)
|
8-97133-304-0 |
01 |
1 |
9608- |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
04.681
(A)
ID=18
|
8-94147-060-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
EXC. WIDE TREAD SUSPENSION<7FC>
04.681
(A)
ID=18
|
8-94147-060-0 |
01 |
1 |
9505-9607 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
(D)
|
8-97021-566-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
(D)
|
8-97021-566-0 |
01 |
1 |
9505- |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
RR COIL & LINK SUSPENSION<6SV>
(B)
|
8-97021-739-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
(B)
|
8-97021-739-0 |
01 |
1 |
9505-9603 |
● |
● |
| |
91 |
04.785 CLIP; PARKING BRK CABLE
LONG(UB***F)
(B)
|
8-97146-506-0 |
01 |
1 |
9604- |
● |
● |
| |
130 |
04.591 COVER; DUST,PARK BRK LEVER
|
8-97046-804-1 |
01 |
1 |
9112-9607 |
● |
● |
| |
130 |
04.591 COVER; DUST,PARK BRK LEVER
|
8-97142-954-0 |
01 |
1 |
9608- |
● |
● |
| |
135 |
04.591 BOLT; PARKING BRK BRKT
00.206
M6X20 W/LK&PL WASHER
|
9-01960-620-0 |
03 |
1 |
9112-9204 |
● |
● |
| |
135 |
04.591 BOLT; PARKING BRK BRKT
02.559
M6X20 W/LK&PL WASHER
|
0-50140-620-0 |
03 |
1 |
9205-9312 |
● |
● |
| |
135 |
04.591 BOLT; PARKING BRK BRKT
08.143
M6X16 W/PL WASHER
|
8-94204-636-0 |
03 |
1 |
9401- |
● |
● |
| |
223 |
04.785 CLIP; PARKING BRK CABLE
RR COIL & LINK SUSPENSION<6SV>
|
8-94387-628-1 |
01 |
1 |
9112-9504 |
● |
● |
| |
223 |
04.785 CLIP; PARKING BRK CABLE
|
8-94387-628-1 |
01 |
1 |
9505- |
● |
● |
| |
223 |
04.785 CLIP; PARKING BRK CABLE
RR COIL & LINK SUSPENSION<6SV>
|
8-94387-627-1 |
01 |
1 |
9112-9504 |
● |
● |
| |
223 |
04.785 CLIP; PARKING BRK CABLE
|
8-94387-627-1 |
01 |
1 |
9505- |
● |
● |
| |
224 |
04.785 BOLT; CABLE CLIP
RR COIL & LINK SUSPENSION<6SV>
08.900
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9112-9504 |
● |
● |
| |
224 |
04.785 BOLT; CABLE CLIP
08.900
M6X14 W/LK&PL WASHER
|
0-50140-614-0 |
02 |
1 |
9505- |
● |
● |
| |
248 |
04.591 PIN; JOINT,LEVER
04.792
|
8-94139-964-0 |
01 |
1 |
9112-9607 |
● |
● |
| |
249 |
04.591 WASHER; PL,LEVER
16.674
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9112-9607 |
● |
● |
| |
250 |
04.591 PIN; SPLIT,LEVER
04.634
L=27.7
|
8-94157-841-0 |
01 |
1 |
9112-9607 |
● |
● |
| |
252 |
04.591 WASHER; LK,LEVER
04.037
ID=8.5 T=0.3
|
5-09509-001-0 |
01 |
1 |
9112-9607 |
● |
● |
| |
284 |
04.595 ROD; HAND BRK
|
8-97046-792-1 |
01 |
1 |
9112-9607 |
● |
● |
| |
284 |
04.595 ROD; HAND BRK
|
8-97142-955-1 |
01 |
1 |
9608- |
● |
● |
| |
289 |
04.594 NUT; PARKING BRK
16.176
M6
|
9-09110-406-0 |
01 |
1 |
9112-9208 |
● |
● |
| |
289 |
04.594 NUT; PARKING BRK
00.413
M6
|
9-09110-506-0 |
01 |
1 |
9209-9302 |
● |
● |
| |
289 |
04.594 NUT; PARKING BRK
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9303-9607 |
● |
● |
| |
289 |
04.594 NUT; PARKING BRK
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9608- |
● |
● |
| |
324 |
04.785 BRACKET
16.545
(A)
|
8-97801-525-0 |
02 |
1 |
9112-9406 |
● |
● |
| |
324 |
04.785 BRACKET
SHORT(UB***C)
16.545
(A)
|
8-97801-525-0 |
01 |
1 |
9407- |
● |
● |
| |
324 |
04.785 BRACKET
SHORT(UB***C)
16.545
(B)
|
8-97803-500-0 |
01 |
1 |
9112- |
● |
● |
| |
324 |
04.785 BRACKET
LONG(UB***F)
16.545
(A)
|
8-97801-525-0 |
02 |
1 |
9407- |
● |
● |
| |
325 |
04.785 PROTECTOR; SPLASH
|
8-97035-387-0 |
01 |
1 |
9112-9407 |
● |
● |
| |
326 |
04.785 RETAINER; PARK CABLE
|
8-97024-708-0 |
01 |
1 |
9112- |
● |
● |
| |
327 |
04.785 BOLT; RETAINER
04.104
M8X25 W/LK&PL WASHER
|
9-01960-825-0 |
01 |
1 |
9112-9204 |
● |
● |
| |
327 |
04.785 BOLT; RETAINER
02.510
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
01 |
1 |
9205-9412 |
● |
● |
| |
327 |
04.785 BOLT; RETAINER
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9501- |
● |
● |
